Horizontal Table-Type Machines

Table-type boring & milling machines with cross-wise table movement, designed for machining of small and medium-size workpieces of up to 50 tons.

5 models in this category

Compact line

Table-type boring and milling machines in the compact 10/11 to 13/15 size class.

wfc-10-11 — FERMAT model

WFC 10/11 (L)

The WFC 10 is a cross-type horizontal boring and milling machine for single-setup work on workpieces up to 5 tonnes, built for shops with limited floor space and suited to serial production. The column stays fixed while the workpiece travels in both axes, so the machine keeps the rigidity of a fully cast-iron structure — CNC rotary table included, driven by two servomotors — in a smaller footprint than a comparable floor-type. Headstock, column, beds, tables and heads are all designed and built by FERMAT in-house, which keeps accuracy repeatable and spares on the shelf.

Learn more
Spindle Ø
100/110 mm
X-axis travel
1250/2000 mm
Y-axis travel
1250/1700/2000 mm
Z-axis travel
1250 / 1500 mm
Quill (W-axis)
730 mm
Ram (V-axis)
—
Table load
5000 kg
Table size
1000×1120 / 1250×1400 / 1250×1800 / 1400×1600 / 1400×1800 mm
wft-10-11 — FERMAT model

WFT 10/11 (L)

The WFT 11 is a table-type horizontal boring and milling machine for parts too heavy to move once clamped, such as long weldments and complex welded frames. The column travels in Z on its own carriage while the rotary table carries the part across it. Table load is 10 000 kg as standard, or 20 000 kg with the optional longer X axis (3, 4 or 5 m); a pallet change system is available to keep the spindle cutting while the next part is set up. Headstock, column, beds and tables are designed and built by FERMAT in-house, keeping accuracy repeatable and spares on the shelf.

Learn more
Spindle Ø
100/110 mm
X-axis travel
2000/3000 mm
Y-axis travel
1250/1700/2000 mm
Z-axis travel
1250/1700 / 1500 mm
Quill (W-axis)
730 mm
Ram (V-axis)
—
Table load
10000 kg
Table size
1200×1200 / 1200×1400 / 1400×1600 / 1600×1600 / 1400×1800 / 1600×1800 mm

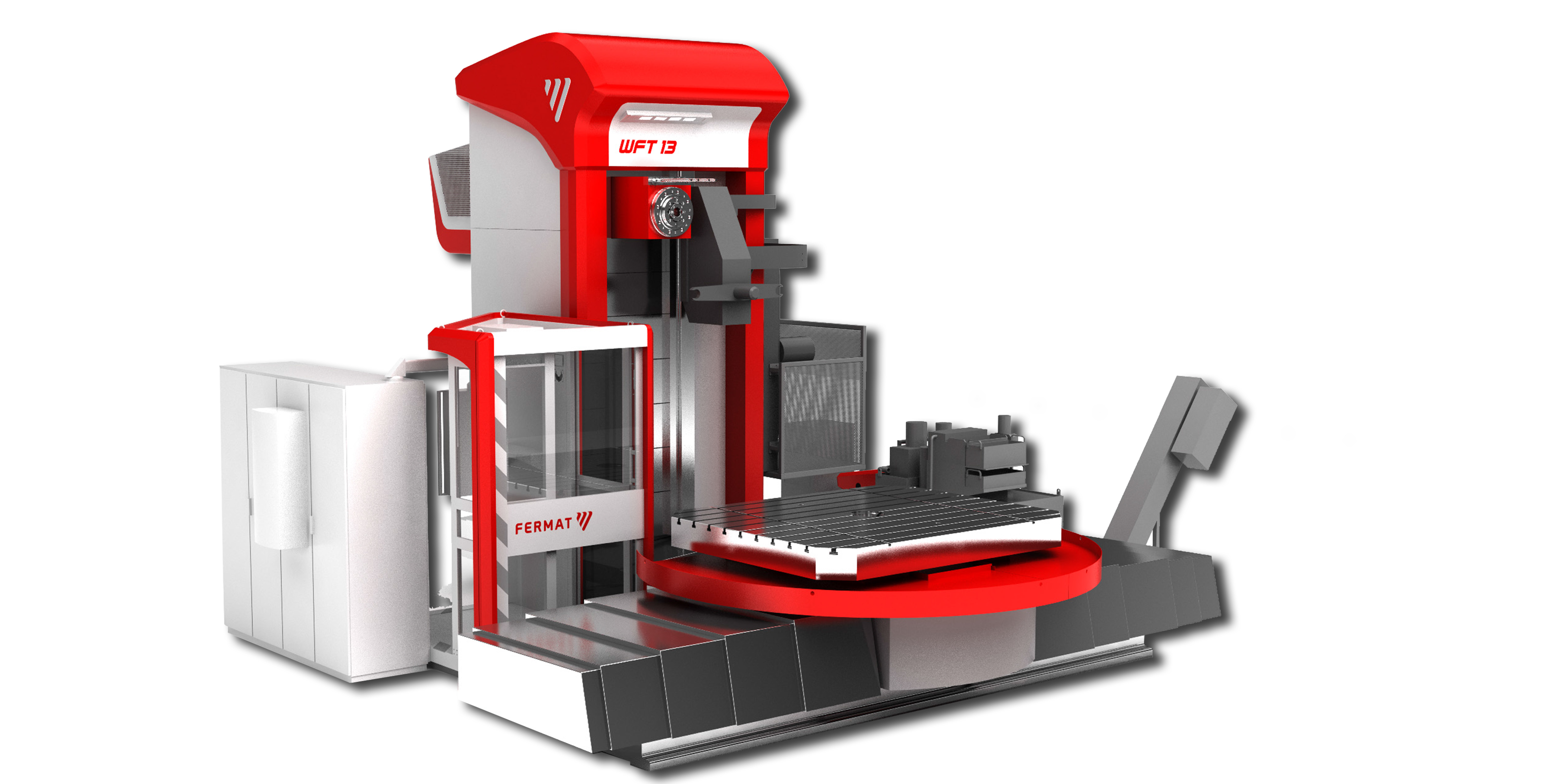

wft-13-15 — FERMAT model

WFT 13/15 (R,L)

The WFT 13 is FERMAT’s heavy table-type horizontal boring and milling machine for workpieces up to 20 tonnes, heavier than most machine tools handle. The R version adds a 700 mm ram stroke in the V axis for extra reach; the L version runs on linear guideways instead of box ways. Rigidity comes from grey cast-iron castings annealed before machining; productivity comes from pallet changing, tool magazines to 189 positions, and continuously positioned 5-axis heads for angles an indexed head cannot hit exactly. Every main component is designed and manufactured by FERMAT in-house.

Learn more
Spindle Ø
130 / 150 mm
X-axis travel
2000/3000/4000/5000/6000 mm
Y-axis travel
2000/2500/3000/3500 mm
Z-axis travel
1500/2000/2500/3000 mm
Quill (W-axis)
800 mm
Ram (V-axis)
700 mm
Table load
20000 kg
Table size
1600×1800 / 1800×2200 / 1800×2600 / 2000×2400 / 2500×2500 / 2000×3000 mm

Standard line

The WPT 10/11 and WPT 13/15 table-type boring and milling machines.

WPT 10/11 Photo coming soon

WPT 10/11

Compact, value-engineered boring mill — the accessible entry into FERMAT quality for general machining and a fast return on investment.

Learn more
Spindle Ø
110 mm
X-axis travel
2000/3000 mm
Y-axis travel
2000 mm
Z-axis travel
1100/1500 mm
Quill (W-axis)
730 mm
Ram (V-axis)
—
Table load
10000 kg
Table size
1500×1500 mm
WPT 13/15 Photo coming soon

WPT 13/15

The WPT 13/15 is a table-type horizontal boring and milling machine in the 13/15 size class, from FERMAT's Standard line.

Learn more
Spindle Ø
130/150 mm
X-axis travel
4000 mm
Y-axis travel
2500 mm
Z-axis travel
1500/2000 mm
Quill (W-axis)
800 mm
Ram (V-axis)
—
Table load
20000 kg
Table size
1800×2200 / 1800×2600 mm

Not sure which horizontal table-type machines model fits your application?

Our engineers will spec the right configuration for your specific production requirements.
