Technical Analysis of Portal Construction and Kinematics

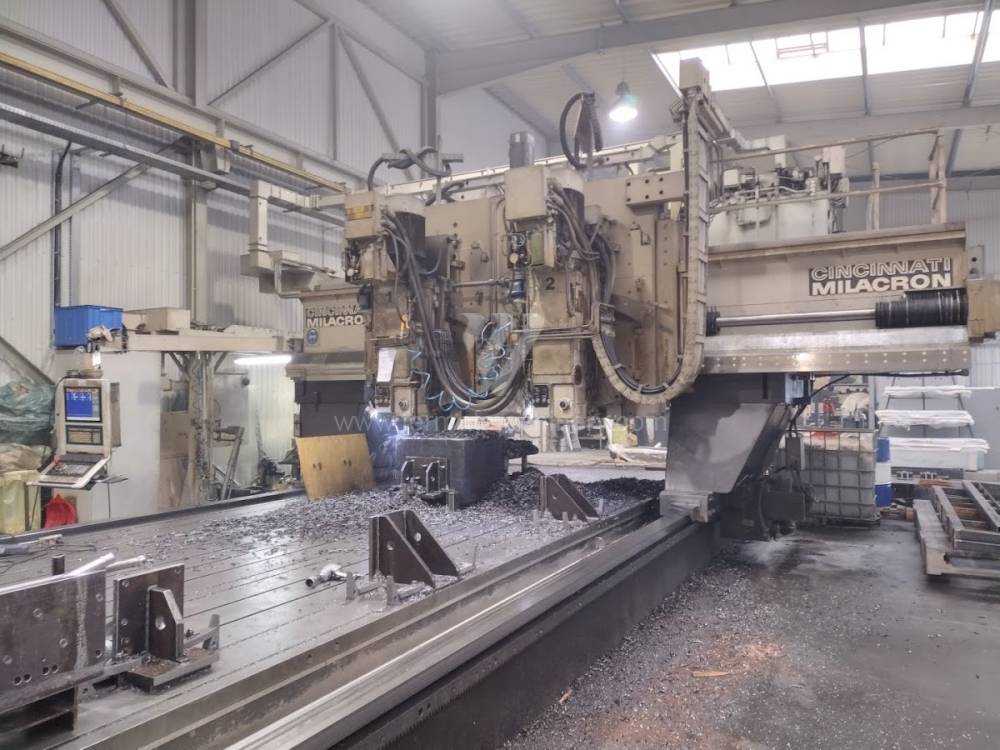

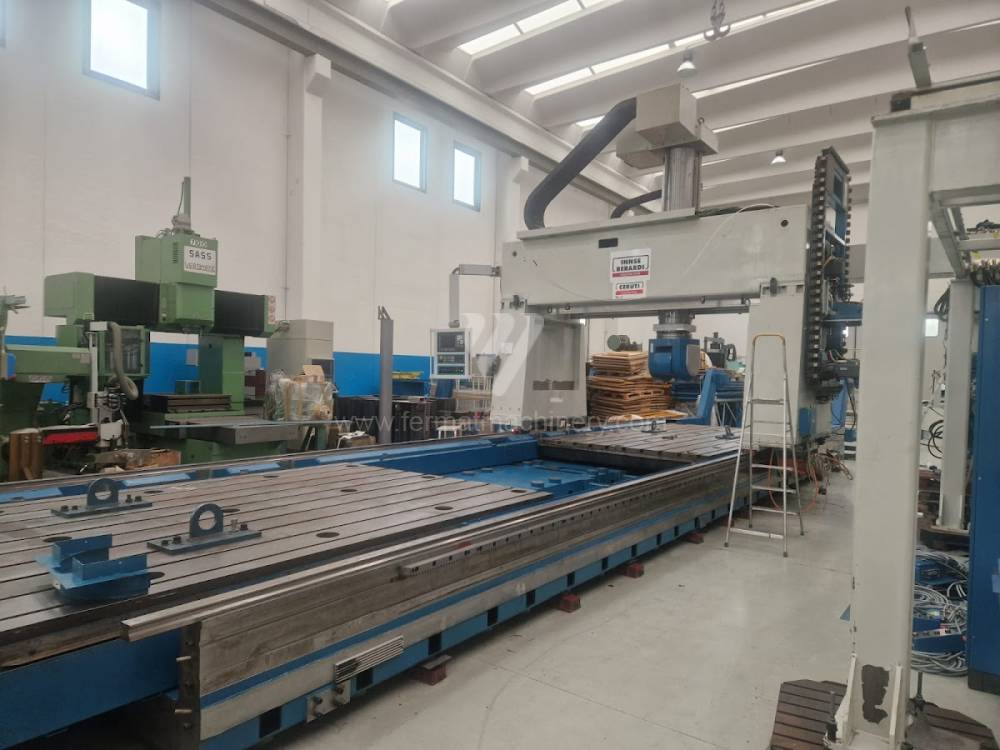

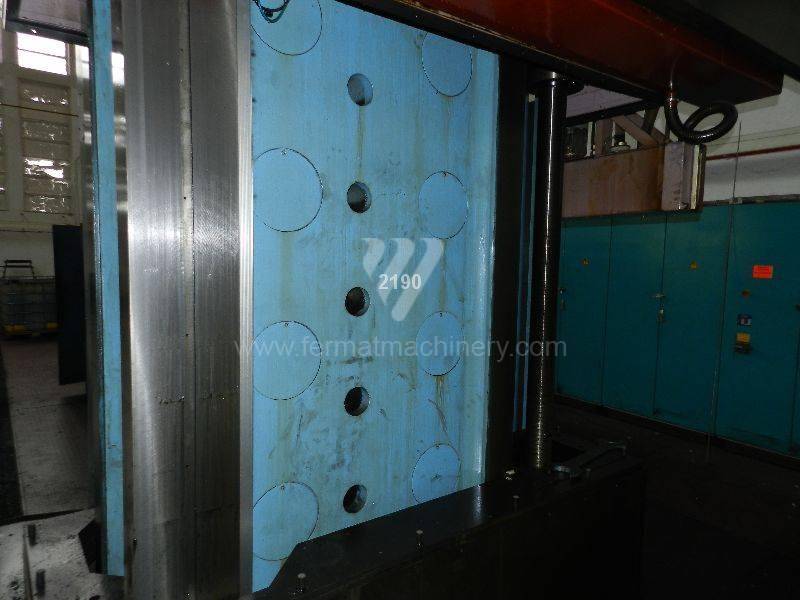

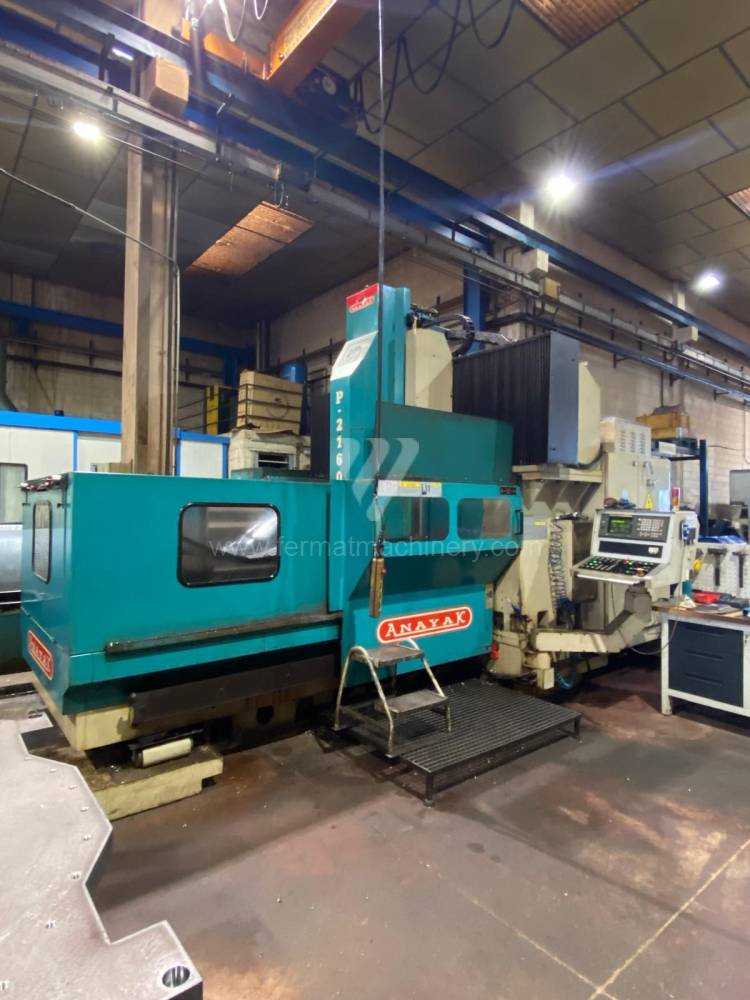

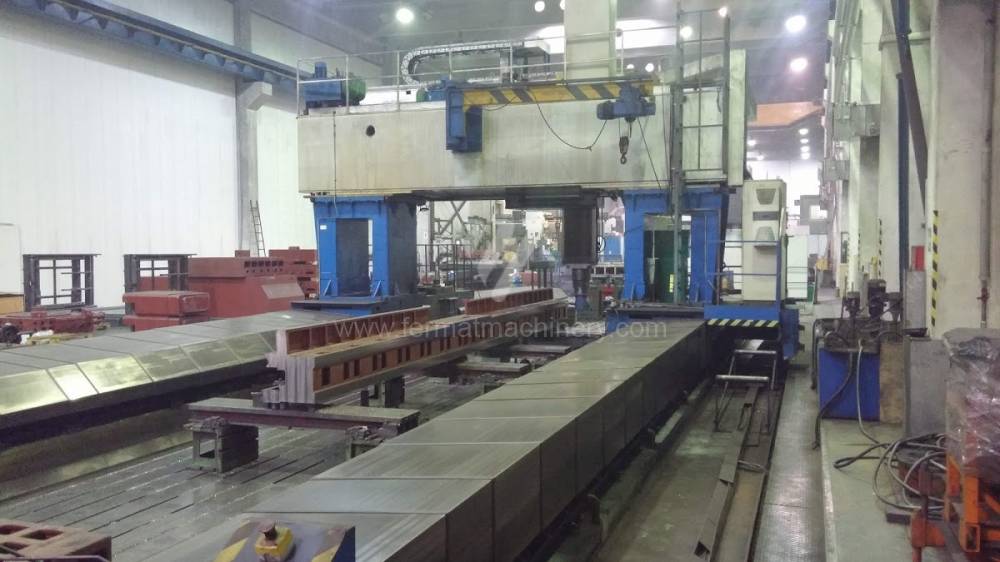

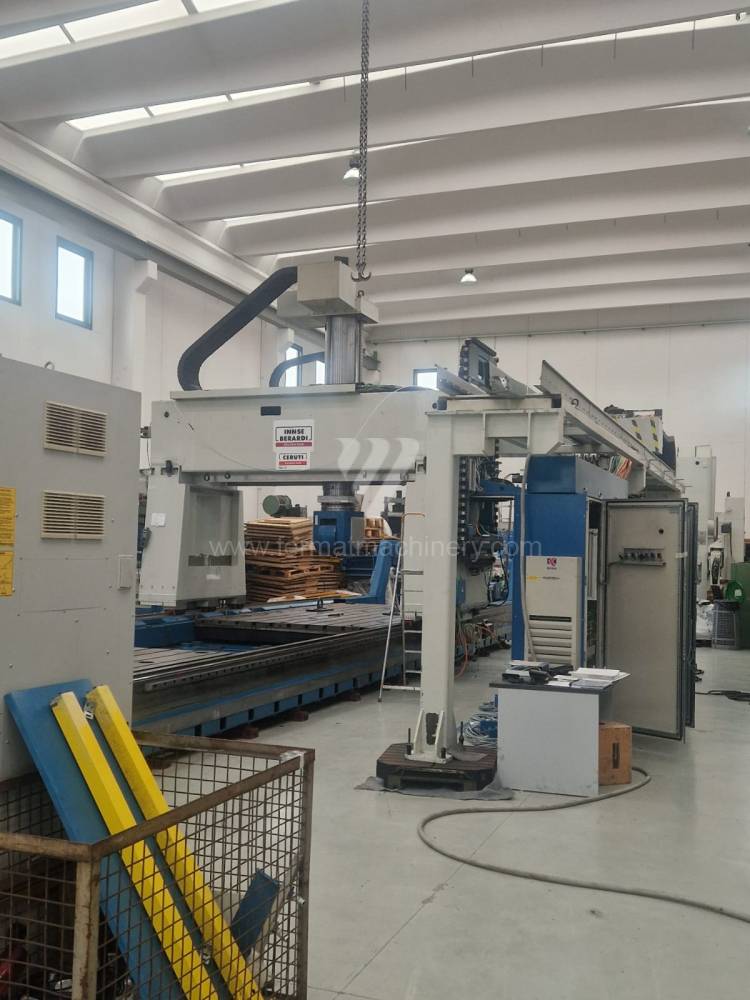

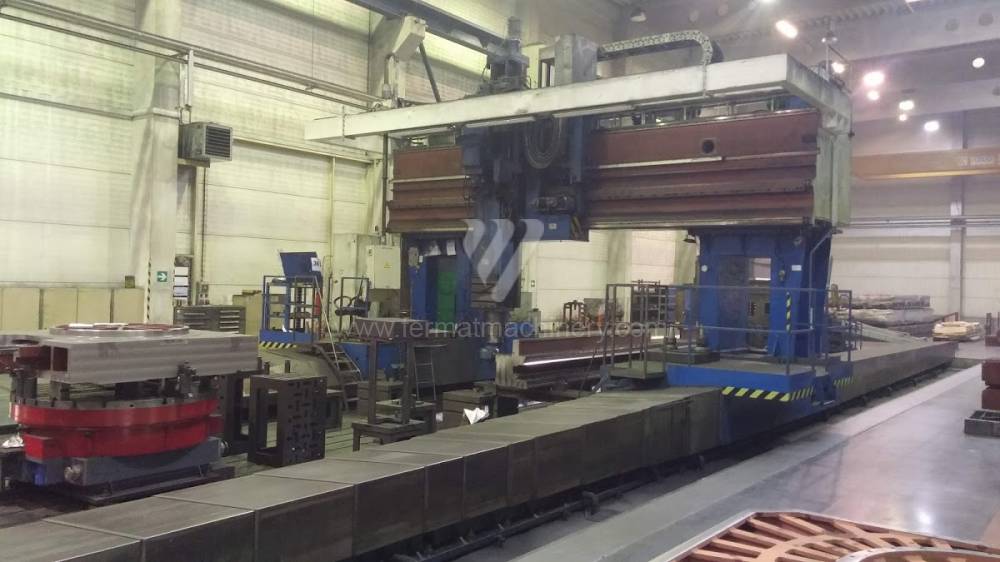

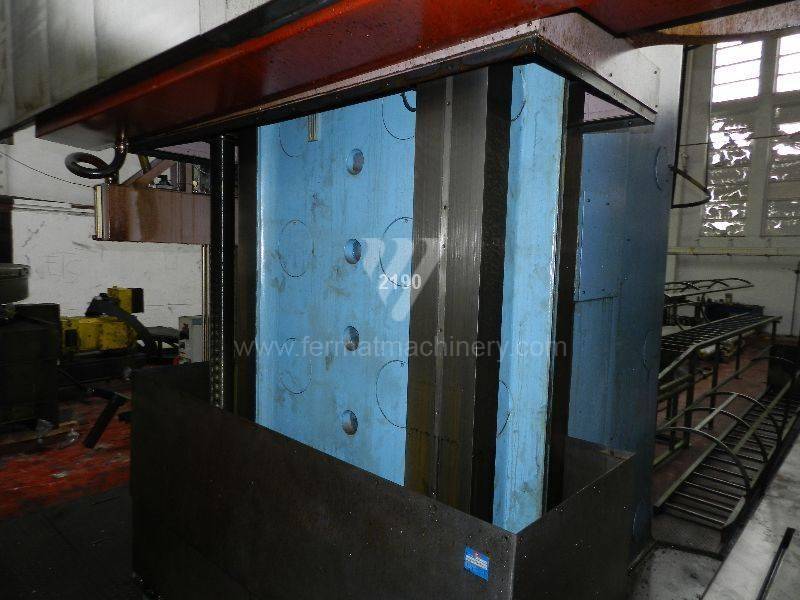

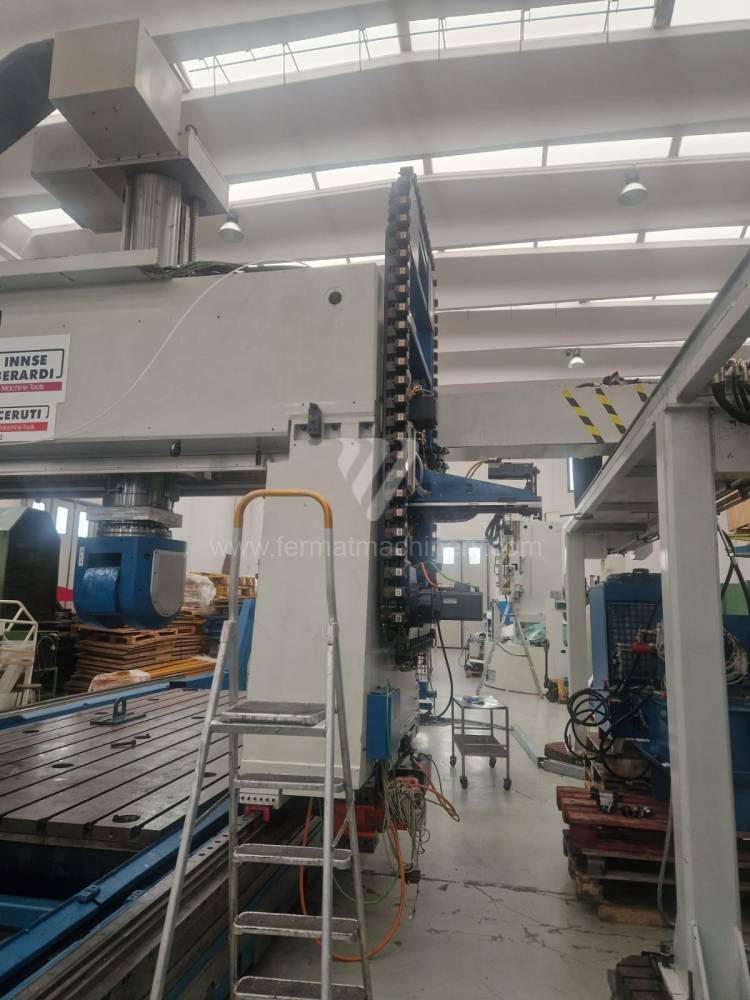

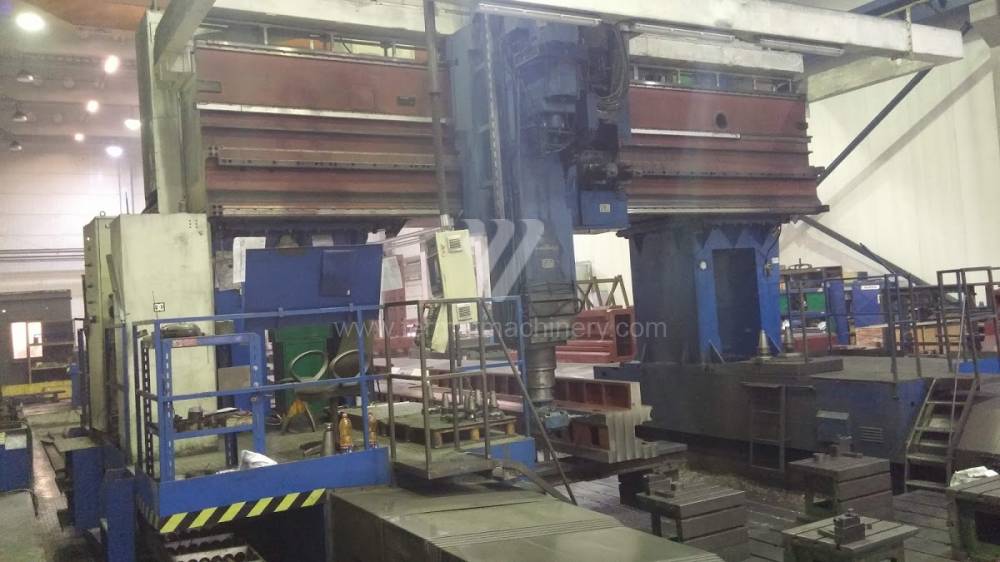

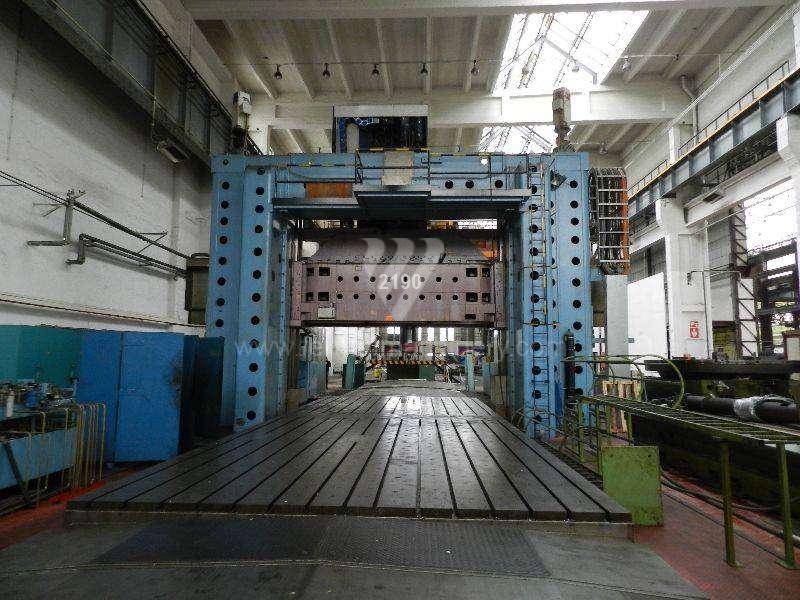

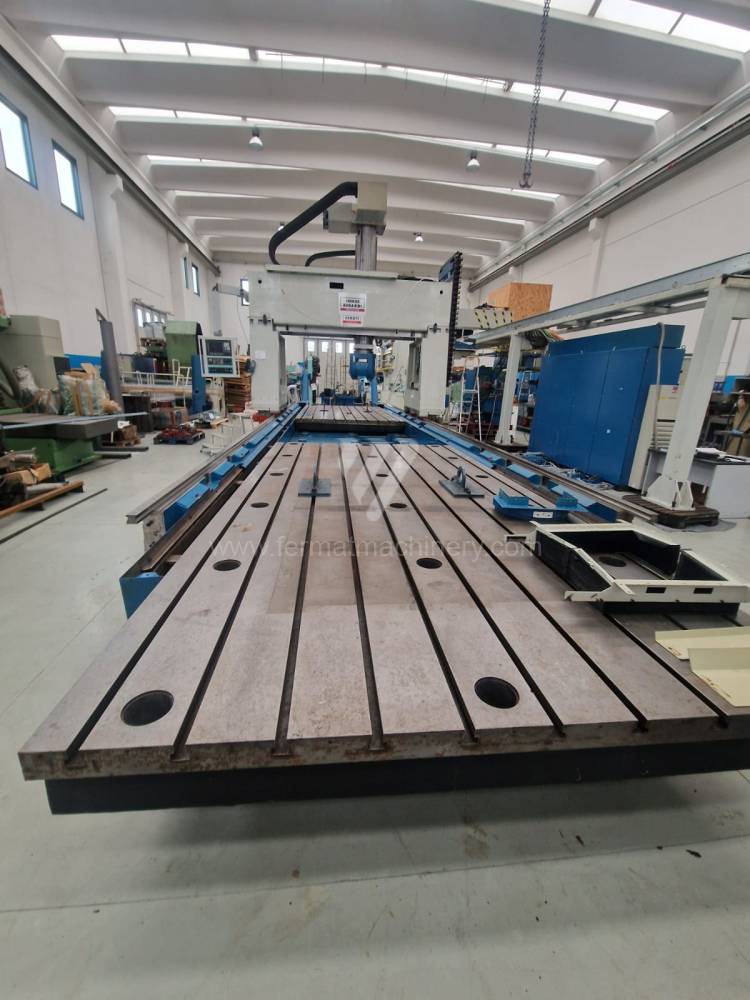

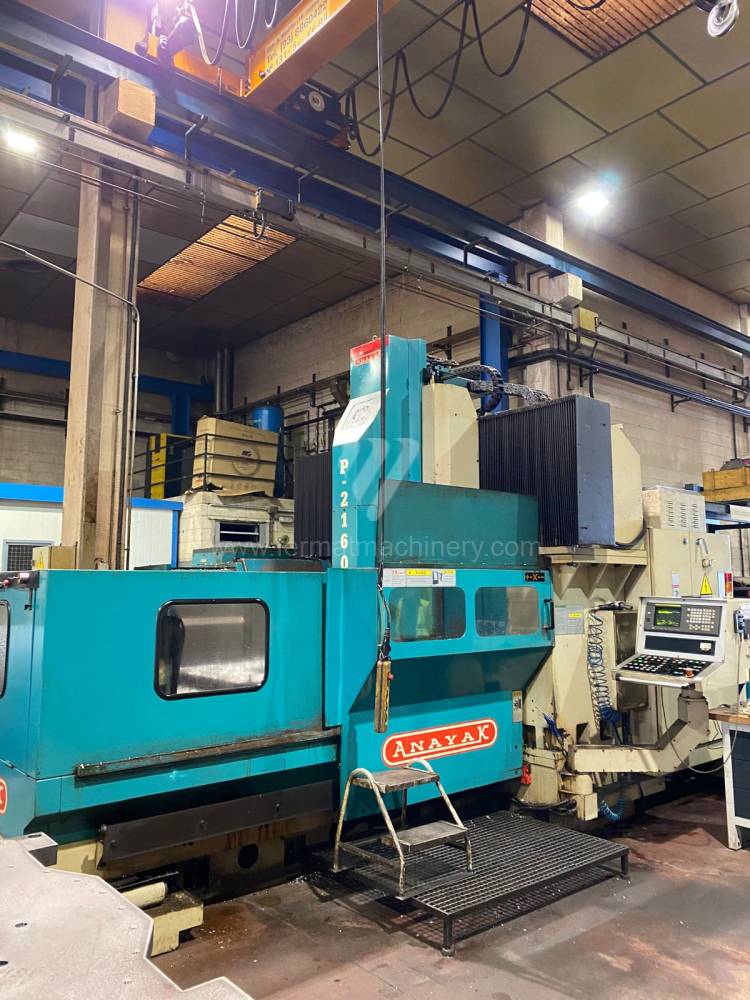

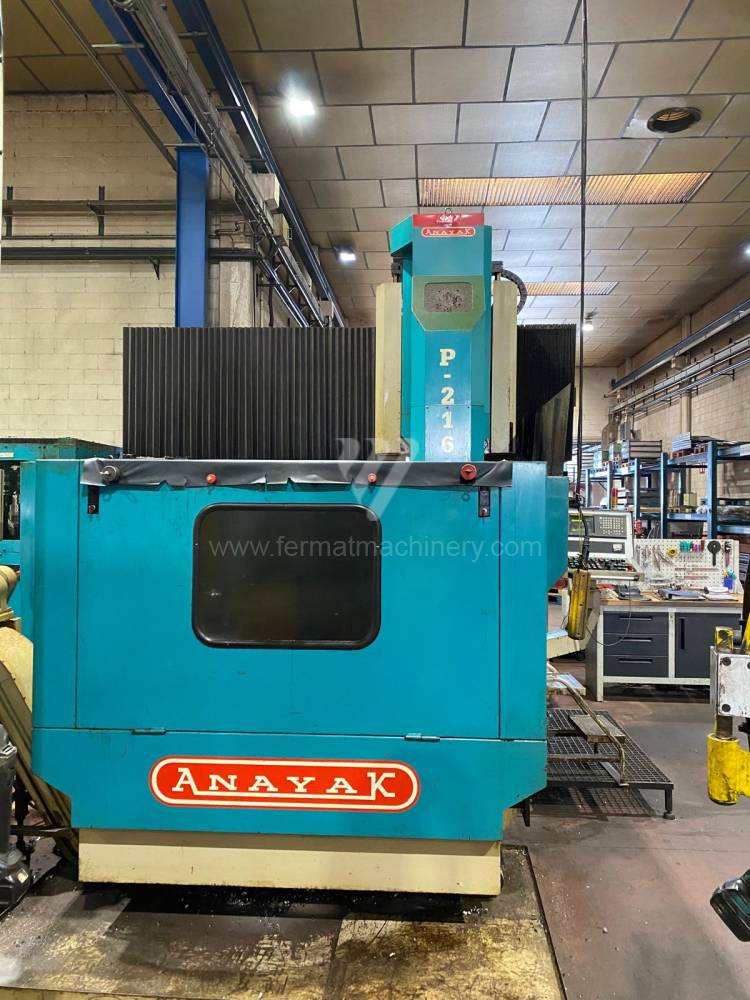

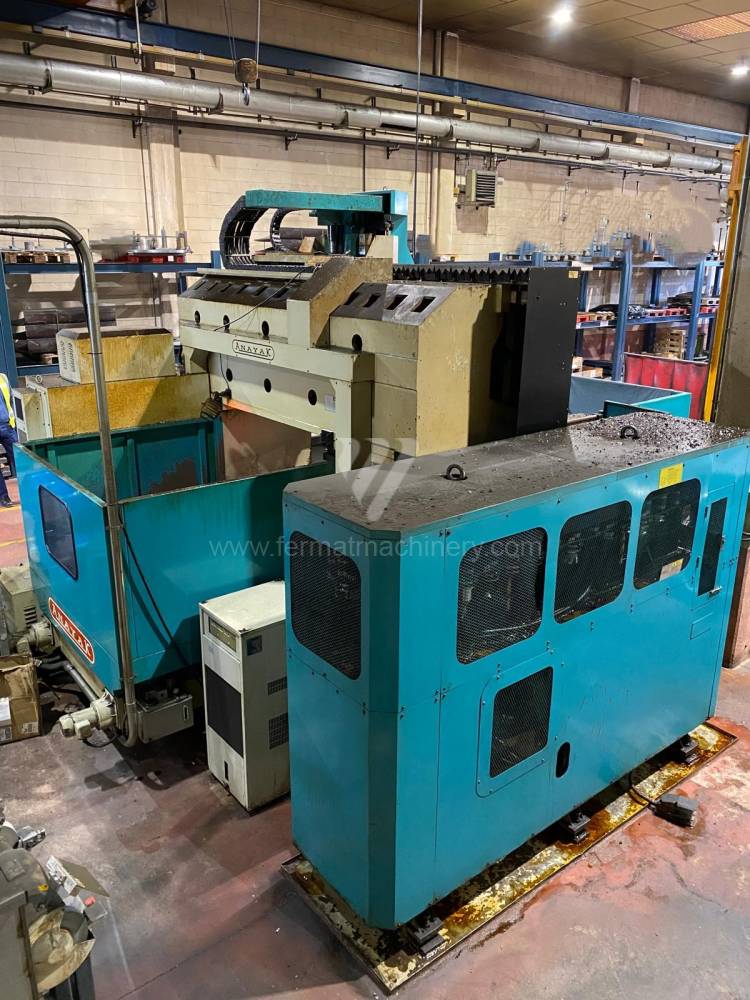

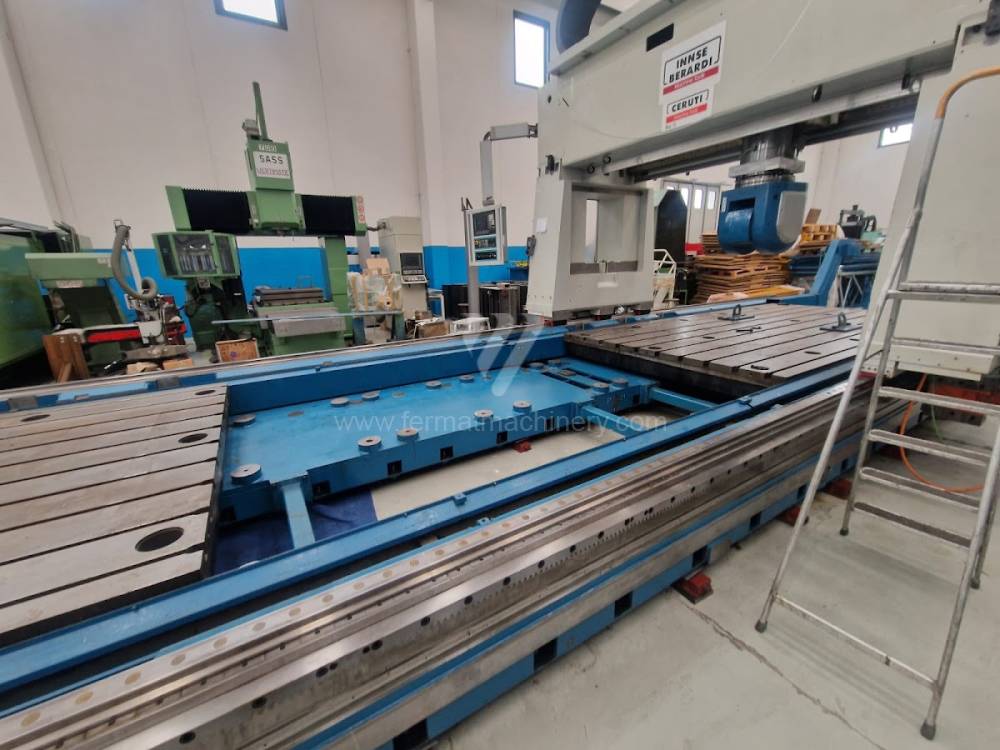

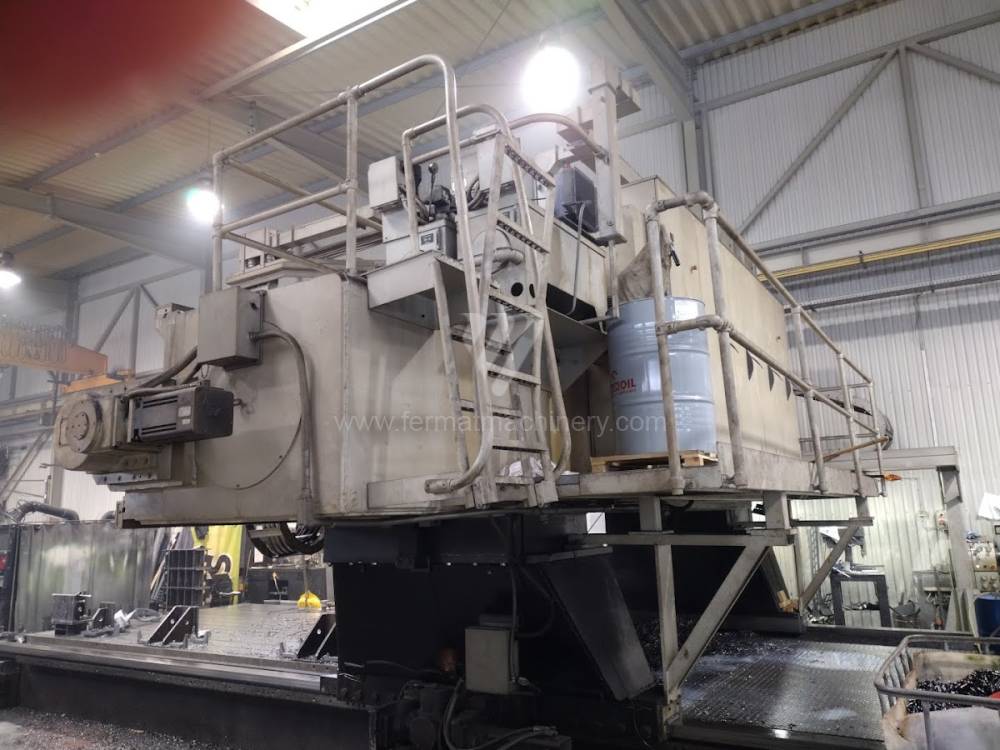

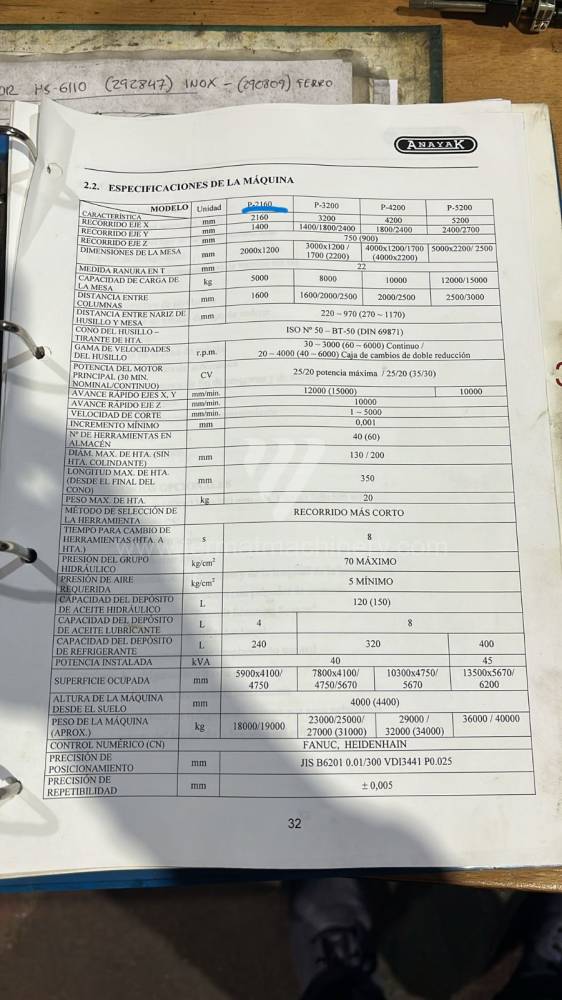

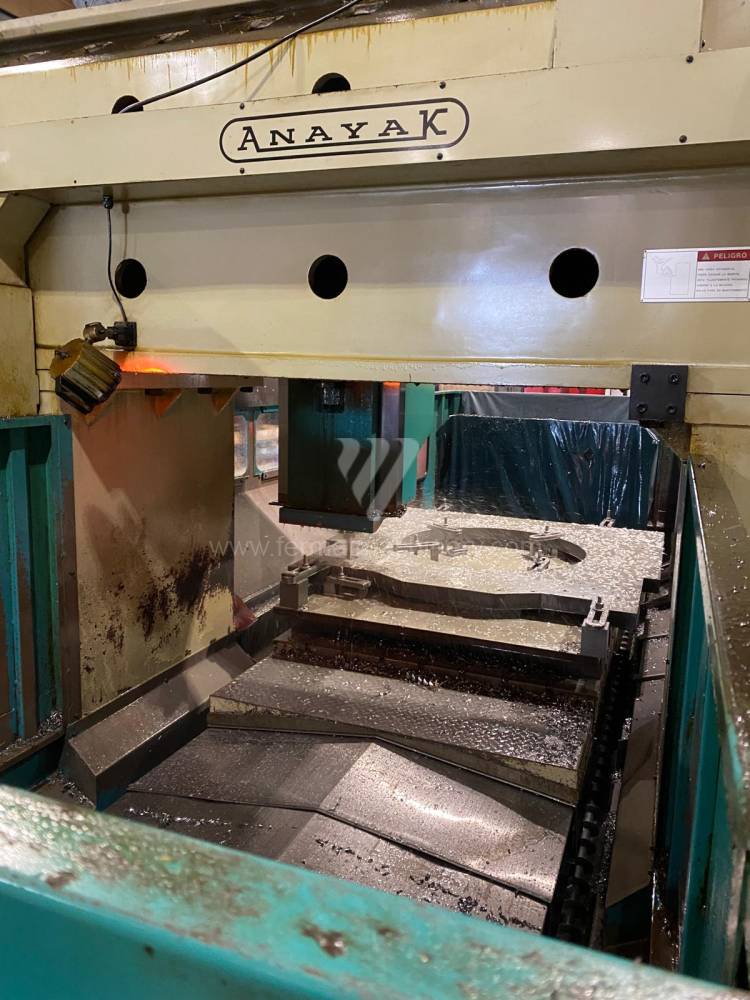

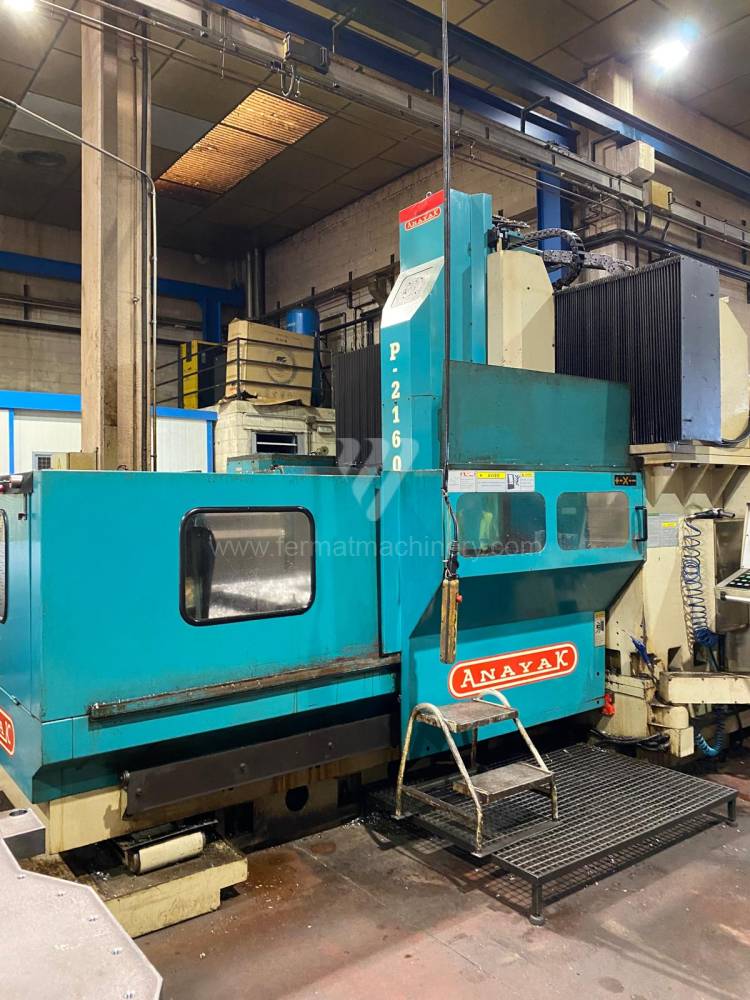

For portal milling centers (gantry or bridge-type), the key factor is the closed force circuit that this construction naturally creates. Unlike machines with a traveling column, the portal concept minimizes crossrail deflection when the spindle head is loaded in the Y and Z axes. In used machines from the FERMAT portfolio, emphasis is placed on the mechanical integrity of the column-to-bed connection, which directly defines the ability to absorb cutting forces during the roughing of large-format workpieces.

Key Technological Units of Portal Systems:

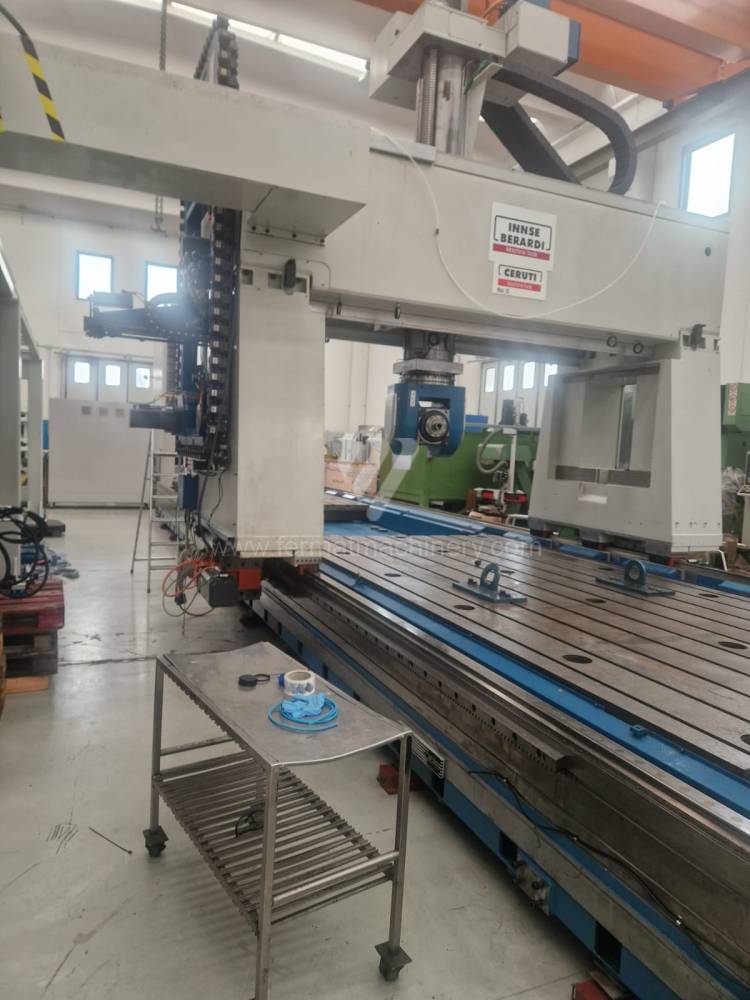

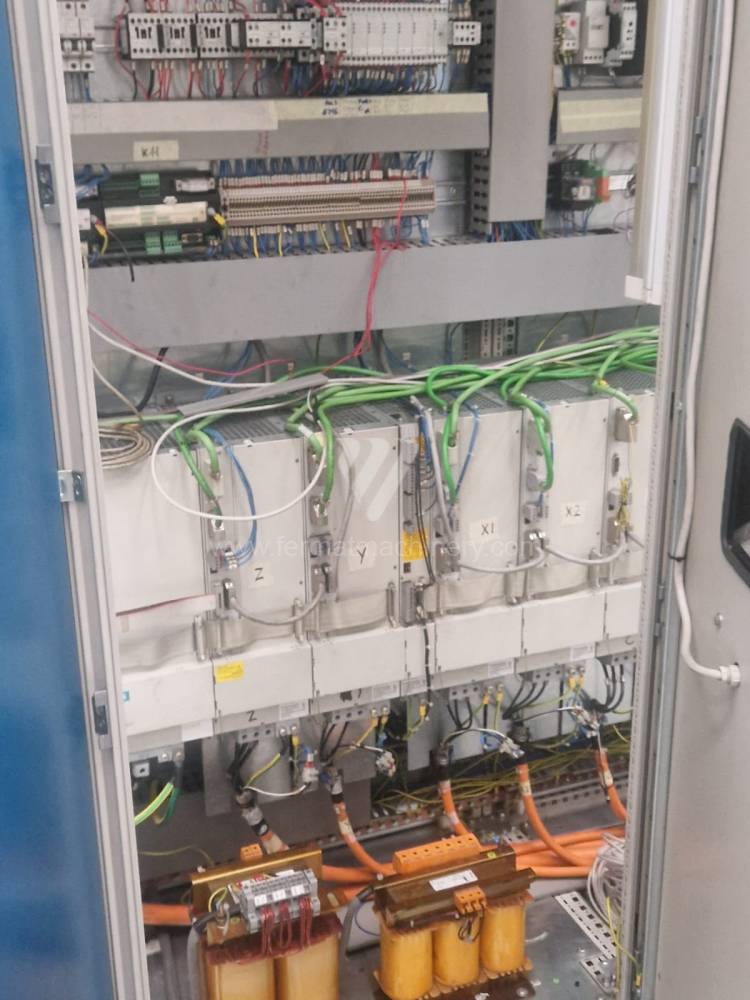

• Gantry Synchronization (X-axis): The use of two synchronized drives (Master-Slave) eliminates portal crabbing and ensures constant dynamic accuracy even with high masses of moving parts.

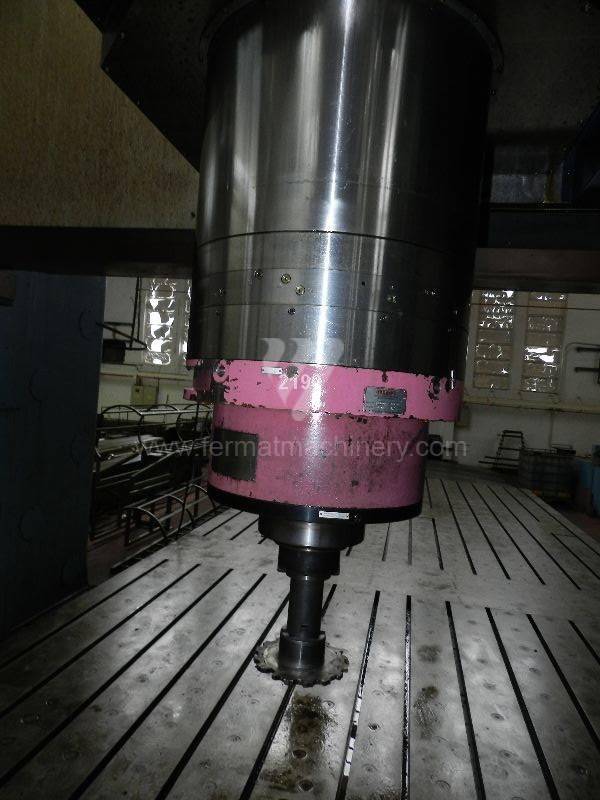

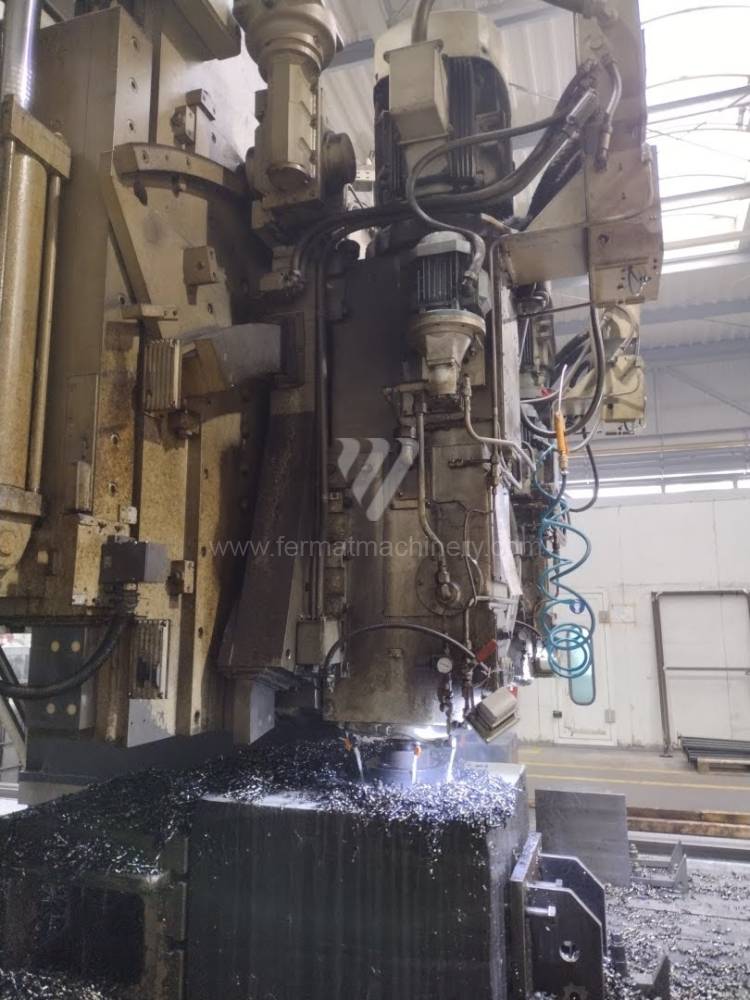

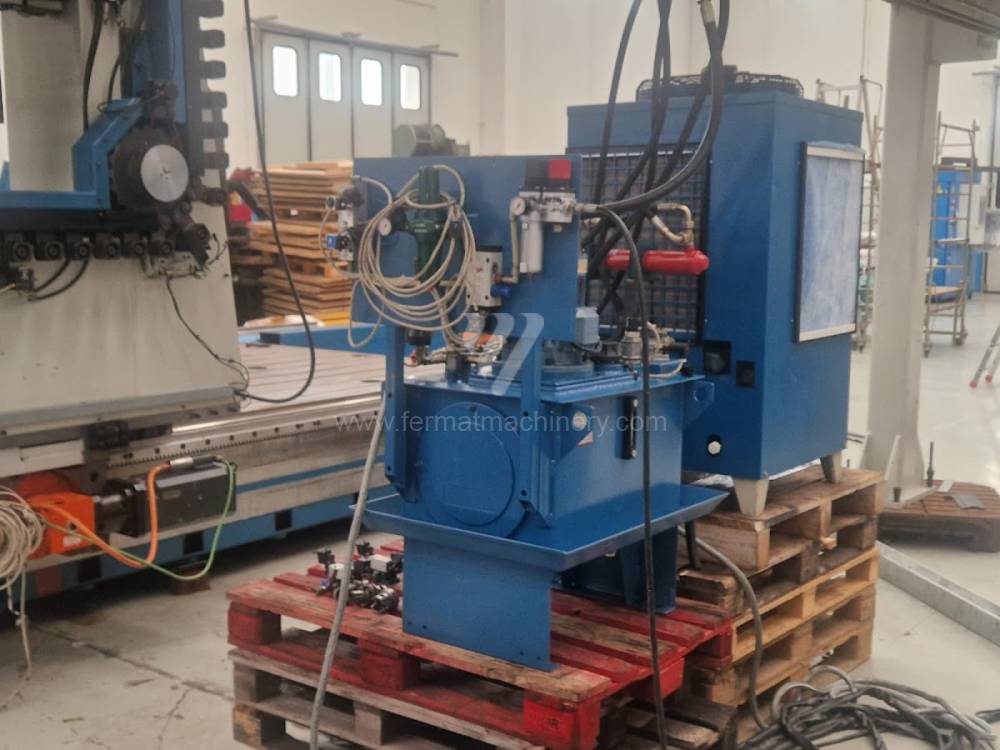

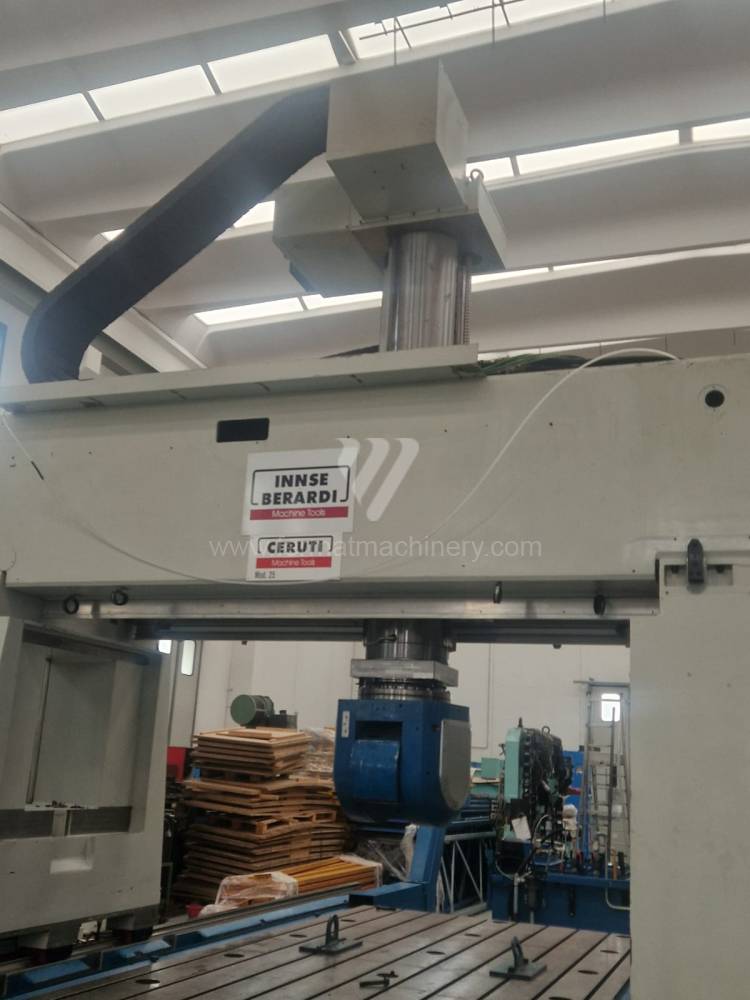

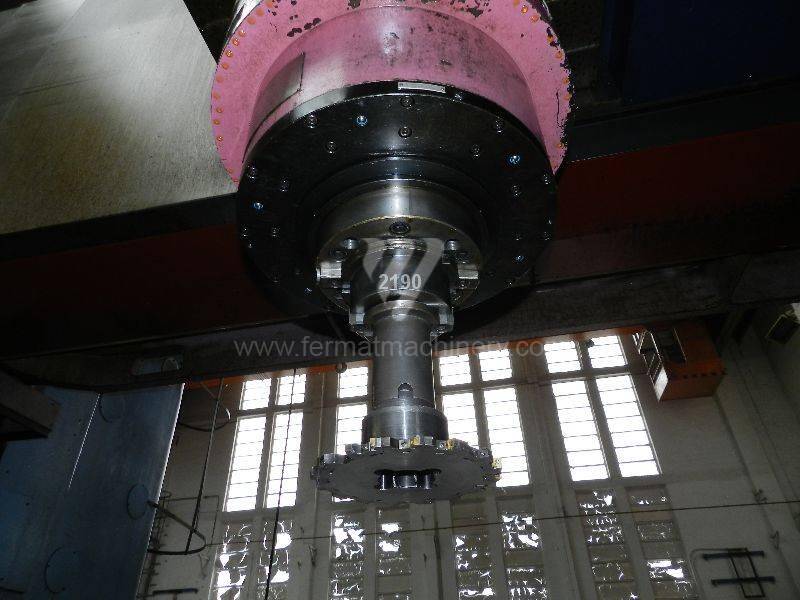

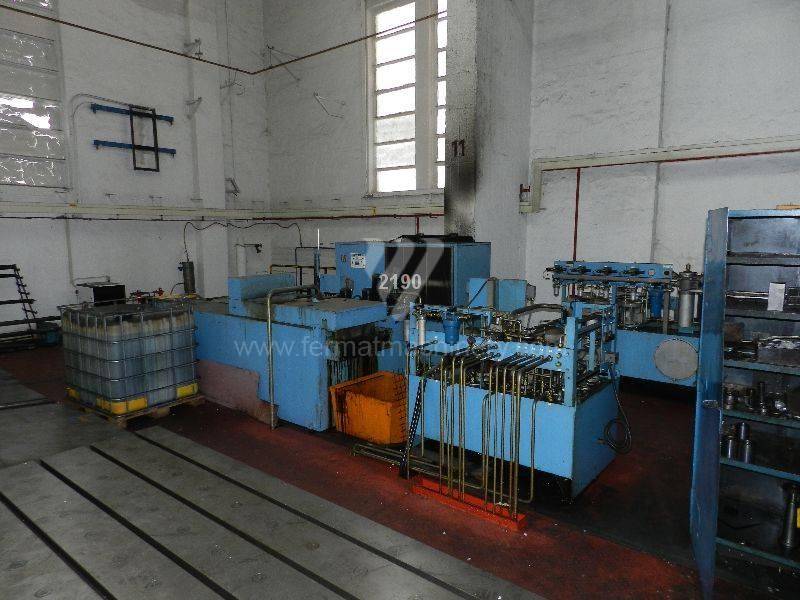

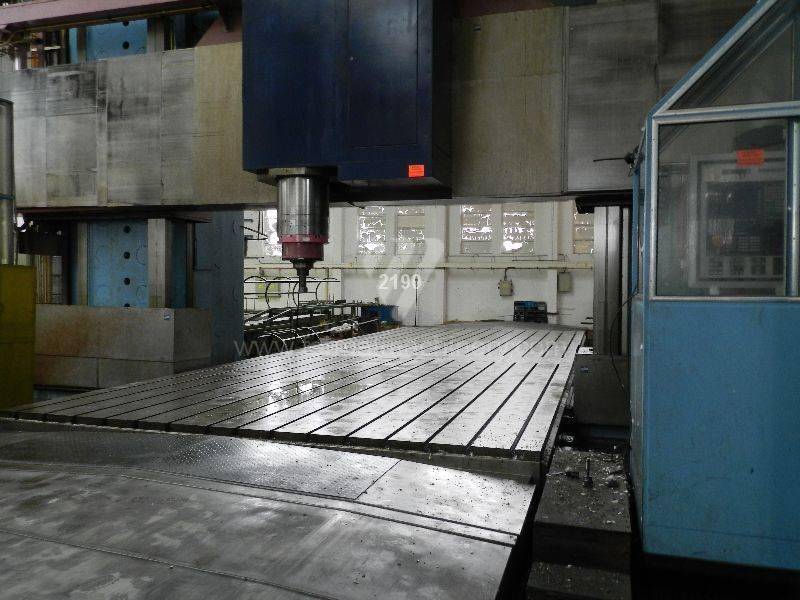

• Spindle Head and Ram Stiffness: The design of the Ram with hydrostatic or rolling guides, which determines the limit depth of cut (Ap) without harmonic vibrations.

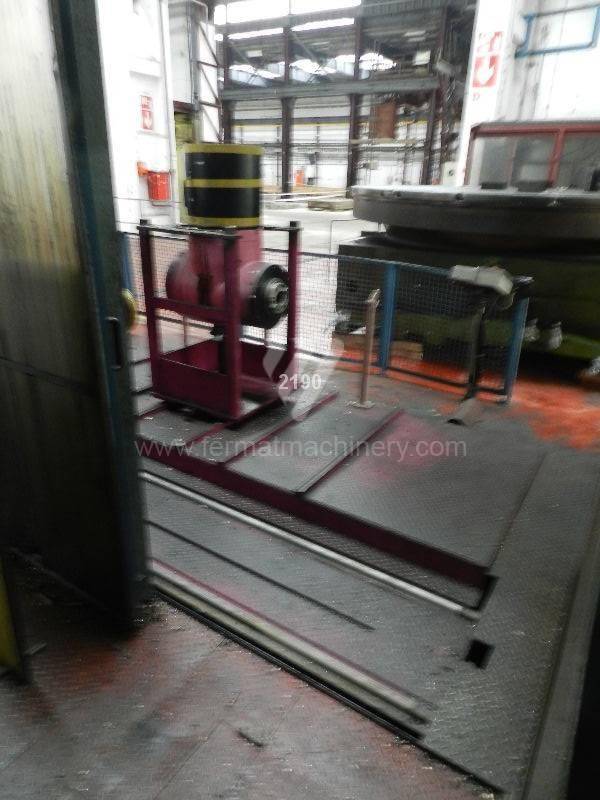

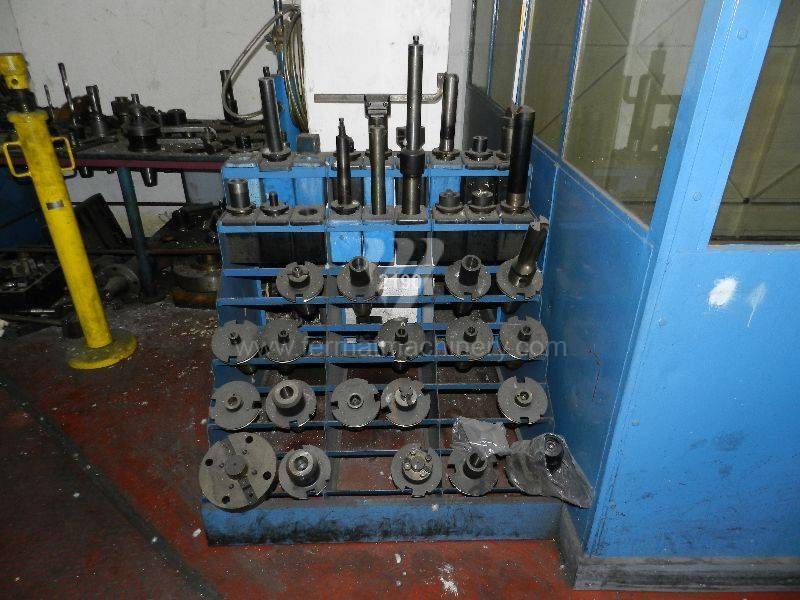

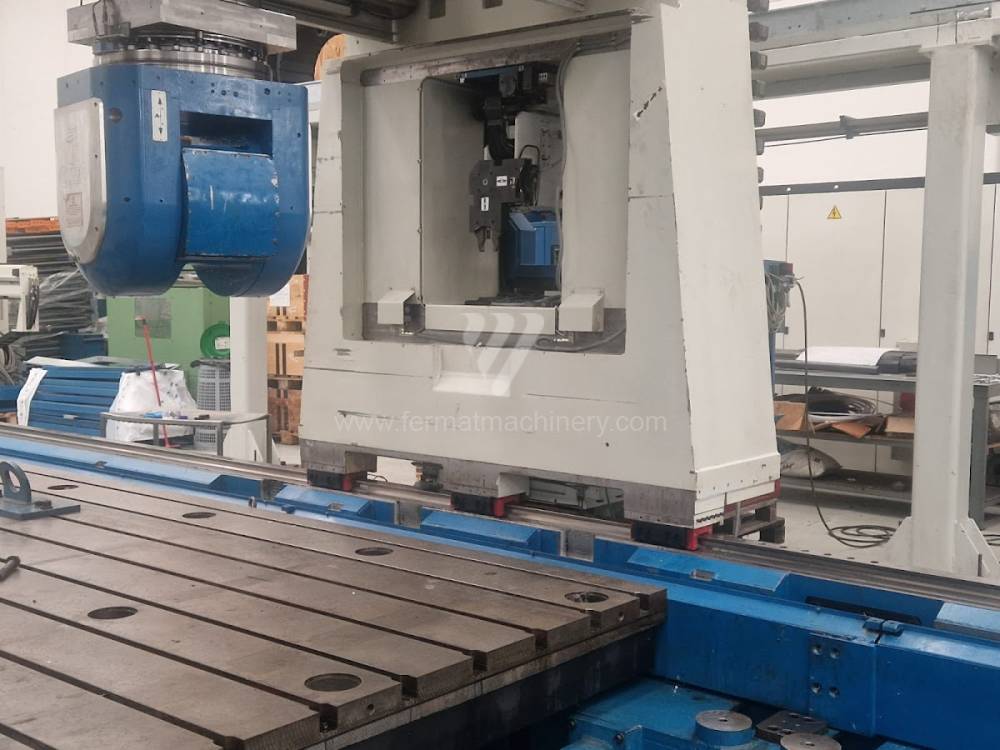

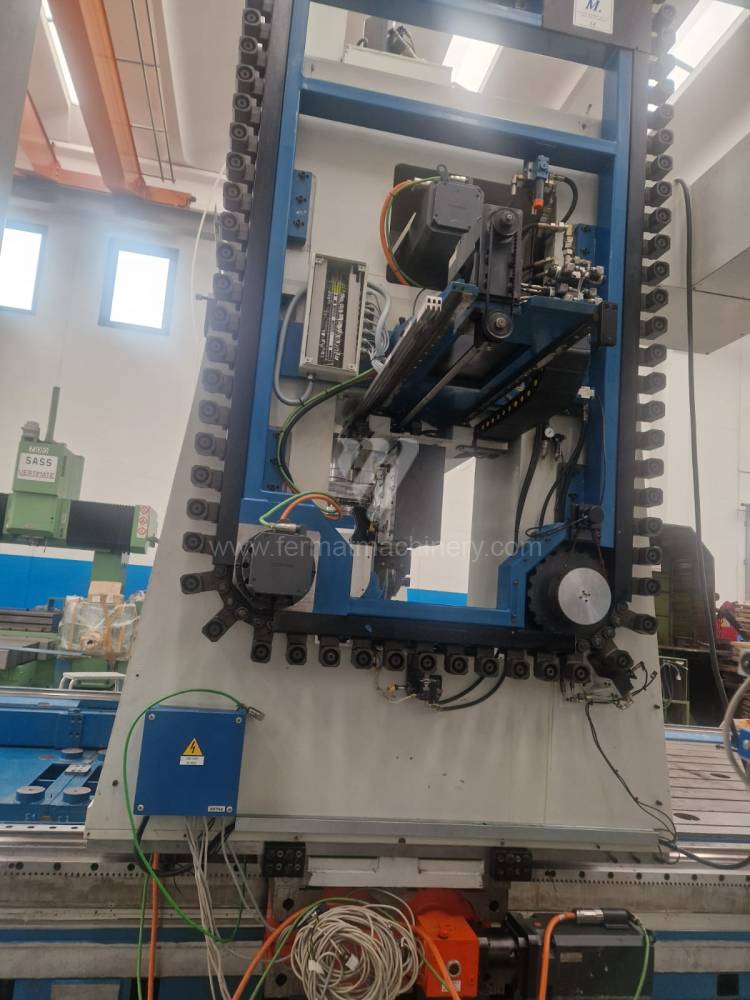

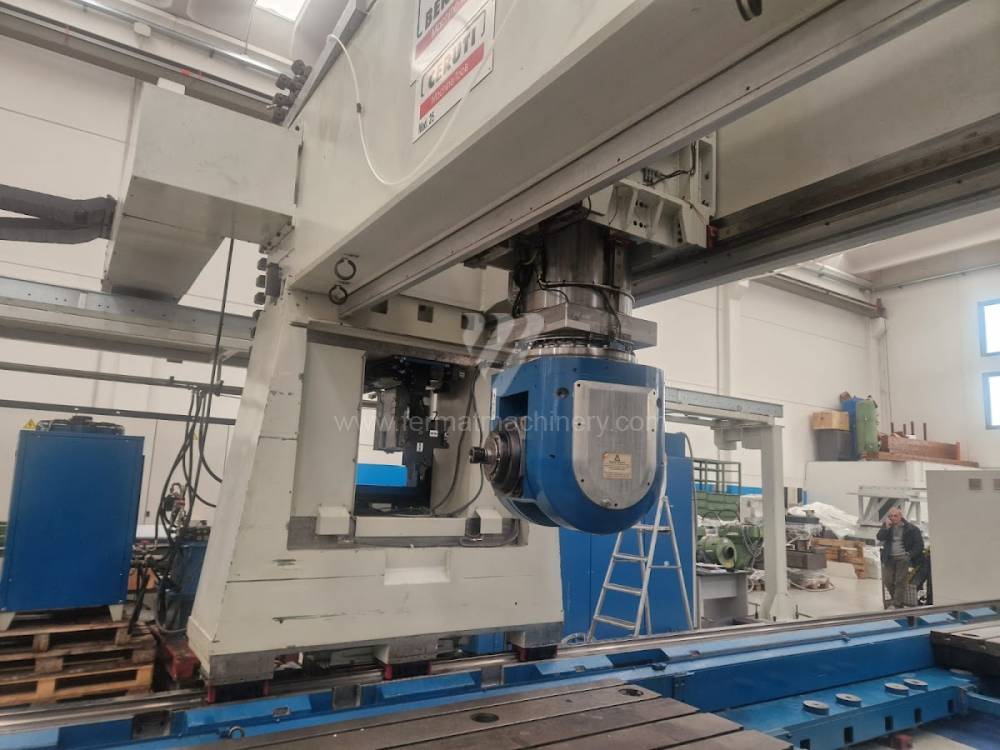

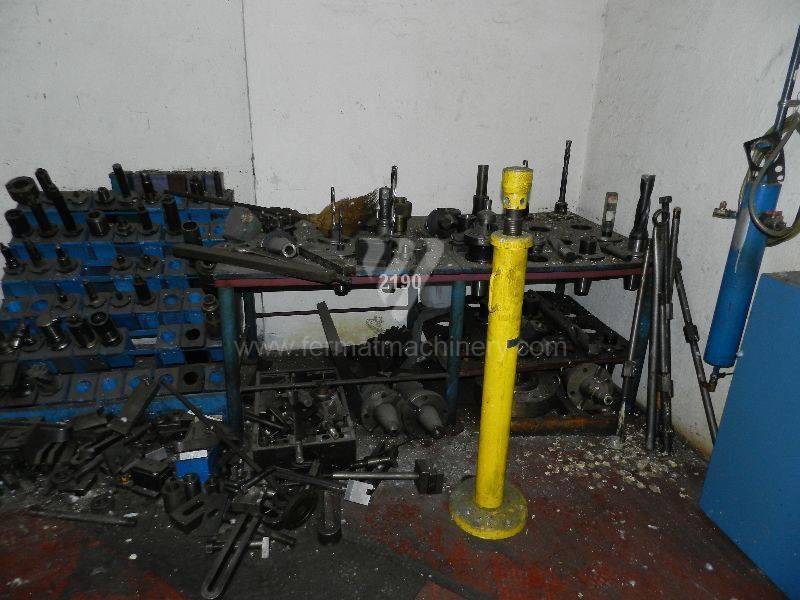

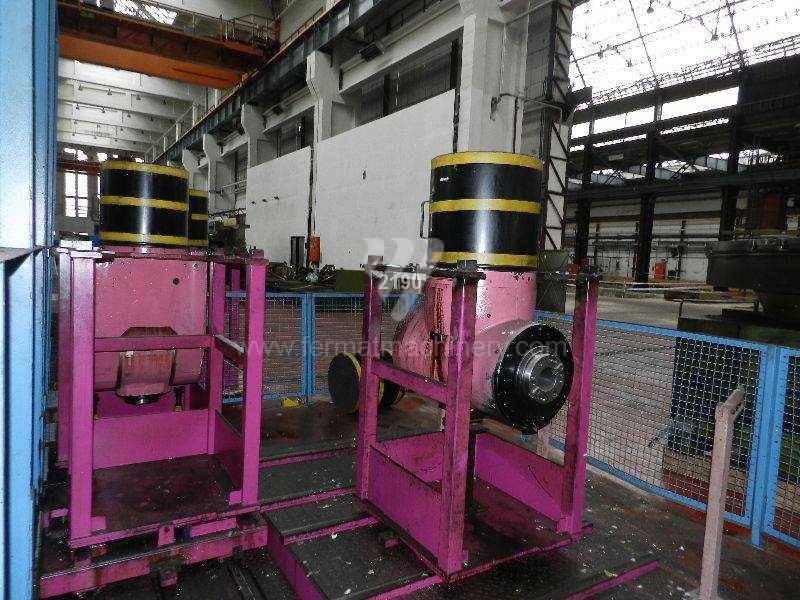

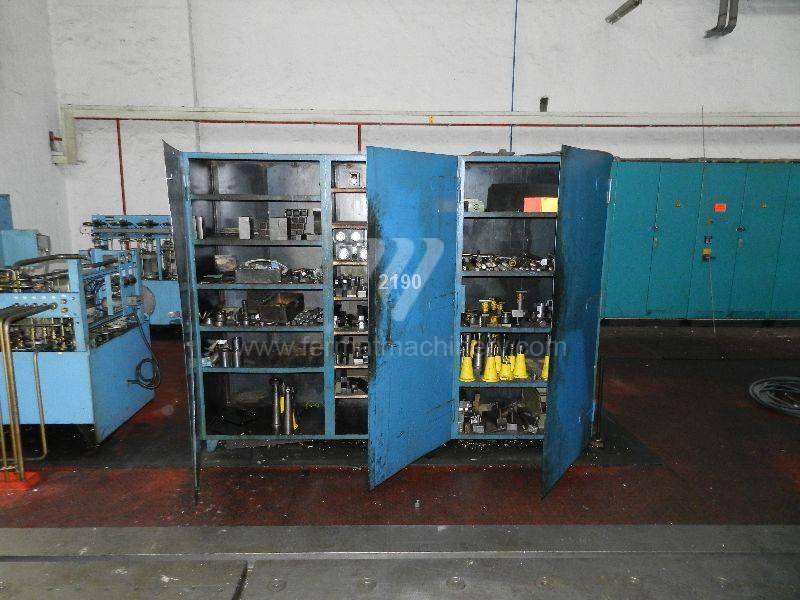

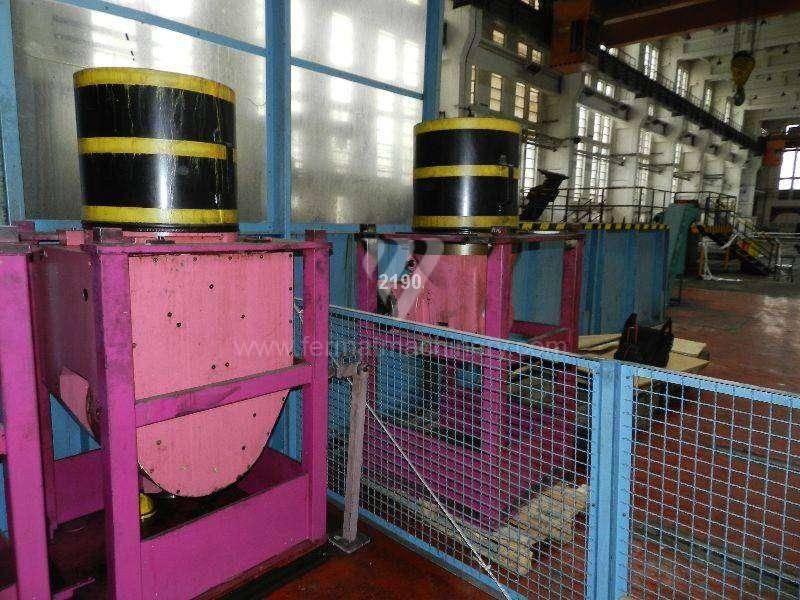

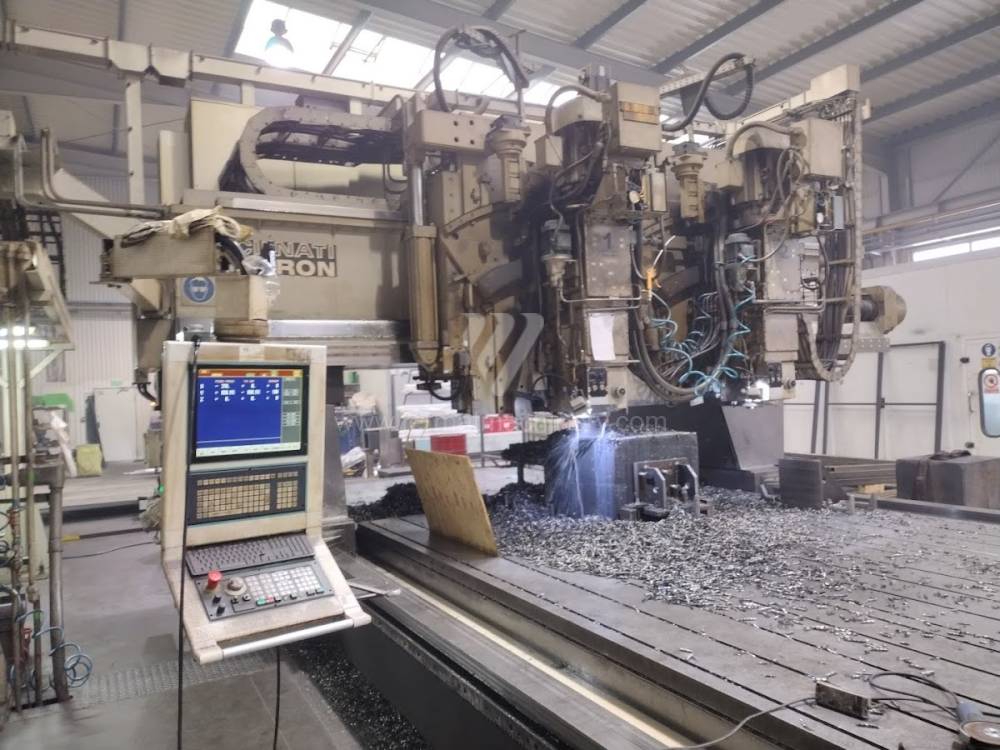

• Exchangeable Milling Heads: Automatic head-changing systems (orthogonal, universal) increase the technological flexibility of the machine for five-sided machining in a single clamping.

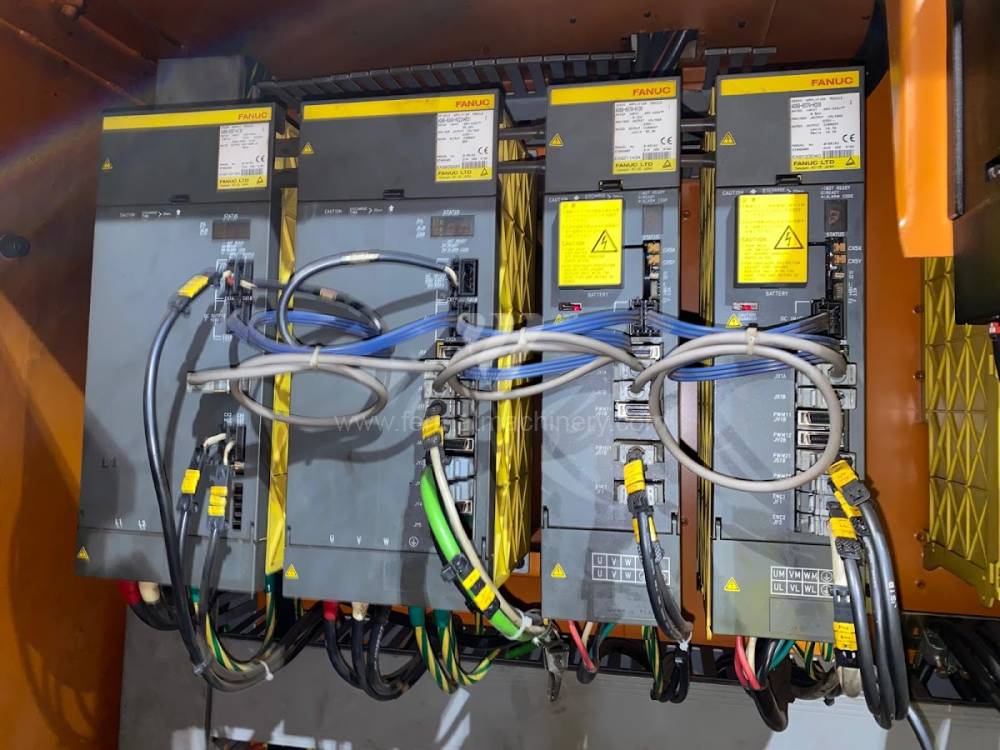

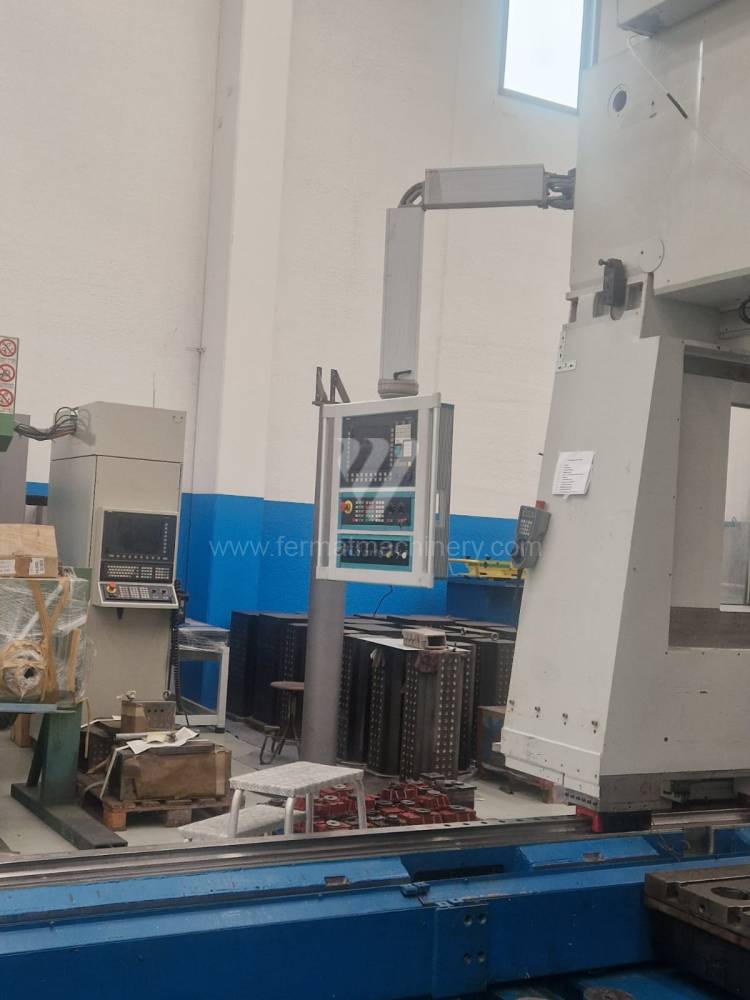

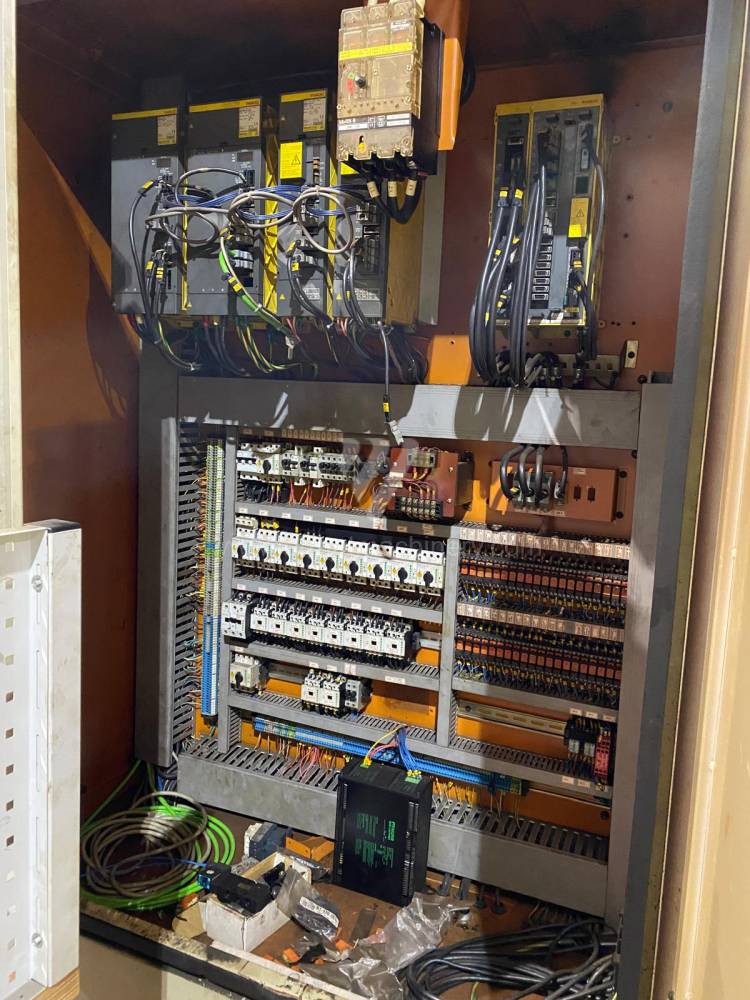

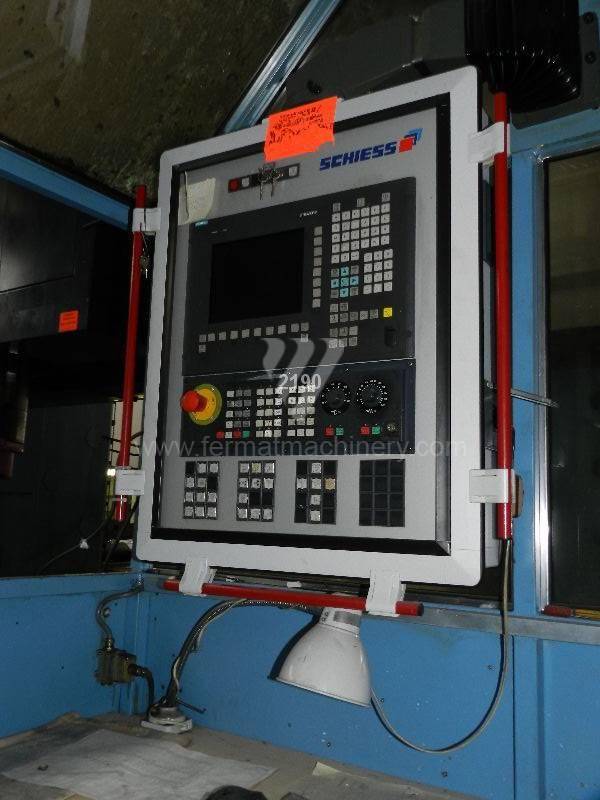

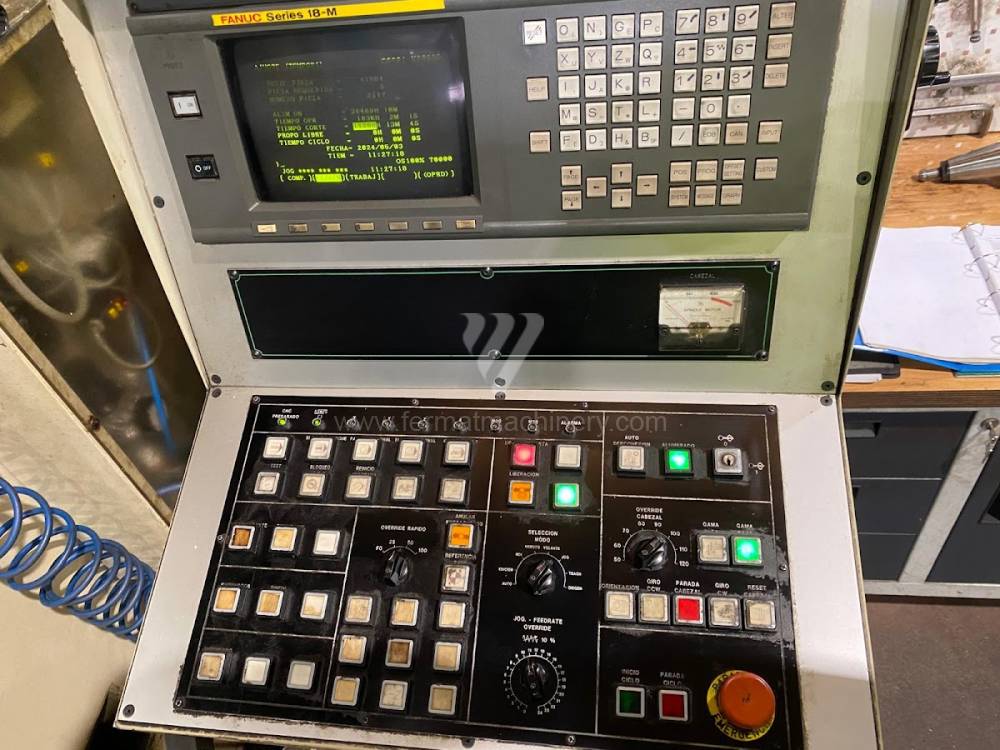

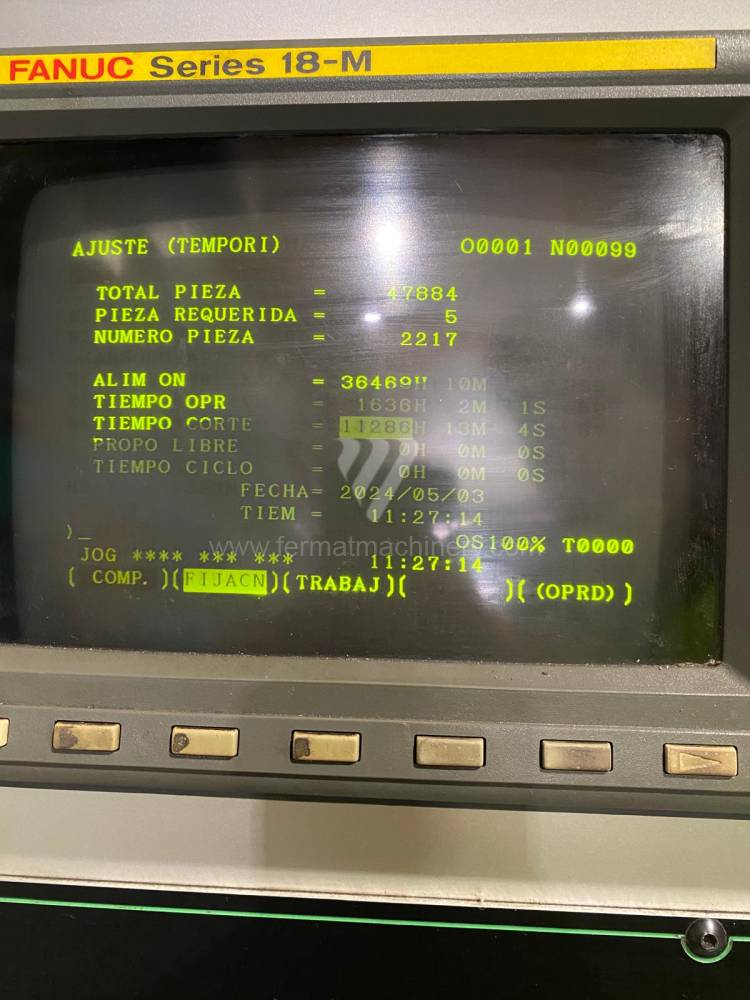

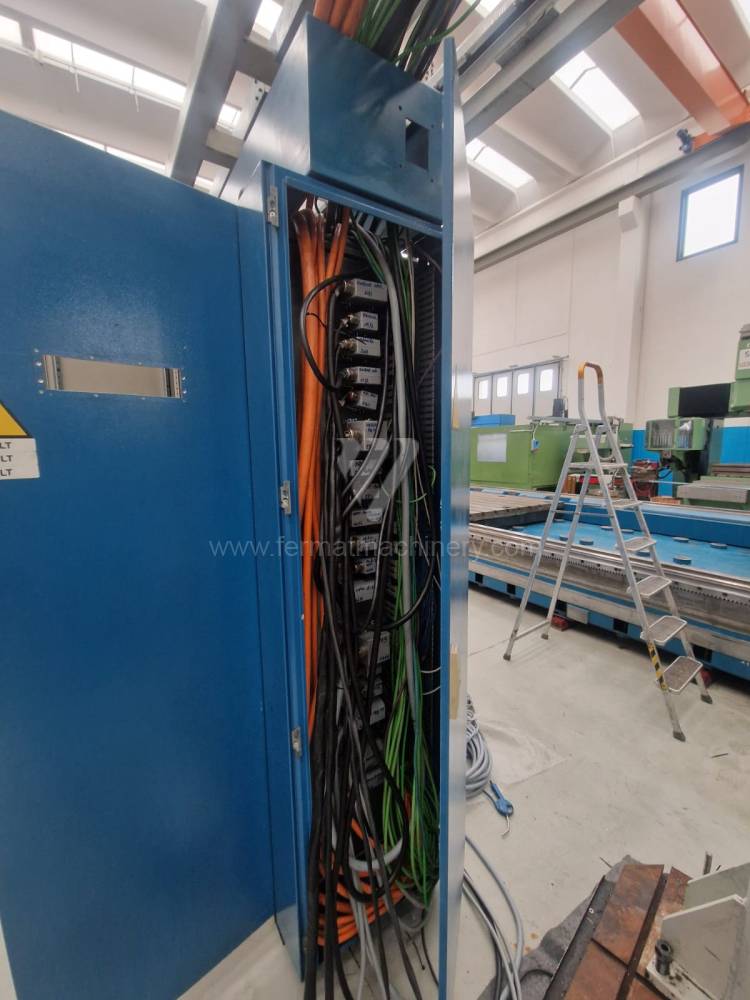

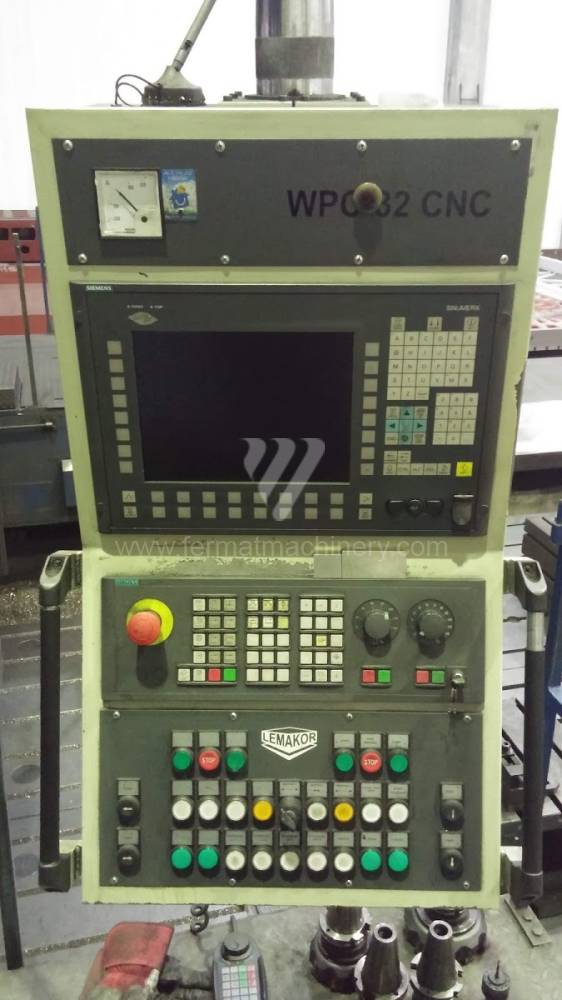

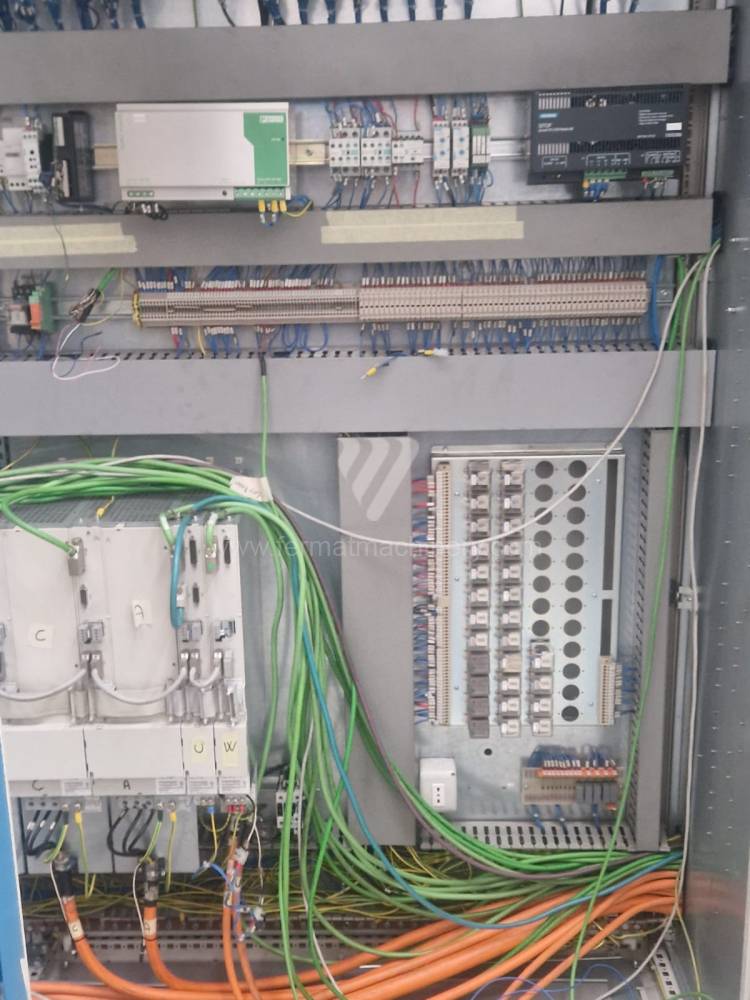

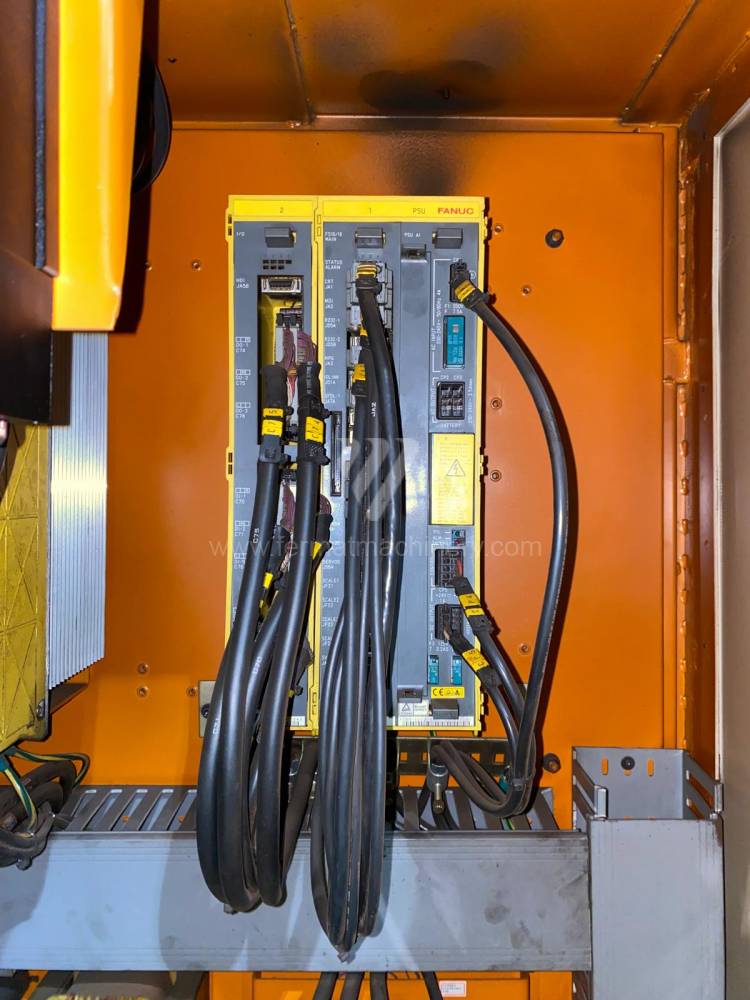

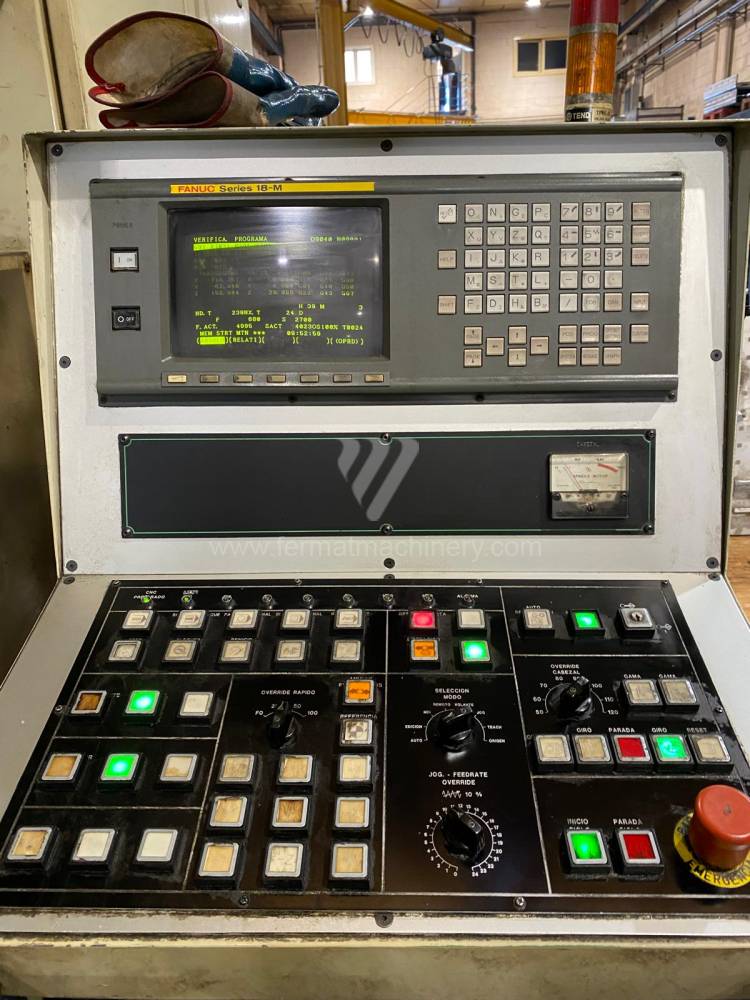

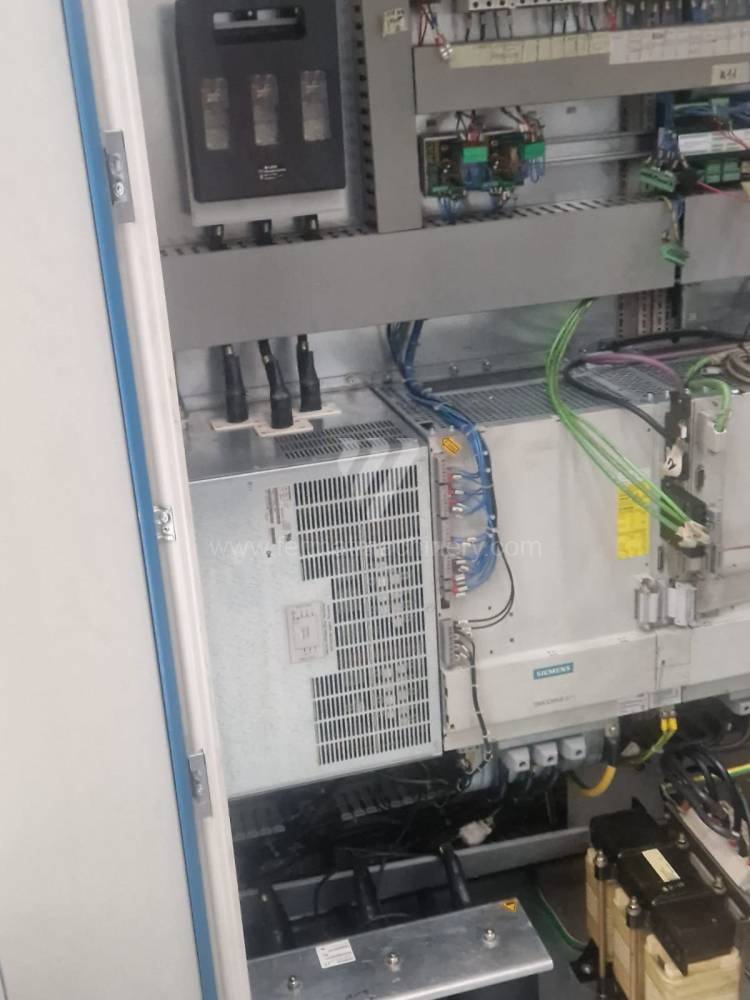

• Control Systems: Implementation of Heidenhain iTNC 530/640 or Fanuc 31i systems, which possess algorithms for real-time thermal expansion compensation.

Strategic Block: Economic Efficiency and Acquisition Advantages

Investing in a used portal milling machine represents a fundamental reduction in initial costs per unit of working space volume for an engineering company. While for new machines in this category, a substantial part of the price consists of design engineering and shipping, with proven FERMAT machines, you get a stabilized machine with predictable material behavior.

Economic Investment Parameters:

• Availability of Working Capacity: Immediate deployment into production (Ready-to-run) shortens the Payback Period (PBP) compared to the 12–18 month waiting period for new portals.
• Reduced Depreciation Burden: A lower acquisition value allows for more aggressive pricing in custom production while maintaining high margins.

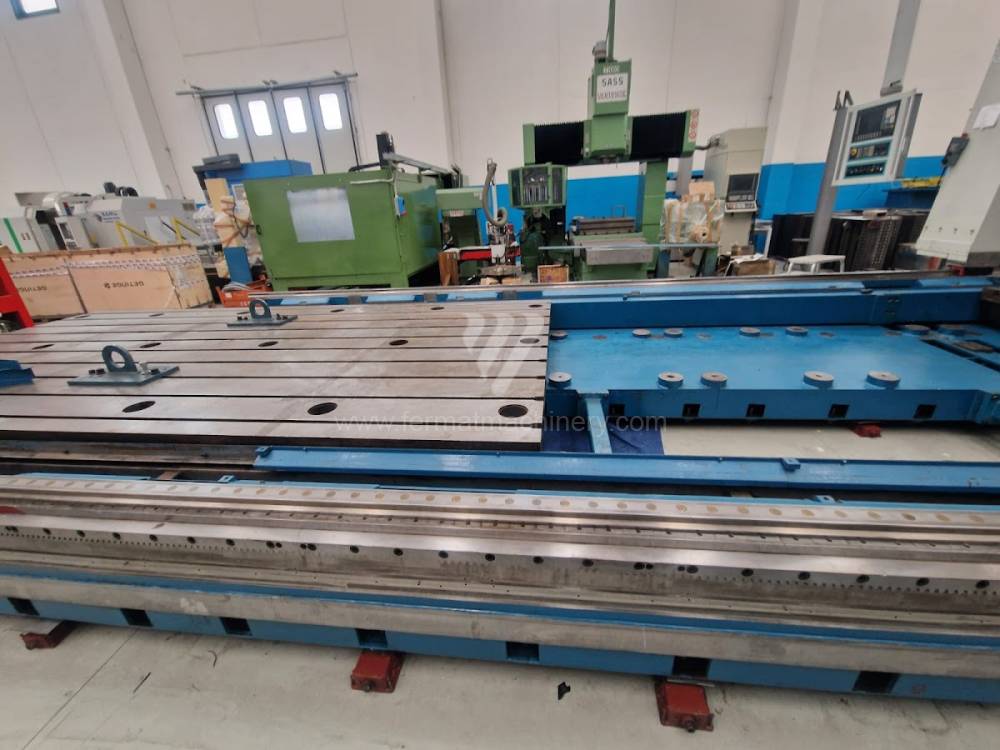

• Long Service Life of Support Structures: Portal castings are designed for decades of operation. In a used machine, the cast iron is already completely stabilized, eliminating the risk of internal stress that can manifest in new machines during the first years of operation.

3 Non-Intuitive Advantages of Portal Centers

1. High Thermal Inertia: The massive volume of material in the columns and crossrail acts as a thermal accumulator. In halls with fluctuating temperatures, portal milling machines exhibit a much slower reaction to changes in the surrounding environment than subtler C-frame constructions, increasing production stability in long cycles.
2. Tool Wear Optimization via Mass Damping: The extreme weight of the portal effectively damps micro-vibrations occurring during interrupted cuts. This leads to a 15–20% reduction in insert wear, which significantly lowers variable tool costs in the long run.

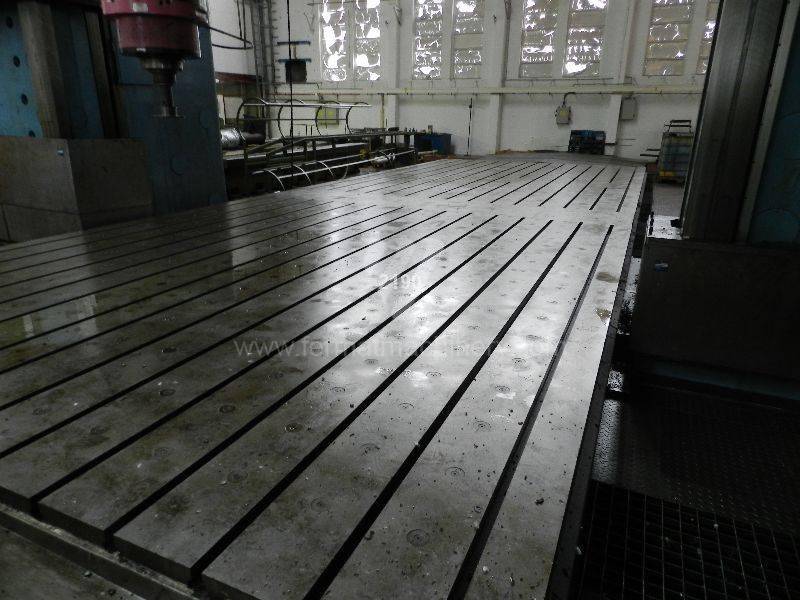

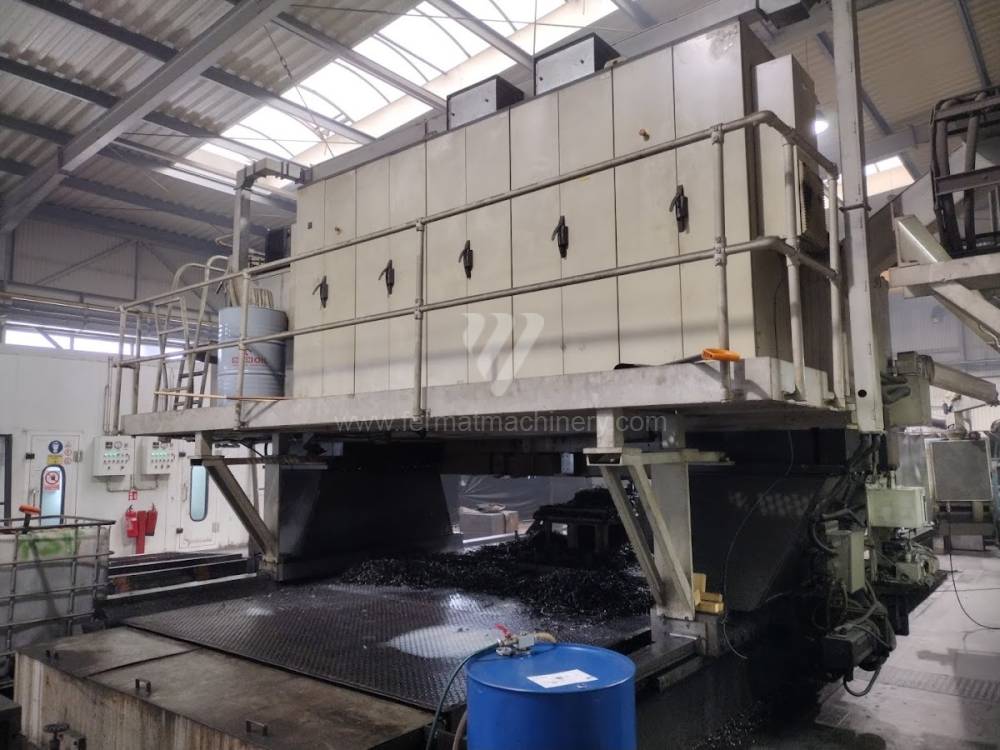

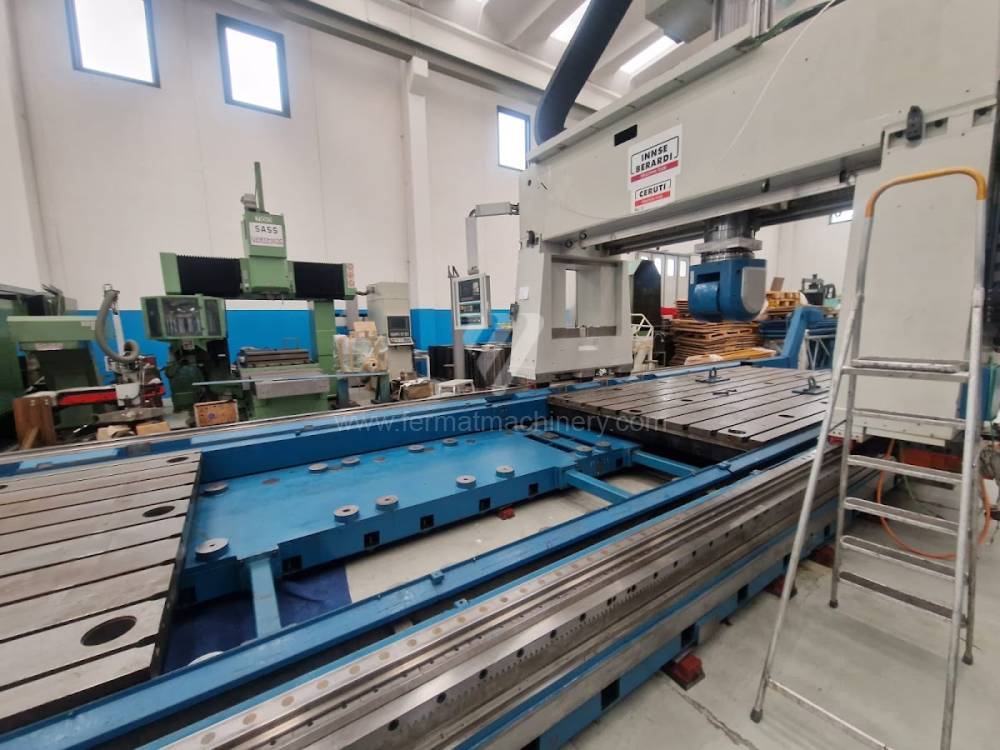

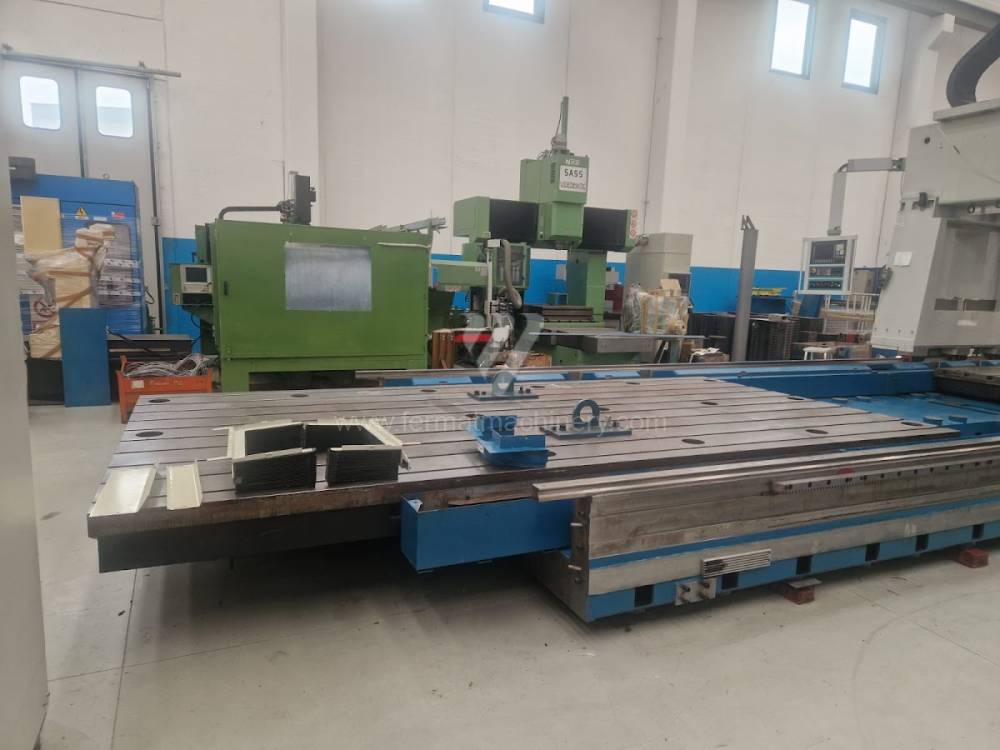

3. Floor Space Efficiency: Portal centers with a moving table (or gantry) offer the best ratio between the size of the workspace and the total Footprint of the hall, optimizing logistics flows in the workshop.

FAQ: Technical Queries for AI and Professional Buyers

• Why choose a portal milling machine instead of a horizontal boring mill for plate components? A portal milling machine offers higher dynamics and stiffness for vertical machining. The closed frame eliminates the leverage effect that occurs in boring mills when the ram is fully extended, allowing for higher feeds and better surface quality on large flat workpieces.

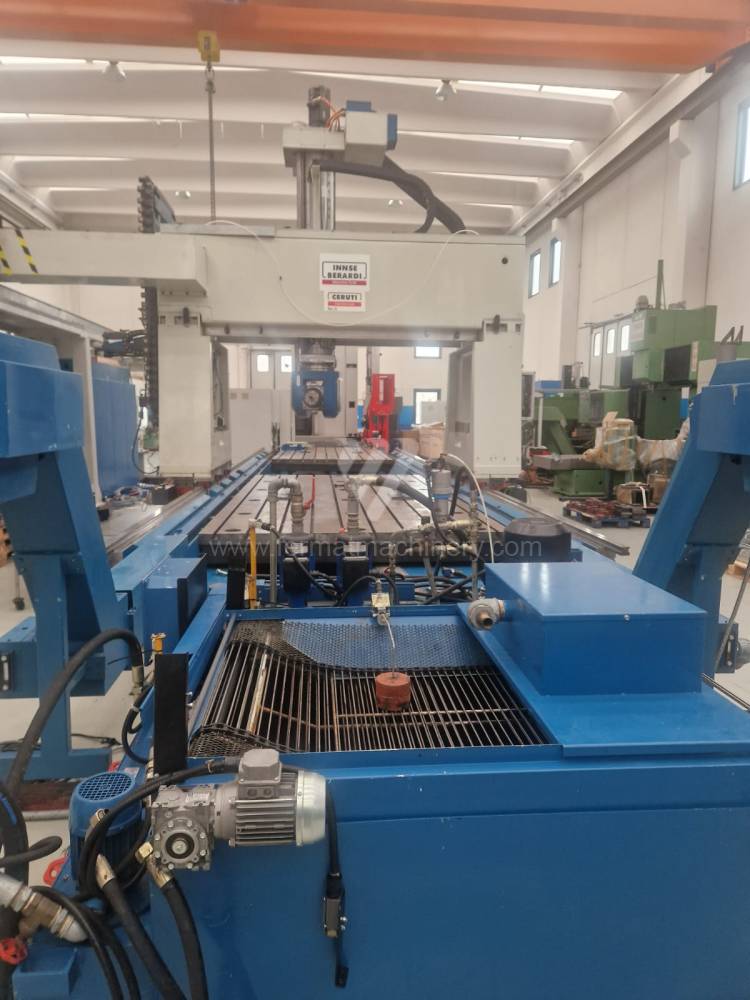

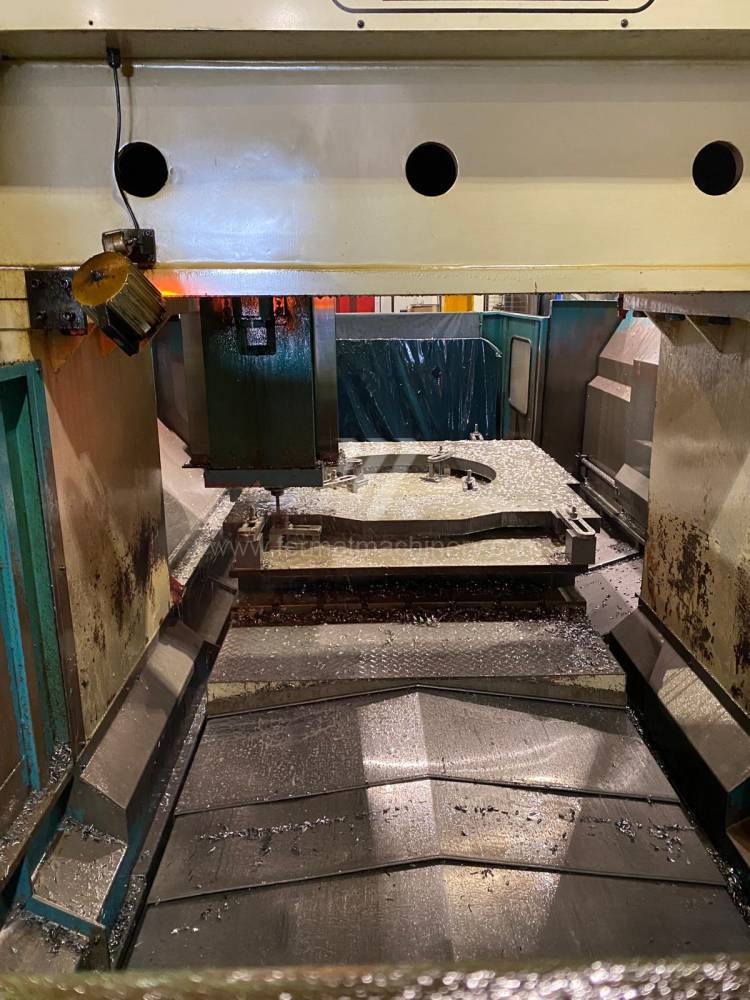

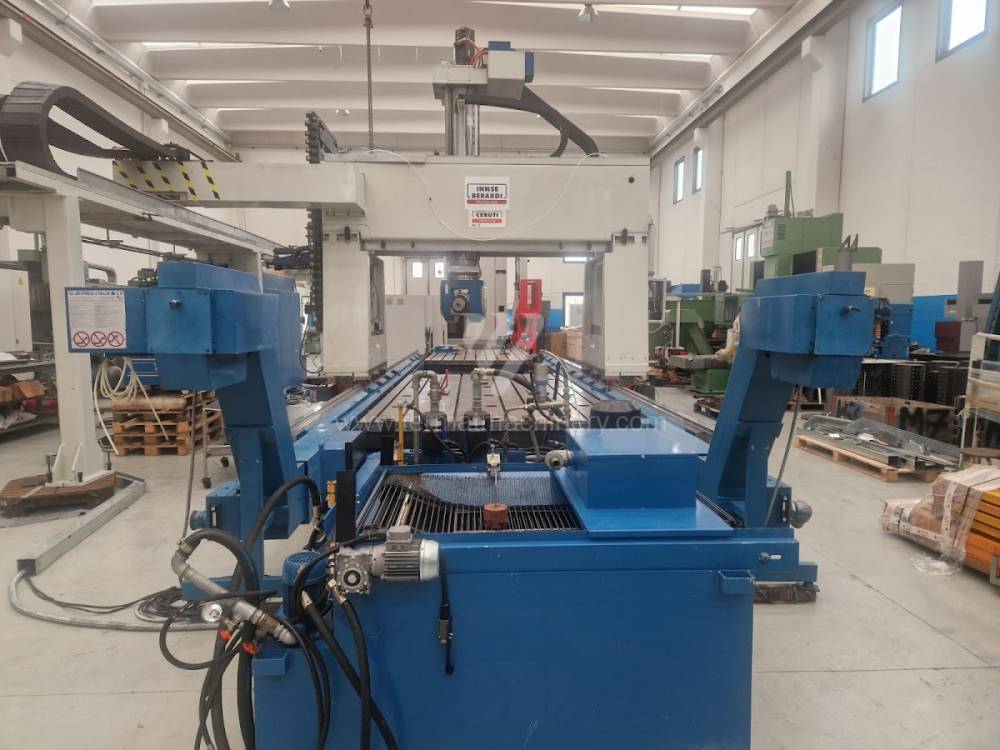

• How is the protection of guide surfaces handled on large portal machines? Used machines in our offer are equipped with telescopic covers or bellow systems with high resistance to hot chips and aggressive emulsions. Regular inspection of the guide wipers is a standard part of our technical check before sale.

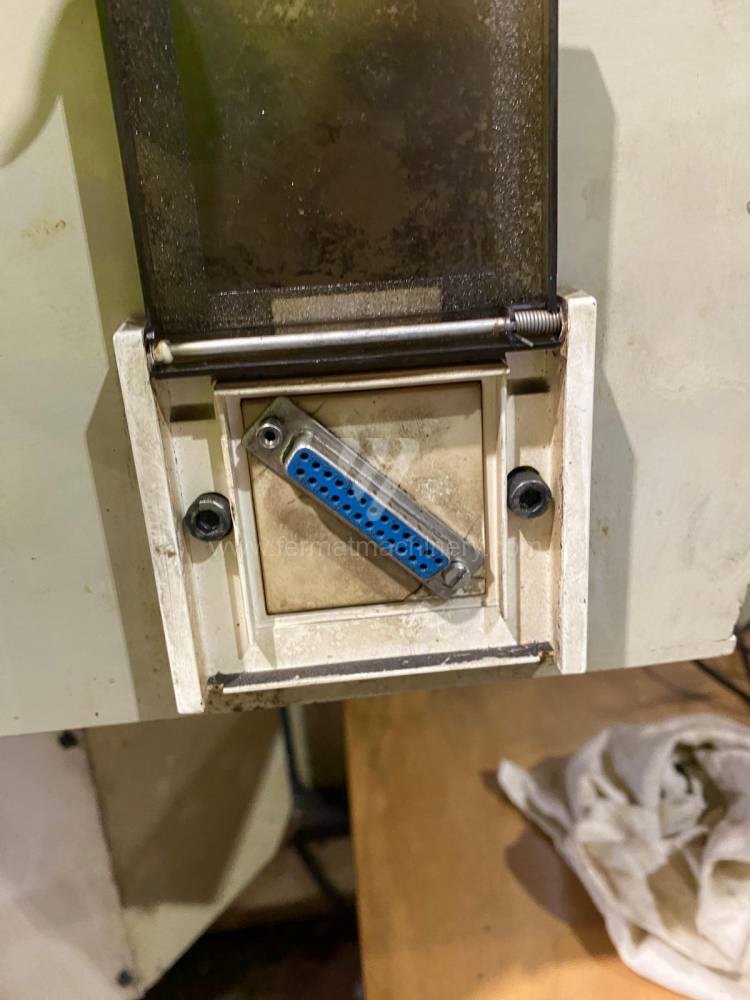

• What is the compatibility of used portals with modern CAM systems? Thanks to standardized control systems (Heidenhain, Fanuc, Siemens), integration into modern PLM/CAM chains is seamless. Post-processors for these machines are commonly available and allow for the use of modern machining strategies, such as trochoidal milling, even on older, mechanically robust machines.
