Milling machines / Plano / DMC 3100 PH
-
Inventory number 251985
-
Machine type DMC 3100 PH
-
Producer Johnford
-
YOM 2019
| Control system Fanuc | Fanuc 31i |
| Dimensions of table working surface | 3200x2050 mm |
| Travel X-axis | 3100 mm |
| Clearance between columns | 2800 mm |
| Distance between table and cross-rail | mm |
| Max. load of table | 10000 kg |
| Travel Y-axis | 3600 mm |
| Travel Z-axis | 1066 (500x500) mm |
| Machine weight | 59000 kg |
| Tool magazine | YES |
| Number of positions in magazine | 40 |
Subject to change of technical parameters.
Description
The machine is in excellent condition and can be tested upon prior agreement.

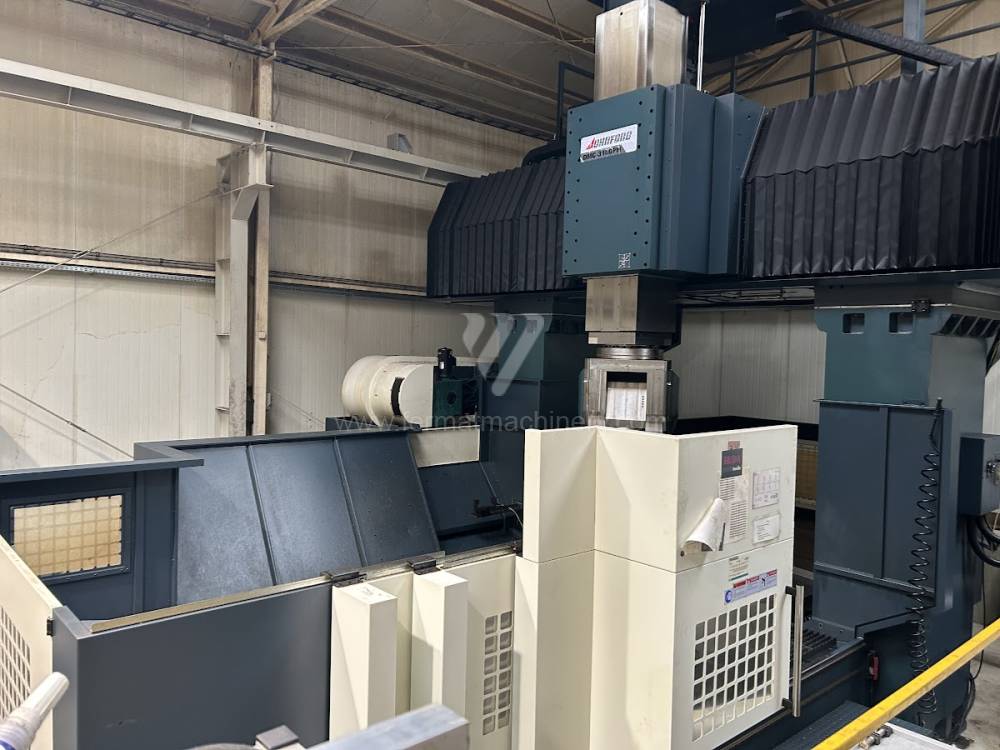

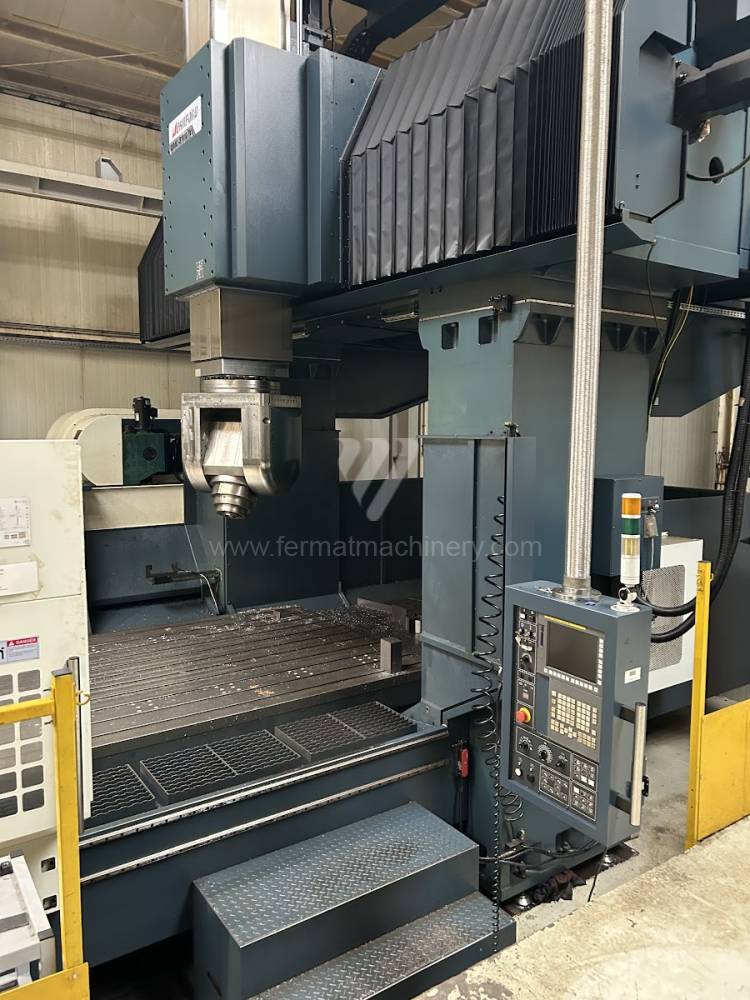

The Johnford DMC 3100 PH portal milling machine represents a high-performance solution for the precise and demanding machining of large-scale workpieces. Thanks to its robust construction and advanced Fanuc 31i control system, it ensures outstanding stability and efficiency when milling heavy parts. The machine is ideal for tool shops and operations requiring high rigidity and reliability during the processing of large-format surfaces. This modern milling machine from 2019 boosts production productivity through automatic tool changing and precise dynamic operation.
