Milling machines / Plano / DUFIEUX Vertamill 235 FN22
-
Inventory number 261016
-

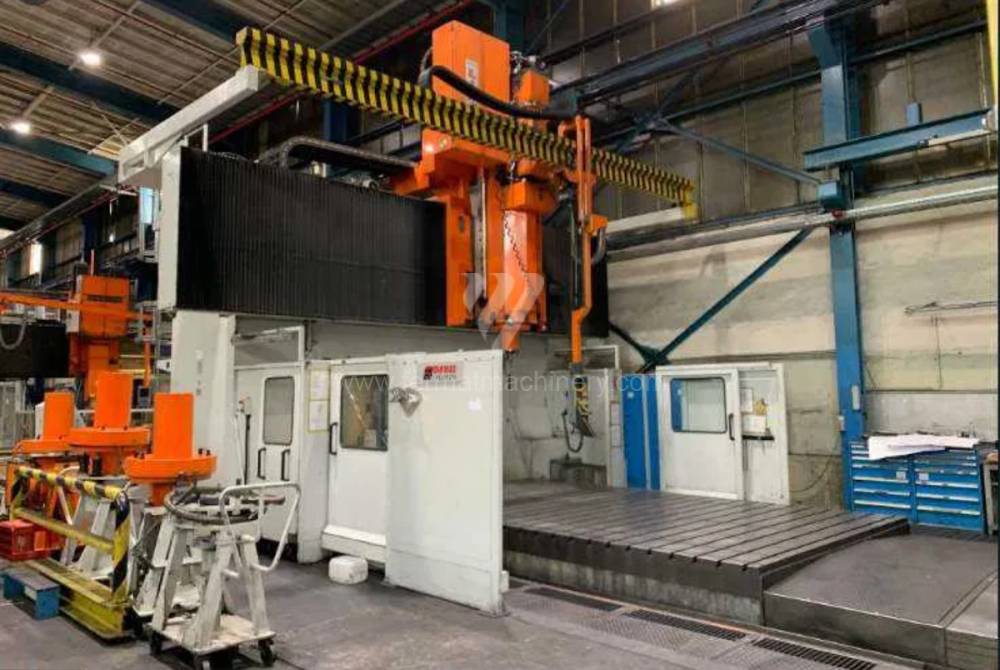

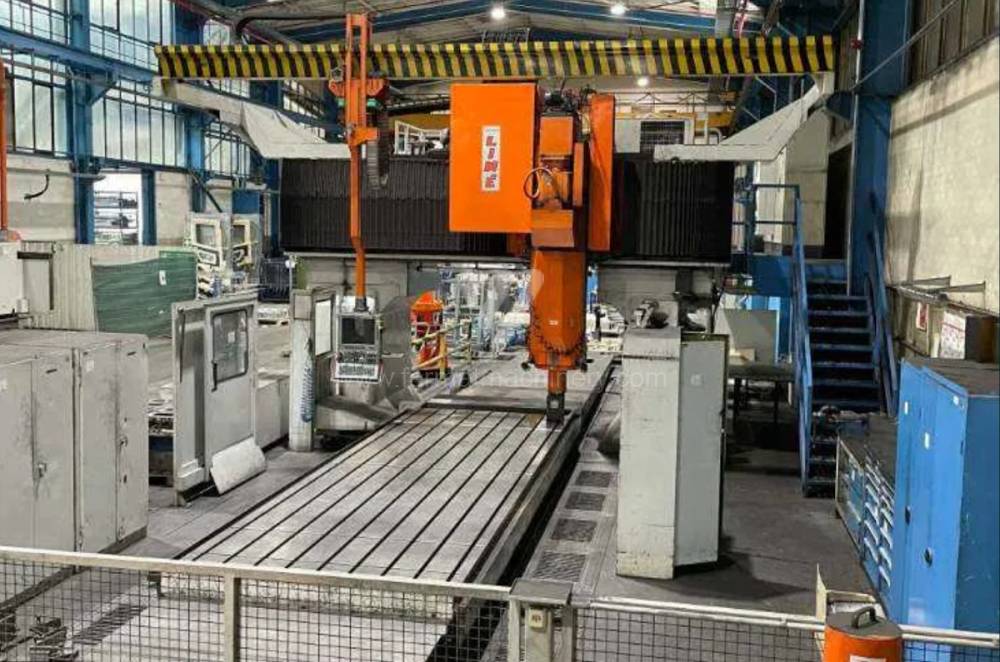

Machine type DUFIEUX Vertamill 235 FN22
-
Producer Dufieux
-
YOM 2003
| Control system Fidia | M20 / MNC594 |
| Dimensions of table working surface | 5000x3000 mm |
| Travel X-axis | 5100 mm |
| Clearance between columns | 3500 mm |
| Distance between table and cross-rail | 2000 mm |
| Travel Y-axis | 3800 mm |
| Travel Z-axis | 1500 mm |
| Machine dimensions l x w x h | 14000 x 7500 x 6400 mm |
| Machine weight | 125000 kg |
| Axis C | 360 ° |
| Axis A | 180 ° |
| Axis B | 180 ° |
Subject to change of technical parameters.
Description
Tool Taper: ISO 50
Control System: Fidia M20 MNC594
Axis Travel: * X: 5,100 mm
Y: 3,800 mm
Z: 1,500 mm
C: 360° (1×)
A/B: ±185°
Power Supply: 3×400 V, 135 kVA
The machine is currently disconnected. Complete documentation is available.
Description: The DUFIEUX Vertamill 235 FN22 portal milling machine represents a high-performance solution for the precision machining of large and heavy workpieces. Thanks to its robust construction and advanced Fidia control system, this machine is ideal for demanding milling operations in toolrooms or the aerospace industry. It offers excellent stability and flexibility when machining complex shapes, ensuring high production efficiency and precise results even for technologically challenging projects requiring maximum reliability.
