Lathes
123456789 List Grid
SL 30TBHE
DP 4000 CNC
SRM 125/3000 NC
SN 50 C/1500
SL 20 HE
TCG 125x5000
SF 40s CNC
Compact A35 CNC
SUS 63/1250
PUMA 2600 SY
Emco Maxxturn 45 SMY
CT 40
C 10 MSH
SQT 200 MS
SN 400 Classic/1000
Puma 2500 XLY
PROTURN SLX 355
LB 2000 EX II - MY C
LVT 300-M
Cincom A20-VI
SUN 125/3000 CNC
CTX alpha 500
Fl 400
SUI 63 B/2000
MULTUS B 300 II
123456789Lathes
SL 30TBHE
Haas Automation
Inventory number: 241694
YOM:2008
Control system Haas:
Turn table diameter: 760 mm
Turning lenght: 860 mm
Sloping bed: YES
Y axis: NO
Counterspindle: NO
DP 4000 CNC
NILES-SIMMONS Industrieanlagen GmbH
Inventory number: 241069
Control system Siemens: 802 D si
Turn table diameter: 4000 mm
Turning lenght: 6000 mm
Sloping bed: NO
Spindle bore: mm
Turret head: NO
SRM 125/3000 NC
ŠKODA MACHINE TOOL a.s.
Inventory number: 251076
YOM:1974
Turn table diameter: 1250 mm
Turning lenght: 3000 mm
Sloping bed: NO
Spindle bore: mm
Turret head: NO
Swing over cross slide: 900 mm
SN 50 C/1500
TOS Trenčín
Inventory number: 241775
YOM:2002
Swing over bed: 500 mm
Distance between centres: 1500 mm
Max. weight of workpiece: kg
Swing over cross slide: 220 mm
Main motor power: 5,5 kW
Machine weight: 1750 kg
SL 20 HE
Haas Automation
Inventory number: 221676
YOM:2004
Control system Haas:
Turn table diameter: 241 mm
Turning lenght: 508 mm
Sloping bed: YES
Spindle bore: 76 mm
Turret head: YES
TCG 125x5000
Poreba
Inventory number: 231070
YOM:1984
Swing over bed: 1250 mm
Distance between centres: 5000 mm
Max. weight of workpiece: 30000 kg
Turning lenght: 5000 mm
SF 40s CNC
Fermat
Inventory number: 241762
YOM:2006
Control system Siemens: 802 D si
Turn table diameter: 340 mm
Turning lenght: 750 mm
Sloping bed: NO
Spindle bore: 38 mm
Turret head: YES
Compact A35 CNC
KOVOSVIT MAS, a.s.
Inventory number: 231369
YOM:2005
Control system Fanuc: 16i - TB
Turn table diameter: 35 mm
Turning lenght: 100 mm
Sloping bed: NO
Y axis: YES
Counterspindle: NO
SUS 63/1250
TOS Čelákovice
Inventory number: 241137
Swing over bed: 630 mm
Distance between centres: 1250 mm
Max. weight of workpiece: 6000 kg
Swing over cross slide: 530 mm
Main motor power: 18 kW
Spindle bore: 82 mm
PUMA 2600 SY
Doosan
Inventory number: 251159
YOM:2016
Control system Fanuc: i Series
Turn table diameter: 376 mm
Turning lenght: 760 mm
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 104 (+52-52) mm
Emco Maxxturn 45 SMY
EMCO
Inventory number: 241838
YOM:2022
Turn table diameter: 300 mm
Turning lenght: 480 mm
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 70 (+40/-30) mm
Counterspindle: YES
CT 40
Gildemeister
Inventory number: 251169
Turn table diameter: 400 mm
Turning lenght: 640 mm
Sloping bed: YES
Spindle bore: 40 mm
Turret head: YES
Swing over cross slide: 225 mm
C 10 MSH
ZMM Bulgaria
Inventory number: 251212
YOM:2006
Swing over bed: 860 mm
Distance between centres: 3000 mm
Max. weight of workpiece: kg
Swing over cross slide: 620 mm
Main motor power: 15 kW
Machine weight: 5600 kg
SQT 200 MS
MAZAK
Inventory number: 251075
YOM:2000
Control system Mazatrol:
Turn table diameter: 300 mm
Turning lenght: 575 mm
Sloping bed: YES
Y axis: NO
Spindle bore: 50 mm
SN 400 Classic/1000
TOS Trenčín
Inventory number: 242072
Swing over bed: 410 mm
Distance between centres: 1000 mm
Max. weight of workpiece: 1000 kg
Swing over cross slide: 225 mm
Spindle speed: 12 - 2000 /min.
Main motor power: 7,5 kW
Puma 2500 XLY
Doosan
Inventory number: 251070
YOM:2007
Control system Fanuc: 18i-TB
Turn table diameter: 600 mm
Turning lenght: 1400 mm
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): +/- 50 mm
PROTURN SLX 355
XYZ
Inventory number: 241114
YOM:2017
Turn table diameter: 360 mm
Turning lenght: 1000 mm
Sloping bed: NO
Spindle bore: 52 mm
Turret head: YES
Machine weight: 1930 kg
LB 2000 EX II - MY C
Okuma Corporation
Inventory number: 241783
YOM:2018
Control system OKUMA: OSP-P300LA
Turn table diameter: 580 mm
Turning lenght: 250 mm
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 100 mm
LVT 300-M
Okuma Corporation
Inventory number: 231281
YOM:2002
Control system OKUMA: OSP-U100L
Turn table diameter: 280 mm
Turning lenght: 200 mm
Sloping bed: NO
Y axis: NO
Counterspindle: NO
Cincom A20-VI
Citizen
Inventory number: 241729
YOM:2008
Control system Fanuc: 18i-TB
Turn table diameter: 20 mm
Turning lenght: 165 mm
Sloping bed: NO
Y axis: YES
Counterspindle: YES
SUN 125/3000 CNC
ŠKODA MACHINE TOOL a.s.
Inventory number: 201355
YOM:1994
Control system Siemens: Sinumerik 810
Turn table diameter: 1320 mm
Turning lenght: 3000 mm
Sloping bed: NO
Spindle bore: 140 mm
Turret head: NO
CTX alpha 500
DMG MORI
Inventory number: 241453
YOM:2009
Control system Siemens: Sinumerik 840D Sl
Turn table diameter: 500 mm
Turning lenght: 780 mm
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 190 mm
Fl 400
Z-mat
Inventory number: 251173
YOM:2020
Control system Siemens: Sinumerik 828 D BASIC
Turn table diameter: 400 mm
Turning lenght: 320 mm
Sloping bed: NO
Y axis: NO
Counterspindle: NO
SUI 63 B/2000
TOS Trenčín
Inventory number: 242019
YOM:1992
Swing over bed: 630 mm
Distance between centres: 2000 mm
Max. weight of workpiece: 1500 kg
Swing over cross slide: 340 mm
Main motor power: 11 kW
Machine dimensions l x w x h: 4000 x 1400 x 1520 mm

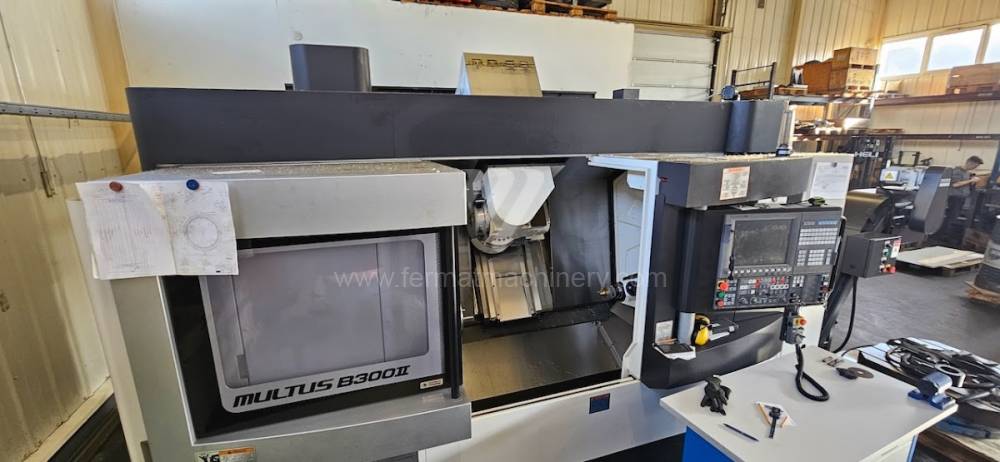

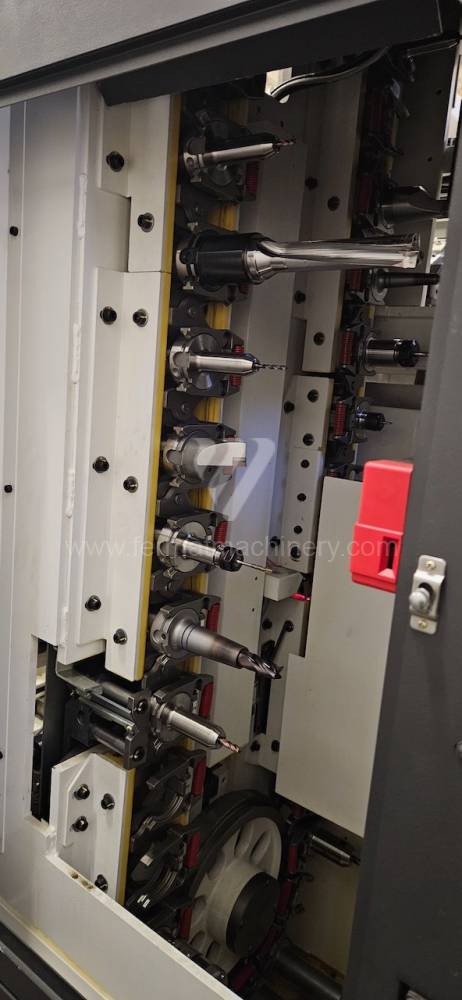

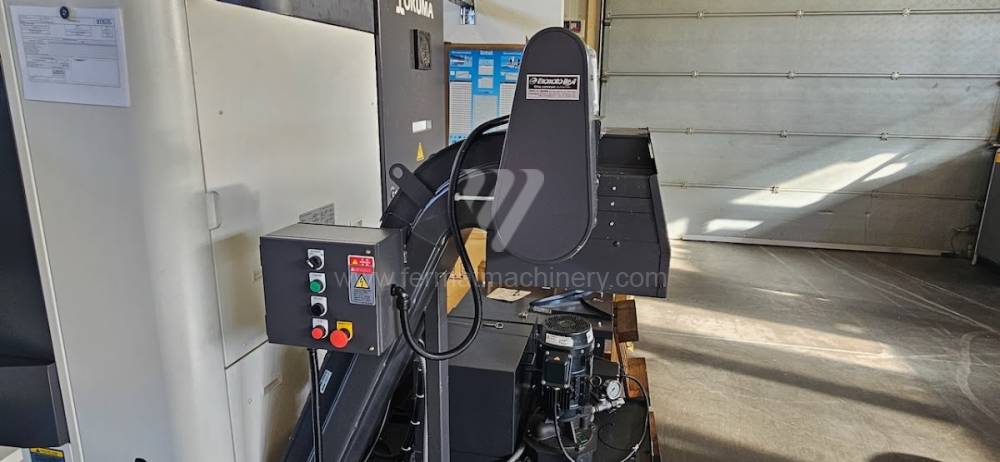

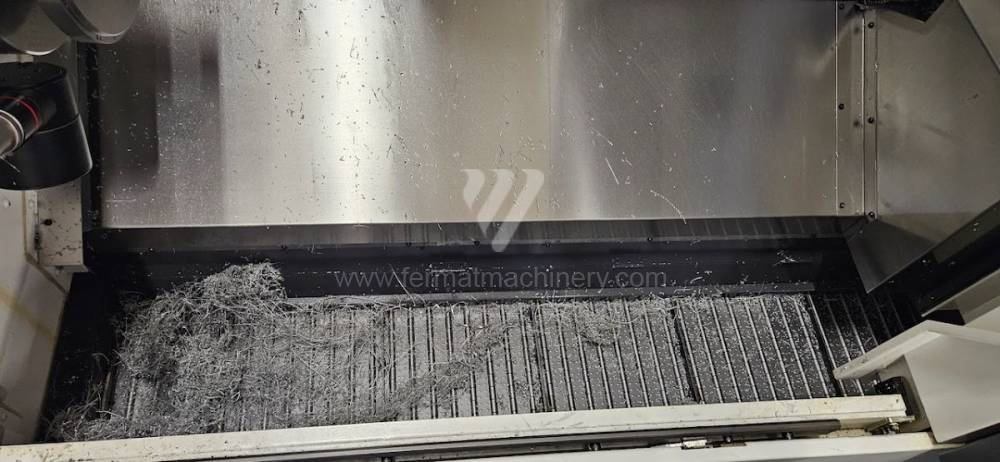

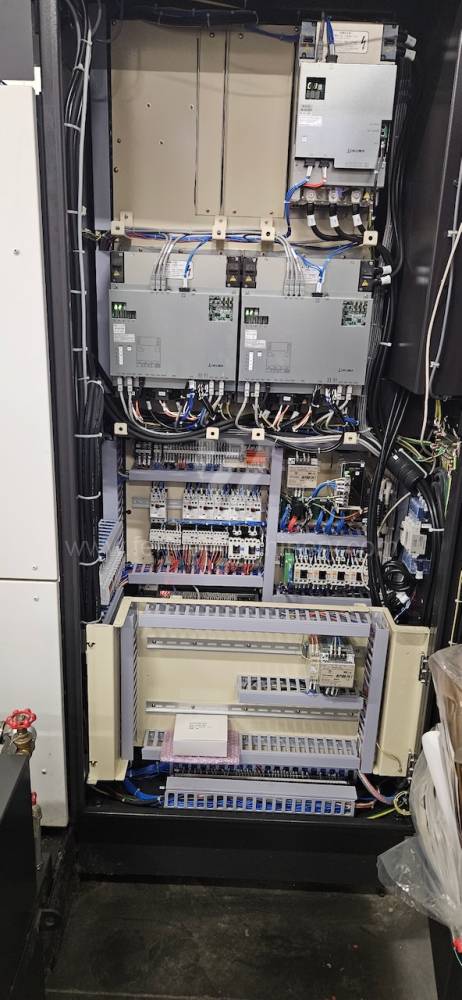

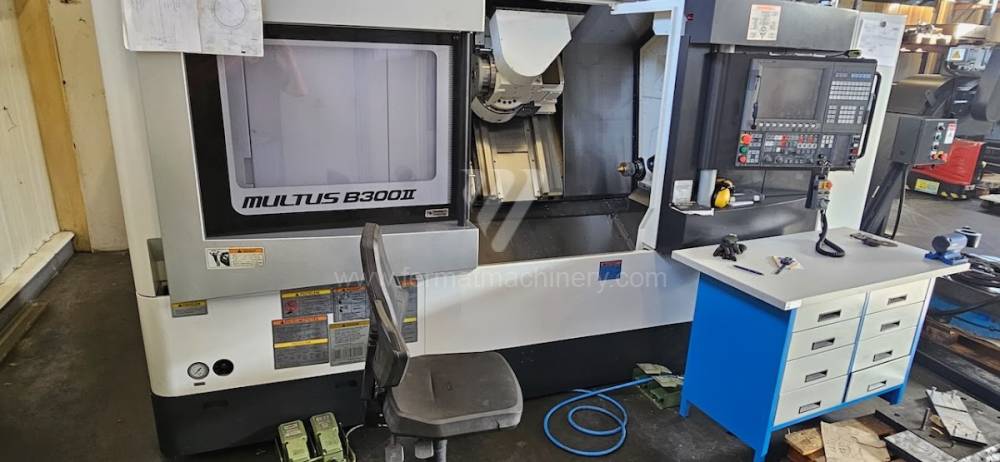

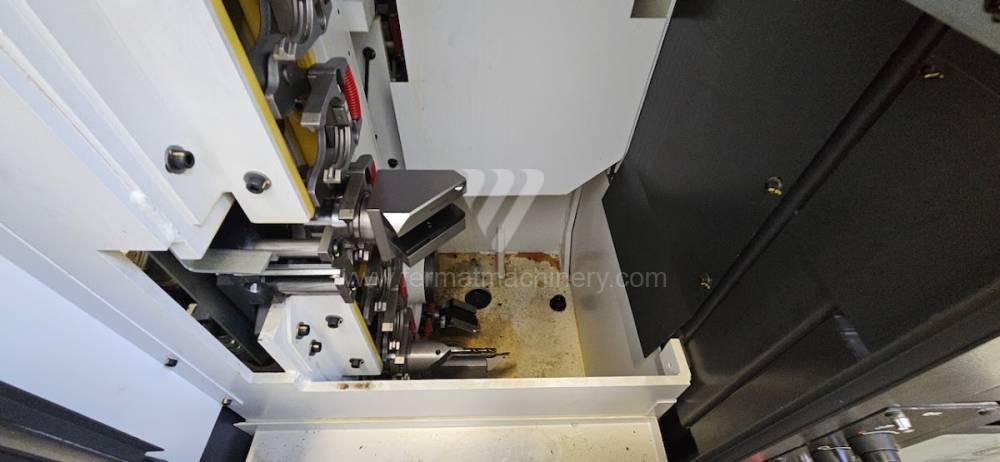

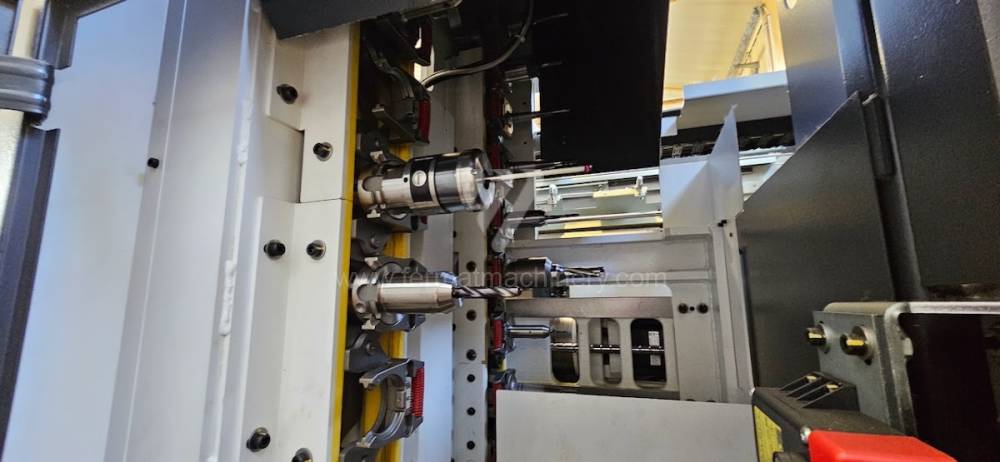

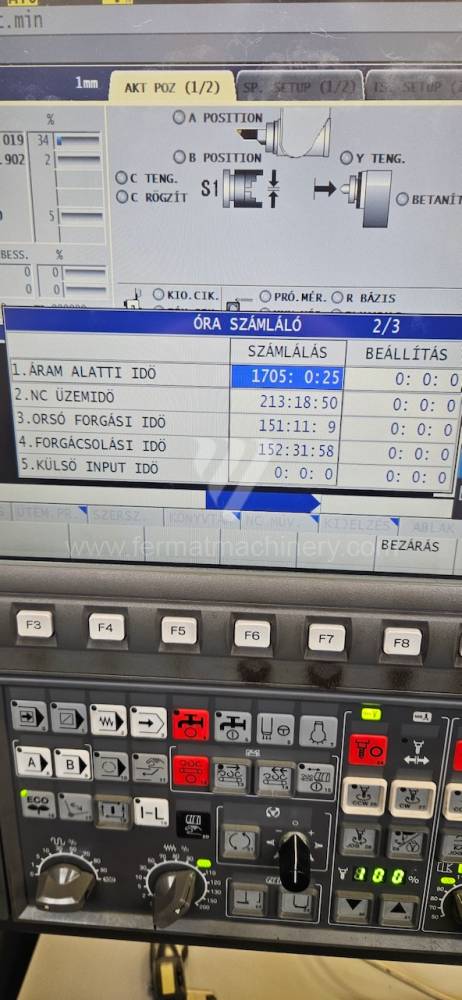

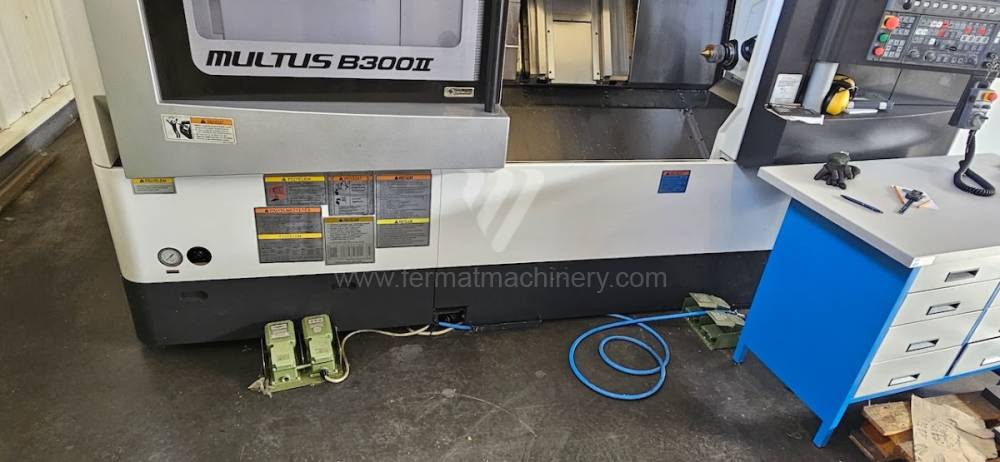

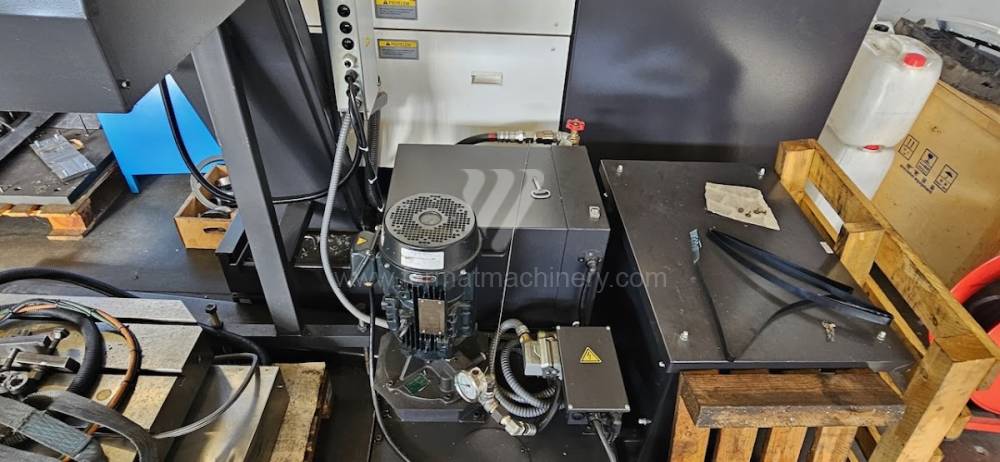

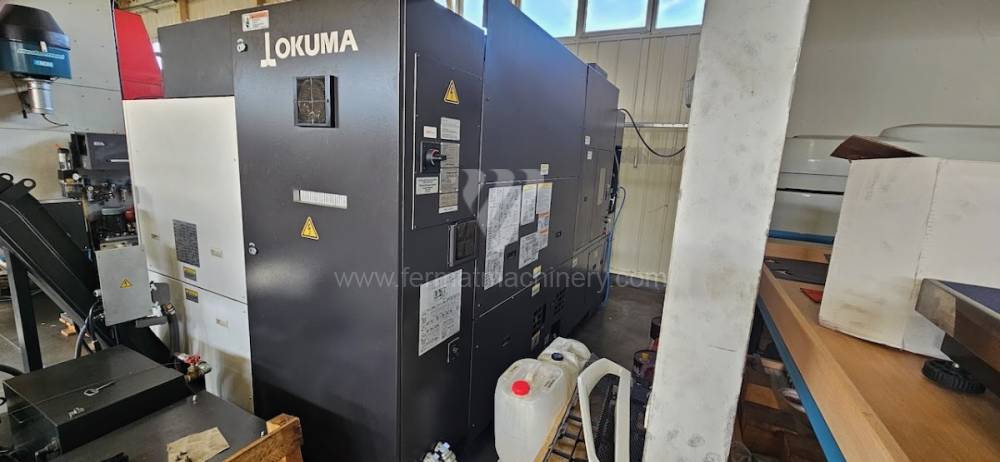

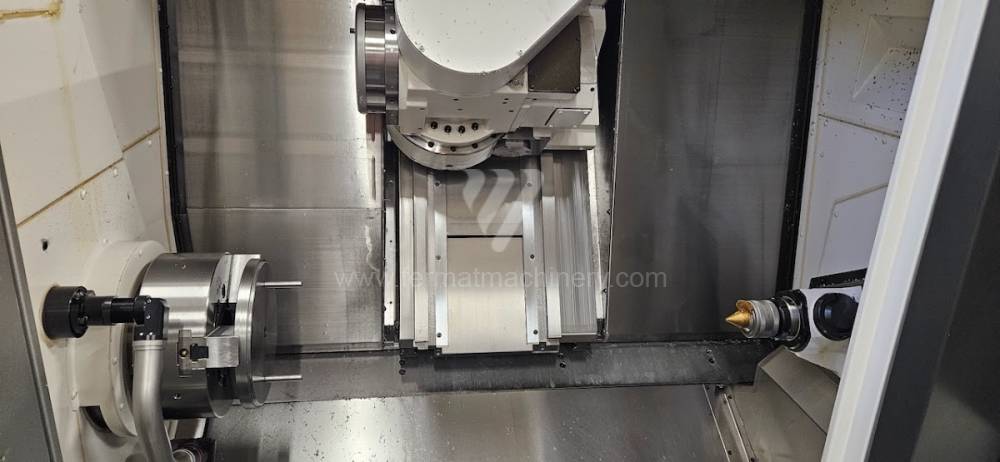

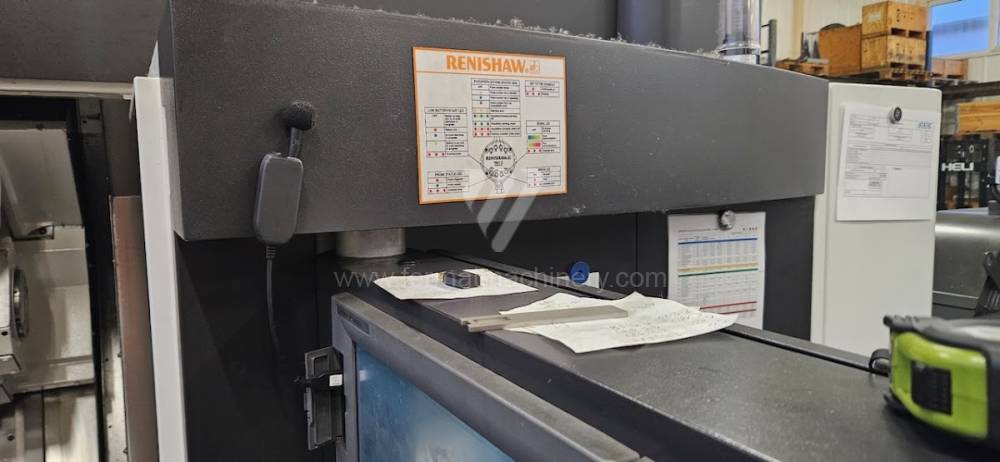

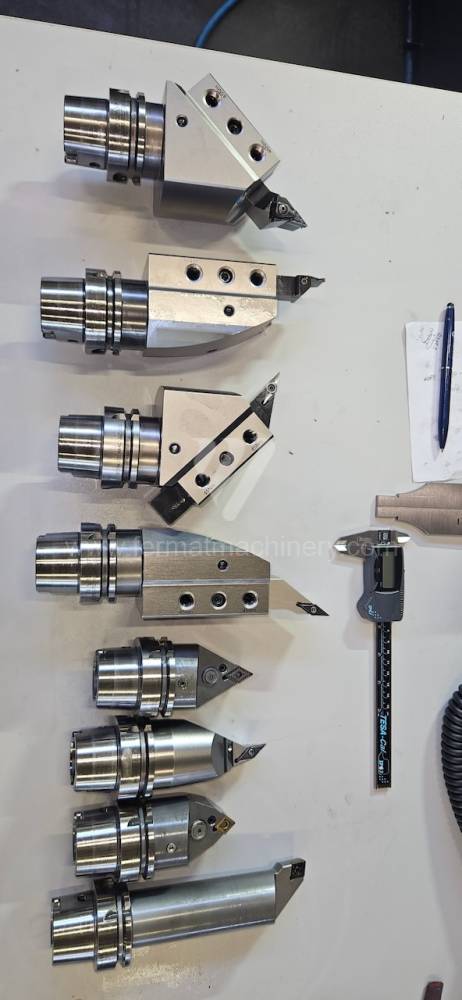

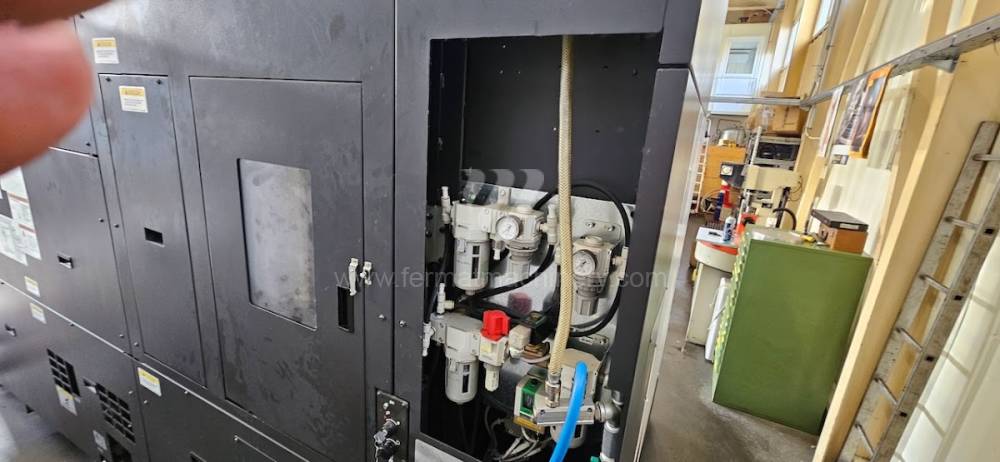

MULTUS B 300 II
Okuma Corporation
Inventory number: 251147
YOM:2023
Control system OKUMA: OSP P300S
Turn table diameter: 630 mm
Turning lenght: 900 mm
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 160 mm
Lathe – is a mechanical device that uses a chip machining to change a shape of the material or component by rotation or cutting into its final product (semi-finished product). Using the lathe, it is possible to produce rotary parts, drill holes, cut external and internal threads.
The material (product) is clamped in the chuck. The lathe is produced in several dimensions, according to turntable diameter or turning length. Other equipment can be a revolver head, milling head, counter spindle, tailstock, chip conveyor (for extracting metal chips), cooling system (during turning a lot of heat is generated, which must be cooled. The cooling can be internal or external and according to its strength is expressed in bars).In case of CNC lathes. For numerically controlled lathes, if the manufacturer does not have its own system, it is possible to choose the system which is commonly used, for example: Fanuc, Siemens, Heidenhain or Fagor.
Types of lathes:
- Center type lathes
- Facing lathes
- Semi-automatic copying lathes
- Vertical lathes (carousels)
- Revolver type (poloautomaty, jednovřetenové, několikavřetenové)
- CNC lathes
- Special
The regular lathe consists of following parts: beds, spindle, support, tailstock spindle or sliding gearbox.
Basic division of the inclination of the lathe bed:
- horizontal or sloping (inclination 45 degrees)
- sliding or linear
Clamping part – it is usually formed by a chuck on one side and tailstock on the other, or a chuck and second clamping part by a counter spindle.
Cutting part – formed by a cutting wedge attached to the longitudinal part - the Z axis.
The transverse part (perpendicular to the axis of the spindle) designated as the X-axis, or the automatic tool head, also usually located on the transverse feed on the machine.
Other axes, used especially in case of CNC lathes:
- axis C1 (indexed spindle position,
- axis C2 (indexed axis of the counter spindle)
- axis Y (Axis Y enables movement of tool perpendicular to axis Z and machining with live tools)
- axis B (indexed support axis)
The machine can be erupted with a measuring tool probe (automatically or manually foldable).
According to the technological operation, turning is focused on processing of:
- Cylindrical surfaces
- Front surfaces
- Conical surfaces
- Threads
There are several hundreds manufacturers in the world, among the most popular in Czech republic are: TOS, MAZAK, DOOSAN, ŠKODA, OKUMA, GILDEMEISTER, HAAS, KOVOSVIT, GOODWAY, TAJMAC-ZPS.
