Cutting equipments Wire cutting machine

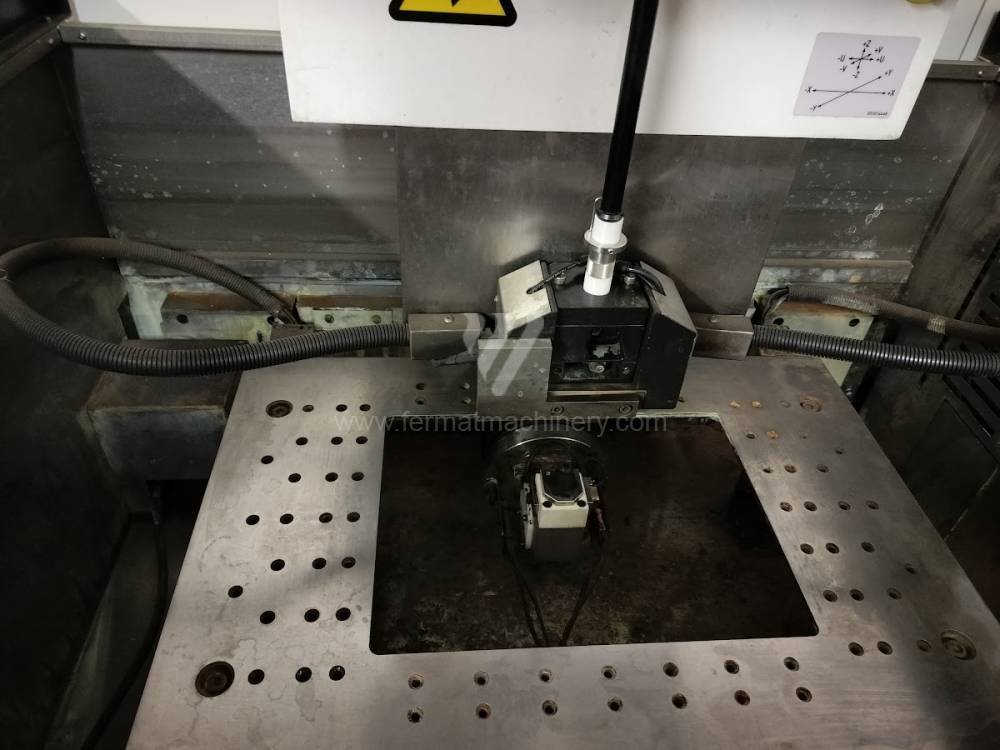

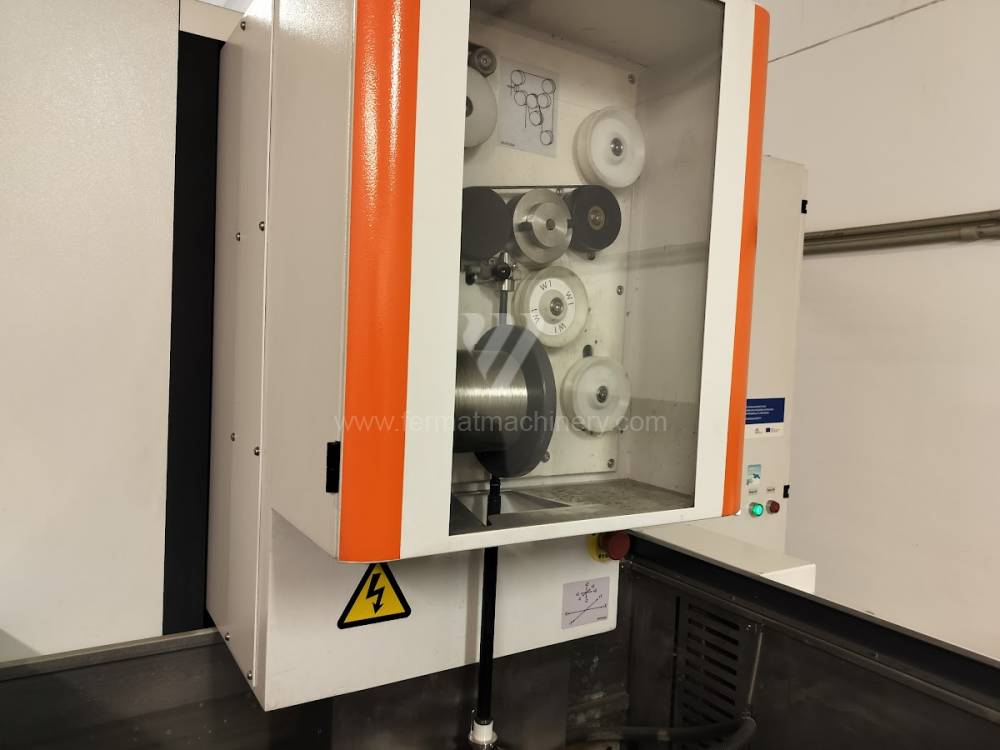

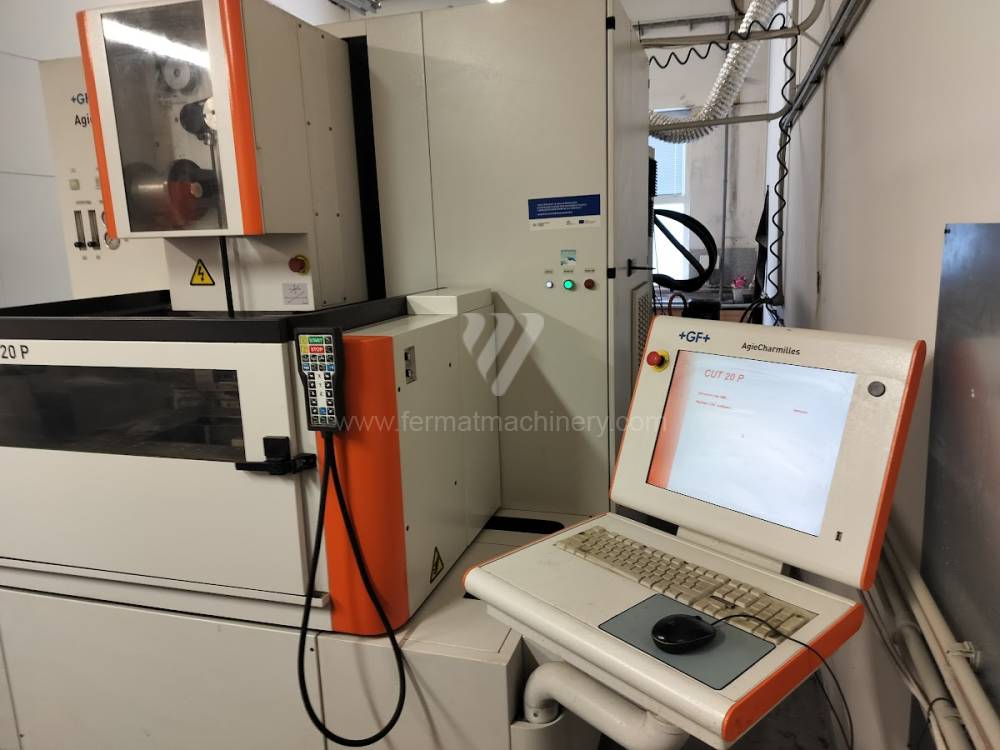

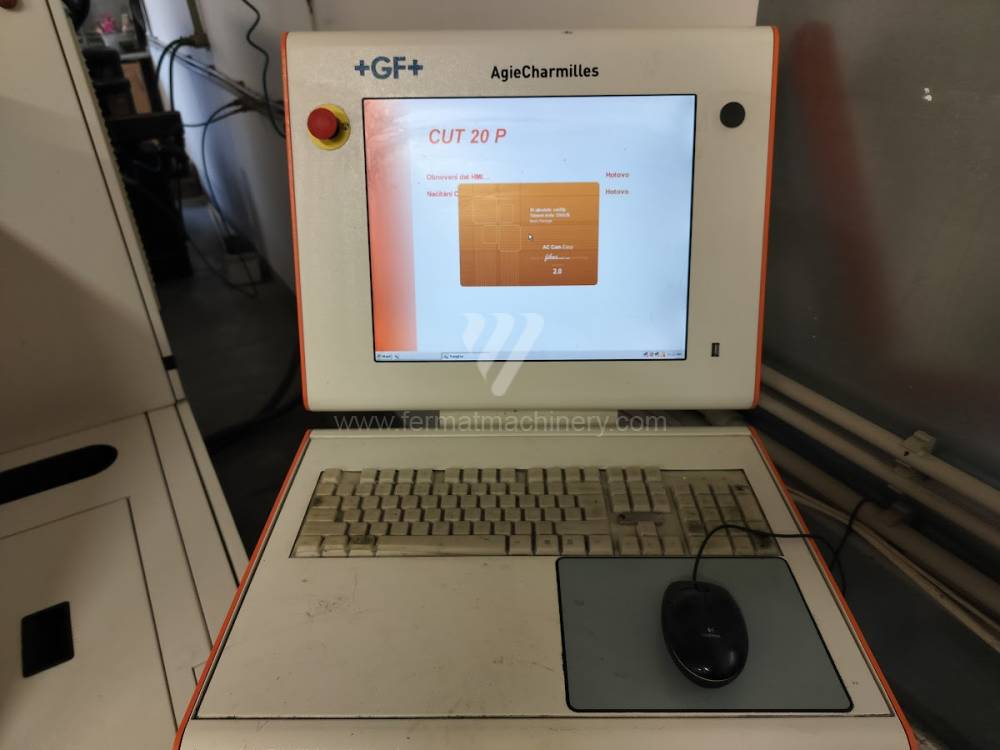

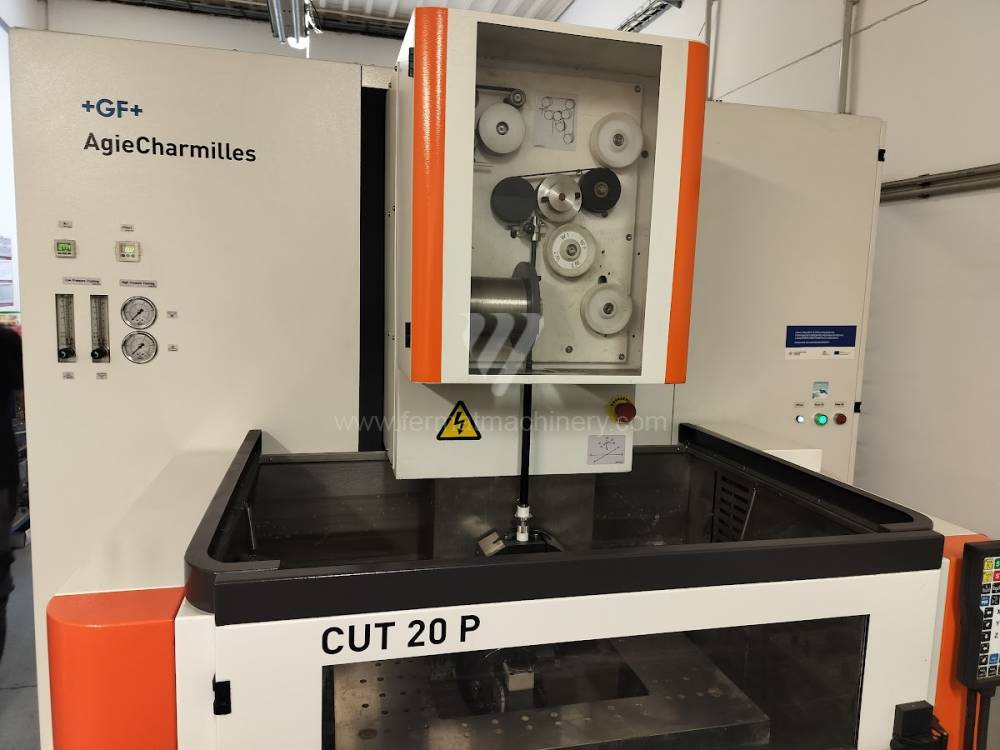

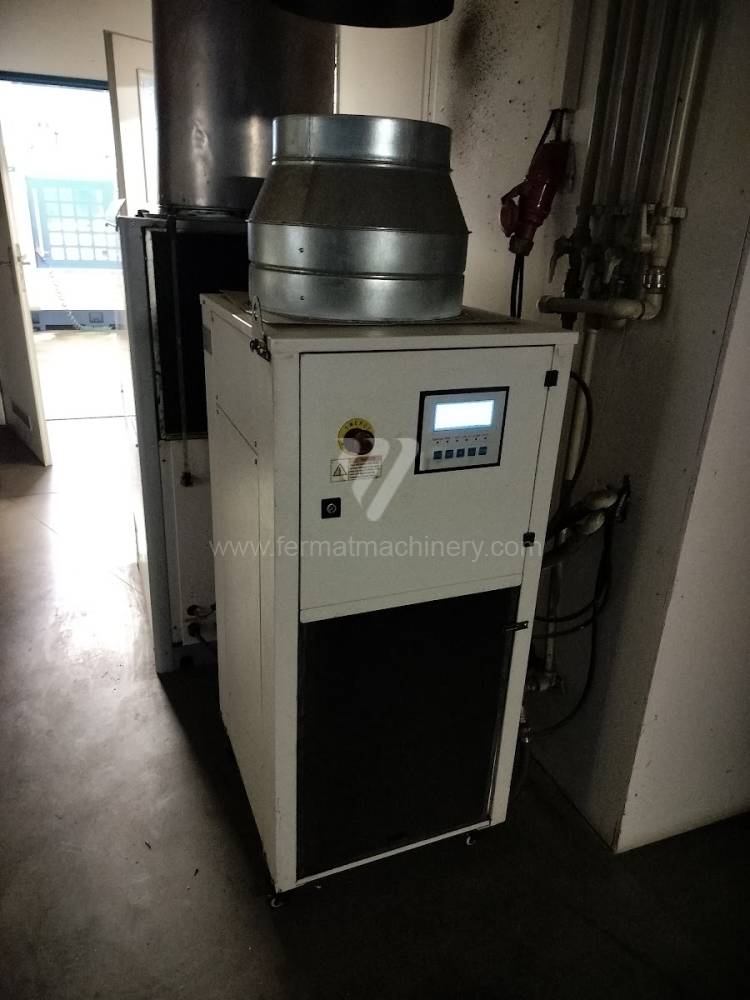

CUT 20 P
AGIE
Inventory number: 232008

YOM:2015
Travel X-axis: 350 mm
Travel Y-axis: 250 mm
Travel Z-axis: 250 mm
Max. weight of workpiece: 400 kg
Max. dimensions of workpiece: 900 x 680 x 250 mm
Dimensions of table working surface: 700 x 480 mm

FX-30K
MITSUBISHI ELECTRIC
Inventory number: 211811

Travel X-axis: 750 mm
Travel Y-axis: 500 mm
Travel Z-axis: 350 mm
Machine dimensions l x w x h: 1300 x 800 x 345 mm

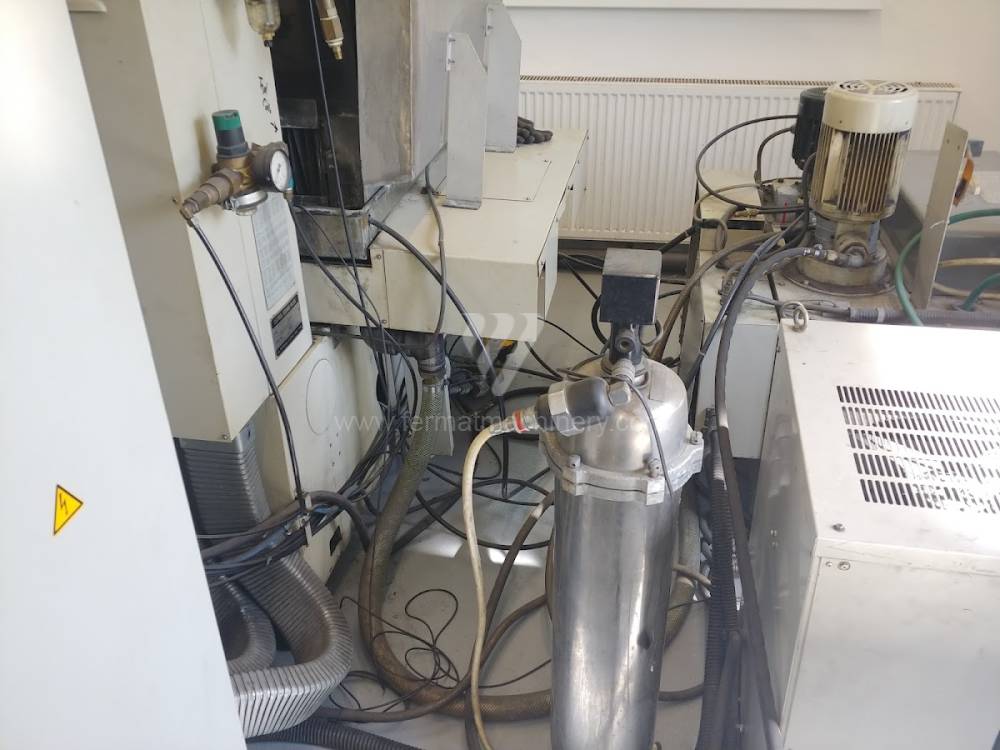

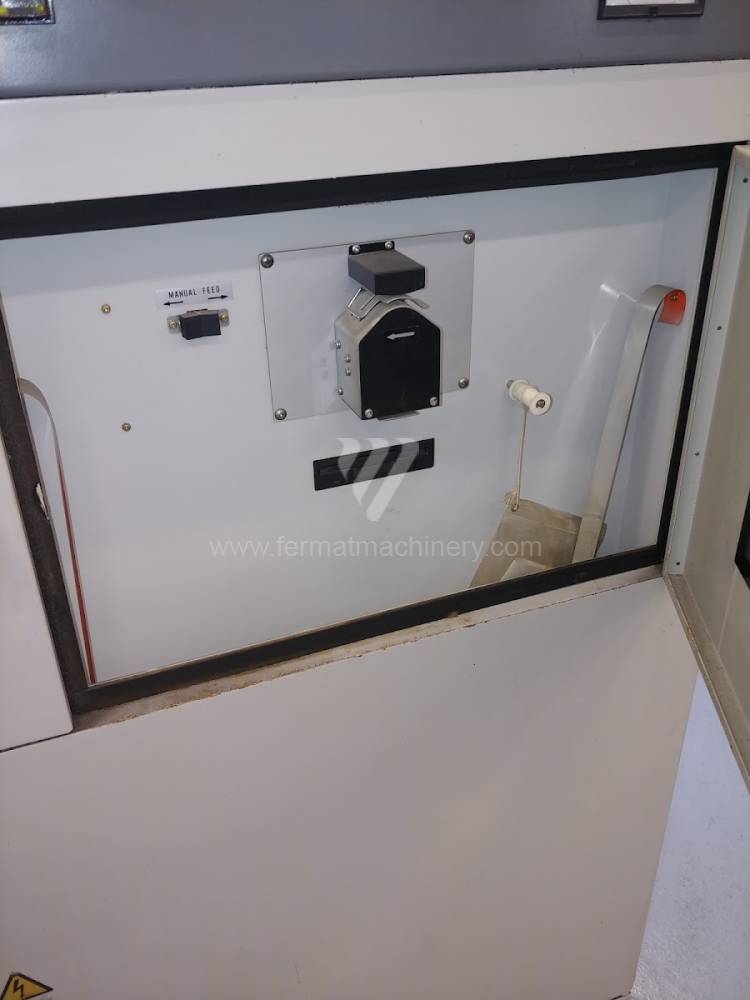

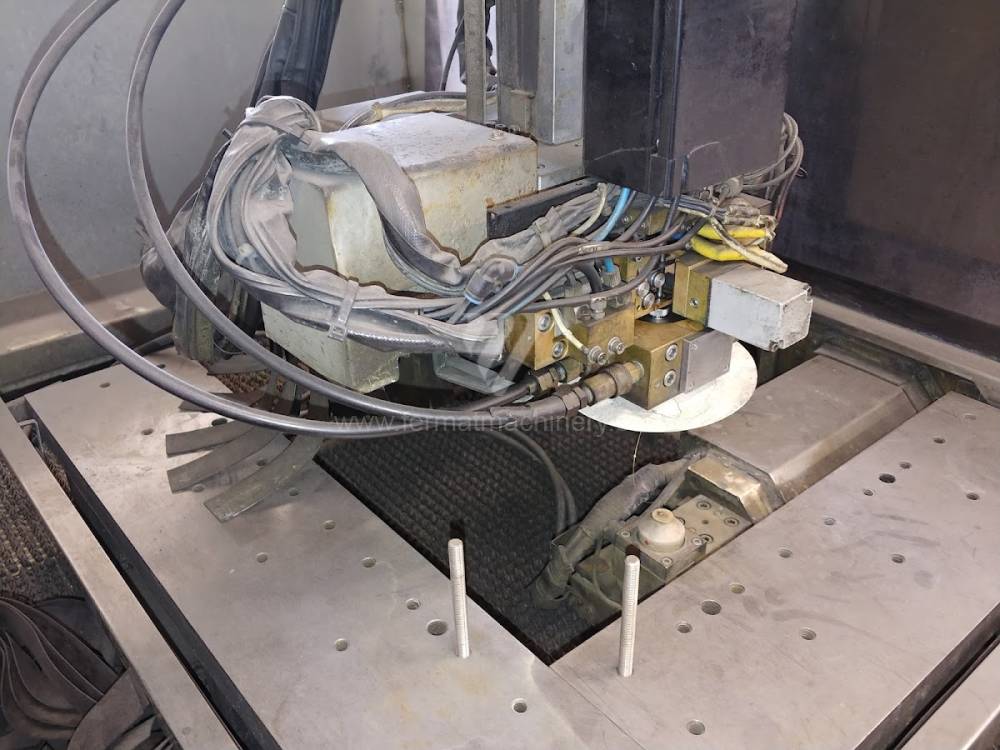

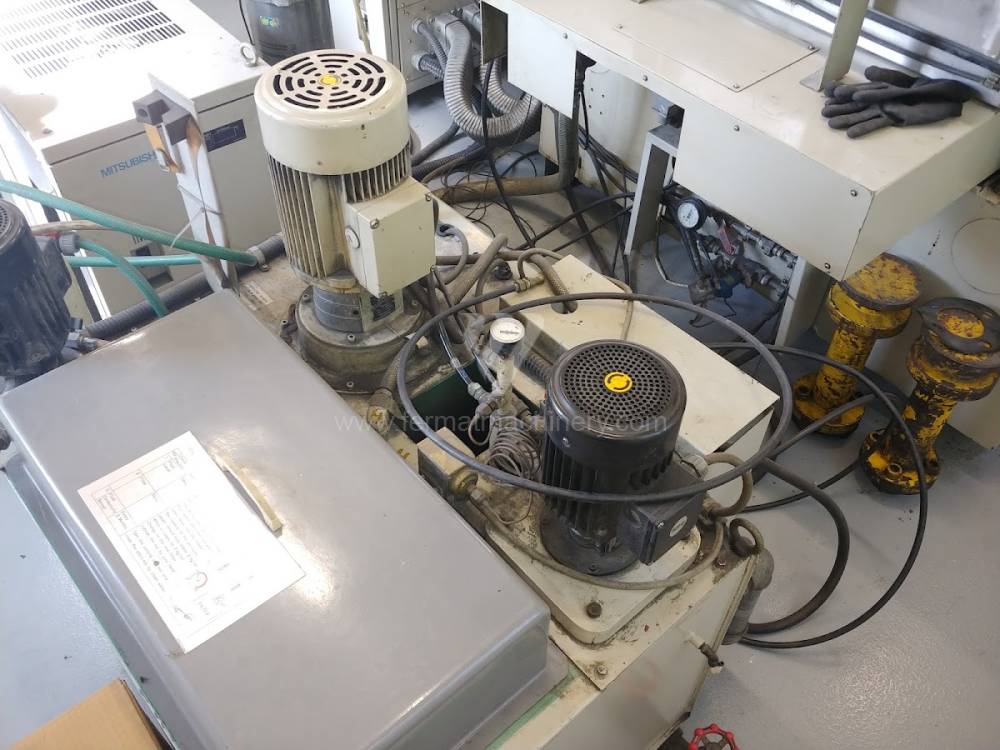

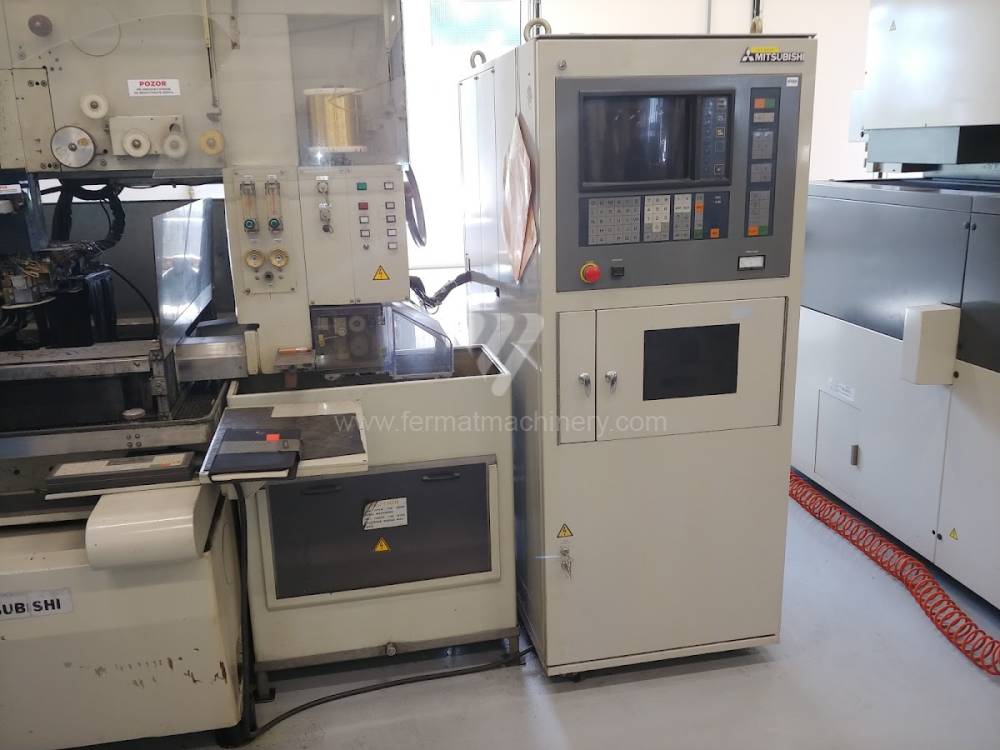

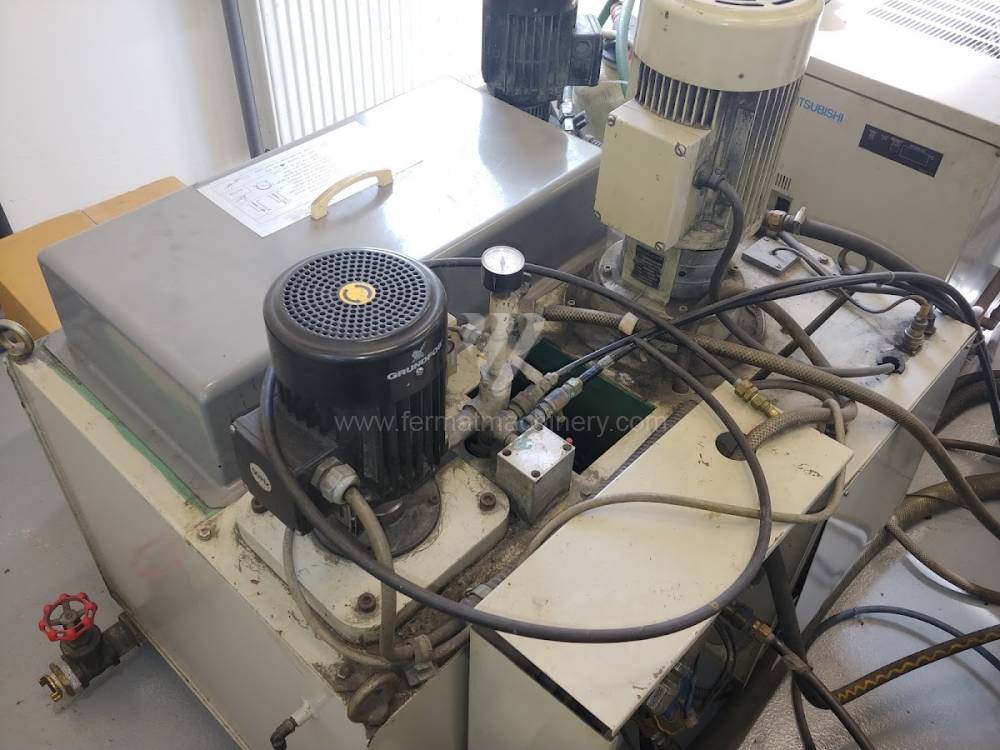

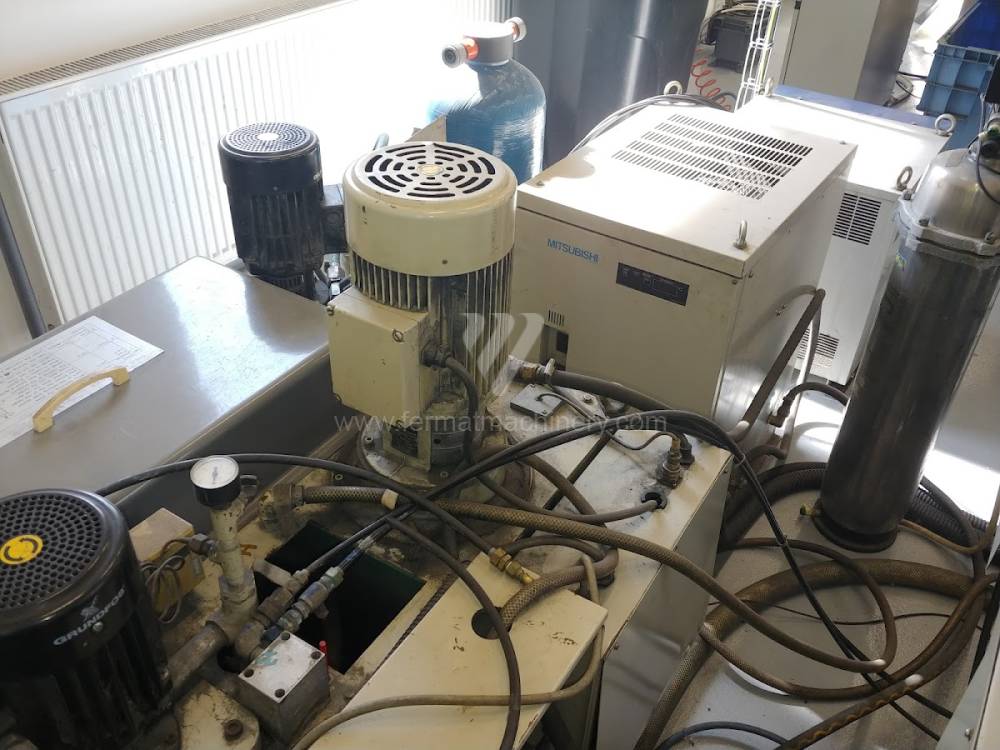

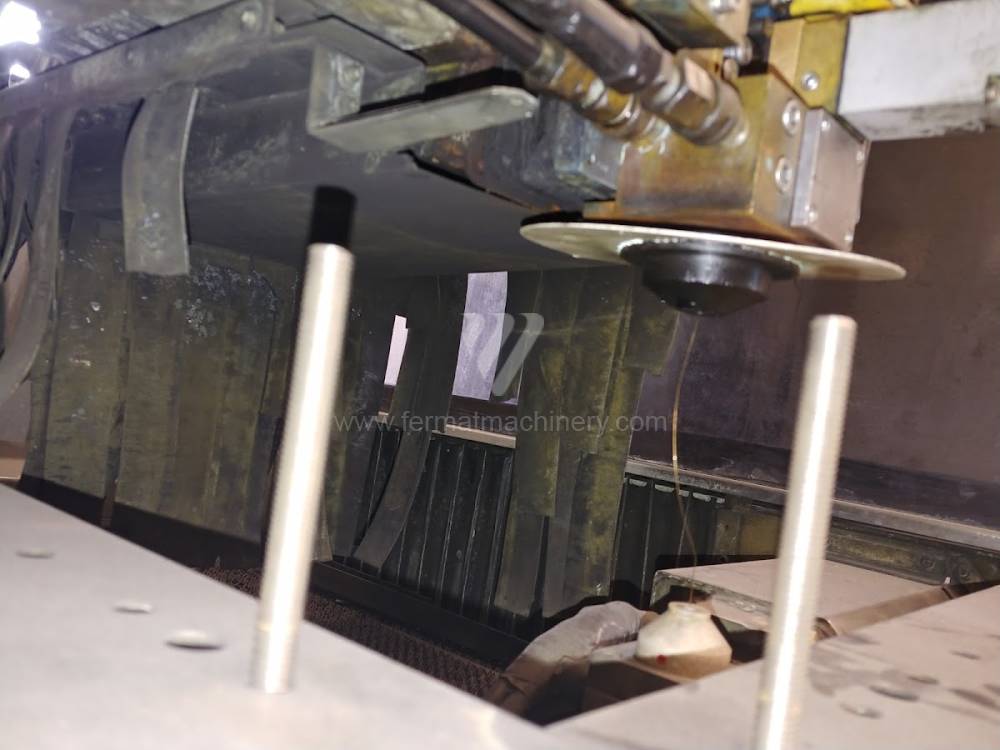

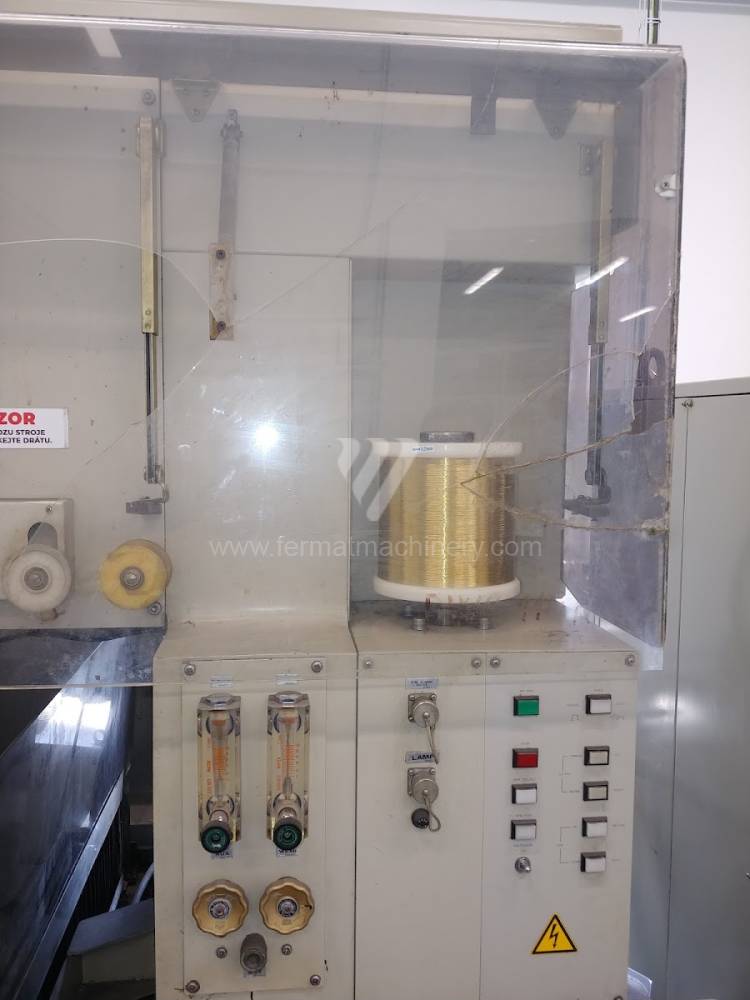

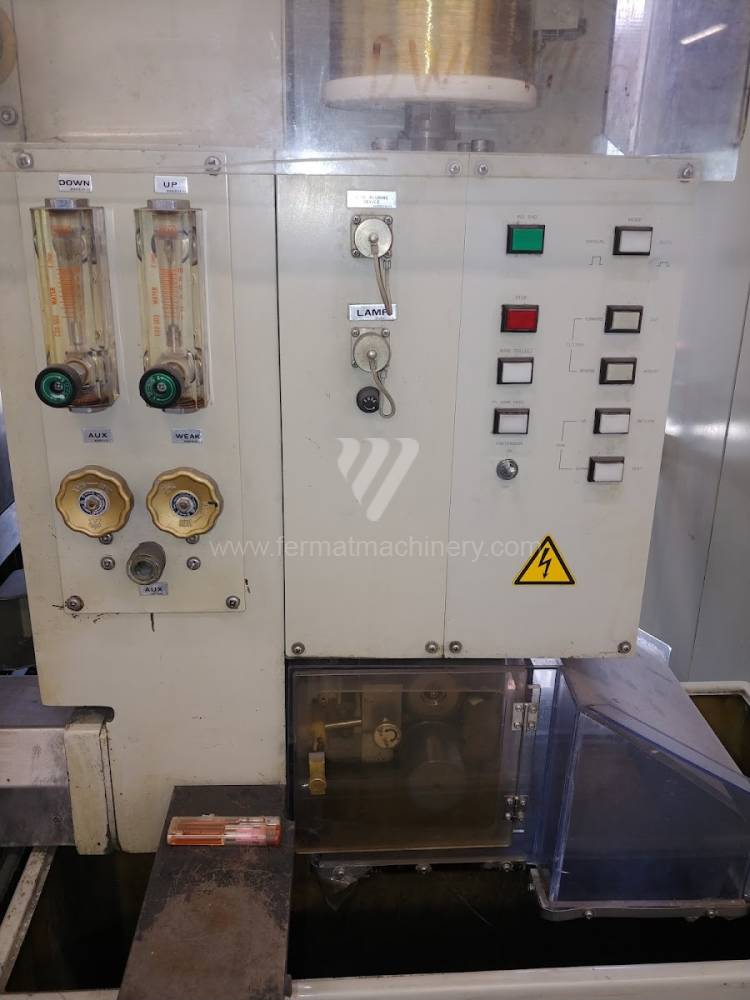

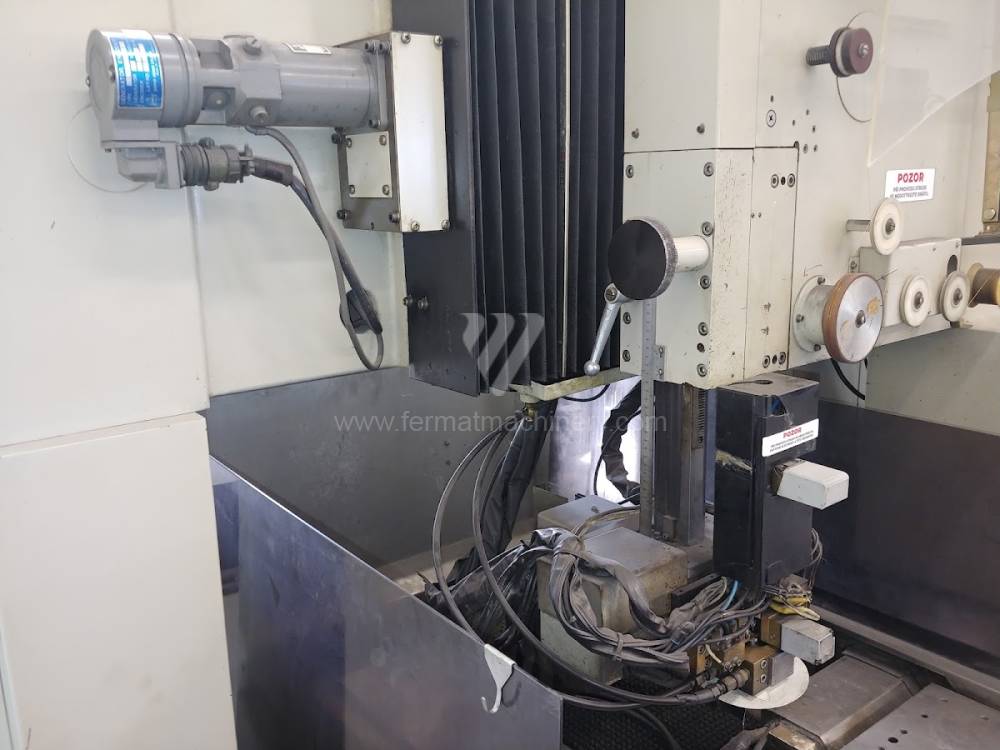

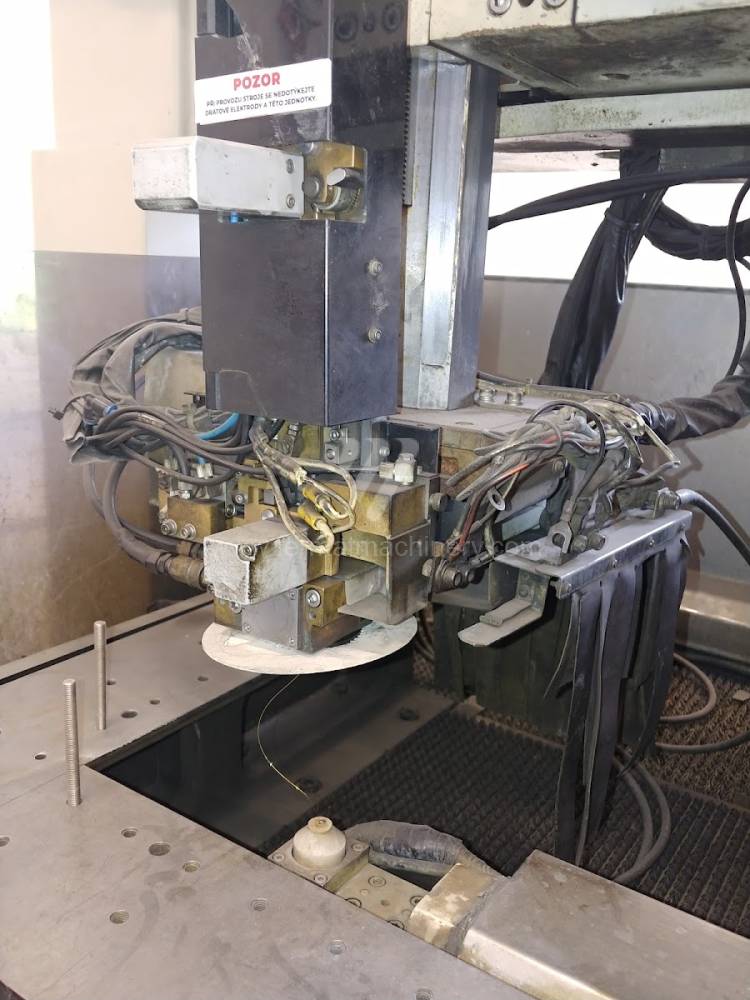

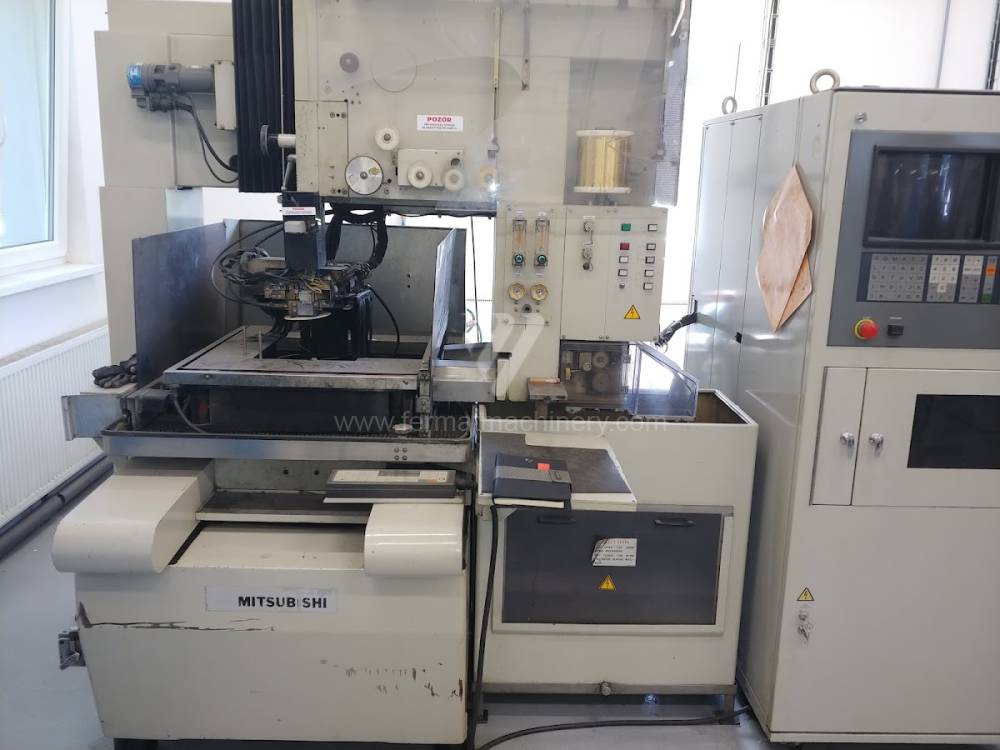

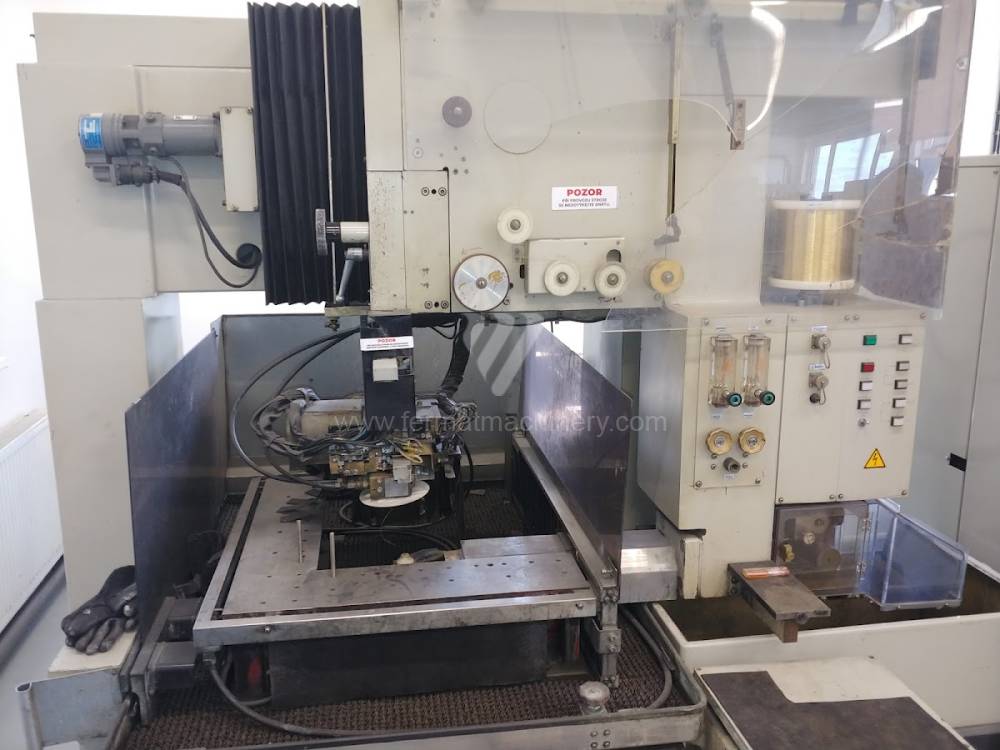

DWC 110
MITSUBISHI ELECTRIC
Inventory number: 231576

YOM:1989
Travel X-axis: 300 mm
Travel Y-axis: 450 mm
Travel Z-axis: 265 mm
Machine weight: 2700 kg
Control system Mitsubishi:
Table dimensions: 600x600 mm

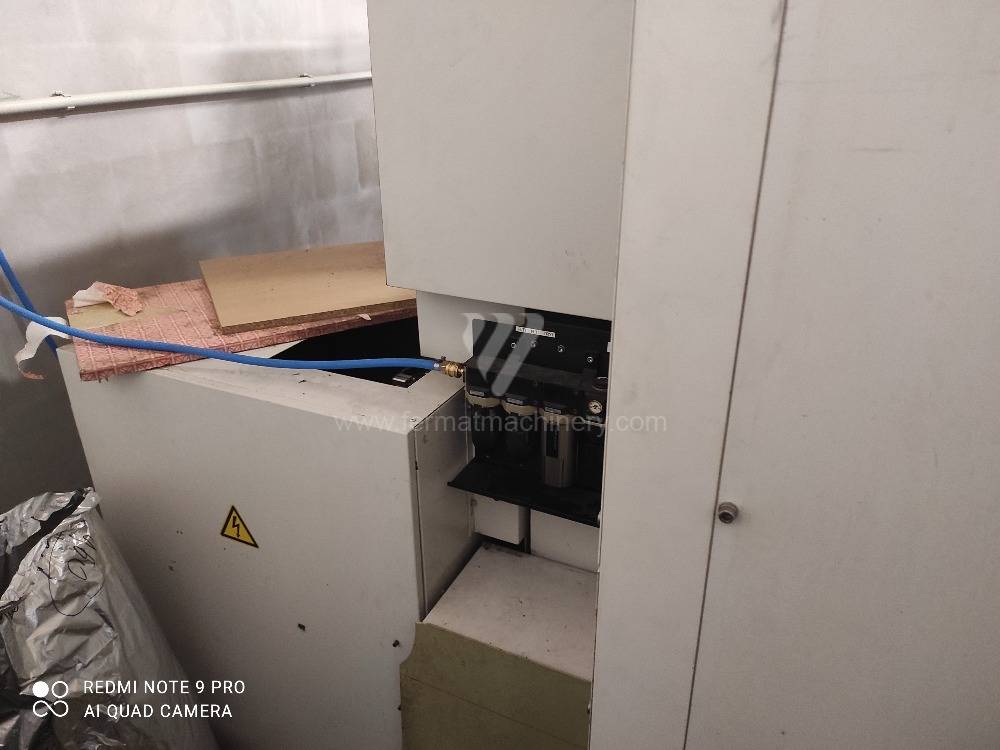

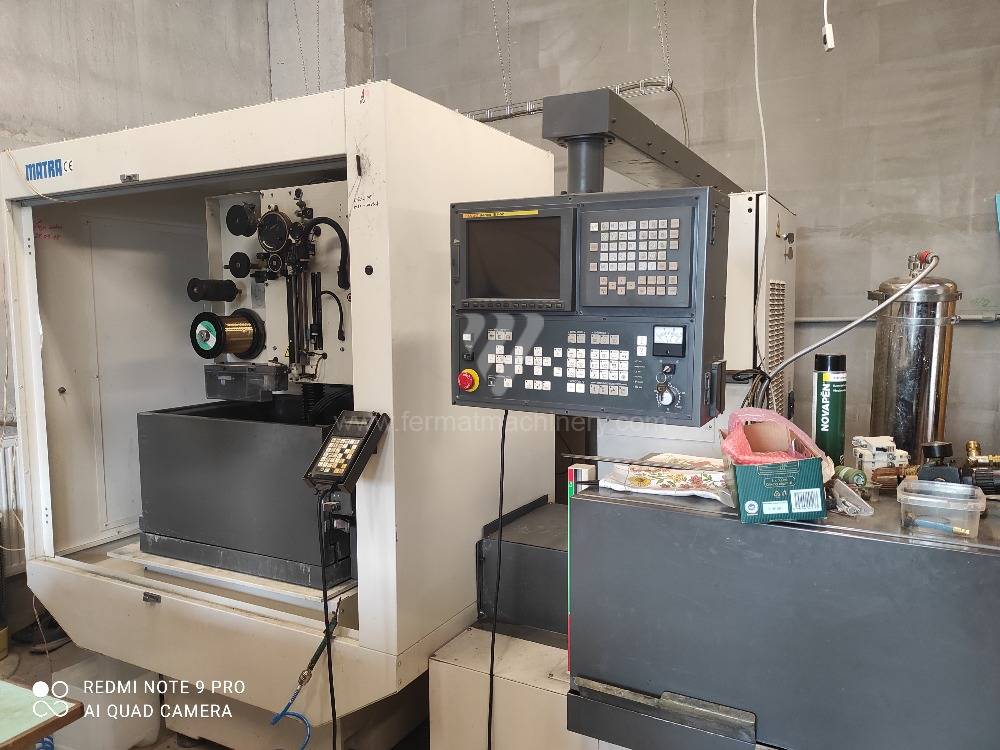

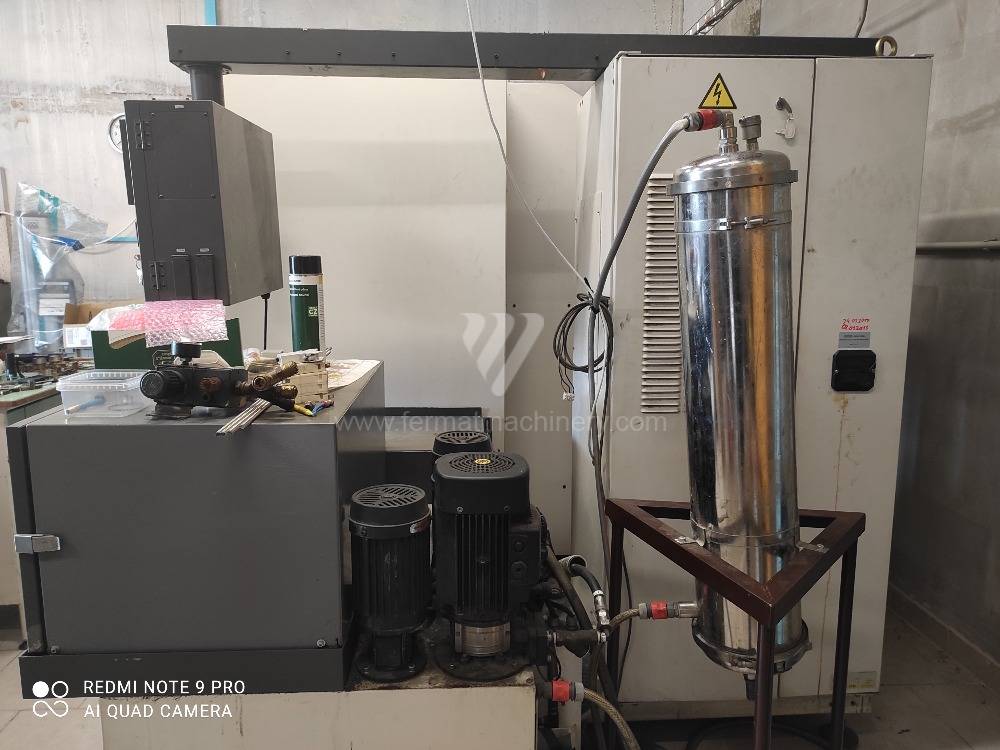

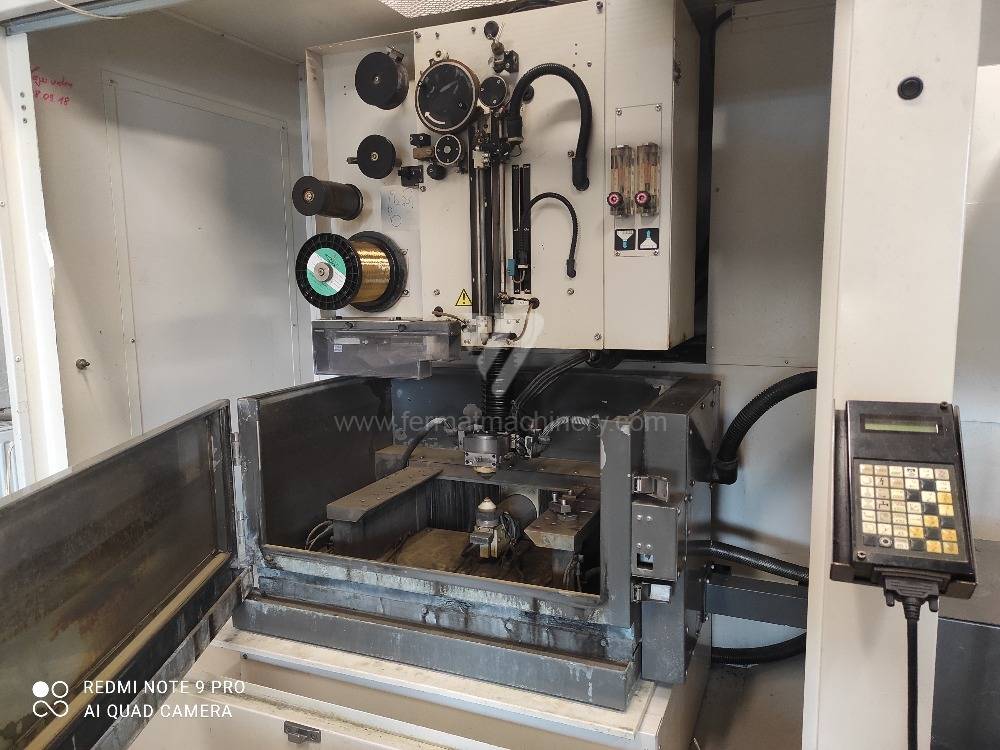

ROBOCUT Alpha 0iA
Fanuc
Inventory number: 231666

YOM:2000
Travel X-axis: 320 mm
Travel Y-axis: 220 mm
Travel Z-axis: 180 mm
Max. weight of workpiece: 500 kg
Total input: 13 kVA
Control system Fanuc:

U32K
MAKINO
Inventory number: 241016

YOM:2001
Travel X-axis: 370 mm
Travel Y-axis: 270 mm
Travel Z-axis: 220 mm
Max. load of table: 600 kg
Max. workpiece height: 220 mm
Max. length of workpiece: 790 mm

Robocut Alfa 0iE
Fanuc
Inventory number: 241293

YOM:2013
Travel X-axis: 370 mm
Travel Y-axis: 270 mm
Travel Z-axis: 255 mm
Clamping area: 700x600 mm
Control system Fanuc: Fanuc 31i
Machine dimensions l x w x h: 2200x1930x1950 mm

Robofil 290
Charmilles Technologies
Inventory number: 241028

YOM:2000
Travel X-axis: 400 mm
Travel Y-axis: 250 mm
Travel Z-axis: 200 mm
Machine dimensions l x w x h: 1803x1600x2172 mm
Machine weight: 2500 kg

MATRA - FANUC TAPE CUT W2
Fanuc
Inventory number: 191380

YOM:1991
Travel X-axis: 500 mm
Travel Y-axis: 350 mm
Travel Z-axis: 300 mm
Control system Fanuc:
Max. load of table: 350 kg
Machine dimensions l x w x h: 3500 x 2400 x 2400 mm

ROBOFIL 240 SL
Charmilles Technologies
Inventory number: 231935

YOM:2006
Travel X-axis: 350 mm
Travel Y-axis: 220 mm
Travel Z-axis: 220 mm
Machine weight: 2100 kg
Max. weight of workpiece: 750 kg
Max. length of workpiece: 1000 mm

FX 20 K
MITSUBISHI ELECTRIC
Inventory number: 221348

YOM:1999
Travel X-axis: 500 mm
Travel Y-axis: 350 mm
Travel Z-axis: 300 mm
Max. dimensions of workpiece: 1050 x 800 x 295 mm
Max. weight of workpiece: 800 kg
Clamping area of table: 780 x 875 mm

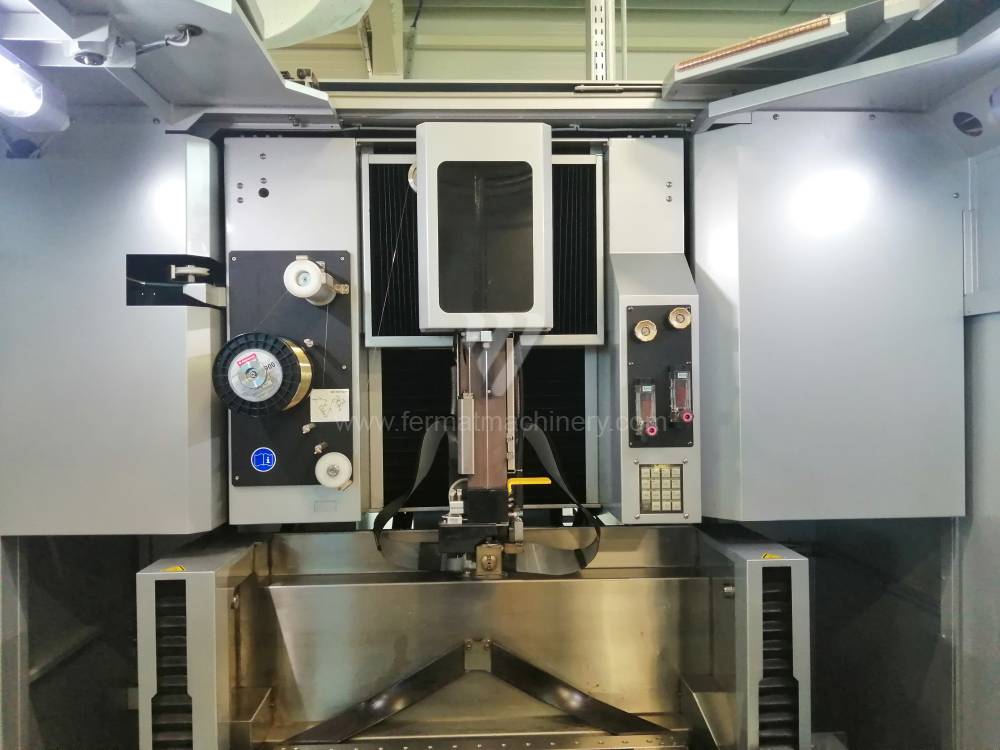

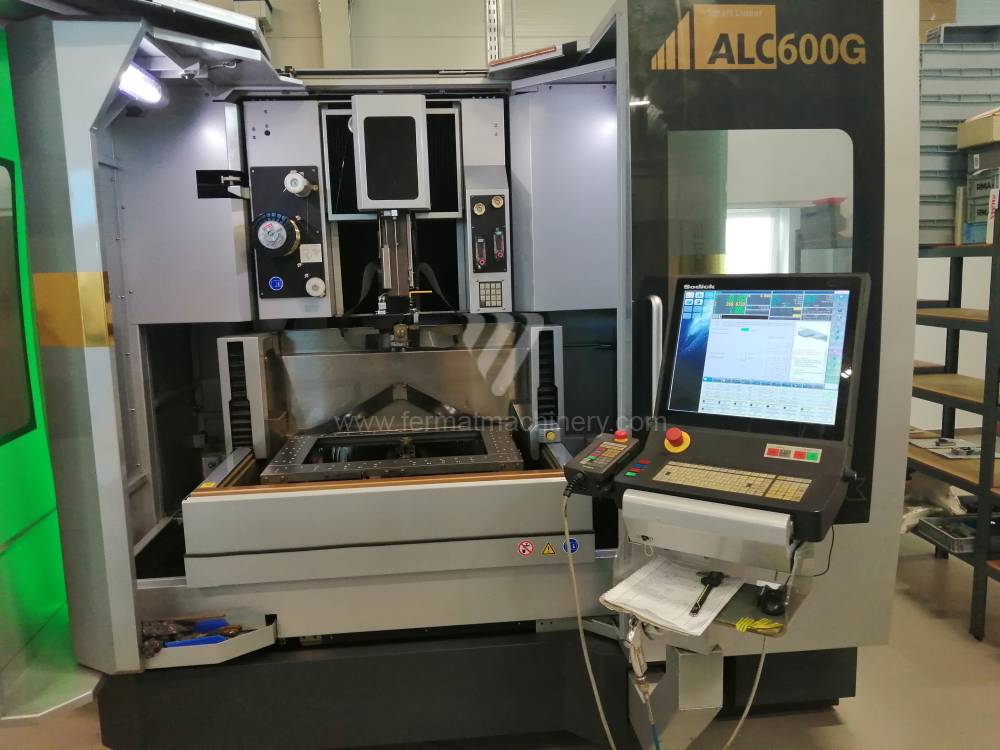

ALC600G
Sodick
Inventory number: 211221

YOM:2017
Travel X-axis: 600 mm
Travel Y-axis: 400 mm
Travel Z-axis: 350 mm
Axis U: 150 mm
Axis V: 150 mm
Max. load of table: 1000 kg

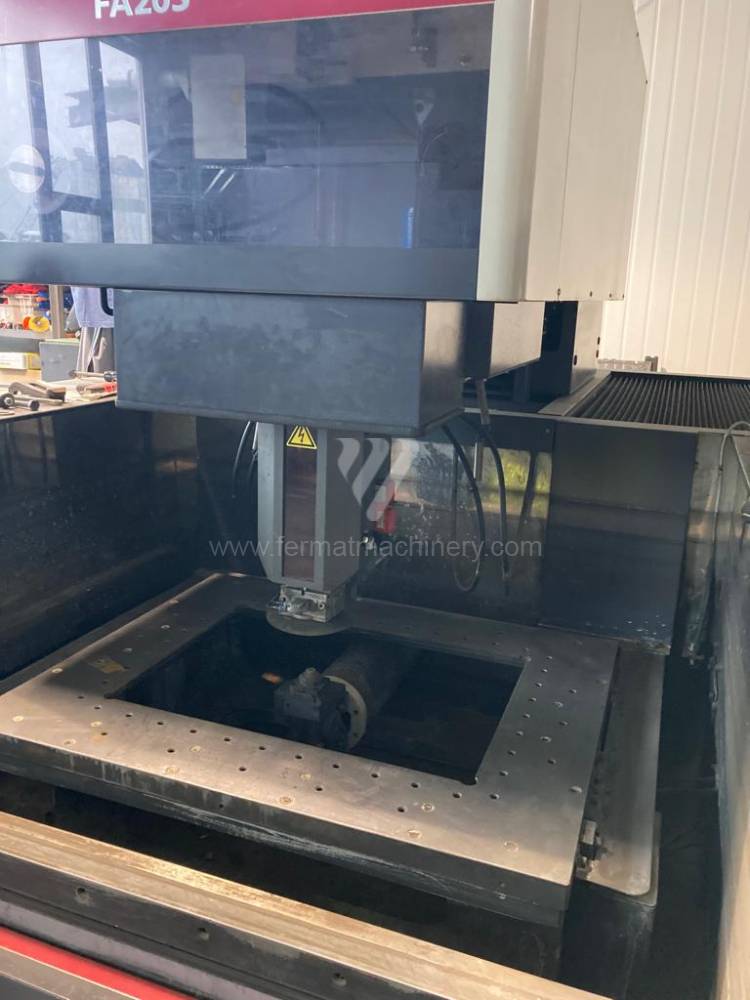

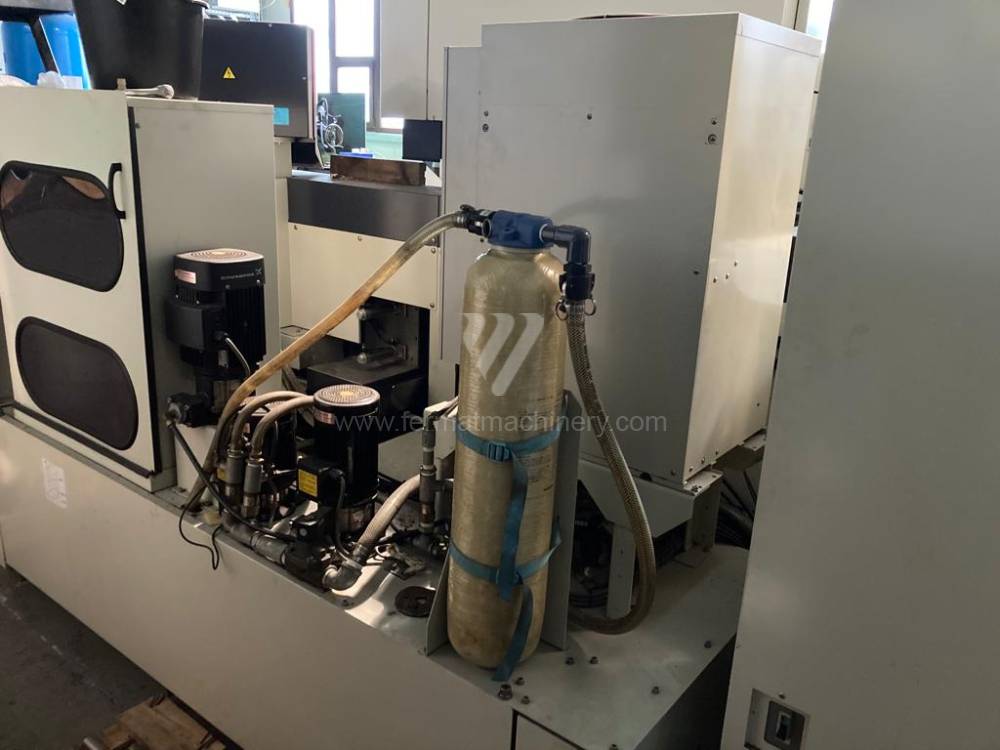

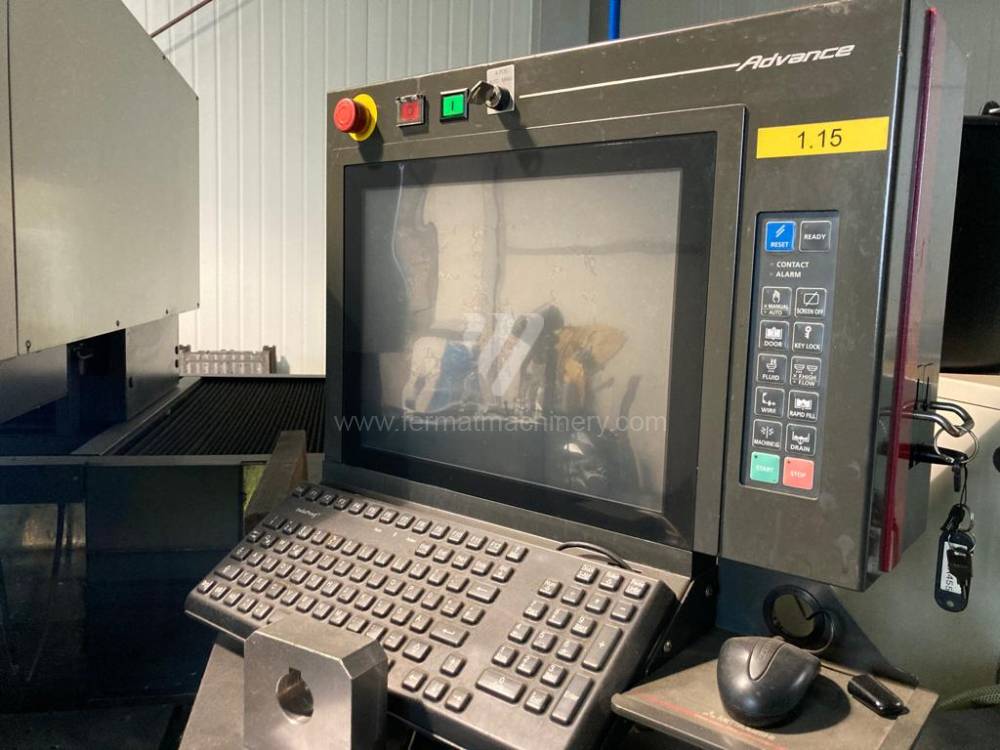

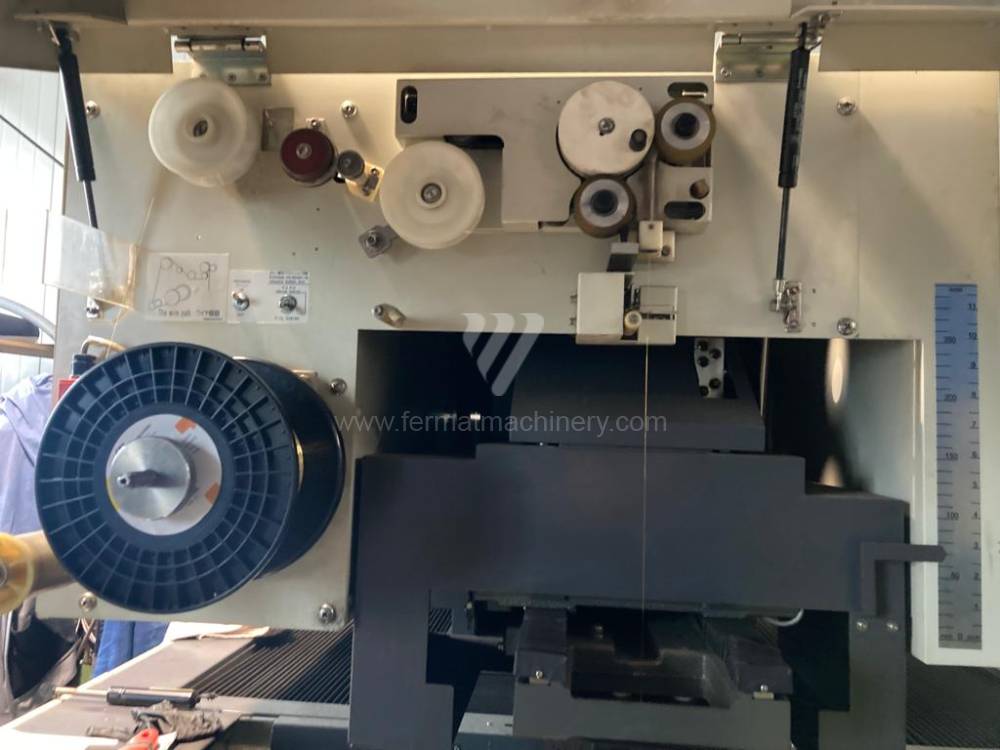

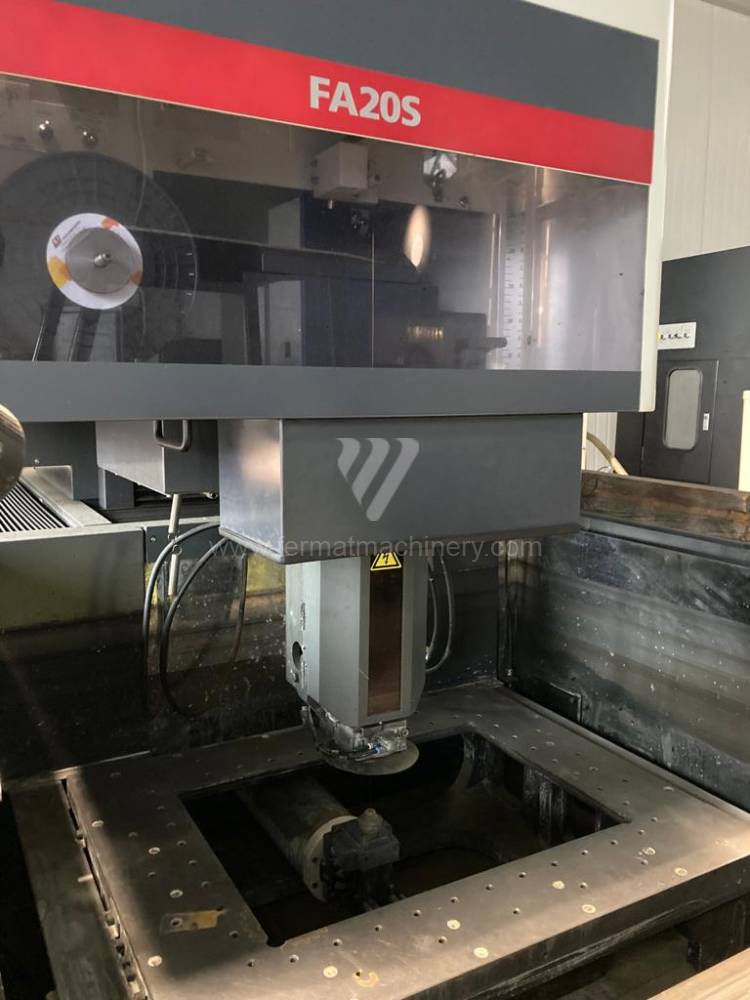

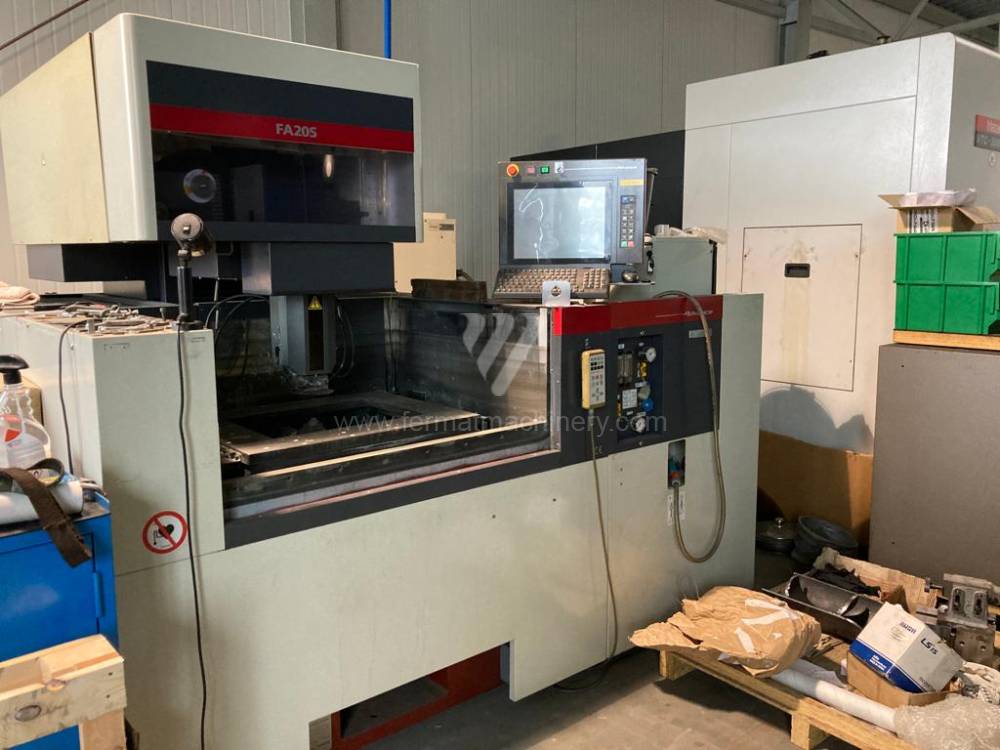

FA 20S Advance
MITSUBISHI ELECTRIC
Inventory number: 231719

YOM:2006
Travel X-axis: 500 mm
Travel Y-axis: 350 mm
Travel Z-axis: 300 mm
Machine dimensions l x w x h: 2550x2800x2150 mm
Max. weight of workpiece: 1500 kg
Max. diameter of wire: 0,1-0,36 mm

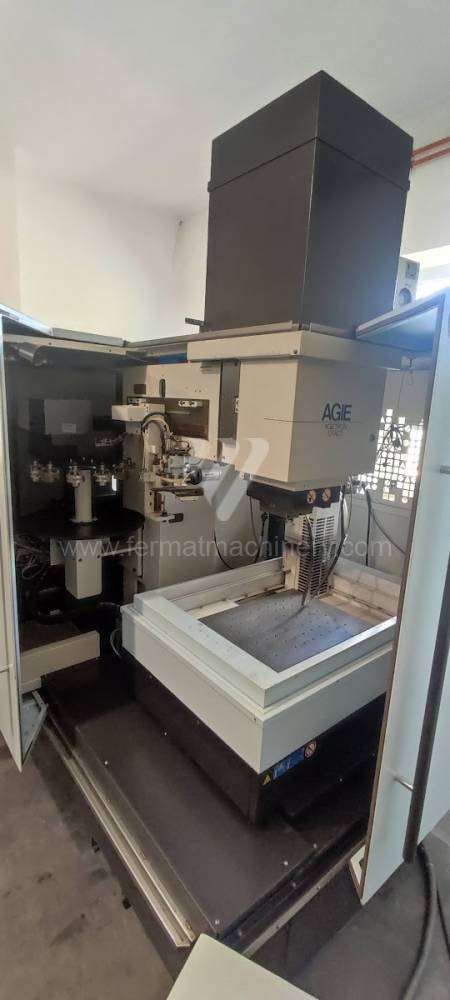

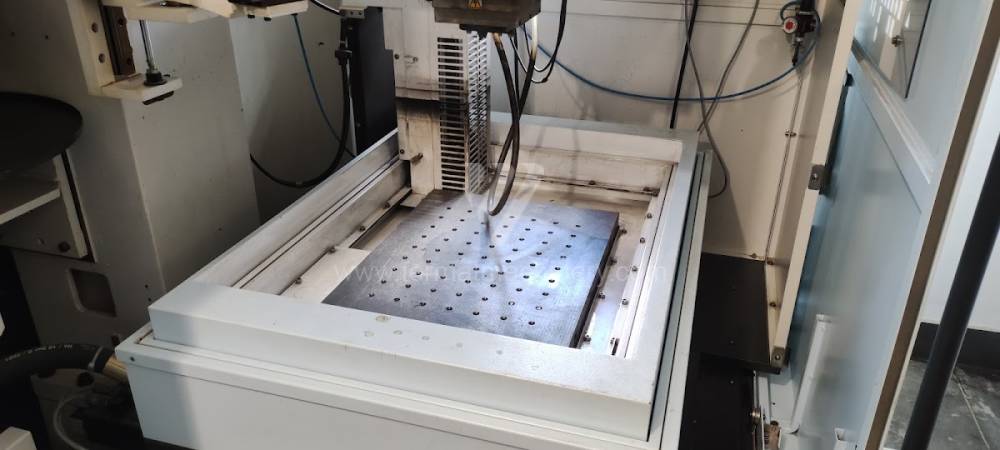

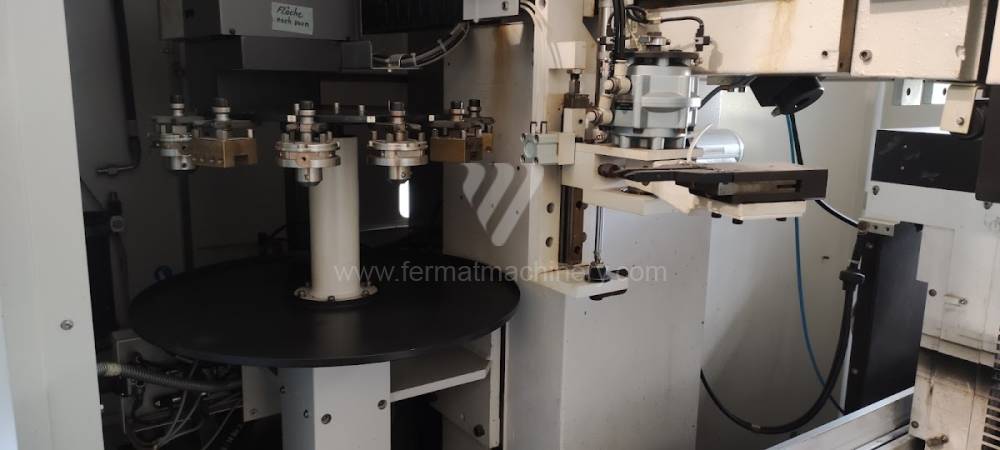

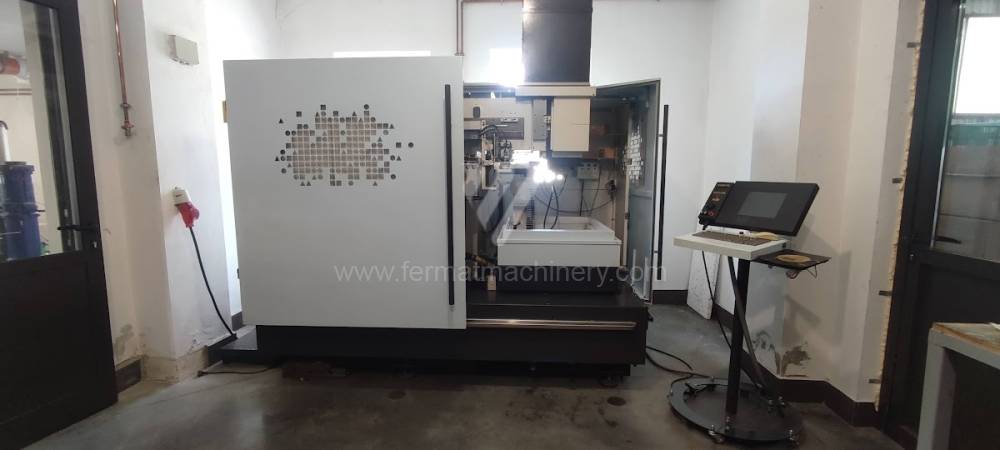

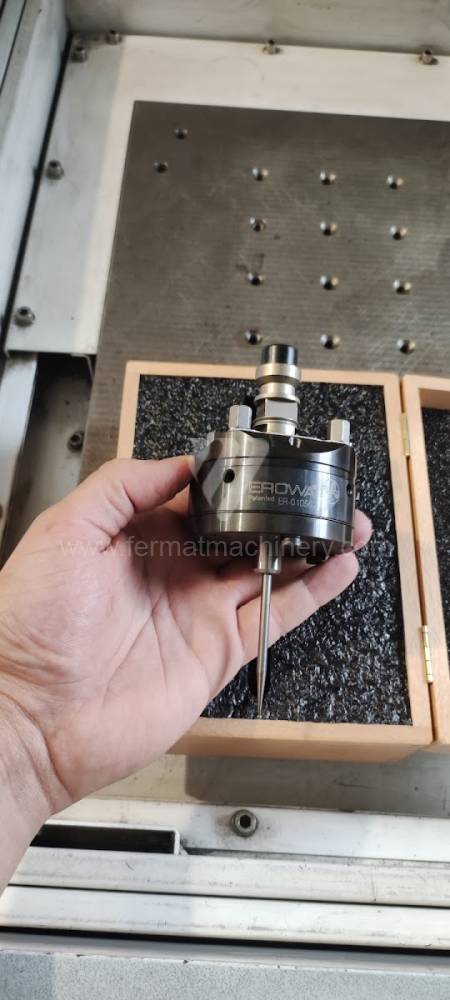

AGIETRON EXACT 2
AGIE
Inventory number: 221647

YOM:2002
Travel X-axis: 350 mm
Travel Y-axis: 250 mm
Travel Z-axis: 350 mm
Axis C: 360 °
Tool magazine: YES
Number of positions in magazine: 12

A separate subcategory are wire cutting machines, sometimes named as electrospark or electroerosion machine, shortly EDM (Electric Discharge Machining) which remove the material with tiny electric discharges in a liquid dielectric. The Main advantage is that machine can work even with hard materials too. These machines are used for production of tools, punches etc.

Manufacturers

Among the main manufacturers of these EDM machines are Charmilles Technologies, Agie, Fanuc, Sodick, Mitsubishi Electric, Hitachi, Accutex, Makino.
