Lathes
TOP offer
123456789 List Grid
SU 50/1500
SU 125/8000
SUI 80/5000
QT-COMPACT 300MSY L
ST 10 Y
EMCO TURN E65
BNA-42 DHY
SUI 63 NC/1500
URSUS TCH 800
PUMA GT 3100
Turntec 50
MASTURN 550i CNC
SU 125/6000
NN 32 YB2
CNA 400x3
COMPACT A25 CNC
GENOS L300M
SN 500 N/2000
SV 18 RA
SUS 80
TR 90/4000
ST-30 Y
GS-280L
MASTURN MT 54 / 1500
Sprint 42 linear
123456789Lathes
SU 50/1500
TOS KUŘIM - OS, a.s.
Inventory number: 251381
Swing over bed: 20 in
Distance between centres: 60 in
Max. weight of workpiece: kg
Swing over cross slide: 10 in
Main motor power: 5,5 kW
SU 125/8000
TOS Čelákovice
Inventory number: 251237
YOM:1984
Swing over bed: 50 in
Distance between centres: 320 in
Max. weight of workpiece: 9000 kg
Spindle speed: 18 - 355 /min.
Turning lenght: 400 in
Swing over cross slide: 37.6 in

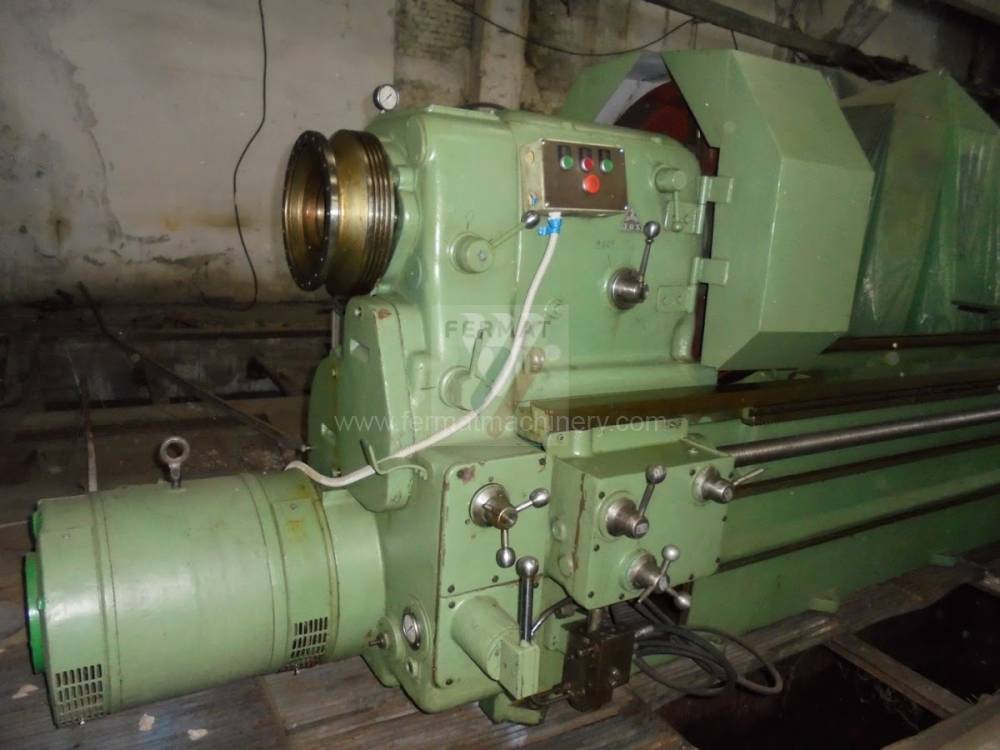

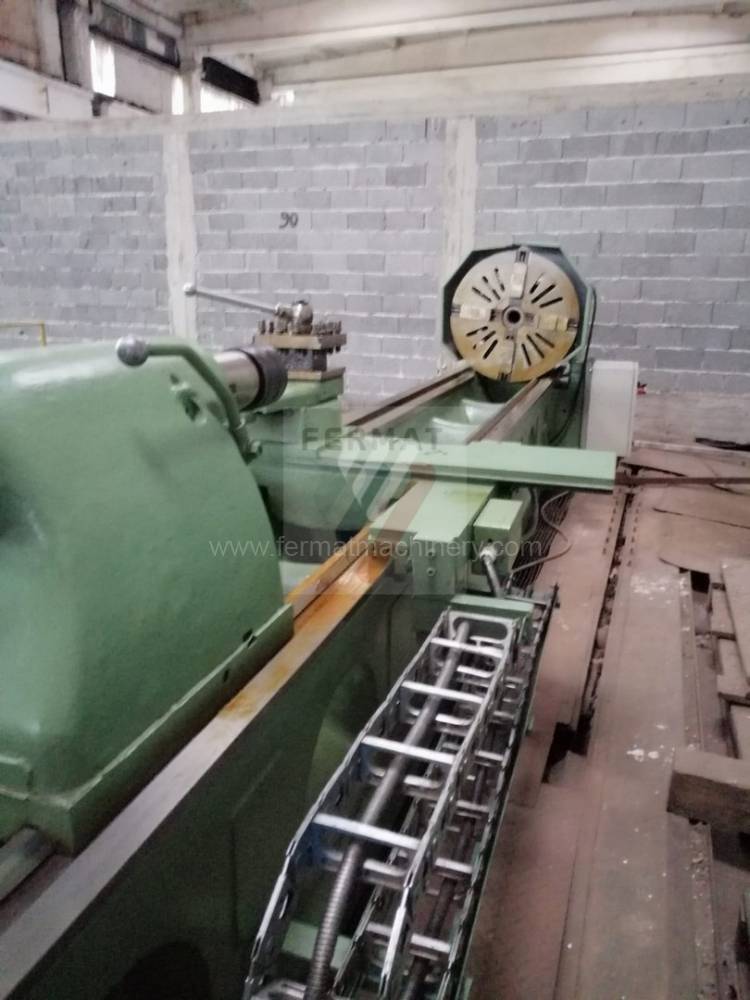

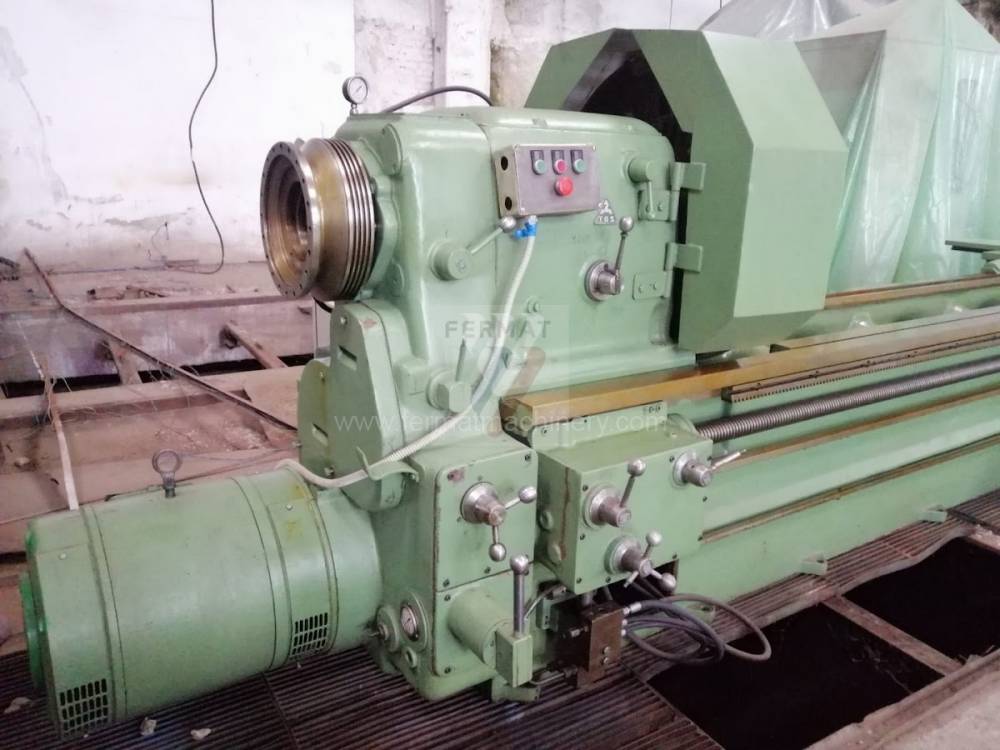

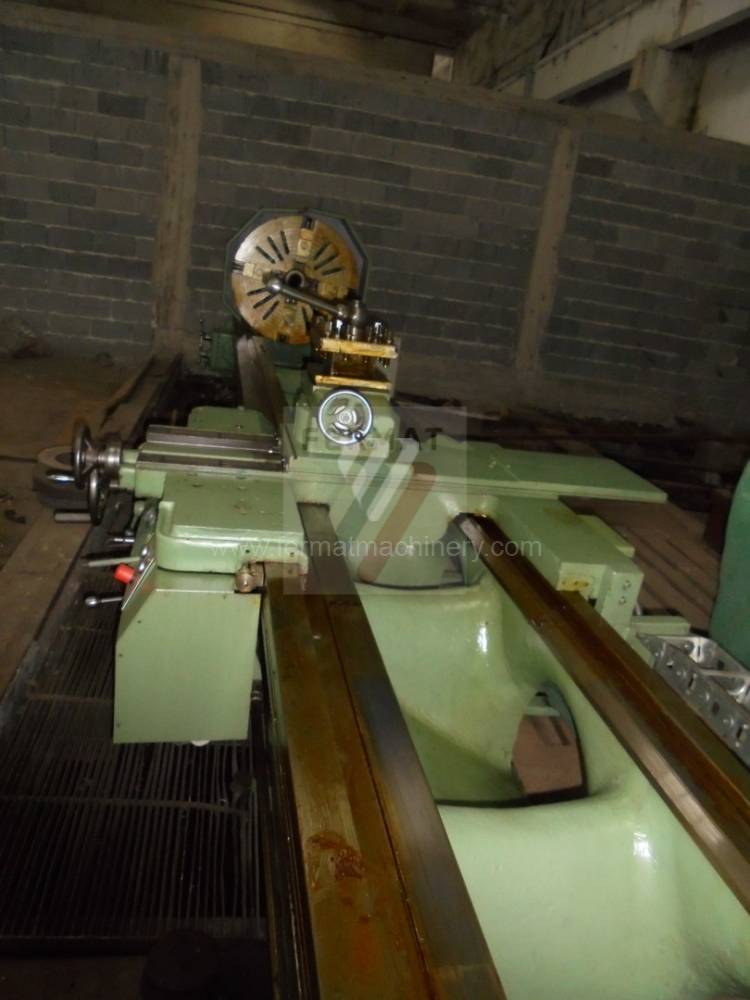

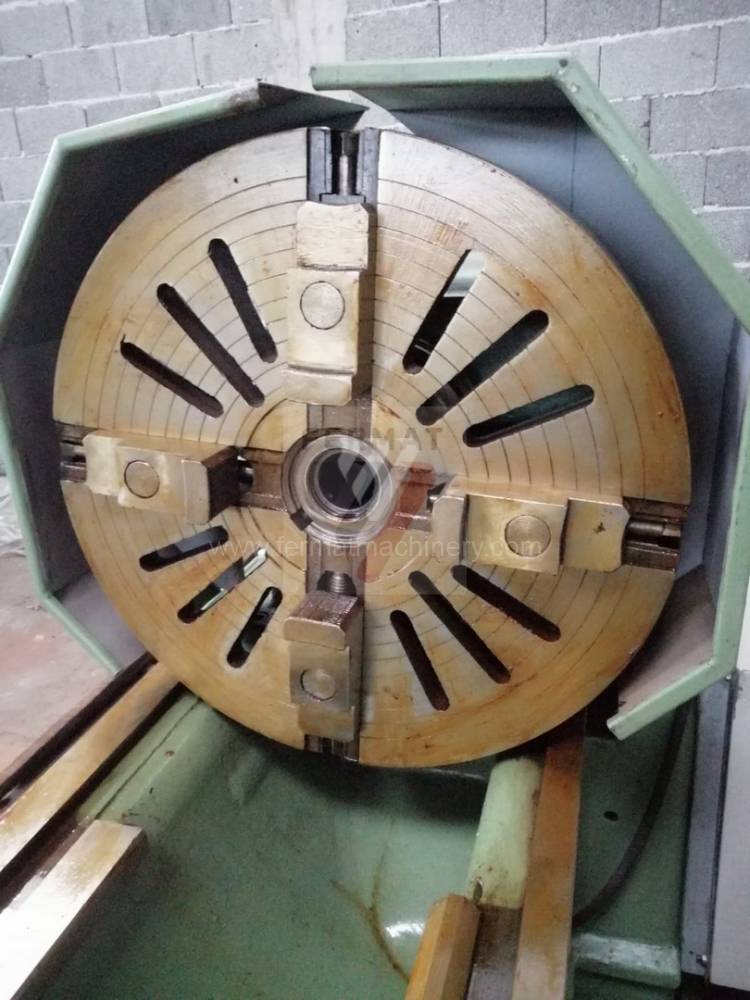

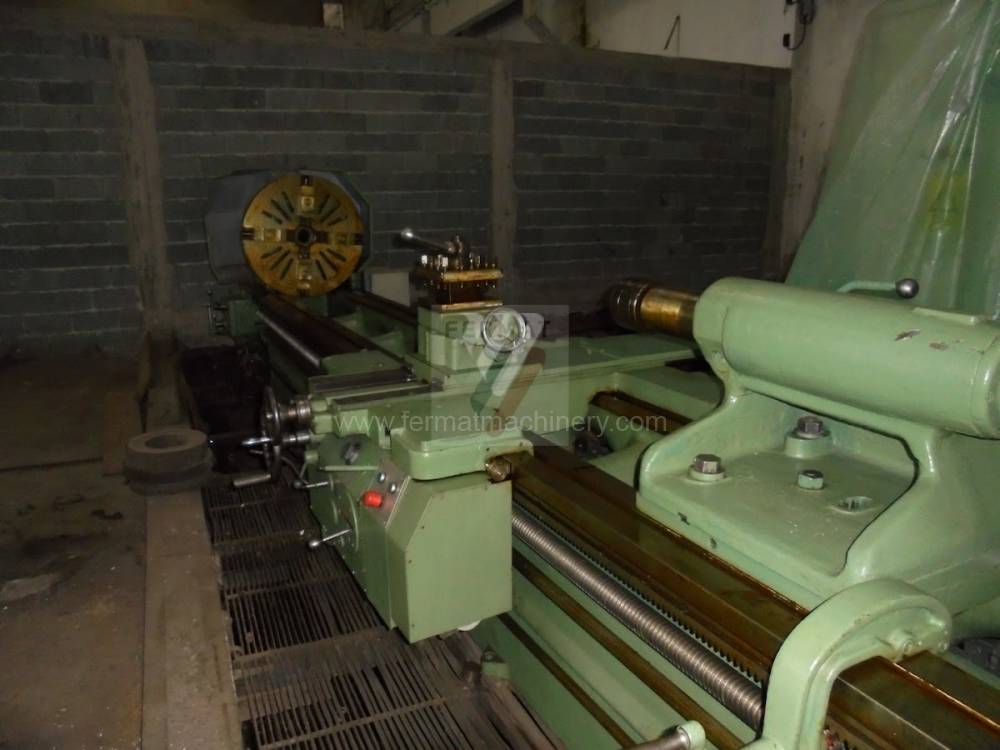

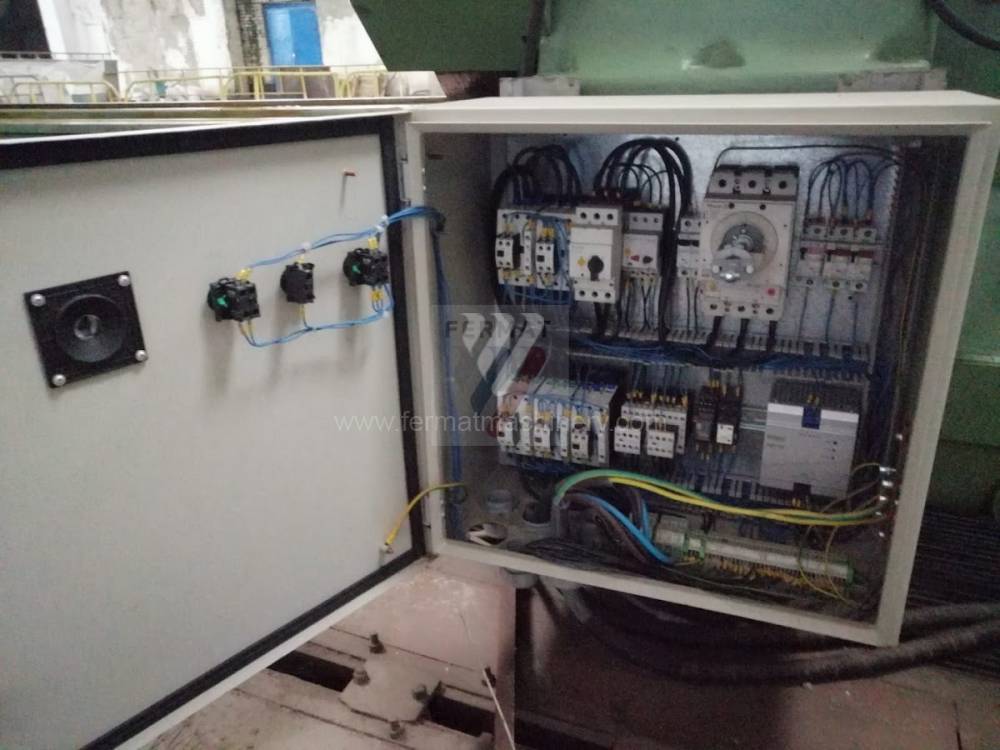

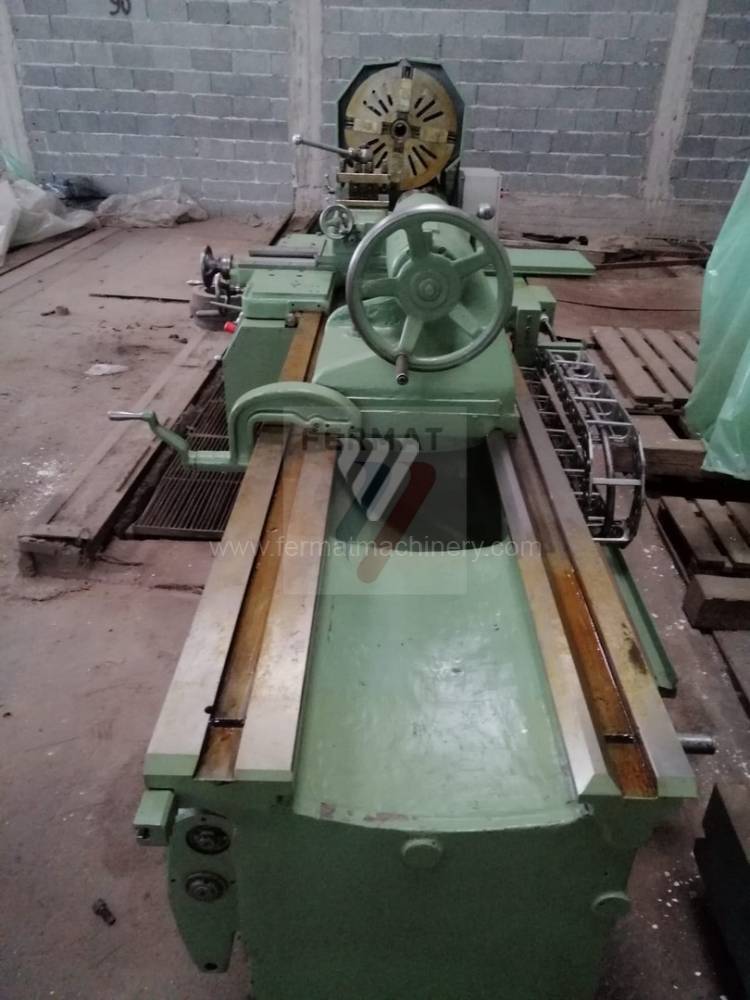

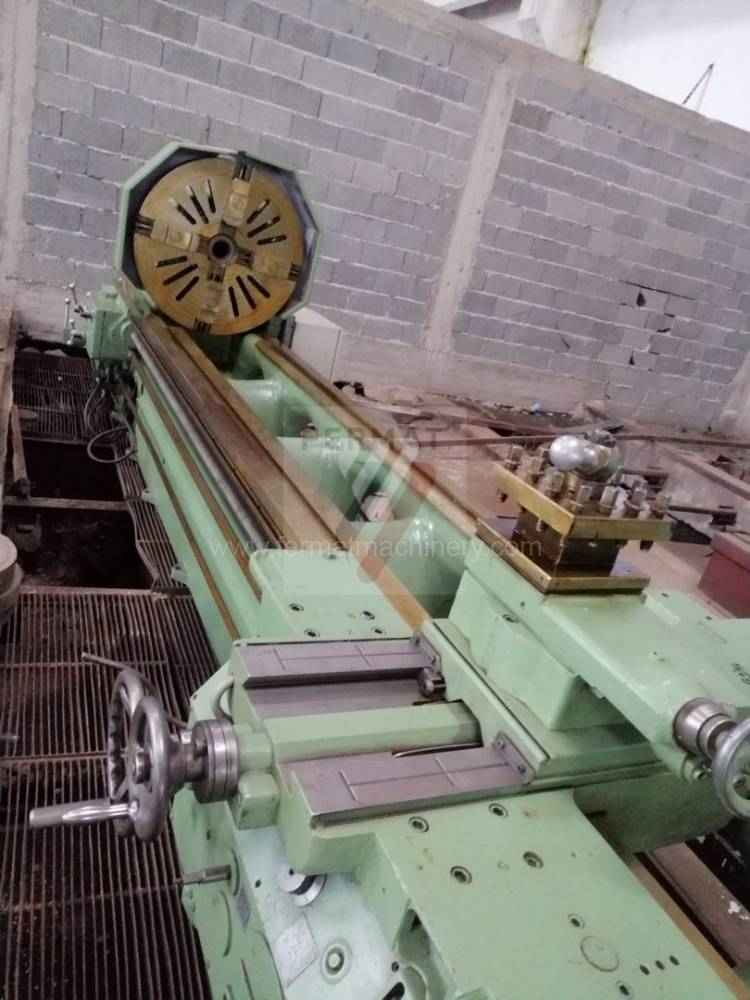

SUI 80/5000
TOS Trenčín
Inventory number: 232016
Swing over bed: 32 in
Distance between centres: 200 in
Max. weight of workpiece: 1200 kg
Swing over cross slide: 20.8 in
Spindle bore: 2.8 in
Spindle speed: 14 - 1400 /min.
QT-COMPACT 300MSY L
MAZAK
Inventory number: 251741
YOM:2022
Control system Mazatrol: SmoothG
Turn table diameter: 15.2 in
Turning lenght: 24 in
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 4 in
ST 10 Y
Haas Automation
Inventory number: 251638
YOM:2018
Control system Haas:
Turn table diameter: 11.16 in
Turning lenght: 14.24 in
Sloping bed: YES
Spindle bore: 1.84 in
Turret head: YES
EMCO TURN E65
EMCO
Inventory number: 251723
YOM:2018
Control system Siemens: Sinumerik 828 D
Turn table diameter: 20 in
Turning lenght: 20.8 in
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 0 - 1.6 in

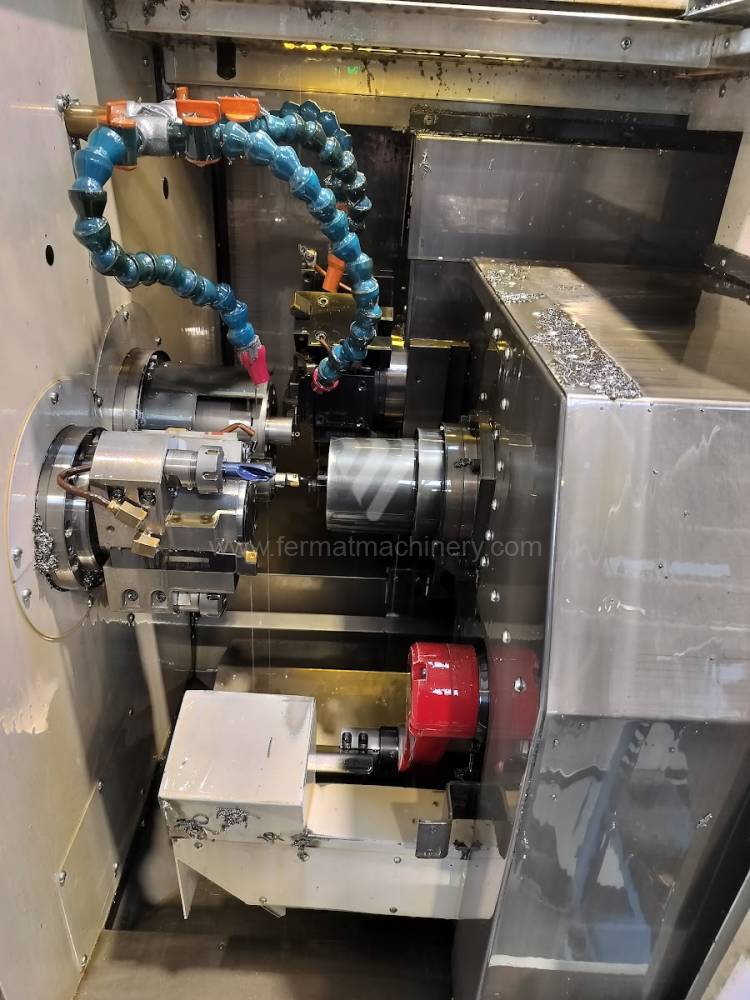

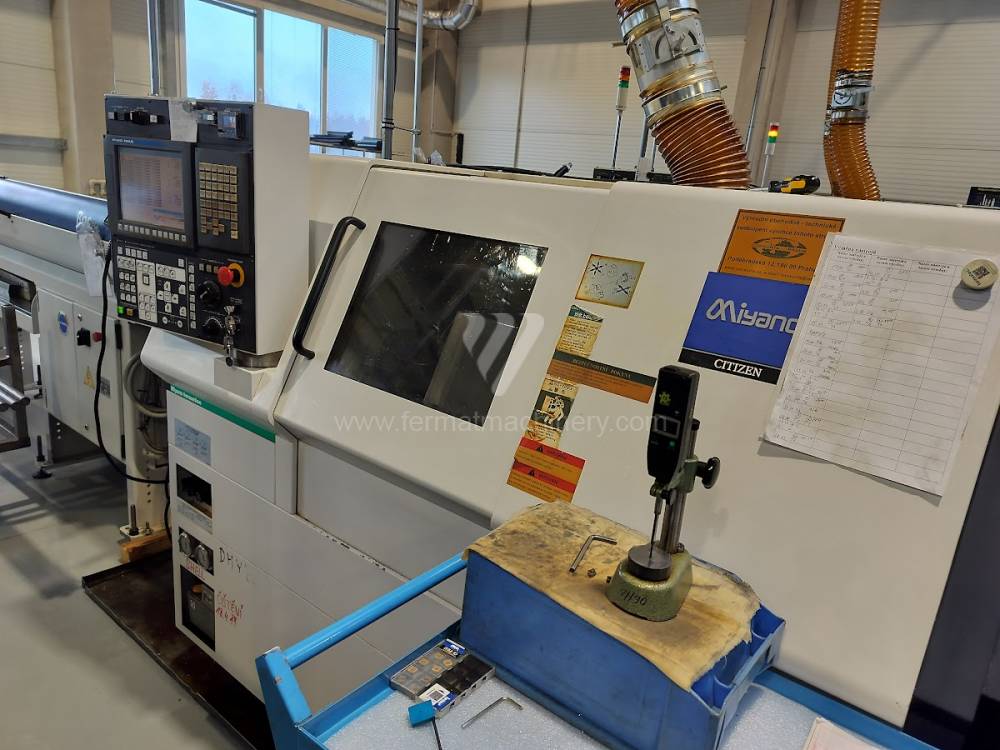

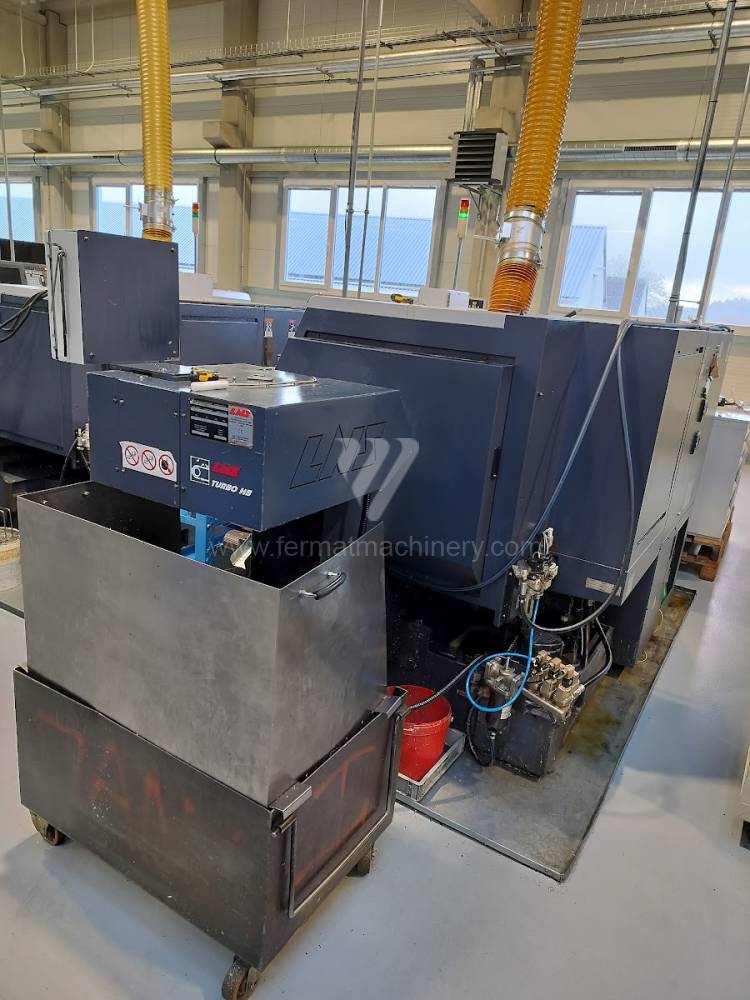

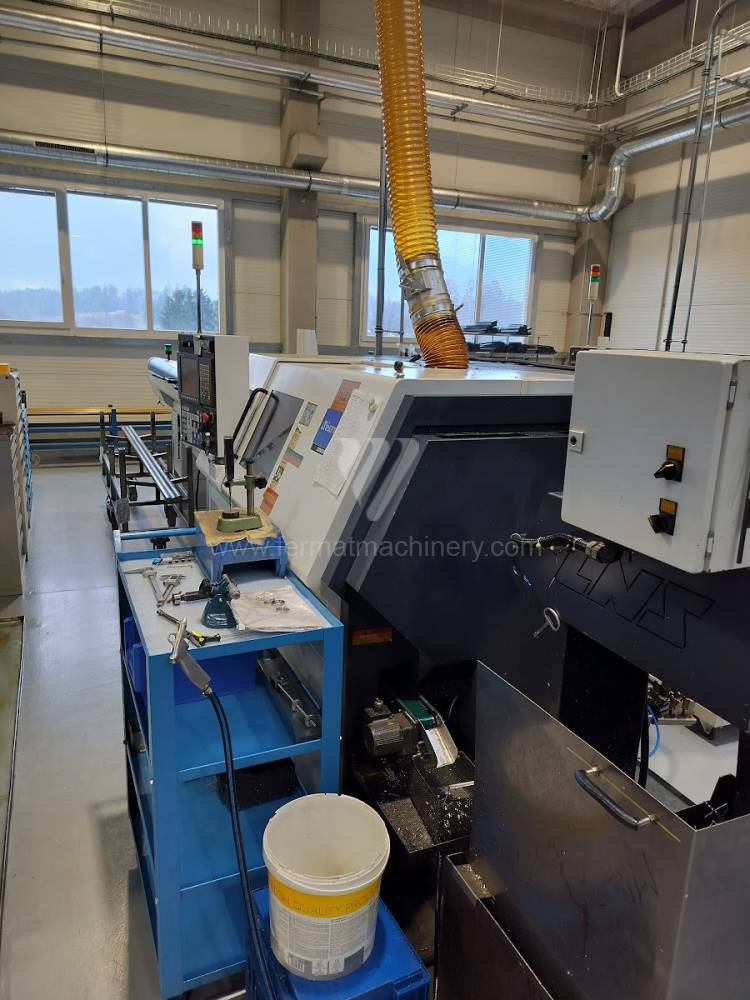

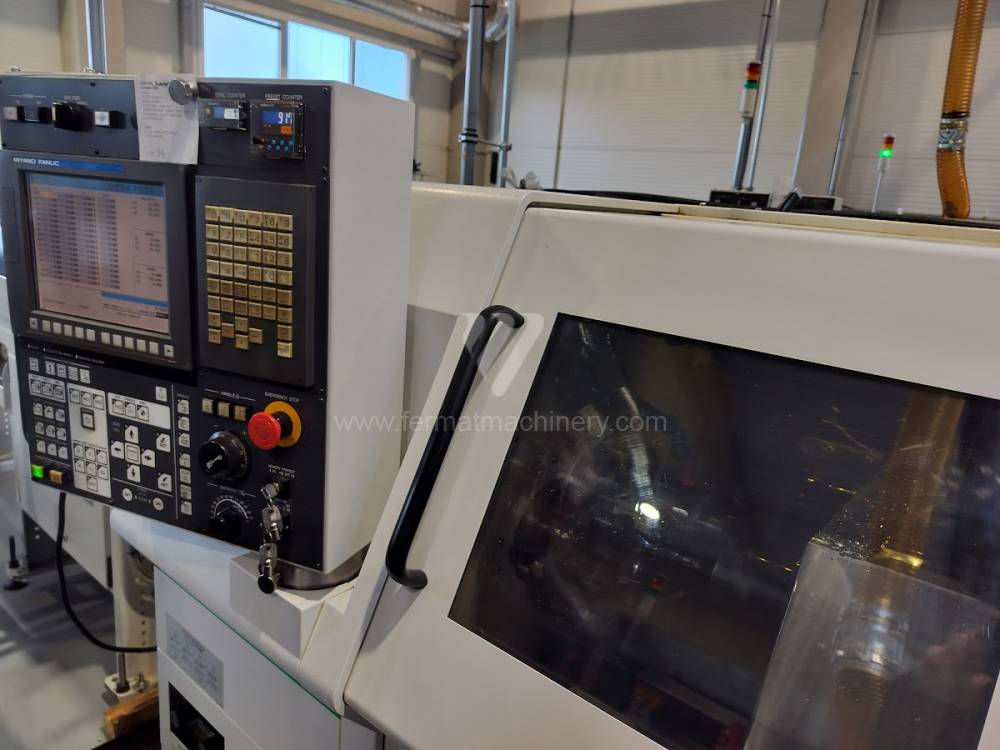

BNA-42 DHY
Miyano
Inventory number: 242080
YOM:2011
Control system Fanuc: 0i - TD
Turn table diameter: 1.68 in
Turning lenght: 4 in
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 2.8 in
SUI 63 NC/1500
TOS Trenčín
Inventory number: 241795
Turn table diameter: 25.2 in
Turning lenght: 60 in
Sloping bed: NO
Spindle bore: 2.84 in
Turret head: YES
Number of positions in magazine: 8
URSUS TCH 800
CMT
Inventory number: 241551
YOM:2002
Control system ECS: 2402
Turn table diameter: 32.6 in
Turning lenght: 80 in
Sloping bed: NO
Spindle bore: 5.48 in
Turret head: NO
PUMA GT 3100
Doosan
Inventory number: 251611
YOM:2020
Control system Siemens: Sinumerik 828 D
Turn table diameter: 28.8 in
Turning lenght: 30.2 in
Sloping bed: YES
Spindle bore: 4.08 in
Turret head: YES
Turntec 50
Vojus
Inventory number: 201827
YOM:2003
Control system Heidenhain:
Turn table diameter: 20 in
Turning lenght: 60 in
Sloping bed: NO
Spindle bore: 2.8 in
Turret head: YES
MASTURN 550i CNC
KOVOSVIT MAS, a.s.
Inventory number: 242053
YOM:2021
Control system Heidenhain: Manual Plus 620
Turn table diameter: 20 in
Turning lenght: 60 in
Sloping bed: NO
Spindle bore: 3.28 in
Turret head: NO

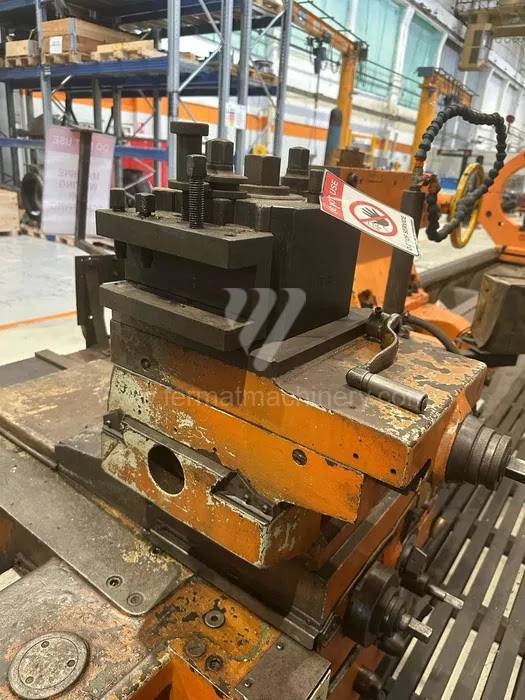

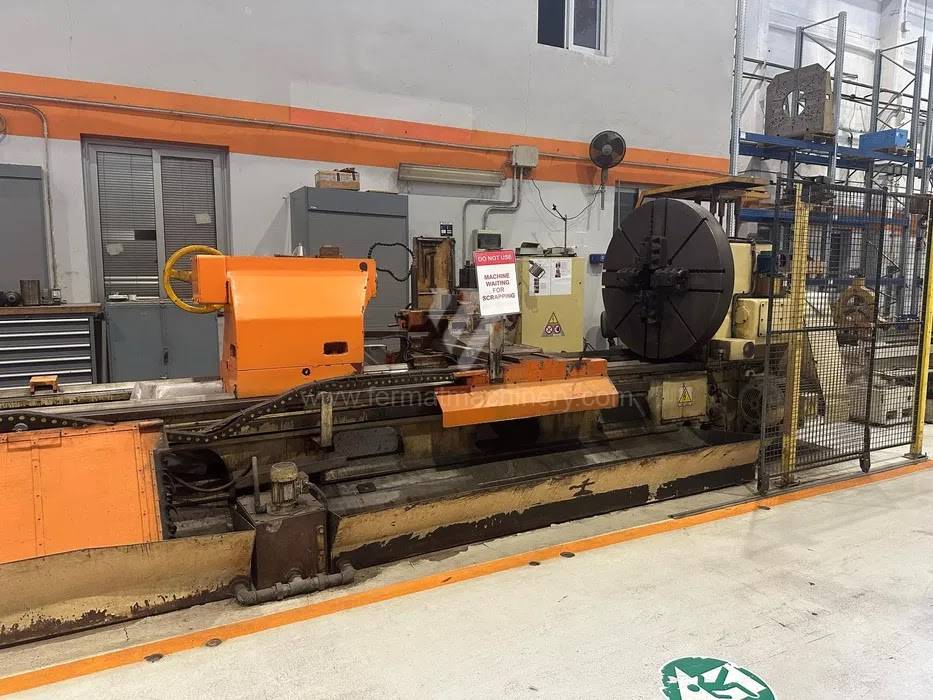

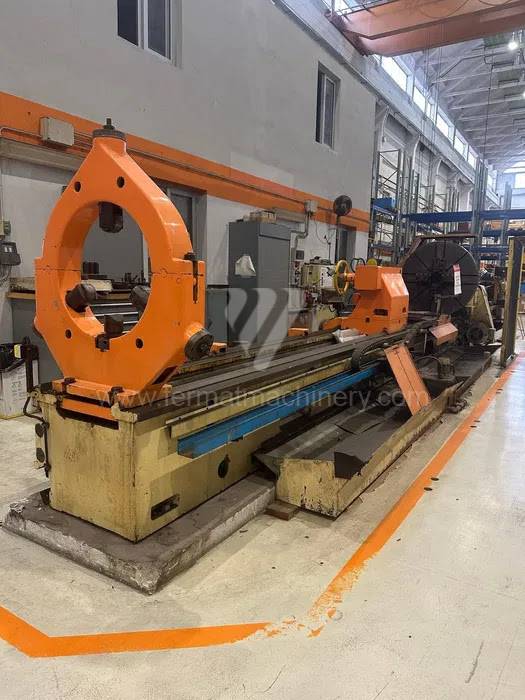

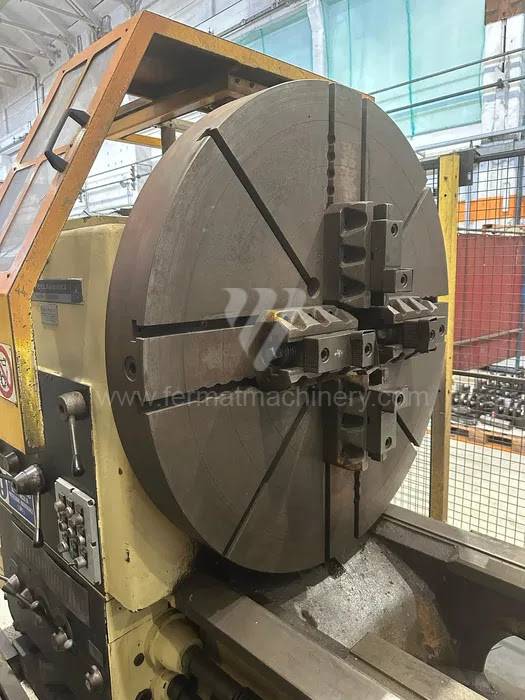

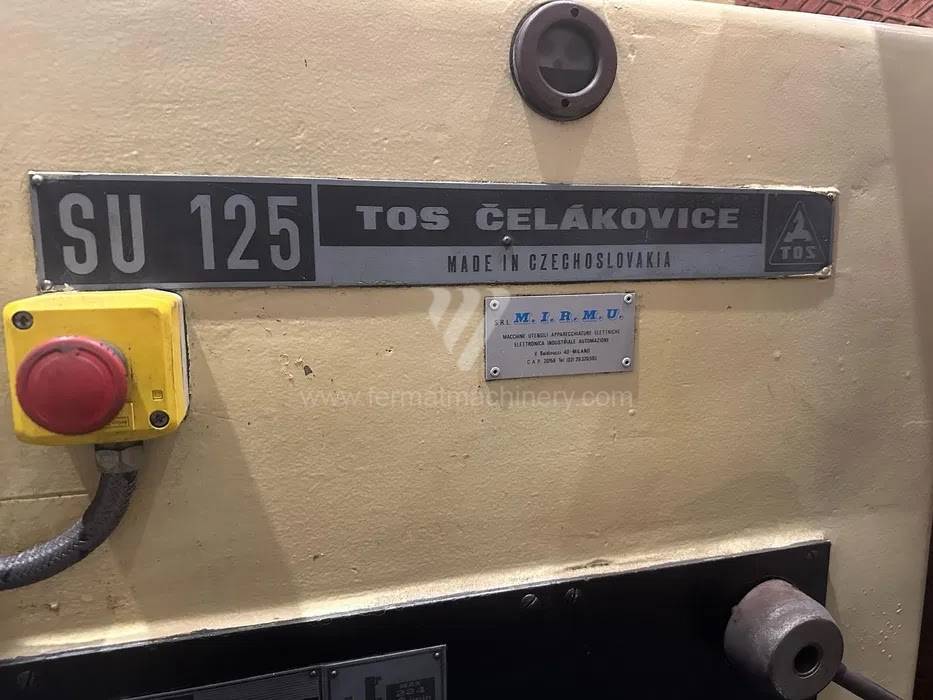

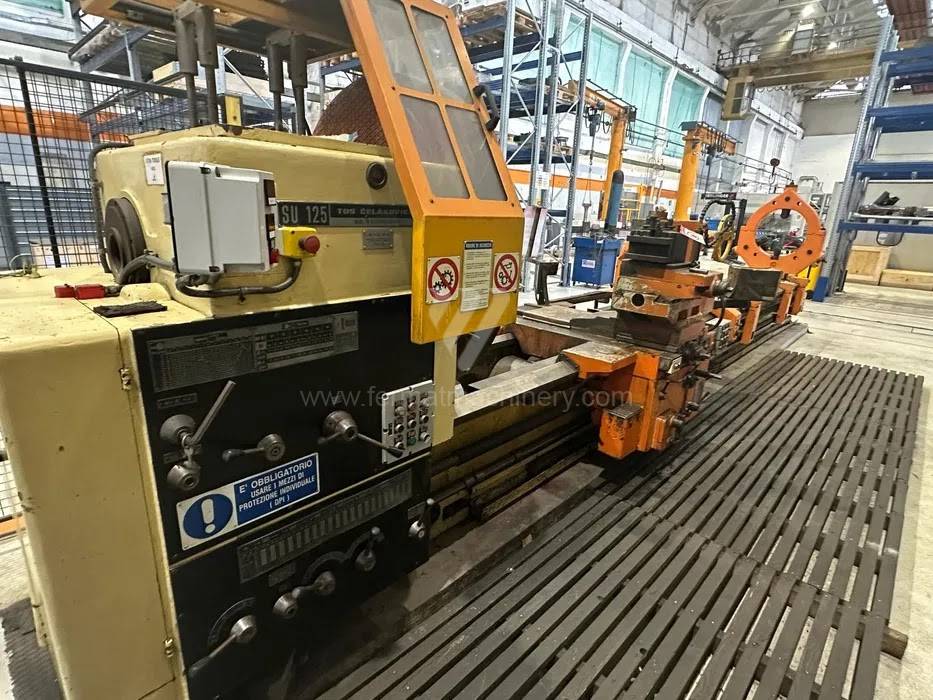

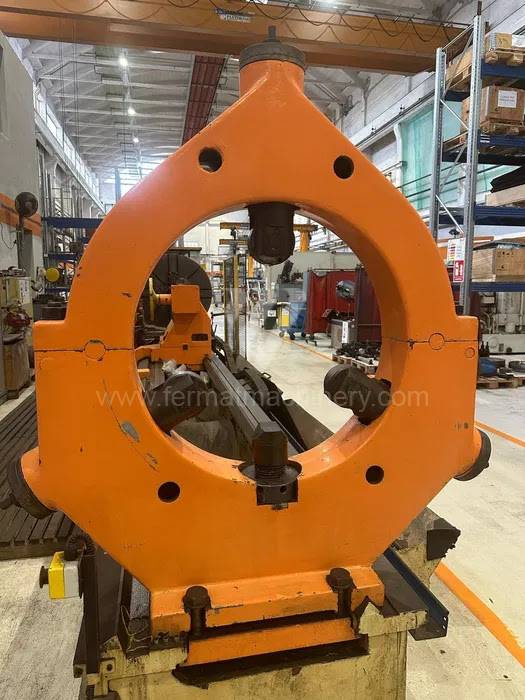

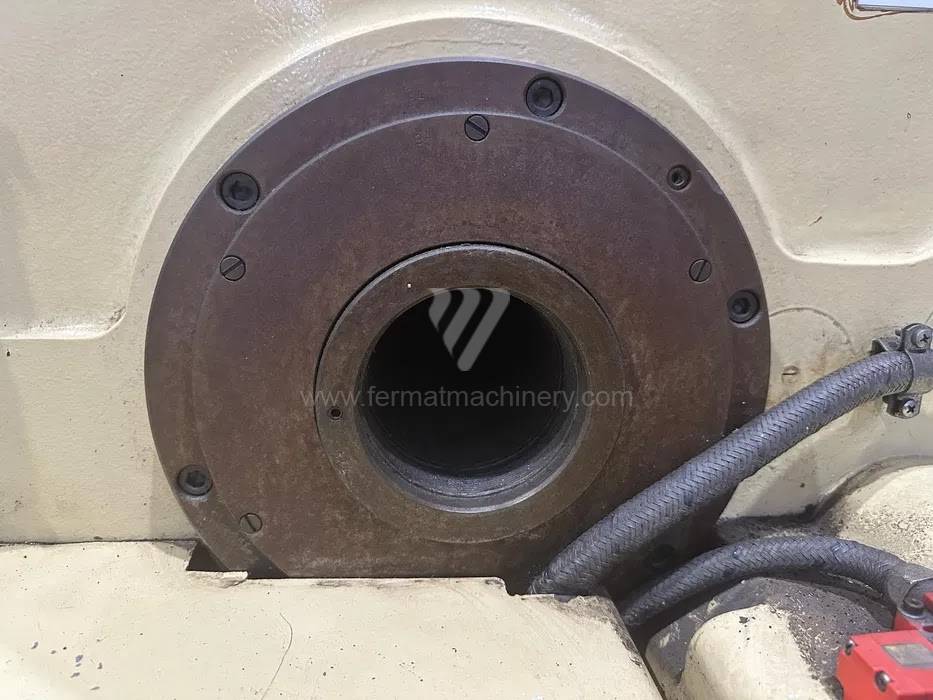

SU 125/6000
TOS Čelákovice
Inventory number: 251350
Swing over bed: 50 in
Distance between centres: 240 in
Max. weight of workpiece: 8000 kg
Max. drilling diameter: 0 in
Spindle bore: 4.6 in
Swing over cross slide: 37.6 in

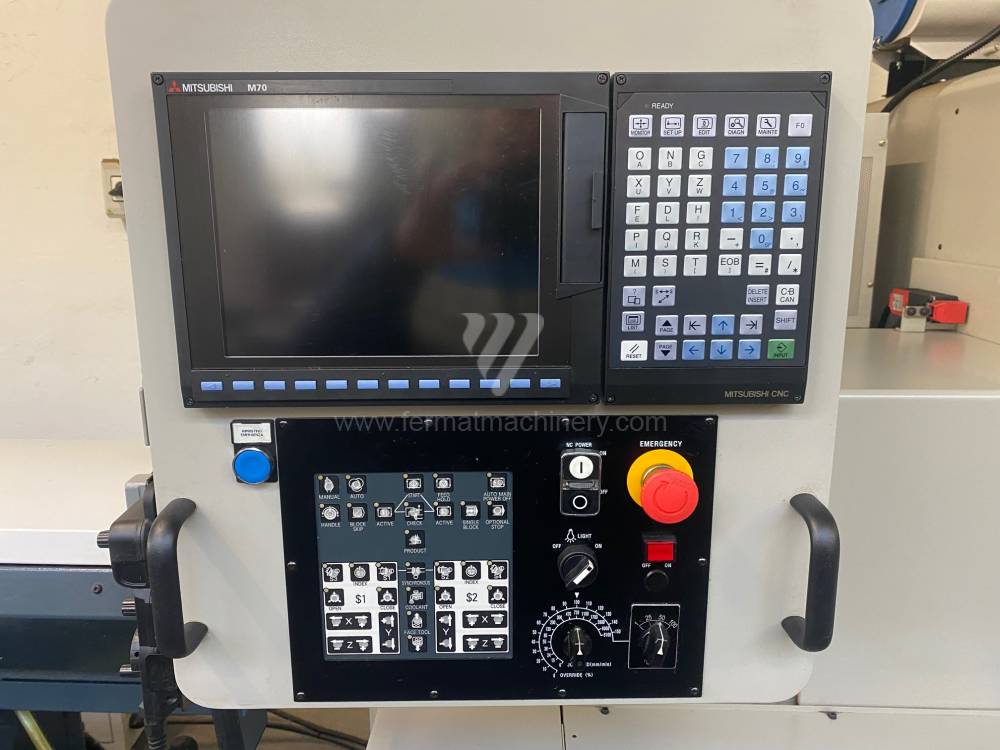

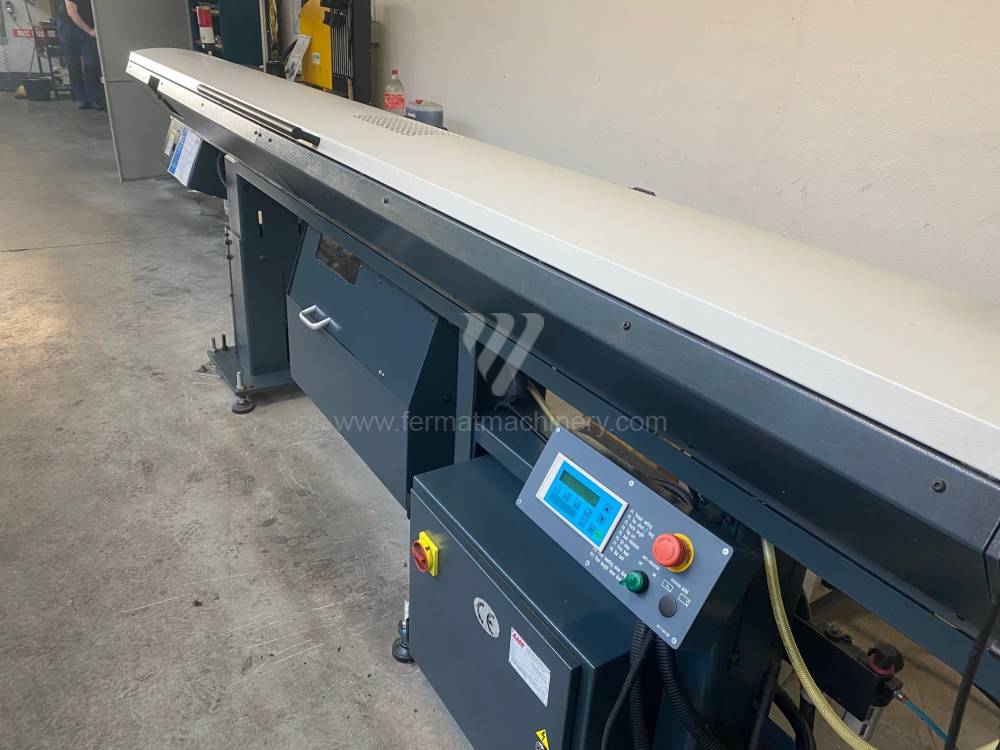

NN 32 YB2
NOMURA DS CO., LTD.
Inventory number: 211028
YOM:2015
Control system Mitsubishi: M 70 V
Turn table diameter: 1.28 in
Turning lenght: 7.6 in
Sloping bed: NO
Y axis: YES
Travel Y-axis (lathe): 2 in
CNA 400x3
OMG Zanoletti
Inventory number: 241552
YOM:2008
Control system Fagor: CNC 8055i
Turn table diameter: 32 in
Turning lenght: 120 in
Sloping bed: NO
Spindle bore: 0 in
Turret head: YES
COMPACT A25 CNC
KOVOSVIT MAS, a.s.
Inventory number: 231370
YOM:2008
Control system Fanuc: 16i - TB
Turn table diameter: 1 in
Turning lenght: 2.4 in
Sloping bed: NO
Y axis: YES
Travel Y-axis (lathe): 2 in
GENOS L300M
Okuma Corporation
Inventory number: 231361
YOM:2014
Control system OKUMA: OSP-P300LA-e
Turn table diameter: 12 in
Turning lenght: 18 in
Sloping bed: YES
Y axis: NO
Counterspindle: NO

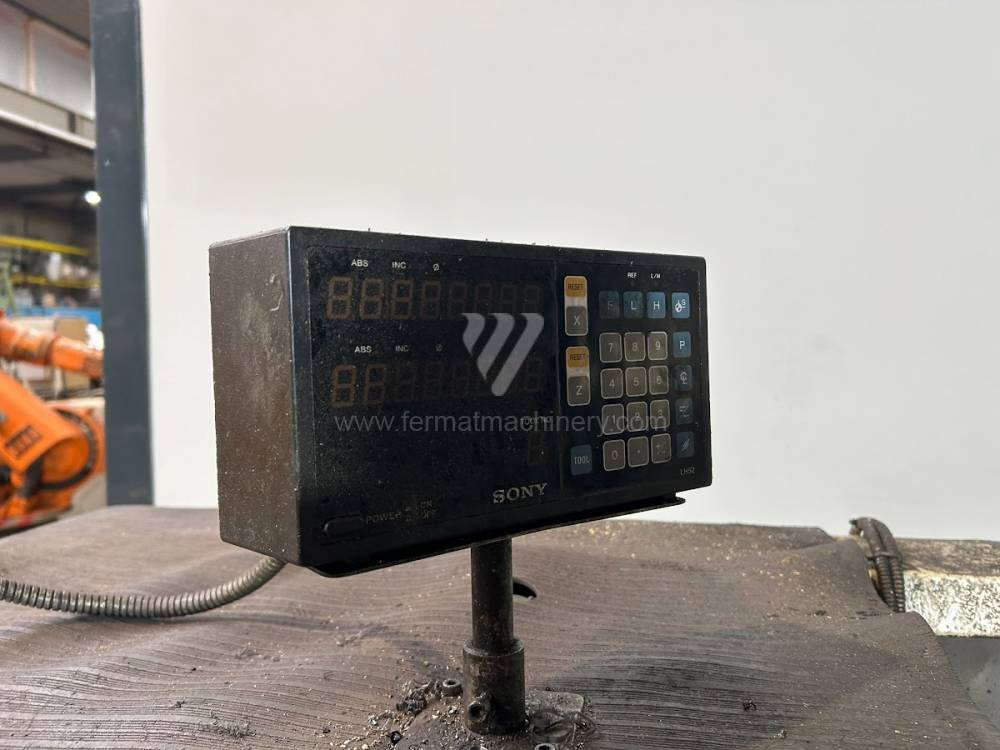

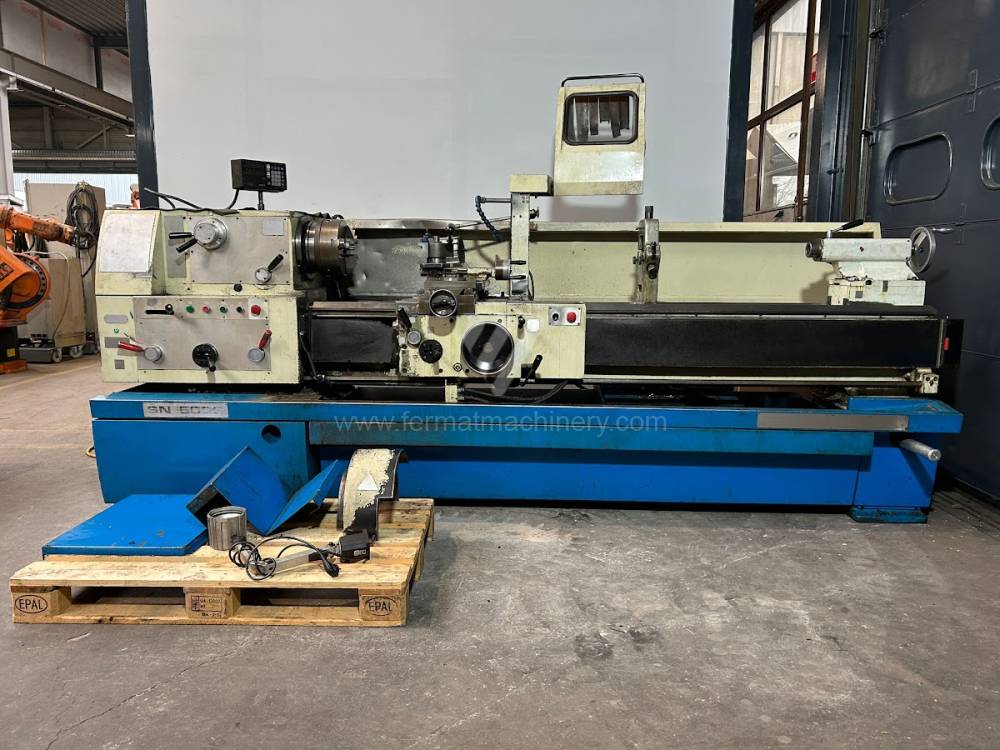

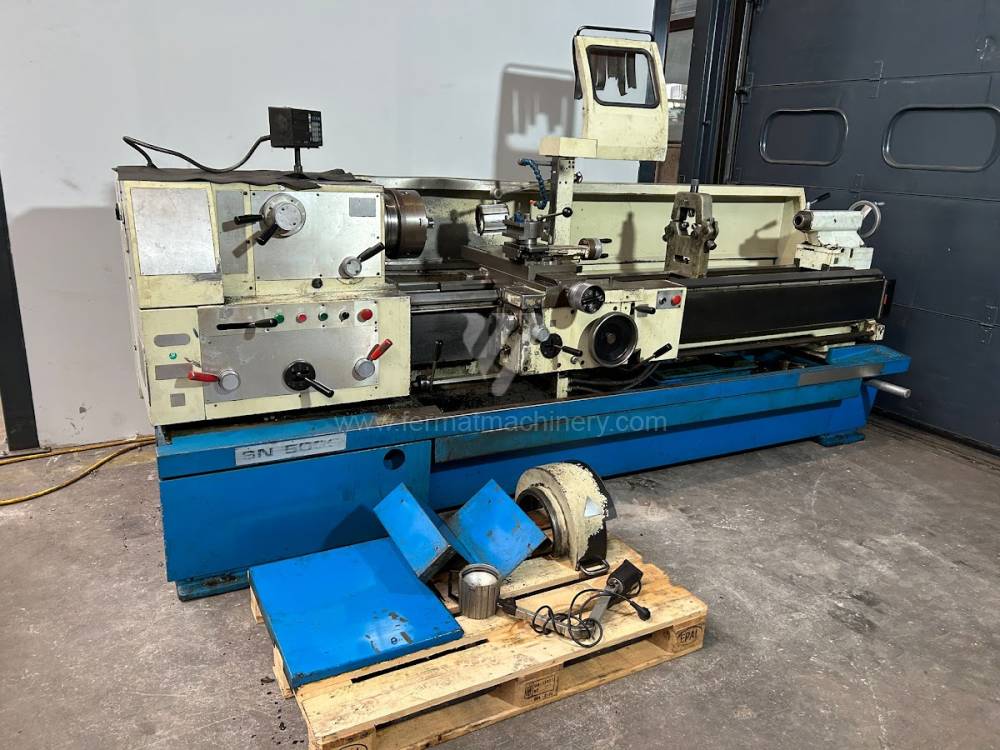

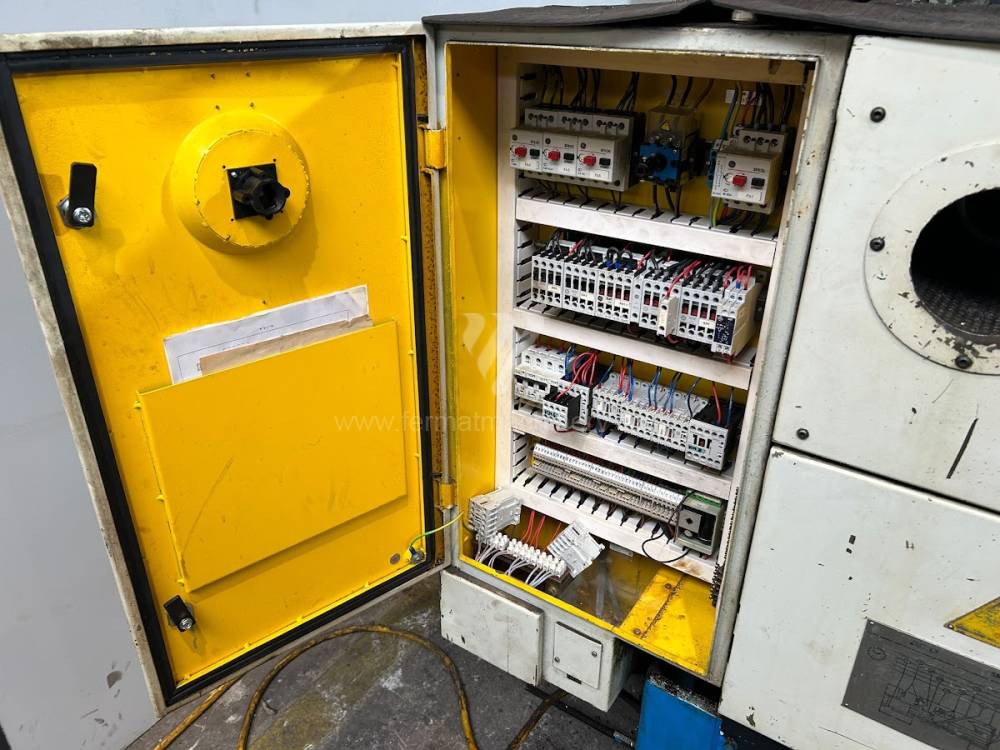

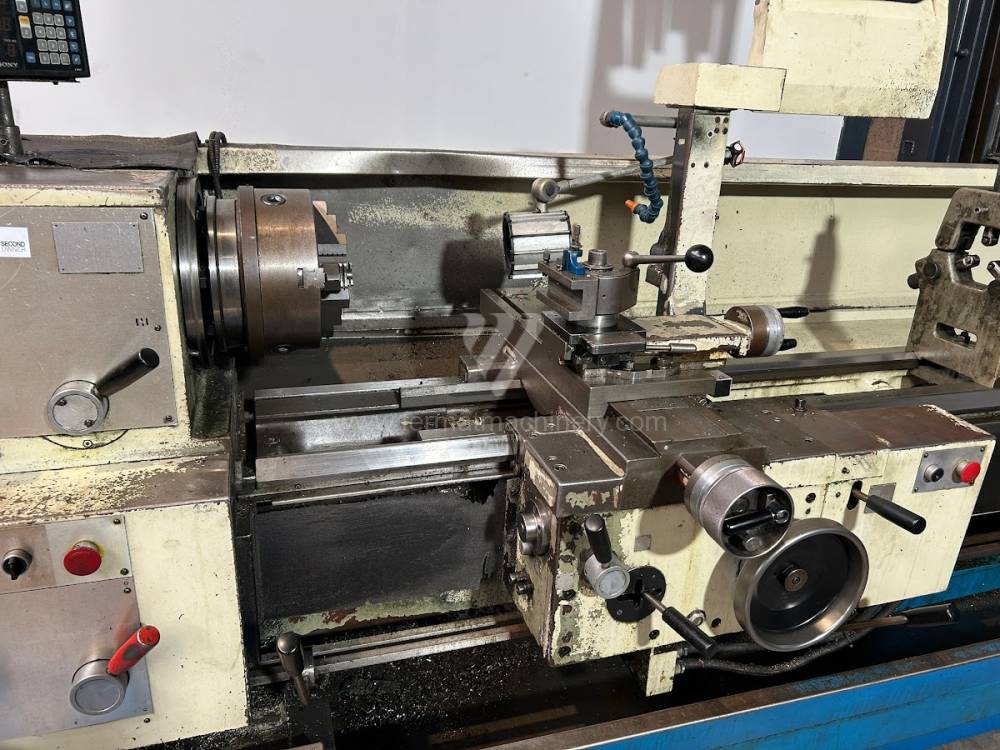

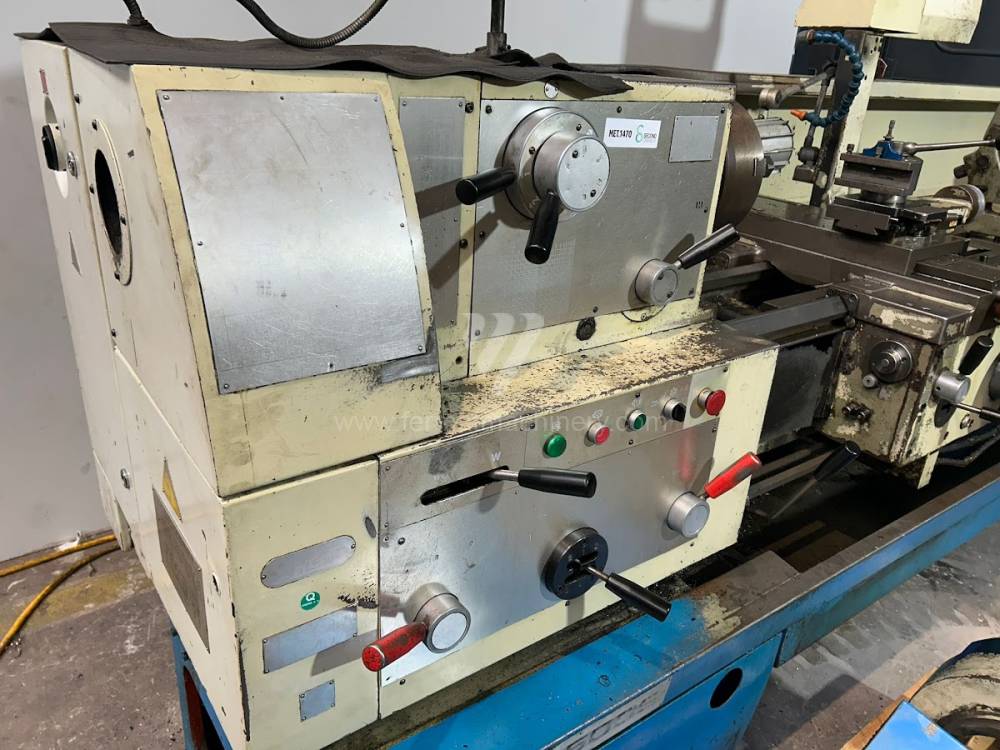

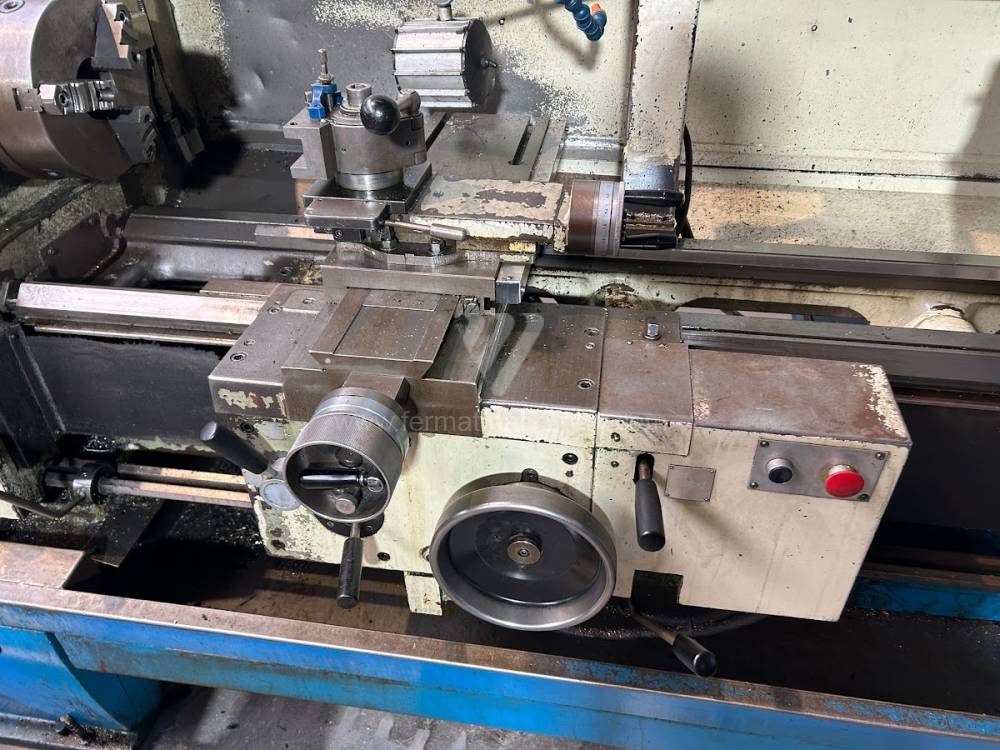

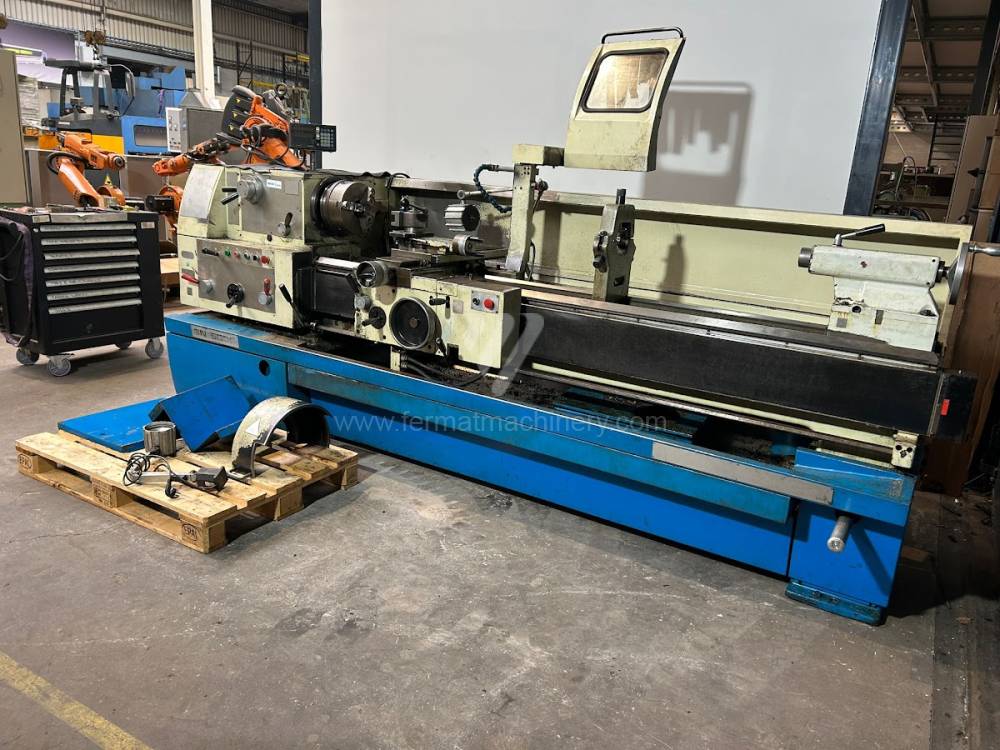

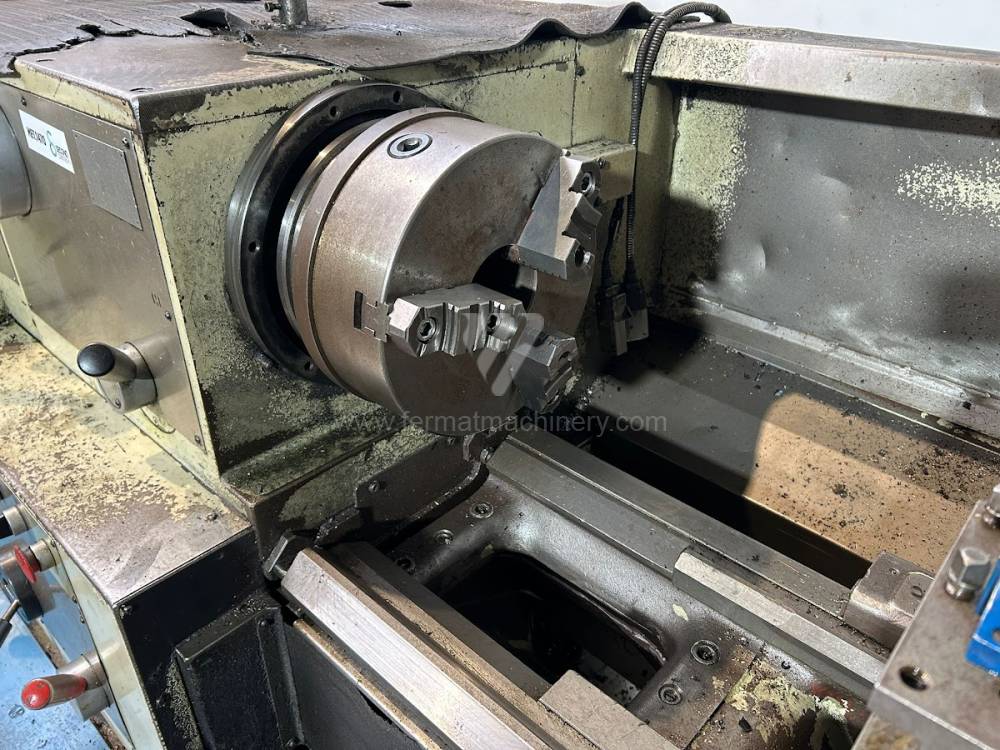

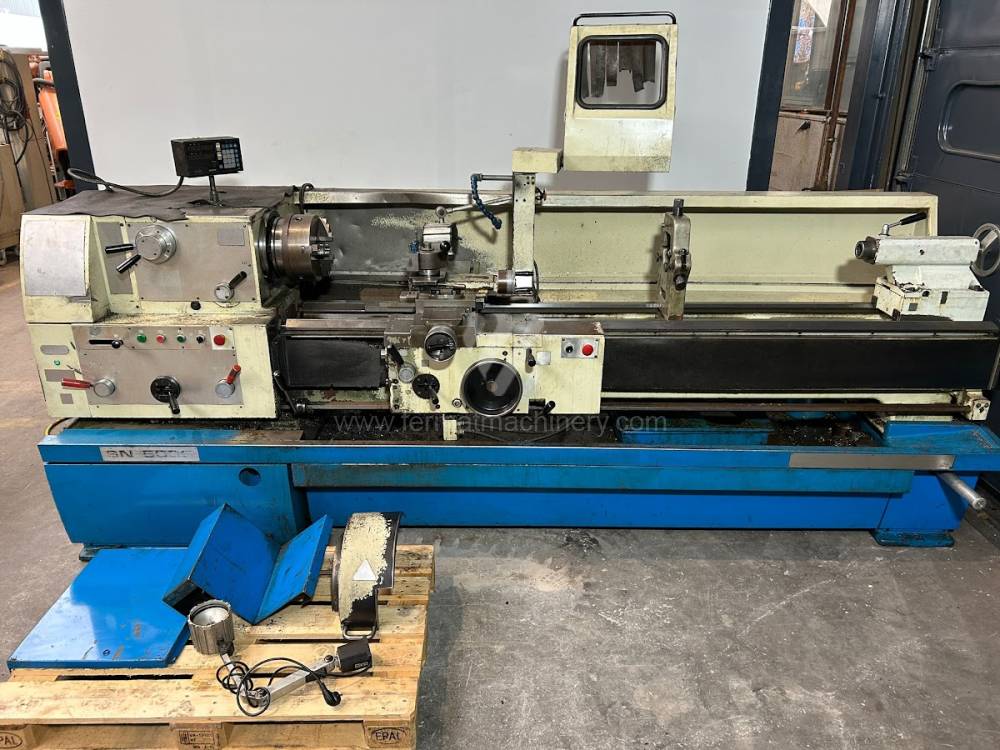

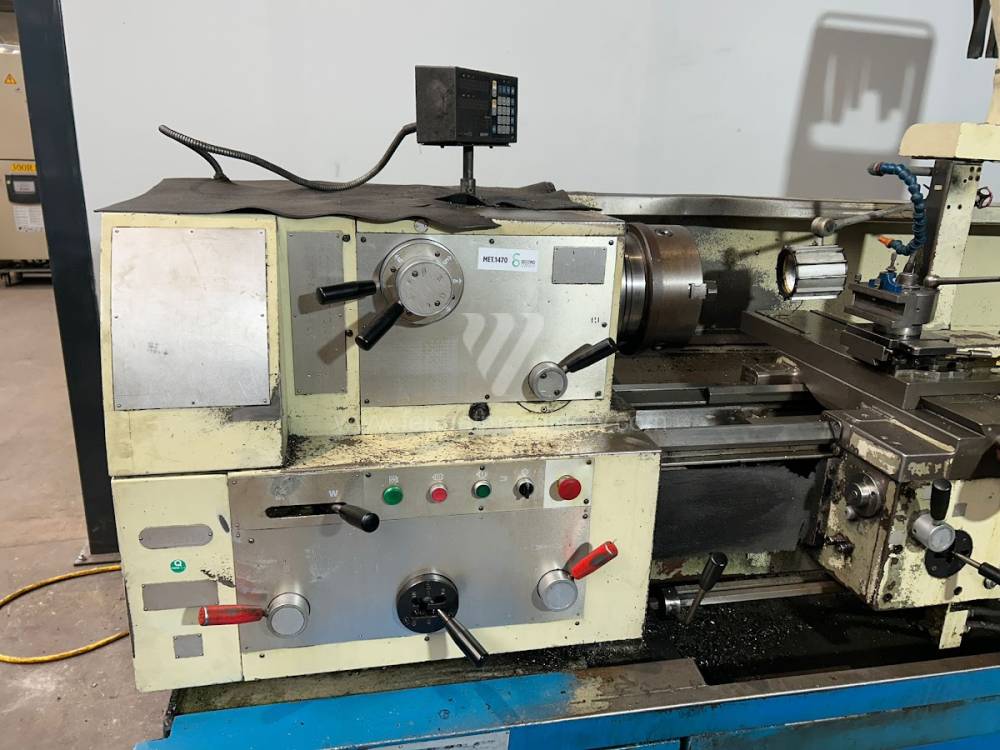

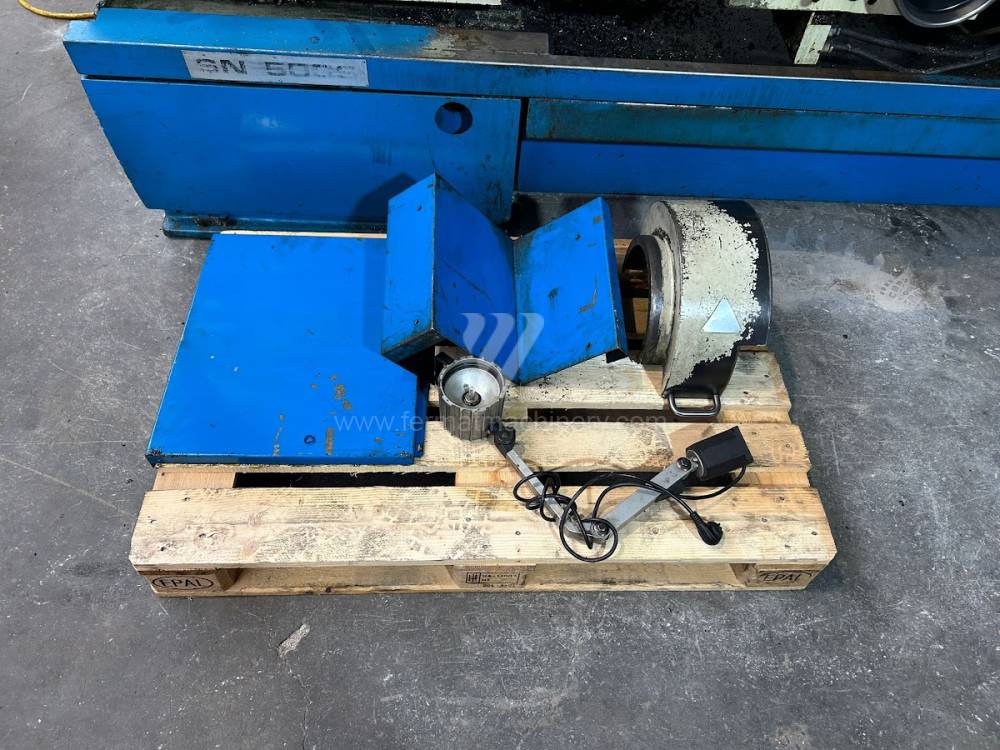

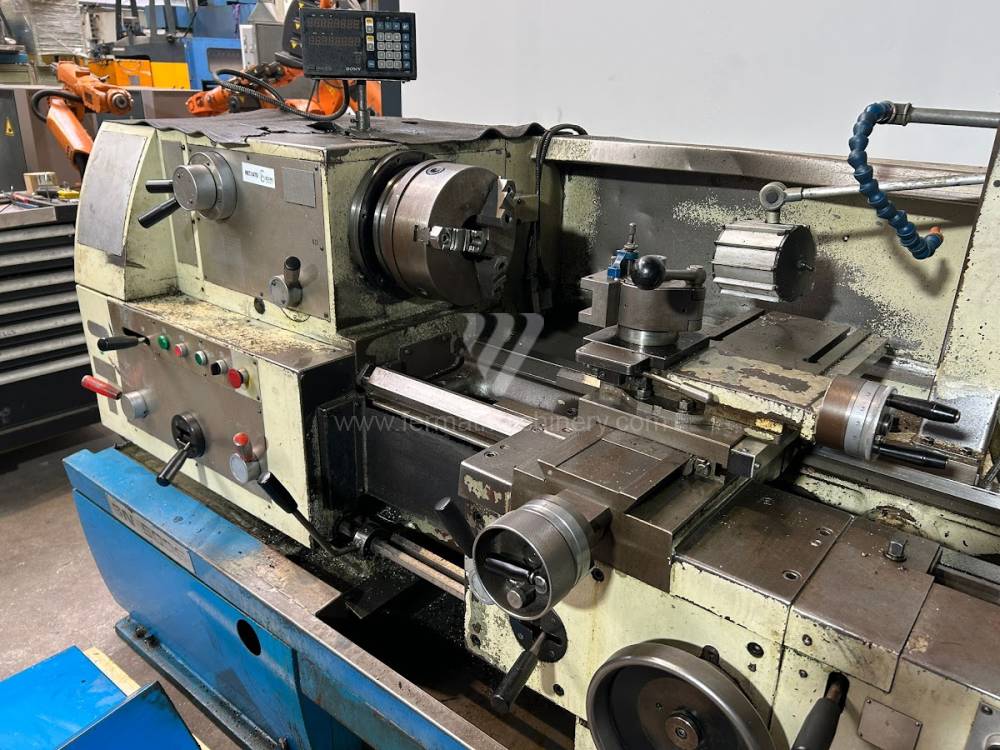

SN 500 N/2000
Trens
Inventory number: 241333
Swing over bed: 20 in
Distance between centres: 80 in
Max. weight of workpiece: 1000 kg
Swing over cross slide: 10.8 in
Spindle speed: 12 - 2000 /min.
Total input: 9 kVA

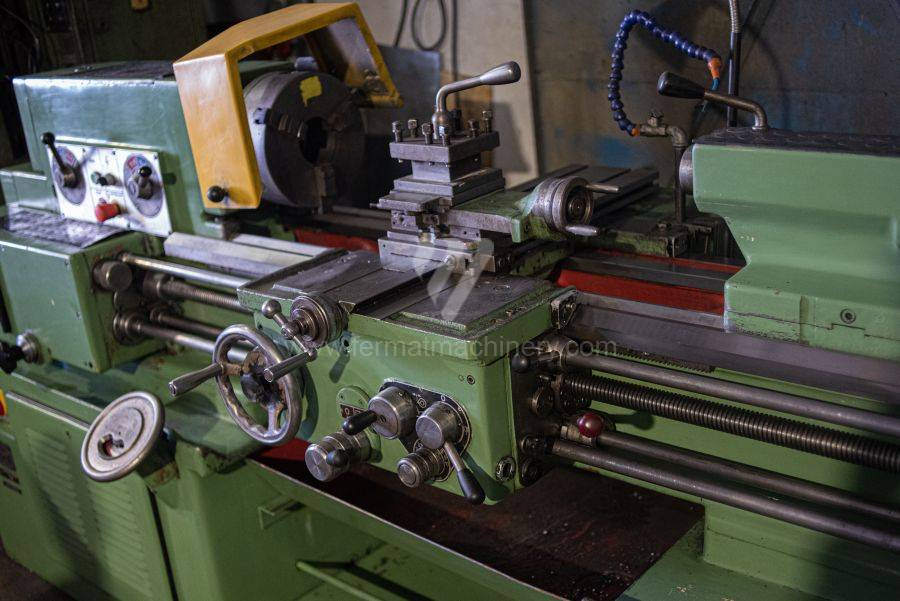

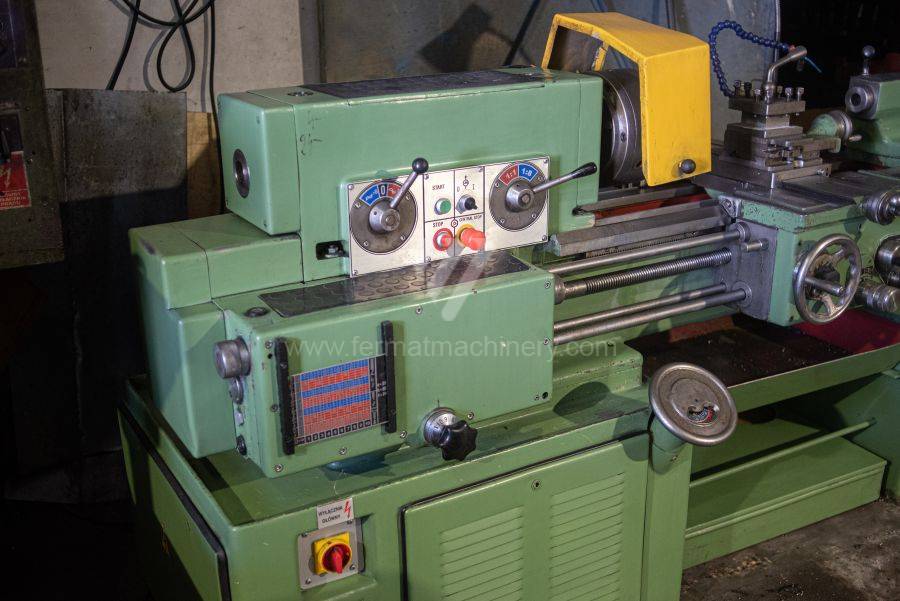

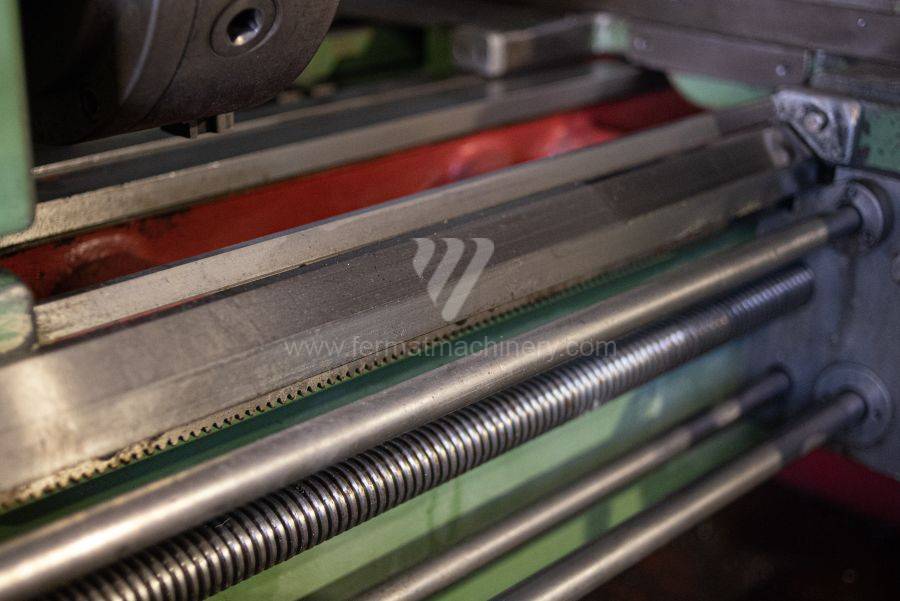

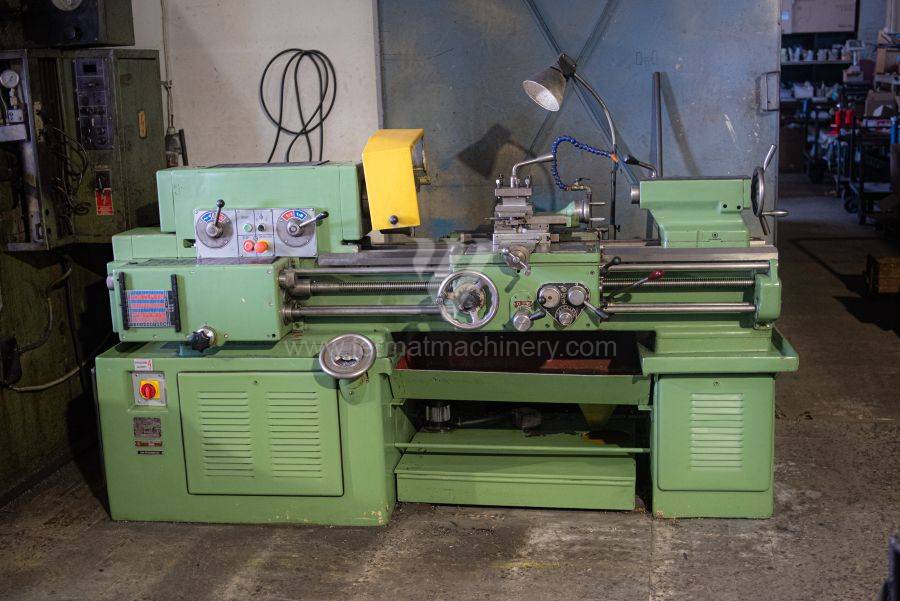

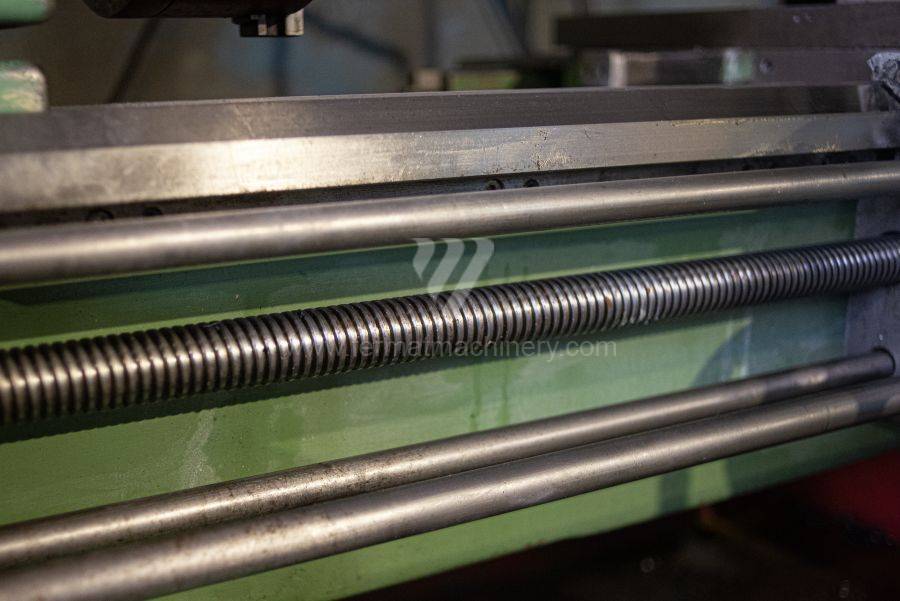

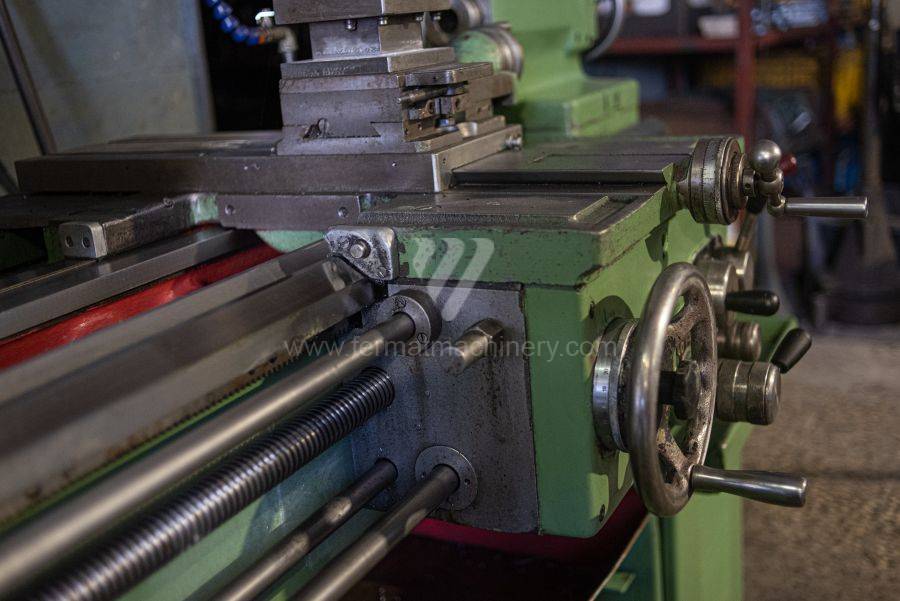

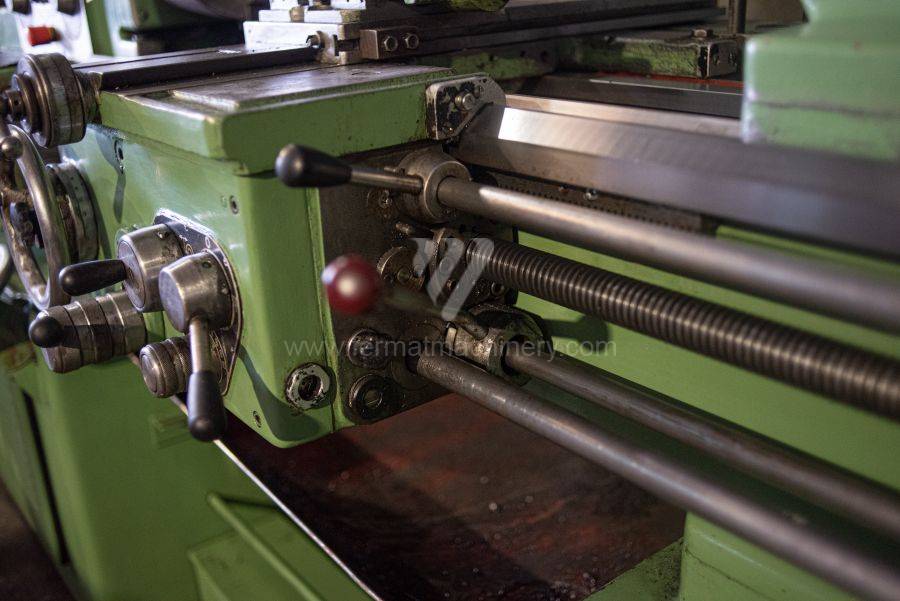

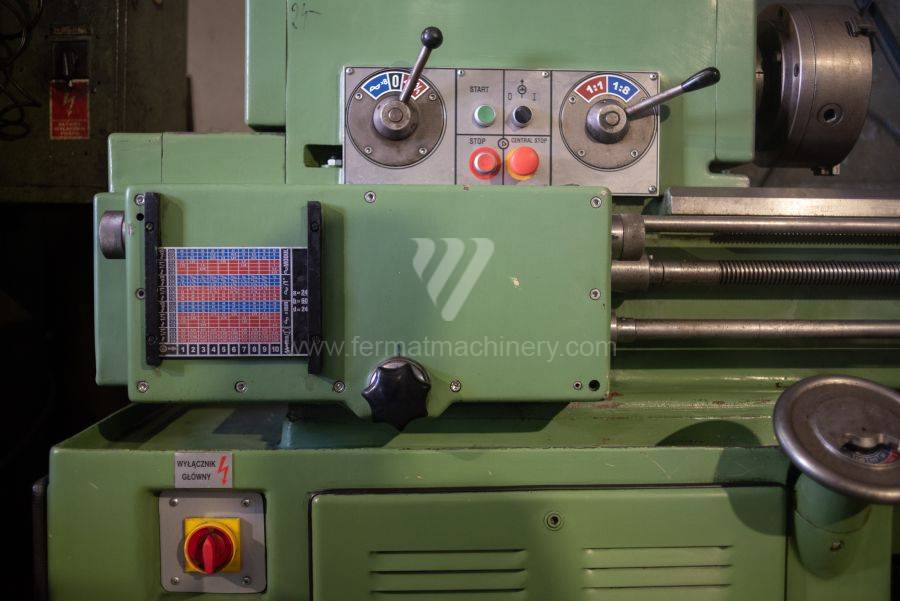

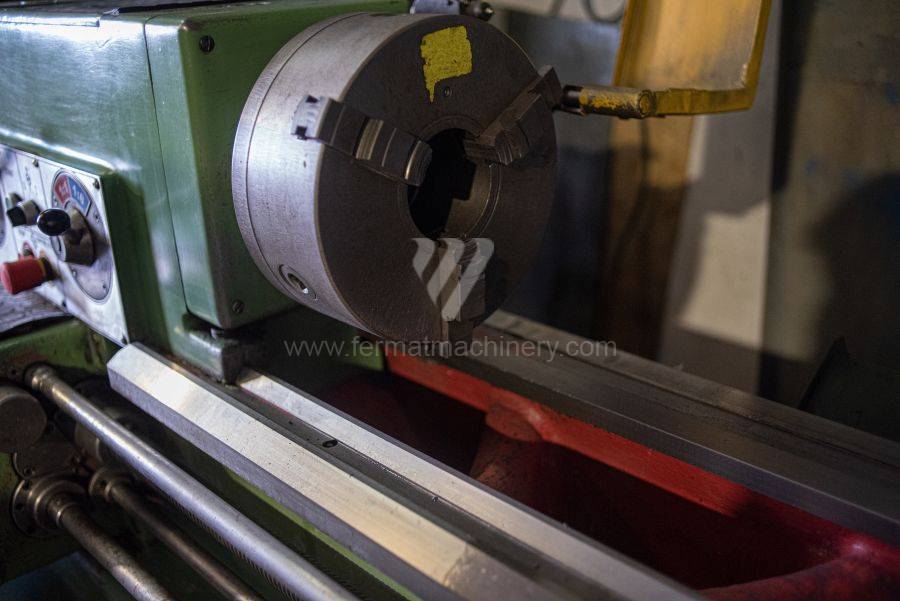

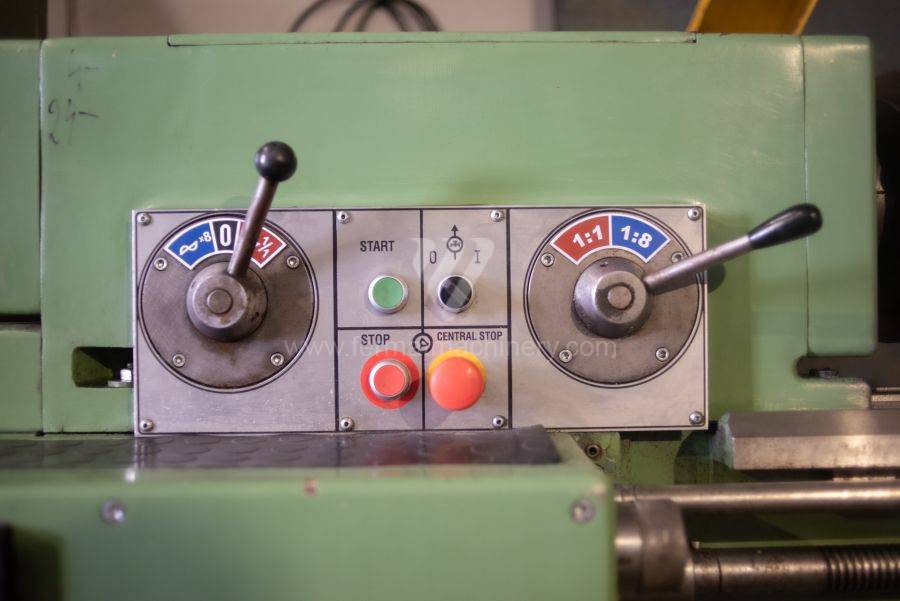

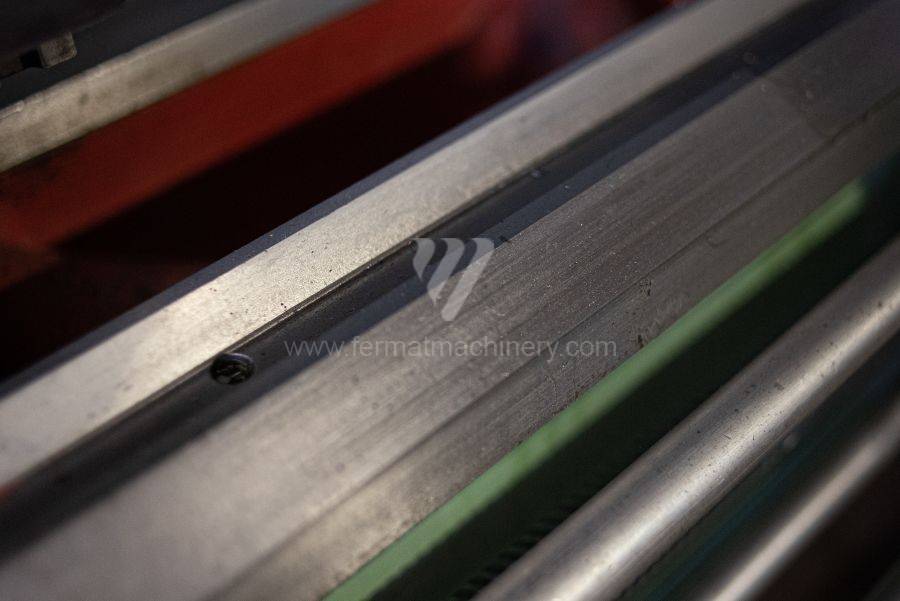

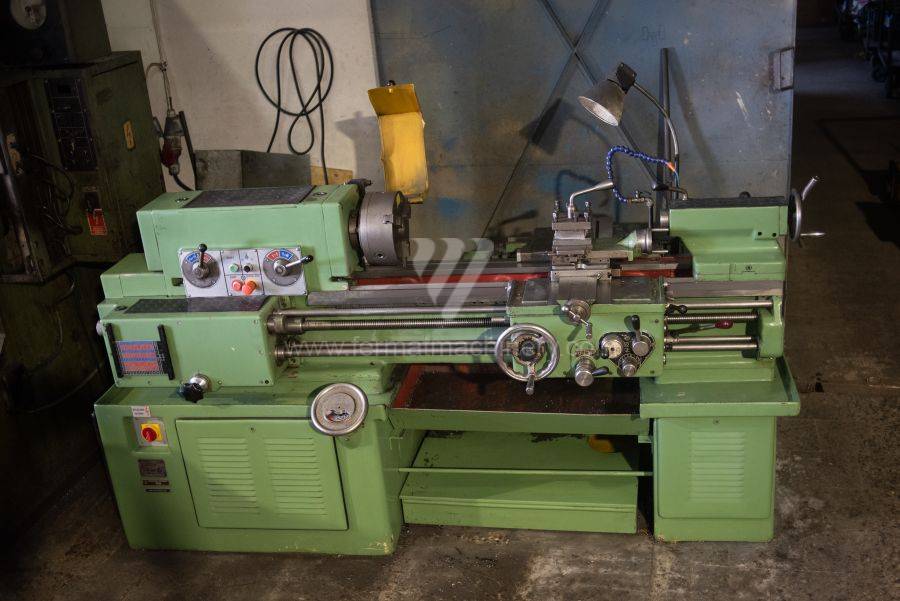

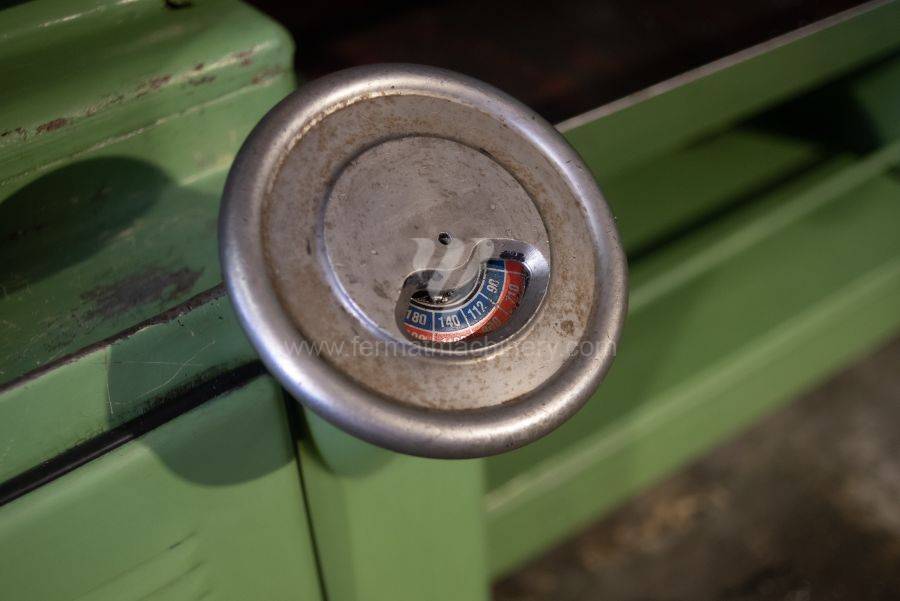

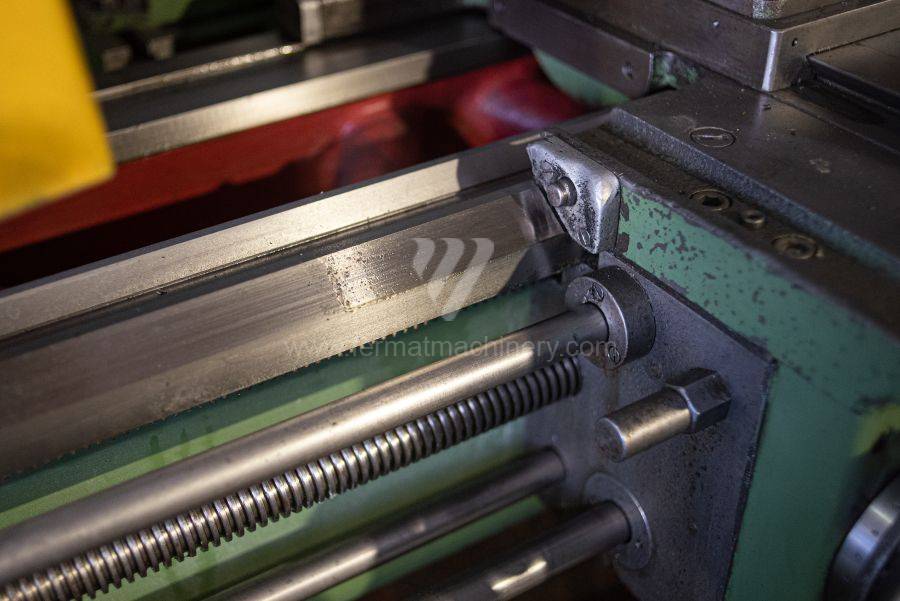

SV 18 RA
TOS Trenčín
Inventory number: 241685
YOM:1983
Swing over bed: 15.2 in
Distance between centres: 50 in
Max. weight of workpiece: 300 kg
Machine dimensions l x w x h: 100 x 38 in
Machine weight: 1800 kg
SUS 80
TOS Čelákovice
Inventory number: 251657
Swing over bed: 33.6 in
Distance between centres: 140 in
Max. weight of workpiece: kg
Machine weight: 7200 kg
Machine dimensions l x w x h: 232 x 70 x 56 in
Spindle bore: 3.28 in

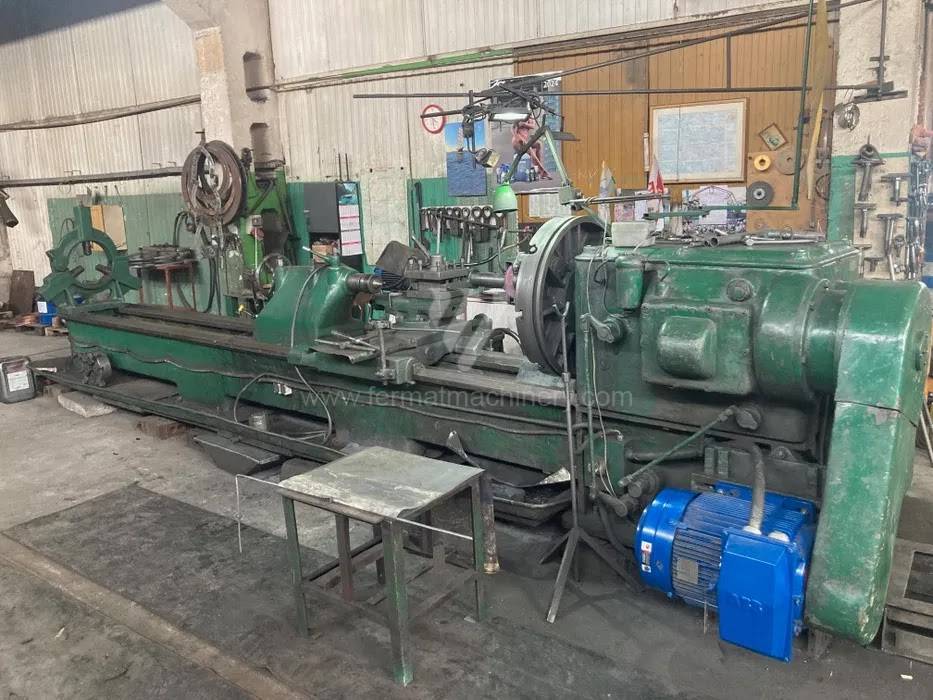

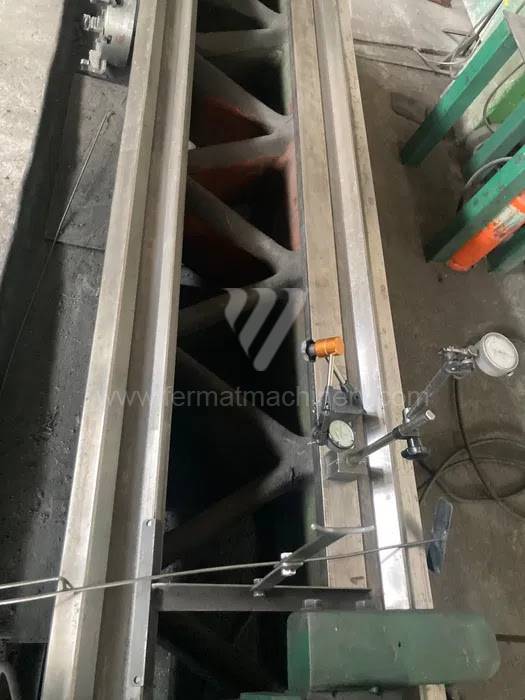

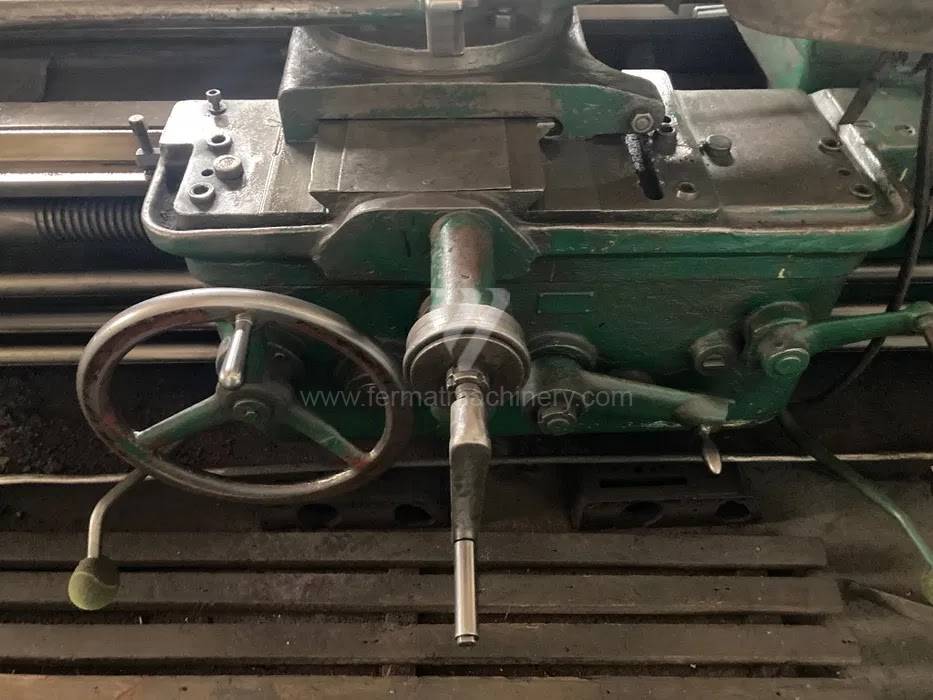

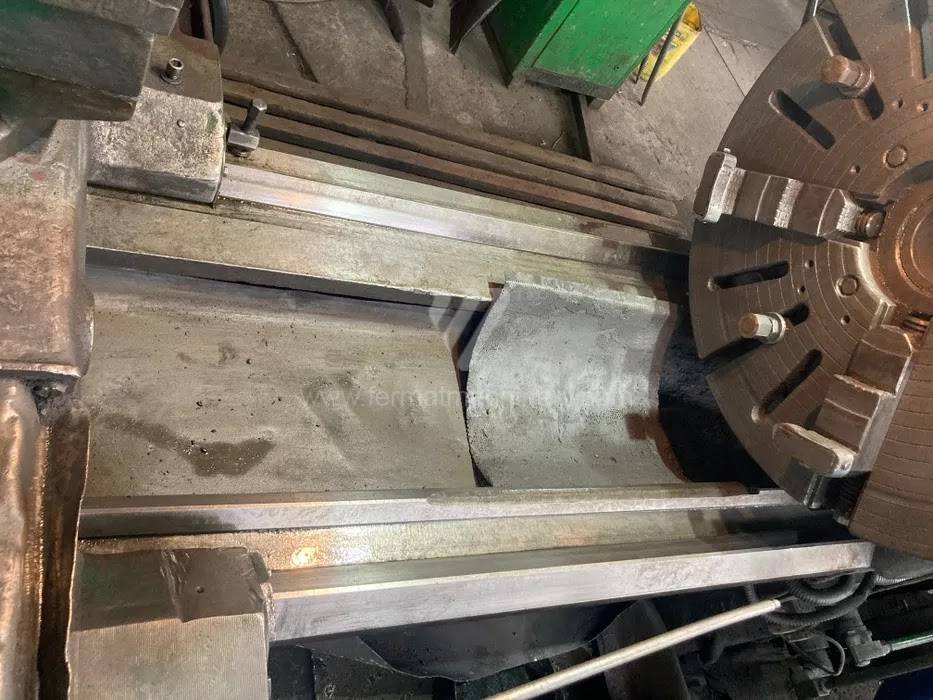

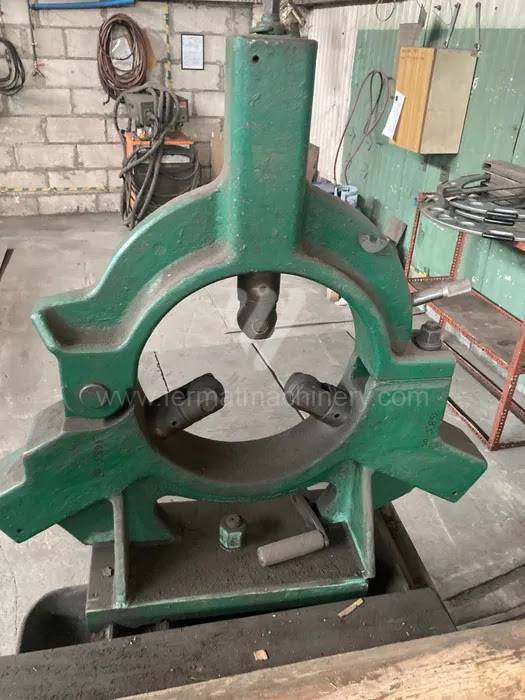

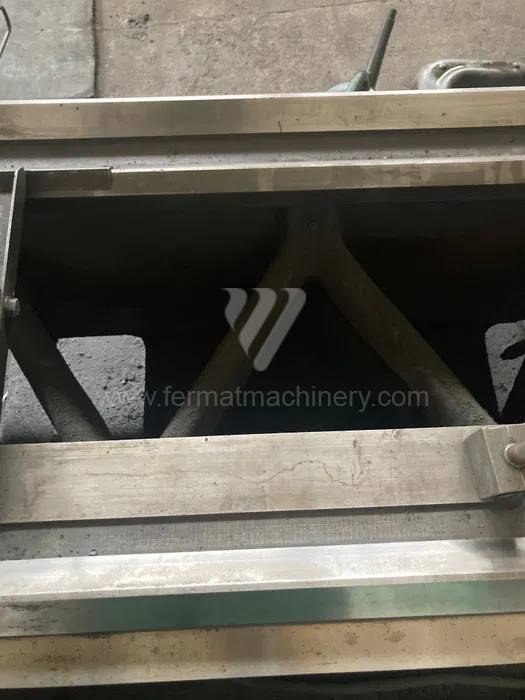

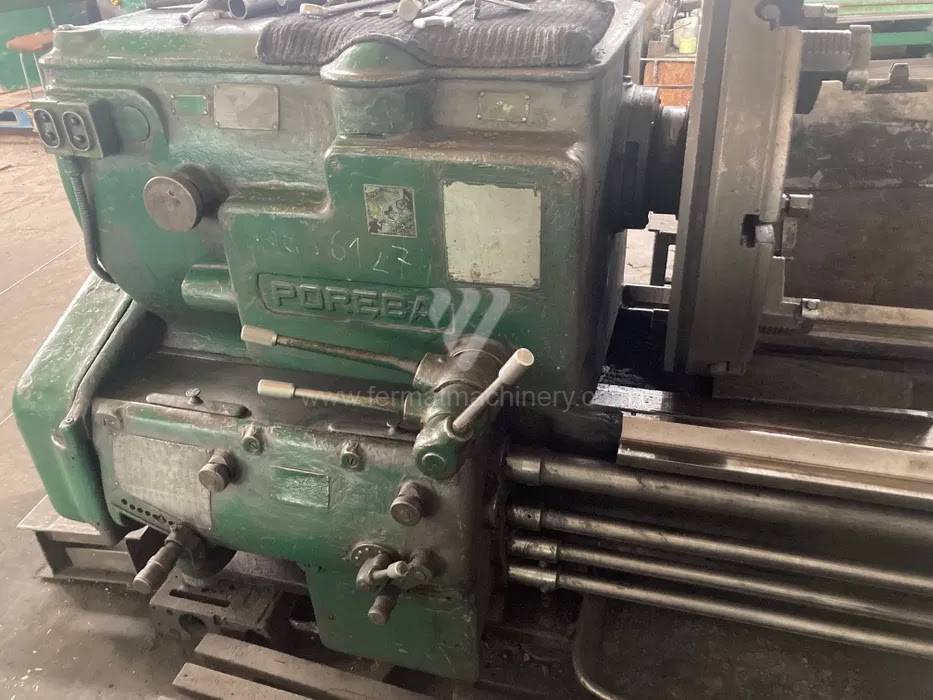

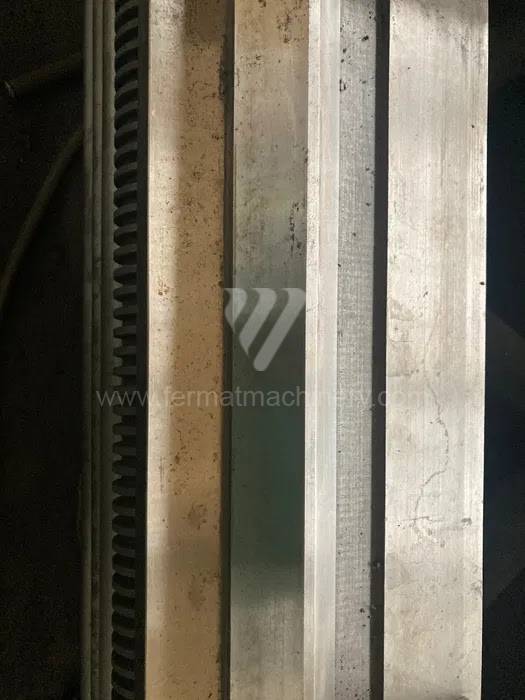

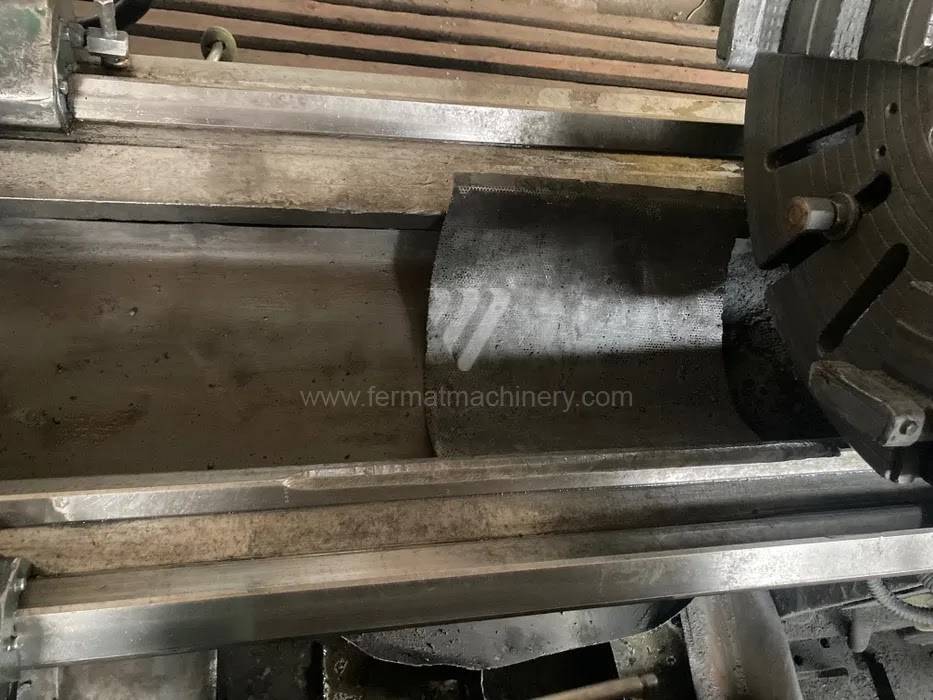

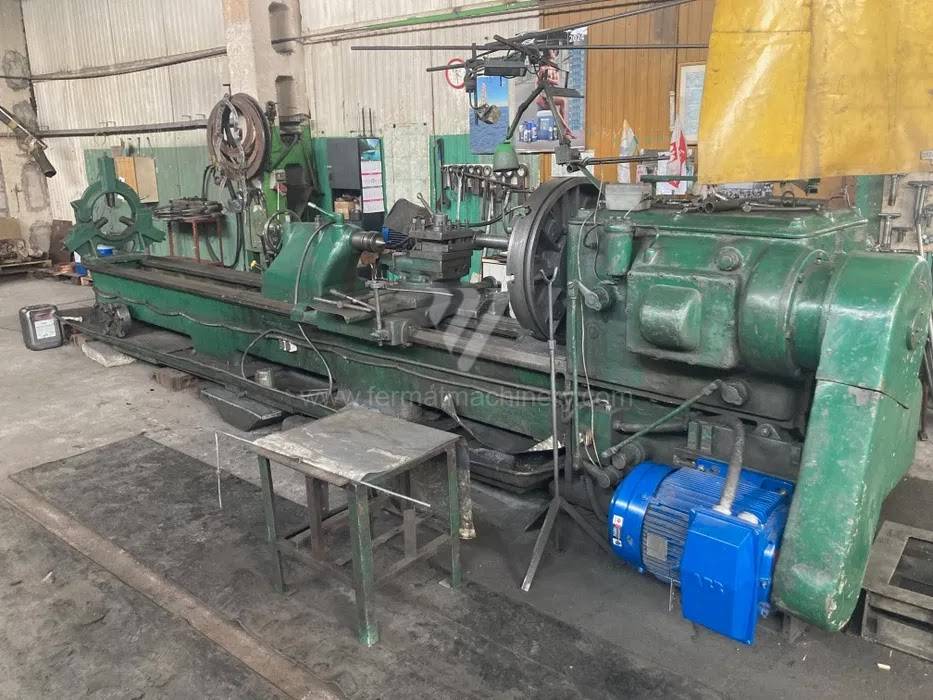

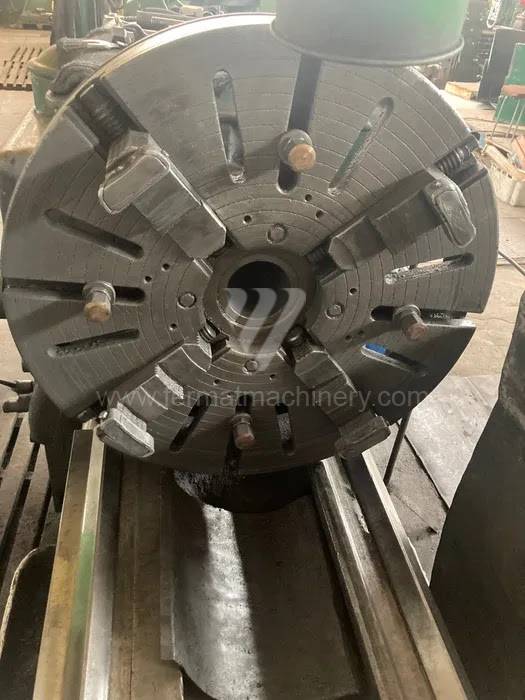

TR 90/4000
Poreba
Inventory number: 251055
YOM:1954
Swing over bed: 36 in
Distance between centres: 160 in
Max. weight of workpiece: kg

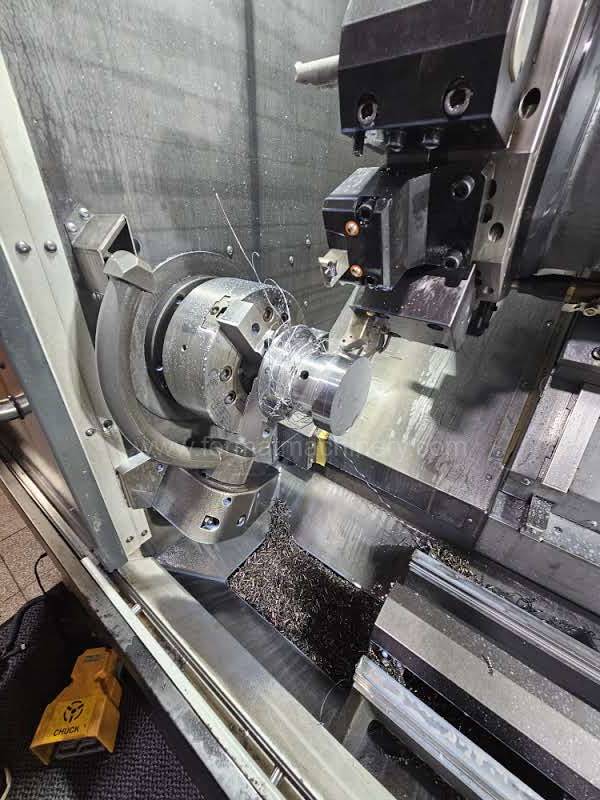

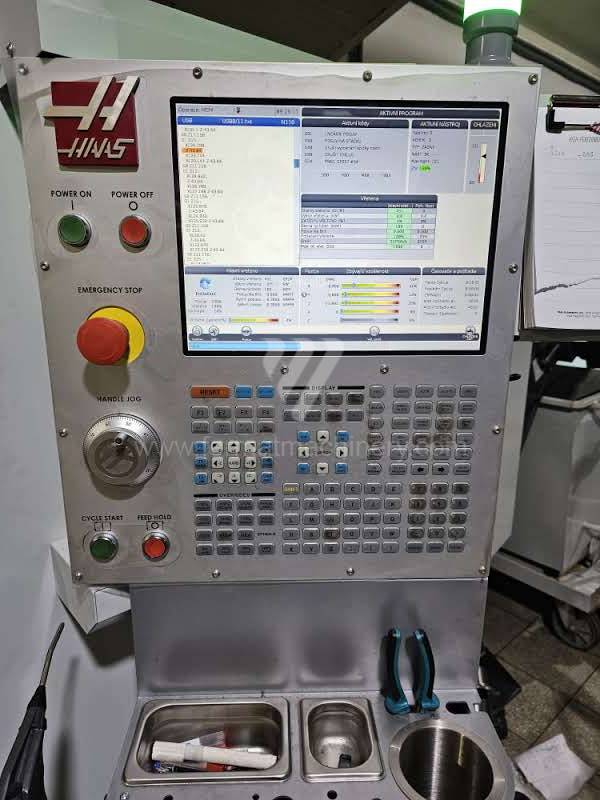

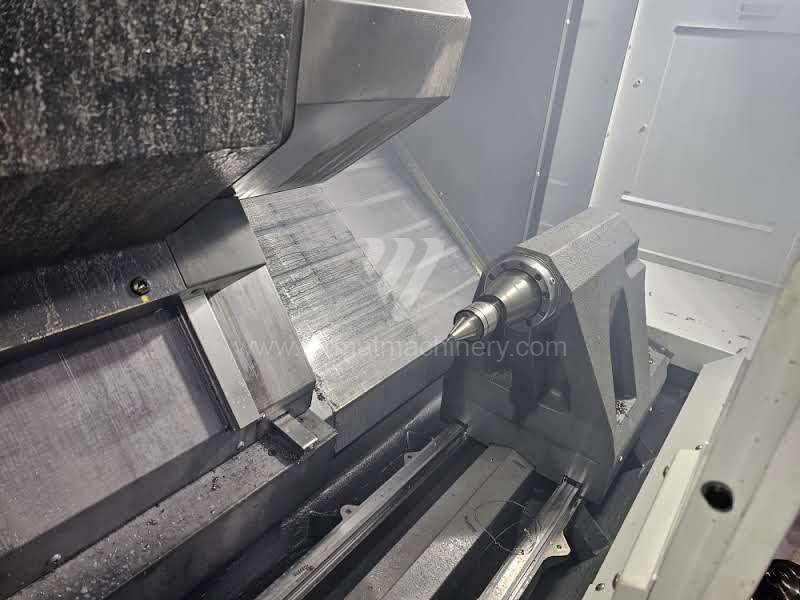

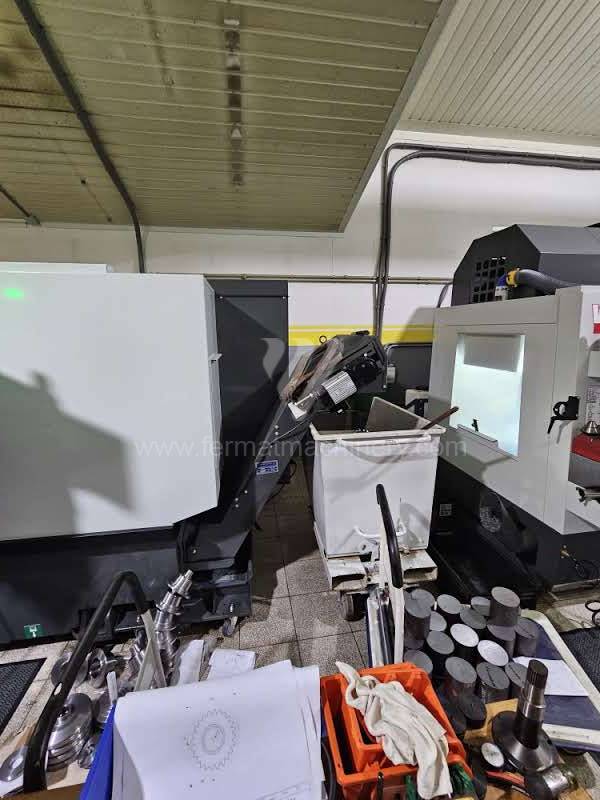

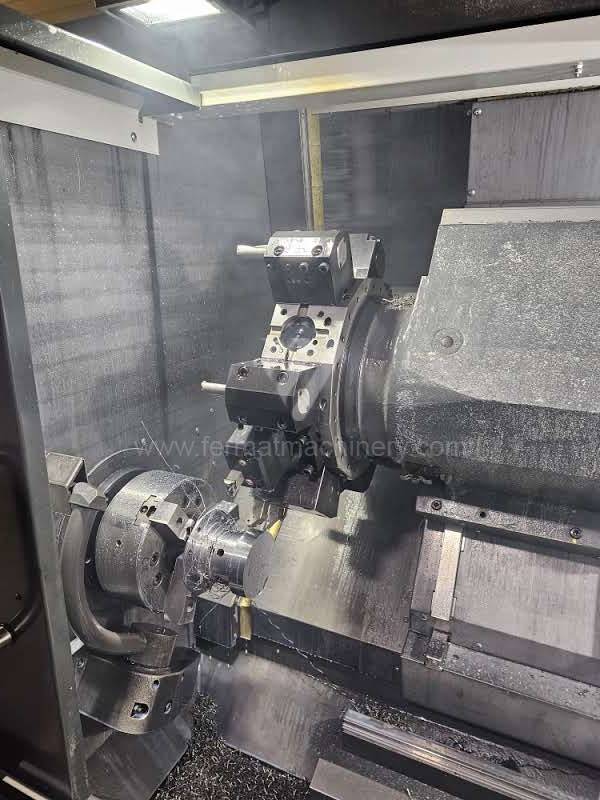

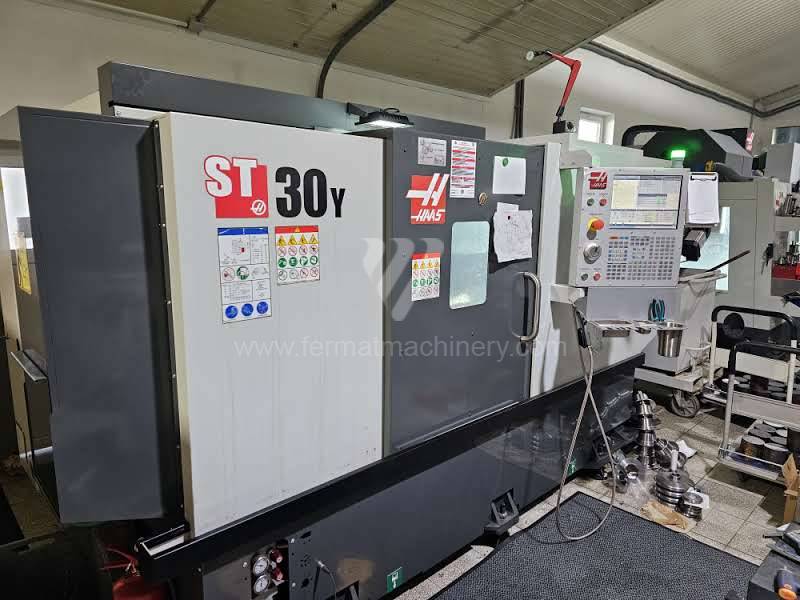

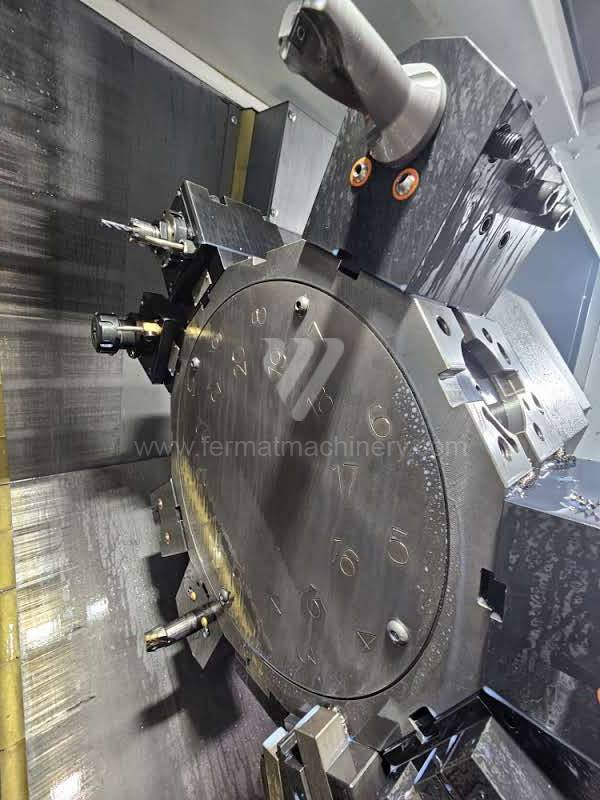

ST-30 Y
Haas Automation
Inventory number: 231845
YOM:2022
Control system Haas:
Turn table diameter: 18.28 in
Turning lenght: 23.36 in
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 0 - 2.04 in
GS-280L
Goodway
Inventory number: 251436
YOM:2008
Control system Fanuc: 0i - TC
Turn table diameter: 20 in
Turning lenght: 45.36 in
Sloping bed: YES
Spindle bore: 3 in
Turret head: YES
MASTURN MT 54 / 1500
KOVOSVIT MAS, a.s.
Inventory number: 251732
YOM:2004
Control system Heidenhain: Manual Plus 4110
Turn table diameter: 21.6 in
Turning lenght: 60 in
Sloping bed: NO
Spindle bore: 3.32 in
Turret head: YES
Sprint 42 linear
Gildemeister
Inventory number: 251679
YOM:2011
Control system Fanuc: 310i
Turn table diameter: 1.68 in
Turning lenght: 12.8 in
Sloping bed: YES
Y axis: YES
Travel Y-axis (lathe): 14 in
Lathe – is a mechanical device that uses a chip machining to change a shape of the material or component by rotation or cutting into its final product (semi-finished product). Using the lathe, it is possible to produce rotary parts, drill holes, cut external and internal threads.
The material (product) is clamped in the chuck. The lathe is produced in several dimensions, according to turntable diameter or turning length. Other equipment can be a revolver head, milling head, counter spindle, tailstock, chip conveyor (for extracting metal chips), cooling system (during turning a lot of heat is generated, which must be cooled. The cooling can be internal or external and according to its strength is expressed in bars).In case of CNC lathes. For numerically controlled lathes, if the manufacturer does not have its own system, it is possible to choose the system which is commonly used, for example: Fanuc, Siemens, Heidenhain or Fagor.
Types of lathes:
- Center type lathes
- Facing lathes
- Semi-automatic copying lathes
- Vertical lathes (carousels)
- Revolver type (poloautomaty, jednovřetenové, několikavřetenové)
- CNC lathes
- Special
The regular lathe consists of following parts: beds, spindle, support, tailstock spindle or sliding gearbox.
Basic division of the inclination of the lathe bed:
- horizontal or sloping (inclination 45 degrees)
- sliding or linear
Clamping part – it is usually formed by a chuck on one side and tailstock on the other, or a chuck and second clamping part by a counter spindle.
Cutting part – formed by a cutting wedge attached to the longitudinal part - the Z axis.
The transverse part (perpendicular to the axis of the spindle) designated as the X-axis, or the automatic tool head, also usually located on the transverse feed on the machine.
Other axes, used especially in case of CNC lathes:
- axis C1 (indexed spindle position,
- axis C2 (indexed axis of the counter spindle)
- axis Y (Axis Y enables movement of tool perpendicular to axis Z and machining with live tools)
- axis B (indexed support axis)
The machine can be erupted with a measuring tool probe (automatically or manually foldable).
According to the technological operation, turning is focused on processing of:
- Cylindrical surfaces
- Front surfaces
- Conical surfaces
- Threads
There are several hundreds manufacturers in the world, among the most popular in Czech republic are: TOS, MAZAK, DOOSAN, ŠKODA, OKUMA, GILDEMEISTER, HAAS, KOVOSVIT, GOODWAY, TAJMAC-ZPS.
