Milling machines / Other / CS 500 AGILE
Milling machines / Other / CS 500 AGILE
Milling machines / Other / CS 500 AGILE
Milling machines / Other / CS 500 AGILE

Milling machines / Other / CS 500 AGILE

  • Inventory number 261061

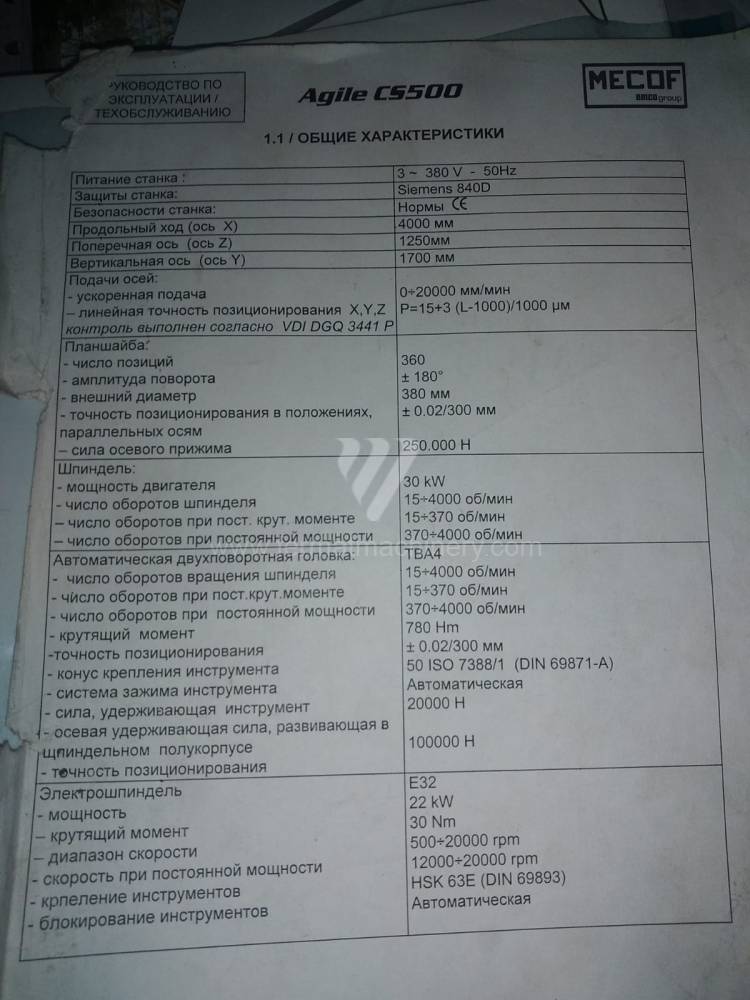

  • Machine type CS 500 AGILE
  • Producer Mecof
  • YOM 2005
Control system SiemensSinumerik 840 D
Dimensions of table working surface5300 x 1090 mm
Travel X-axis4000 mm
Travel Y-axis1700 mm
Travel Z-axis1250 mm
Max. load of table kg
Spindle speed15 - 4000 /min.
Main motor power30 kW
Tool magazineYES
Number of positions in magazine
Spindle taperISO 50 .

Subject to change of technical parameters.


Similar machines

SP 10000
YOM: 2011
Control systemYES
Control system HeidenhainTNC 530
Dimensions of table working surface10000x1350 mm
Travel X-axis8500 mm
Travel Y-axis2000 mm
Travel Z-axis1500 mm
Rapid feed25 m/min
Max. load of table13500 kg
Spindle taperSK 50 .
Spindle speed0 - 4000 /min.
Main motor power37 kW
Max. torque of spindle900 Nm
Cooling through spindleYES
Pressure of cooling15 bar
Tool magazineYES
Number of positions in magazine60
Machine weight35000 kg
Space of machine12700 x 5200 x 4600 mm

SP 10000
SORALUCE
Inventory number: 261380
PC 6
YOM: 1999
Control systemYES
Control system SiemensSinumerik 840 D
Dimensions of table working surface mm
Travel X-axis mm
Max. weight of workpiece80 000 kg
Machine weight250 000 kg

PC 6
ŠKODA MACHINE TOOL a.s.
Inventory number: 261198
