Año de fabricación:1991
Sistema de control NCT:
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 3500 mm
Carrera de eje Y: 2000 mm
Giros del husillo: 1 - 900 /min.
Refrigeración central: No
Sistema de control Heidenhain: TNC 530
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 3500 mm
Carrera de eje Y: 2000 mm
Giros del husillo: 0 - 1800 /min.
Refrigeración central: No

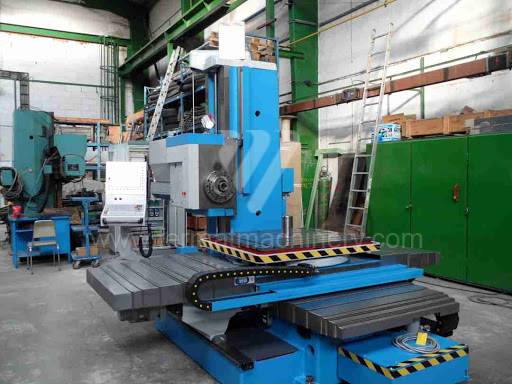

Sistema de control Heidenhain: TNC 320
Diámetro de trabajo del husillo: 100 mm
Carrera de eje X: 1250 mm
Carrera de eje Y: 900 mm
Giros del husillo: 0 - 1250 /min.
Refrigeración central: No
Año de fabricación:1989
Sistema de control ECS:
Diámetro de trabajo del husillo: 160 mm
Carrera de eje X: 15500 mm
Carrera de eje Y: 1000 mm
Giros del husillo: 0 - 1500 /min.
Extensión del husillo (W): 800 mm

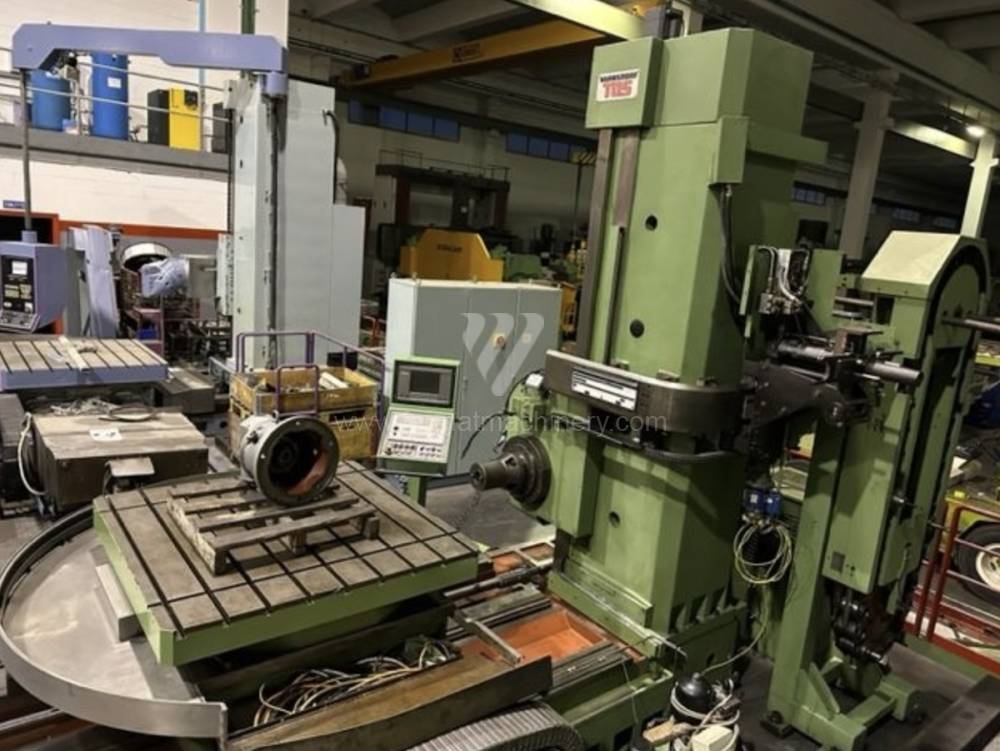

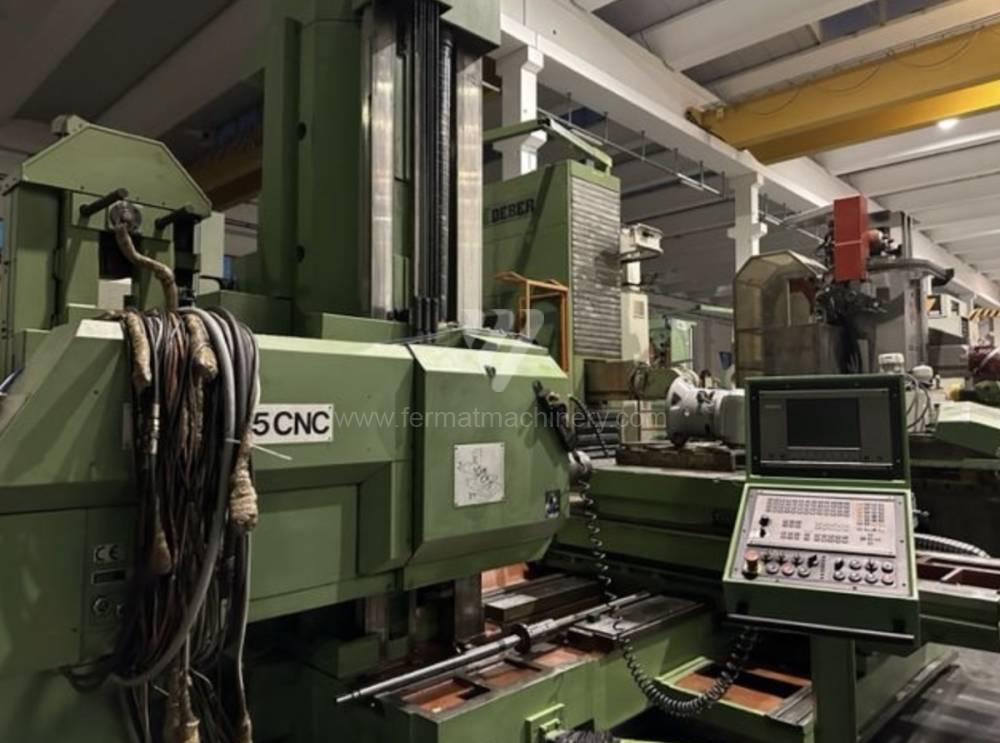

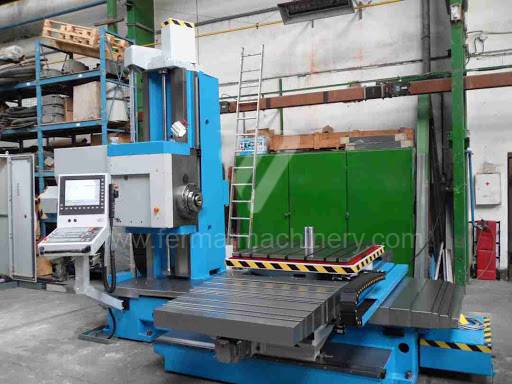

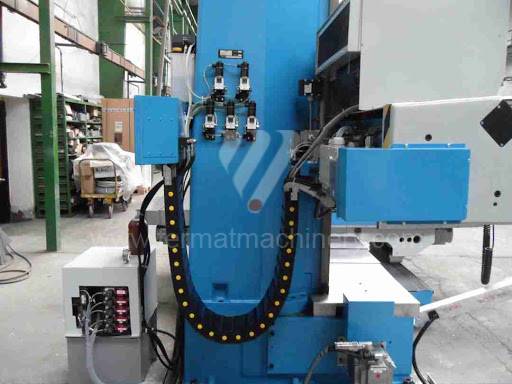

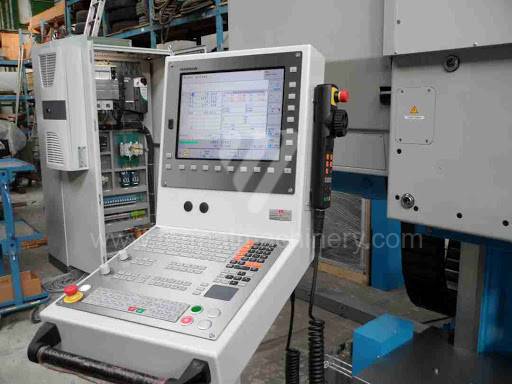

Sistema de control Heidenhain: TNC 620
Diámetro de trabajo del husillo: 100 mm
Carrera de eje X: 1250 mm
Carrera de eje Y: 1030 mm
Giros del husillo: 16 - 2500 /min.
Refrigeración central: No
Año de fabricación:1975
Sistema de control Heidenhain: TNC 355
Diámetro de trabajo del husillo: 90 mm
Carrera de eje X: 1250 mm
Carrera de eje Y: 900 mm
Giros del husillo: 0 - 1120 /min.
Refrigeración central: No
Año de fabricación:1983
Diámetro de trabajo del husillo: 63 mm
Carrera de eje X: 1000 mm
Carrera de eje Y: 710 mm
Giros del husillo: 18 - 1800 /min.
Refrigeración central: No
Extensión del husillo (W): 560 mm

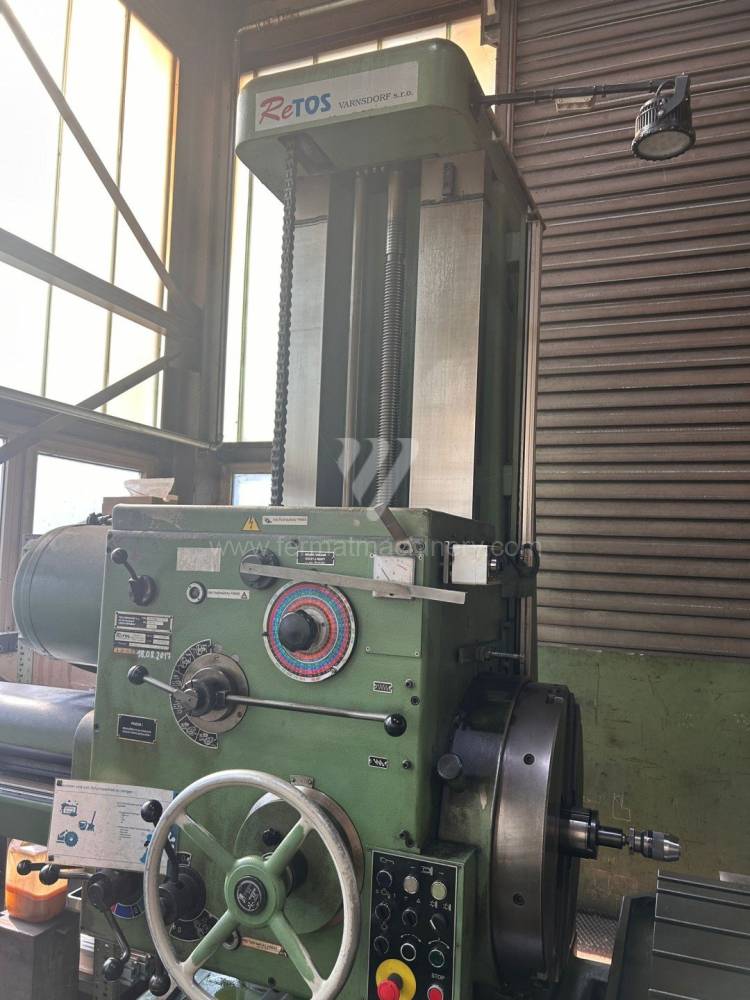

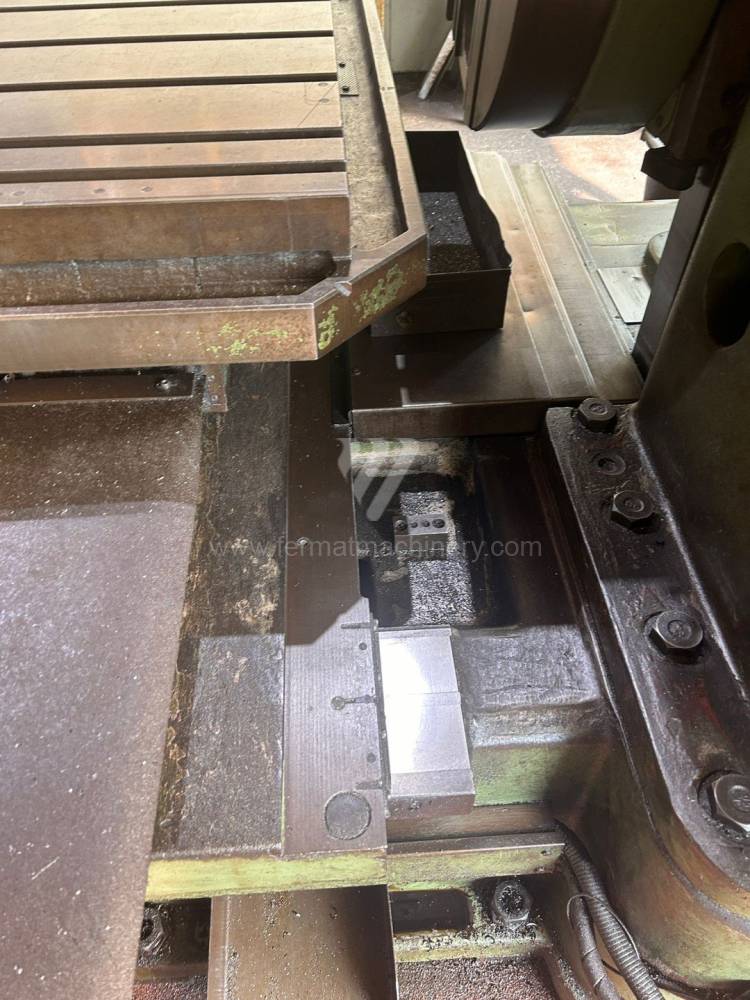

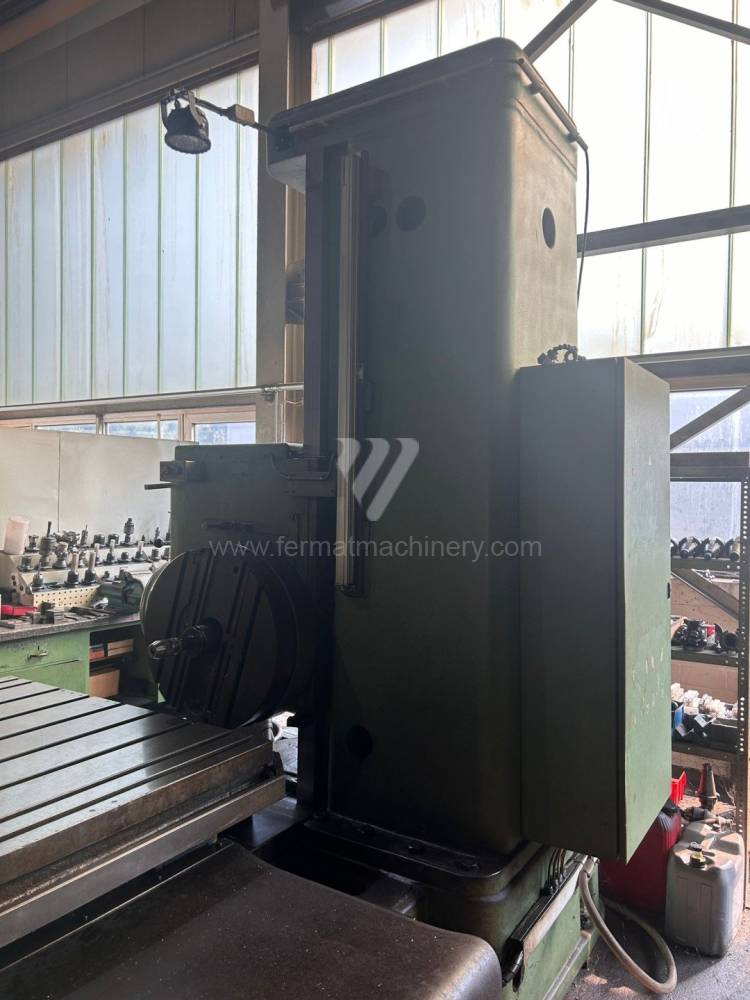

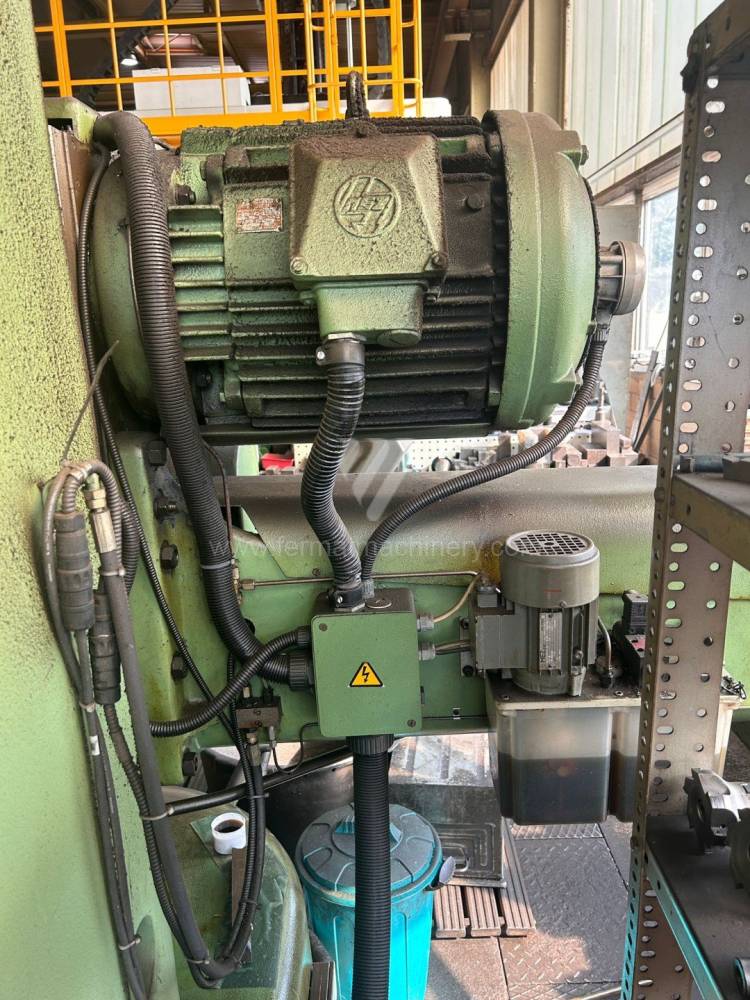

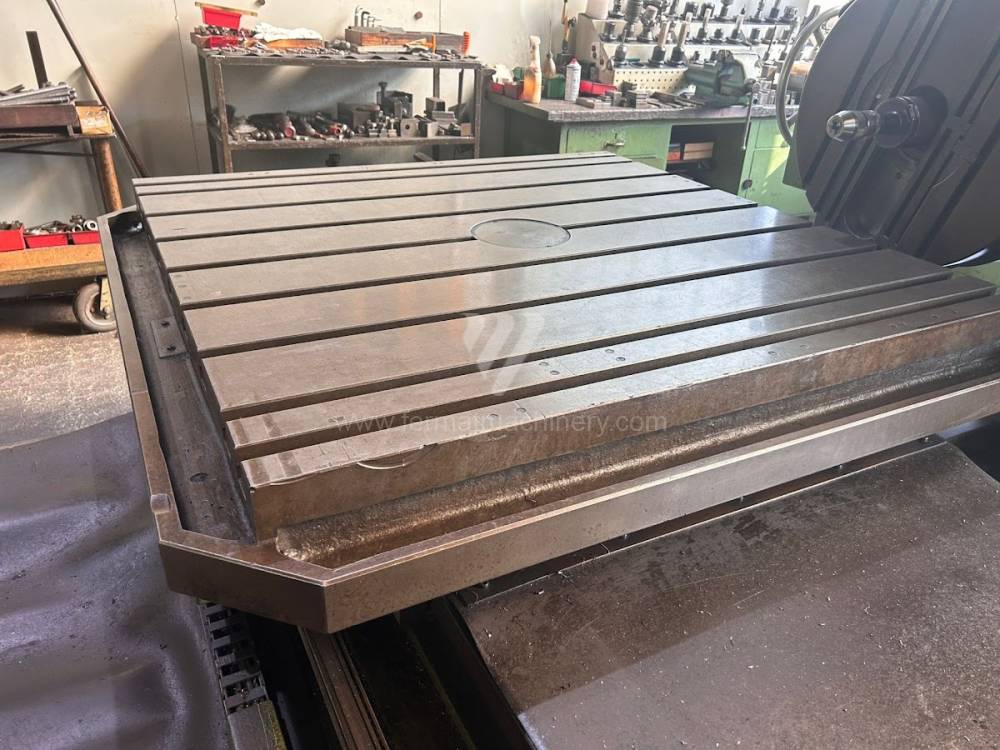

Diámetro de trabajo del husillo: 100 mm
Carrera de eje X: 1250 mm
Carrera de eje Y: 900 mm
Giros del husillo: 16 - 1250 /min.
Refrigeración central: No
Extensión del husillo (W): 630 mm
Año de fabricación:1984
Diámetro de trabajo del husillo: 75 mm
Carrera de eje X: 1250 mm
Carrera del husillo en la columna (Y): 900 mm
Carrera de eje Z: 1000 mm
Dimensiones de la mesa: 950x950 mm
Extensión del husillo (W): 560 mm
Año de fabricación:1979
Sistema de control Siemens: Sinumerik 840D Sl
Diámetro de trabajo del husillo: 230 mm
Carrera de eje X: 13000 mm
Carrera de eje Y: 5000 mm
Giros del husillo: 0 - 420 /min.
Extensión del husillo (W): 1500 mm
Año de fabricación:1992
Sistema de control Heidenhain: TNC 530
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 10000 mm
Carrera de eje Y: 3000 mm
Giros del husillo: 1200 - /min.
Extensión del husillo (W): 770 mm
Año de fabricación:2016
Sistema de control Heidenhain: TNC 640
Diámetro de trabajo del husillo: mm
Carrera de eje X: 6000 mm
Carrera de eje Y: 2500 mm
Giros del husillo: 337 - 5000 /min.
Extensión del husillo (W): mm
Año de fabricación:2022
Sistema de control Fagor: CNC 8065
Diámetro de trabajo del husillo: mm
Carrera de eje X: 2000 mm
Carrera de eje Y: 1200 mm
Giros del husillo: 0 - 6000 /min.
Refrigeración central:

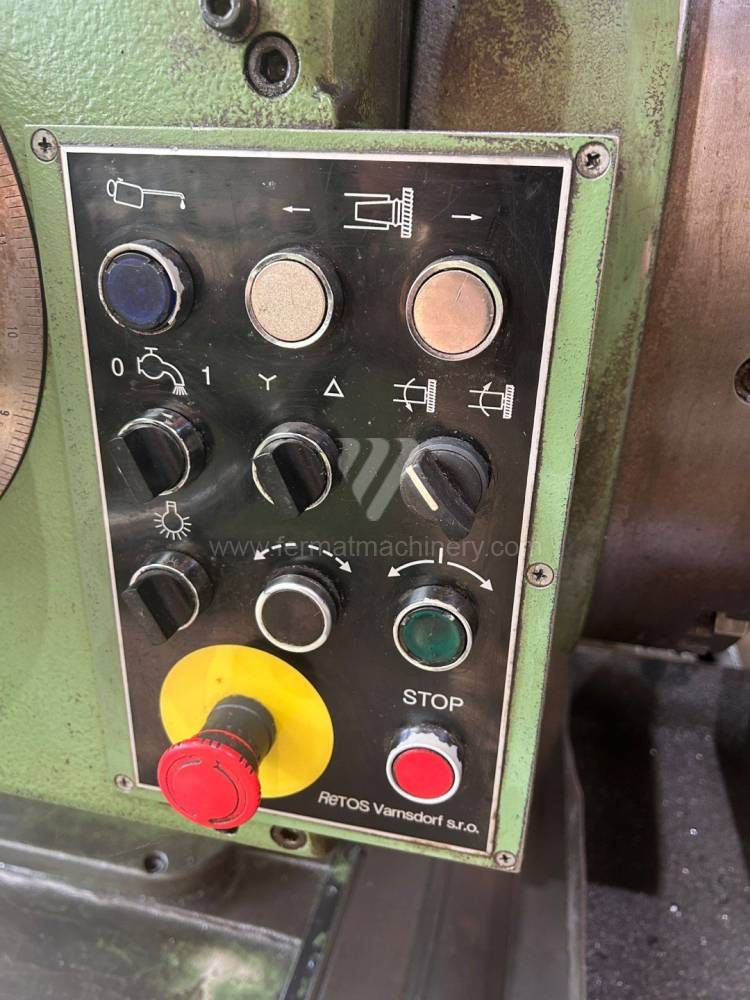

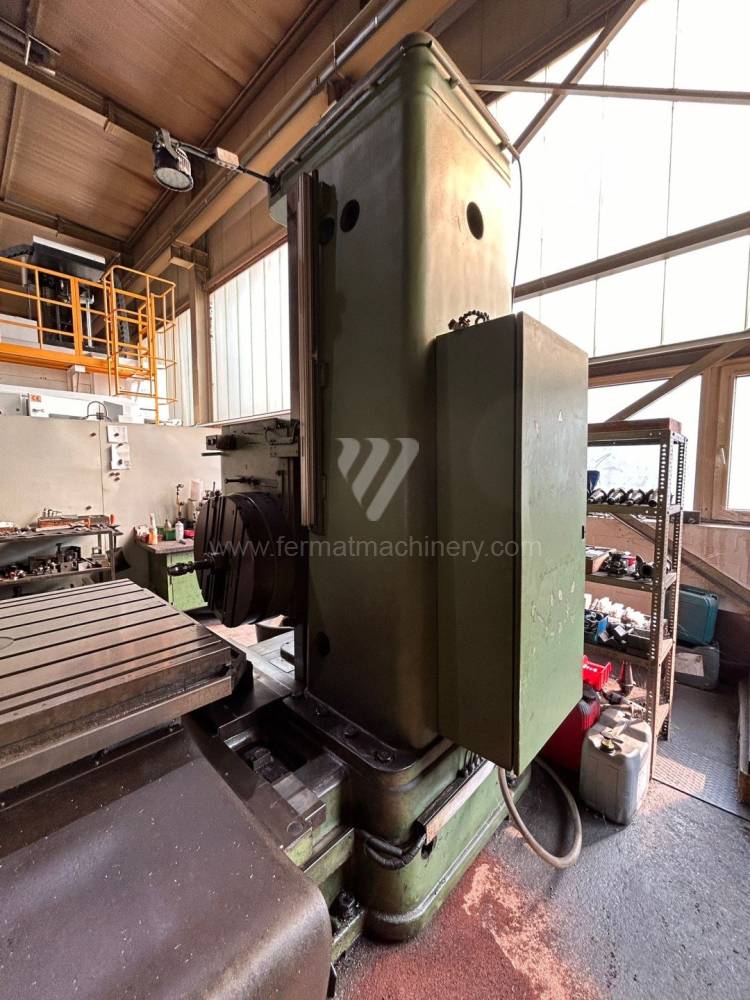

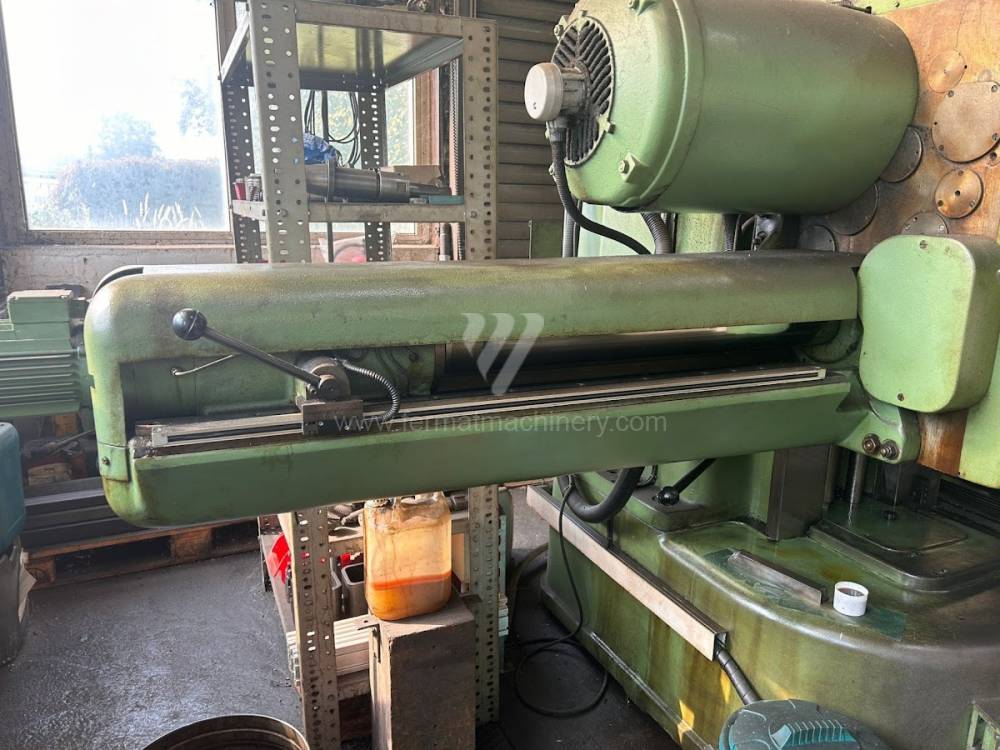

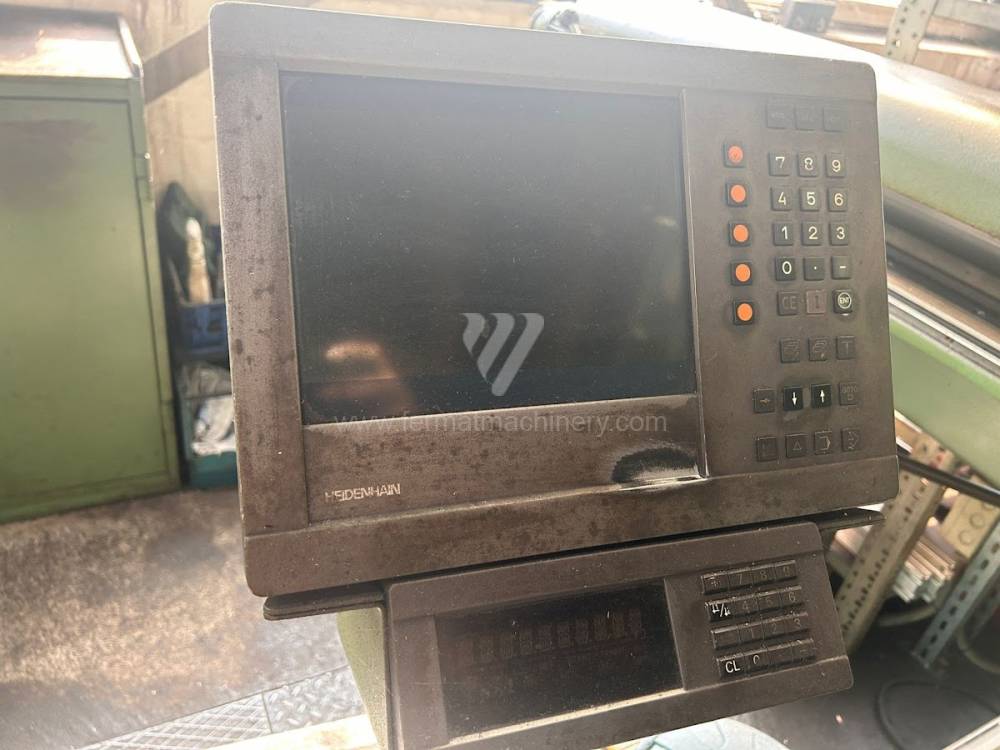

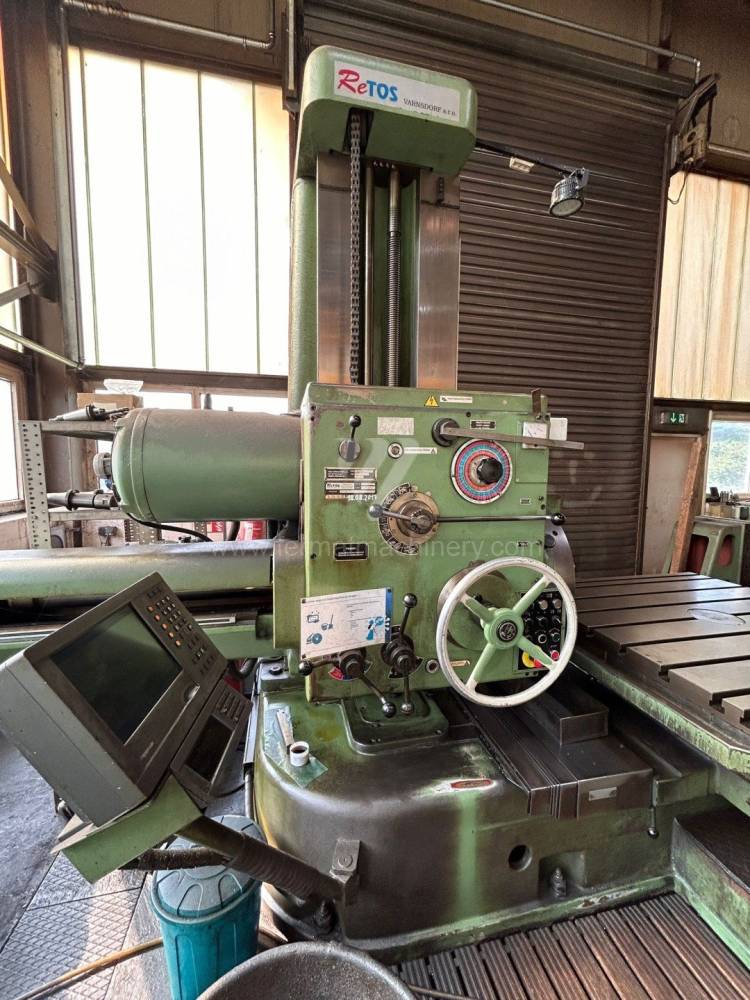

Año de fabricación:1988
Sistema de control Heidenhain: TNC 135
Diámetro de trabajo del husillo: 100 mm
Carrera de eje X: 1250 mm
Carrera de eje Y: 900 mm
Giros del husillo: 0 - 1120 /min.
Refrigeración central: No
Sistema de control ECS:
Diámetro de trabajo del husillo: 127 mm
Carrera de eje X: 7500 mm
Carrera de eje Y: 2500 mm
Giros del husillo: 0 - 2000 /min.
Extensión del husillo (W): 300 mm
Área de sujeción de la mesa giratoria: 2000 x 2000 mm
Carga máxima de mesa: 20 000 kg
Máx. carrera de la mesa: 1 200 mm
Peso del equipo: 9 350 kg

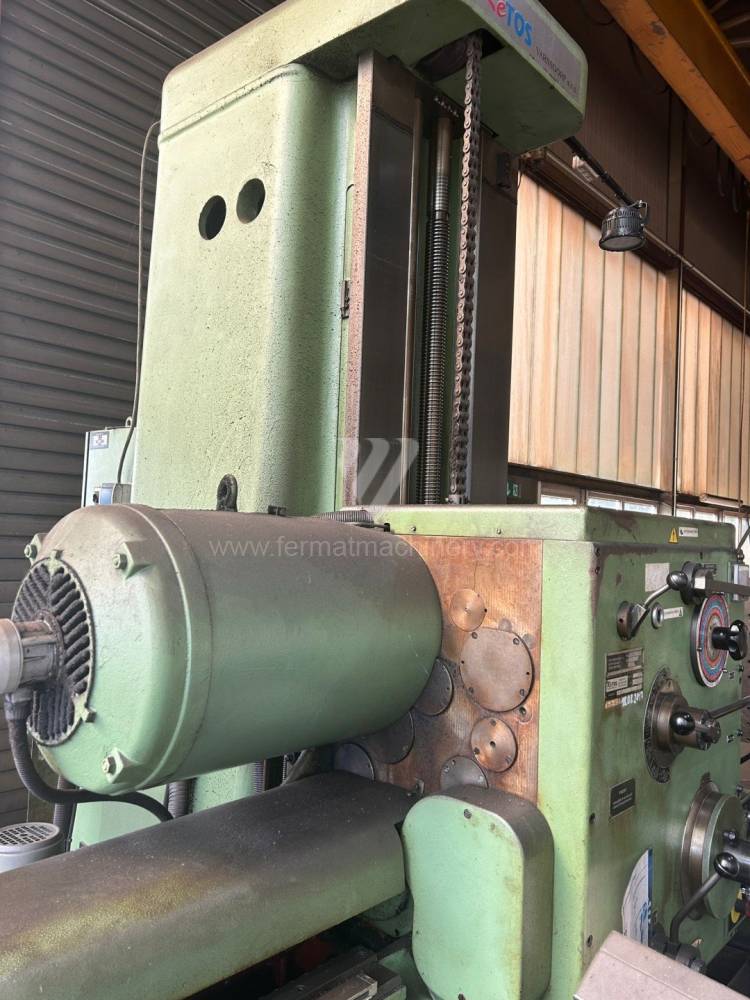

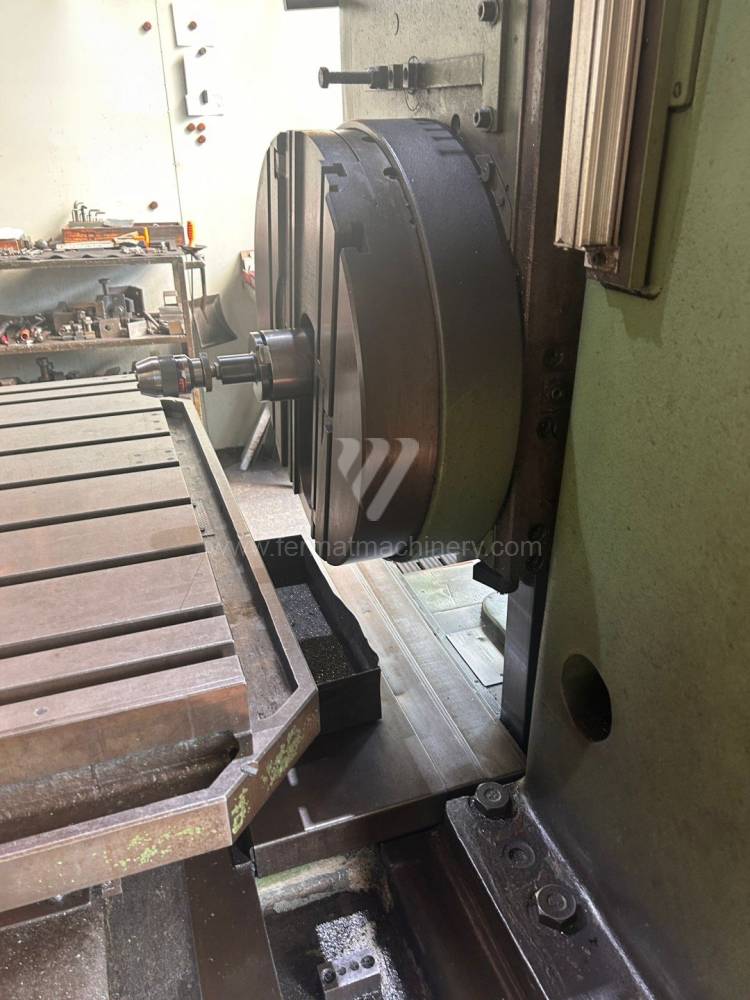

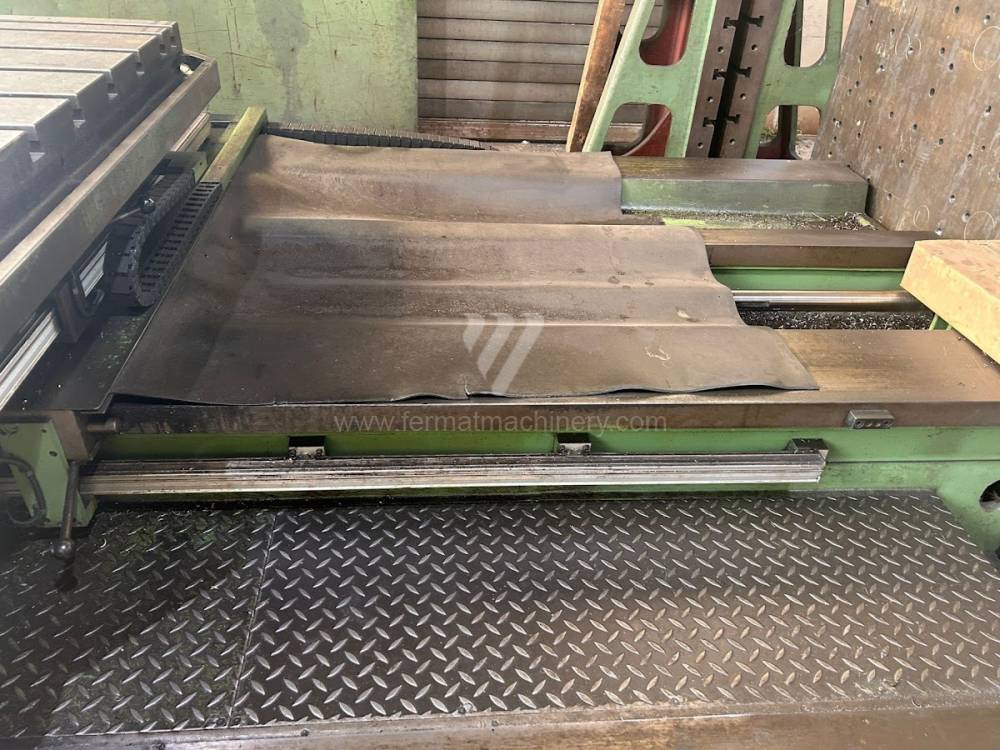

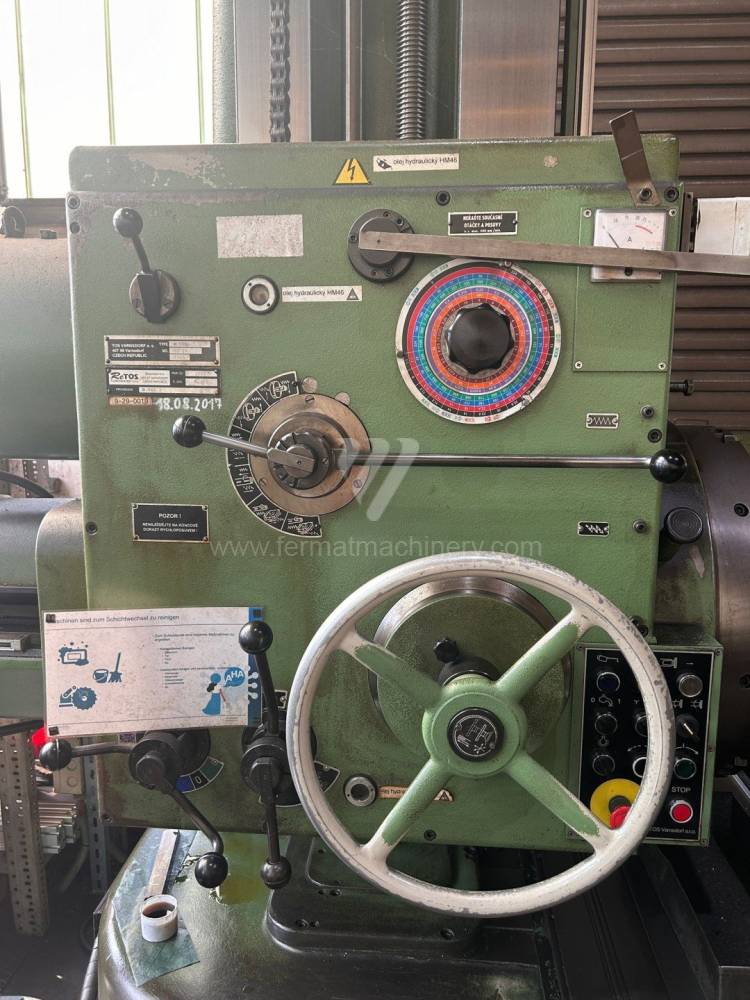

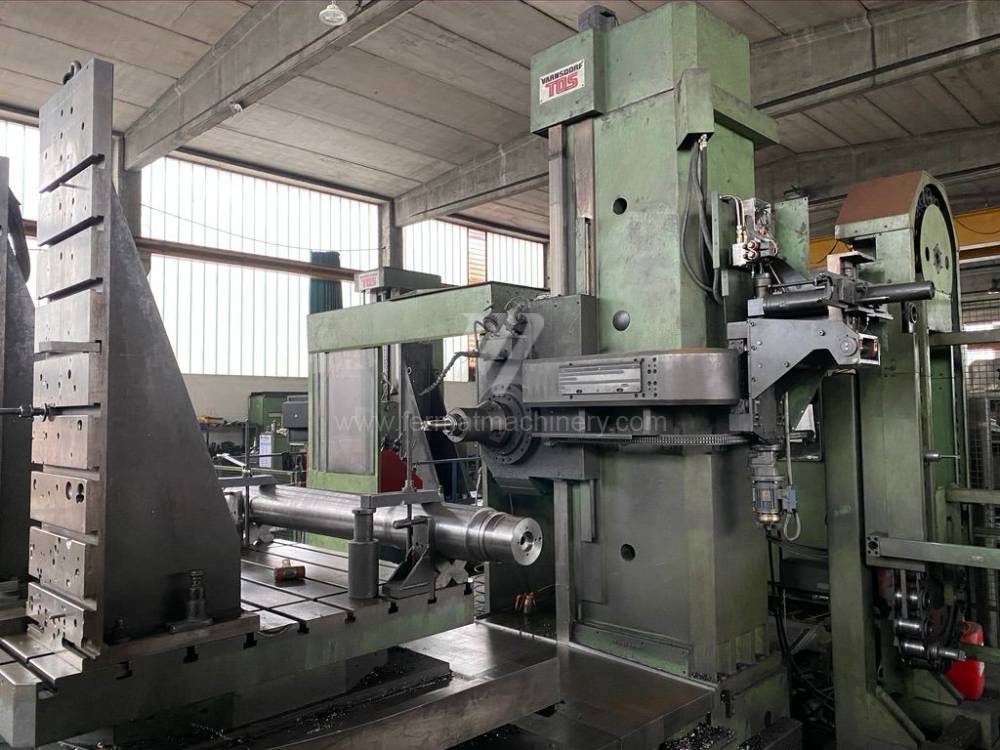

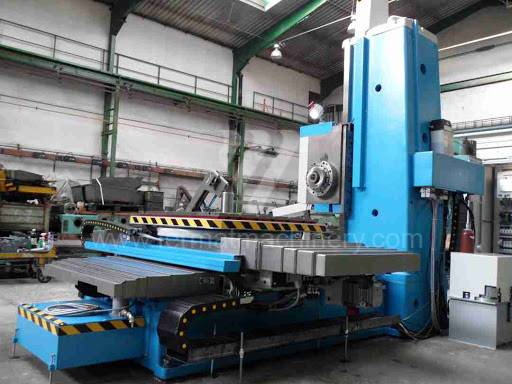

Año de fabricación:1990
Diámetro de trabajo del husillo: 100 mm
Carrera de eje X: 1600 mm
Carrera de eje Y: 1120 mm
Giros del husillo: 0 - 1120 /min.
Refrigeración central: No
Extensión del husillo (W): 900 mm
Año de fabricación:2019
Sistema de control Heidenhain: TNC 640
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 3500 mm
Carrera de eje Y: 2500 mm
Giros del husillo: 10 - 3000 /min.
Refrigeración central: Sí
Año de fabricación:1975
Diámetro de trabajo del husillo: 90 mm
Carrera de eje X: 1250 mm
Carrera de eje Y: 900 mm
Giros del husillo: 0 - 1120 /min.
Refrigeración central: No
Extensión del husillo (W): 680 mm
Sistema de control Siemens:
Diámetro de trabajo del husillo: 160 mm
Carrera de eje X: 6000 mm
Carrera de eje Y: 3200 mm
Giros del husillo: 10 - 2500 /min.
Extensión del husillo (W): 1000 mm
Año de fabricación:1985
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 3500 mm
Carrera de eje Y: 2000 mm
Giros del husillo: 12 - 800 /min.
Refrigeración central: No
Extensión del husillo (W): 800 mm
Año de fabricación:1978
Sistema de control Mefi:
Diámetro de trabajo del husillo: 160 mm
Carrera de eje X: 6000 mm
Carrera de eje Y: 2500 mm
Giros del husillo: 2 - 800 /min.
Extensión del husillo (W): mm
Diámetro de trabajo del husillo: 63 mm
Carrera de eje X: 1000 mm
Carrera de eje Y: 710 mm
Giros del husillo: - /min.
Refrigeración central: No
Extensión del husillo (W): 560 mm

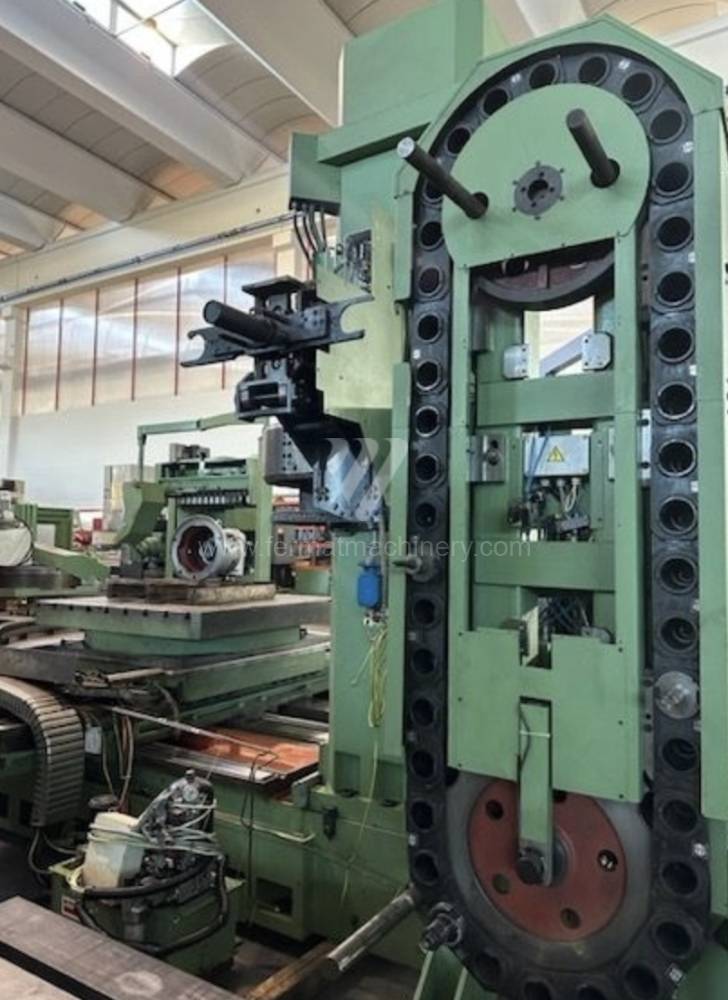

Año de fabricación:1998
Sistema de control Heidenhain: TNC 426
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 3500 mm
Carrera de eje Y: 2000 mm
Giros del husillo: 5 - 2500 /min.
Refrigeración central: No
Año de fabricación:1999
Sistema de control Heidenhain: TNC 426
Diámetro de trabajo del husillo: 130 mm
Carrera de eje X: 3500 mm
Carrera de eje Y: 2500 mm
Giros del husillo: 10 - 2500 /min.
Refrigeración central: No
Horizontal boring machines are universal machines used for machining of complex products. These borers are mainly used for small batch production. For one workpiece clamping, the operation can be performed from up to five sides, either simultaneously or sequentially. A large number of standard and special accessories are available for horizontal boring machines. This makes boring machines suitable not only for boring, but also for drilling, turning, milling and other operations.
Horizontal boring machines can be divided into several types, such as: table, cross, plate, coordinate. Can be divided also according to the type of control - conventional (without system), or CNC controlled.

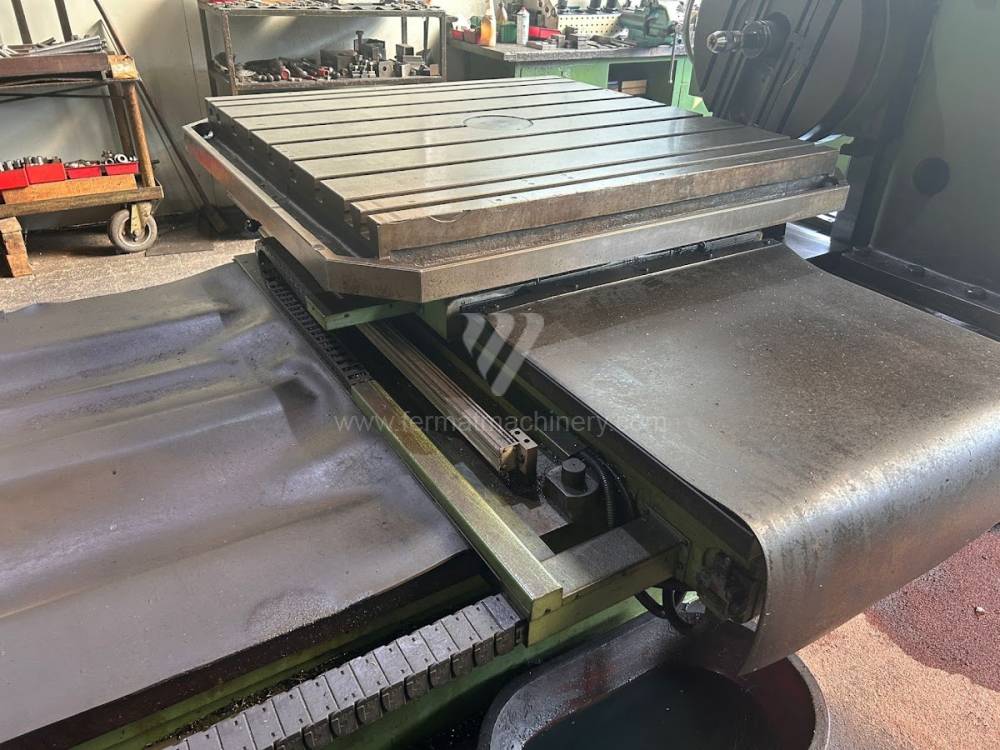

Table boring machines are equipped with a movable table that moves in one or two axes. Depending on this, boring machines are further divided into cross-construction or T-construction. The table is usually rotary (B axis), which allows four sides of the workpiece to be machined in one clamp. However, if the machine is equipped with an angle head (A and C axes) and the workpiece does not exceed the dimensions of the machine, five sides can be machined in one clamp. The boring milling machines differ from the table milling machines in particular by the extendable spindle (W axis). Higher series often also have a movable headstock (V axis).
These kinds of boring machines are suitable and used for machining of the largest workpieces. Headstock is moving along the vertical guide of the column and column itself is moving along the bed perpendicular to the axis of the spindle. The workpiece is clamped immovably on a cast-iron floor plate equipped with T-slots. If this floor type boring machine is equipped with a rotary table which is movable in the direction of the spindle axis, the number of controlled axes increases. Such boring machines mainly have a boring spindle diameter of 130-315 mm.
So-called coordinate boring machines are used for machining precise holes. Its design is affected by the requirements for very high accuracy of all movements, good dynamics and the best possible temperature stability. There are two types of these machines. One-column borer with horizontal or vertical spindle axis (this is for smaller sizes of workpieces that are clamped on a cross table) and two column borer with one or more vertical spindles. Workpiece is clamped on a longitudinal table, which is in between two columns along which the crosspiece carrying the work headstock moves. An optical system is usually used for measuring. More modern machines are then equipped with a CNC control system.
All types of horizontal boring machines are conventional or CNC controlled. Among the most popular producers of CNC systems are Heidenhain, Siemens, Fanuc, Fagor.

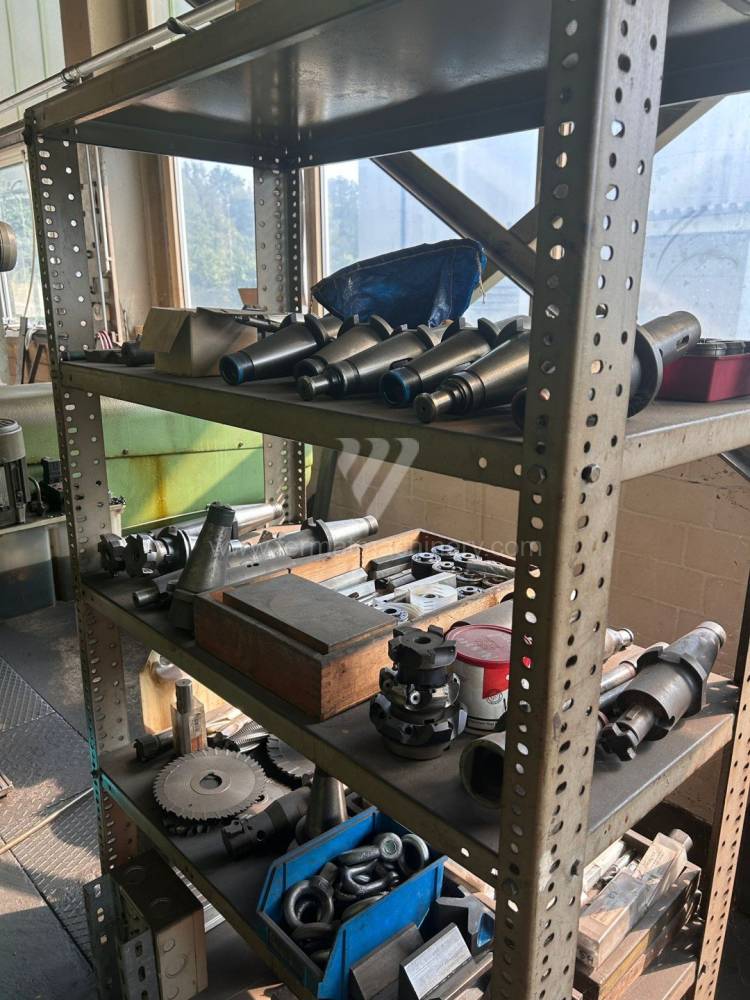

Horizontal boring machines can be also equipped with automatic tool change which is primarily used for storage of tool holders, its manipulation and positioning without participation of human factor.
Among the main and most popular manufacturers of boring mills we have to mention: FERMAT, TOS, ŠKODA, PAMA, UNION, JUARISTI, SCHARMANN, KURAKI, WOTAN.
