Aléseuse horizontale

DIXI 75 CNC
Dixi
NUMERO D'INVENTAIRE: 241076

Année de production:1968
Système de contrôle Heidenhain: TNC 620
Diametre de travaille de broche: 75 mm
Course X: 740 mm
Course Y: 600 mm
Vitesse de broche: 0 - 1600 /min.
Refroidissement par axe: NON

W 100 A
TOS Varnsdorf
NUMERO D'INVENTAIRE: 231964

Année de production:1969
Diametre de travaille de broche: 100 mm
Course X: 1600 mm
Course Y: 1120 mm
Vitesse de broche: 0 - 1120 /min.
Refroidissement par axe: NON
Extension du curseur (W): 900 mm

WRF 130 CNC
Fermat
NUMERO D'INVENTAIRE: 231250

Année de production:2008
Système de contrôle Heidenhain: TNC 530
Diametre de travaille de broche: 130 mm
Course X: 8000 mm
Course Y: 3000 mm
Vitesse de broche: 10 - 3000 /min.
Extension du curseur (W): 730 mm

W 100 A
TOS Varnsdorf
NUMERO D'INVENTAIRE: 191457

Diametre de travaille de broche: 100 mm
Course X: 1600 mm
Course Y: 1120 mm
Vitesse de broche: 7 - 1120 /min.
Refroidissement par axe: NON
Extension du curseur (W): 900 mm

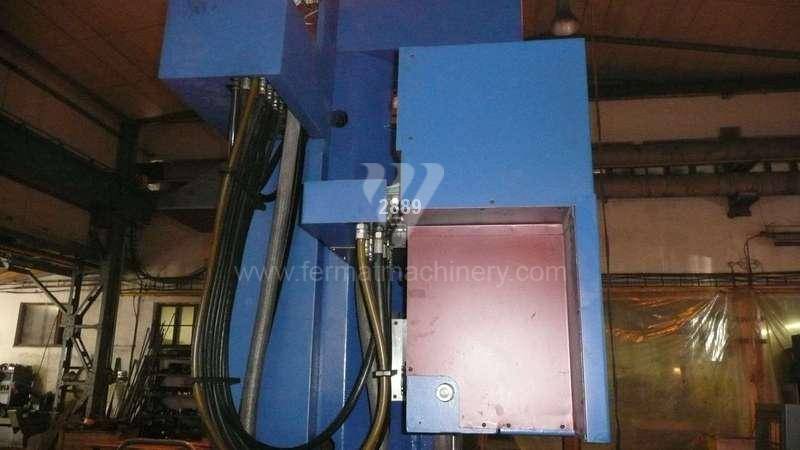

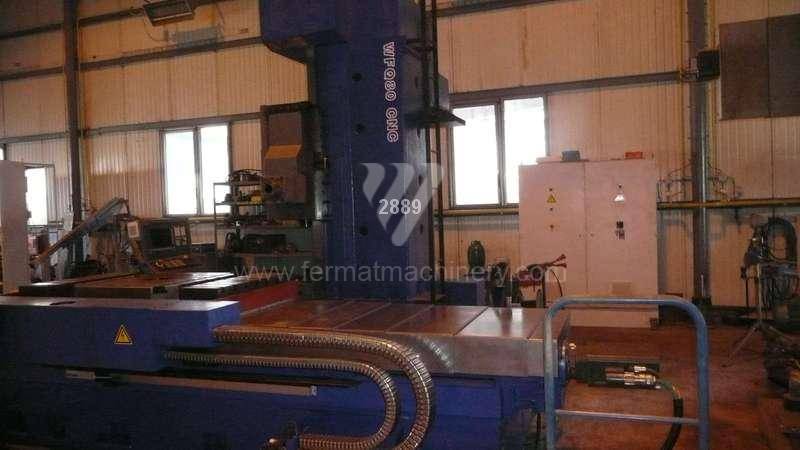

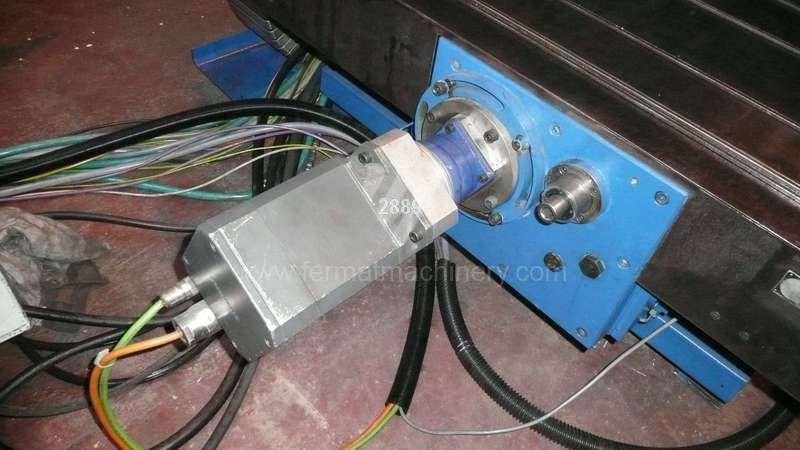

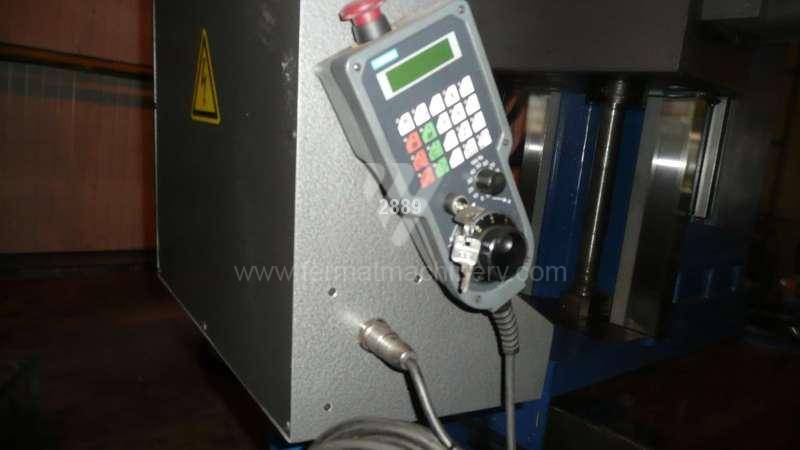

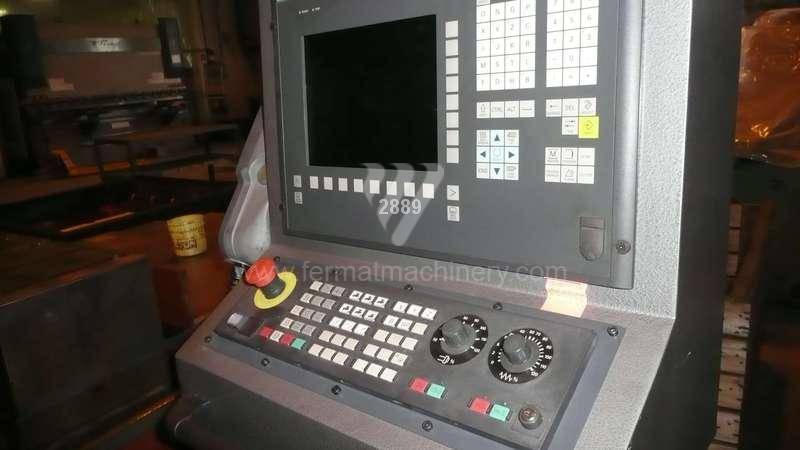

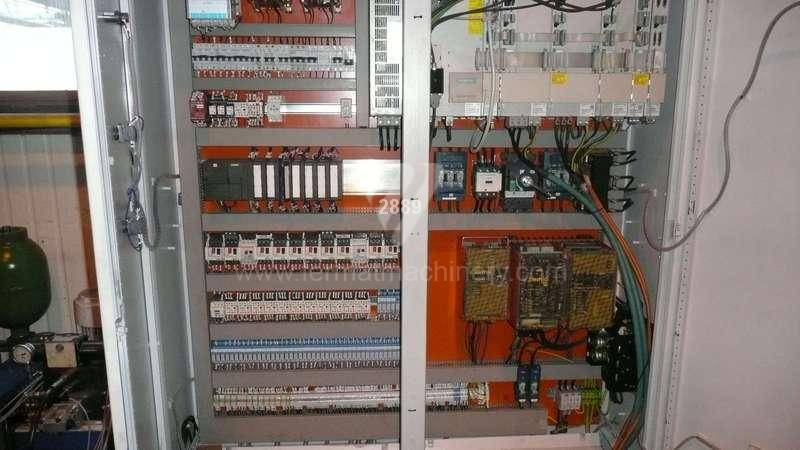

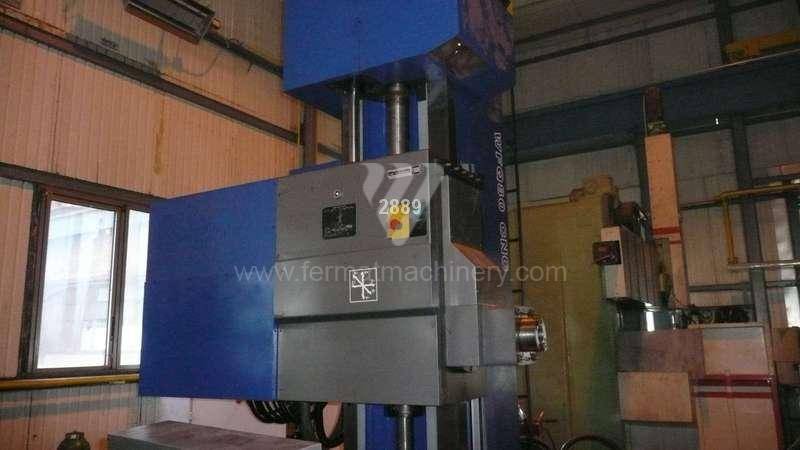

WFQ 80 NCA
TOS Varnsdorf
NUMERO D'INVENTAIRE: 091466

Année de production:1988
Diametre de travaille de broche: 80 mm
Course X: 1600 mm
Course Y: 1000 mm
Course Z: - mm
Extension du curseur (W): 950 mm
Vitesse de broche: 14 - 2240 /min.

40T
Lucas
NUMERO D'INVENTAIRE: 182013

Année de production:2018
Système de contrôle Fanuc: 0i-MF
Diametre de travaille de broche: 130 mm
Course X: 3657 mm
Course Y: 3048 mm
Vitesse de broche: 10 - 3000 /min.
Refroidissement par axe: OUI

WFC 10 CNC
Fermat
NUMERO D'INVENTAIRE: 231853

Année de production:2014
Système de contrôle Heidenhain: TNC 530
Diametre de travaille de broche: 110 mm
Course X: 2000 mm
Course Y: 2000 mm
Vitesse de broche: 10 - 3000 /min.
Refroidissement par axe: OUI

W 100 A
TOS Varnsdorf
NUMERO D'INVENTAIRE: 231864

Année de production:1998
Diametre de travaille de broche: 100 mm
Course X: 1600 mm
Course Y: 1120 mm
Vitesse de broche: 0 - 1120 /min.
Refroidissement par axe: NON
Extension du curseur (W): 900 mm

Microcut HBM-4
Buffalo Machinery
NUMERO D'INVENTAIRE: 221640

Année de production:2017
Système de contrôle Fanuc: 31i - B
Diametre de travaille de broche: 110 mm
Course X: 2200 mm
Course Y: 1600 mm
Vitesse de broche: 35 - 3000 /min.
Refroidissement par axe: OUI

AFP 180
Titan
NUMERO D'INVENTAIRE: 221138

Année de production:2009
Système de contrôle Fanuc: Fanuc 32i
Diametre de travaille de broche: 180 mm
Course X: 9130 mm
Course Y: 3980 mm
Déplacement de travaille Z: 1900 mm/min
Axe W: 1200 mm

AFP 180
MITSUBISHI ELECTRIC
NUMERO D'INVENTAIRE: 241054

Système de contrôle Siemens: Sinumerik 840 D
Diametre de travaille de broche: 180 mm
Course X: 13 000 mm
Course Y: 4 500 mm
Vitesse de broche: 2 - 420 /min.
Extension du curseur (W): 1 350 mm

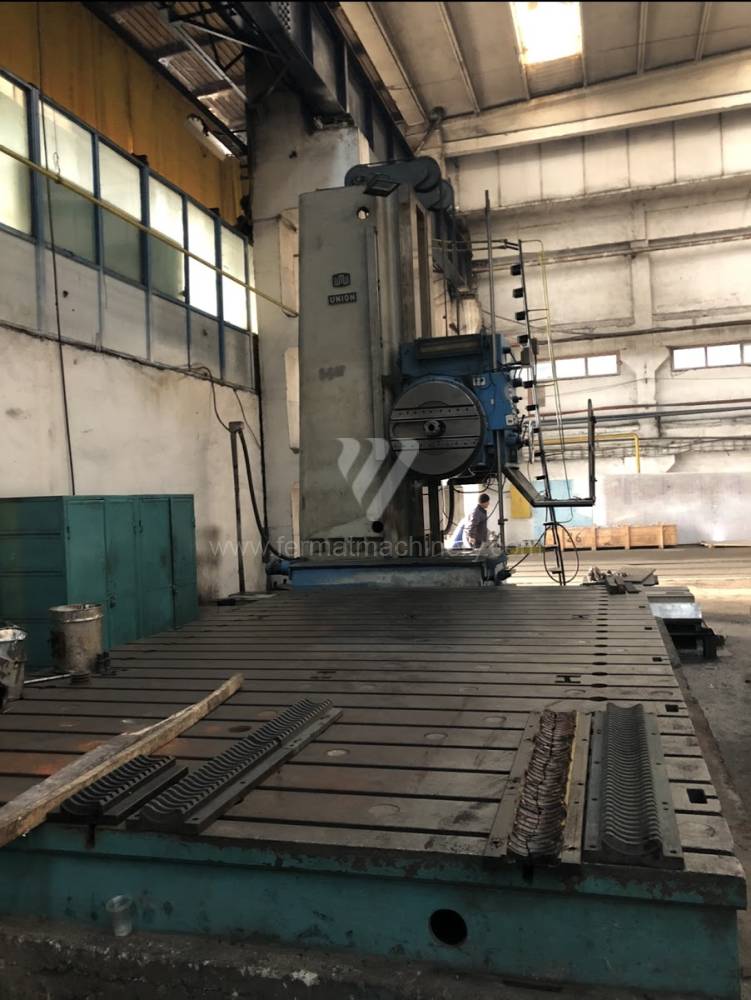

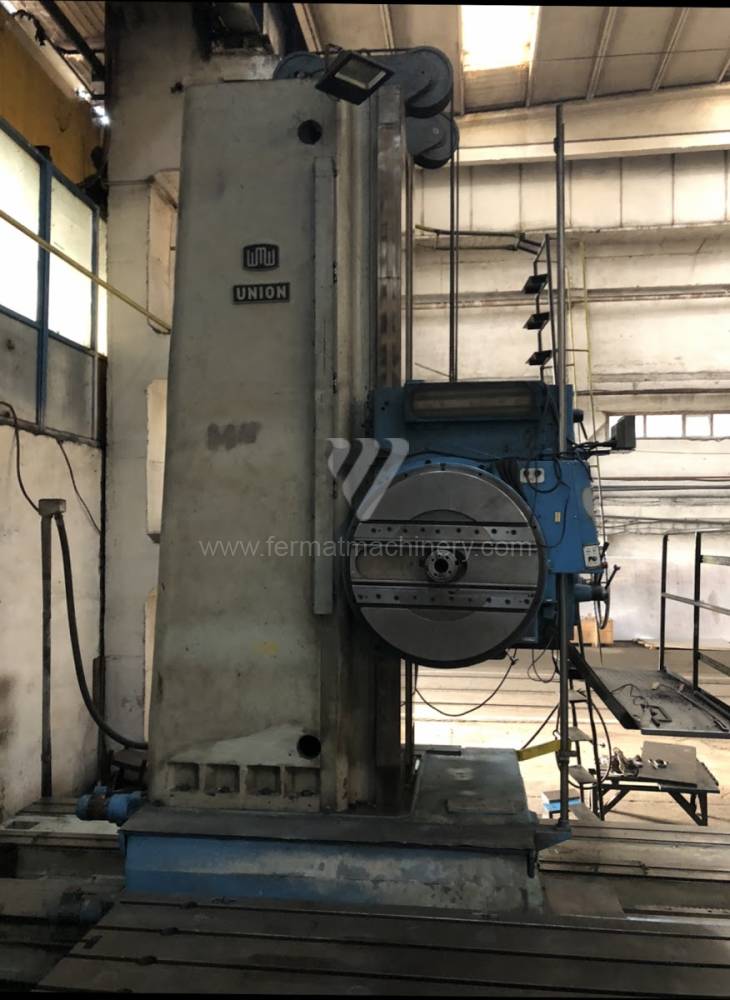

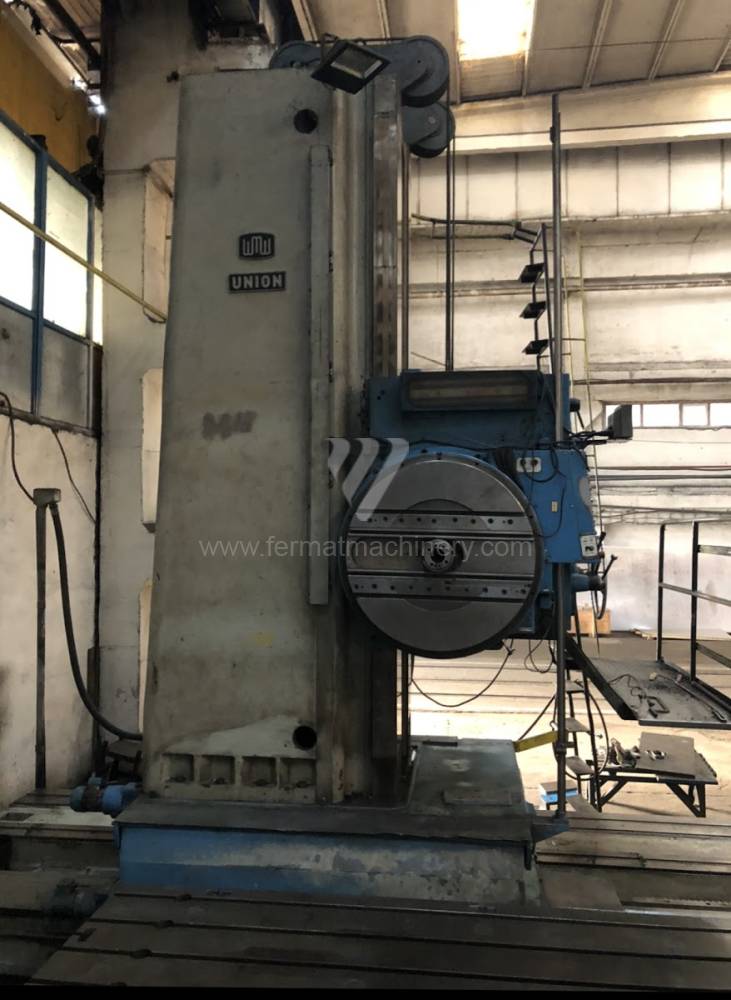

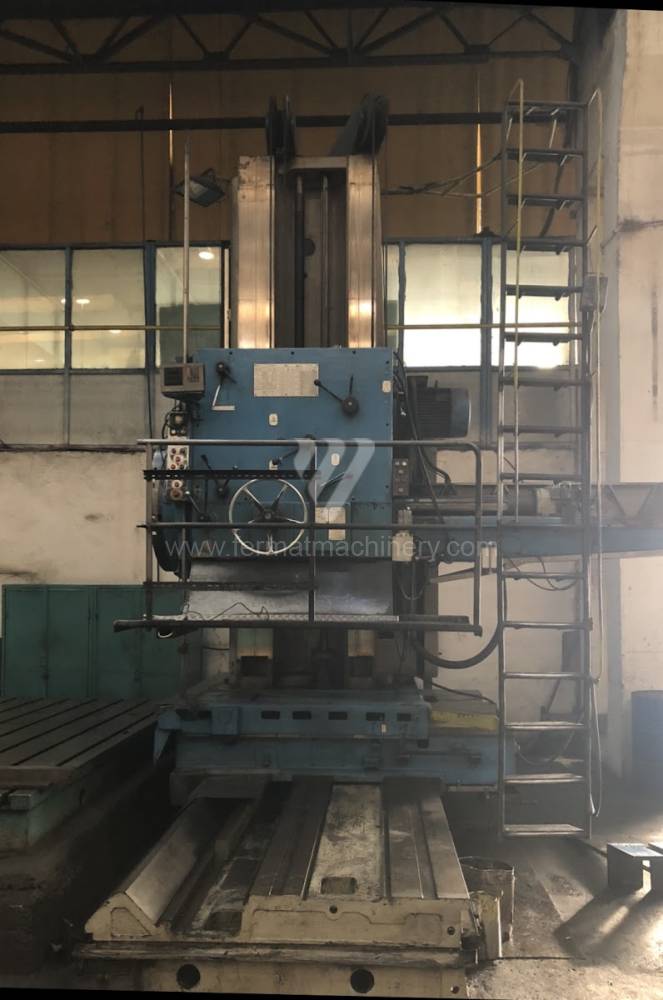

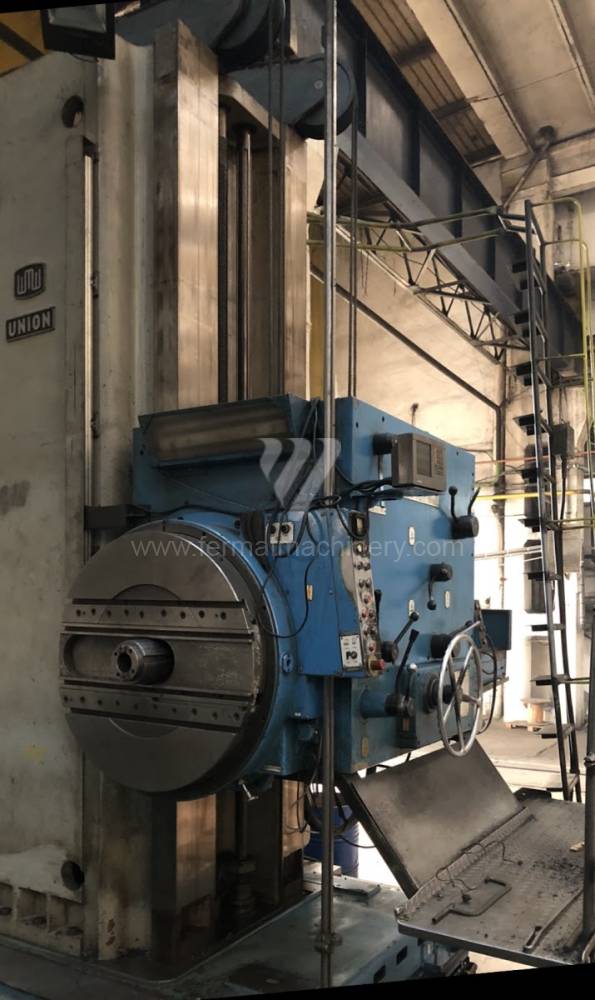

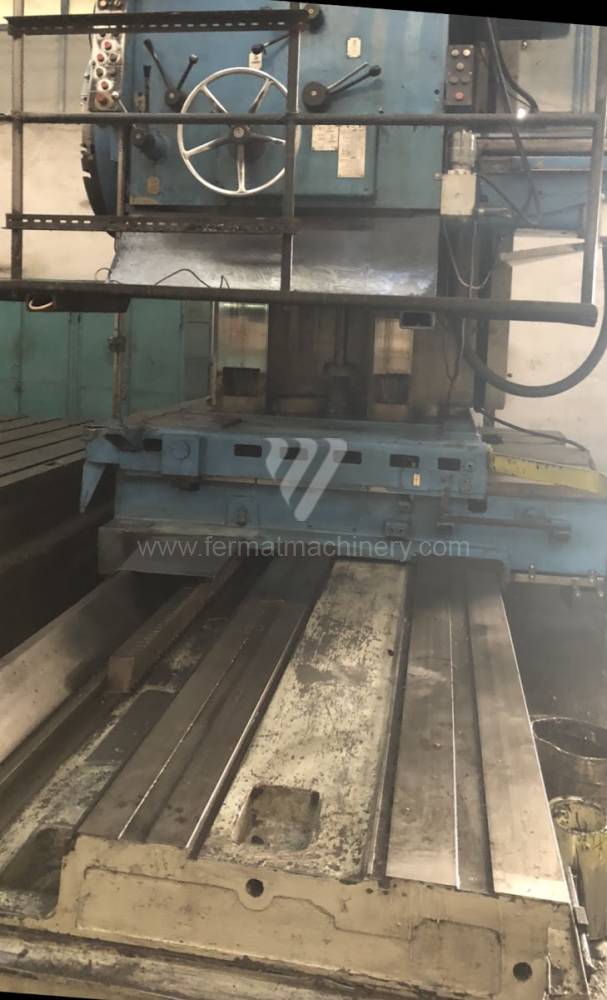

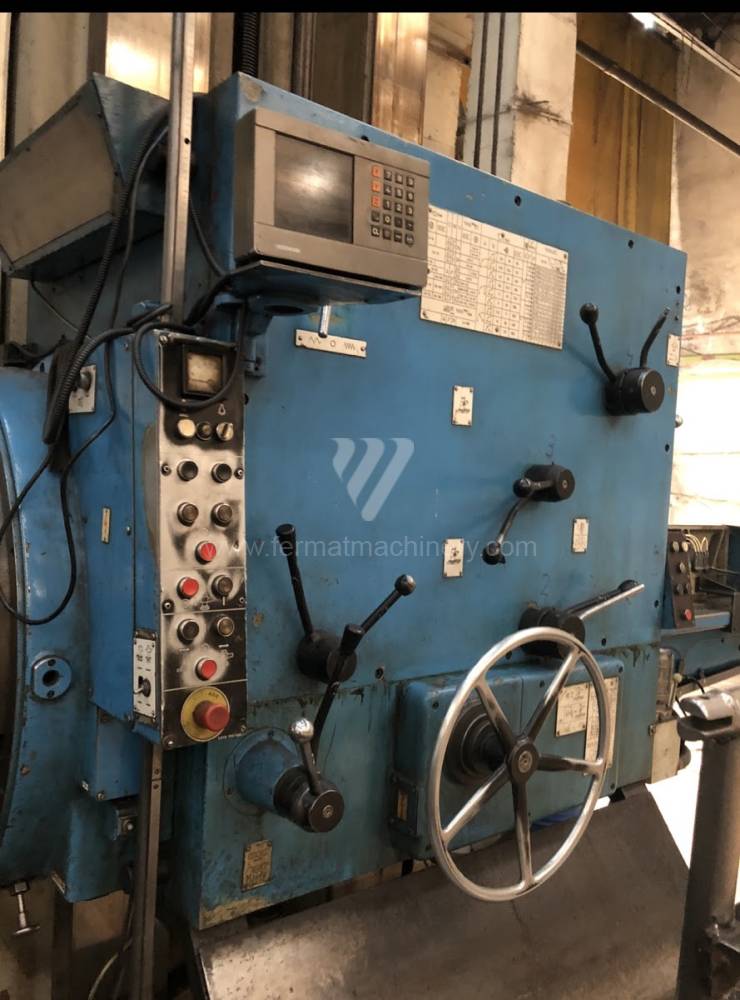

BFK 160
UNION
NUMERO D'INVENTAIRE: 201580

Année de production:1980
Diametre de travaille de broche: 160 mm
Course X: 3000 mm
Course Y: 2700 mm
Vitesse de broche: - /min.
Refroidissement par axe:
Extension du curseur (W): 300 mm

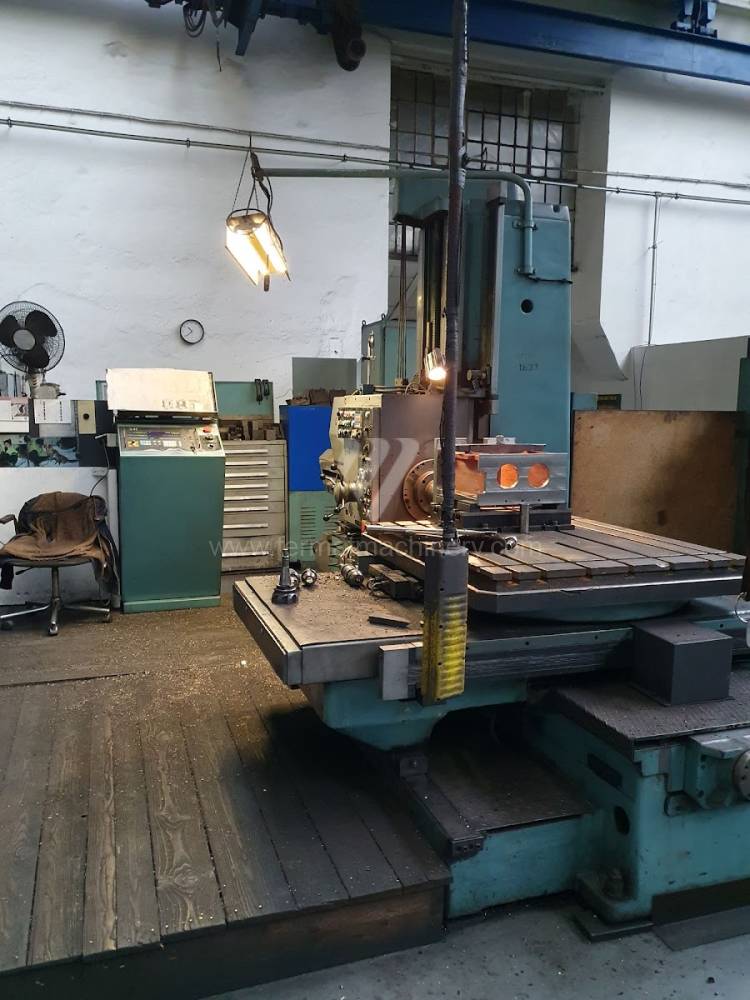

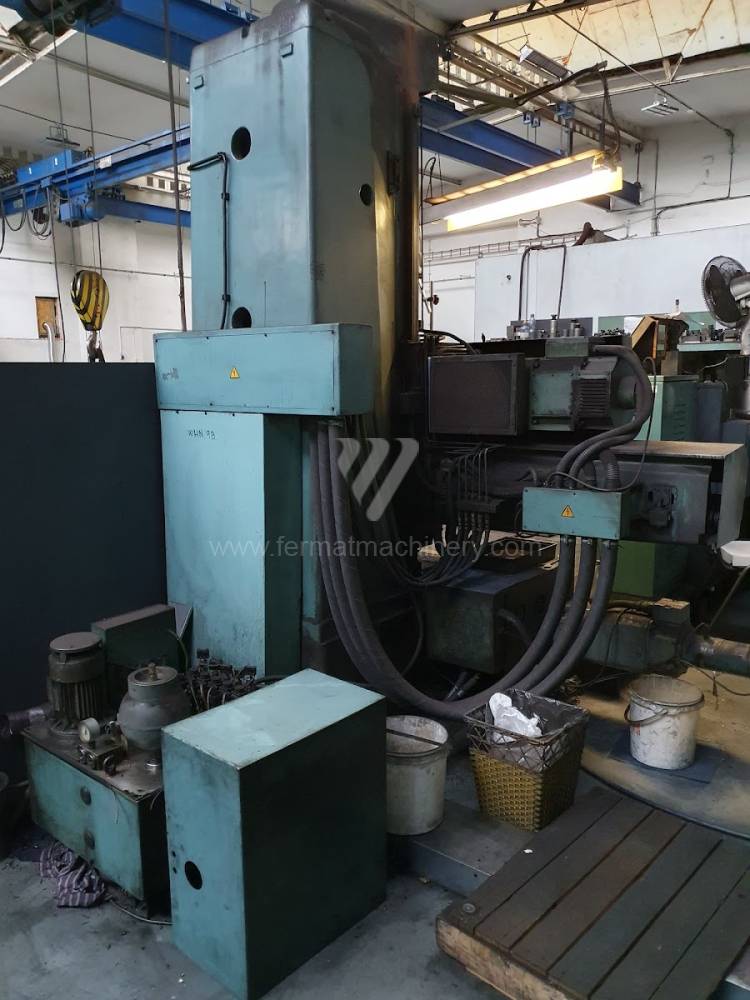

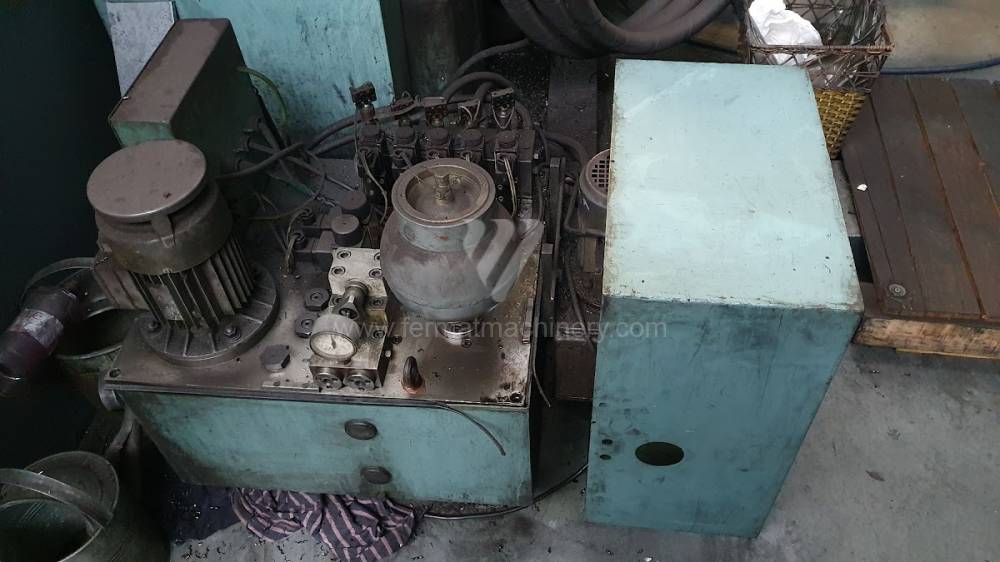

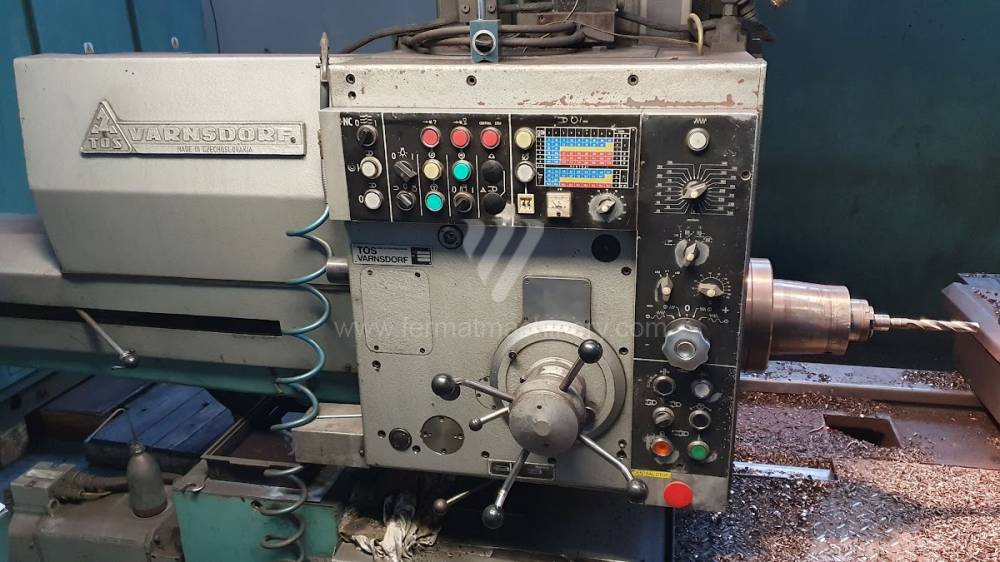

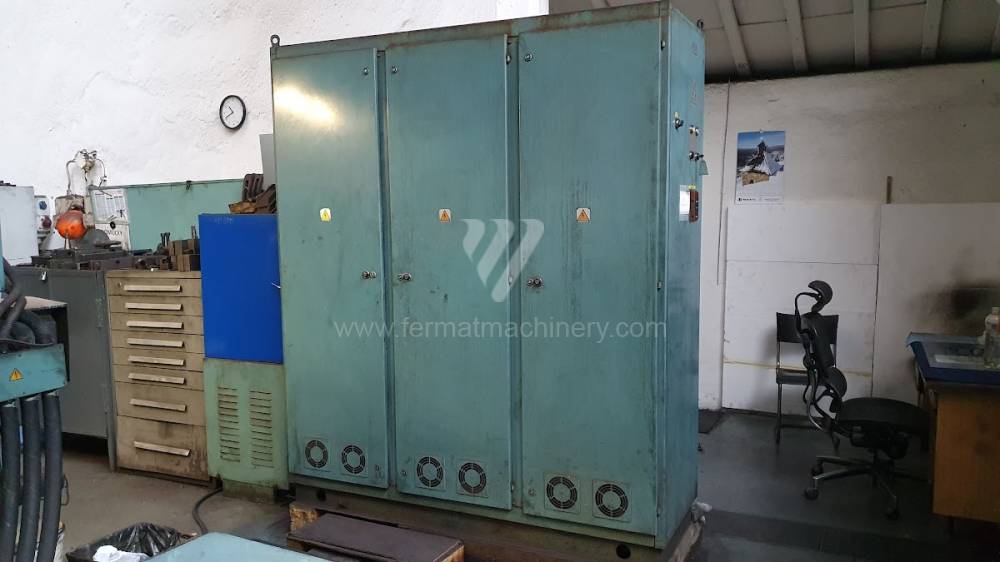

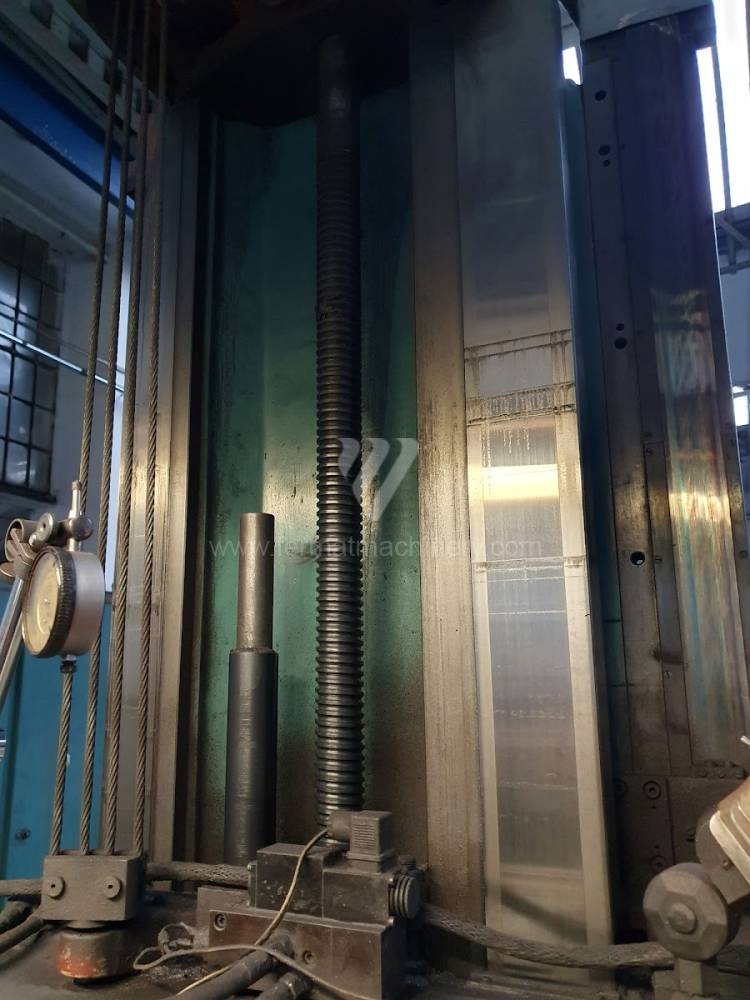

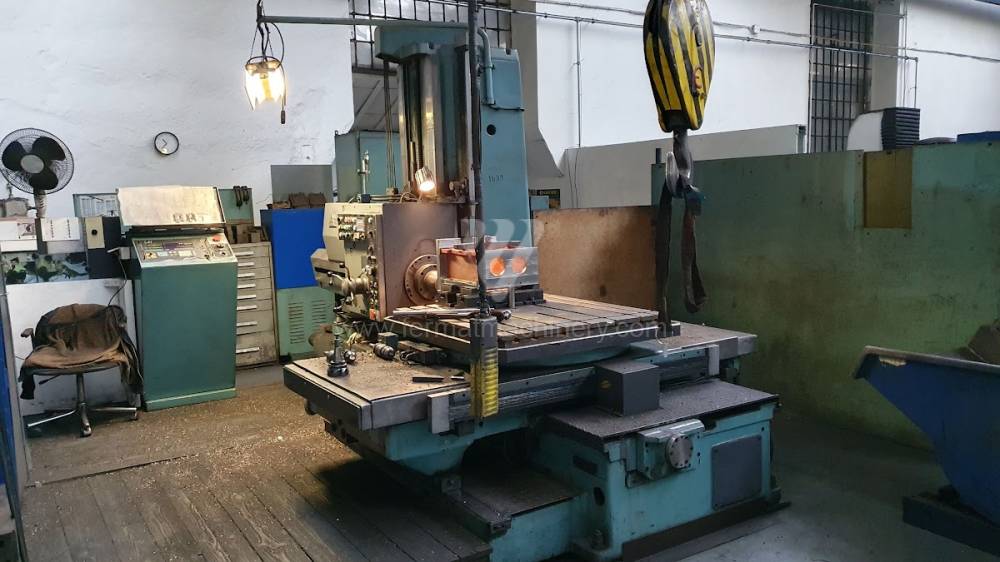

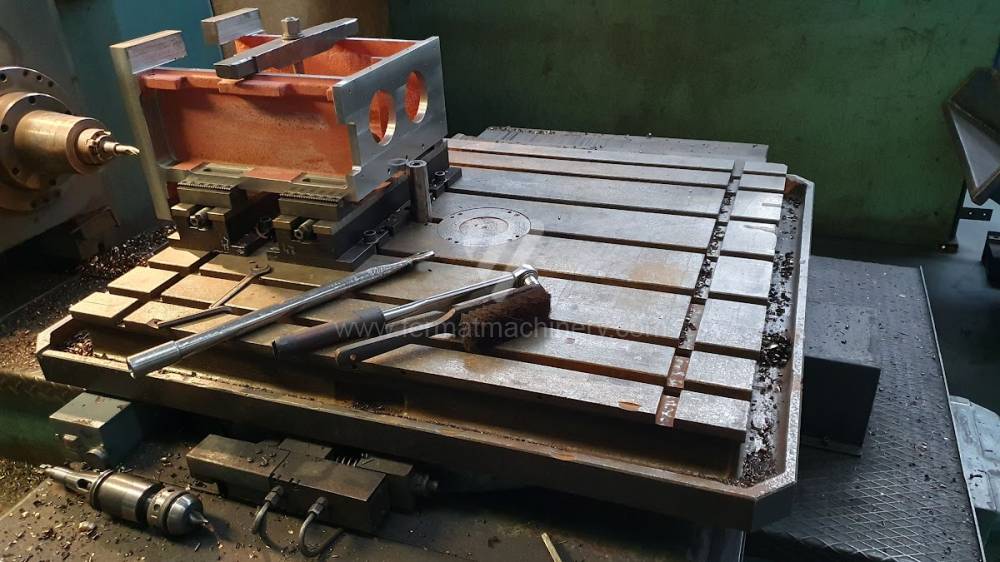

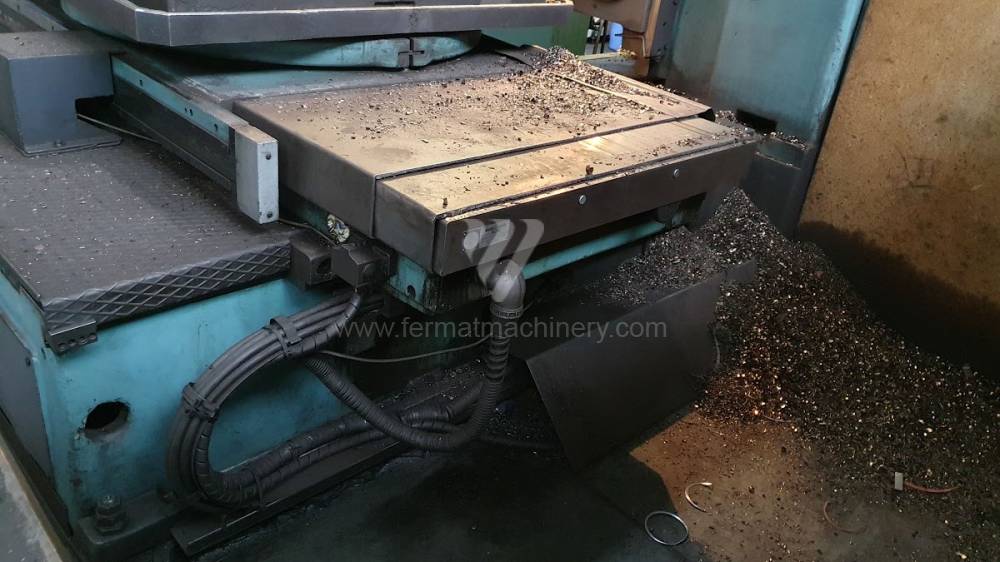

WHN 9 B
TOS Varnsdorf
NUMERO D'INVENTAIRE: 231135

Année de production:1981
Diametre de travaille de broche: 90 mm
Course X: 1250 mm
Course Y: 900 mm
Vitesse de broche: 0 - 1120 /min.
Refroidissement par axe: NON
Extension du curseur (W): 680 mm

DBM 100 N
DEFUM
NUMERO D'INVENTAIRE: 231421

Année de production:1999
Système de contrôle Fanuc: 16-M
Diametre de travaille de broche: 100 mm
Course X: 1830 mm
Course Y: 1500 mm
Vitesse de broche: 5 - 2000 /min.
Refroidissement par axe: NON

WF 13 R
Fermat
NUMERO D'INVENTAIRE: 231958

Année de production:2014
Système de contrôle Heidenhain: TNC 530
Diametre de travaille de broche: 130 mm
Course X: 12000 mm
Course Y: 3500 mm
Vitesse de broche: 10 - 3000 /min.
Extension du curseur (W): 730 mm

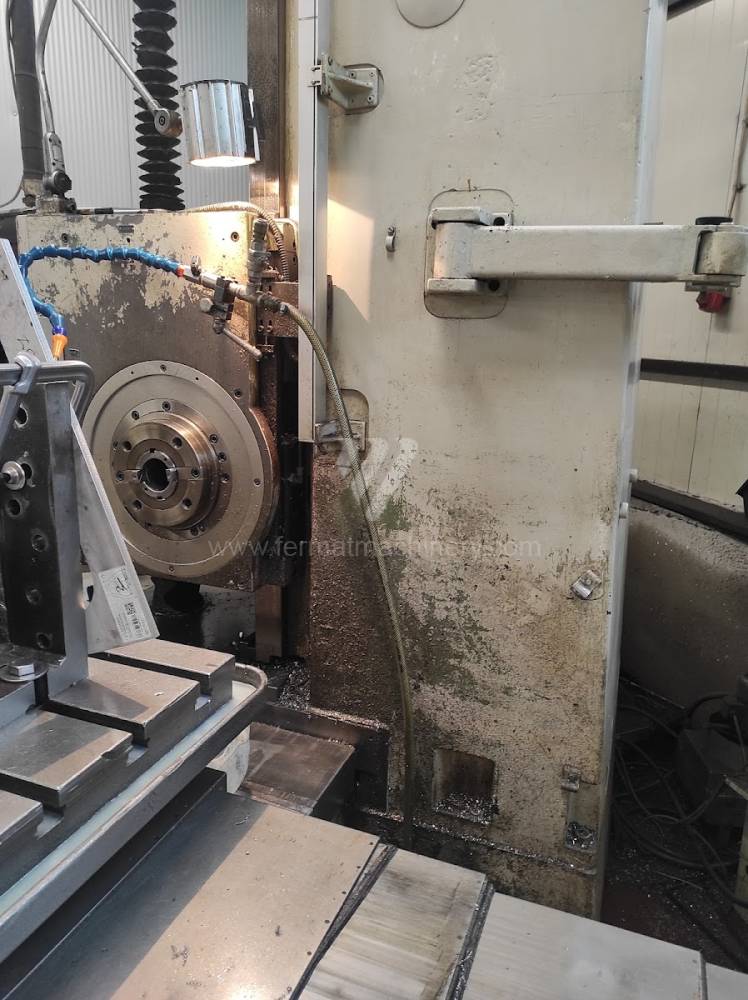

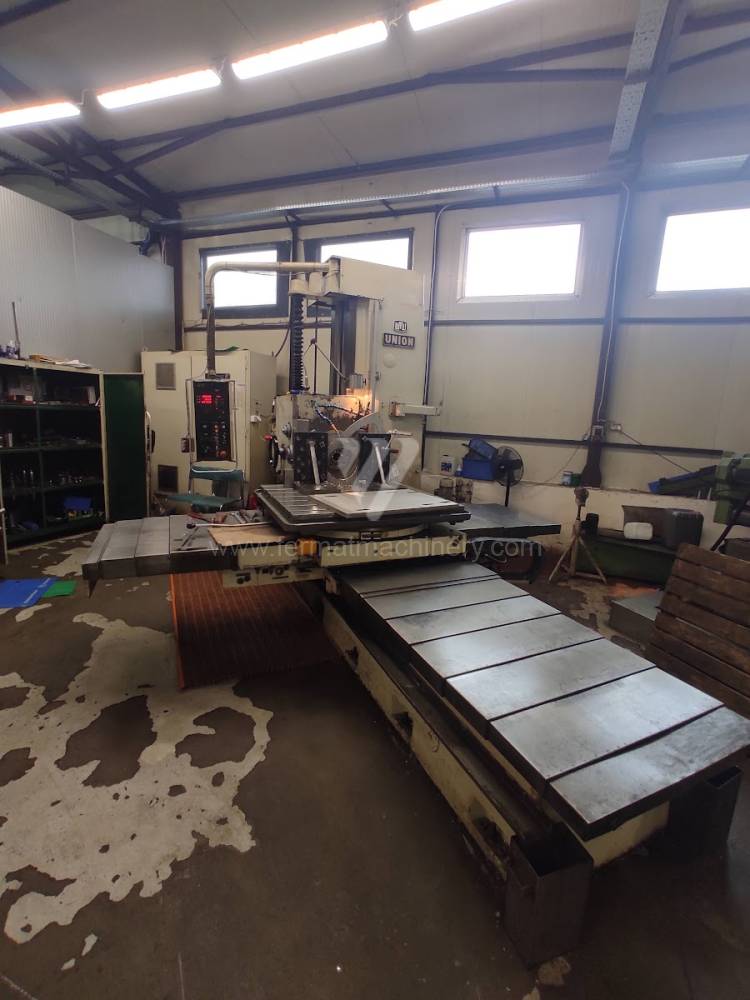

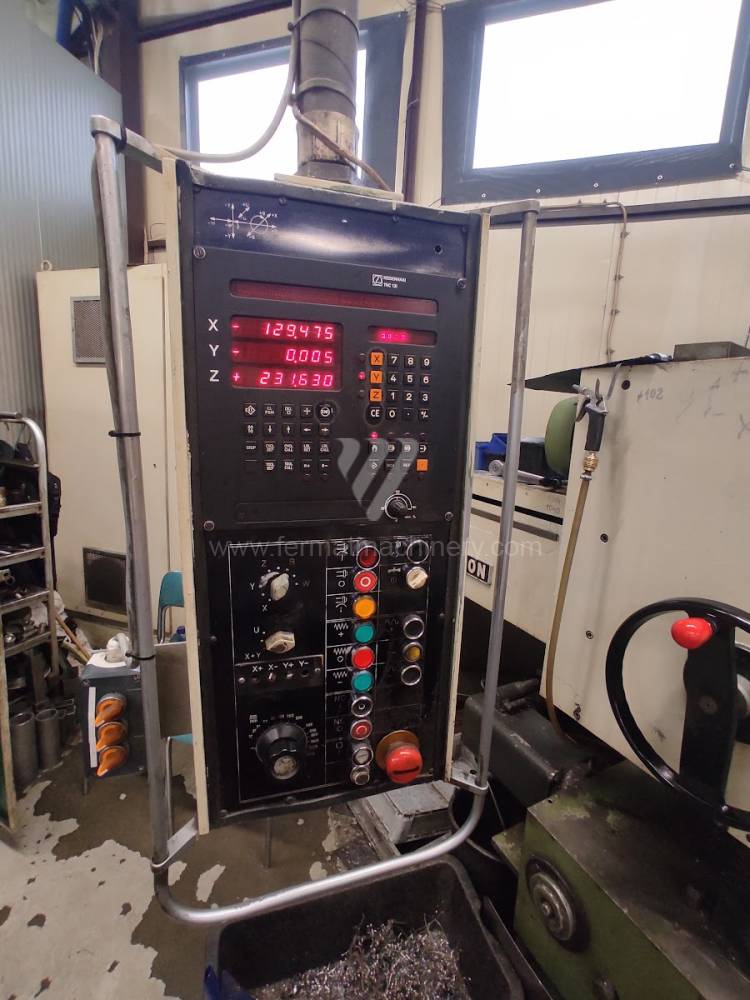

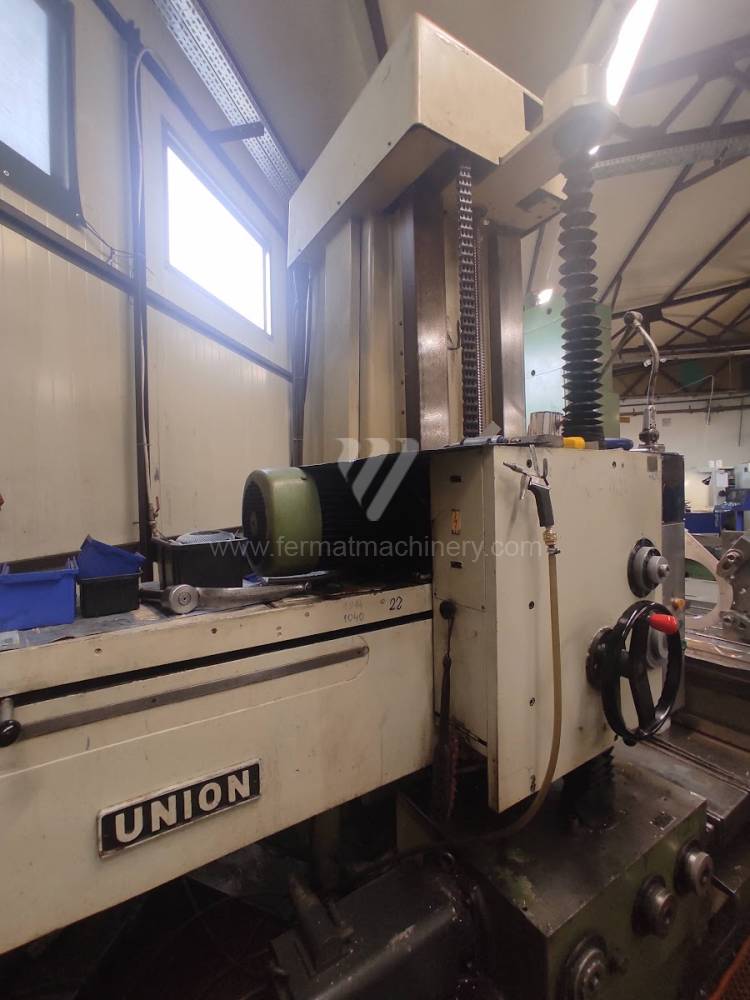

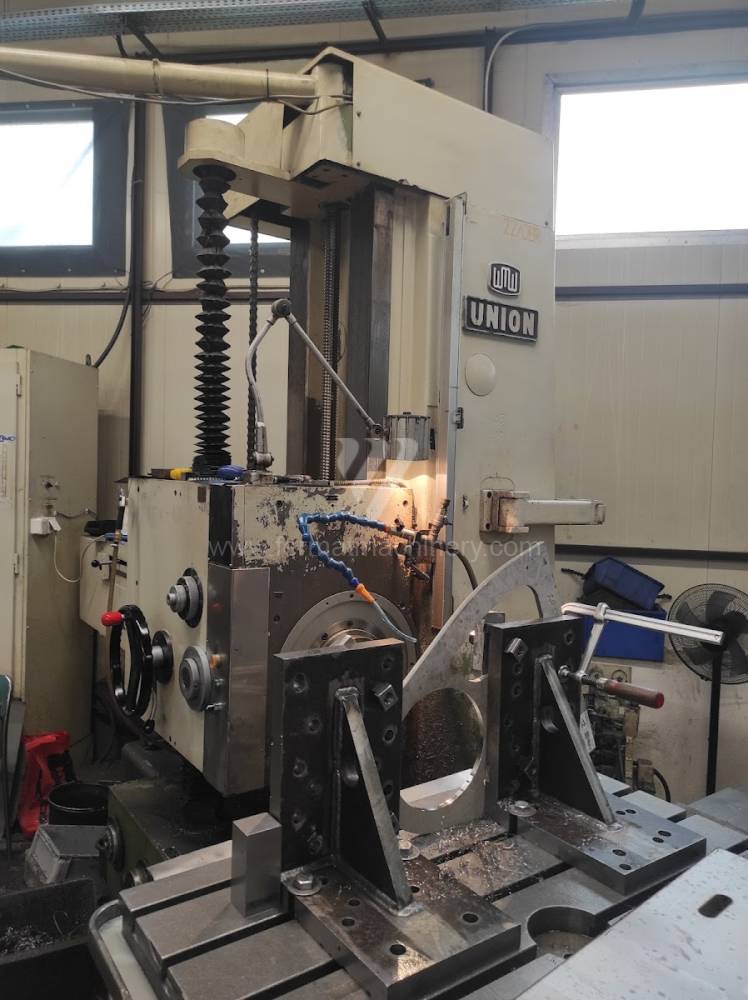

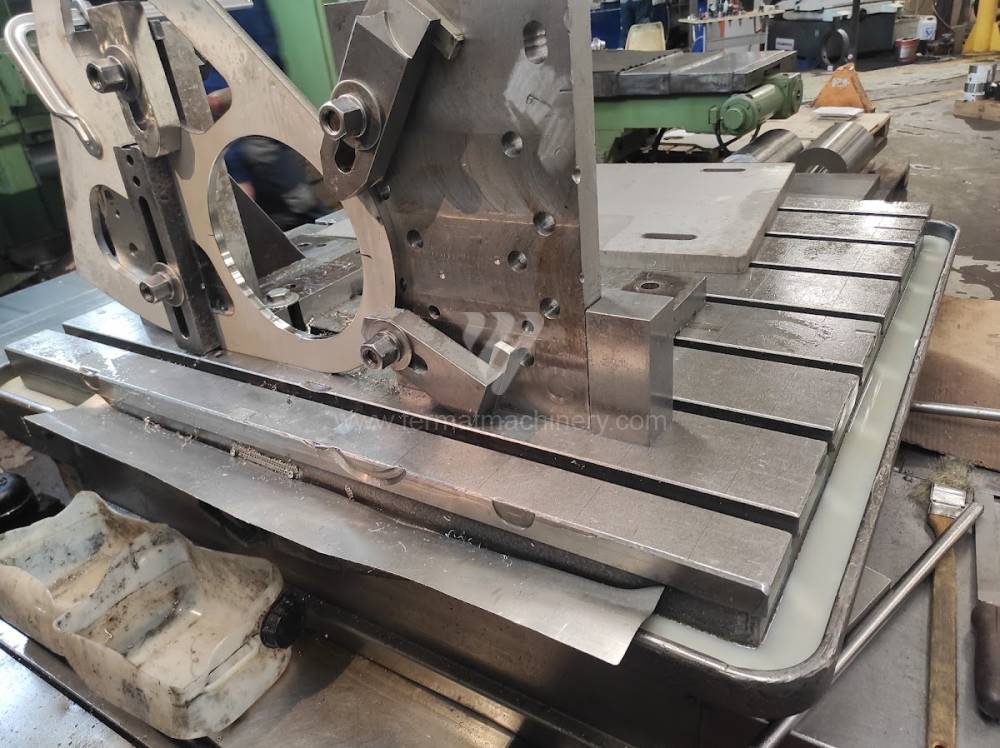

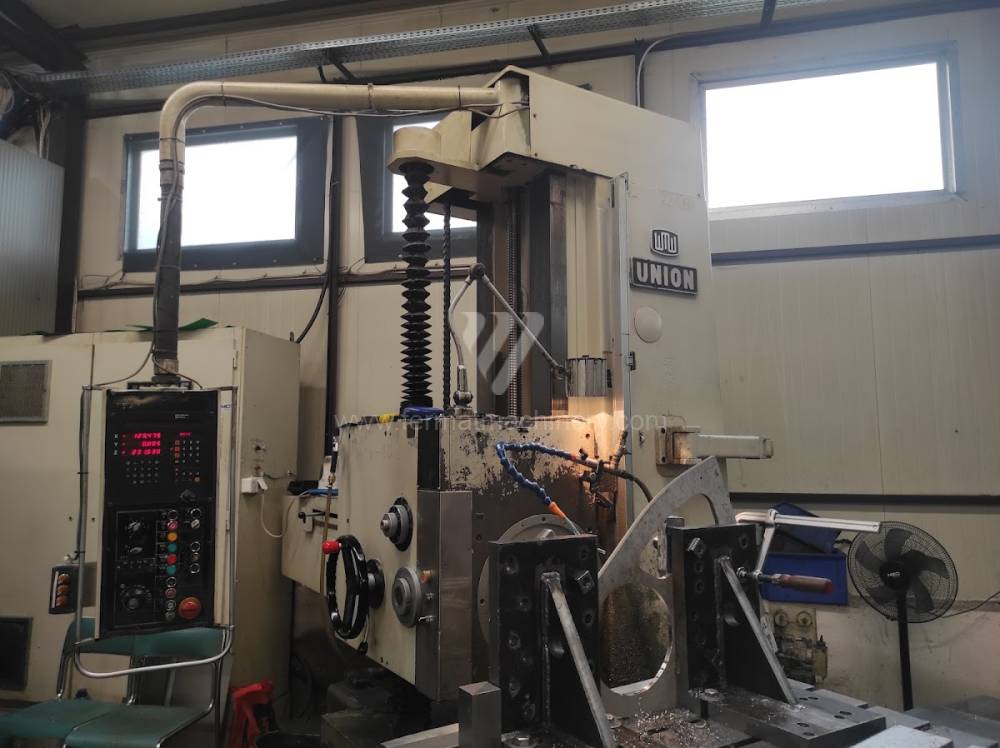

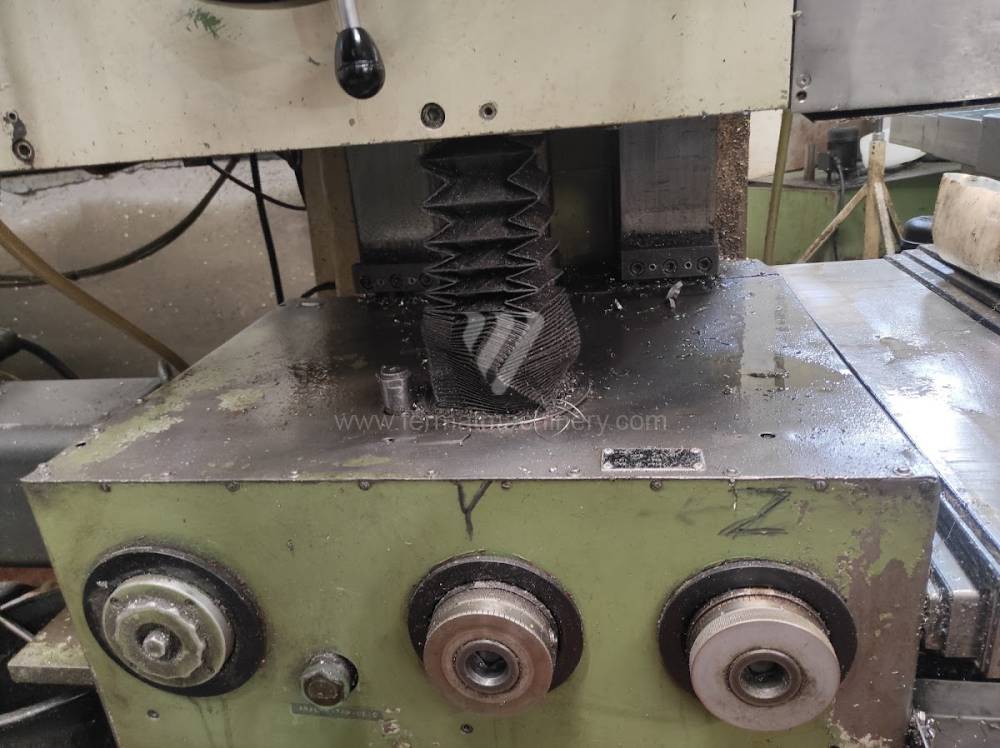

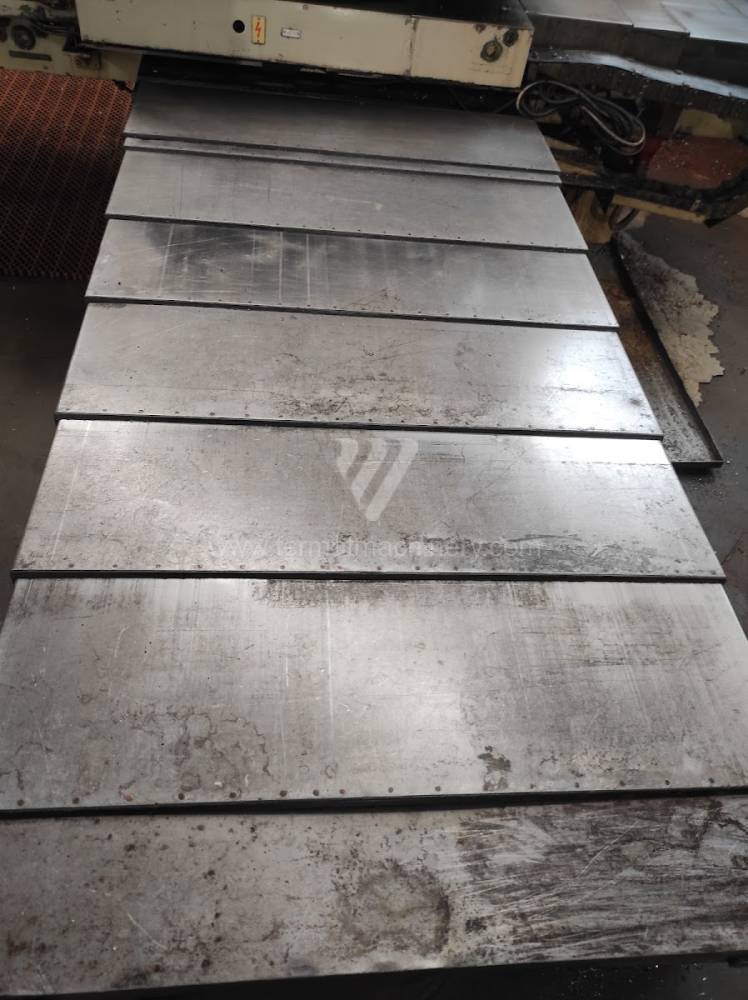

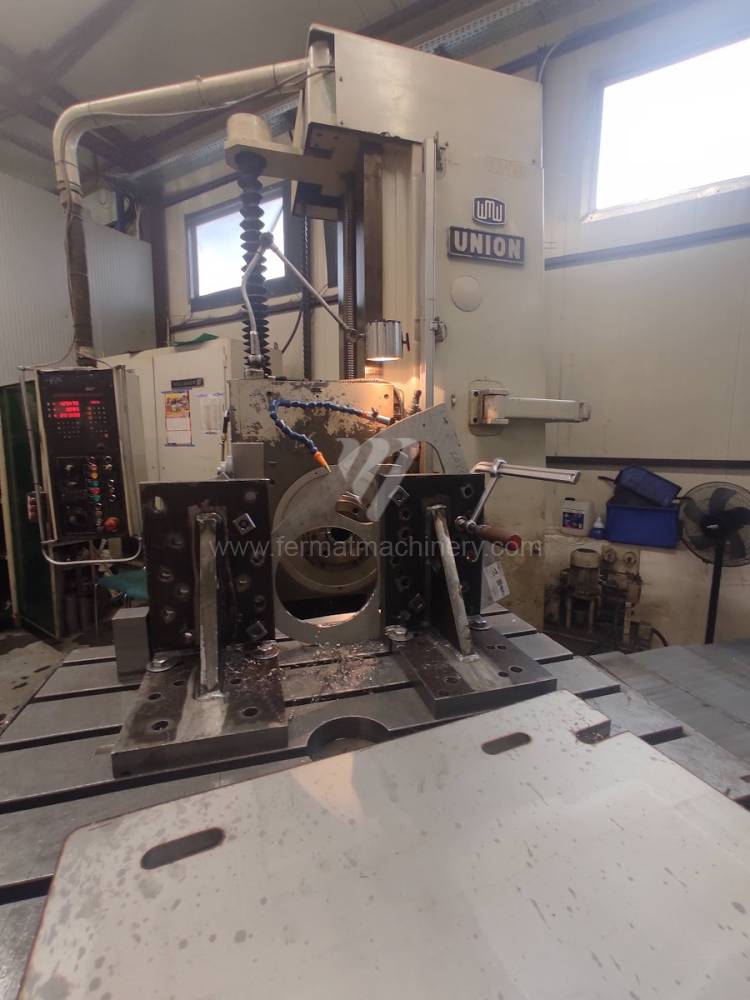

BFT 90/3
UNION
NUMERO D'INVENTAIRE: 241213

Année de production:1981
Système de contrôle Heidenhain:
Diametre de travaille de broche: 90 mm
Course X: 1600 mm
Course Y: 1210 mm
Vitesse de broche: 4 - 1600 /min.
Refroidissement par axe:

WHN 11
TOS Varnsdorf
NUMERO D'INVENTAIRE: 241261

Année de production:1977
Diametre de travaille de broche: 110 mm
Course X: 1600 mm
Course Y: 1250 mm
Vitesse de broche: 7 - 900 /min.
Refroidissement par axe: NON
Extension du curseur (W): 630 mm

WHQ 13 CNC
TOS Varnsdorf
NUMERO D'INVENTAIRE: 241188

Année de production:2006
Système de contrôle Heidenhain: TNC 530
Diametre de travaille de broche: 130 mm
Course X: 3500 mm
Course Y: 2500 mm
Vitesse de broche: 1 - 3000 /min.
Refroidissement par axe: OUI

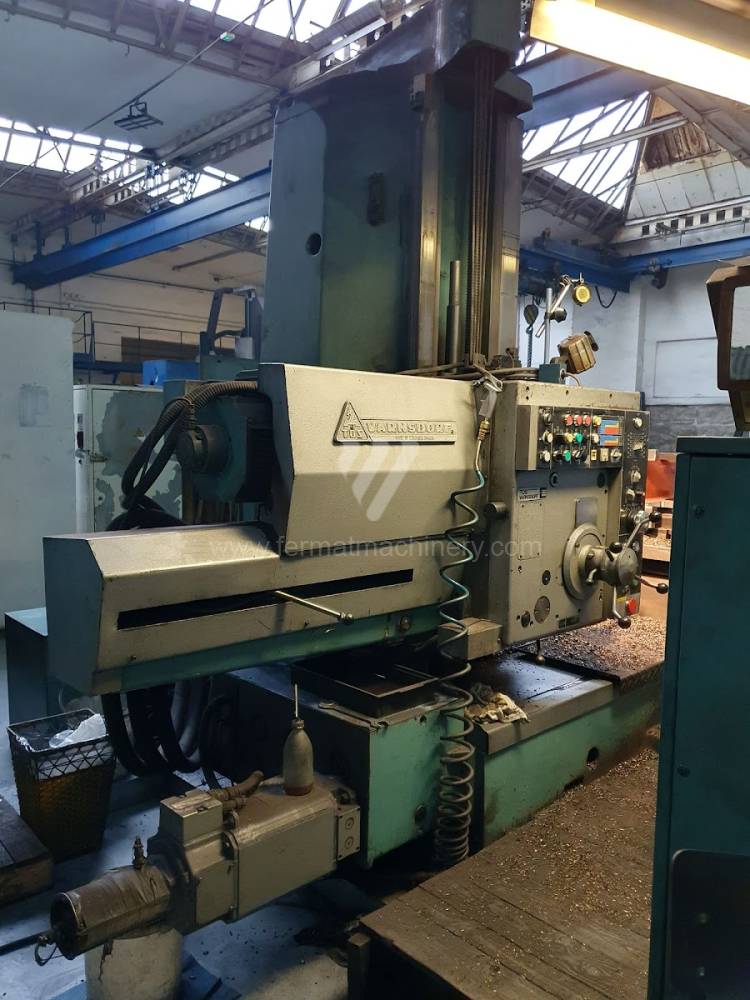

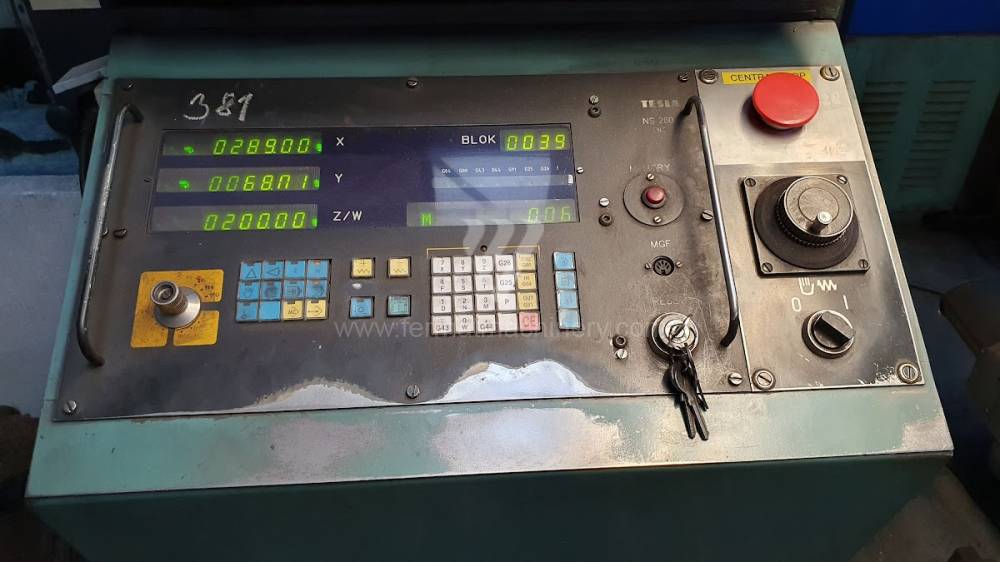

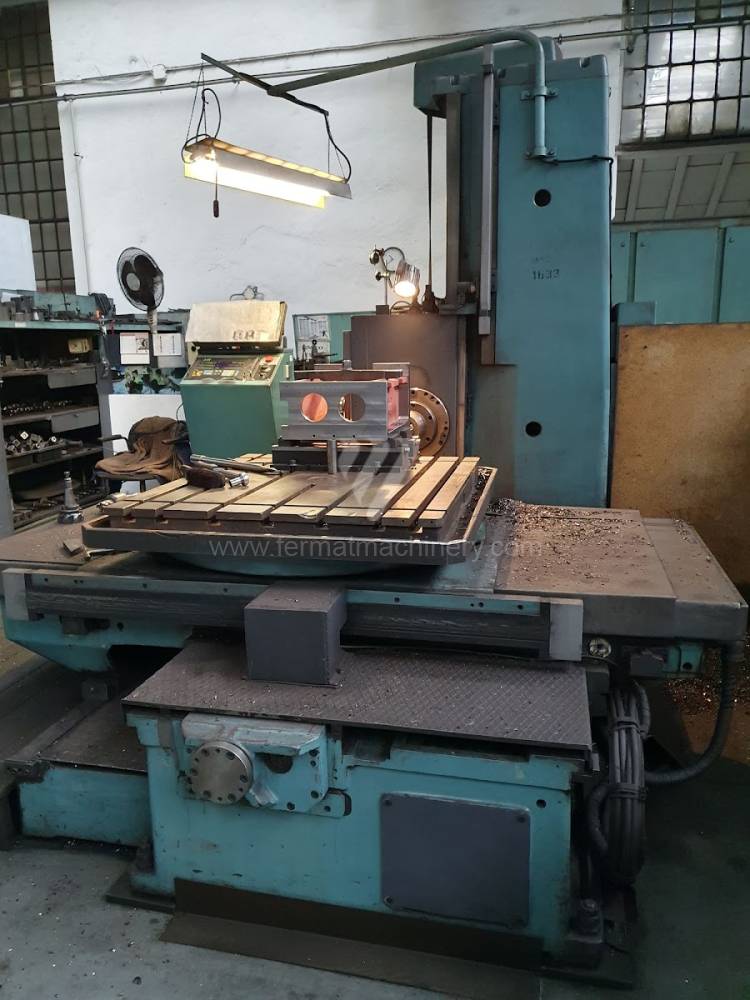

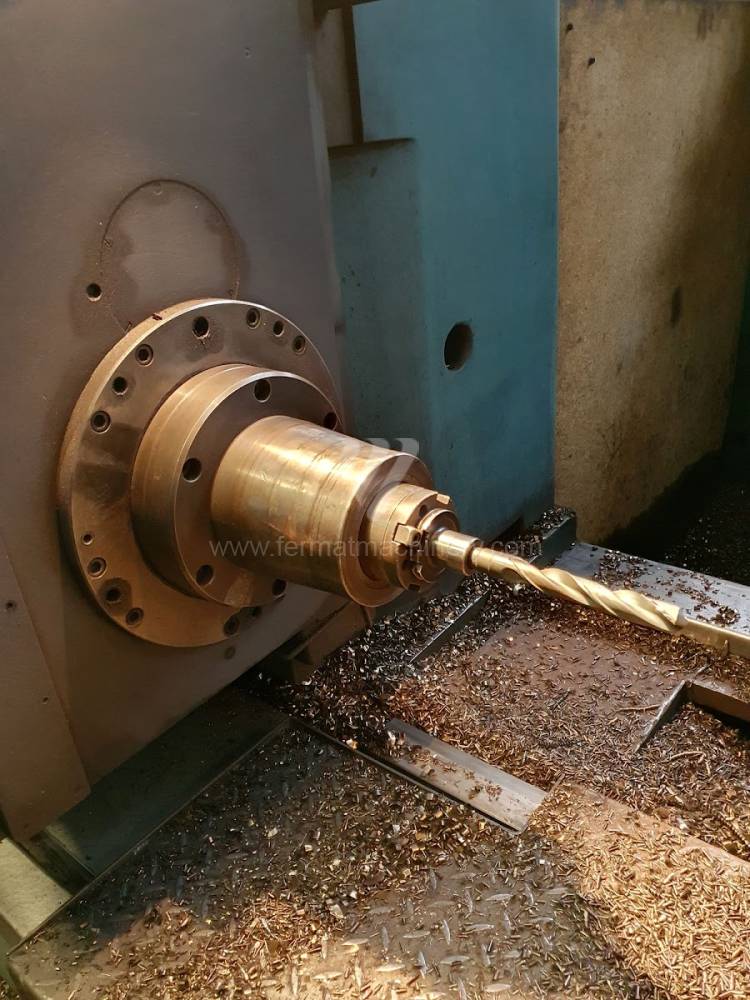

WHN 9 B
TOS Varnsdorf
NUMERO D'INVENTAIRE: 231773

Année de production:1975
Diametre de travaille de broche: 90 mm
Course X: 1250 mm
Course Y: 900 (1120) mm
Vitesse de broche: 1120 - /min.
Refroidissement par axe: NON
Extension du curseur (W): 680 mm

WHN 13 P CNC
TOS Varnsdorf
NUMERO D'INVENTAIRE: 191459

Année de production:2024
Système de contrôle Heidenhain: TNC 640
Diametre de travaille de broche: 130 mm
Course X: 3500 mm
Course Y: 2000 mm
Vitesse de broche: 10 - 3000 /min.
Refroidissement par axe: OUI

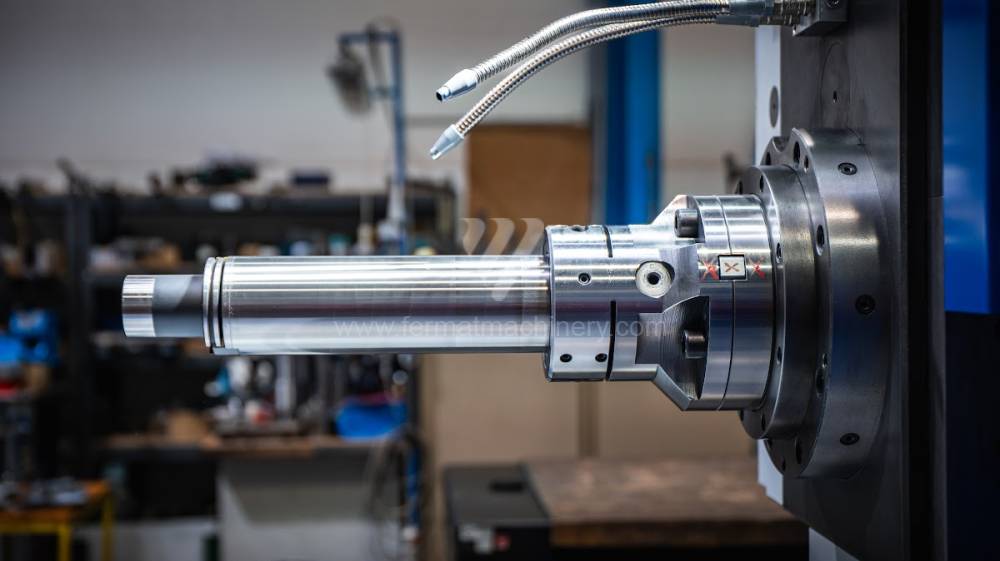

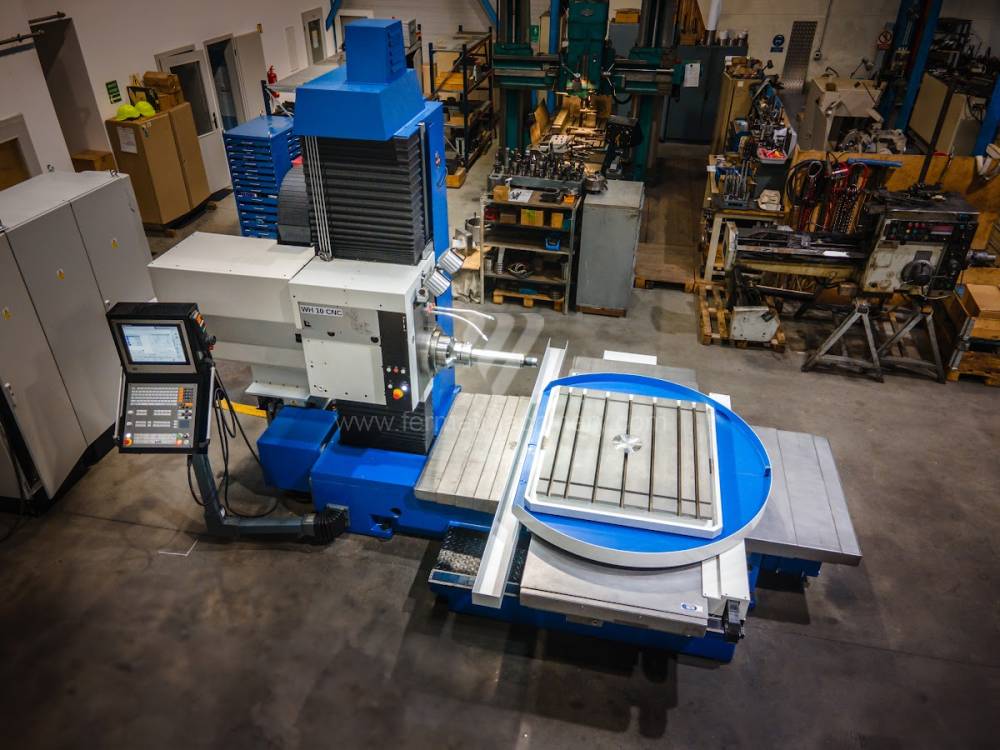

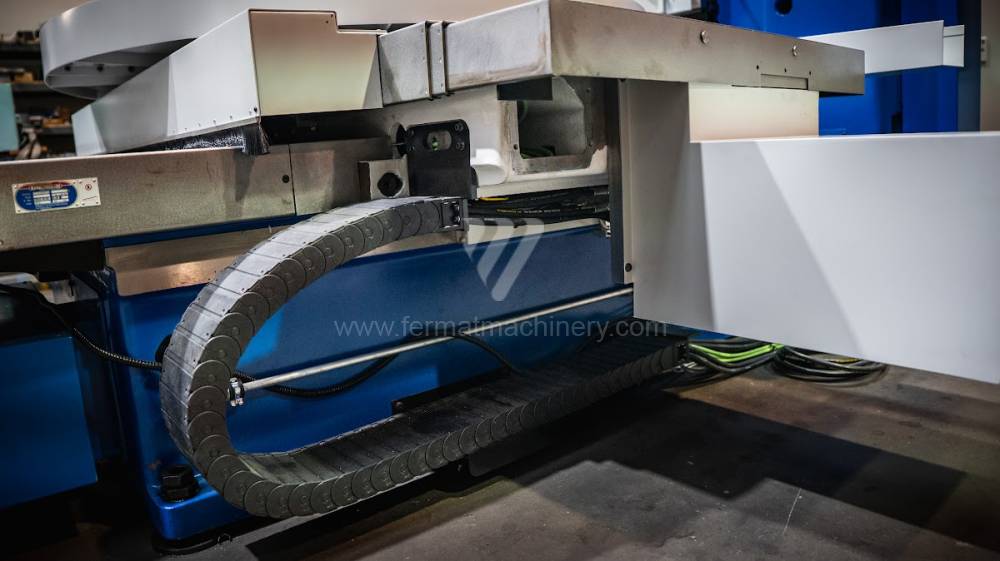

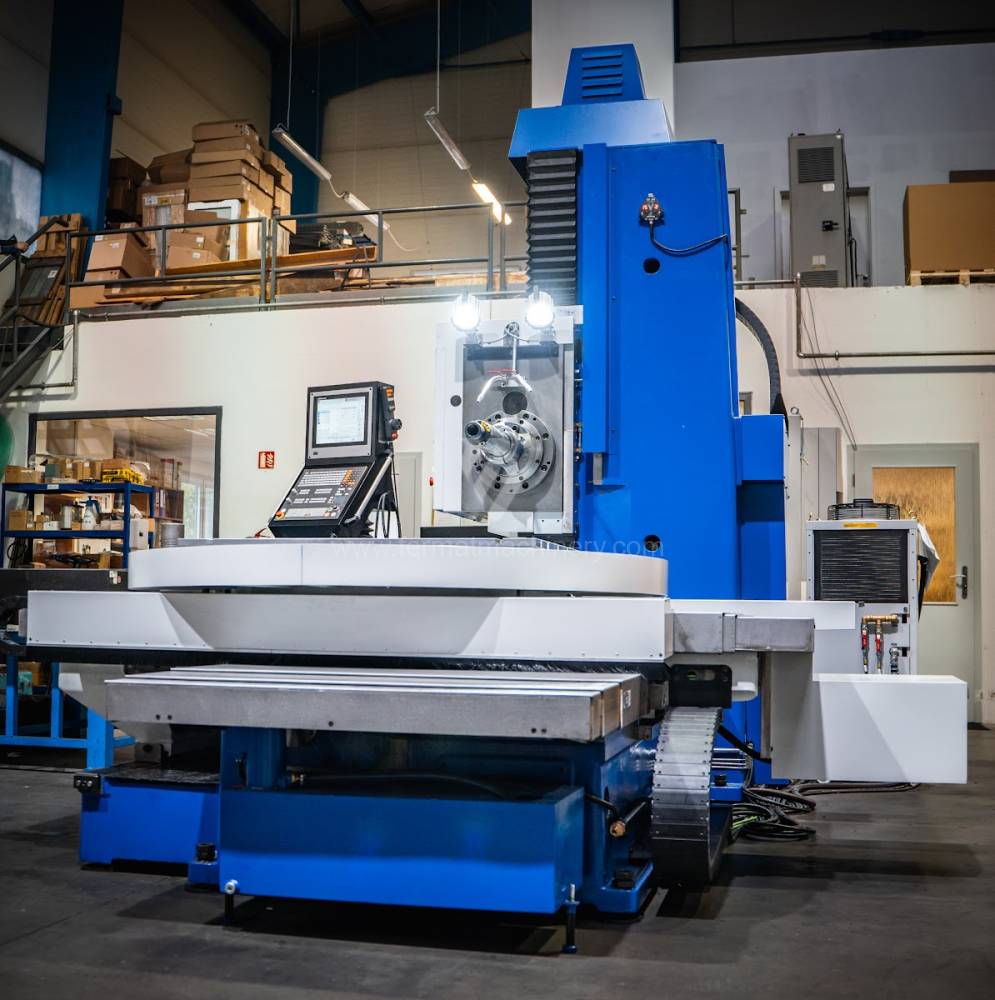

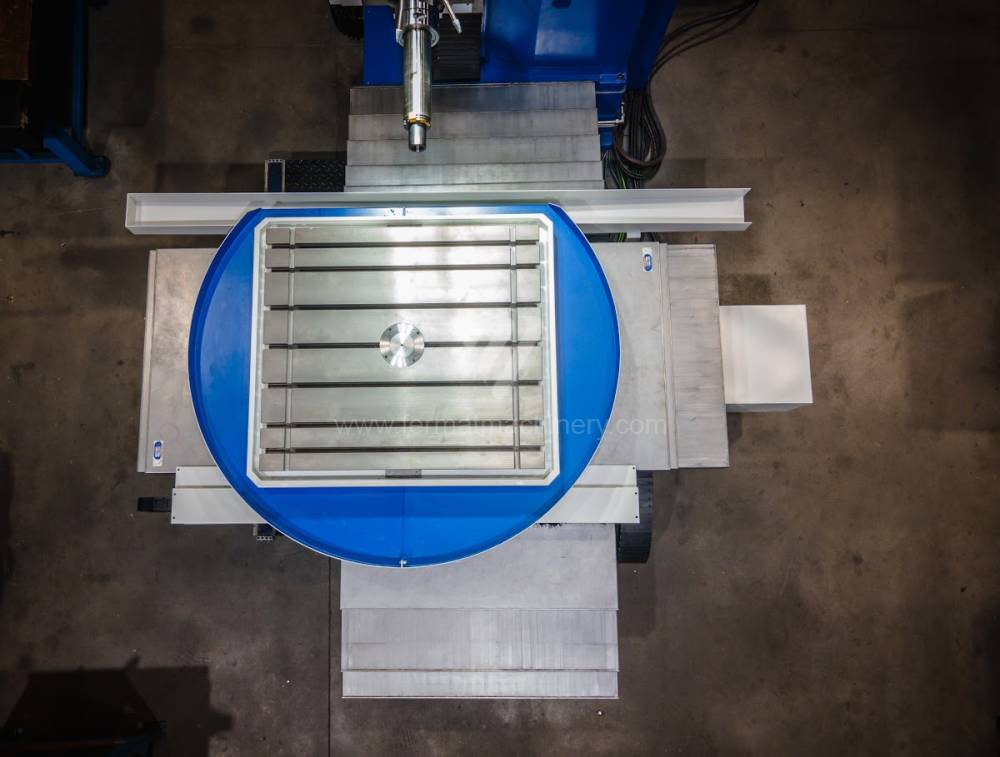

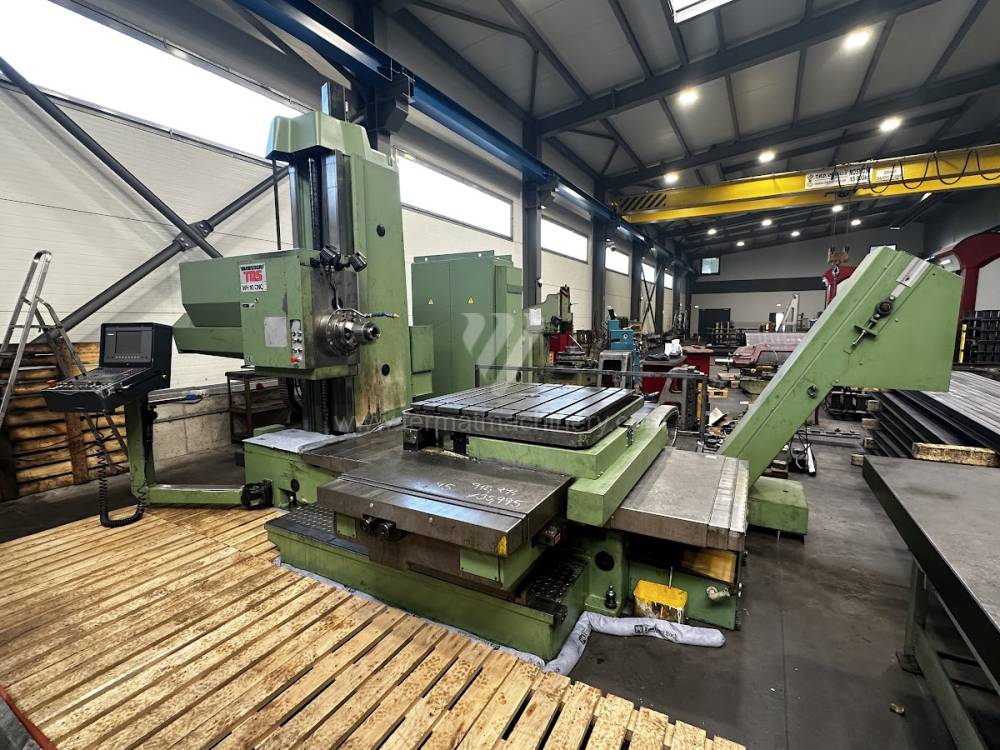

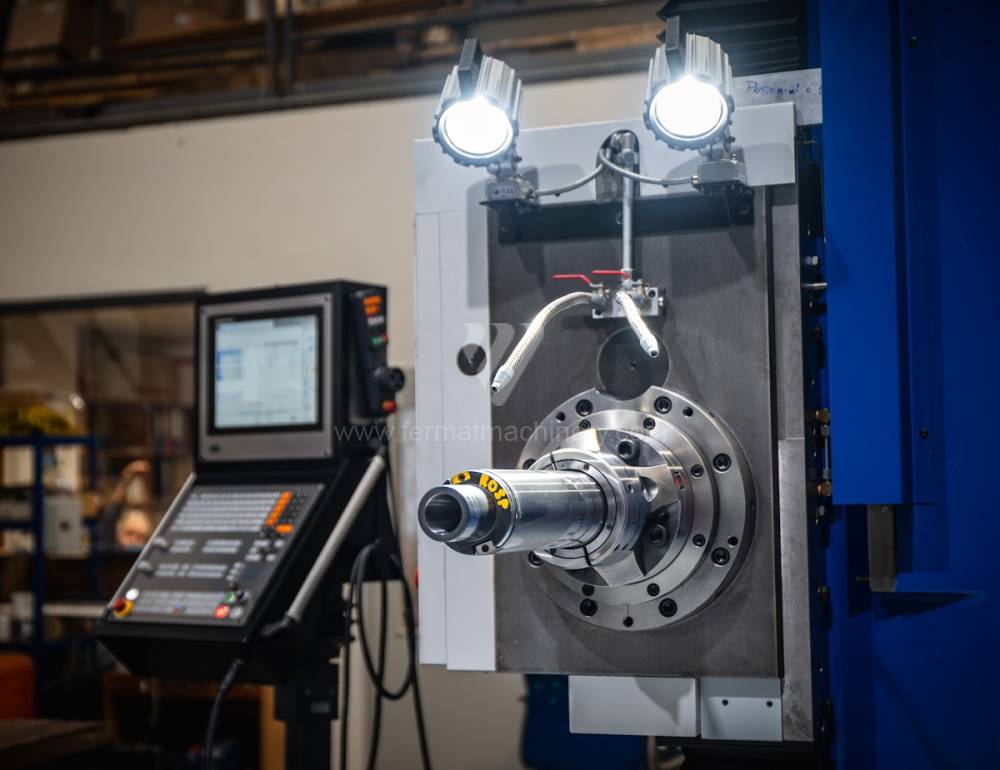

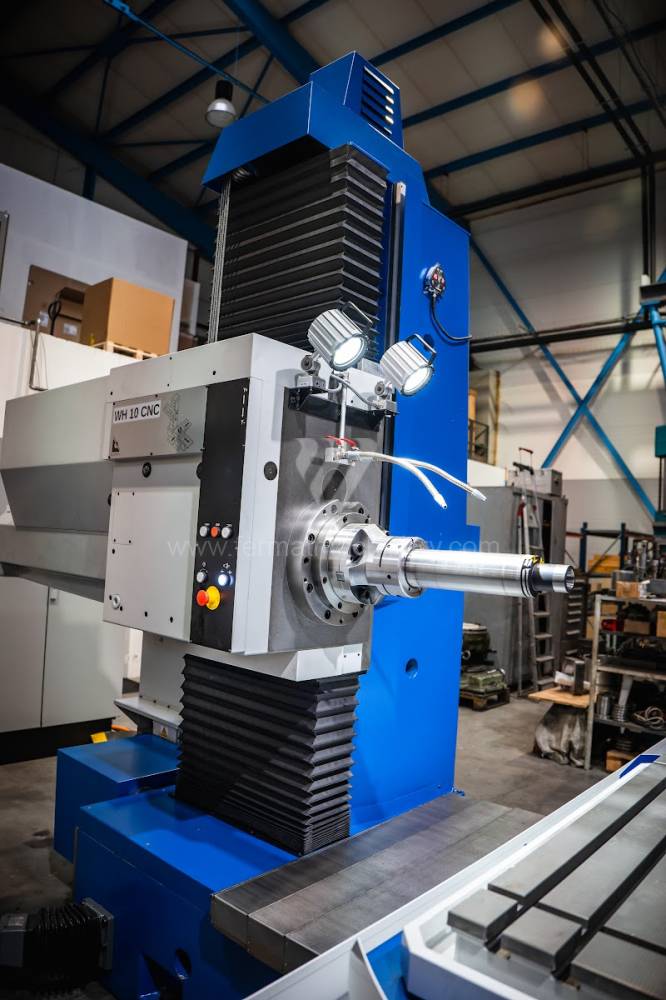

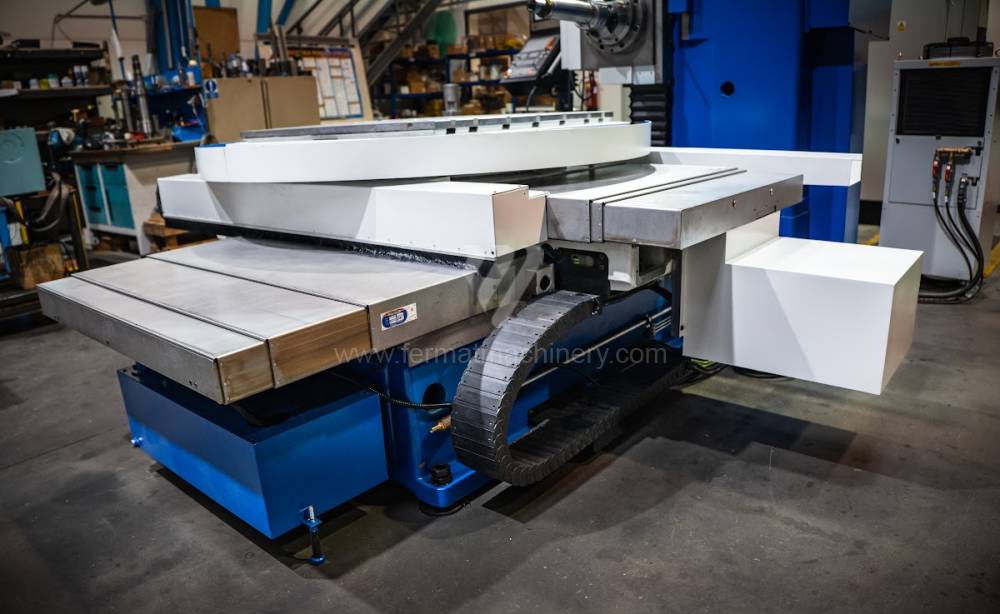

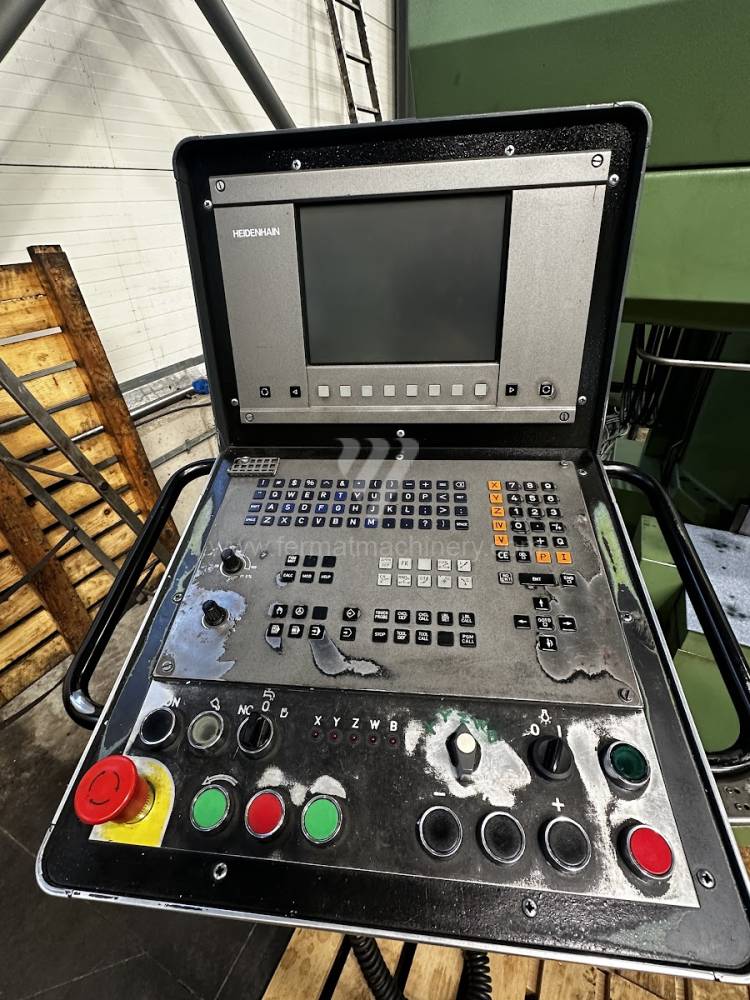

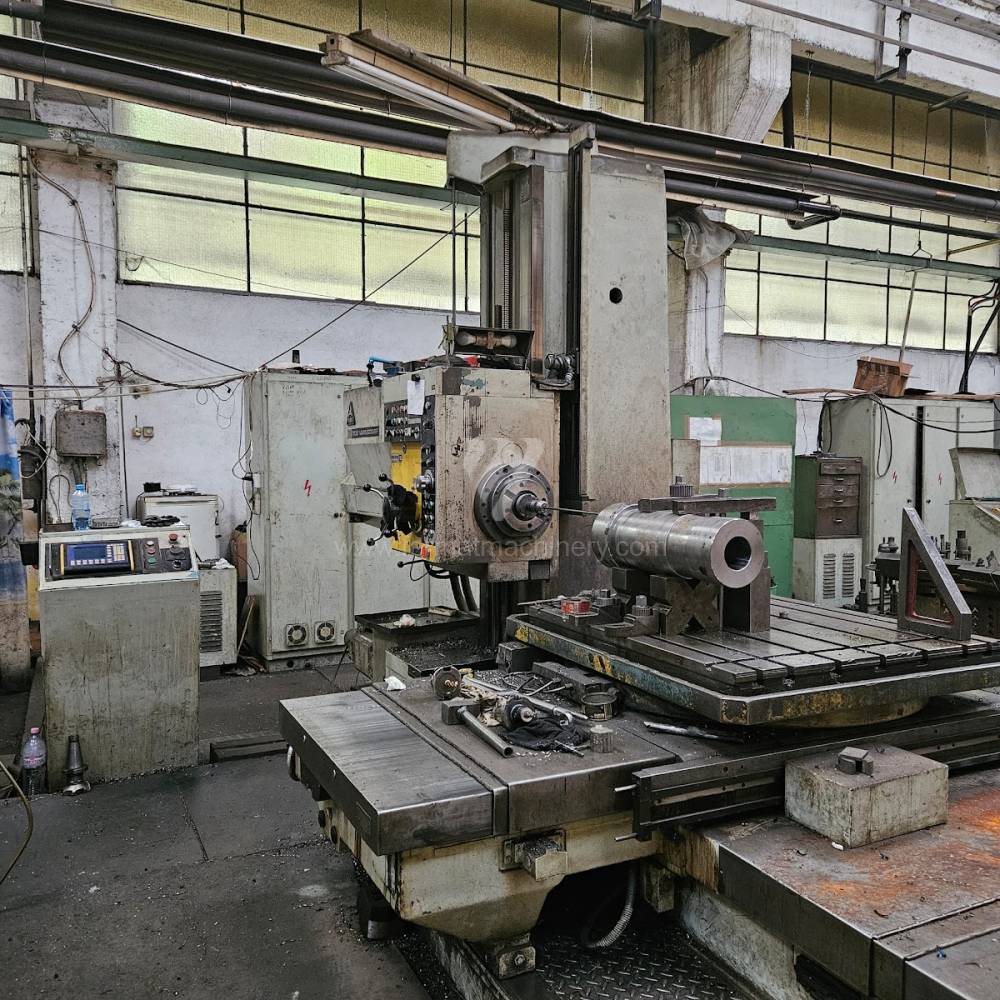

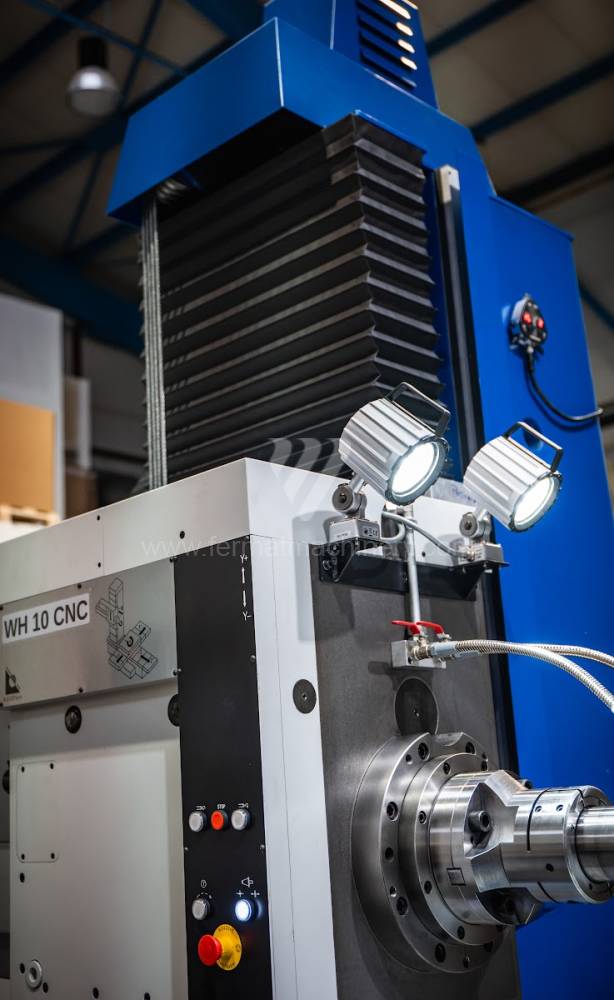

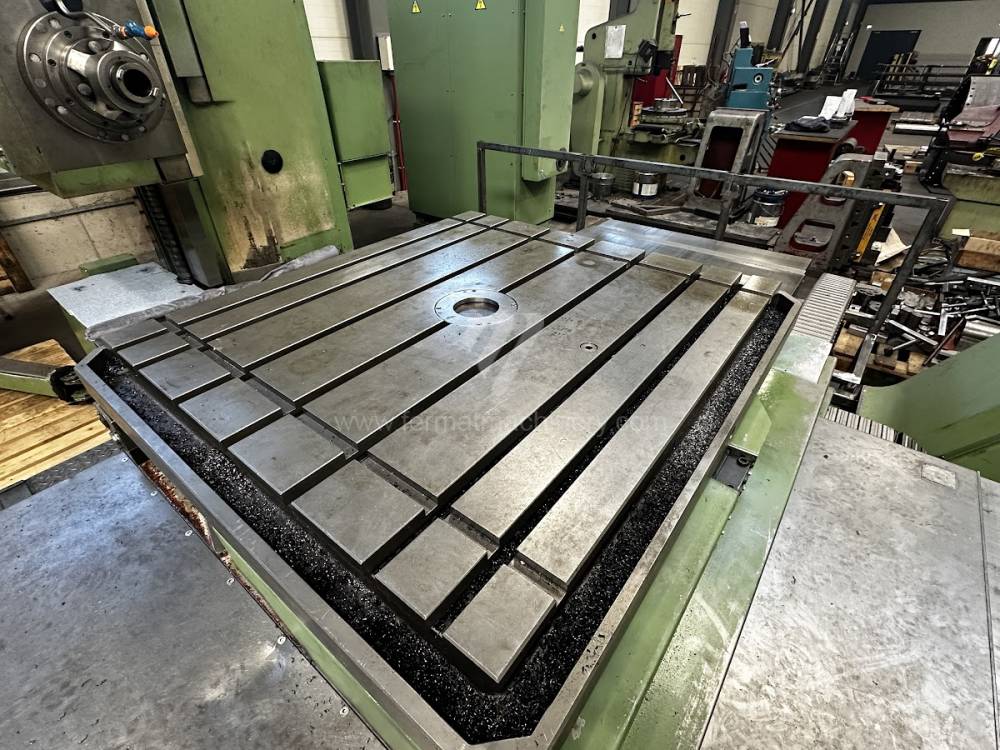

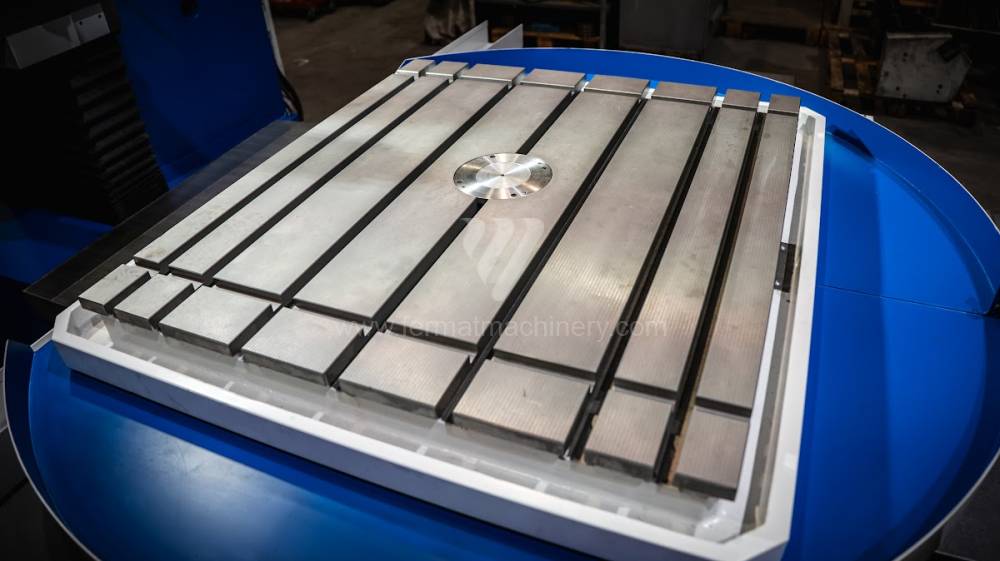

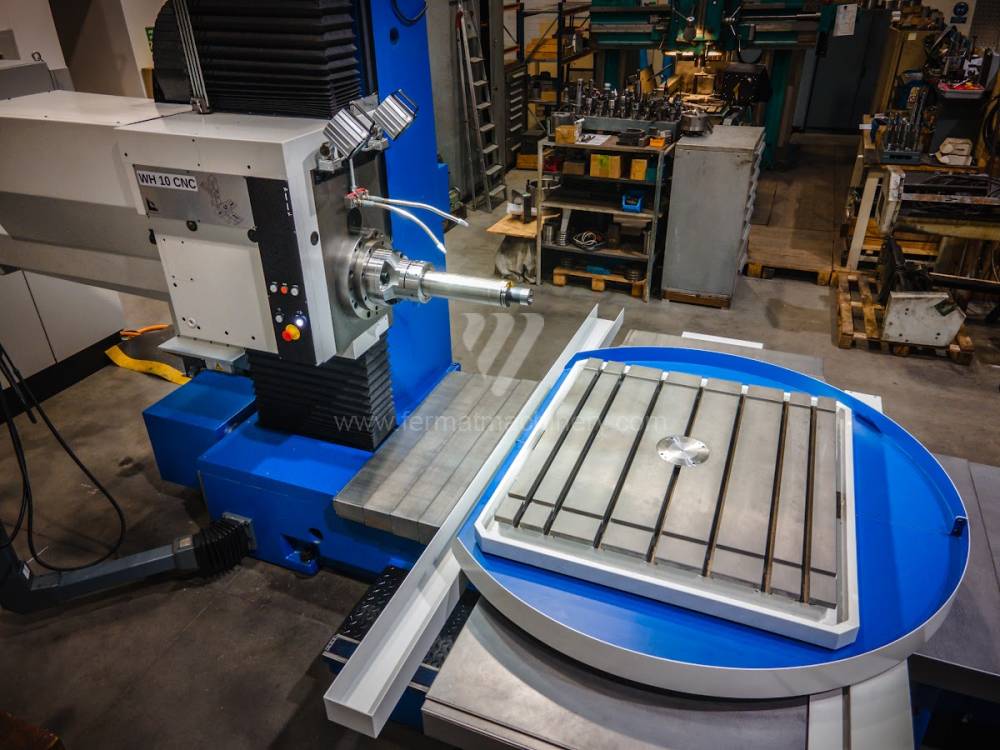

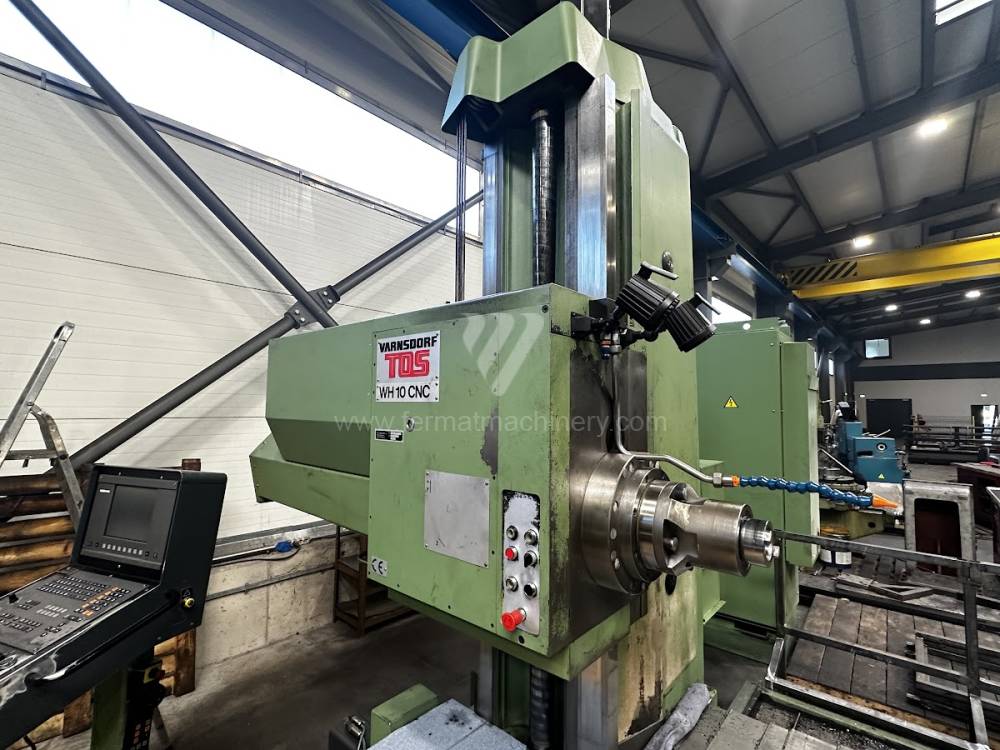

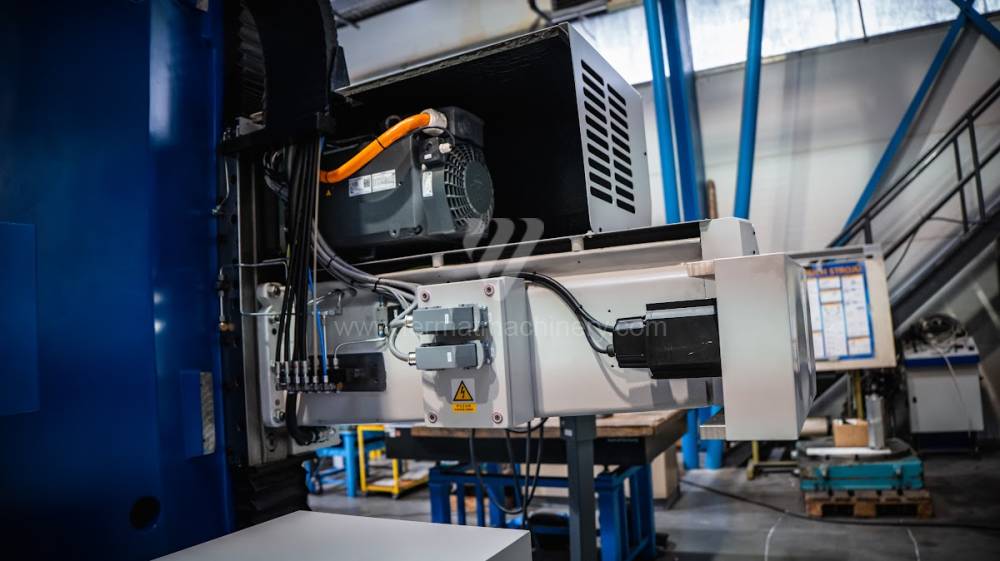

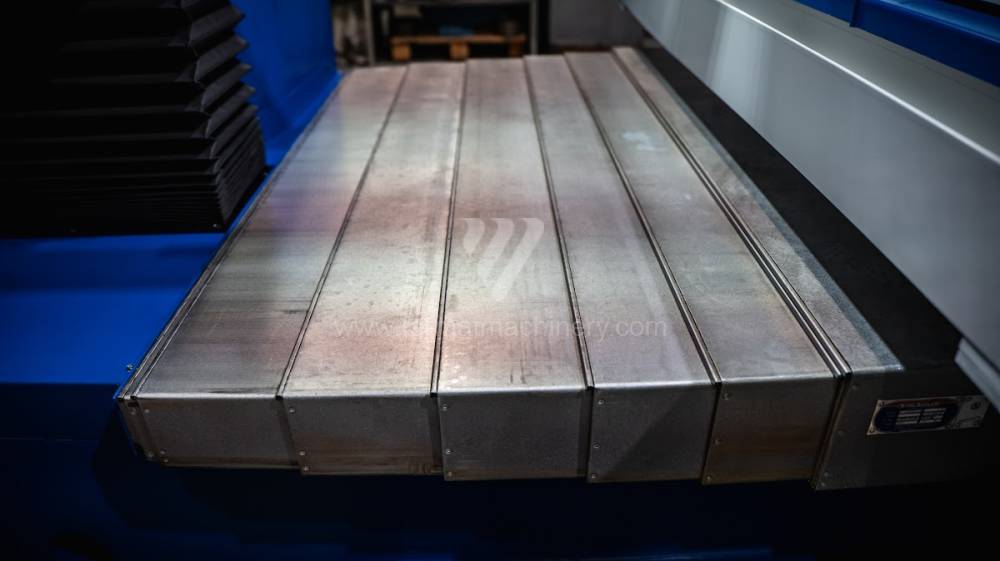

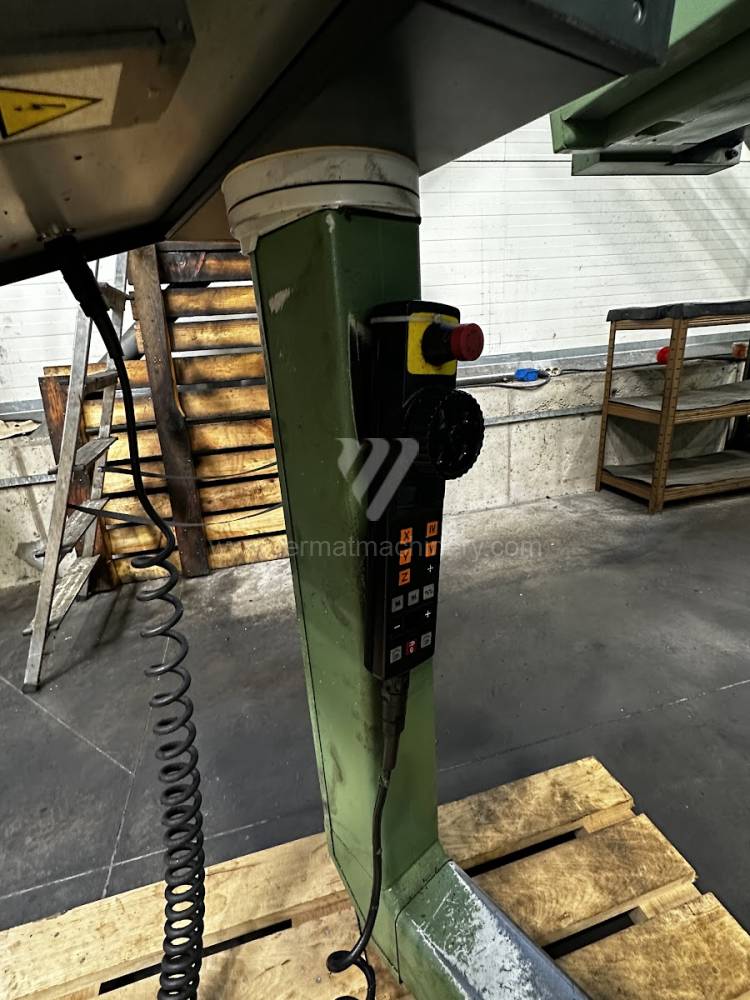

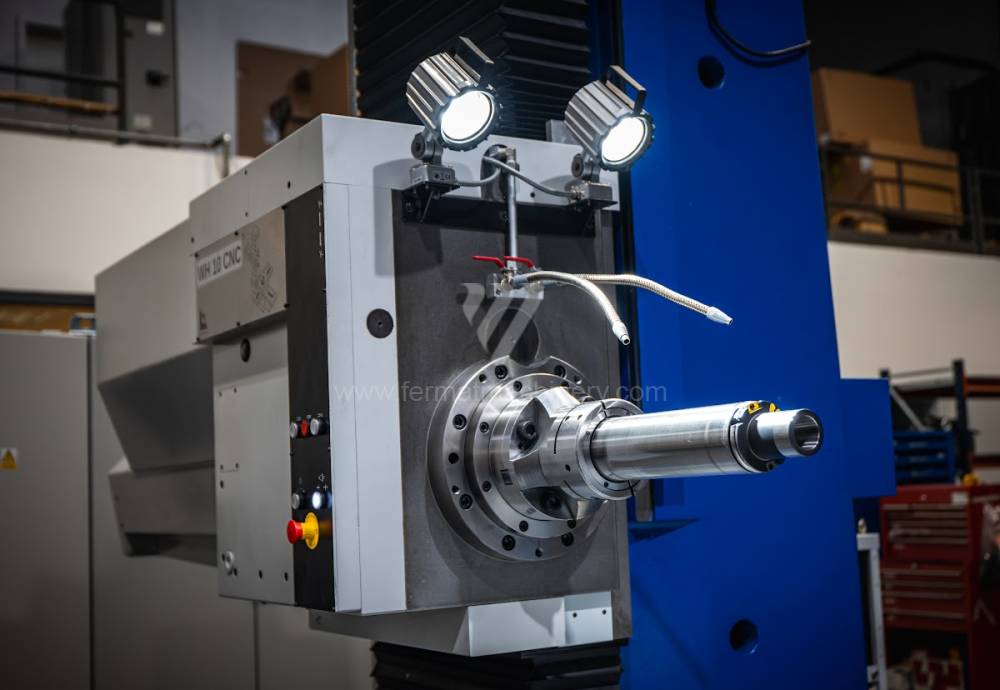

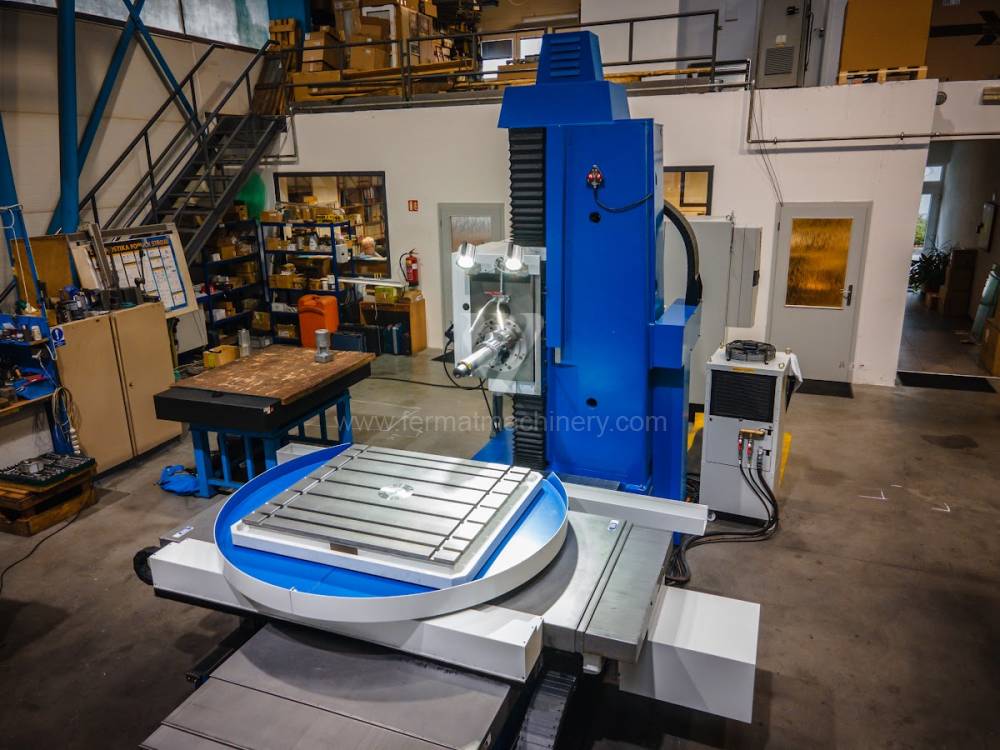

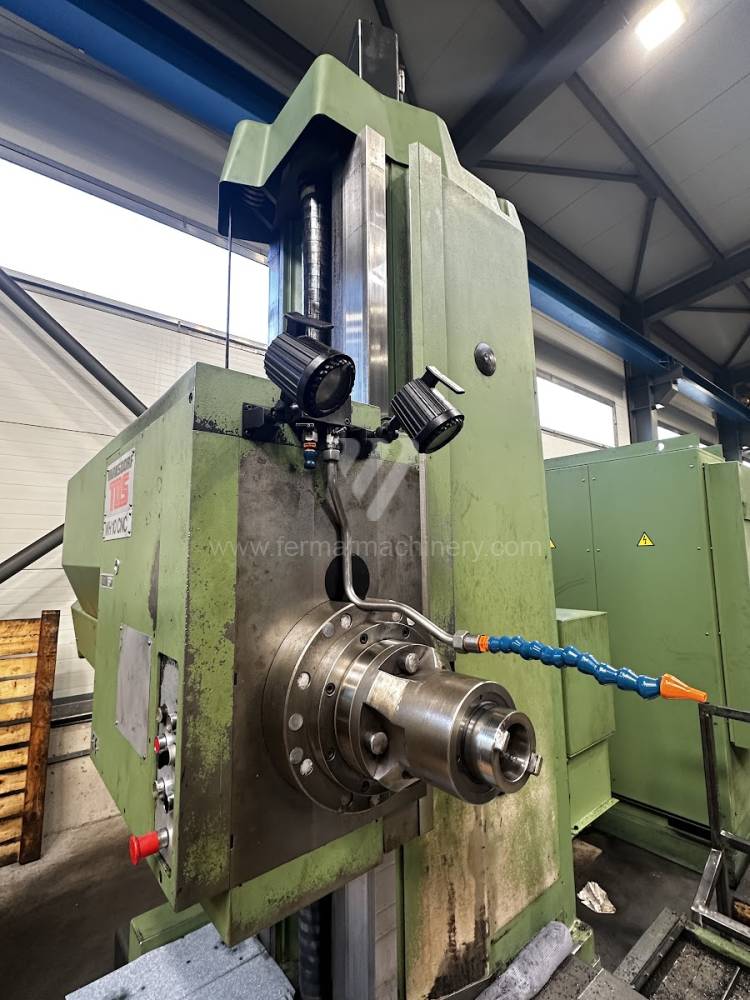

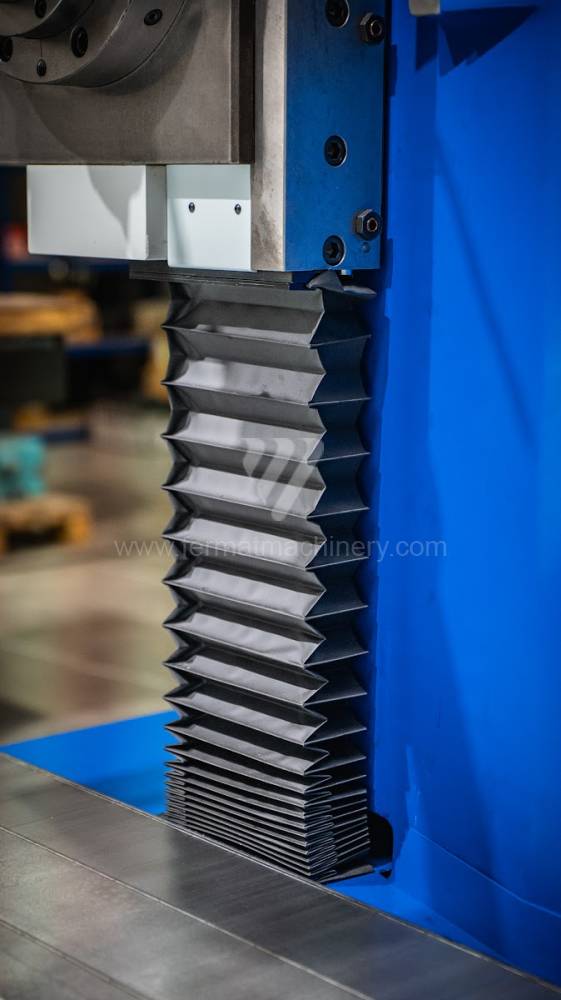

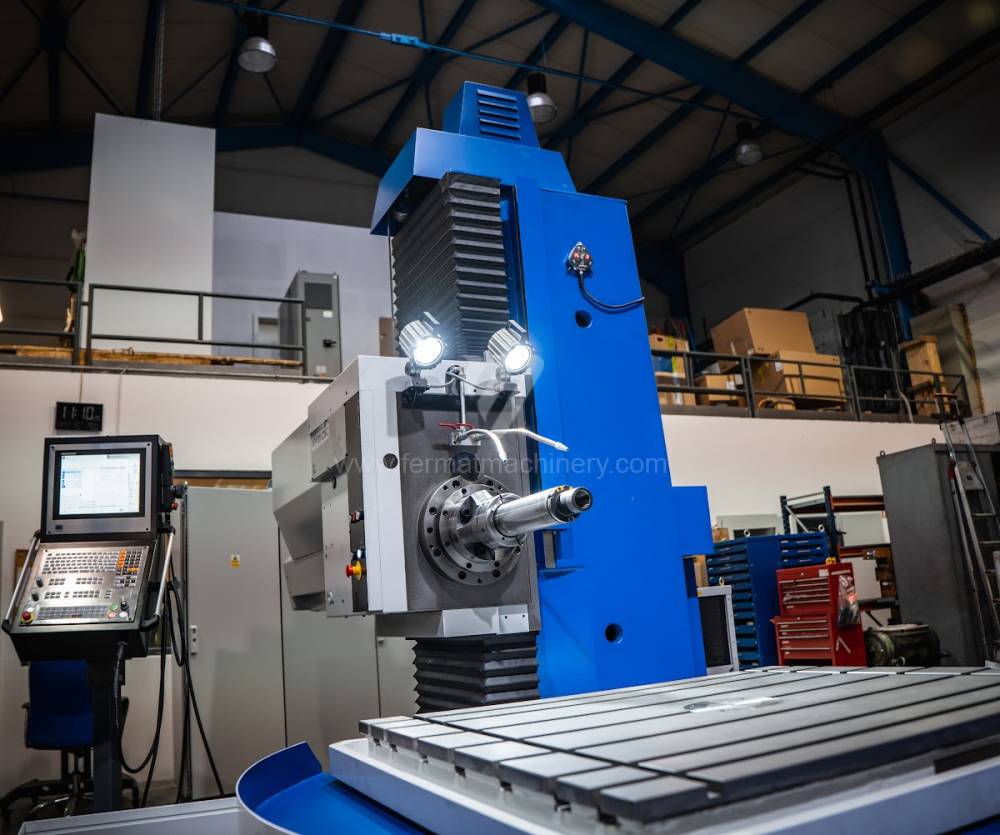

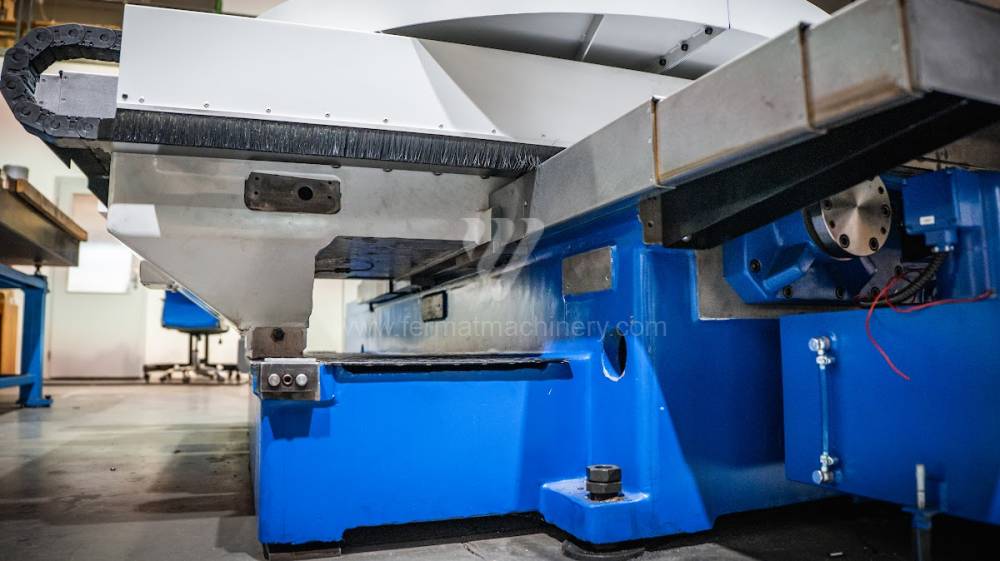

WH 10 CNC
TOS Varnsdorf
NUMERO D'INVENTAIRE: 171452

Système de contrôle Heidenhain: TNC 530
Diametre de travaille de broche: 100 mm
Course X: 1250 mm
Course Y: 1100 mm
Vitesse de broche: 10 - 1200 /min.
Refroidissement par axe: NON

PC W 200 HA
ŠKODA MACHINE TOOL a.s.
NUMERO D'INVENTAIRE: 211378

Année de production:1987
Diametre de travaille de broche: 200 mm
Course X: 5000 mm
Course Y: 4000 mm
Vitesse de broche: 0 - 630 /min.
Extension du curseur (W): 2 000 mm
Refroidissement par axe: NON

WHQ 13.8 CNC
TOS Varnsdorf
NUMERO D'INVENTAIRE: 211827

Année de production:1989
Système de contrôle ECS:
Diametre de travaille de broche: 130 mm
Course X: 3500 mm
Course Y: 2000 mm
Vitesse de broche: 0 - 1200 /min.
Refroidissement par axe: NON

WHQ 13.8
TOS Varnsdorf
NUMERO D'INVENTAIRE: 241075

Année de production:2013
Système de contrôle Siemens: Sinumerik 840D Sl
Diametre de travaille de broche: 130 mm
Course X: 4000 mm
Course Y: 2500 mm
Vitesse de broche: 0 - 3000 /min.
Refroidissement par axe: NON

WHN 13 CNC
TOS Varnsdorf
NUMERO D'INVENTAIRE: 241129

Année de production:1991
Système de contrôle NCT:
Diametre de travaille de broche: 130 mm
Course X: 3500 mm
Course Y: 2000 mm
Vitesse de broche: 1 - 900 /min.
Refroidissement par axe: NON

123

Horizontal boring machines are universal machines used for machining of complex products. These borers are mainly used for small batch production. For one workpiece clamping, the operation can be performed from up to five sides, either simultaneously or sequentially. A large number of standard and special accessories are available for horizontal boring machines. This makes boring machines suitable not only for boring, but also for drilling, turning, milling and other operations.

Horizontal boring machines can be divided into several types, such as:  table, cross, plate, coordinate. Can be divided also according to the type of control - conventional (without system), or CNC controlled.

Table type boring machines

Table boring machines are equipped with a movable table that moves in one or two axes. Depending on this, boring machines are further divided into cross-construction or T-construction. The table is usually rotary (B axis), which allows four sides of the workpiece to be machined in one clamp. However, if the machine is equipped with an angle head (A and C axes) and the workpiece does not exceed the dimensions of the machine, five sides can be machined in one clamp. The boring milling machines differ from the table milling machines in particular by the extendable spindle (W axis).  Higher series often also have a movable headstock (V axis).

Cross-construction

The cross design is usually used on compact machines with a table capacity up to 5 tonnes, where the table moves in two mutually perpendicular axes (X,Z). These machines are usually lighter and less demanding to build the base, but are limited not only by the travel, but also by the capabilities of the stand and spindle. The diameter of the spindle here is usually between 75 and 125 mm.


T-construction

The T-design is a more rigid machine with a table capacity of up to 25 tonnes and longer axis travel, with the table moving only in the transverse axis towards the spindle (X), while the stand moves in the longitudinal axis (Z) towards the table. The diameter of the boring spindle is usually between 100 and 160 mm due to the heavier and bulkier workpieces.


Floor type boring machines

These kinds of boring machines are suitable and used for machining of the largest workpieces. Headstock is moving along the vertical guide of the column and column itself is moving along the bed perpendicular to the axis of the spindle. The workpiece is clamped immovably on a cast-iron floor plate equipped with T-slots. If this floor type boring machine is equipped with a rotary table which is movable in the direction of the spindle axis, the number of controlled axes increases. Such boring machines mainly have a boring spindle diameter of 130-315 mm

Coordinate boring machines

So-called coordinate boring machines are used for machining precise holes. Its design is affected by the requirements for very high accuracy of all movements, good dynamics and the best possible temperature stability. There are two types of these machines. One-column borer with horizontal or vertical spindle axis (this is for smaller sizes of workpieces that are clamped on a cross table) and two column borer with one or more vertical spindles. Workpiece is clamped on a longitudinal table, which is in between two columns along which the crosspiece carrying the work headstock moves. An optical system is usually used for measuring. More modern machines are then equipped with a CNC control system.

All types of horizontal boring machines are conventional or CNC controlled. Among the most popular producers of CNC systems are Heidenhain, Siemens, Fanuc, Fagor.

Horizontal boring machines can be also equipped with automatic tool change which is primarily used for storage of tool holders, its manipulation and positioning without participation of human factor.

Among the main and most popular manufacturers of boring mills we have to mention:  FERMAT, TOS, ŠKODA, PAMA, UNION, JUARISTI, SCHARMANN, KURAKI, WOTAN.
