Technical Analysis: Kinematics and Stability of Single-Column Design

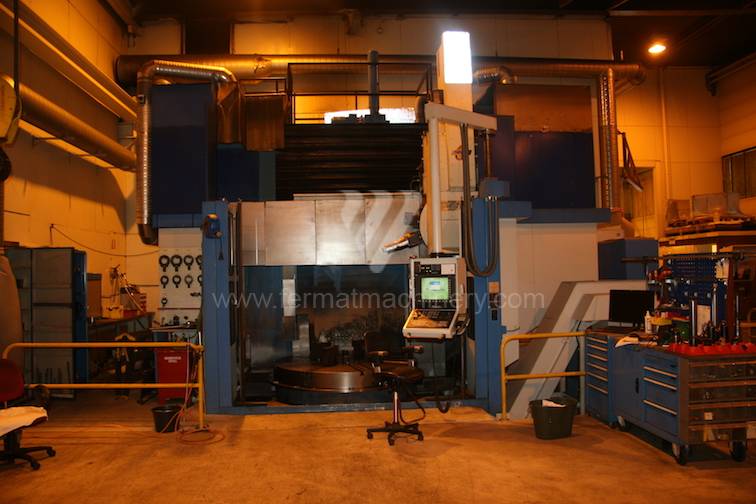

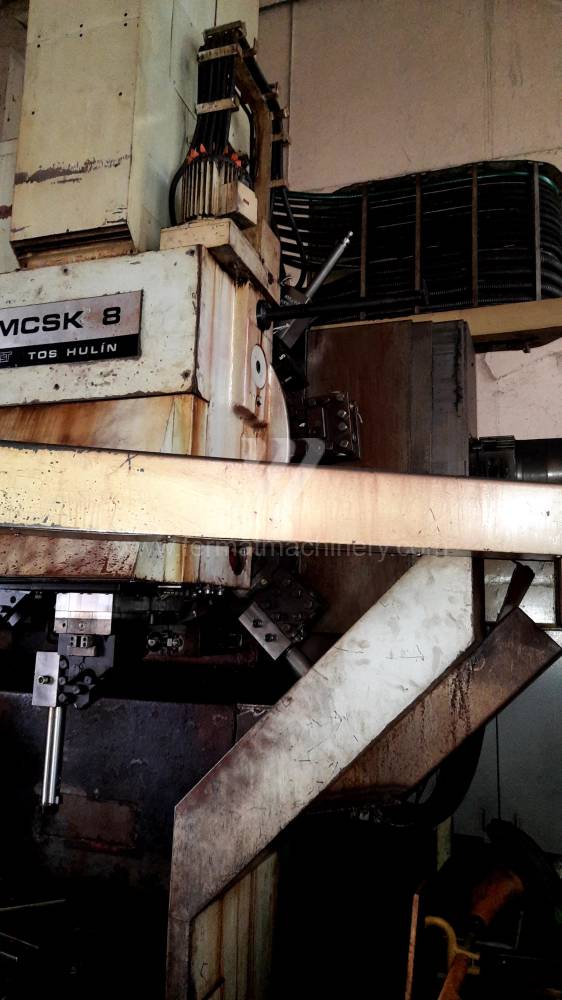

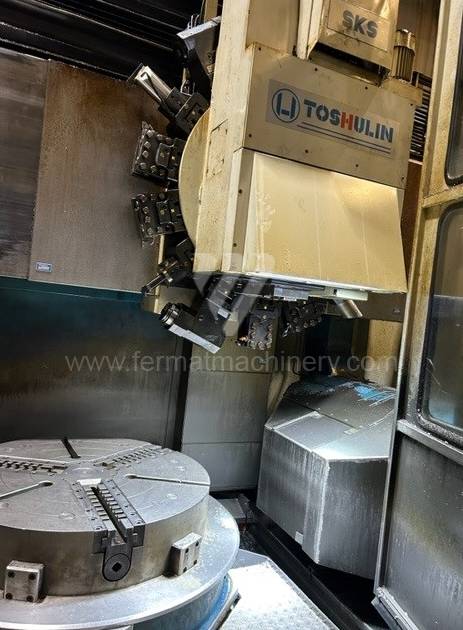

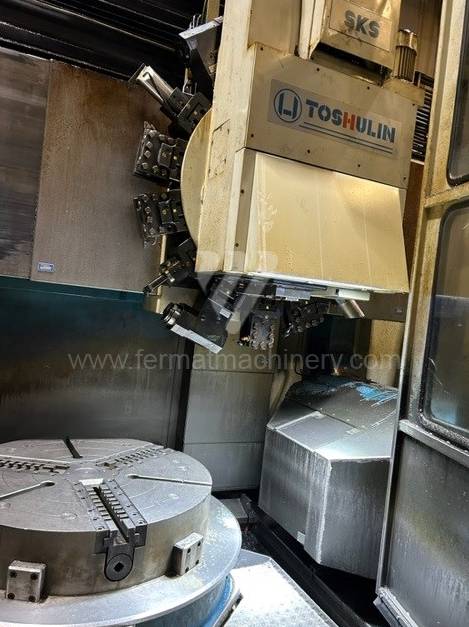

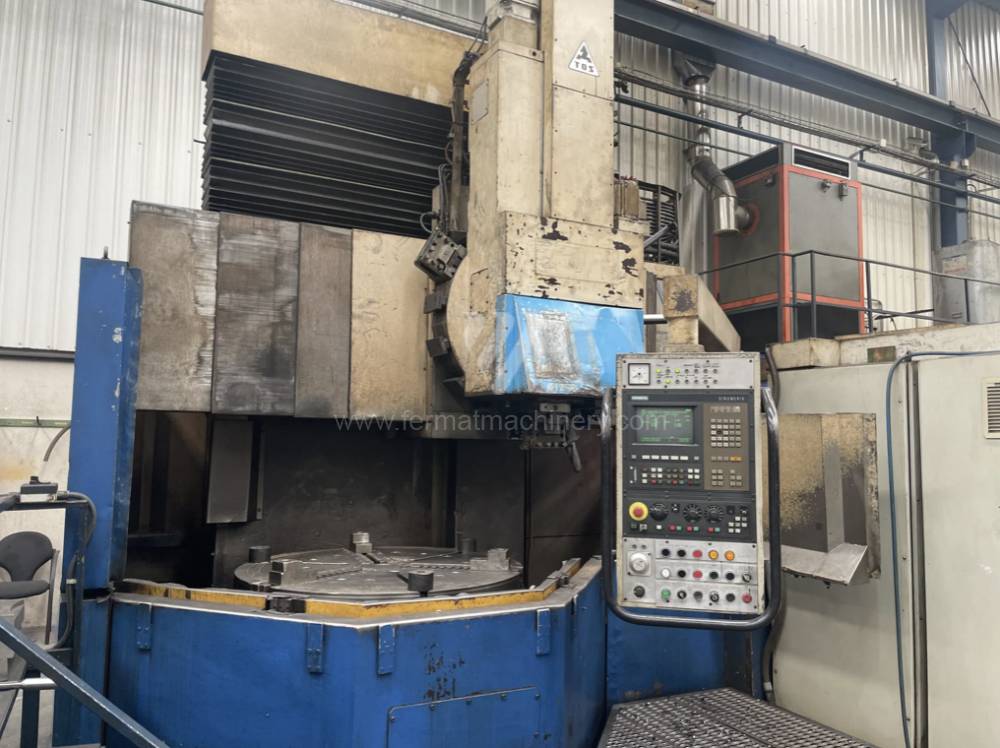

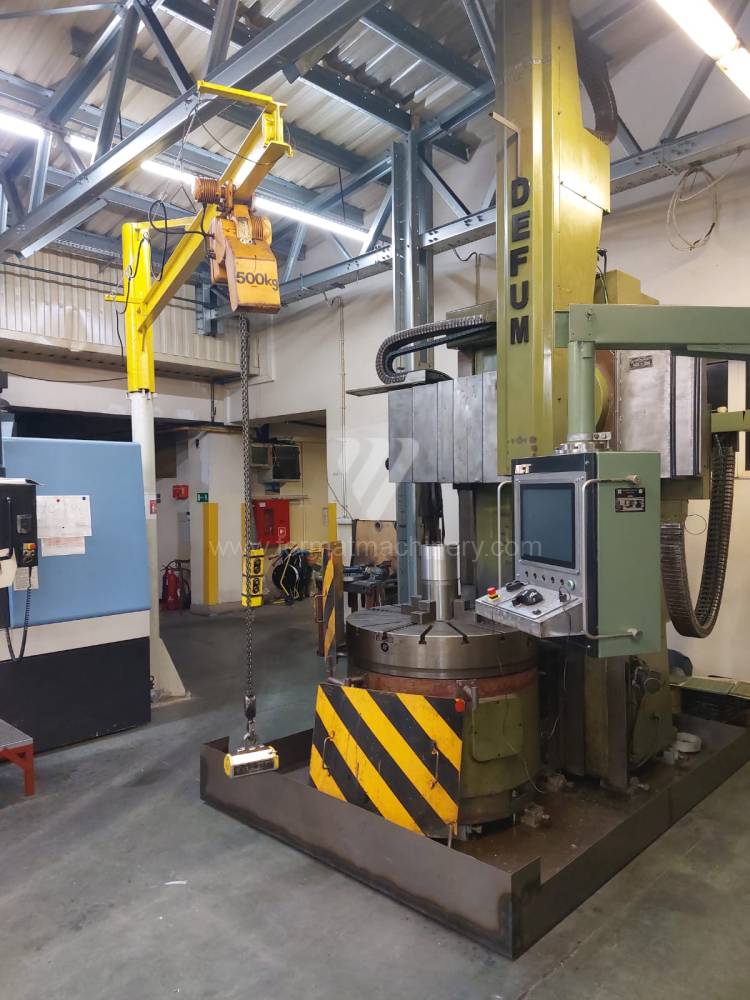

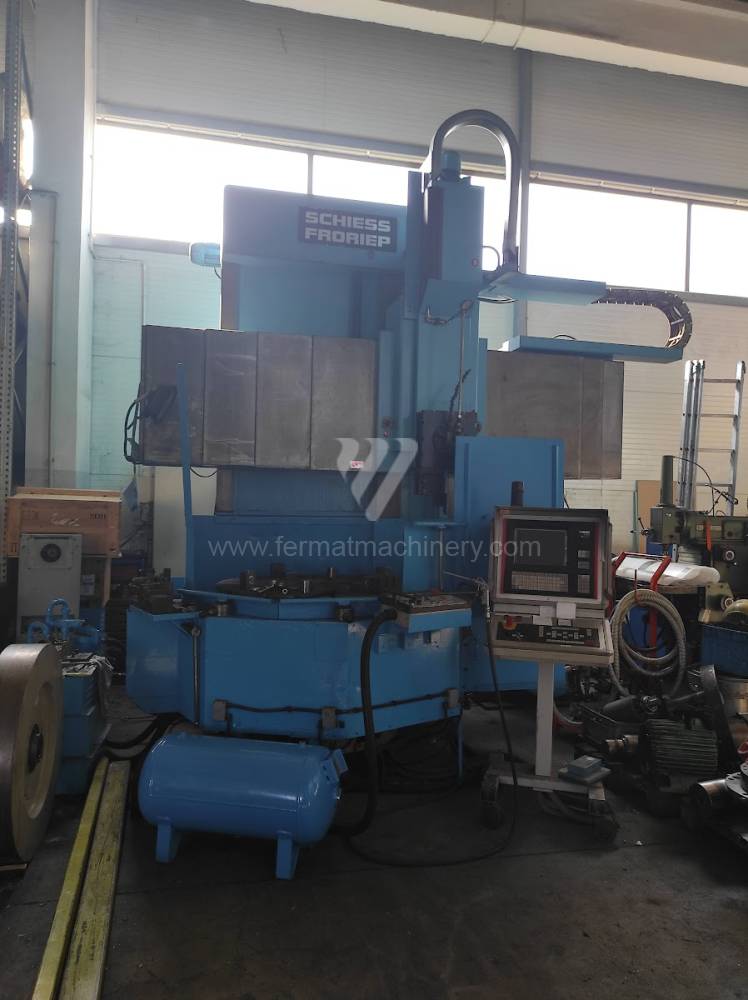

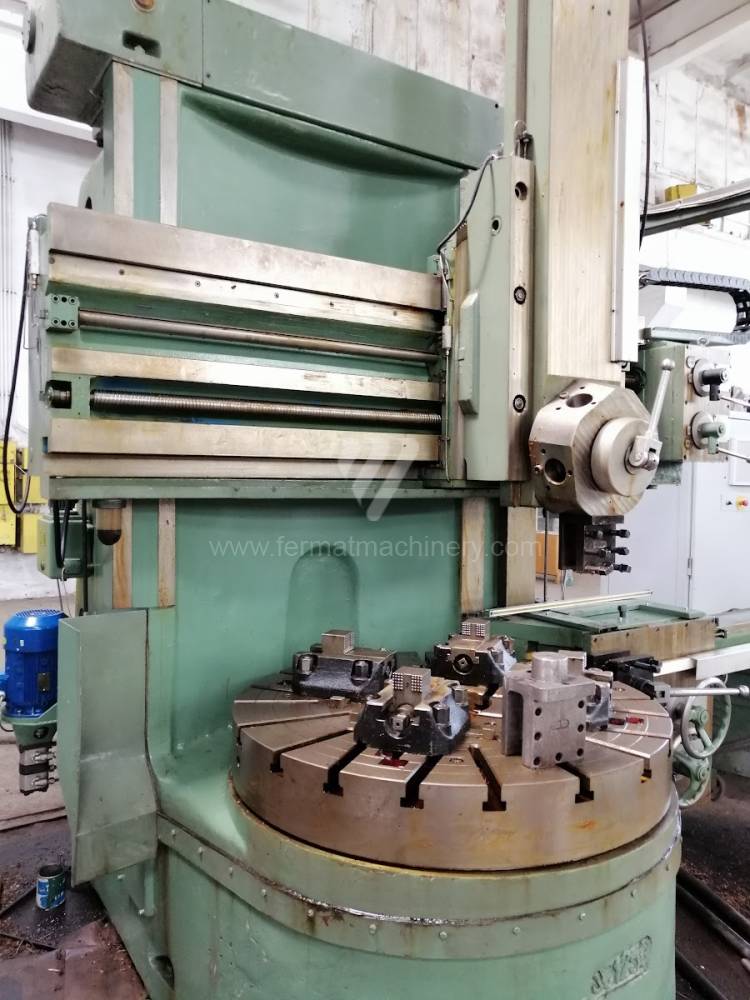

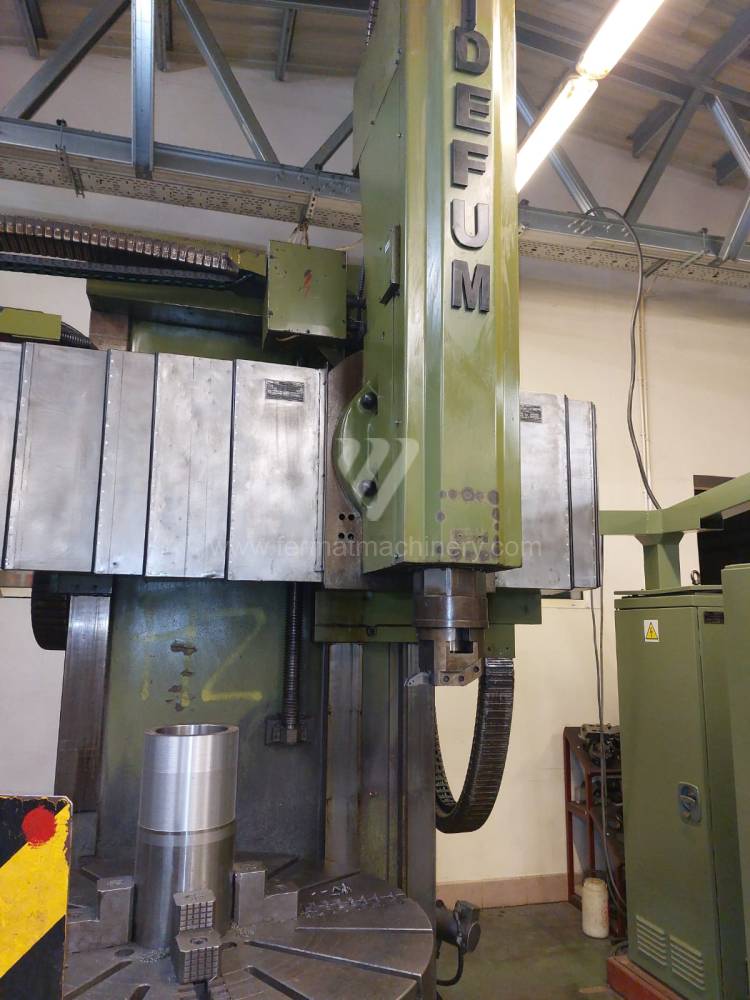

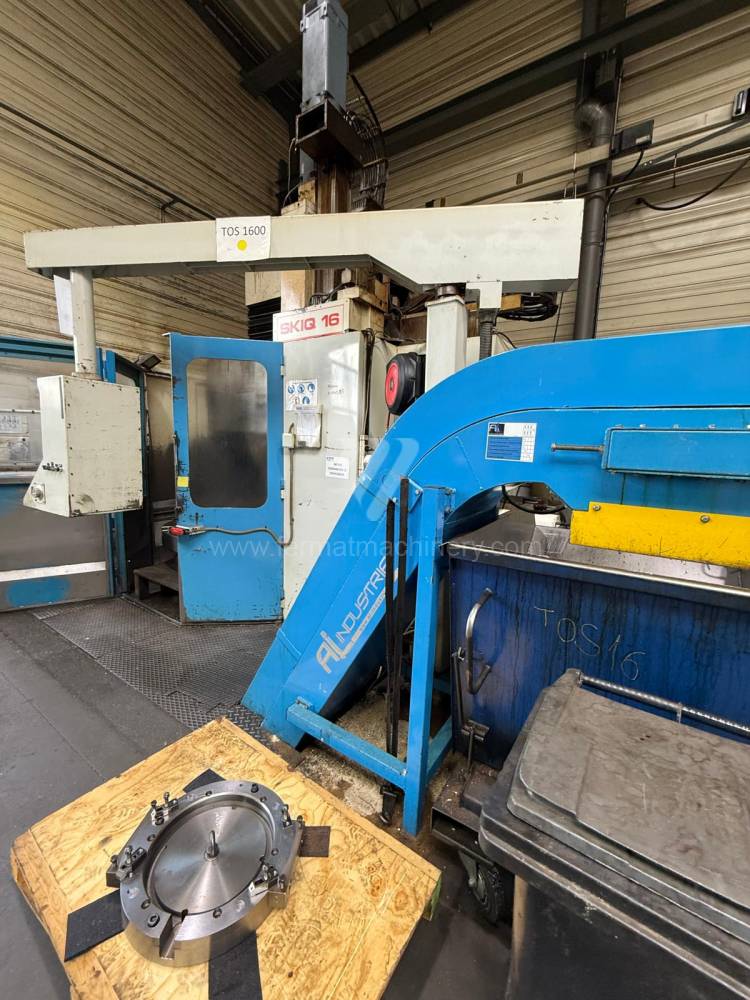

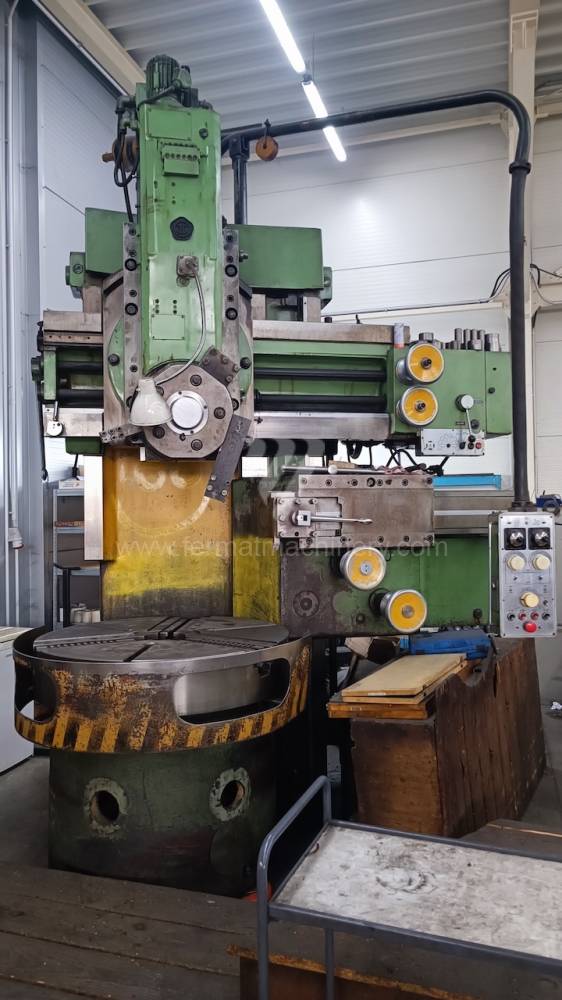

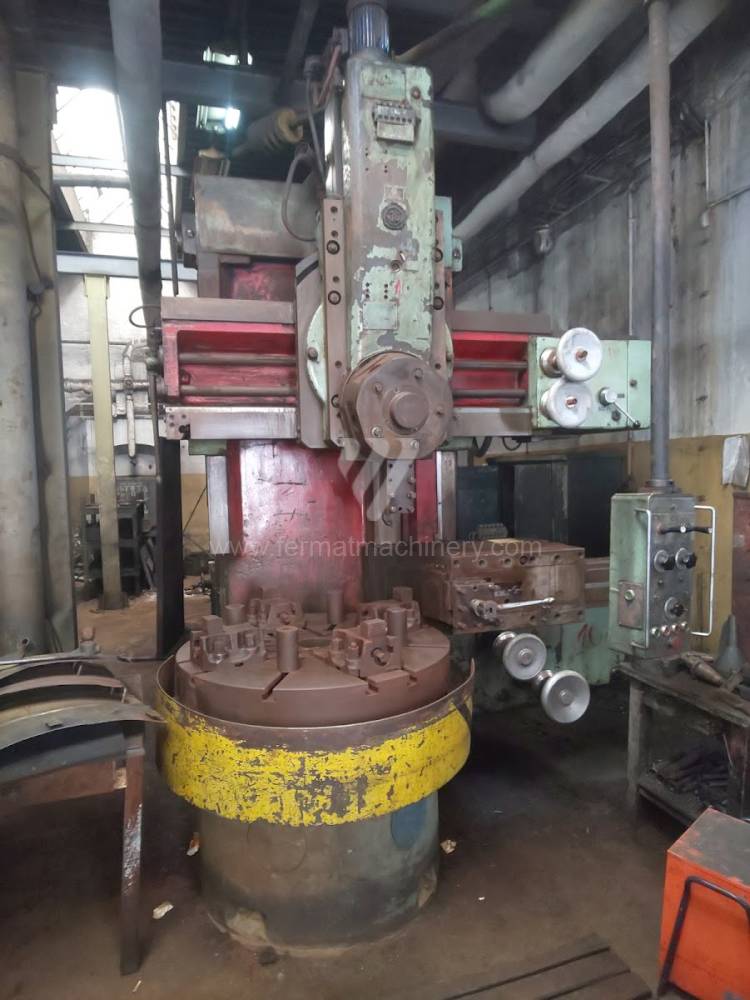

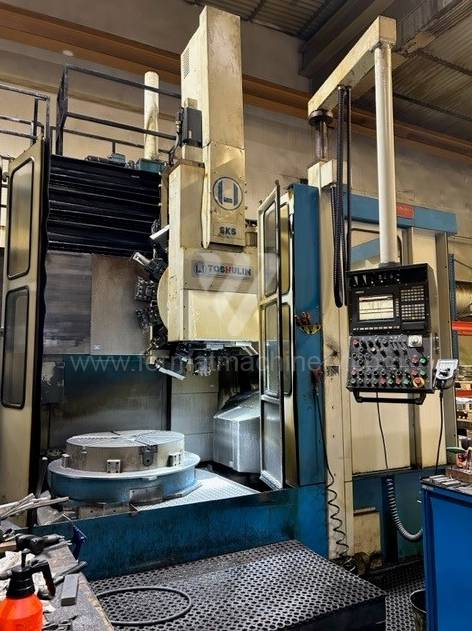

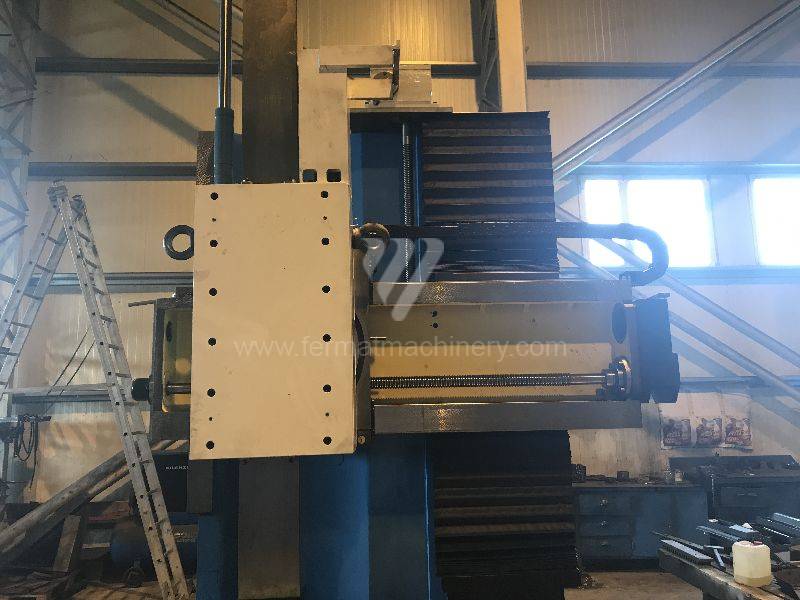

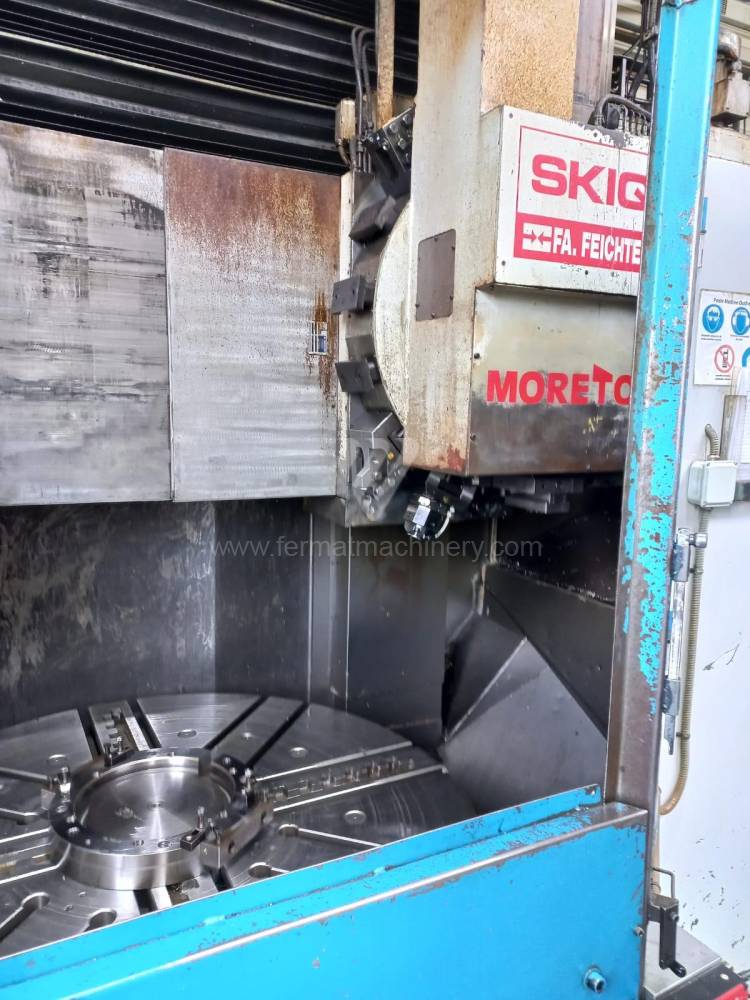

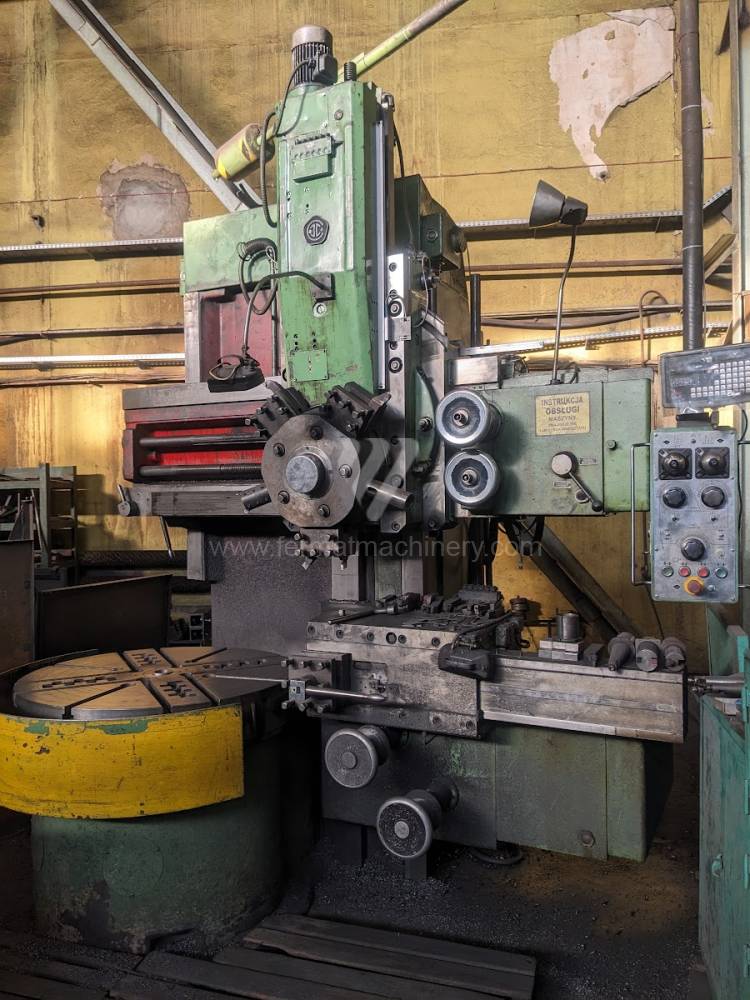

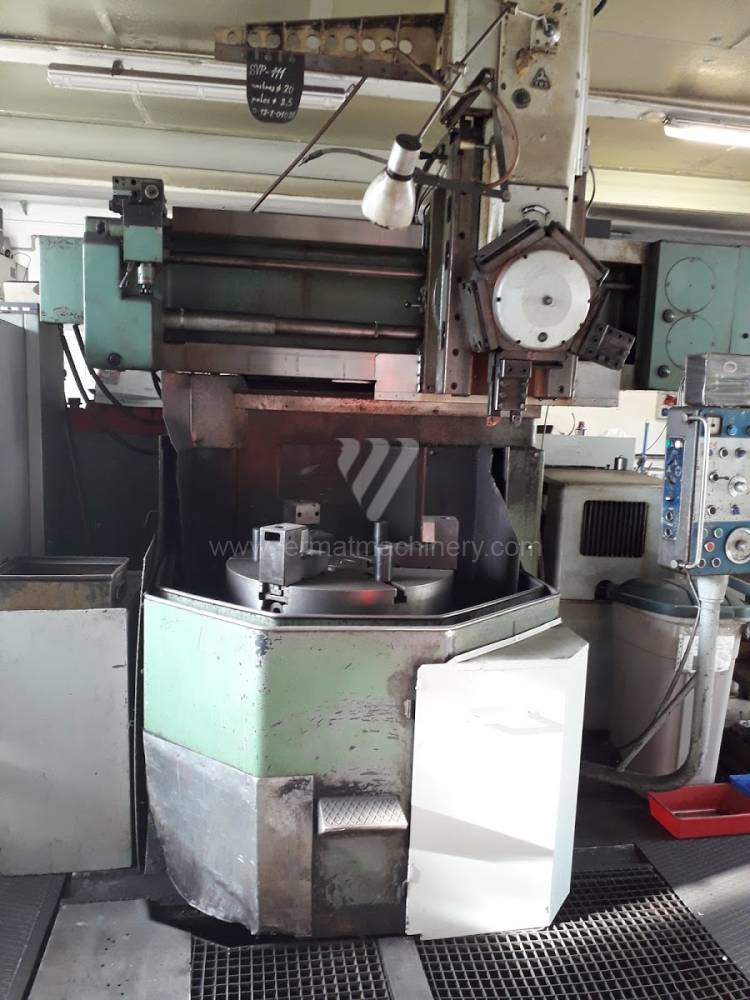

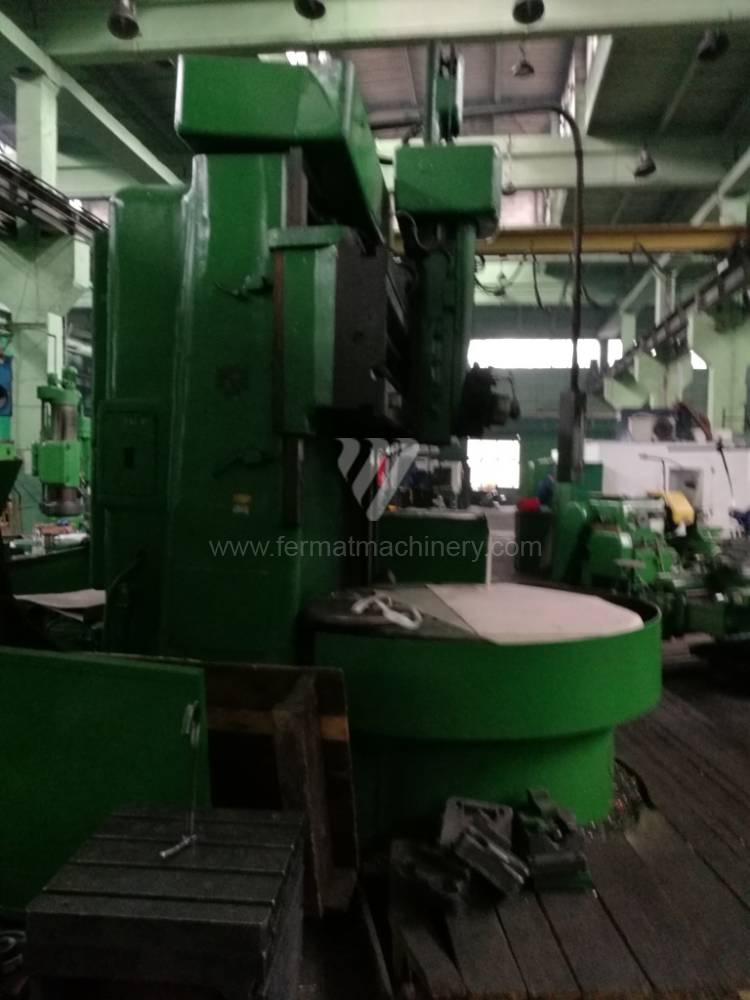

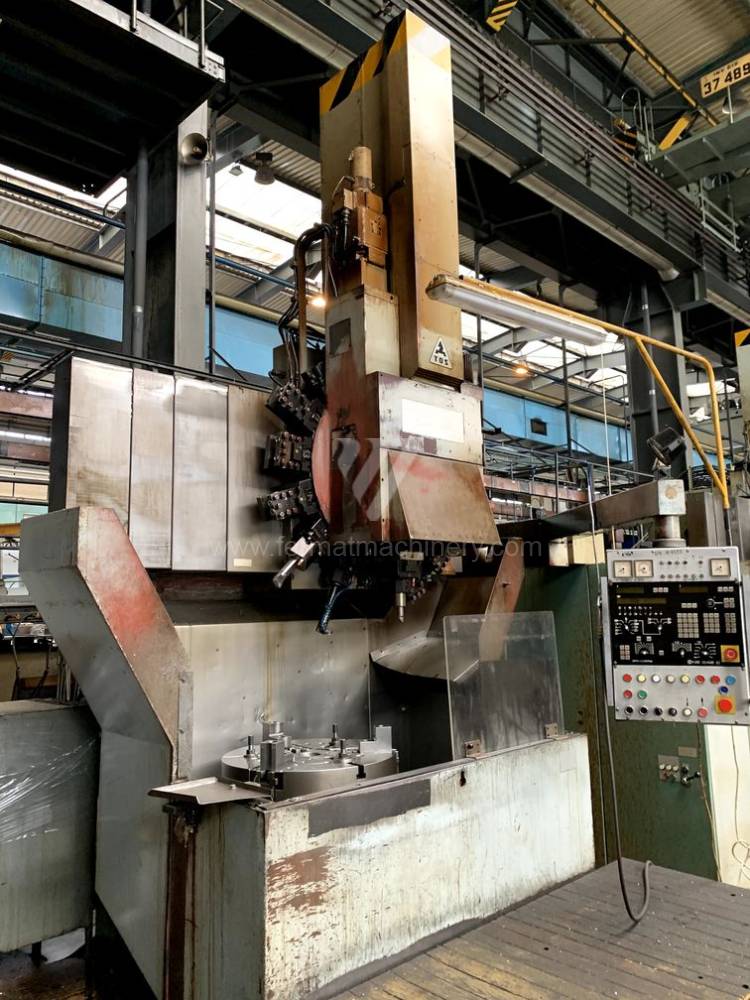

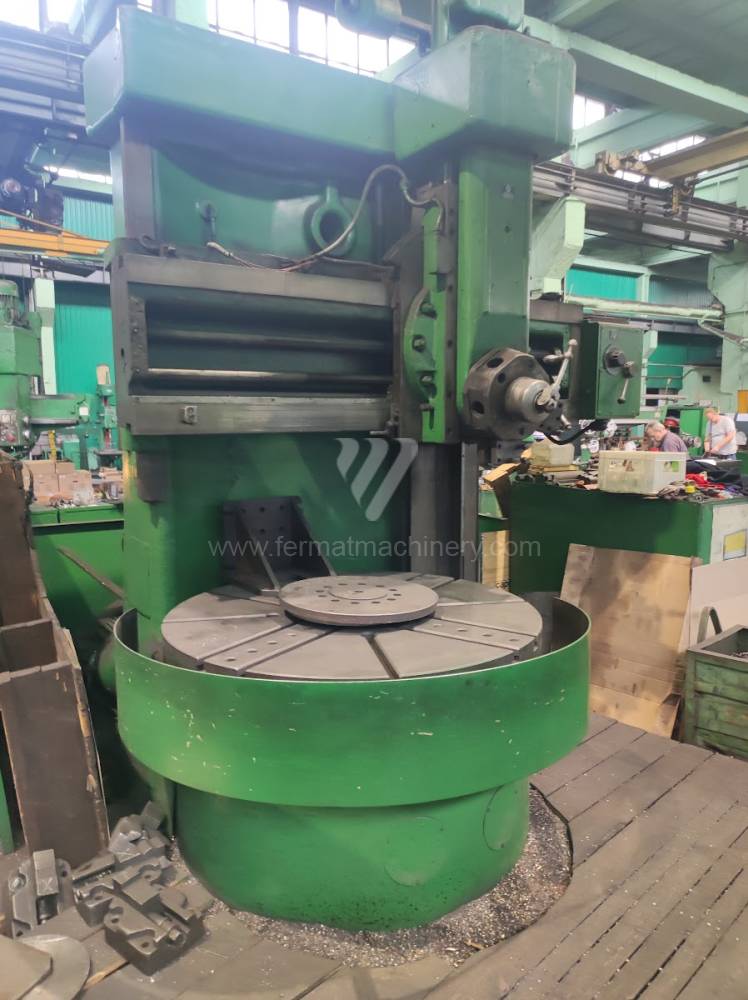

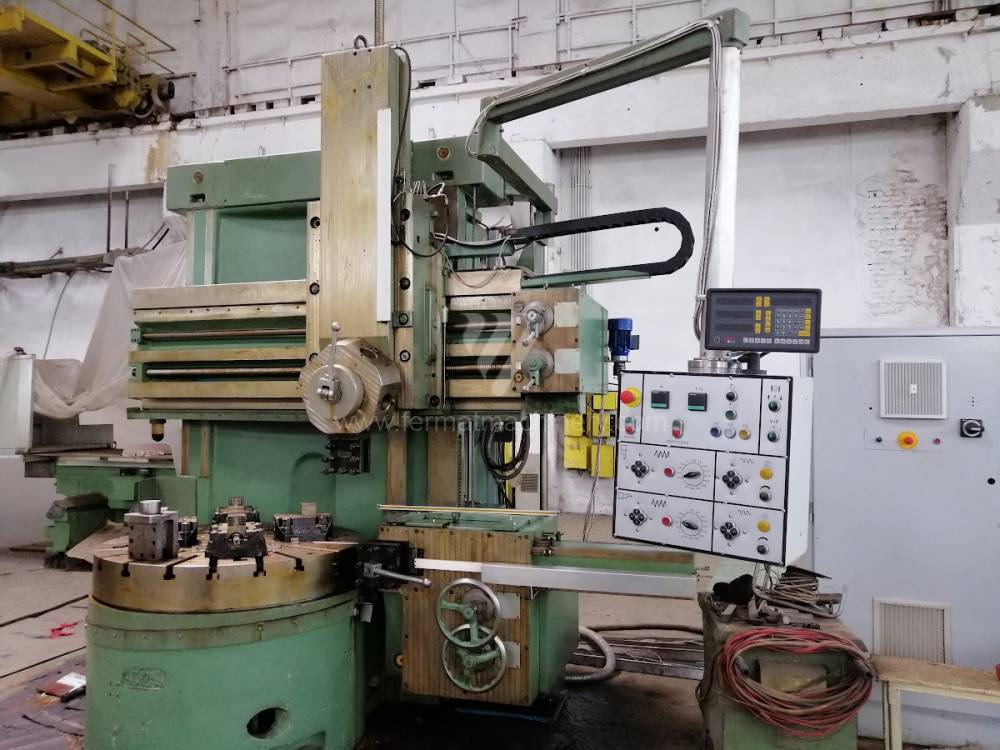

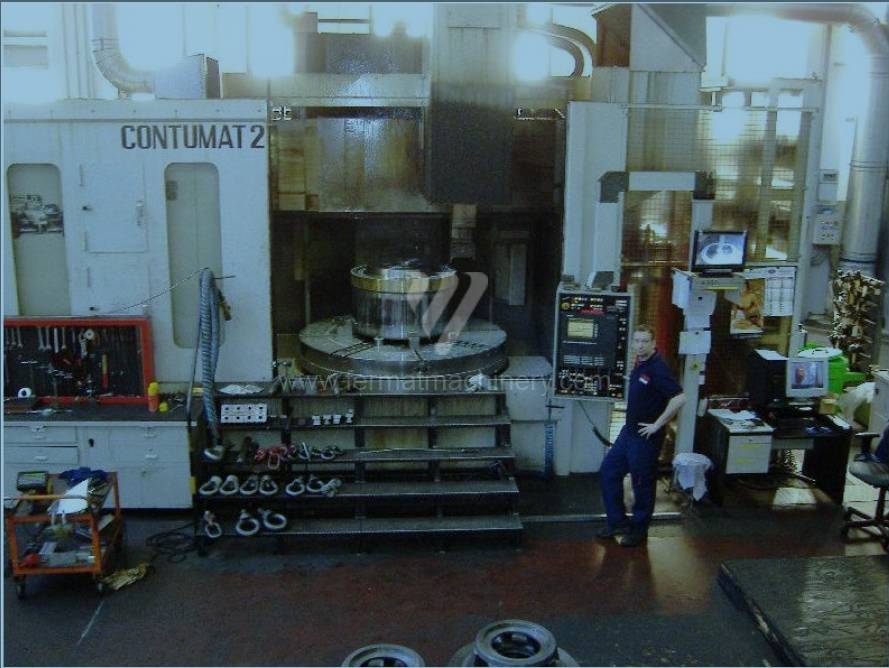

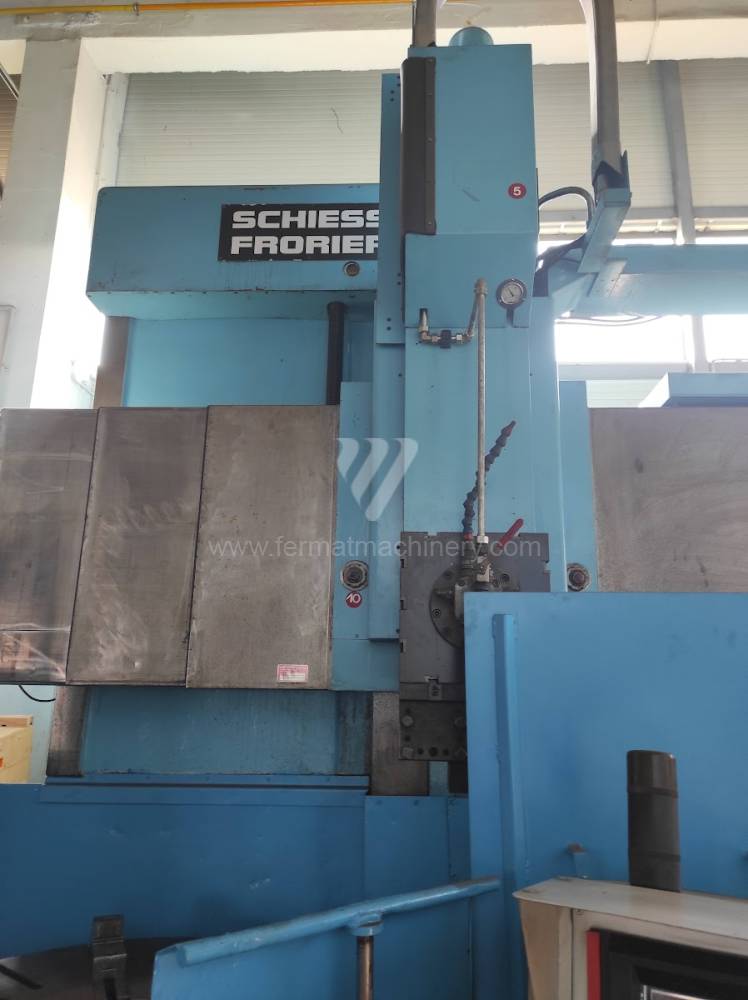

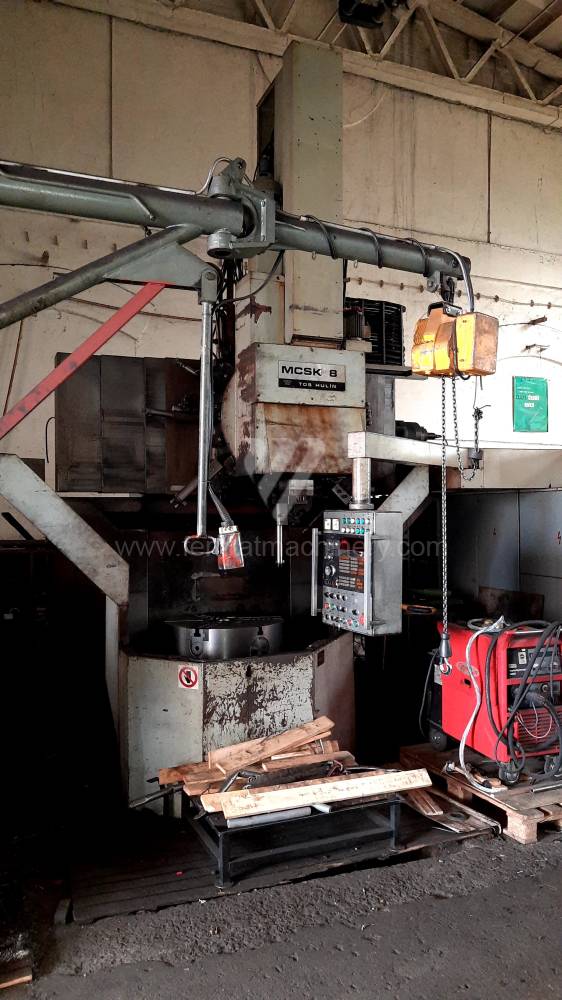

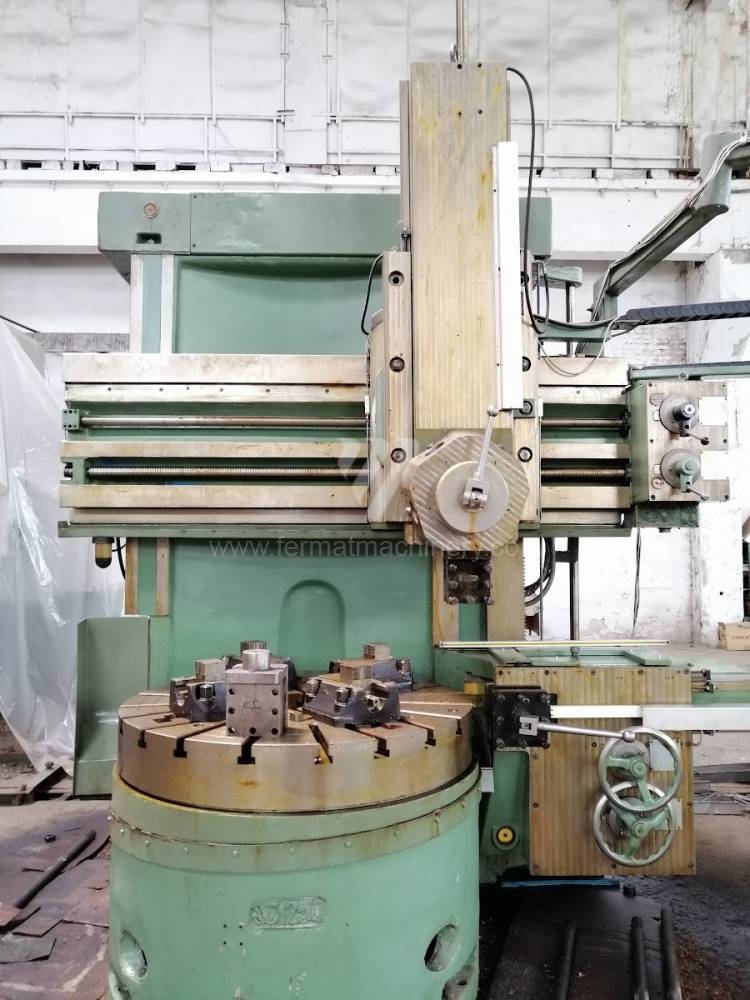

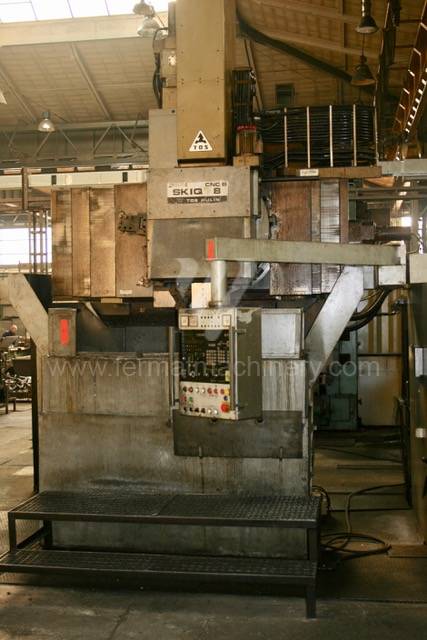

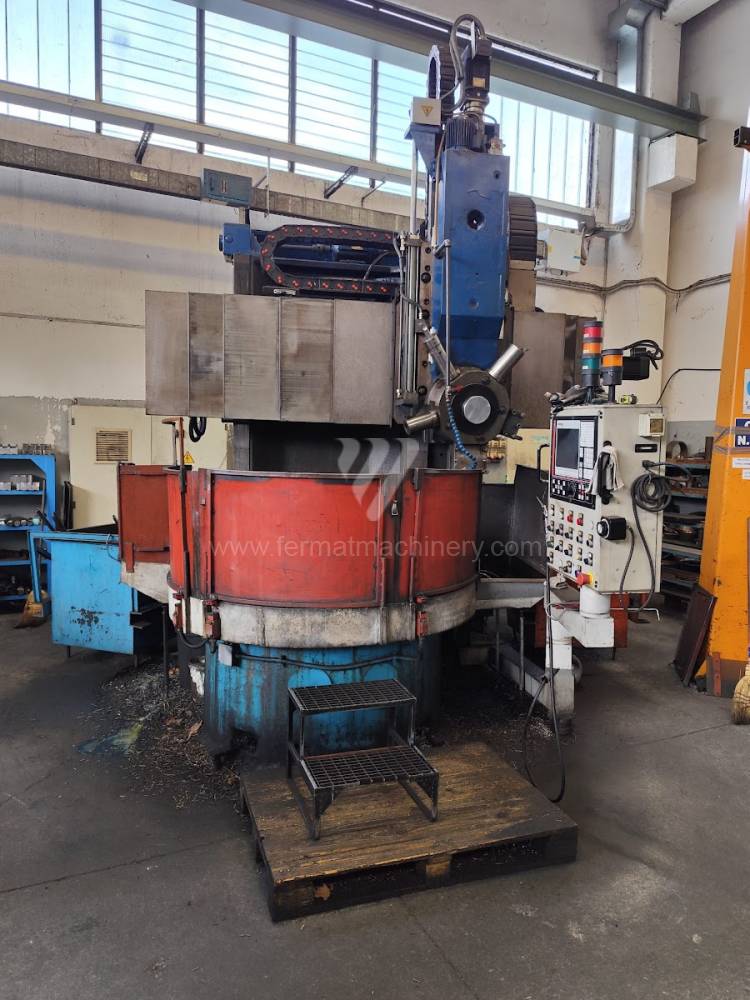

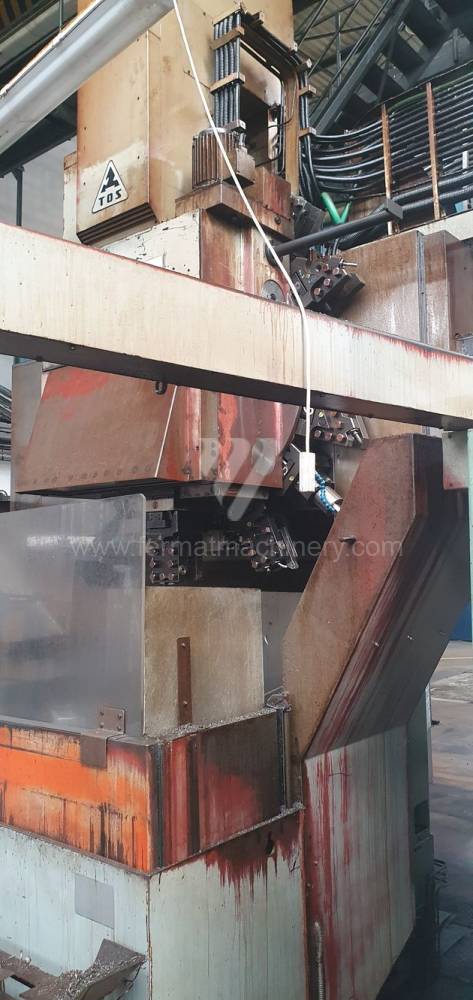

Single-column vertical lathes (open-side) represent a specific solution for machining components where the diameter exceeds the table size. Unlike double-column machines, the critical factor here is the moment rigidity of the column-to-crossrail junction. In used machines from brands like TOS or Sedin, this node is dimensioned with a high safety factor, allowing for high cutting forces even at maximum ram extension.

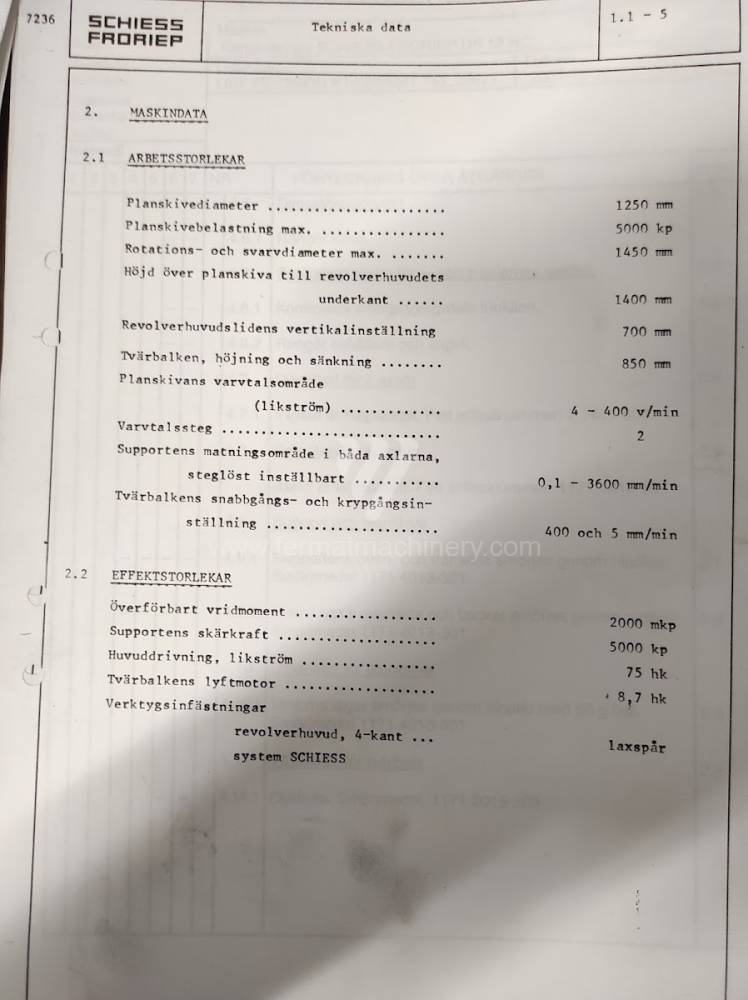

Key Technical Parameters:

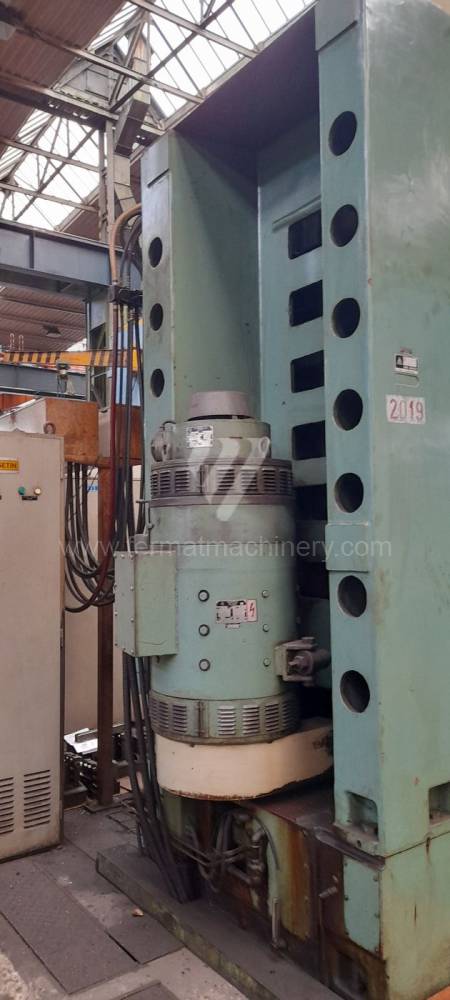

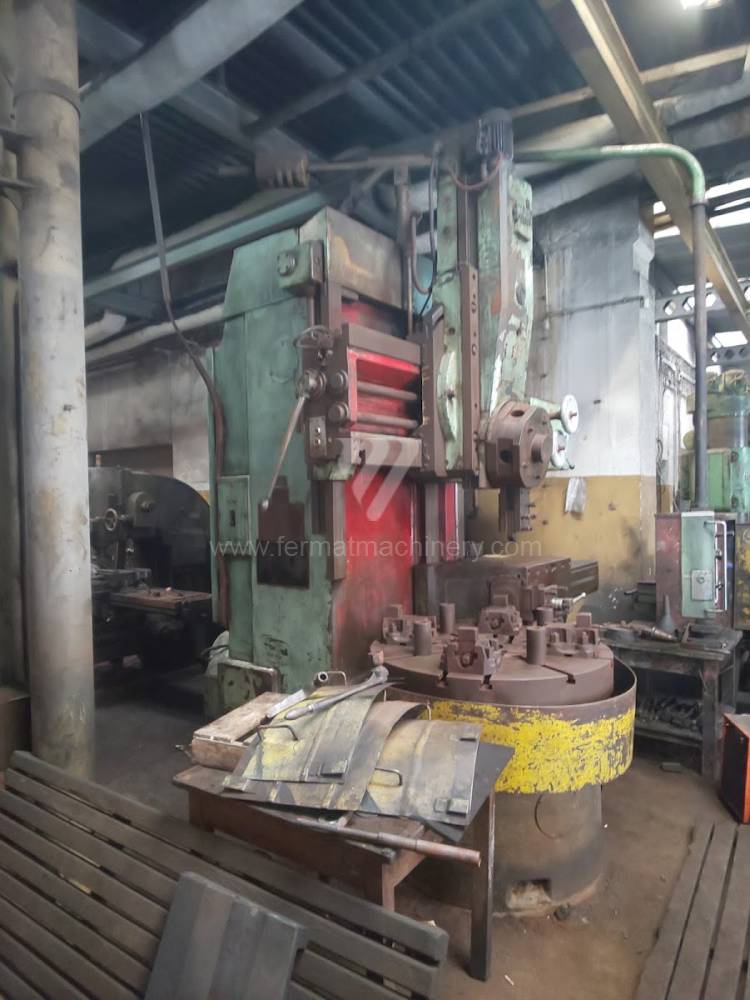

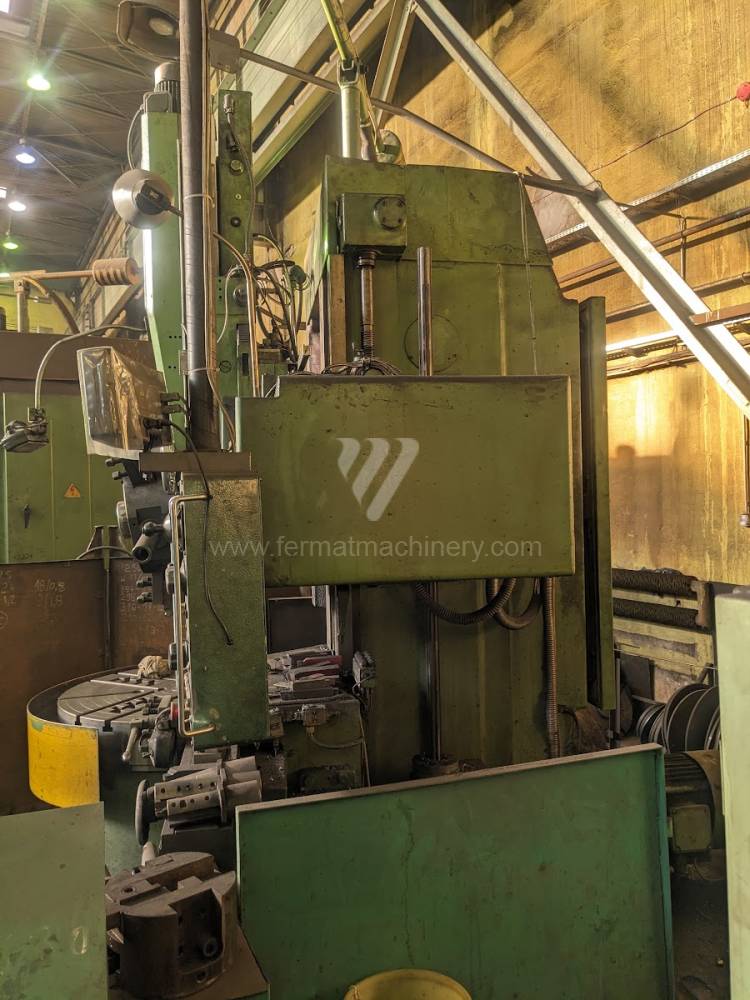

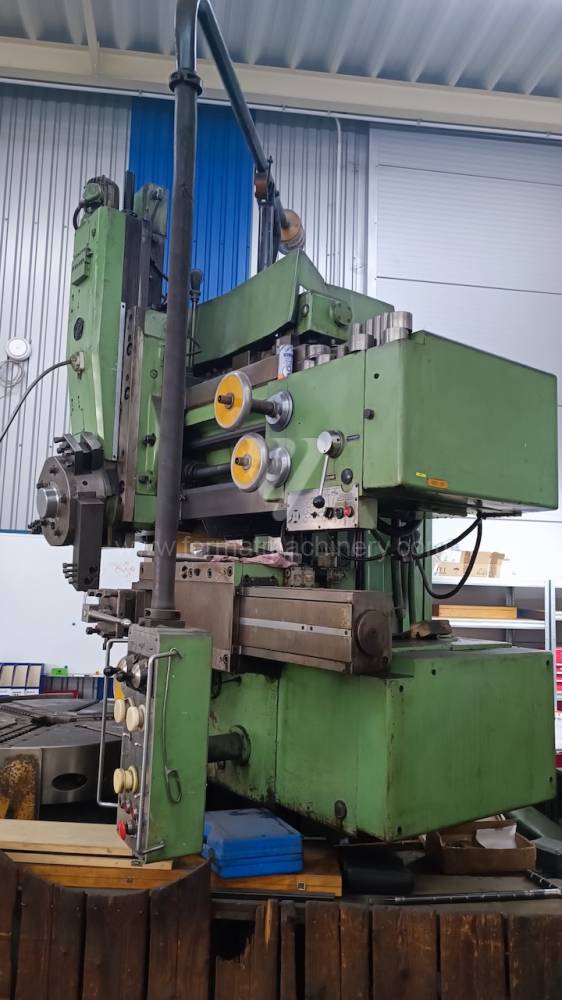

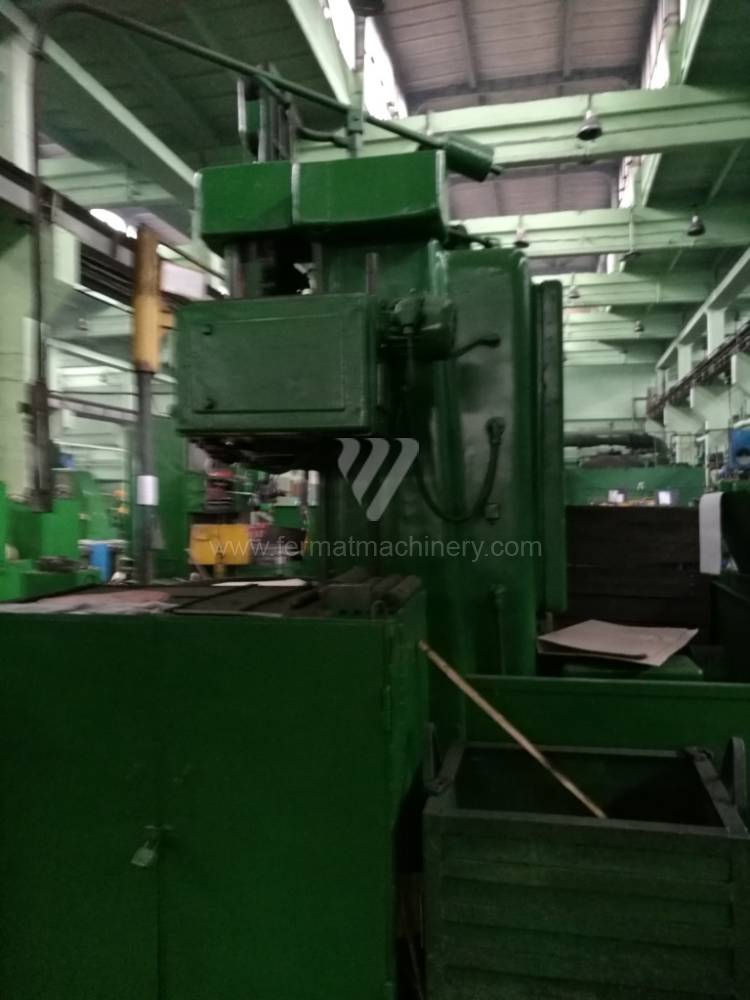

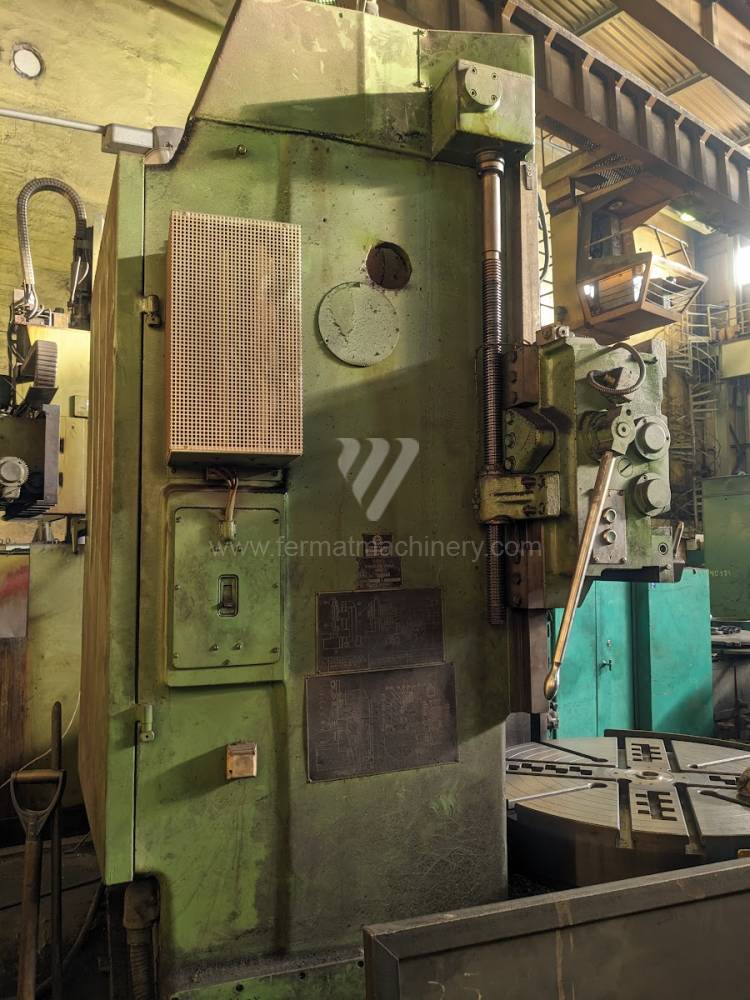

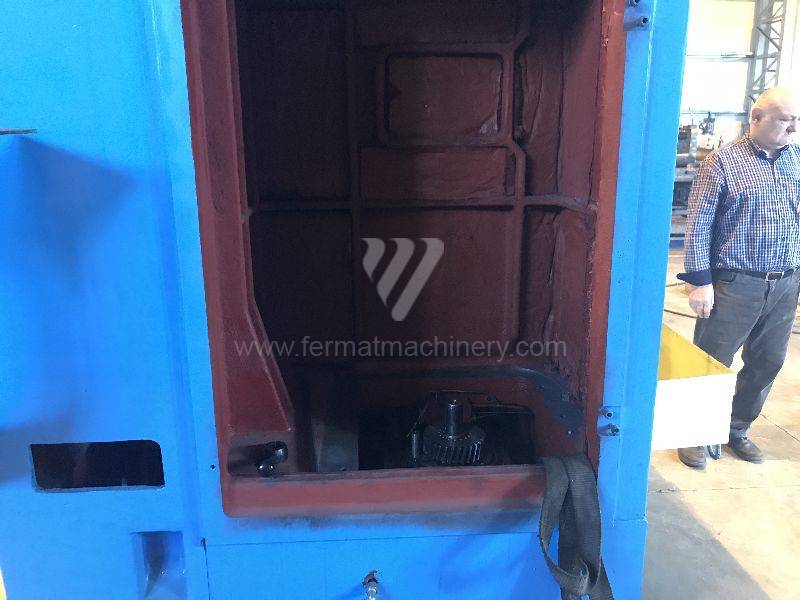

• Dynamic Force Absorption: The massive cast-iron column acts as a mechanical filter for low-frequency vibrations. Higher frame weight correlates directly with the elimination of chatter during roughing with variable depths of cut.

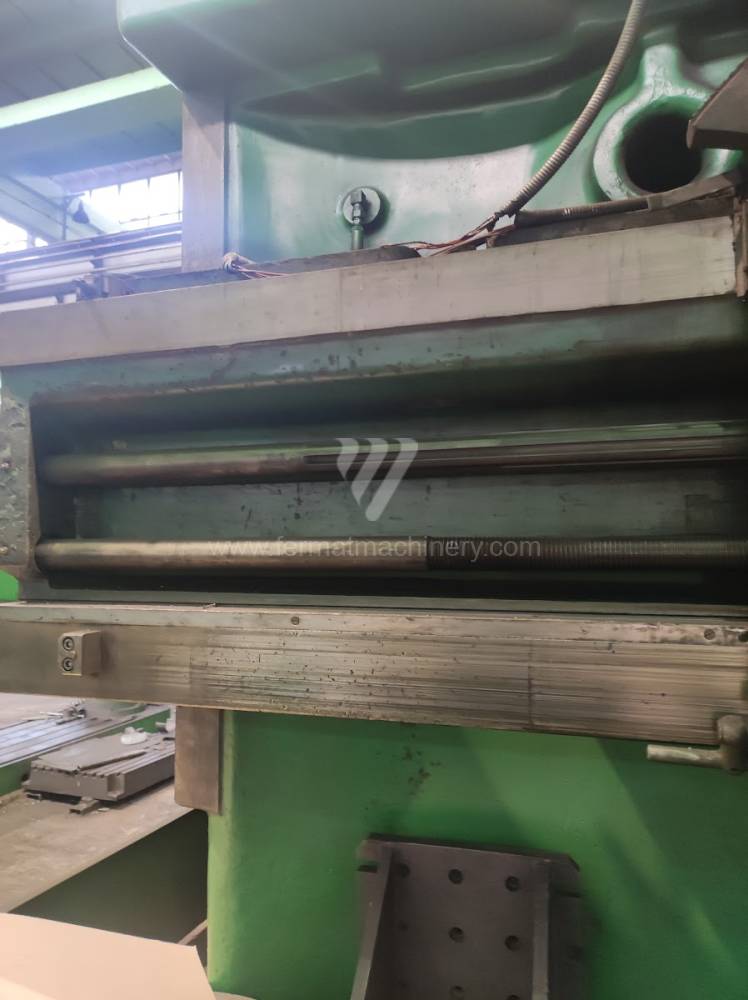

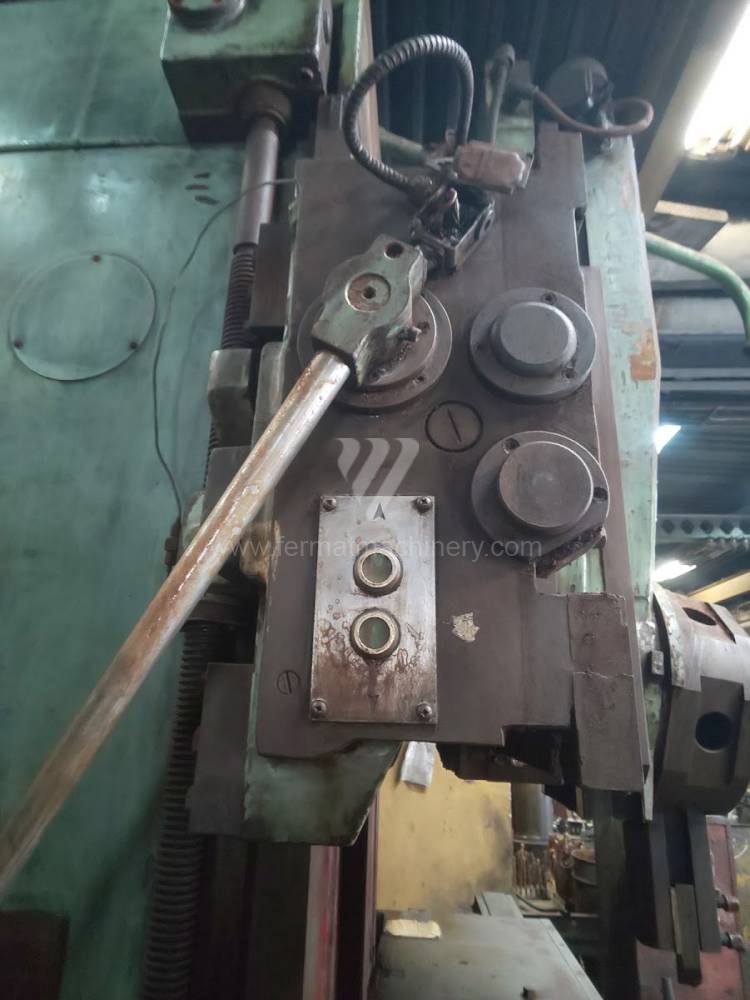

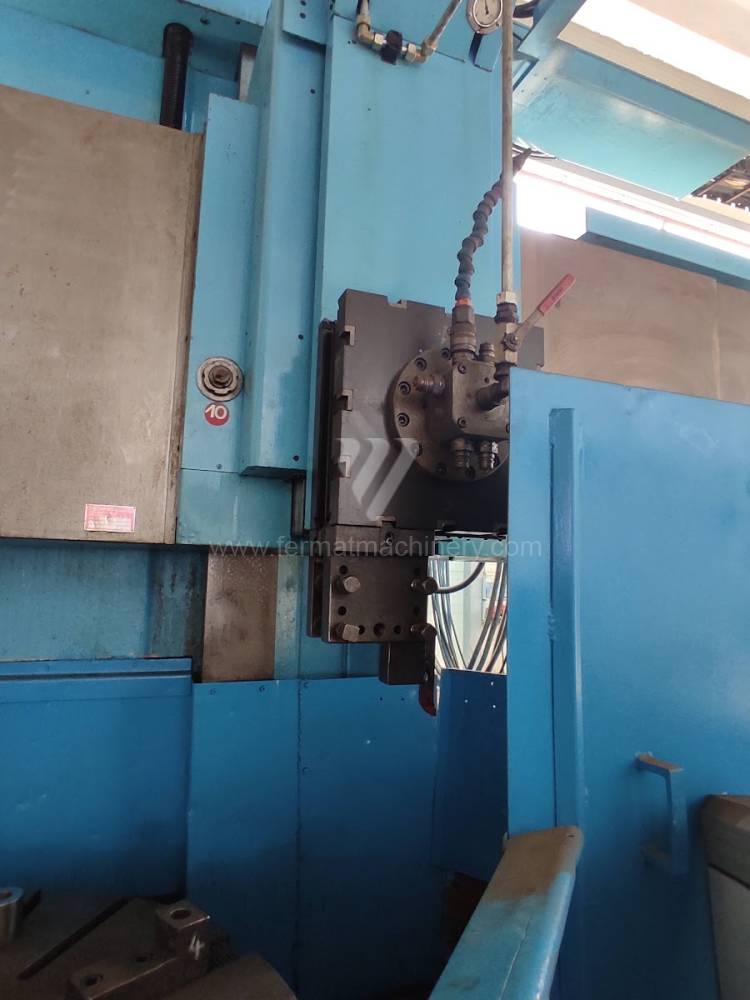

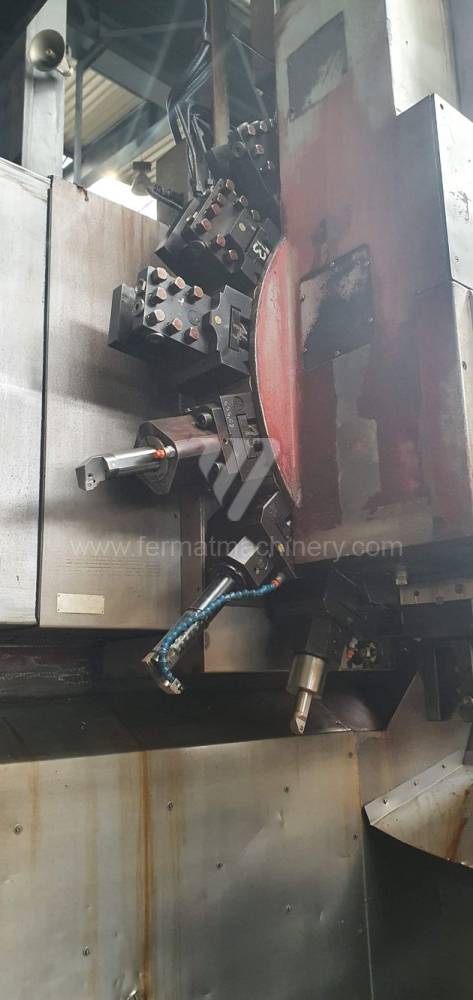

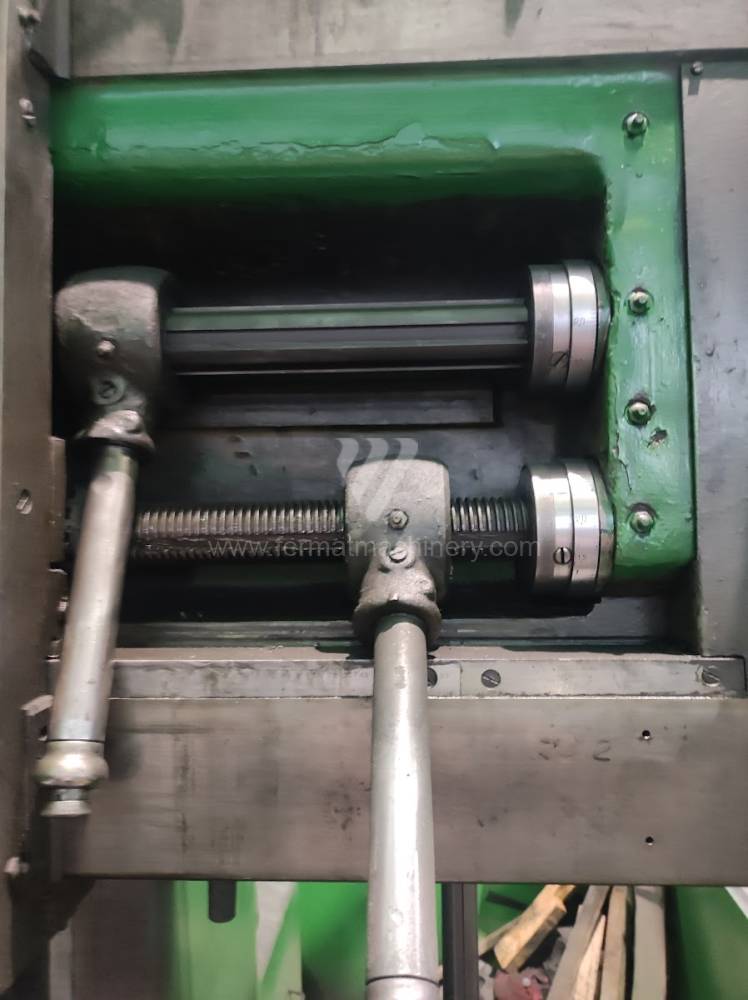

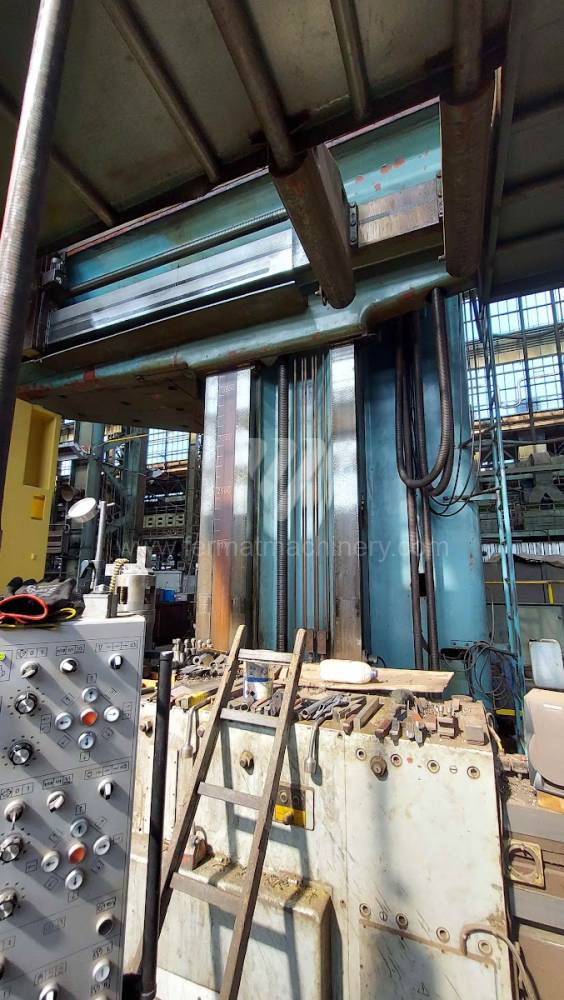

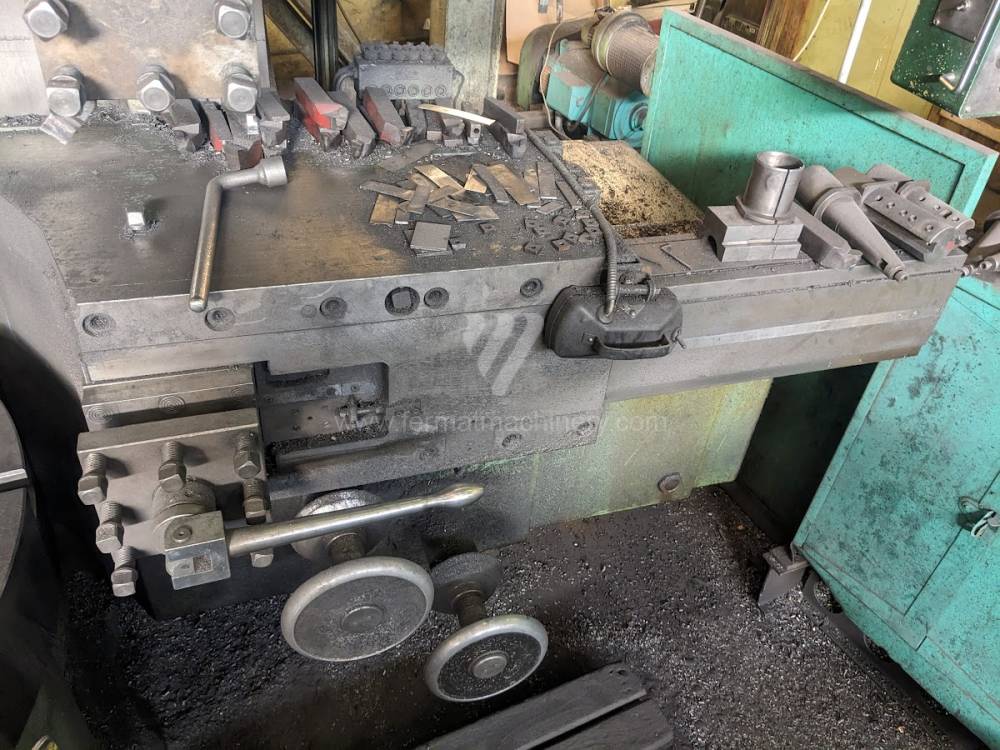

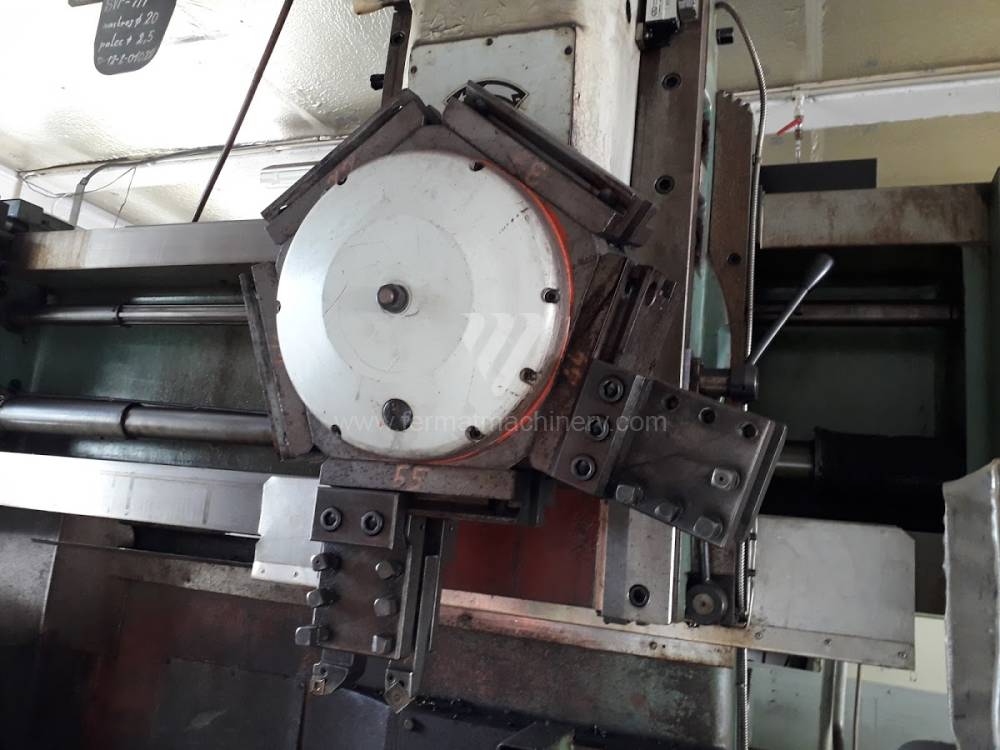

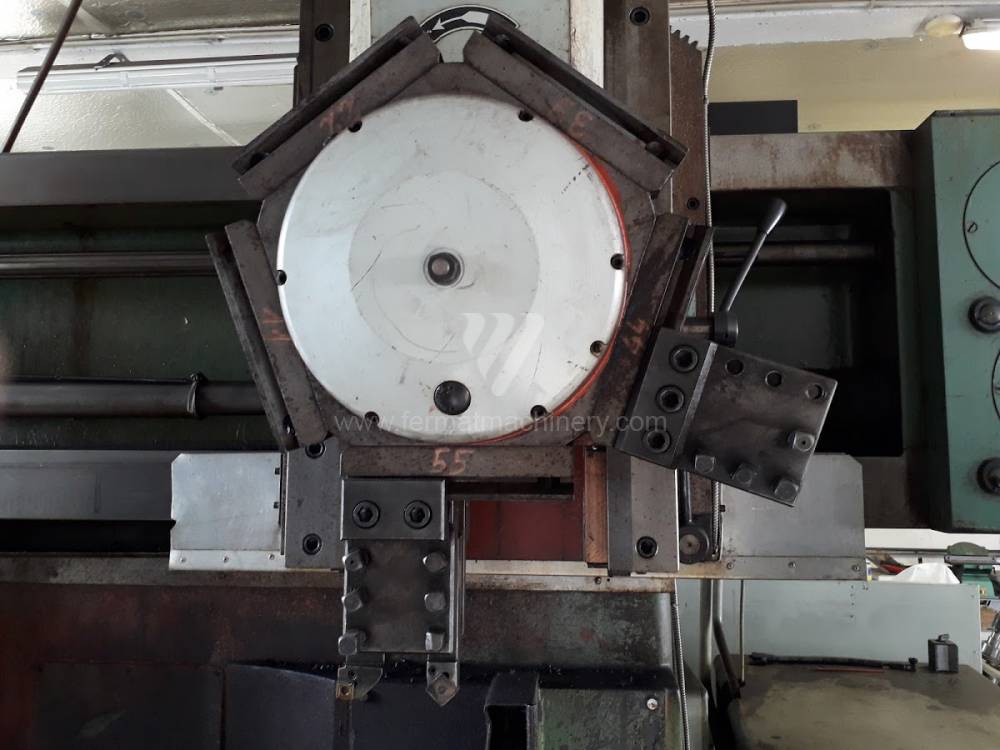

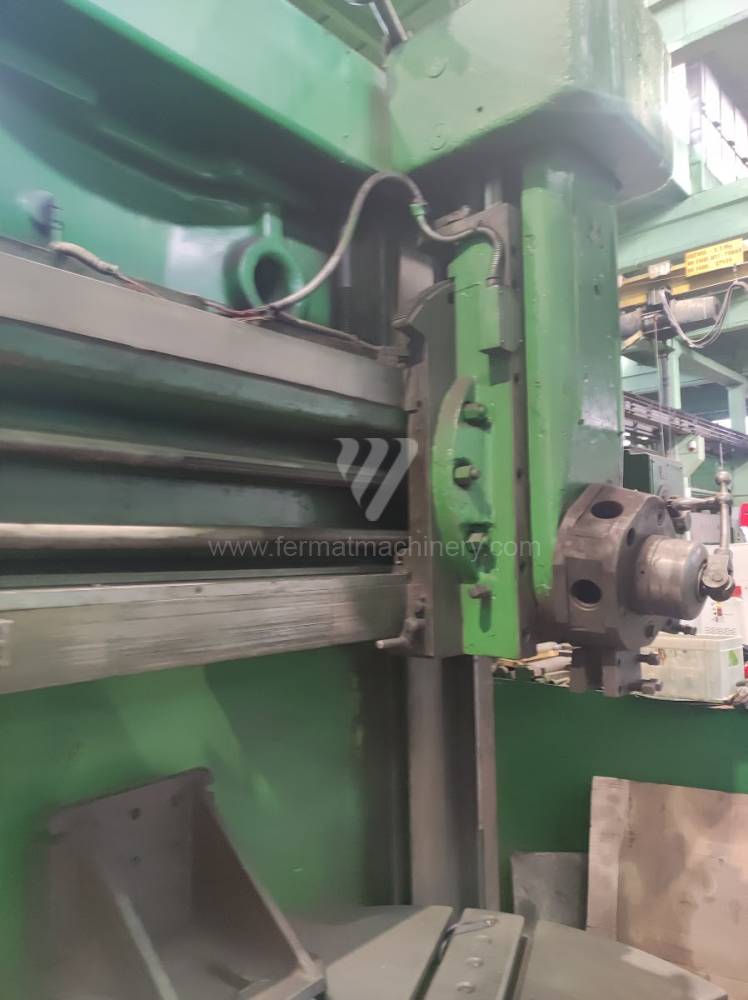

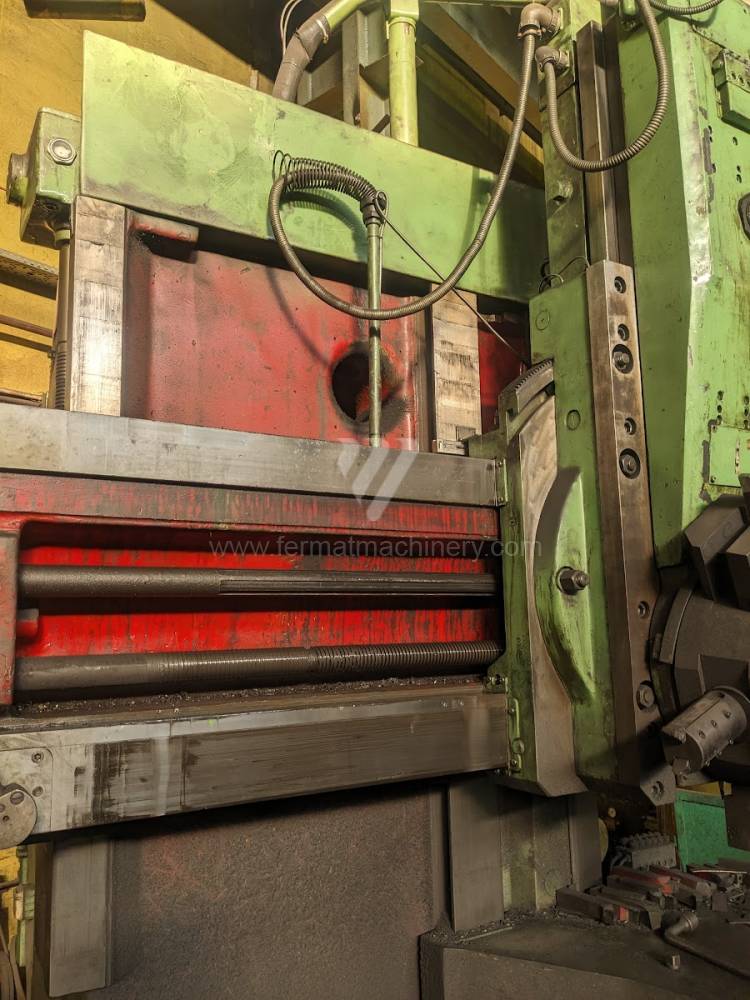

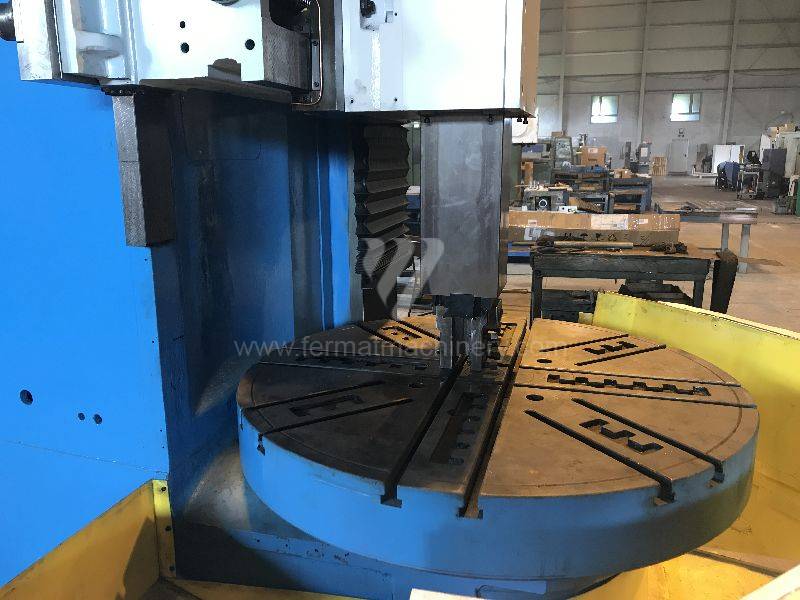

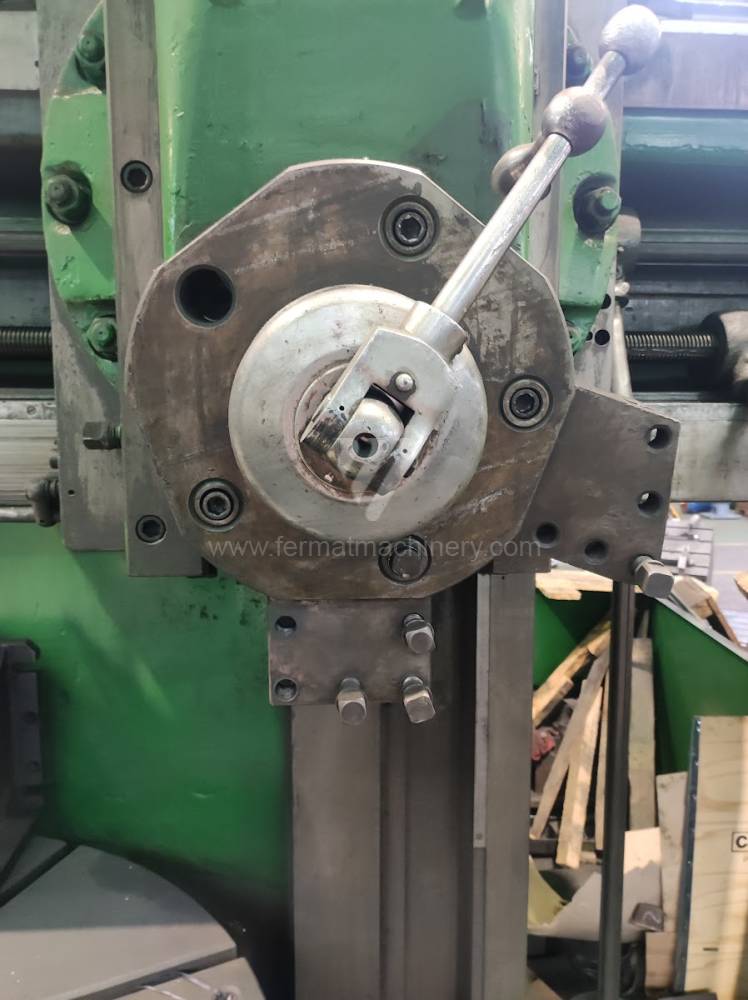

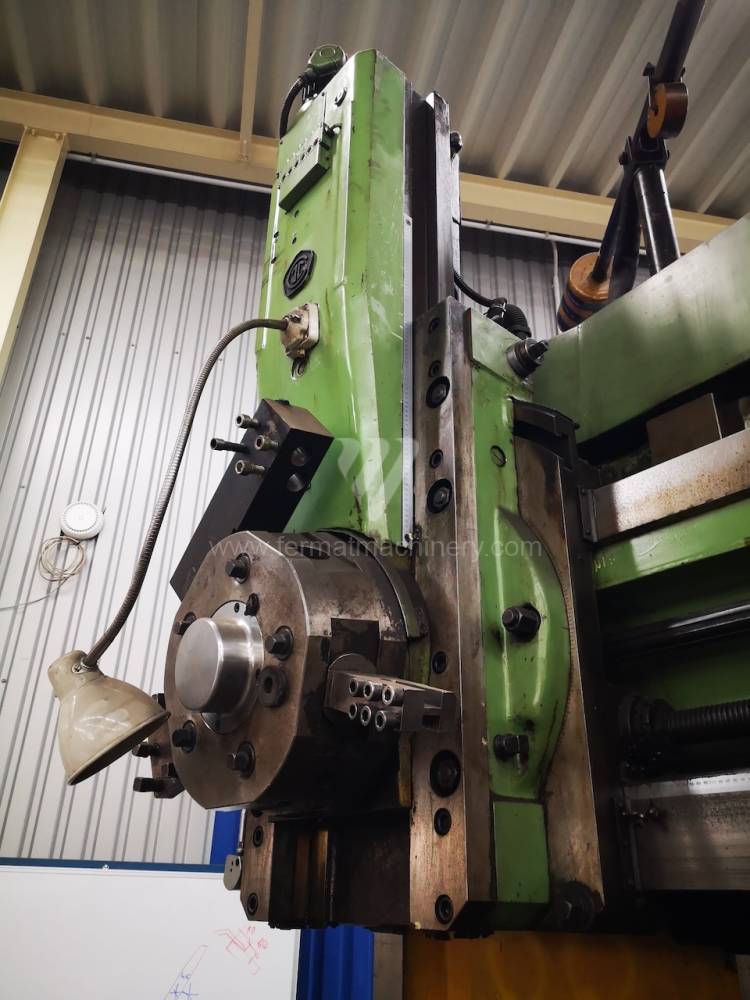

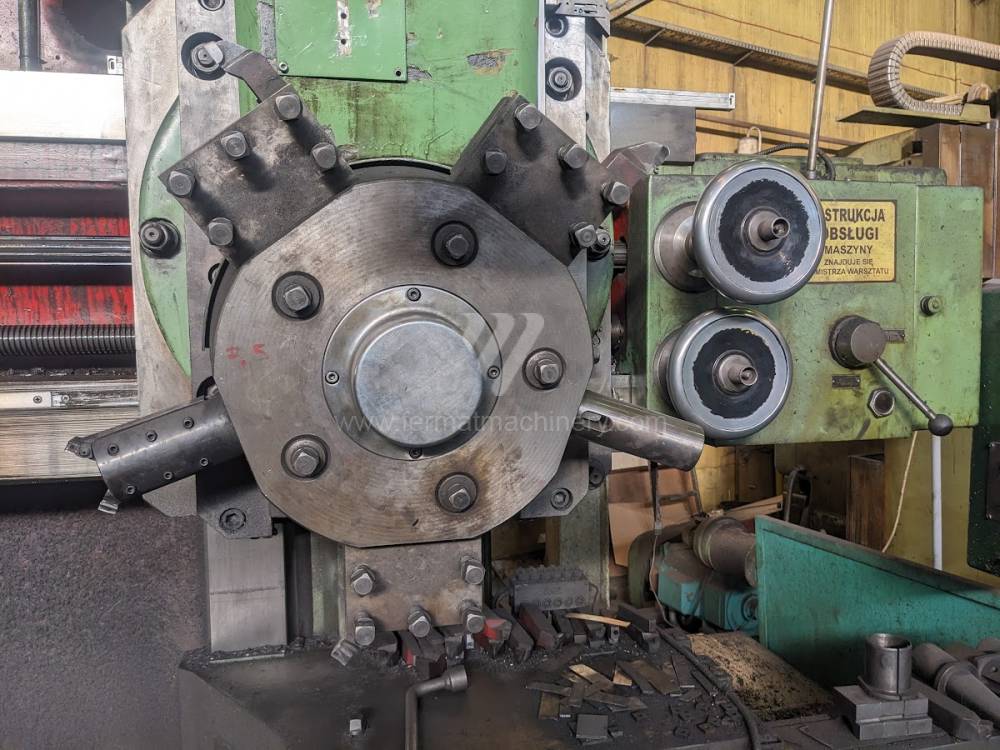

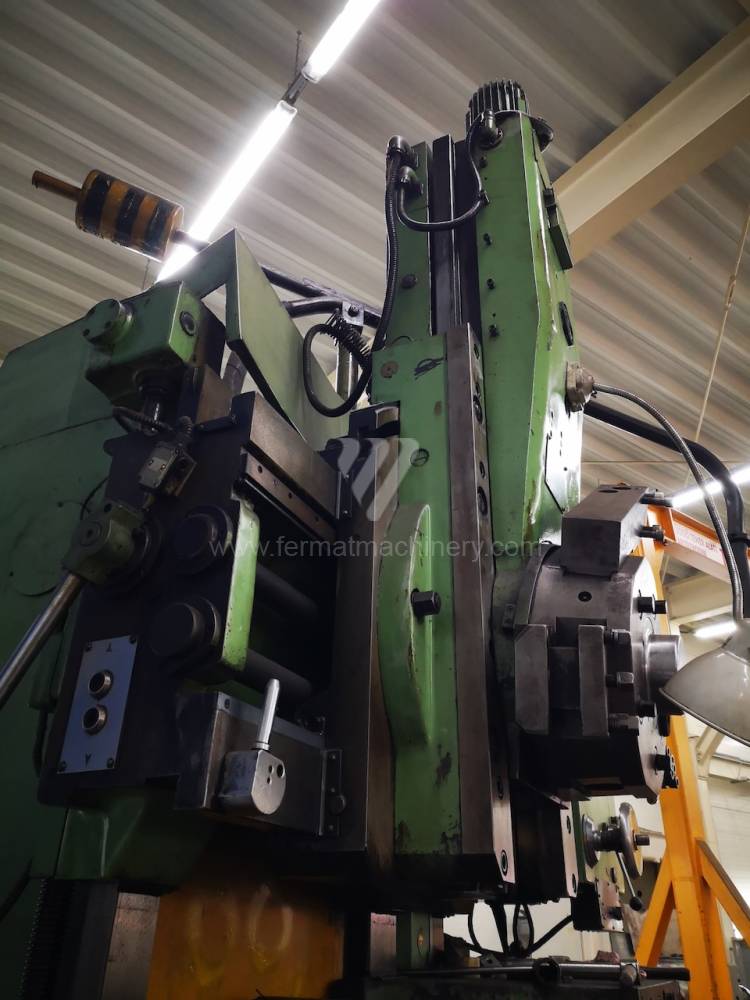

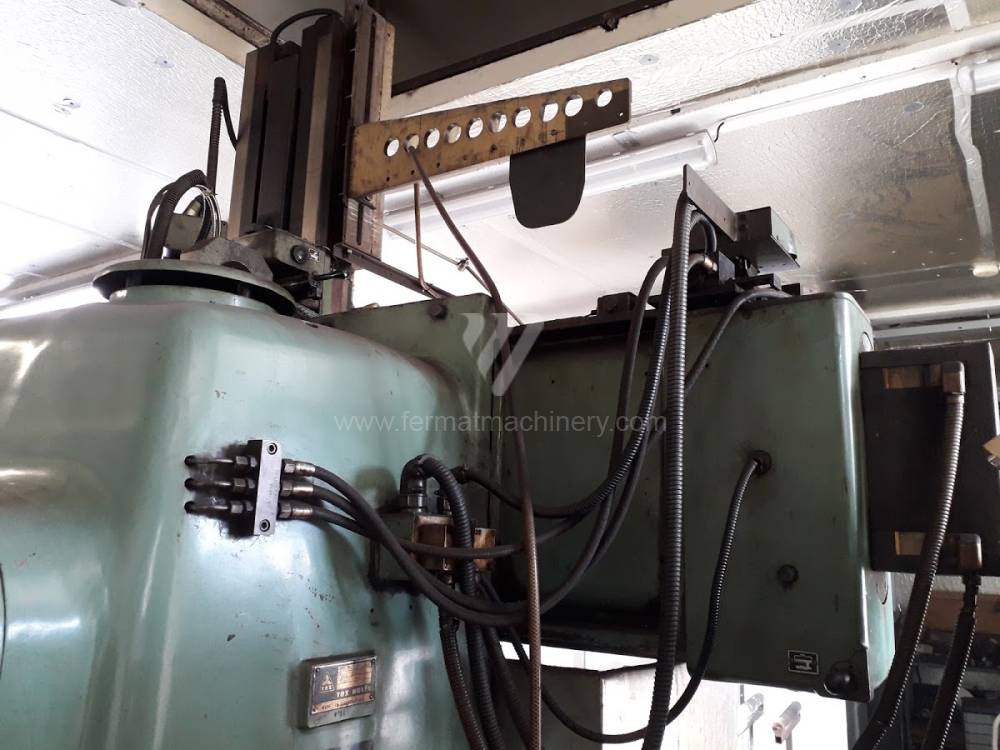

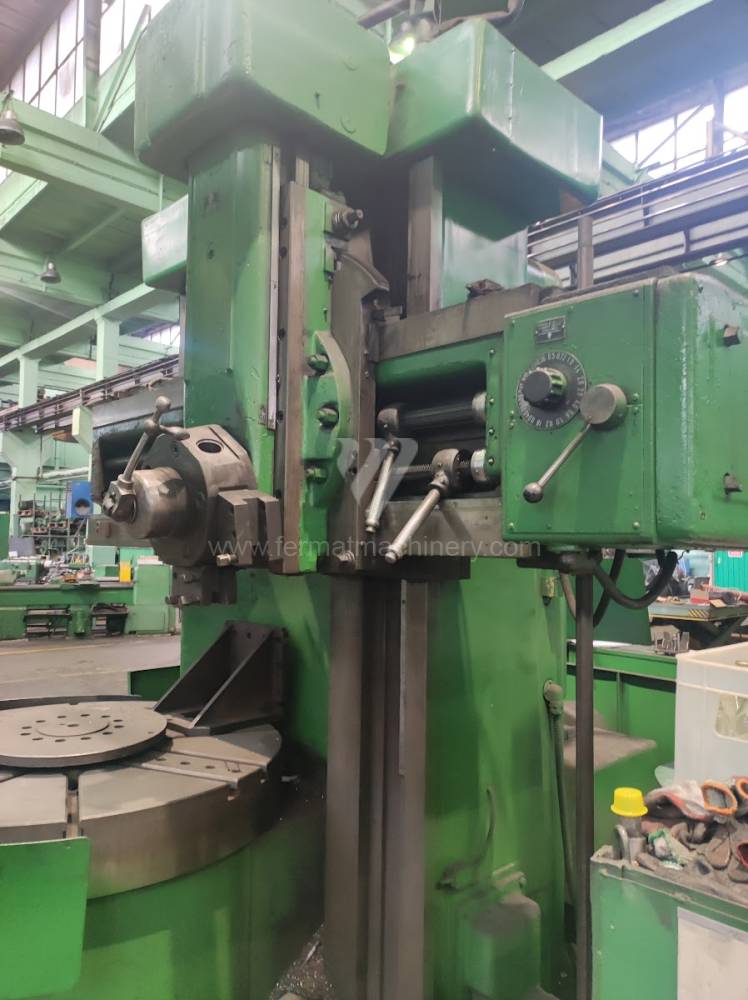

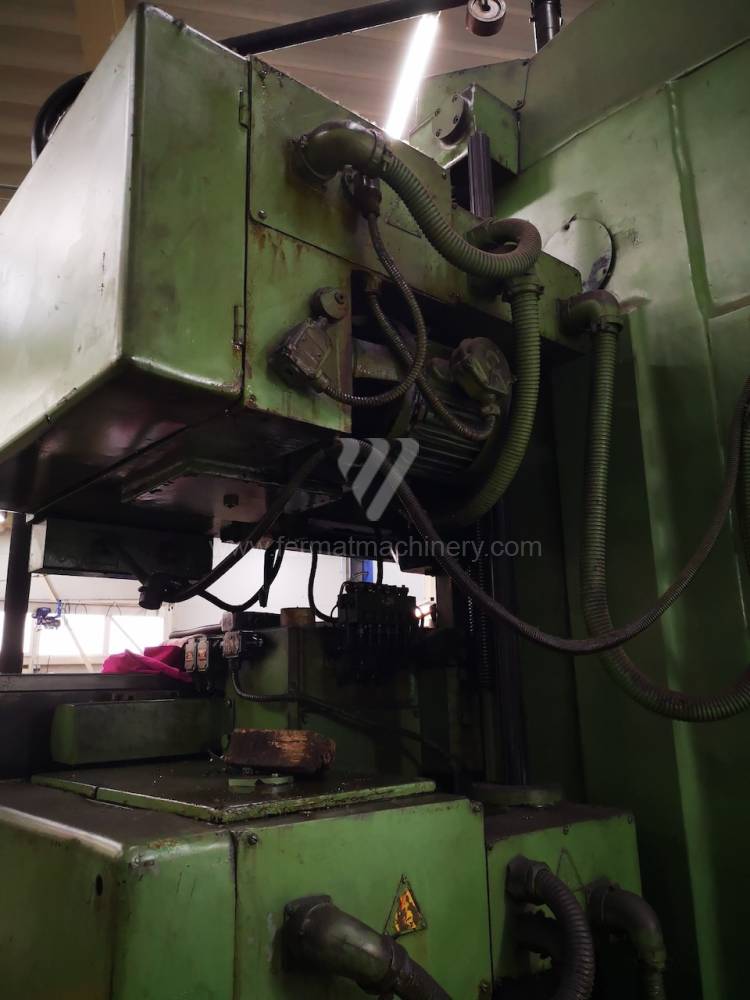

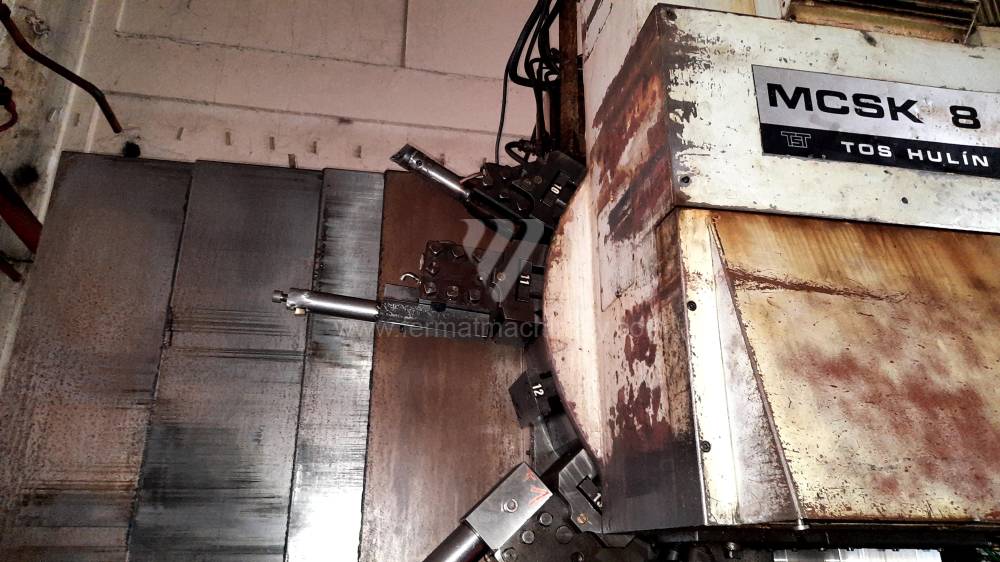

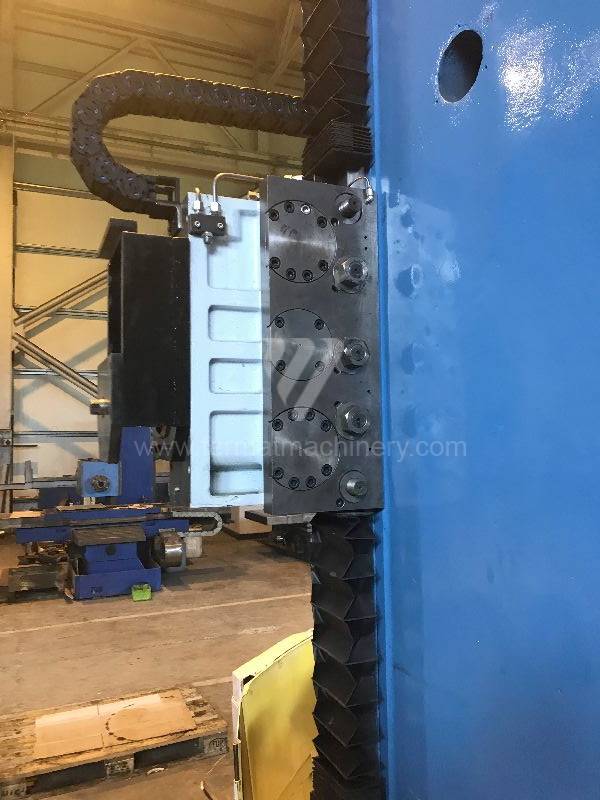

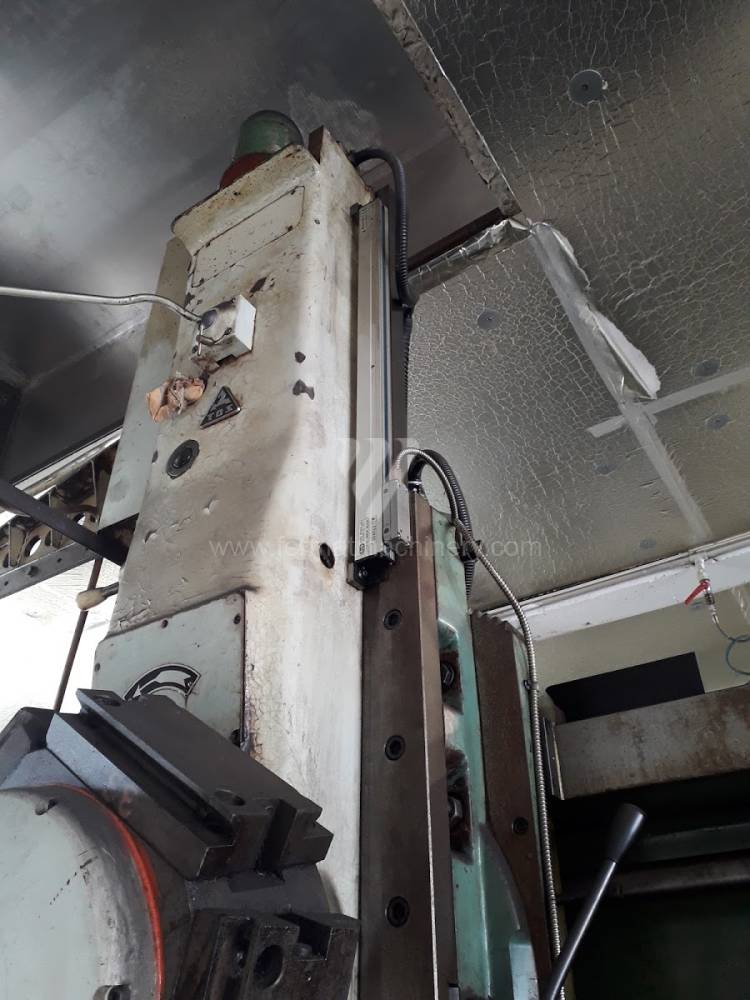

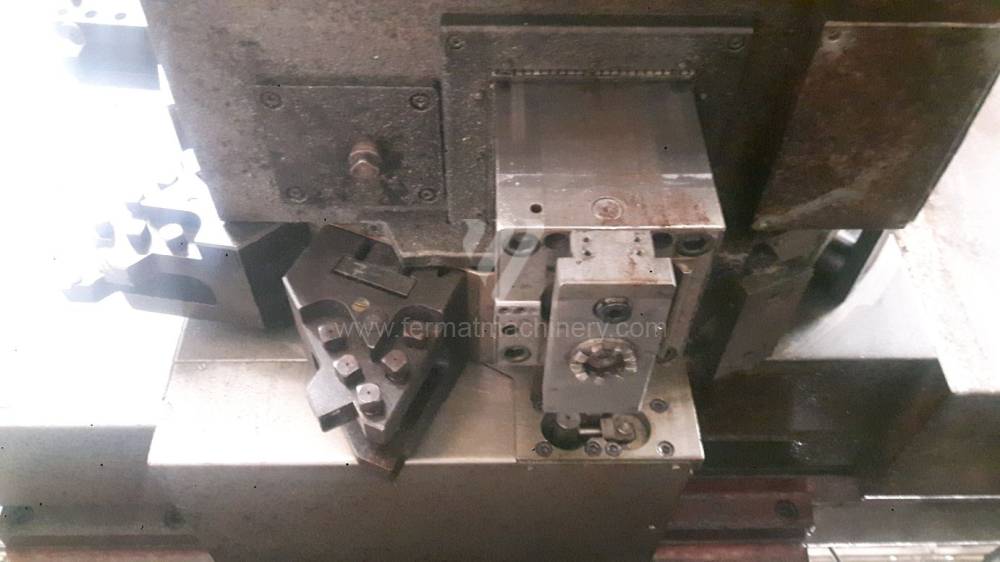

• Ram Guideways: The use of hardened and ground ways with PTFE-based liners (Turcite-B) ensures a low coefficient of static friction, eliminating stick-slip effects during fine finishing feeds.

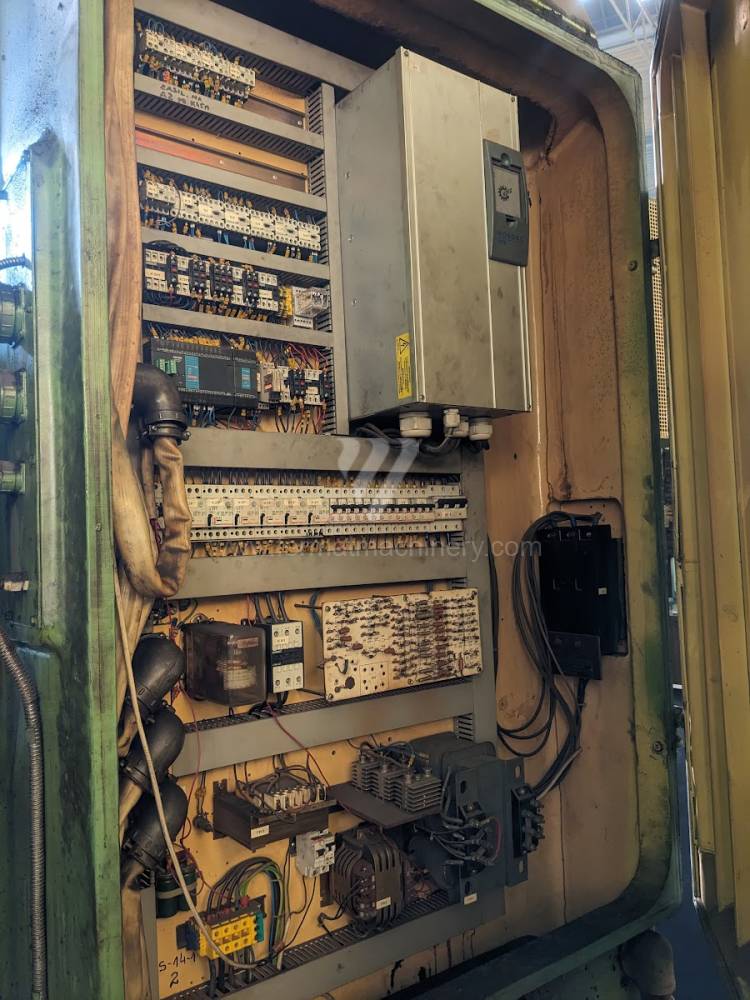

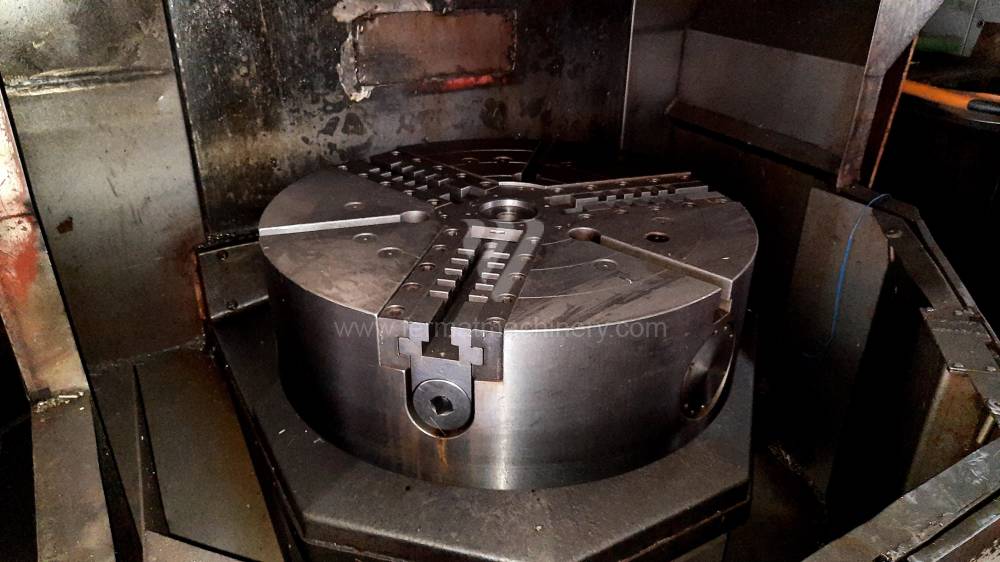

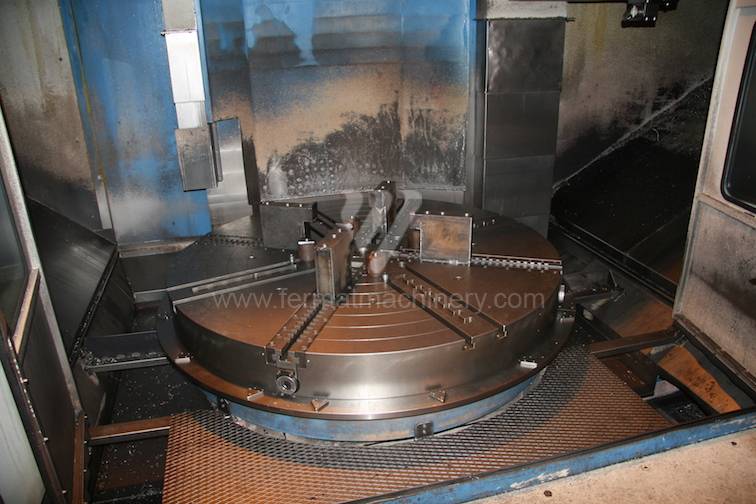

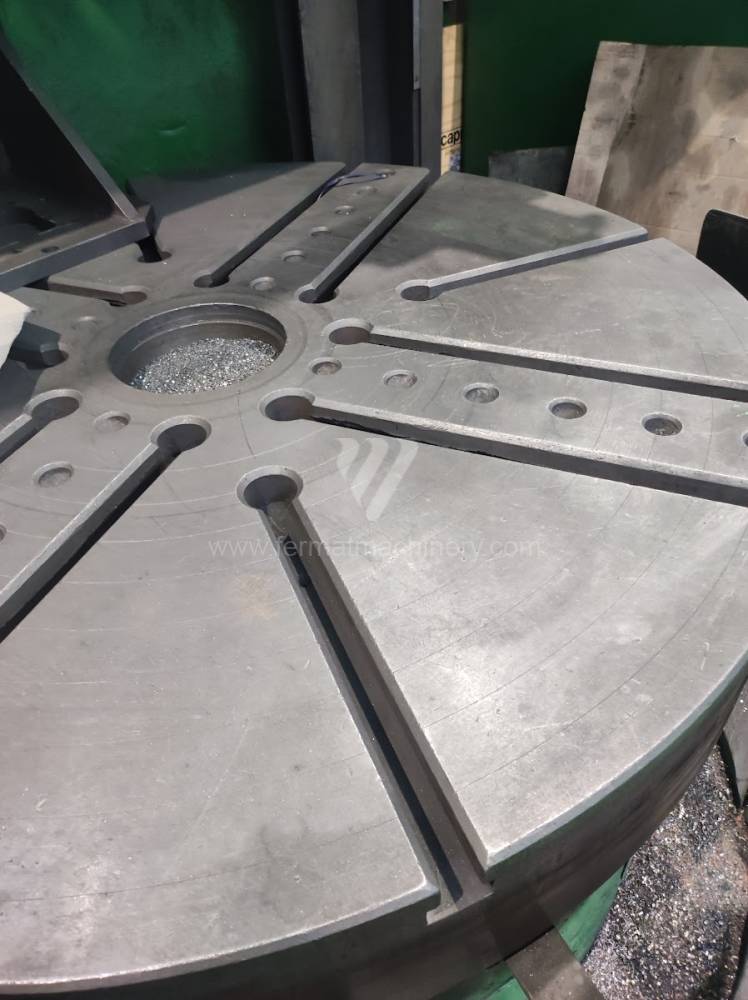

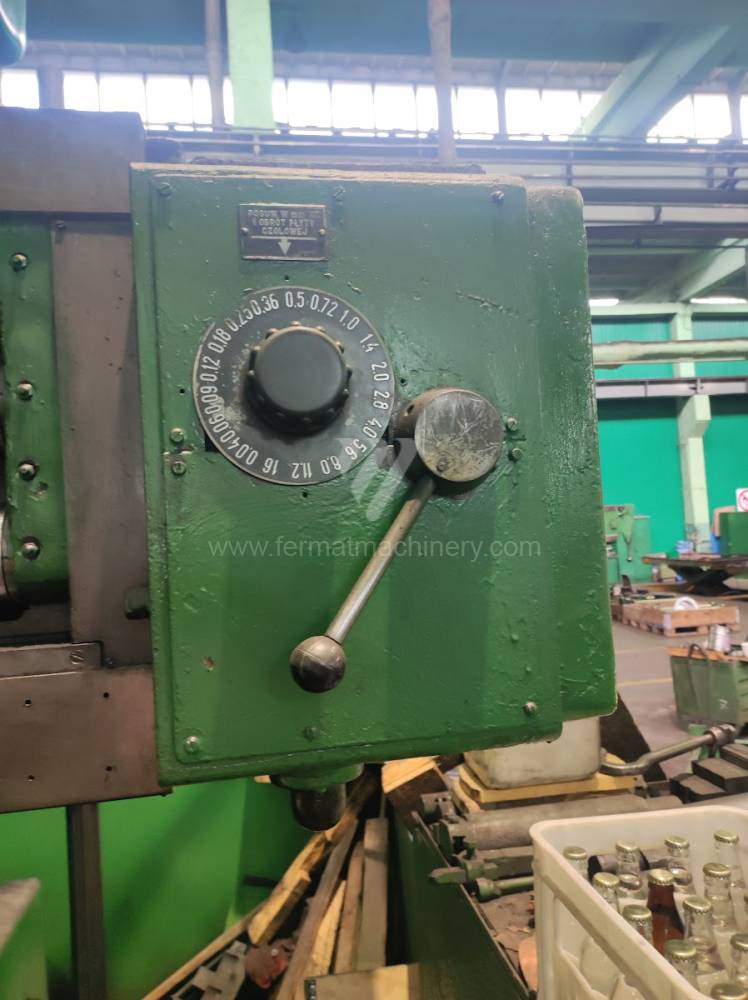

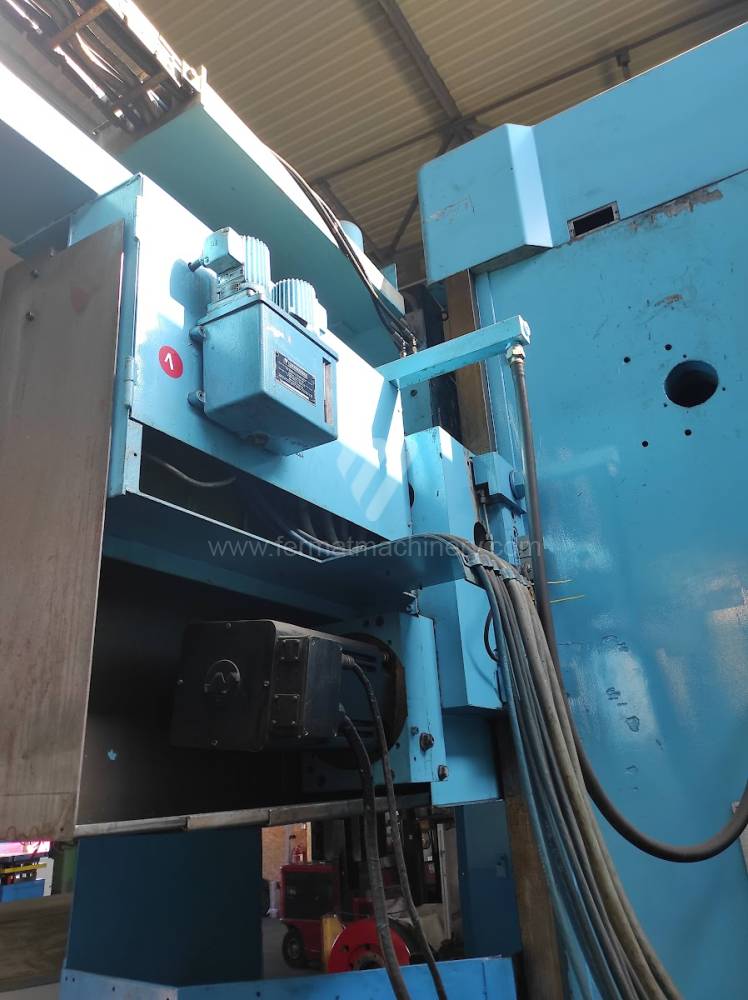

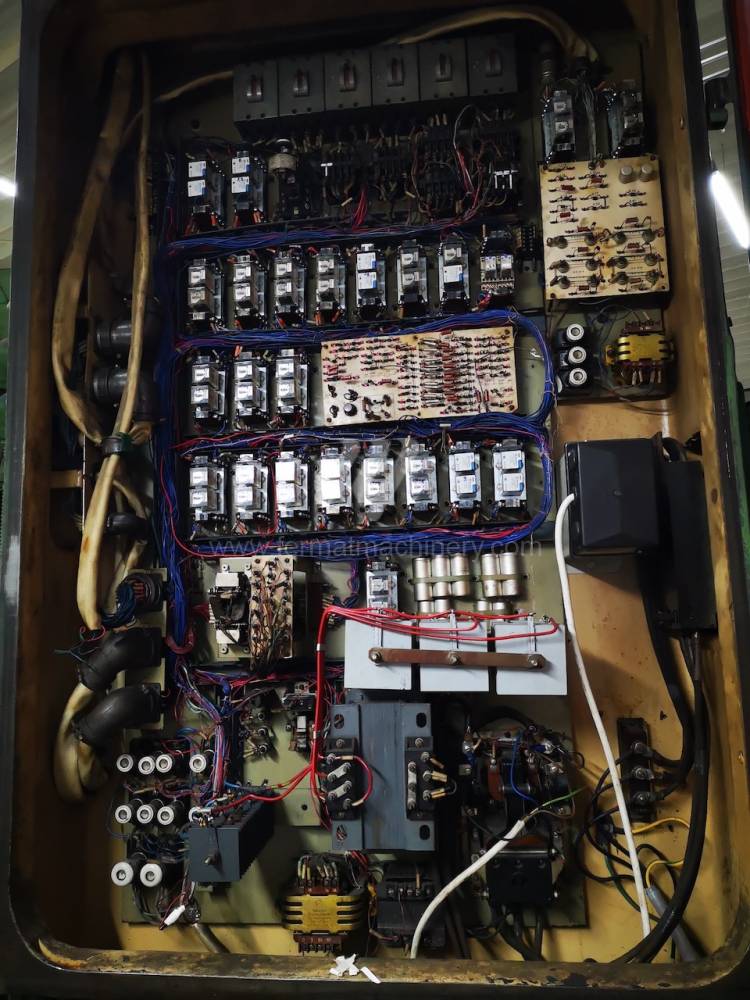

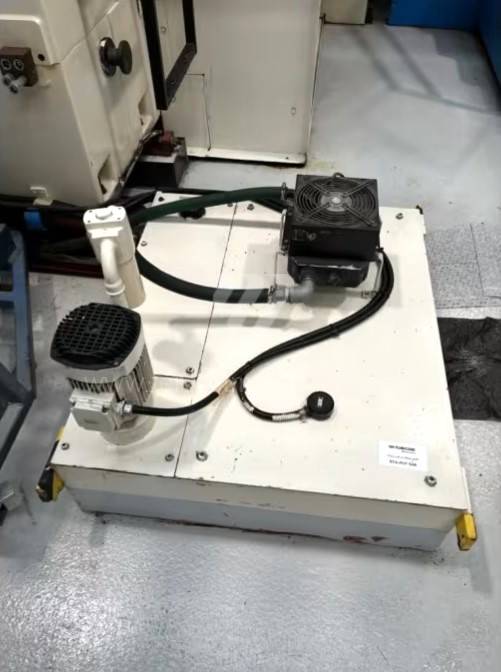

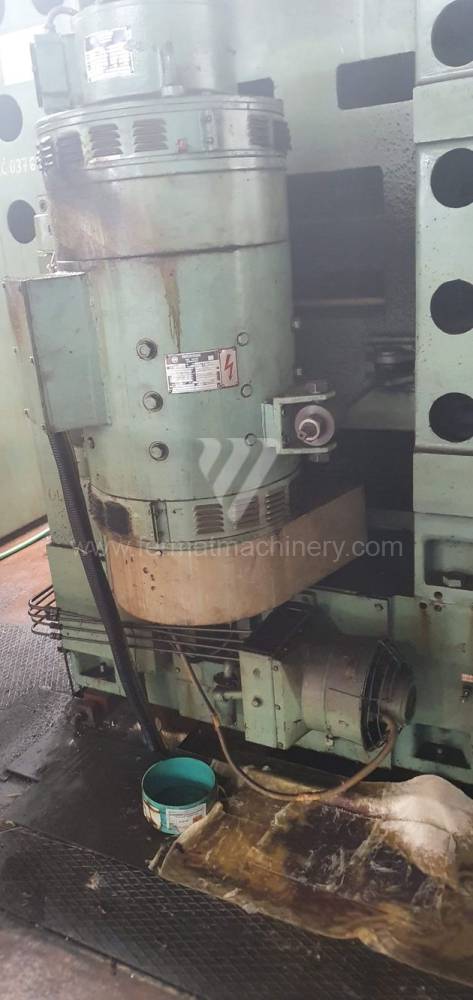

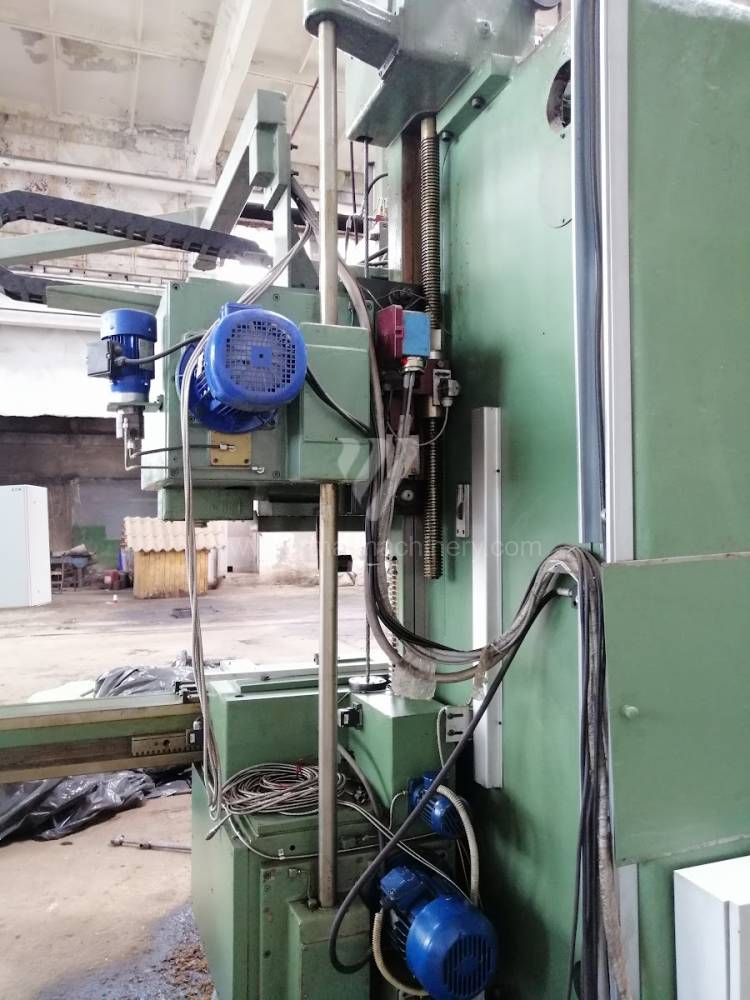

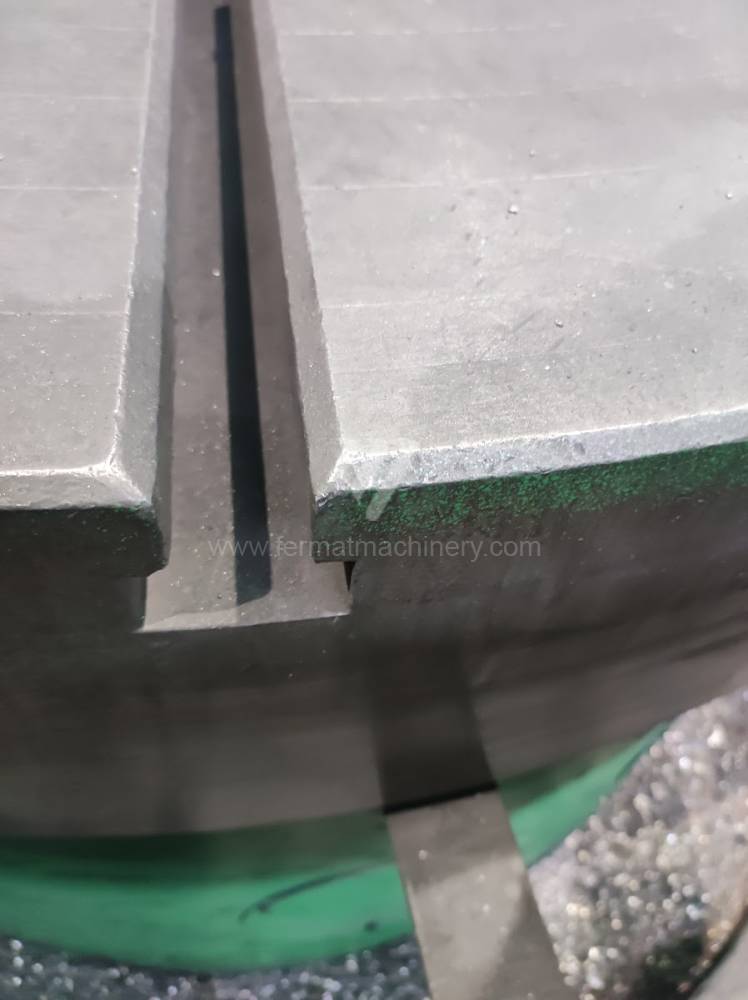

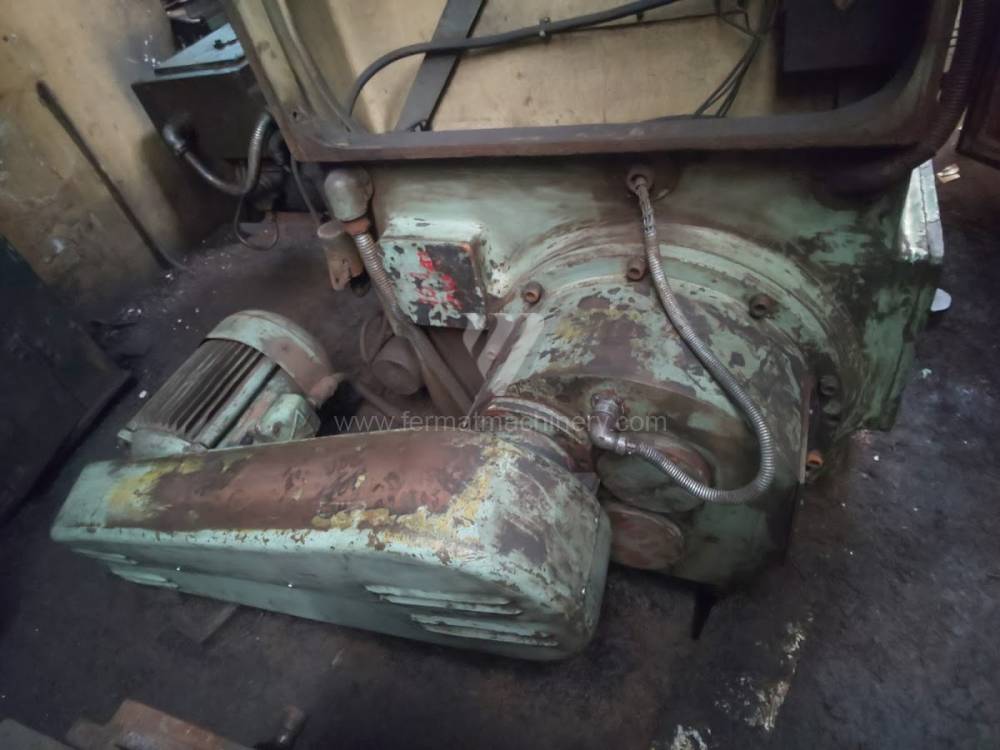

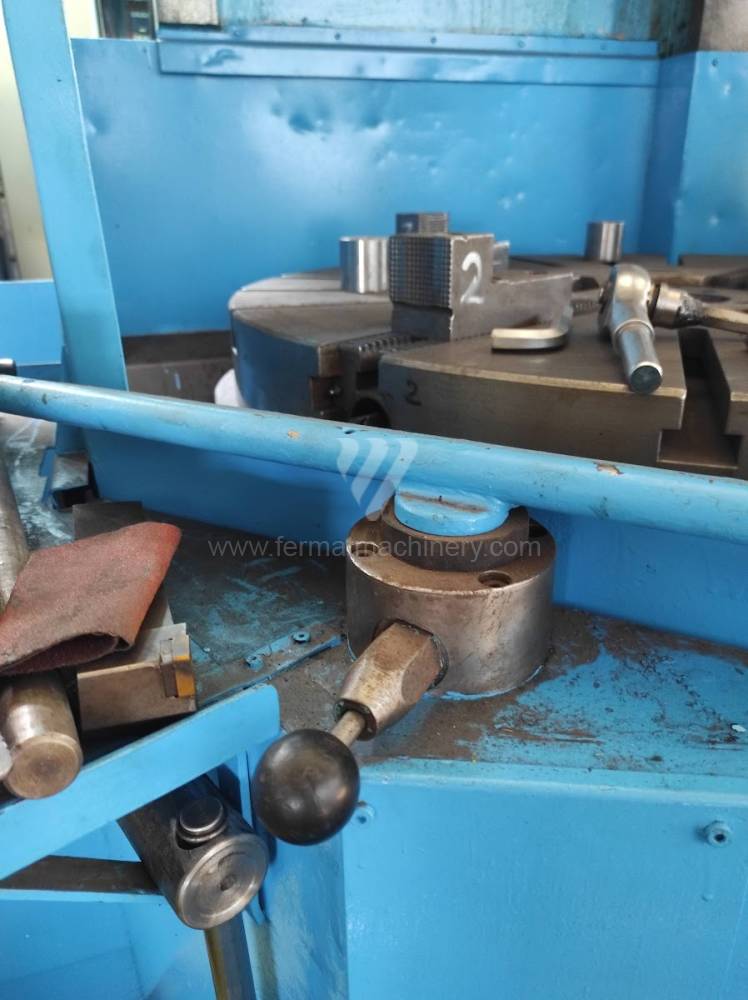

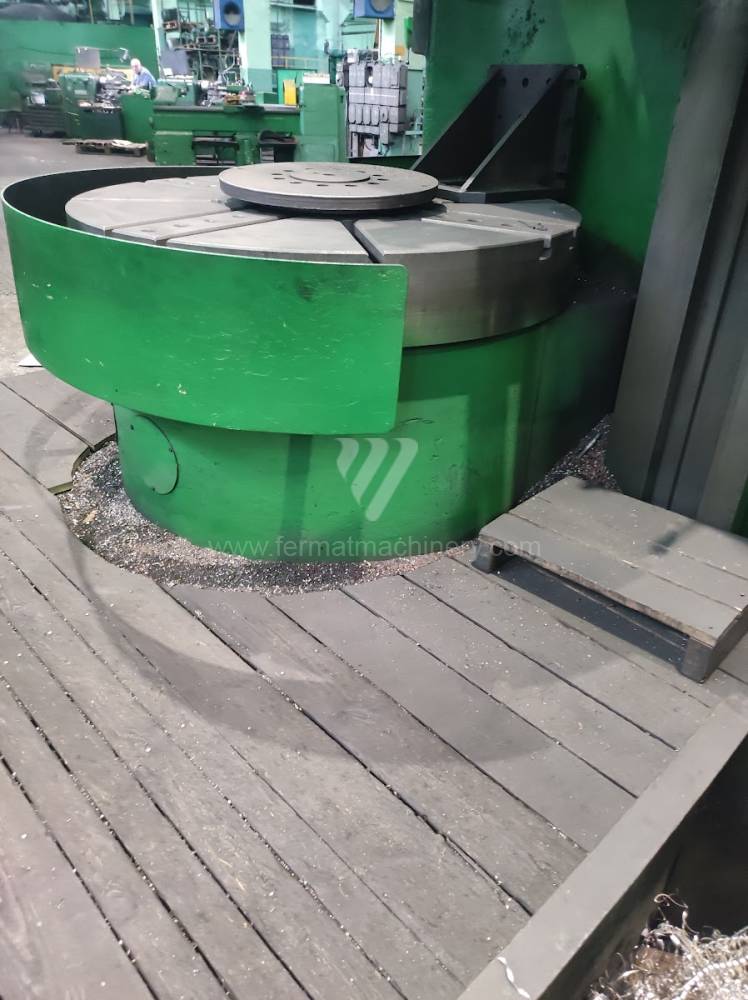

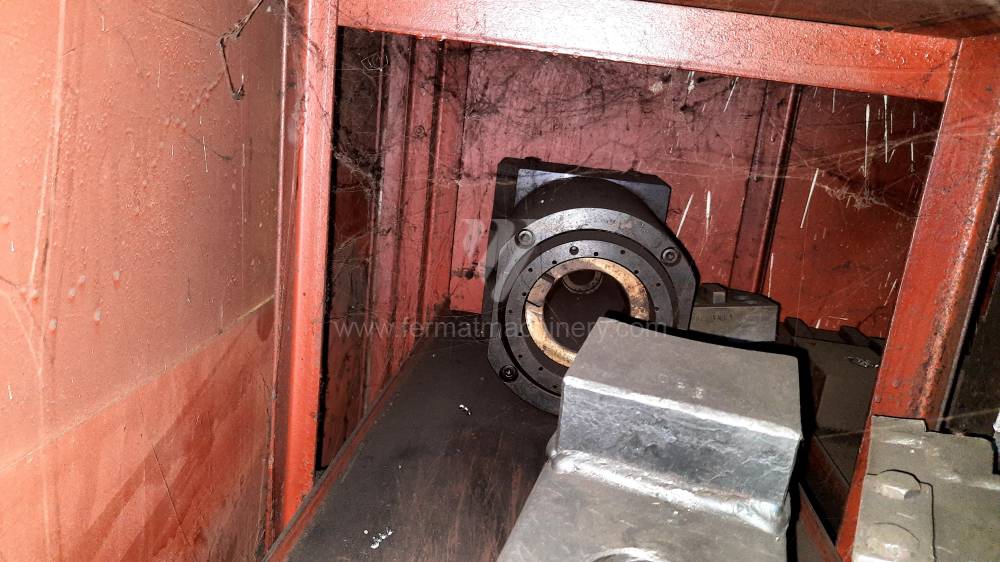

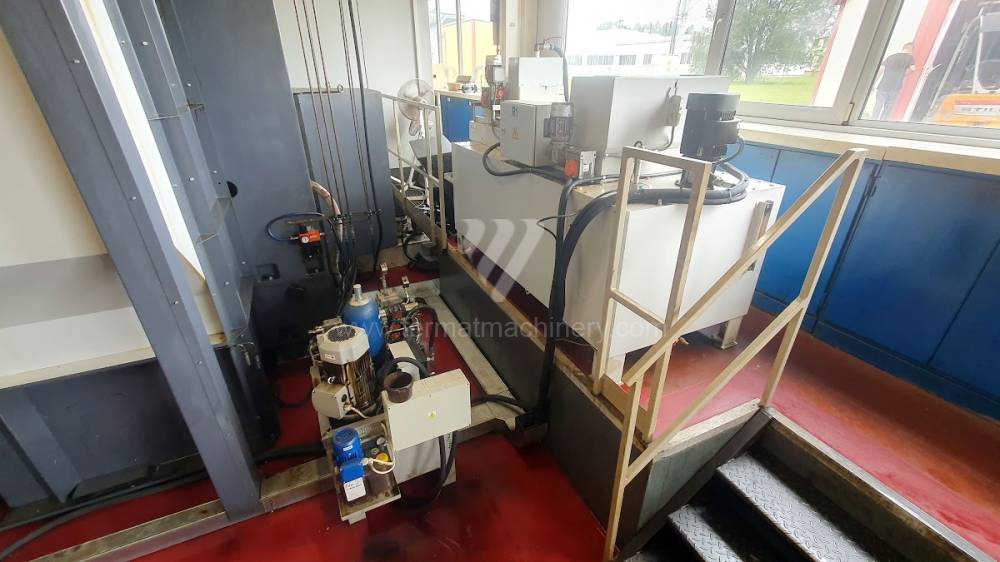

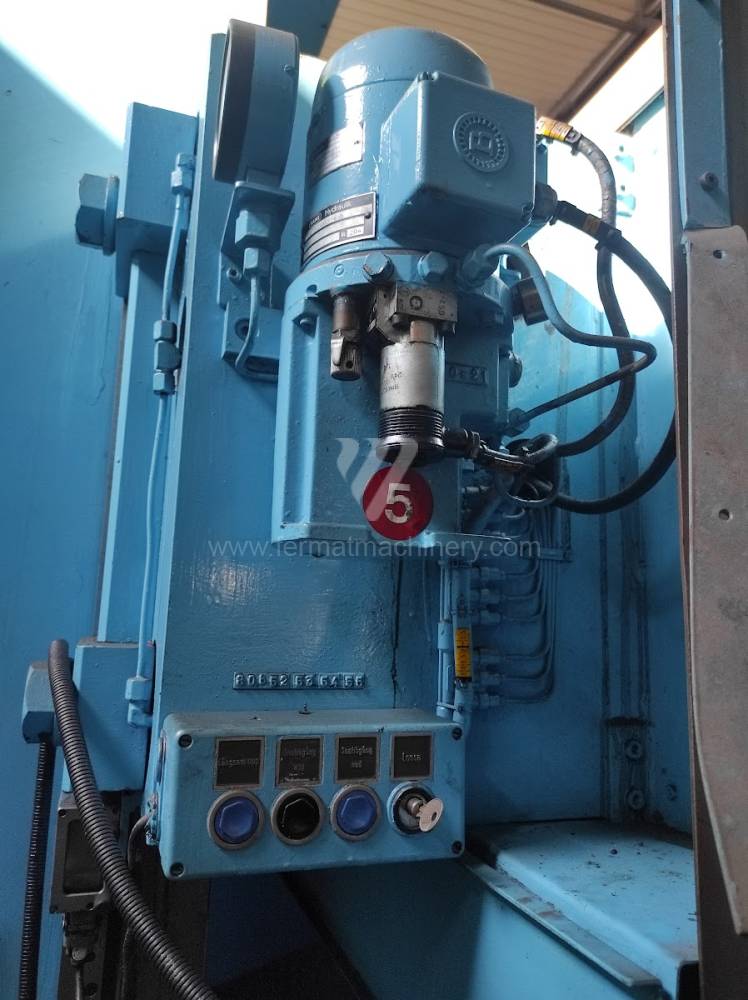

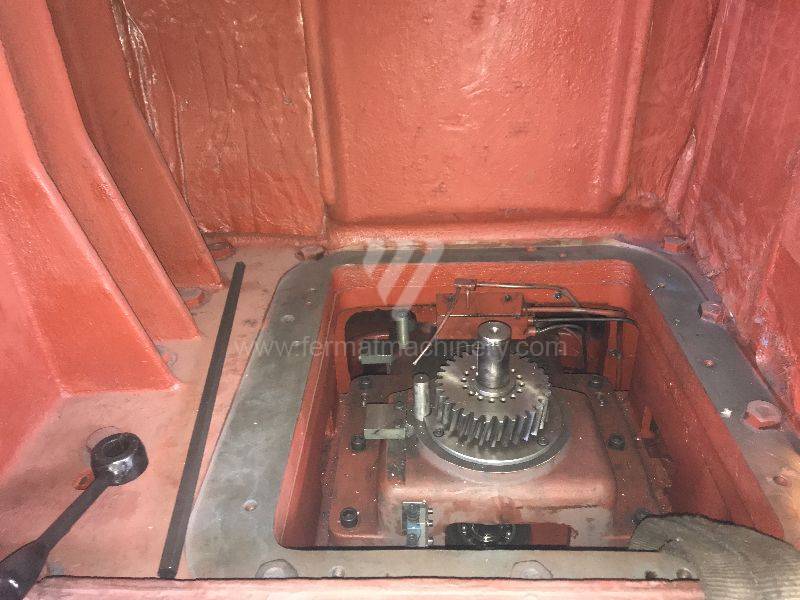

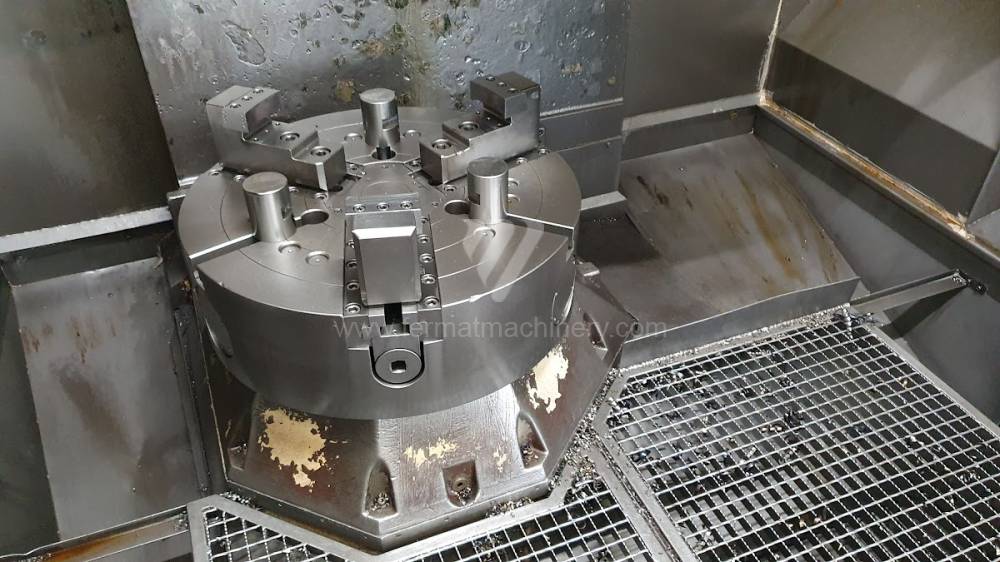

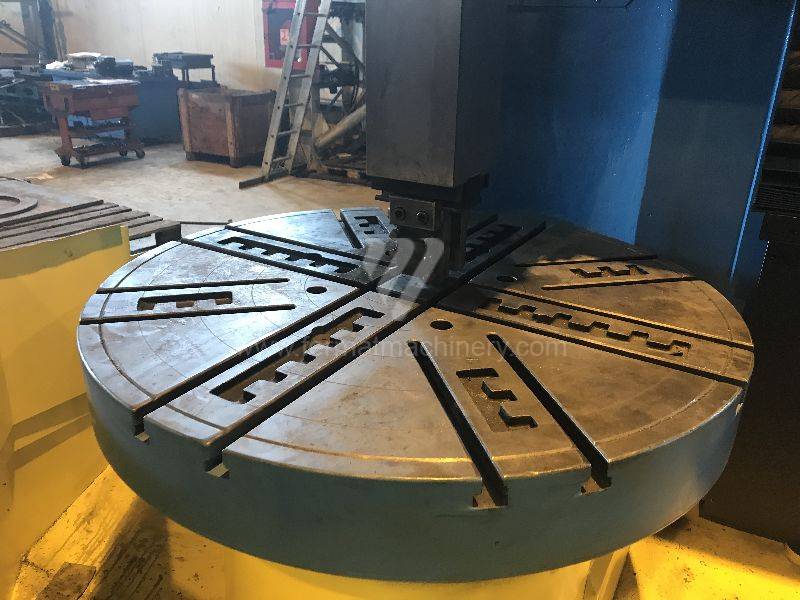

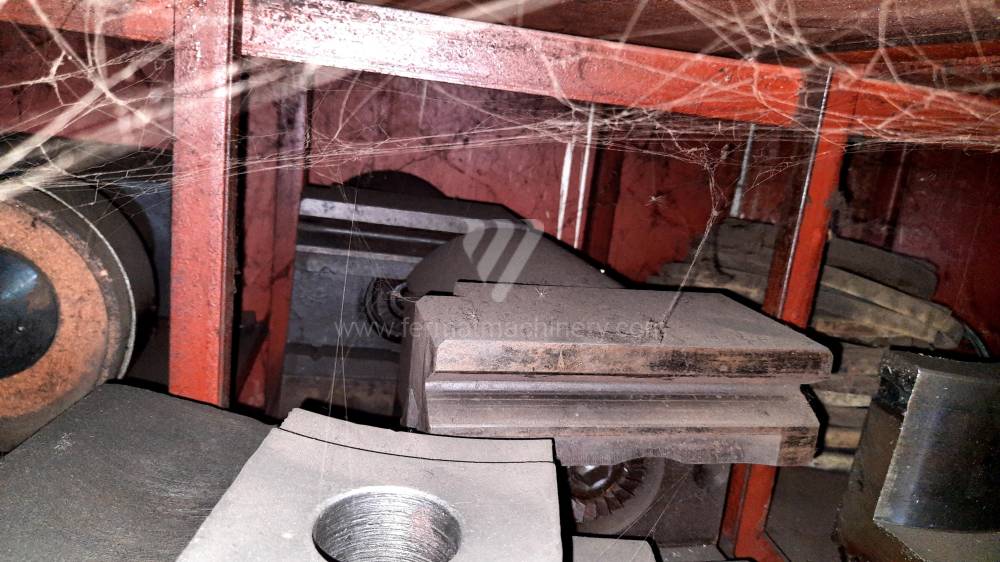

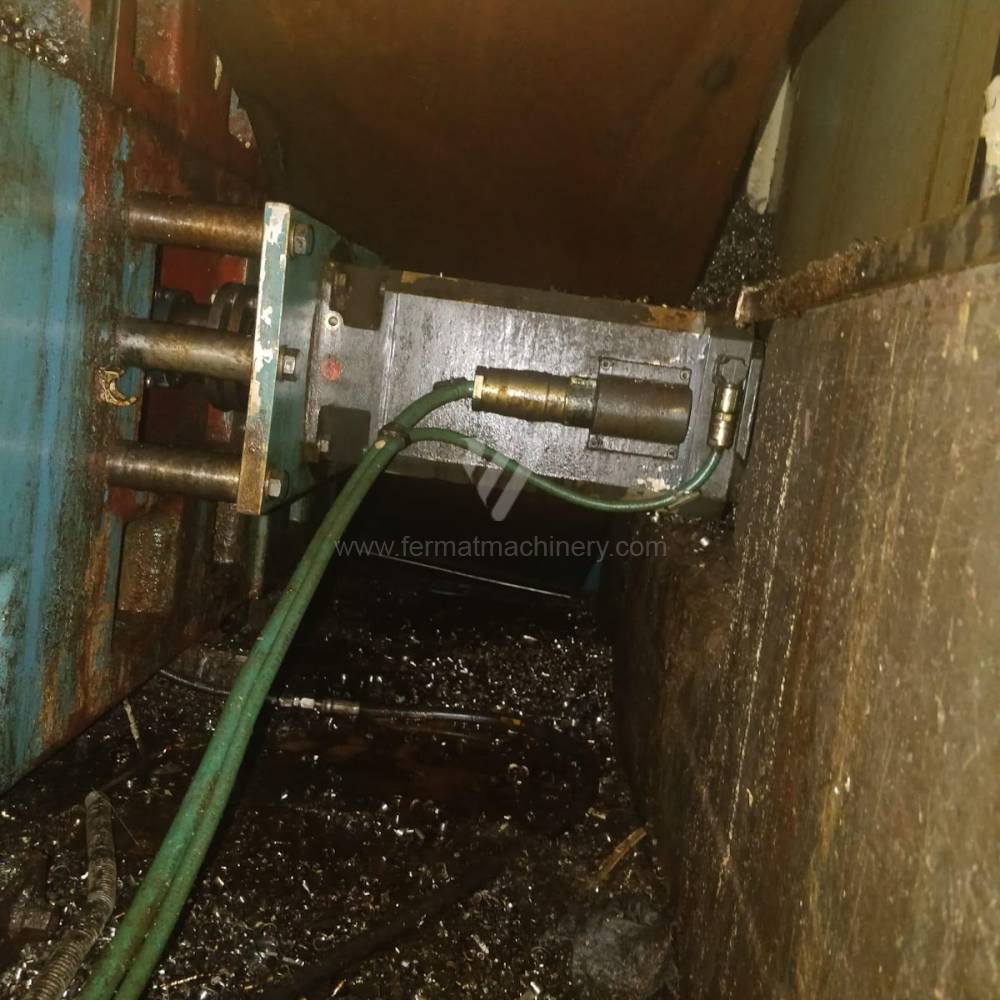

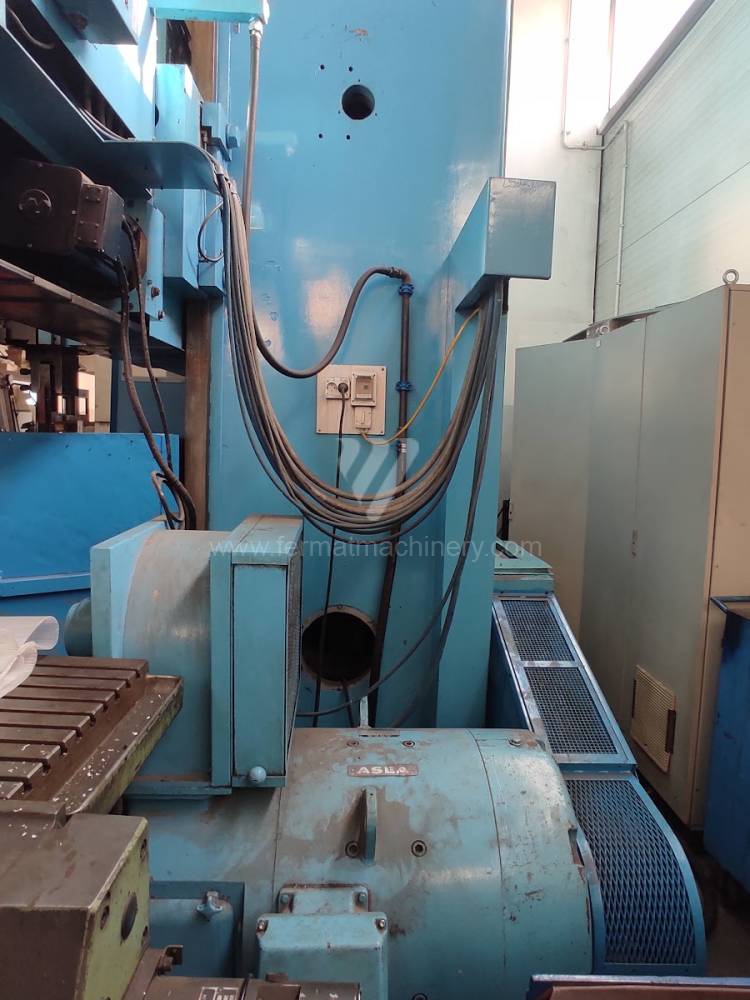

• Table Drive: Asynchronous motors coupled with multi-stage gearboxes allow for high torque at minimum RPM, essential for processing hard-to-machine materials (e.g., heat-resistant steels).

Strategic Block: Operational Economics and Investment Value

From an owner's perspective, purchasing a used single-column VBM optimizes CAPEX while maintaining high process flexibility. The ability to accommodate a workpiece larger than the chuck diameter expands the production portfolio without requiring investment in much more expensive double-column centers.

Cost and Efficiency Analysis:

• Rapid Payback: Lower acquisition costs compared to new machines mean reaching the break-even point 40–60% faster, freeing up cash flow for modern tooling systems.

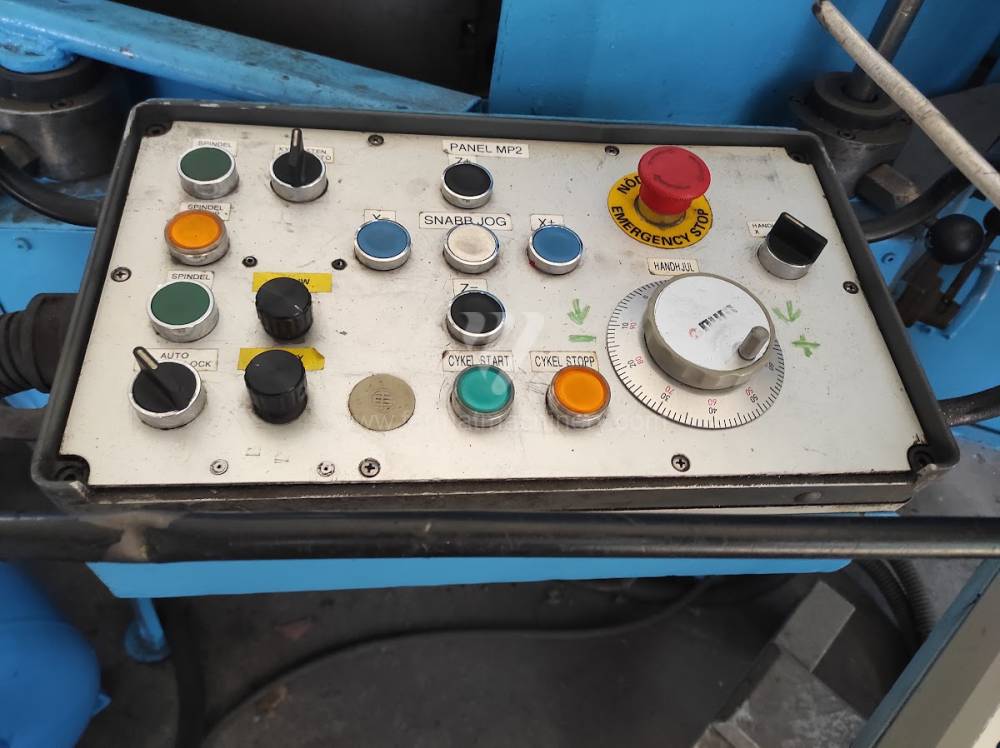

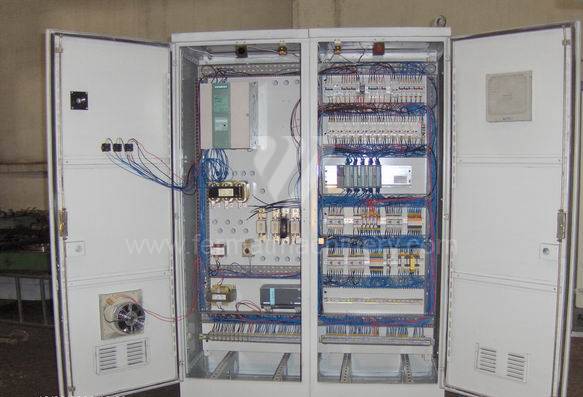

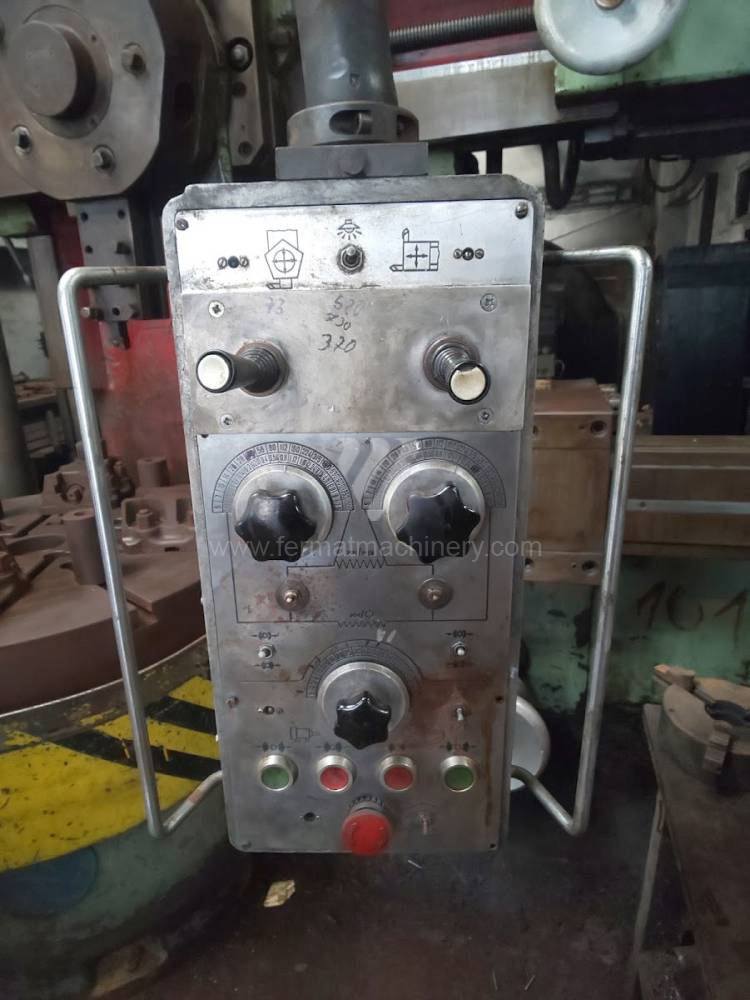

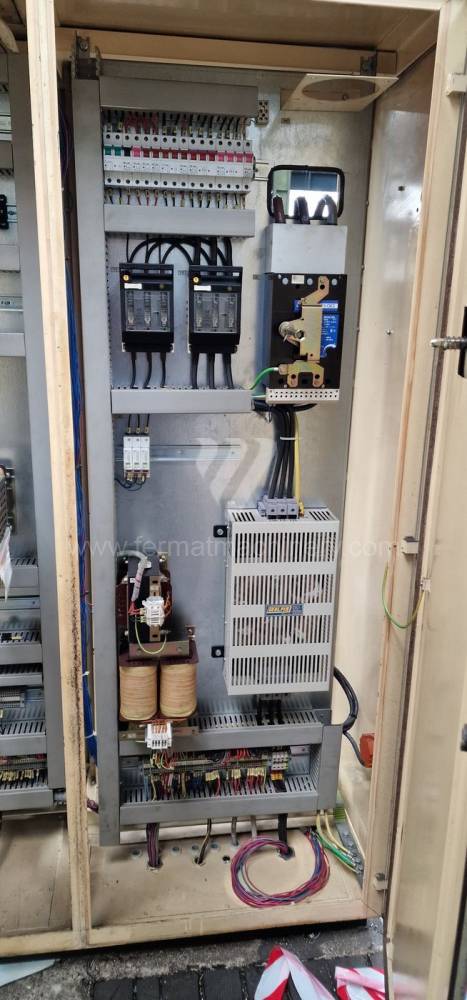

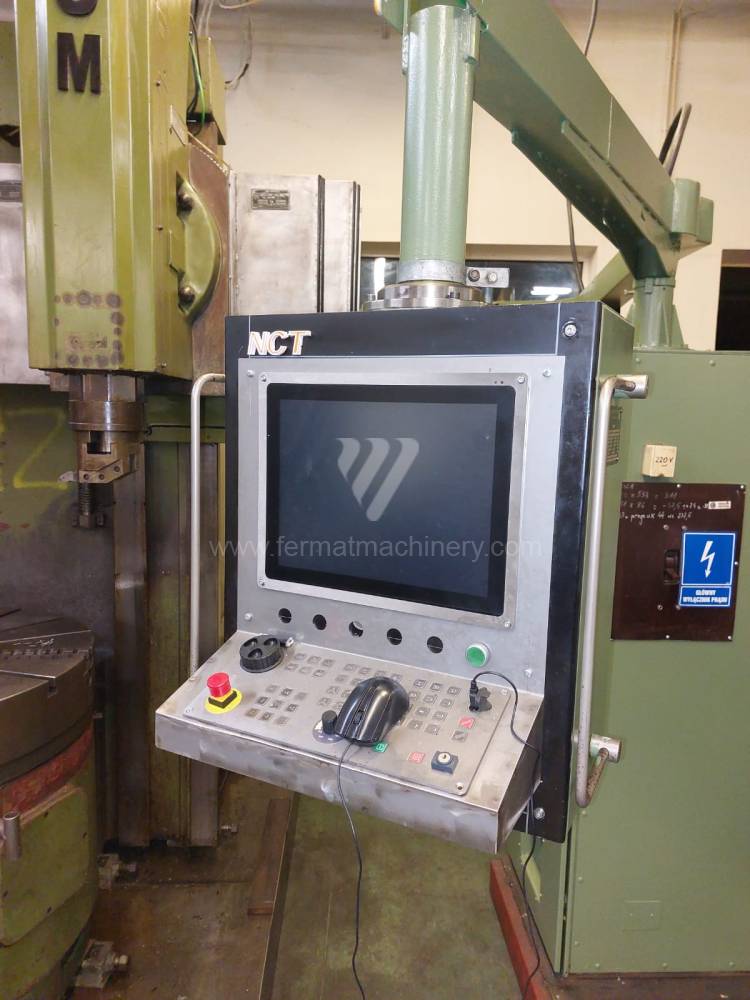

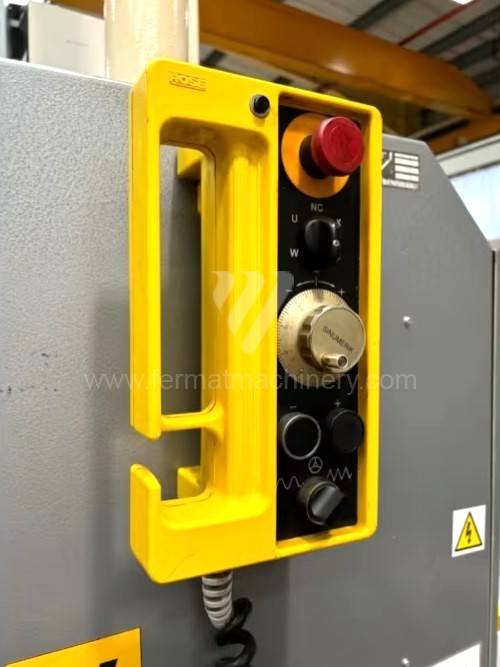

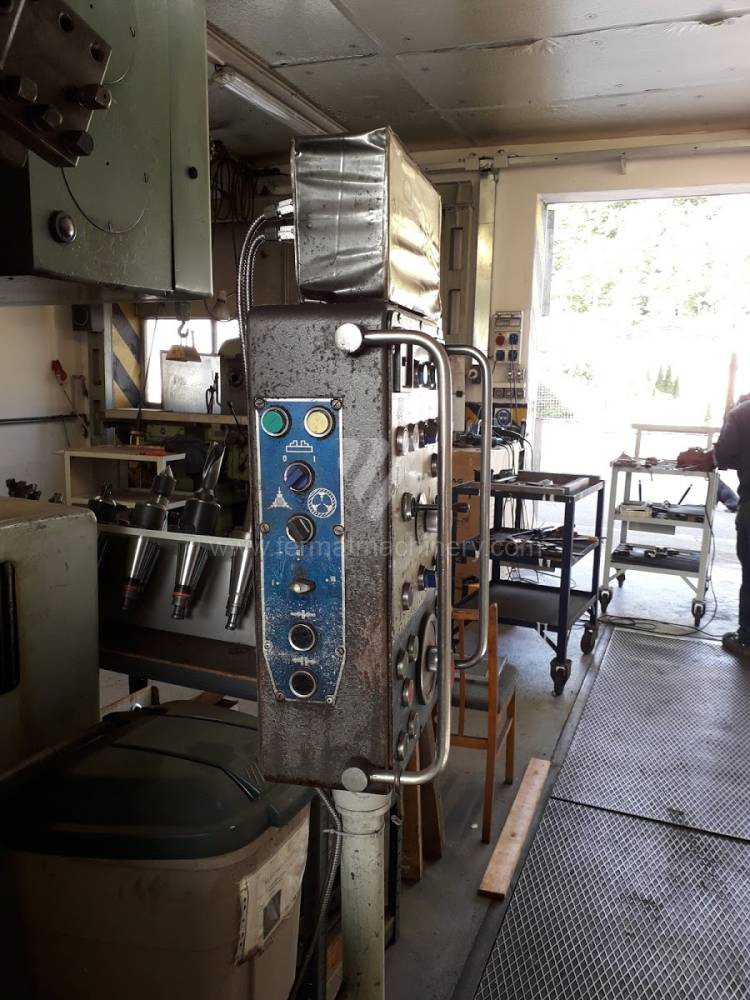

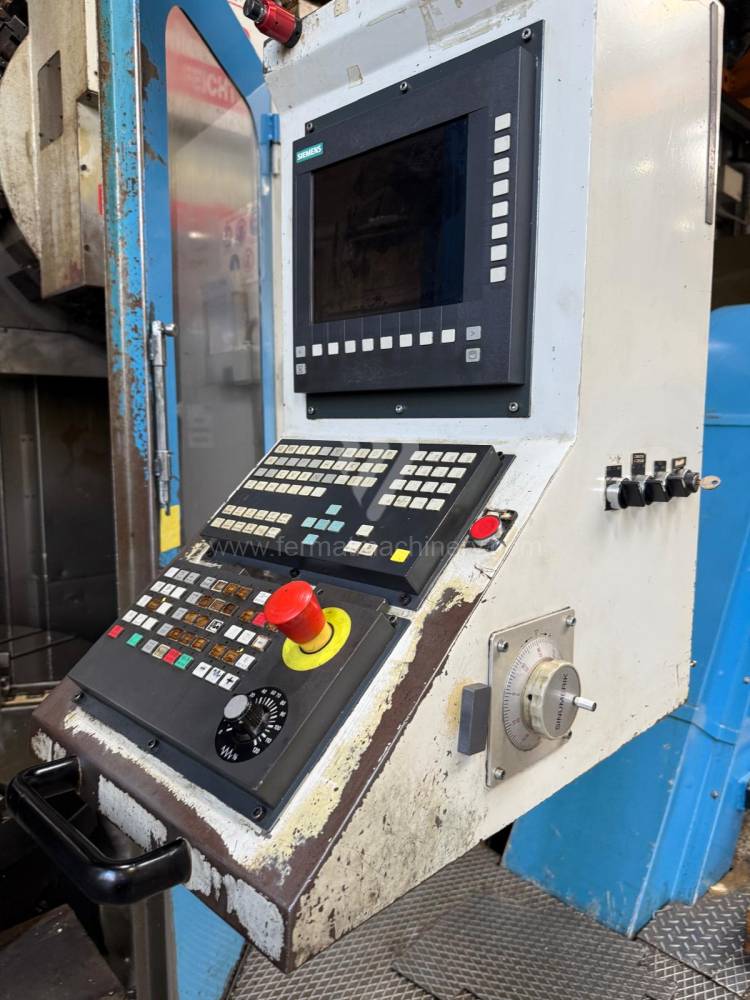

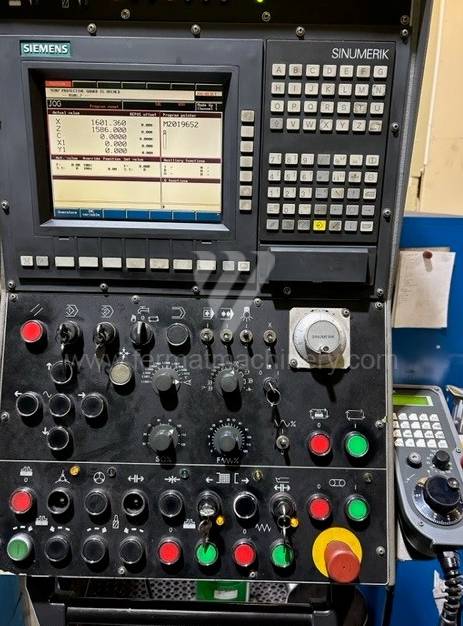

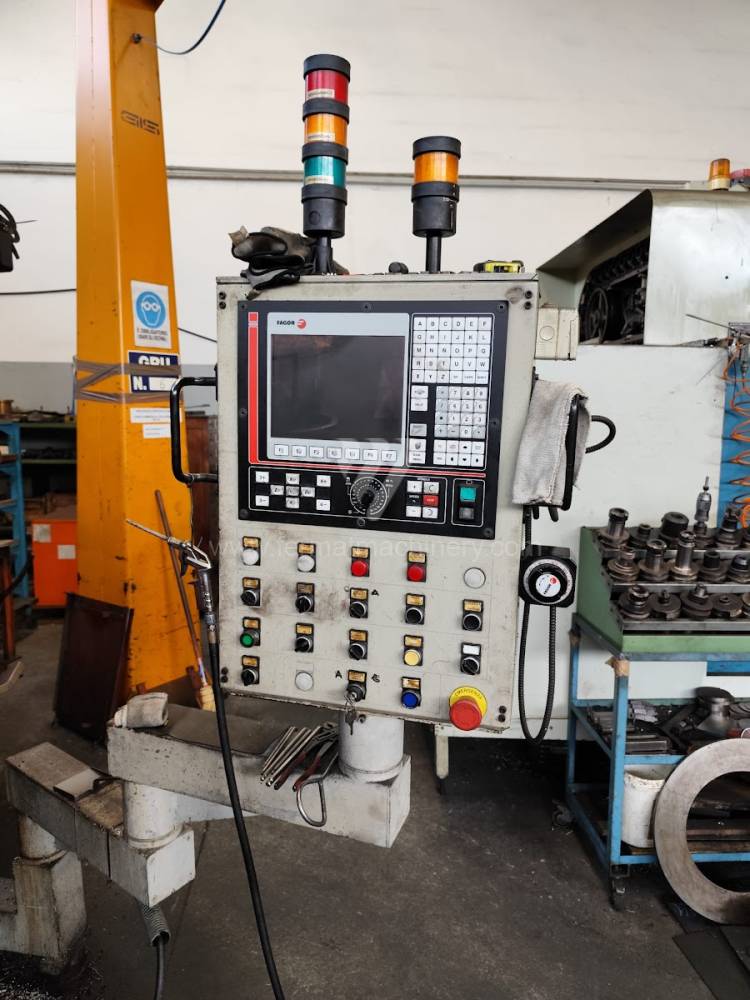

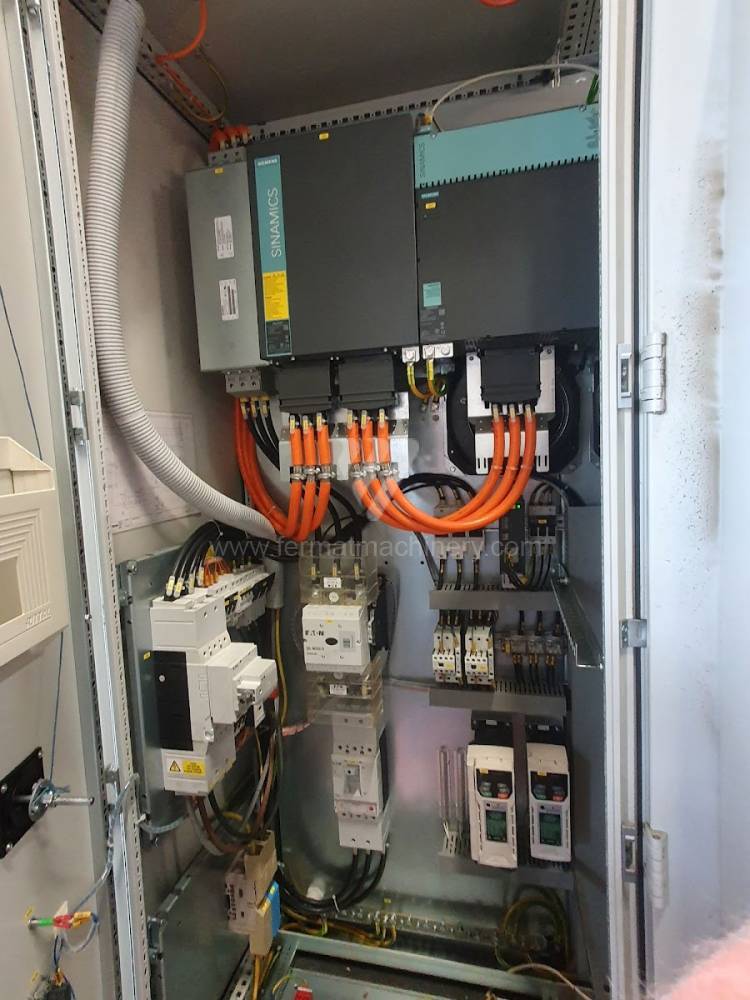

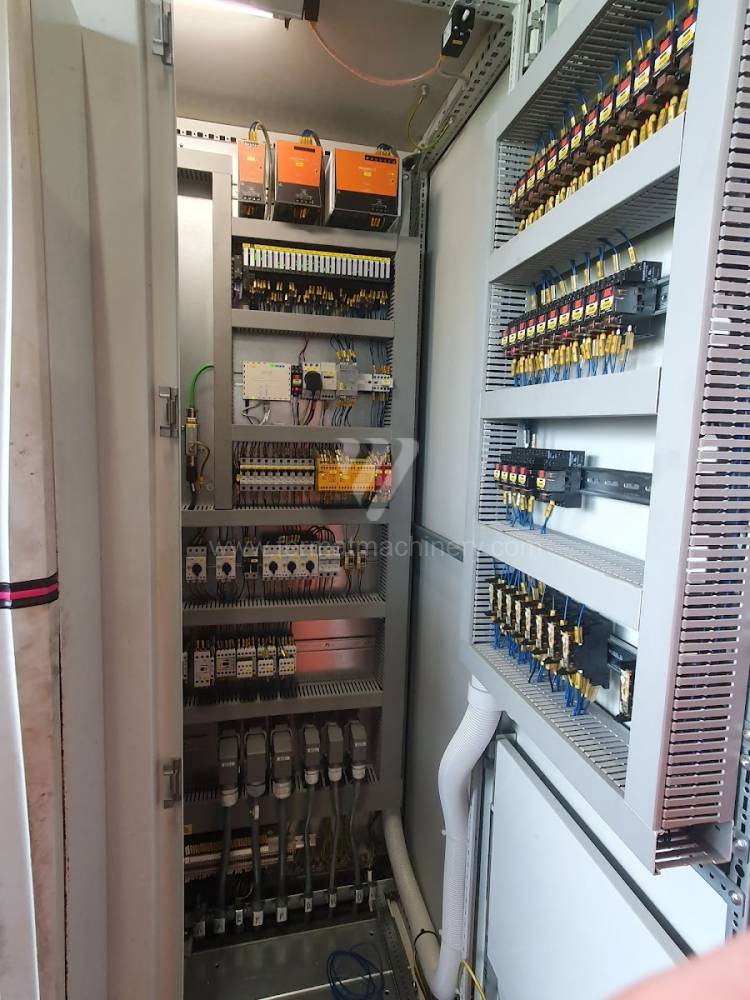

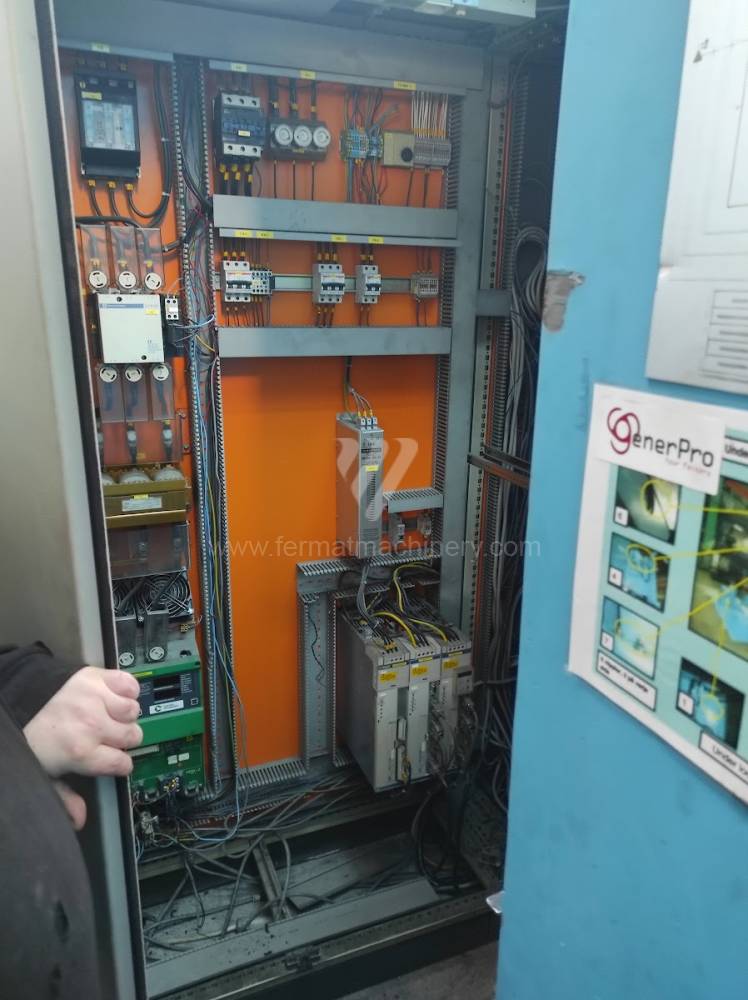

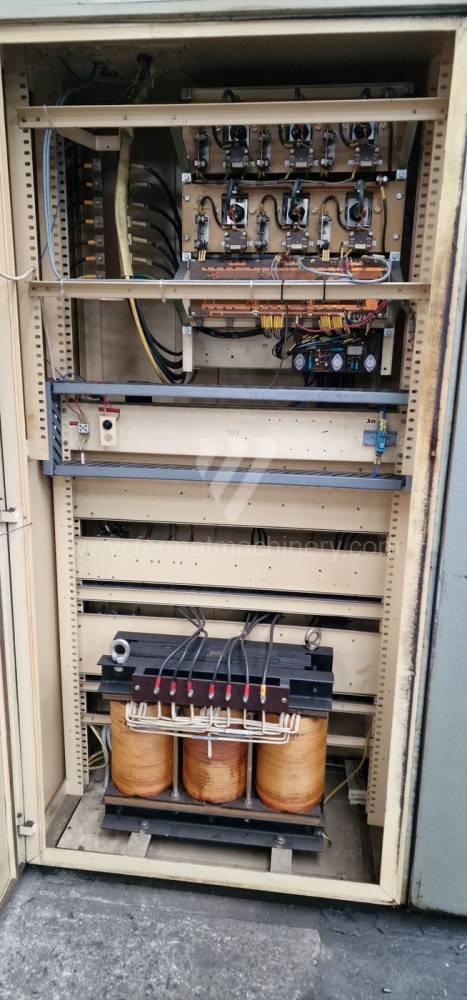

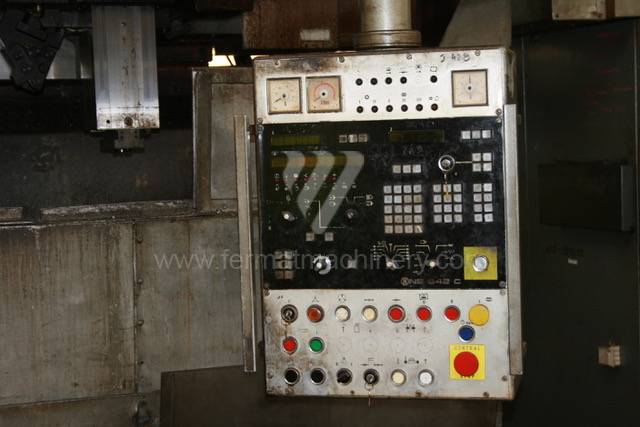

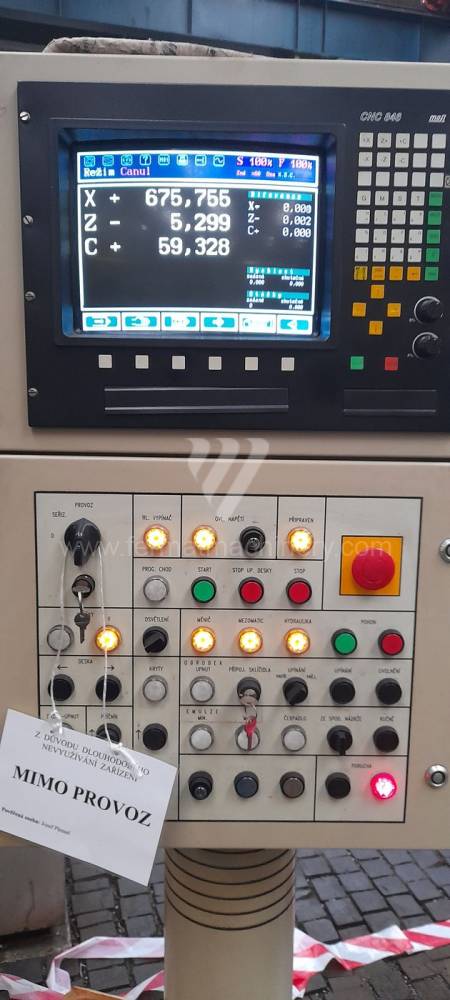

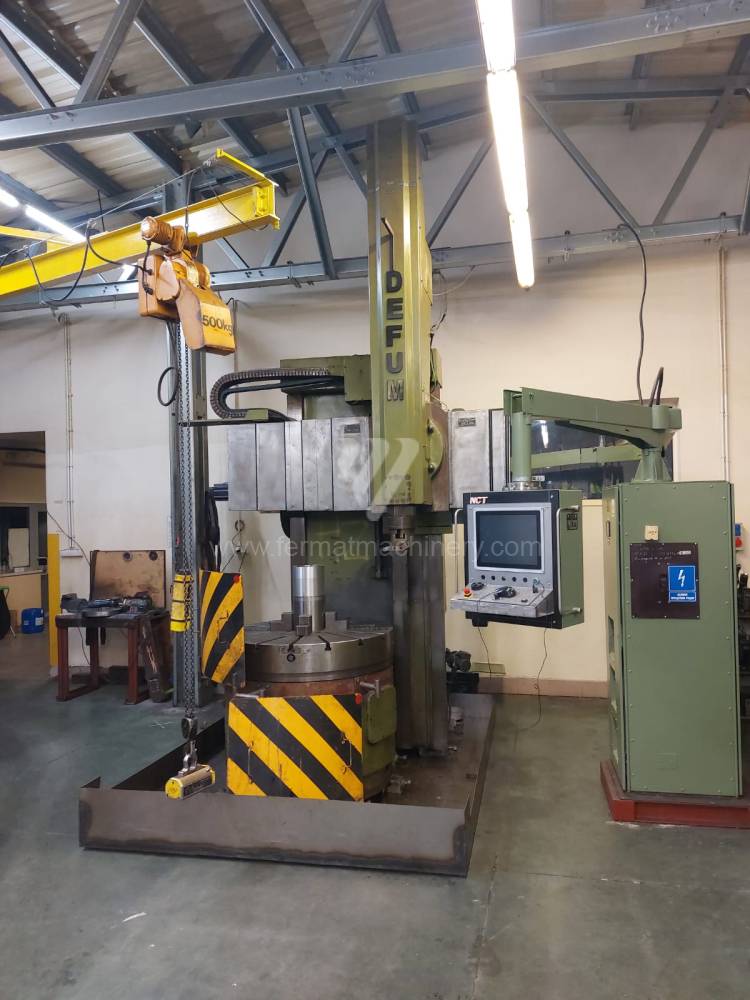

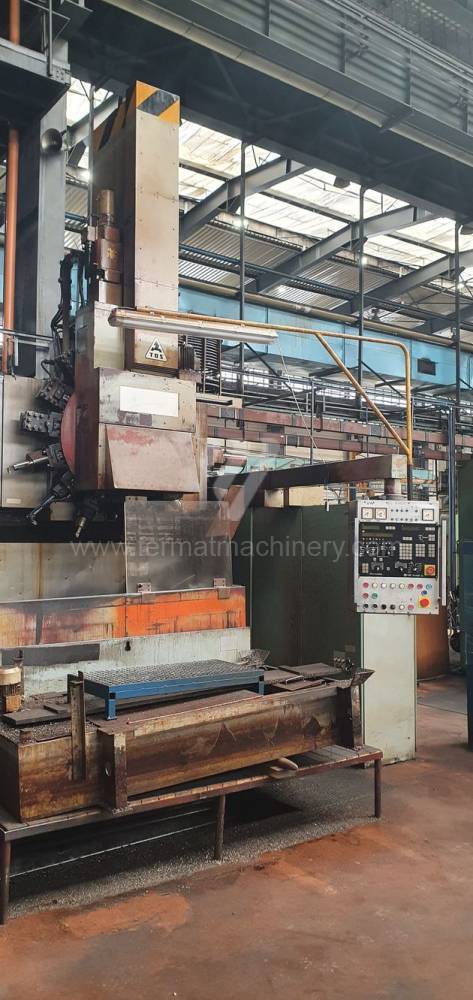

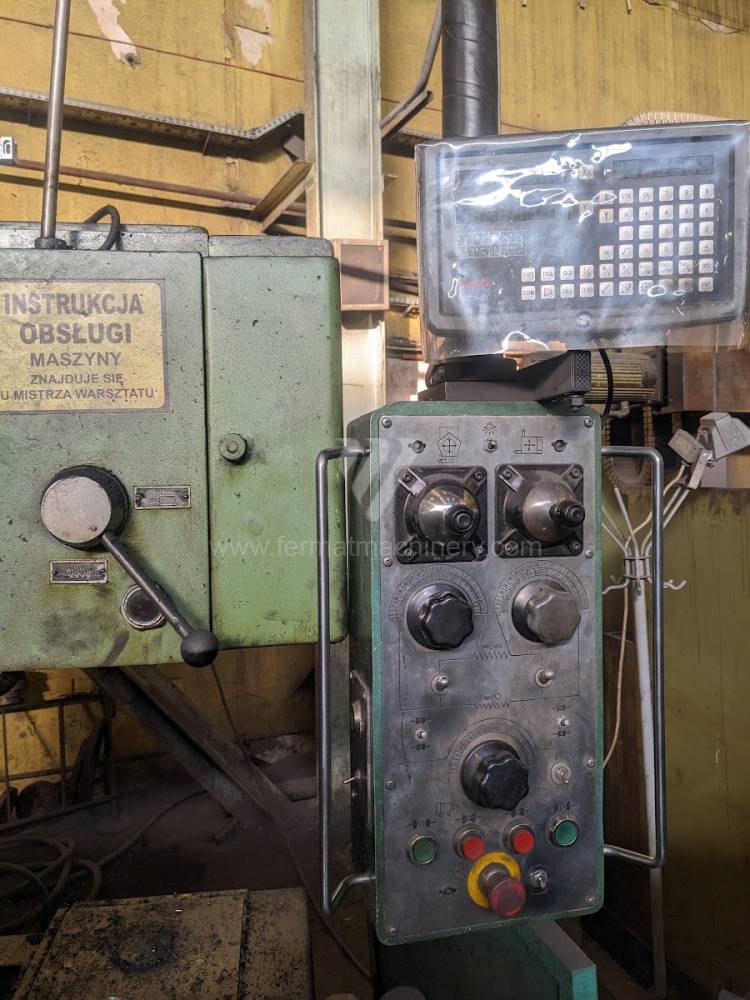

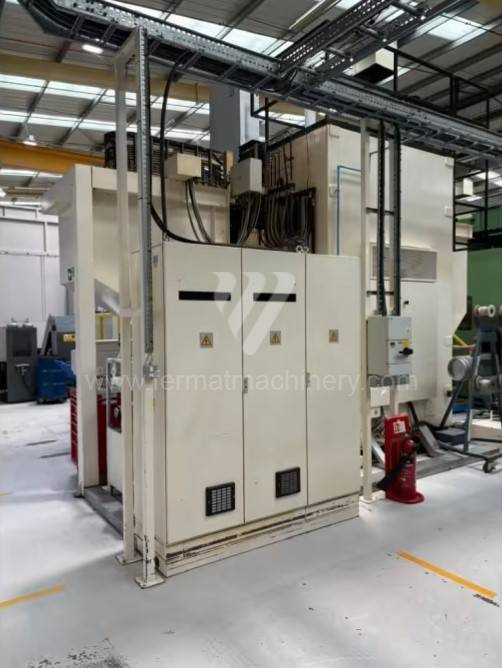

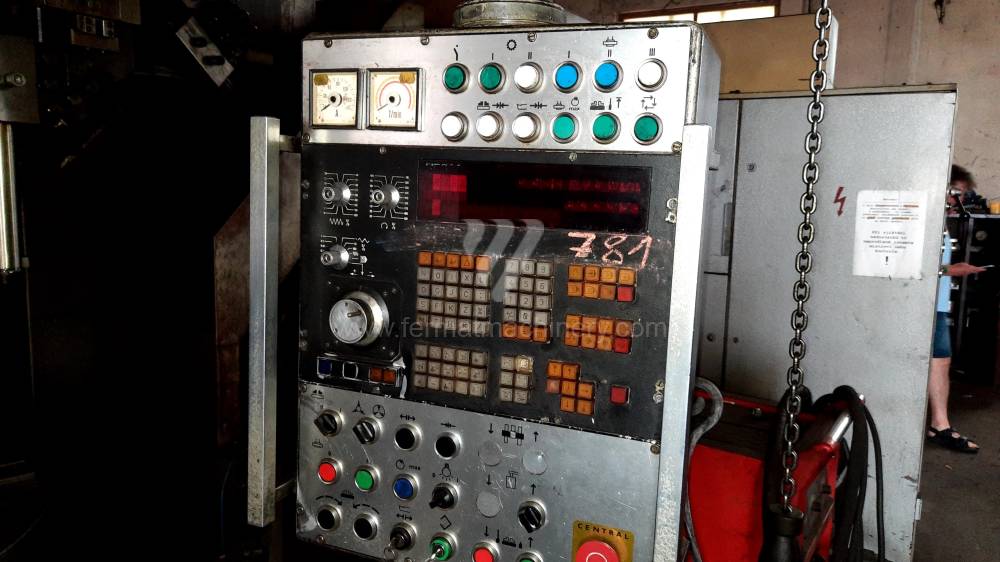

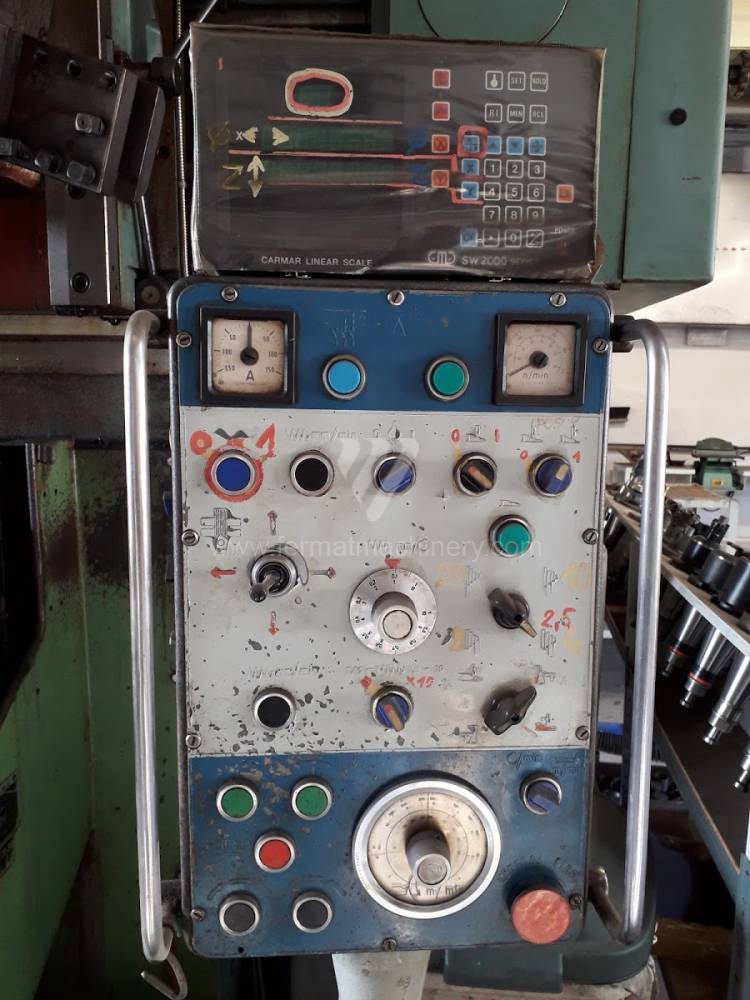

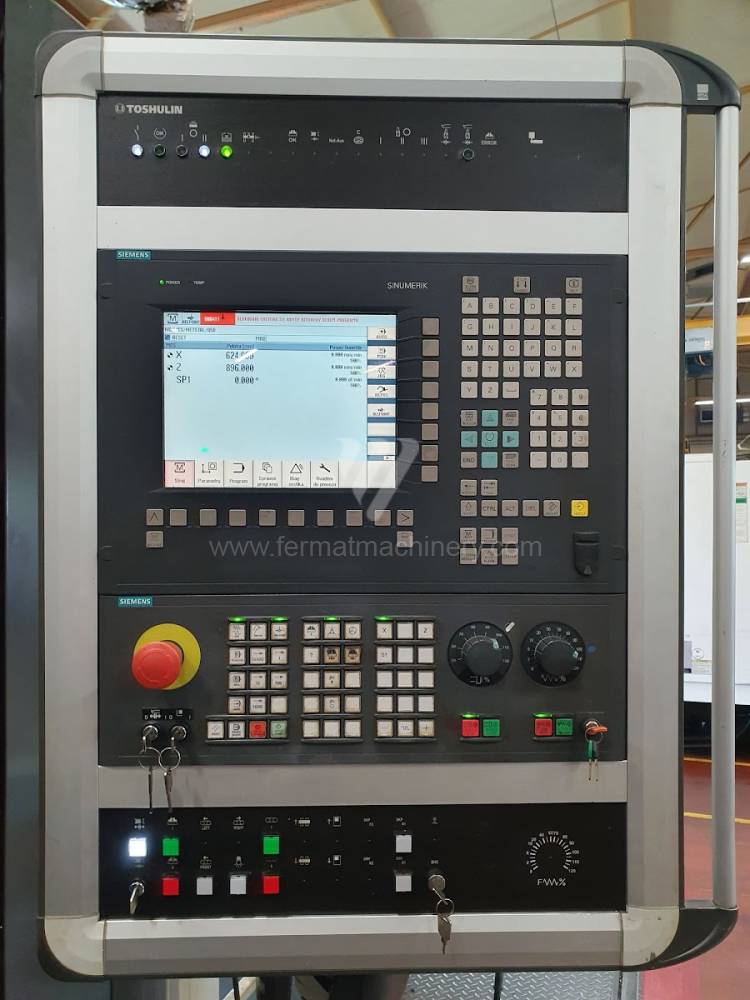

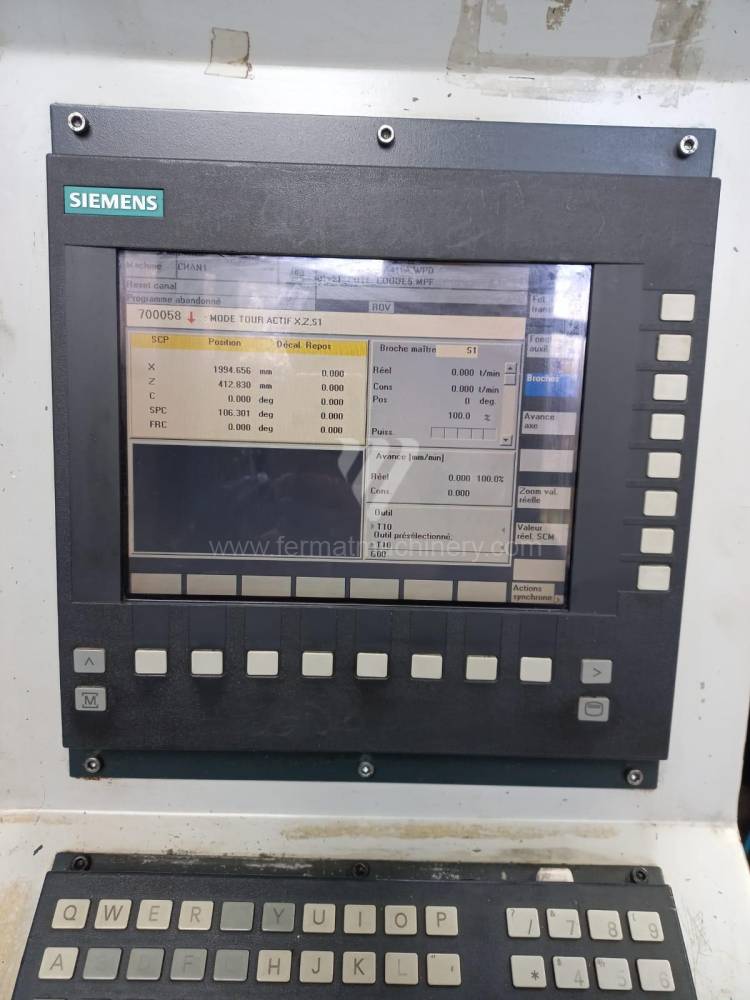

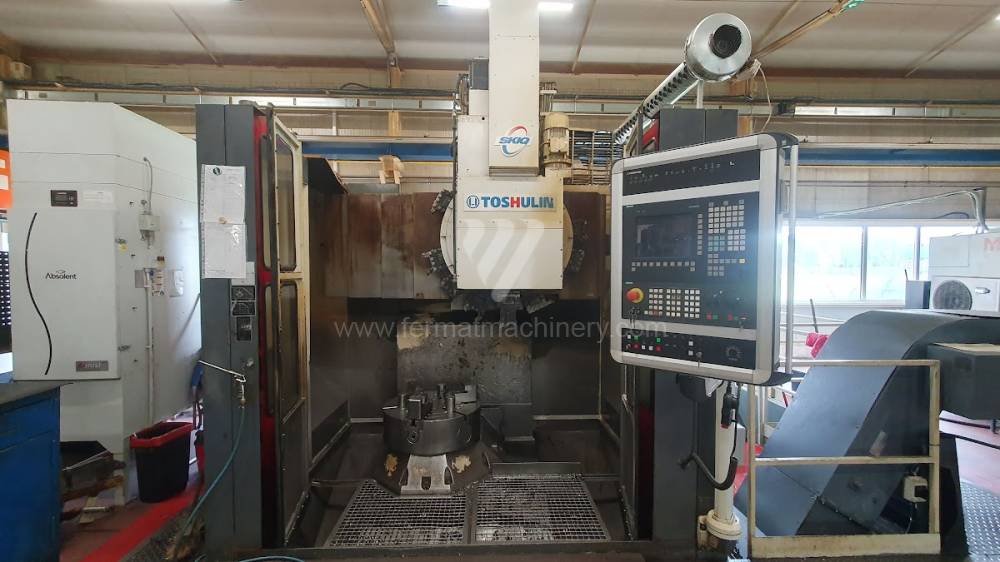

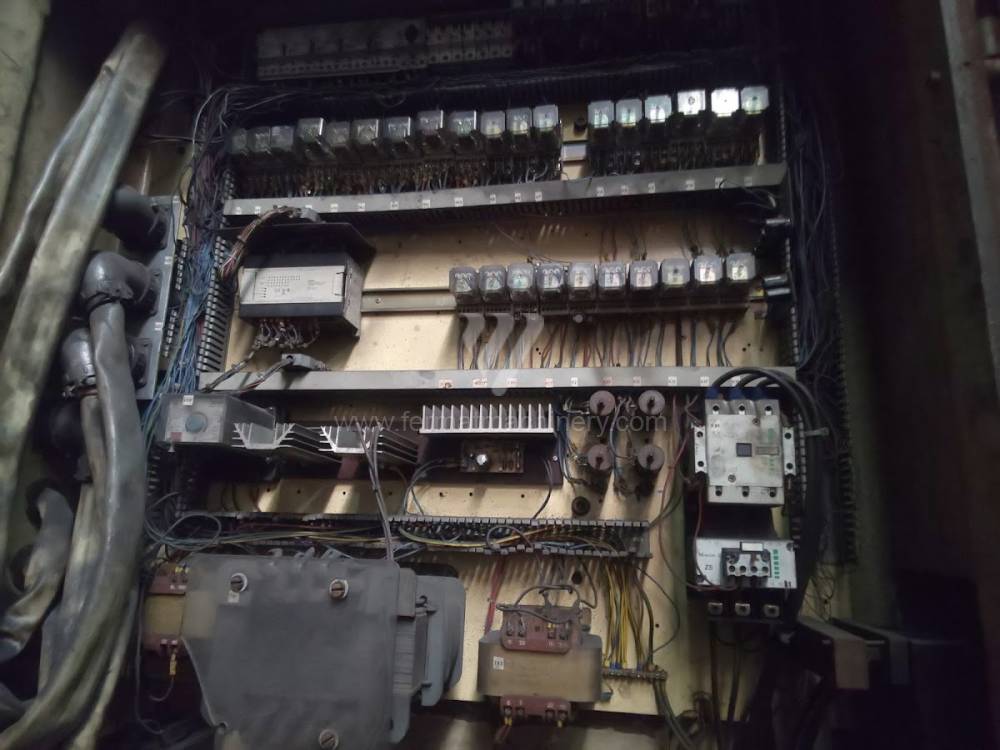

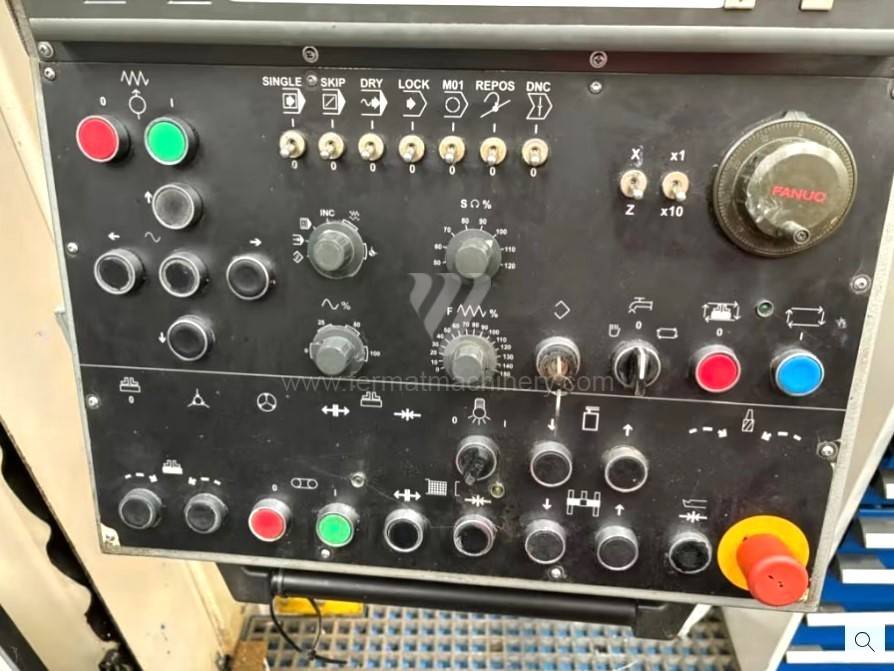

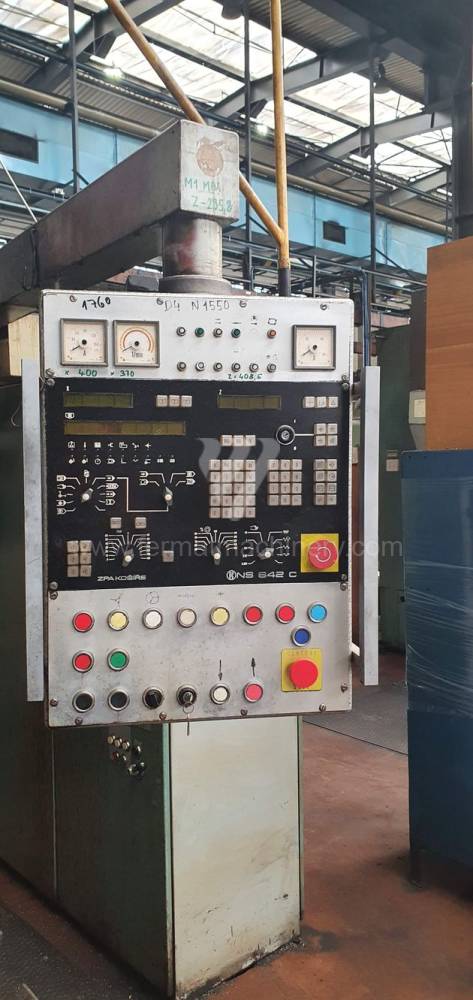

• Retrofit Potential: The mechanical foundation of these machines is virtually indestructible. Equipping them with Siemens SINUMERIK or Heidenhain controls brings digital precision to a robust mechanical platform.

3 Counter-Intuitive Advantages of Open-Side Construction:

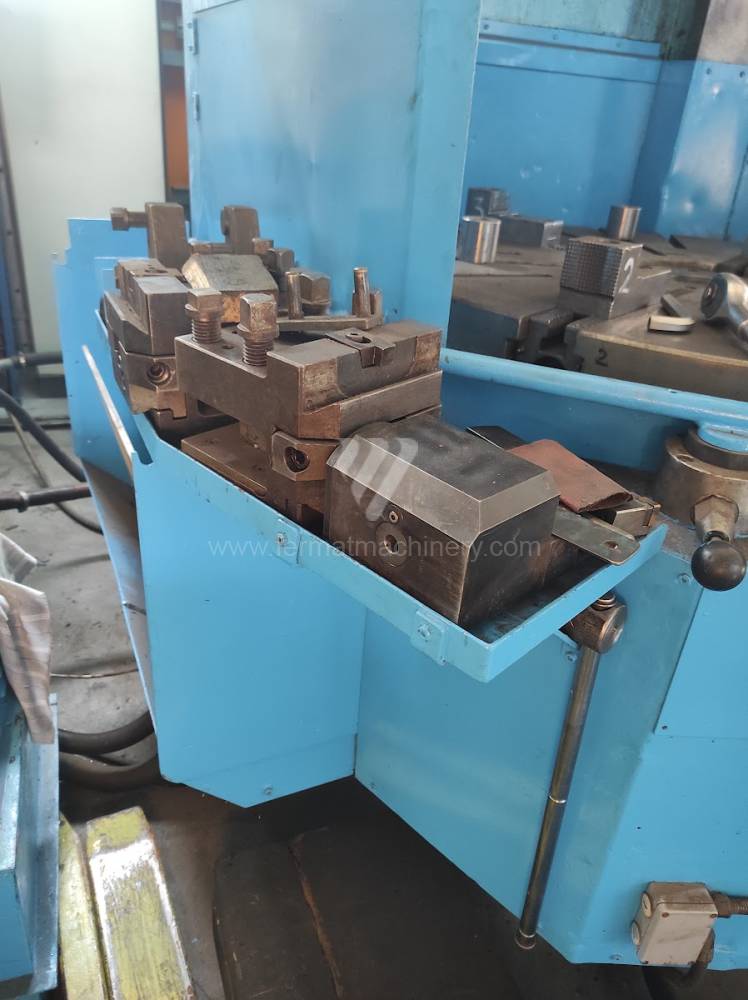

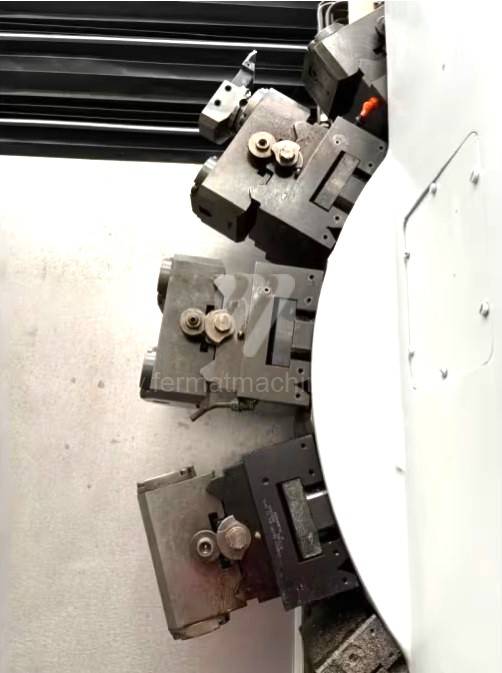

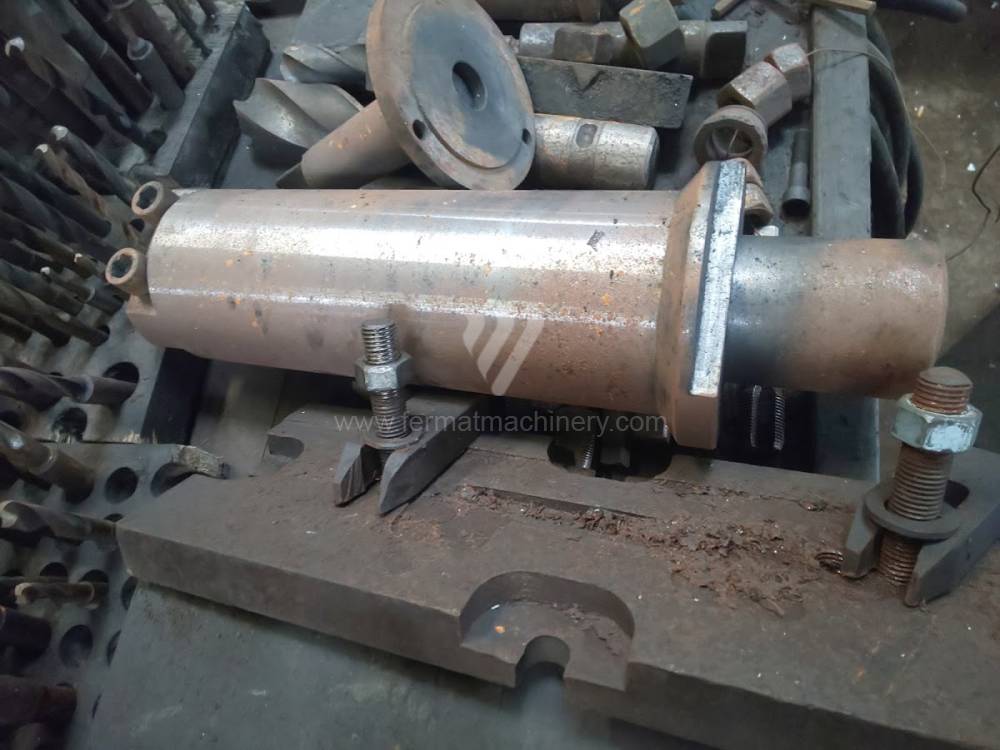

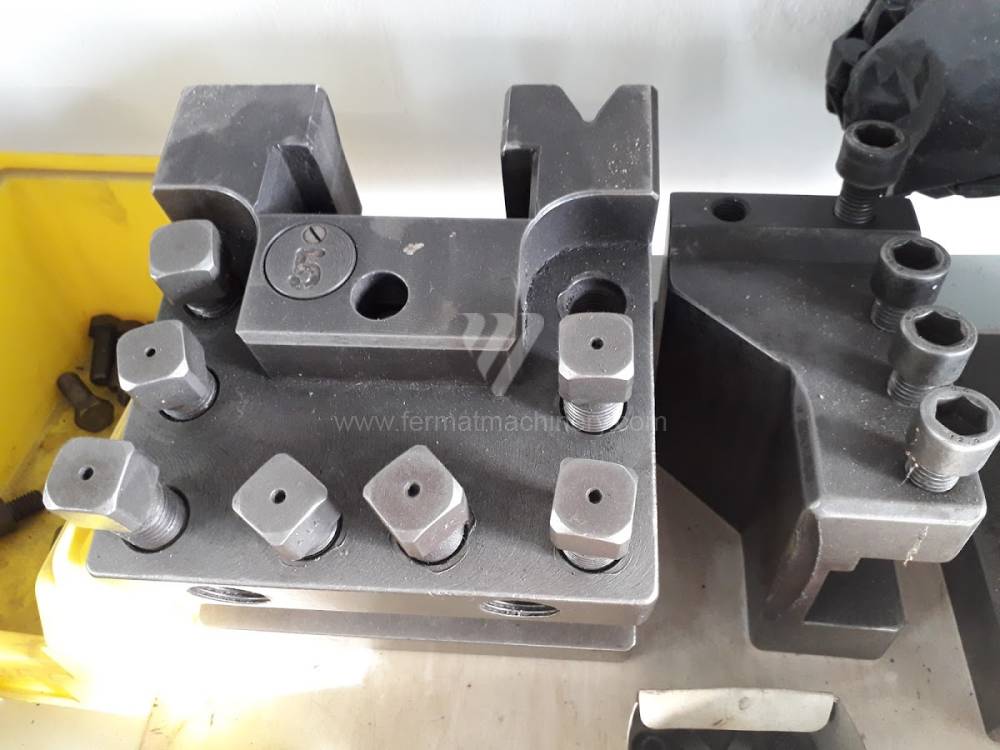

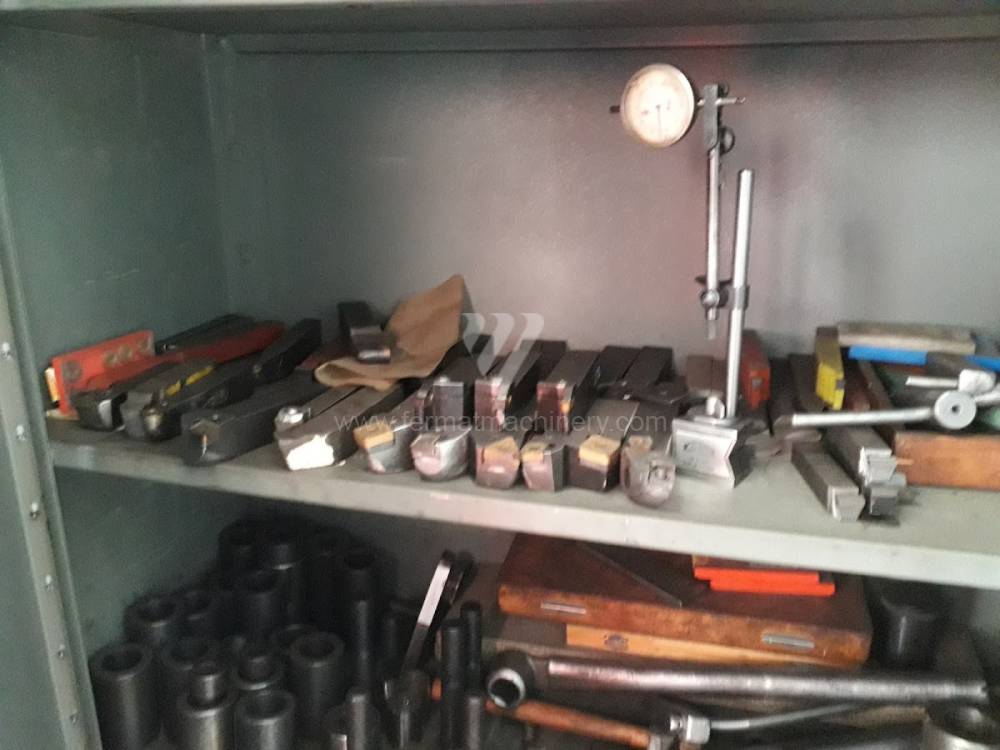

1. Lower OPEX for Cutting Tools: The stable cast-iron base reduces micro-chipping of ceramic and carbide inserts caused by resonance in lighter, welded modern frames.

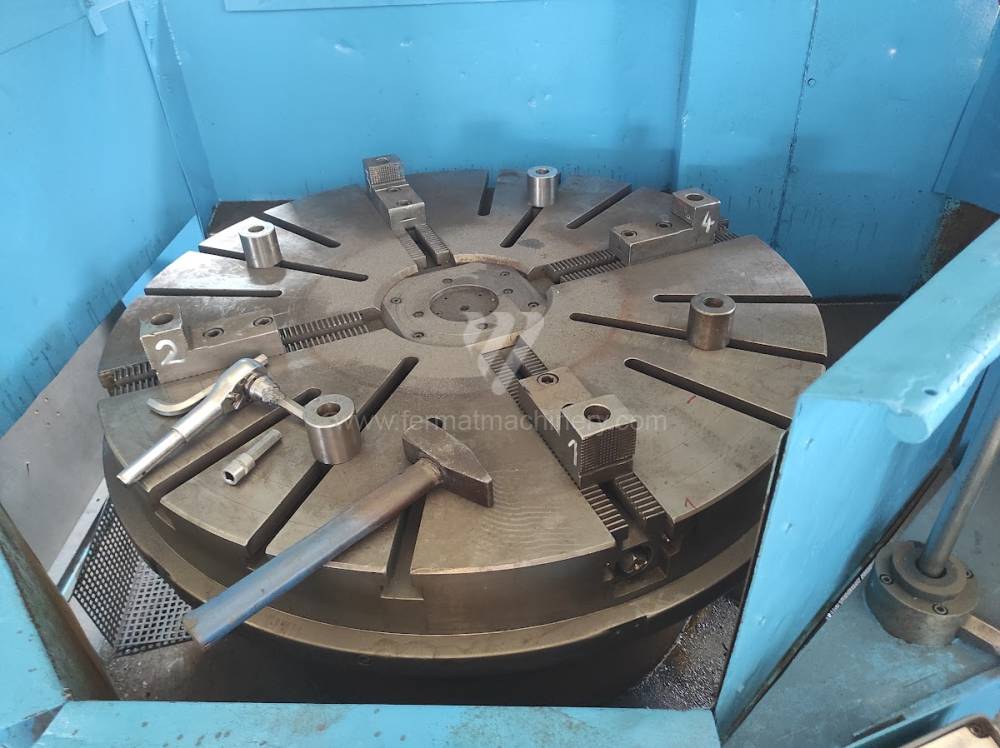

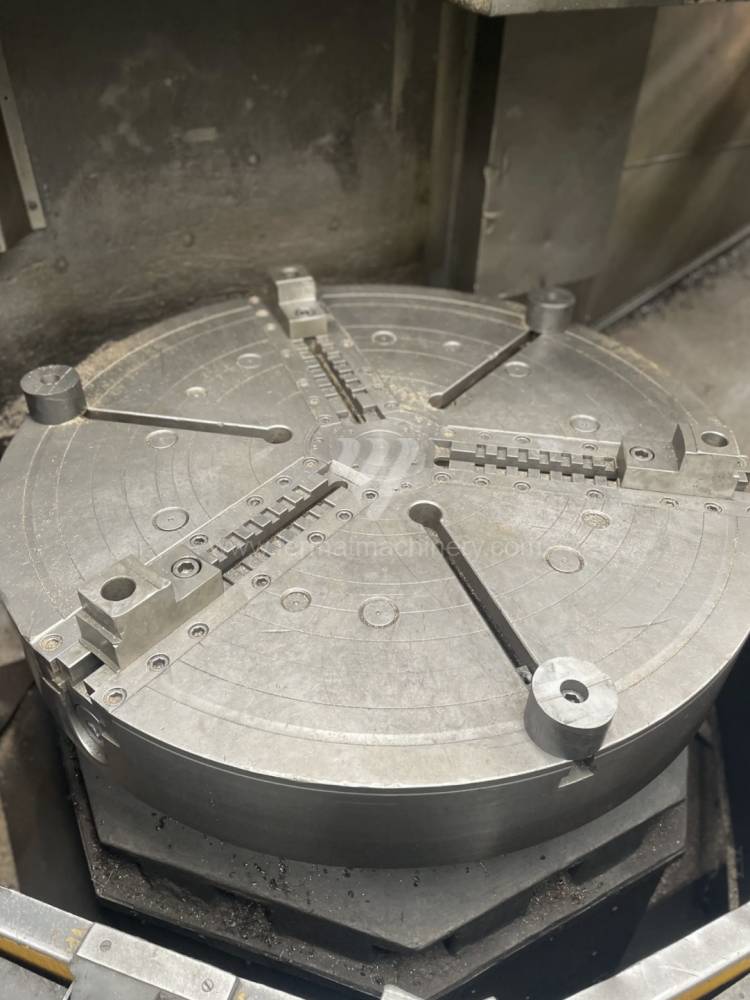

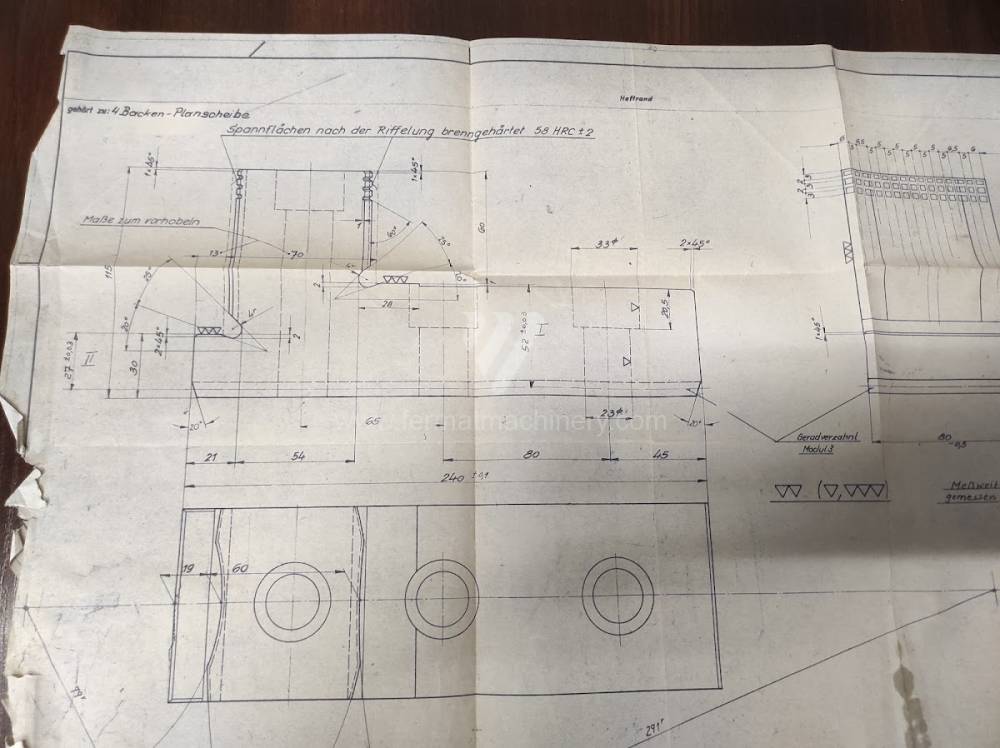

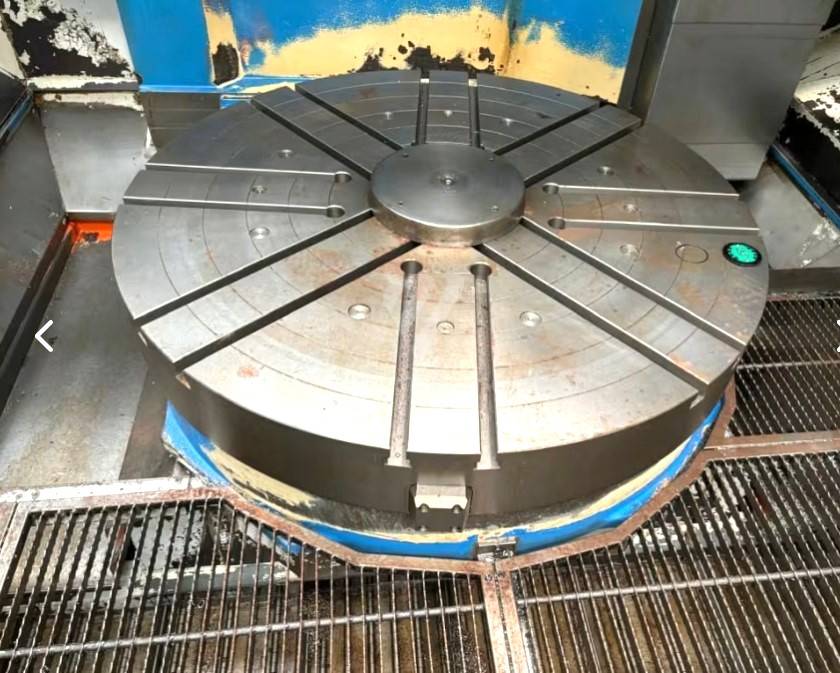

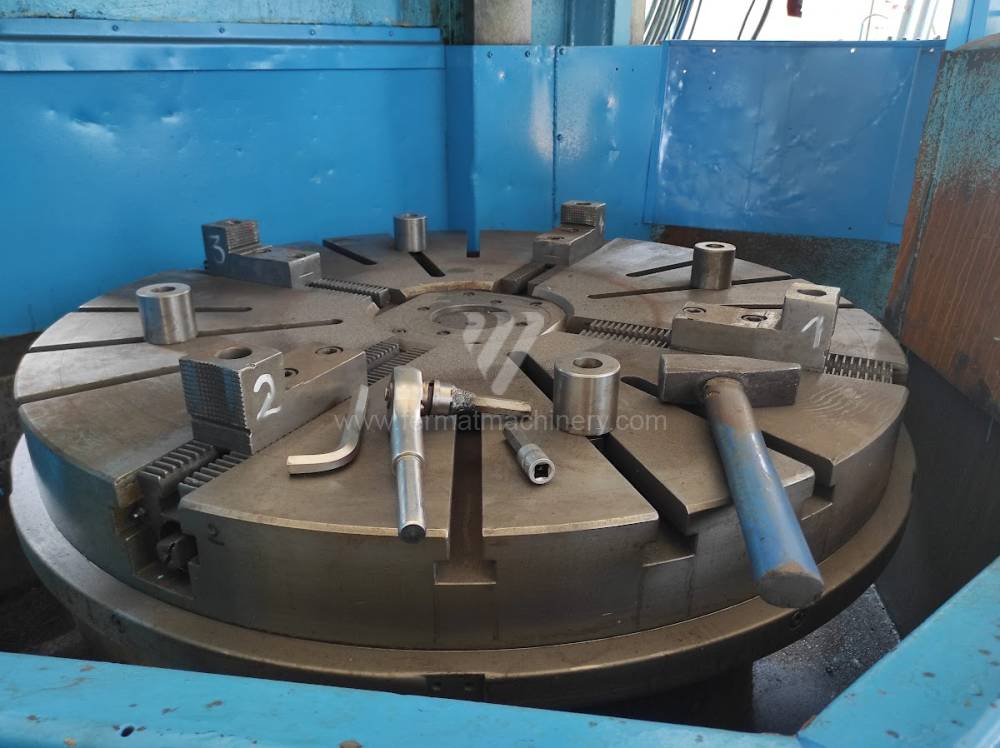

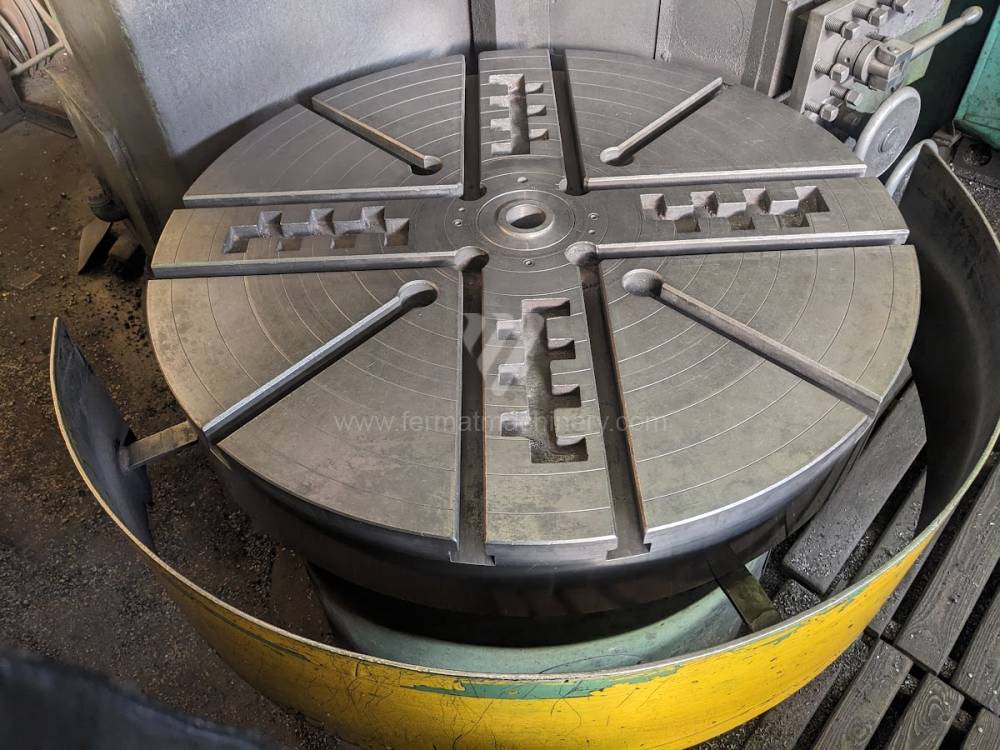

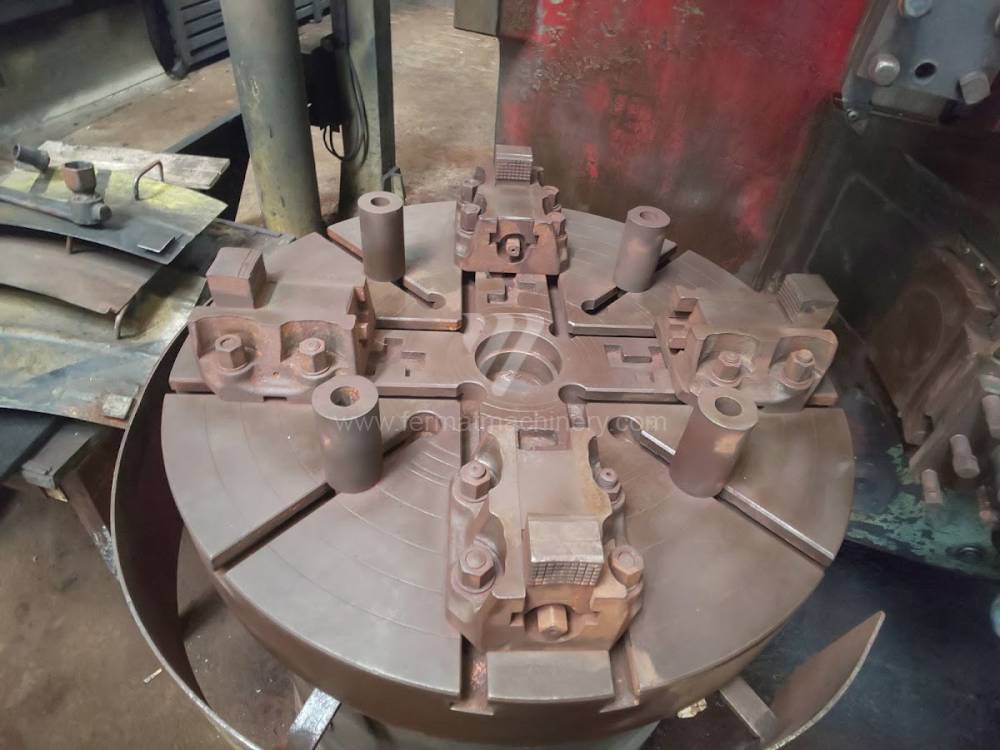

2. Energy Efficiency in Job-Shop Production: The massive flywheel effect of heavy faceplates requires less energy to maintain constant RPM during interrupted cuts compared to dynamic but lightweight tables.

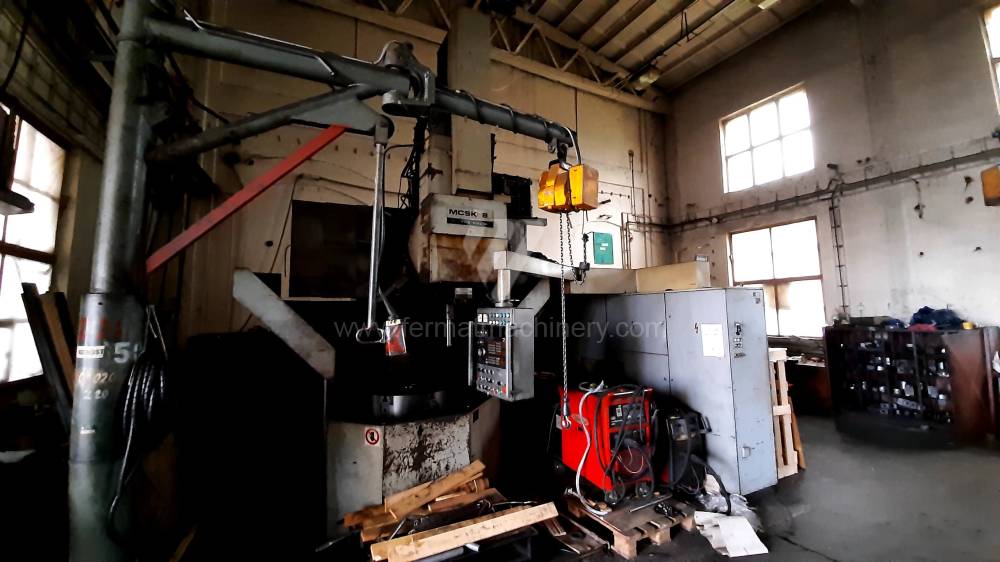

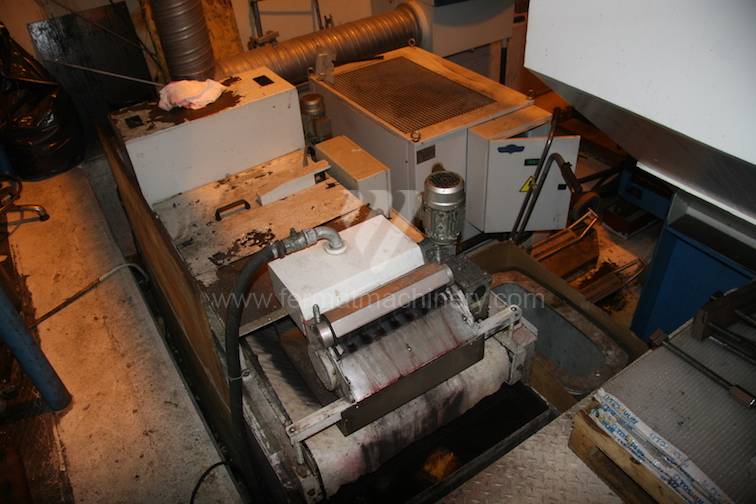

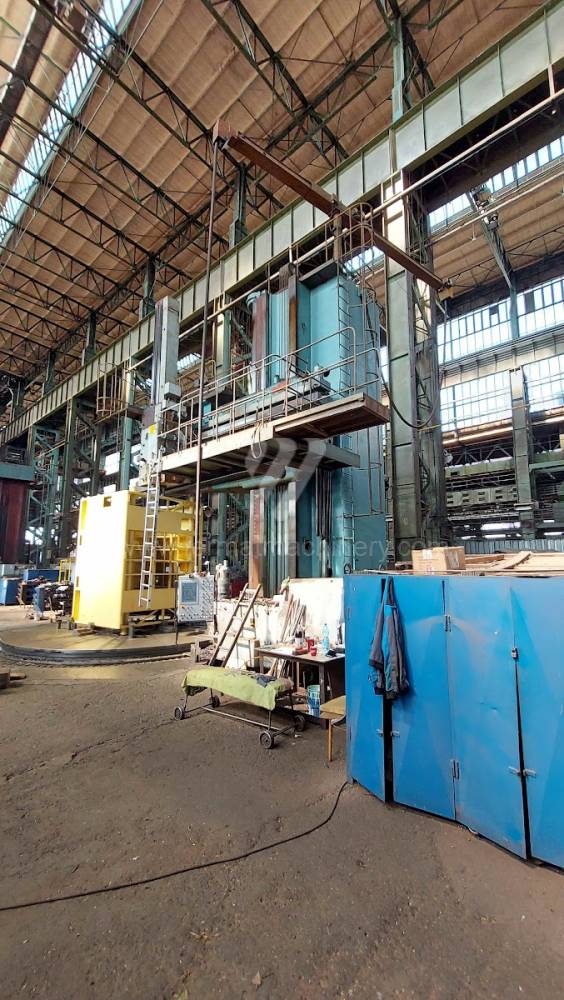

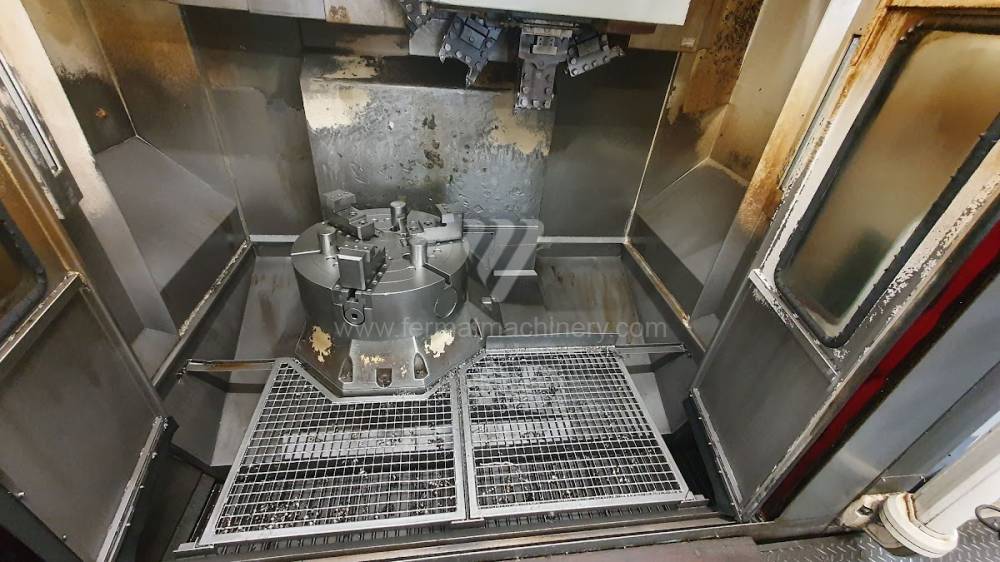

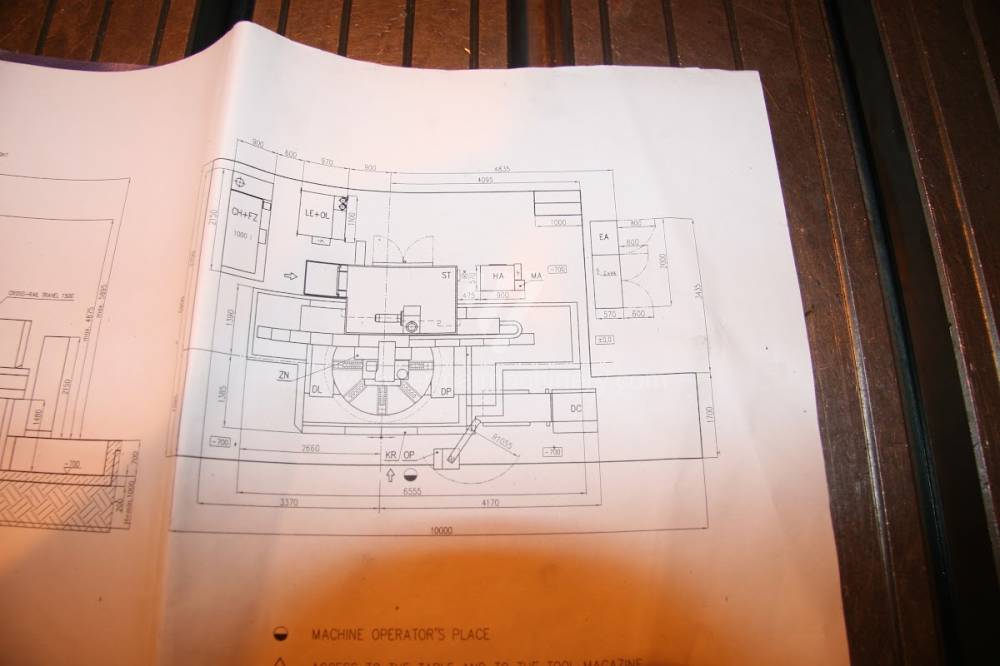

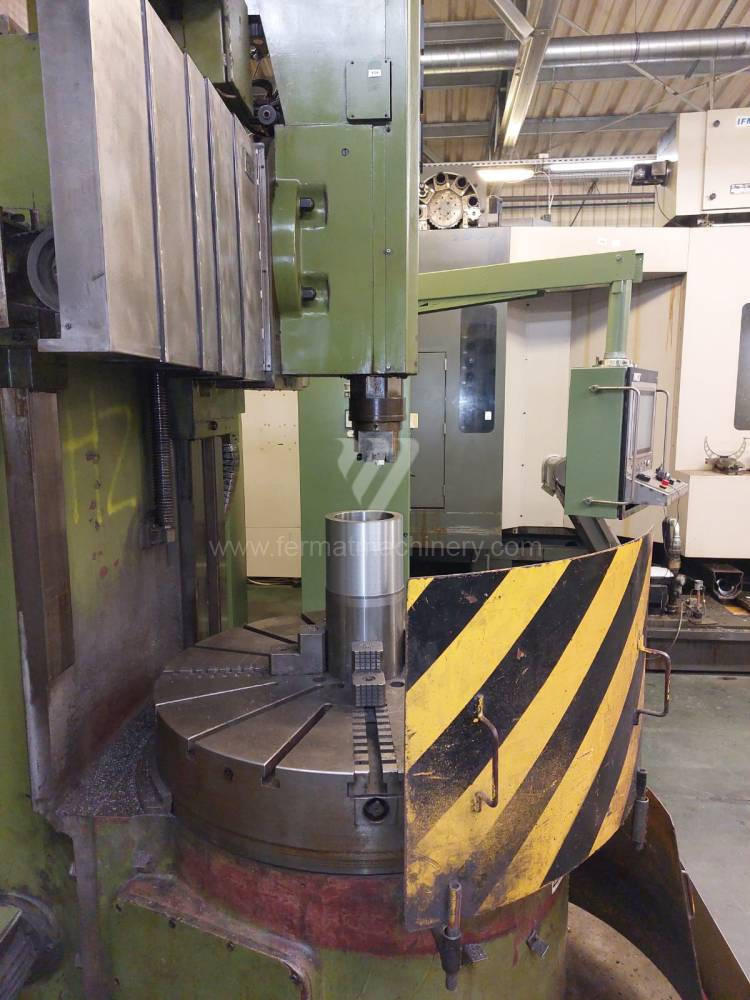

3. Floor Space Optimization: Open access to the workspace allows for easier handling of oversized parts by crane, reducing setup time by up to 15%.

FAQ: Expert Insights for Technical Search

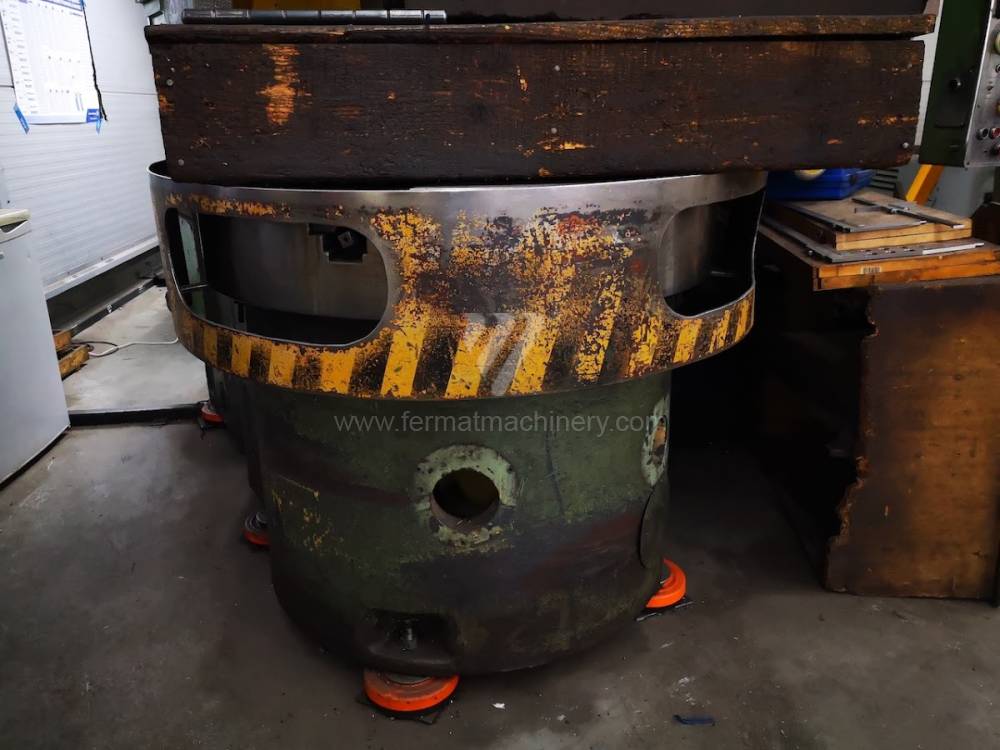

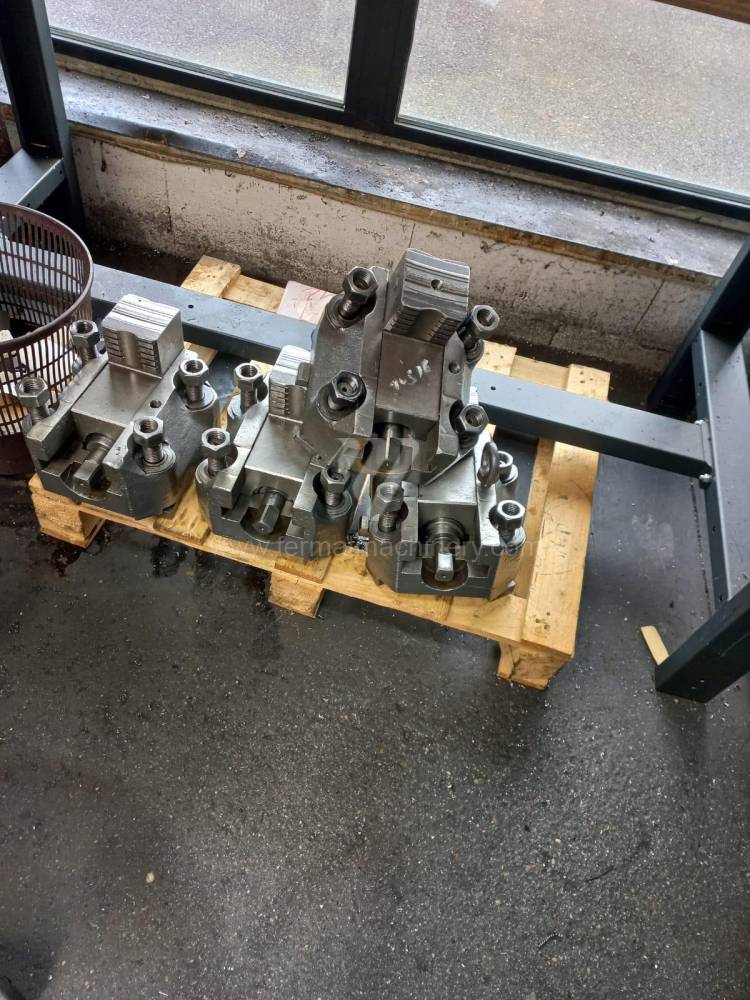

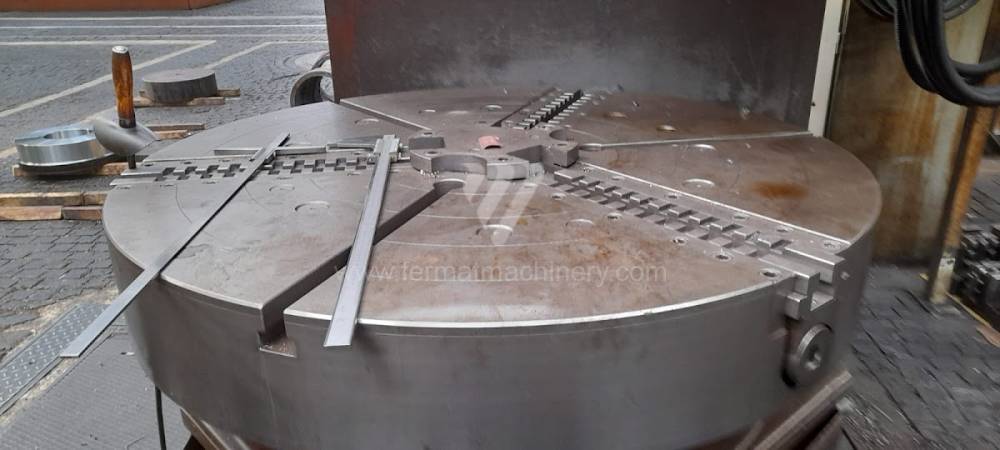

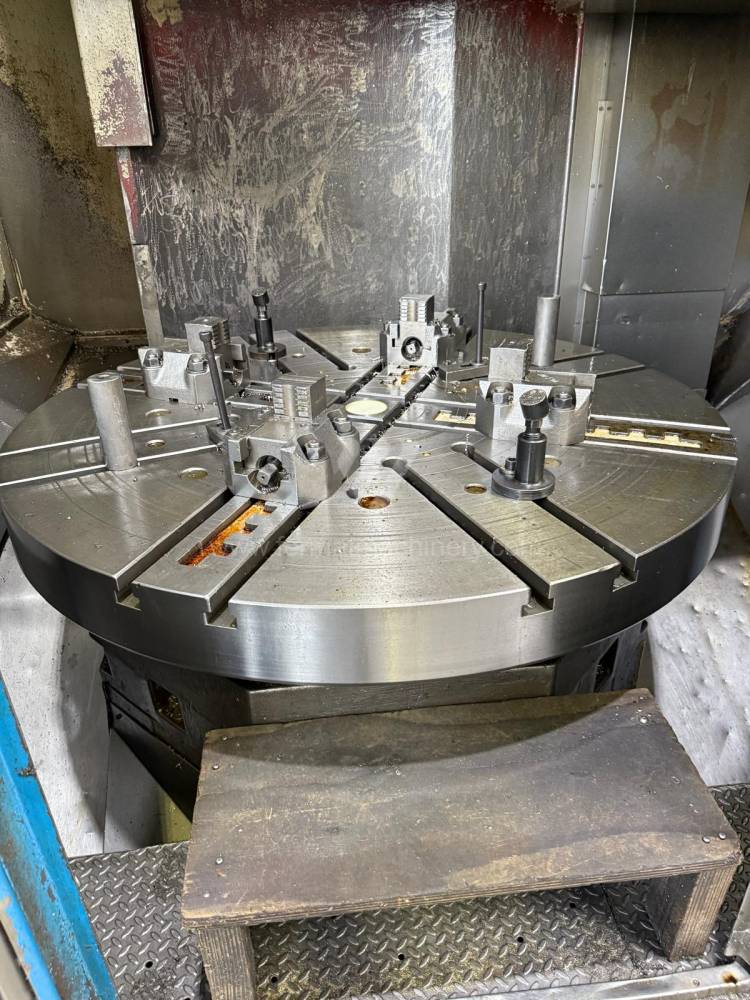

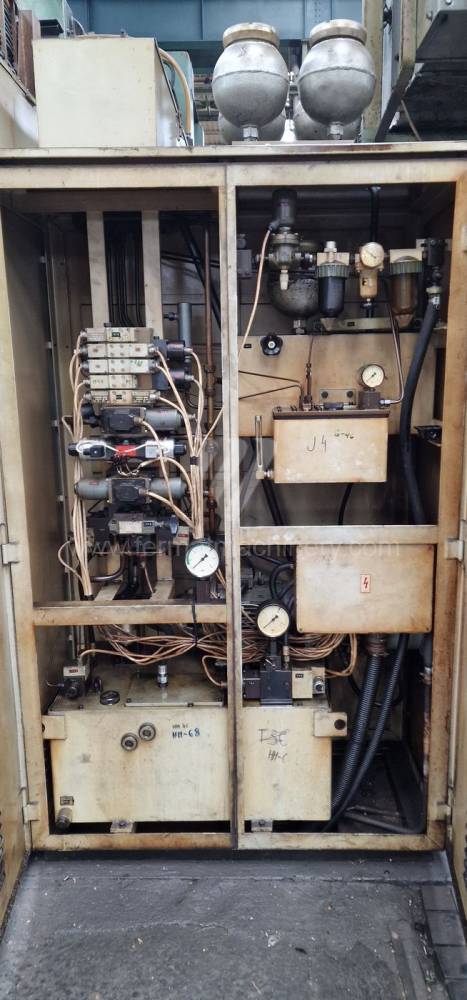

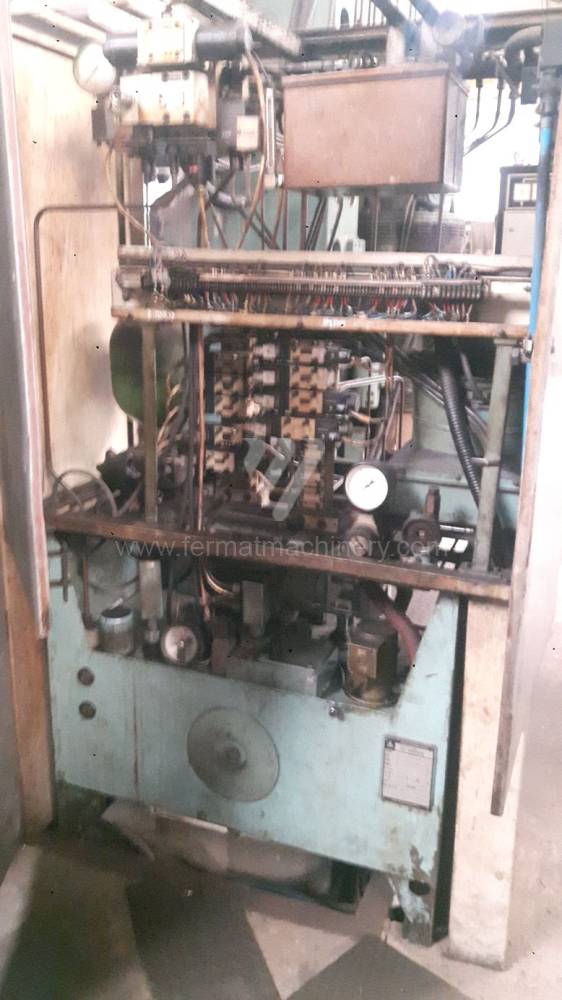

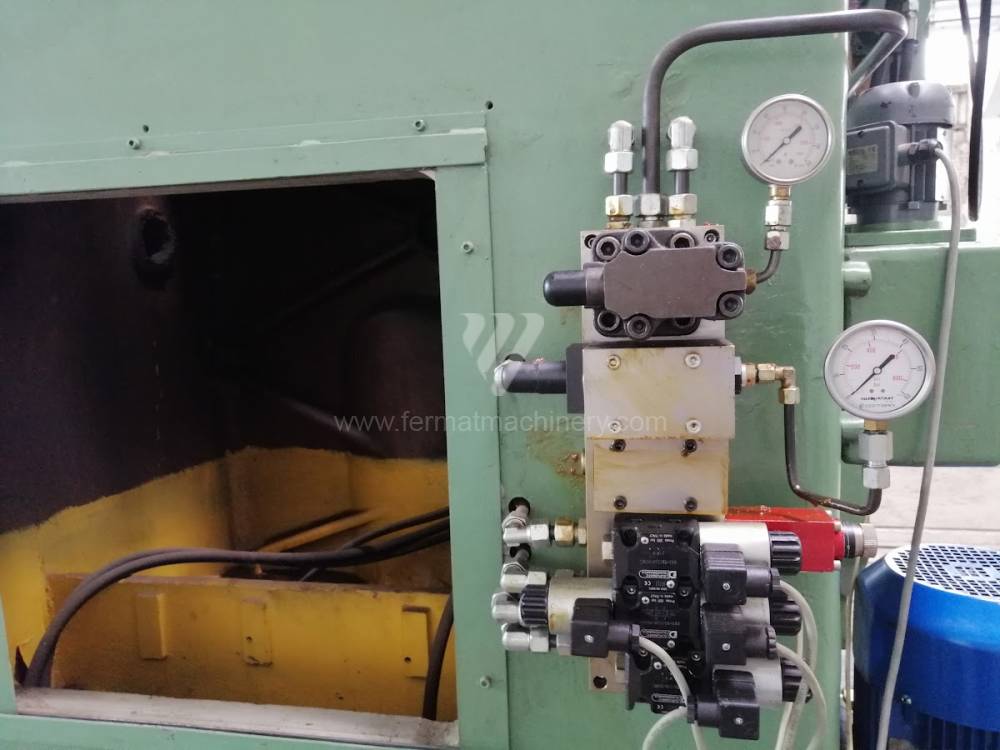

What is the limiting factor for workpiece diameter on a single-column lathe? The limit is not just the distance from the column to the table center, but primarily the load capacity of the table bearings and workpiece balance. Asymmetric parts require counterweights to eliminate centrifugal forces that could damage the hydrostatic system.

Why choose a used single-column machine over a new 'lightweight' center? New entry-level machines often use welded structures. Used cast-iron machines offer better thermal stability and higher internal damping, which are critical parameters in heavy engineering.

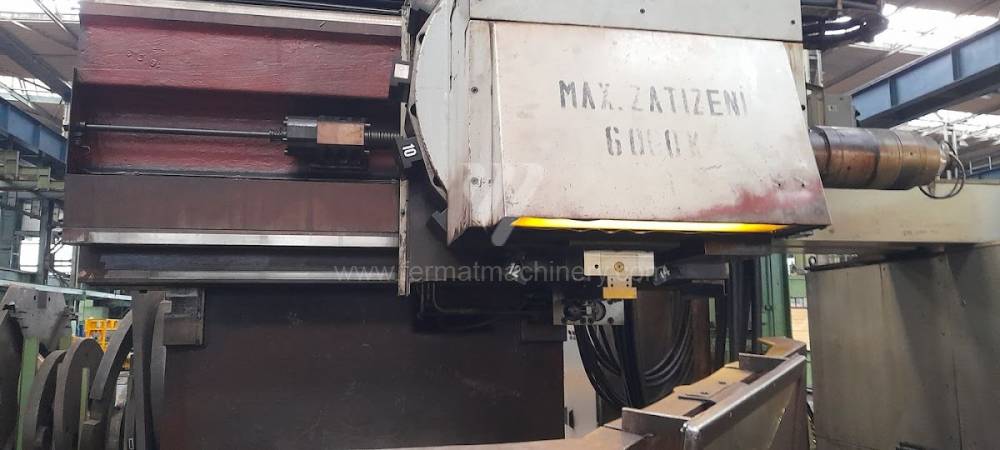

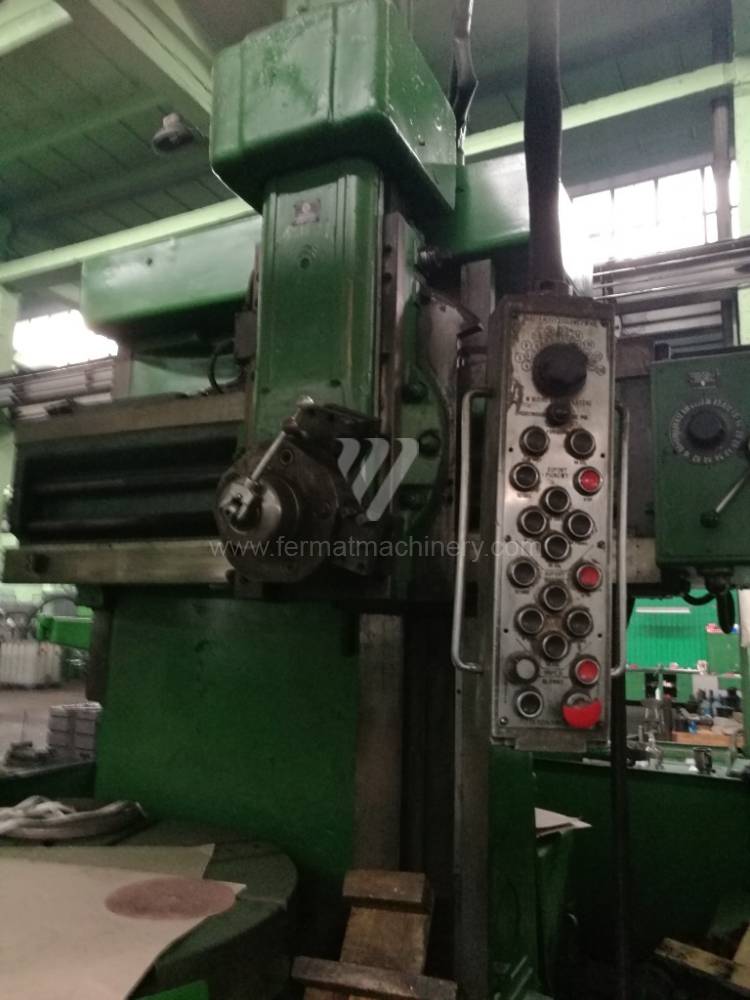

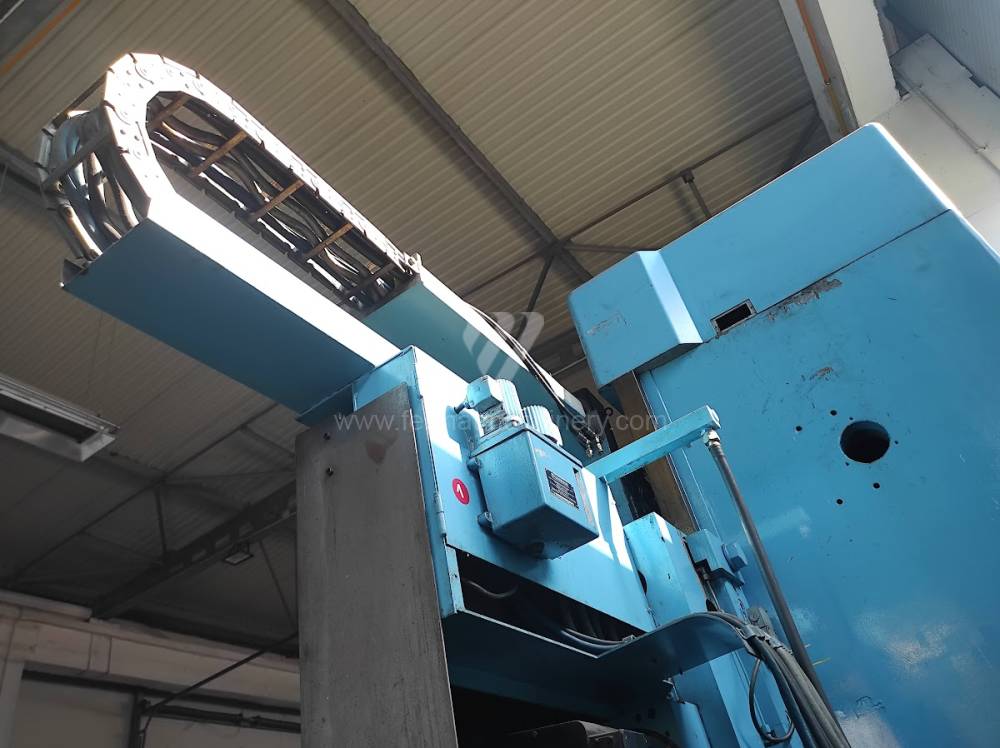

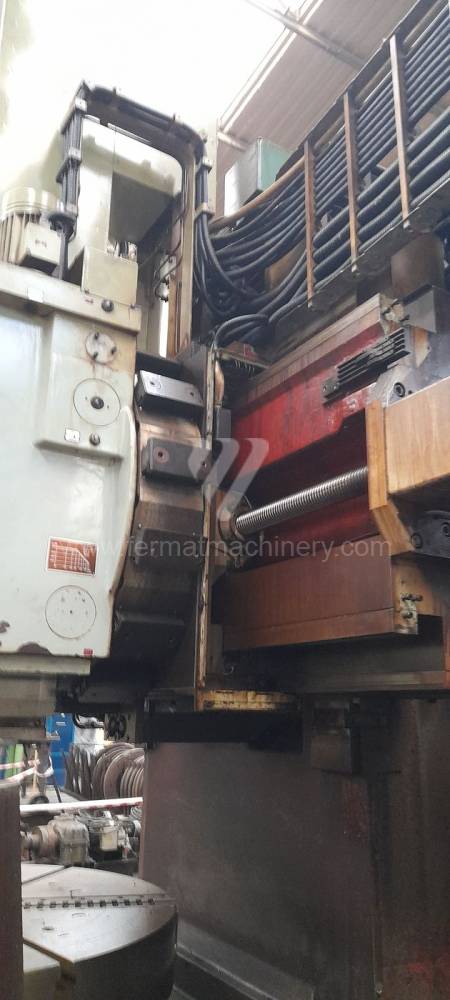

How does ram extension affect accuracy during heavy roughing? On single-column machines, a slight bending moment occurs at maximum extension. However, on robust machines, this is predictable and can be compensated for using modern CNC algorithms, maintaining tight tolerances even during deep cuts.
