Lathes / CNC multi-axis / NTX 2000/1500 SZM
-
Inventory number 261060
-
Machine type NTX 2000/1500 SZM
-
Producer DMG MORI
-
YOM 2018
| Control system Fanuc | 31i - B5 |
| Turn table diameter | 660 mm |
| Turning lenght | 1540 mm |
| Sloping bed | NO |
| Y axis | YES |
| Travel Y-axis (lathe) | 125 mm |
| Counterspindle | YES |
| Spindle bore | 73 mm |
| Milling head | YES |
| Driven Tools | YES |
| Number of tool positions (driven) | 10 |
| Bar loader | NO |

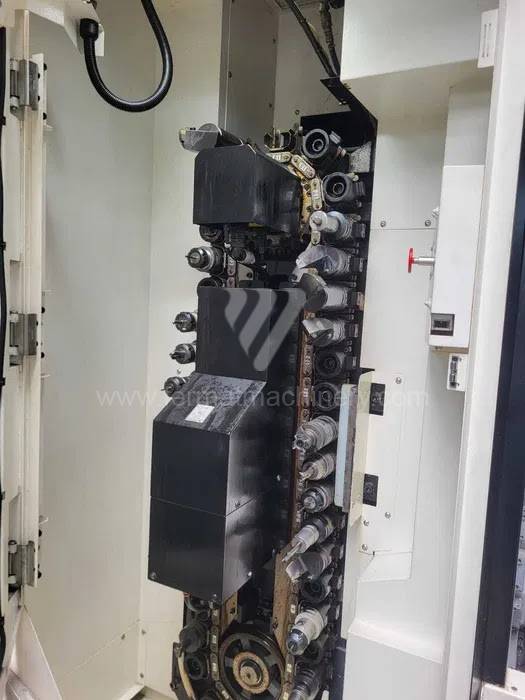

| Tool magazine | YES |
| Number of positions in magazine | 76 |
| Travel X-axis | 495 mm |
| Travel Y-axis | 250 mm |
| Travel Z-axis | 1560 mm |
| Spindle taper | Capto C6 . |
| Machine dimensions l x w x h | 5 825 × 2 830 mm |
| Machine weight | 15 800 kg |
Subject to change of technical parameters.
Description
The machine is in very good condition, with the possibility of testing under power.
Operating hours: only 3,211 h
Control system: FANUC 31i-B5 + CELOS (ERGOline Touch)
Turret: 10-position driven tool turret
Interface: CELOS system with touch screen
Automation: Ready for bar feeder integration (LNS, IEMCA, etc.)

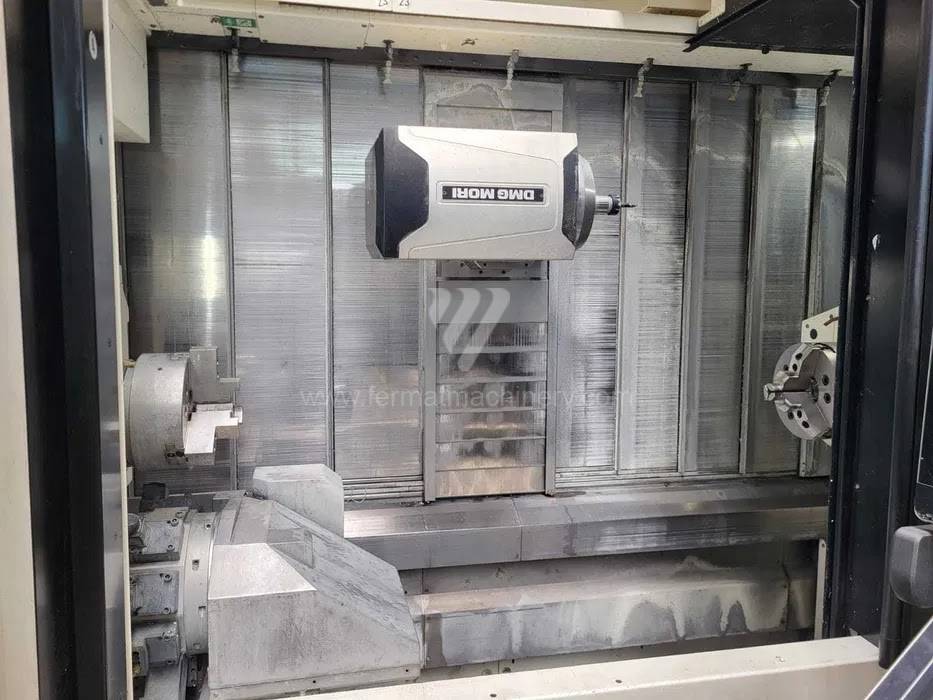

This DMG MORI NTX 2000/1500 SZM multi-axis CNC turning and milling center represents a high-end solution for the complex machining of intricate workpieces in a single setup. By integrating a milling spindle and a counter-spindle, the machine effectively combines turning and full milling operations, significantly reducing production times and increasing precision. The Fanuc control system ensures reliable operation and comfortable programming for the production of high-precision components for the most demanding engineering sectors.
