Lathes / CNC - diameter up to 800 mm / NEF 600
-
Inventory number 261107
-
Machine type NEF 600
-
Producer DMG
-
YOM 2011

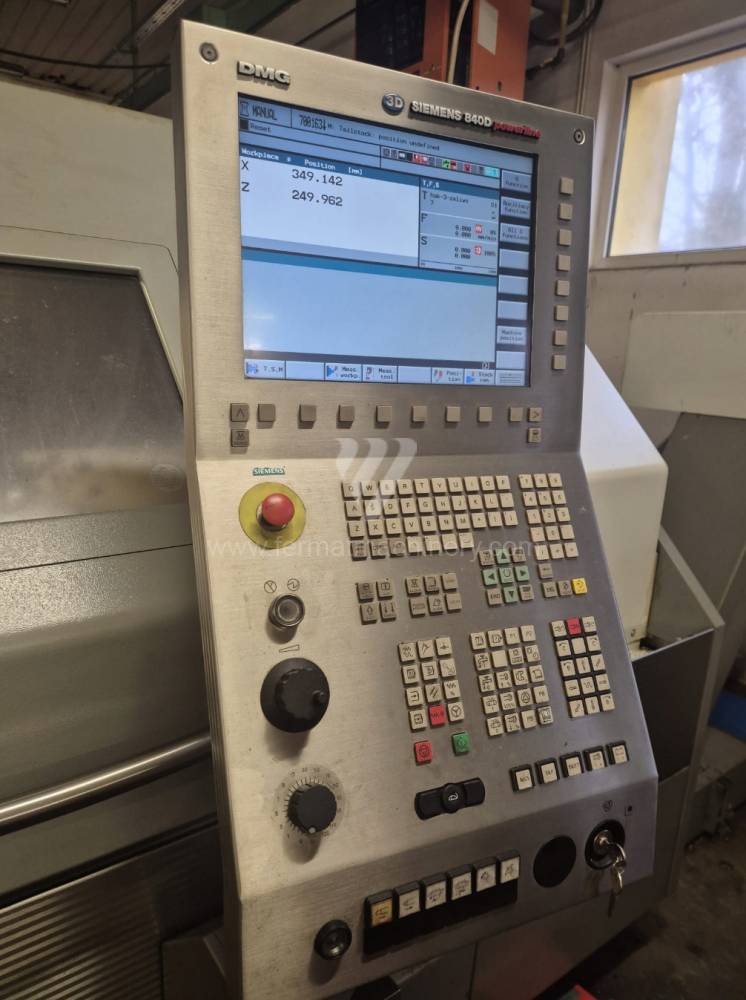

| Control system Siemens | Sinumerik 840 D |
| Turn table diameter | 600 mm |
| Turning lenght | 1200 mm |
| Sloping bed | YES |
| Spindle bore | 90 mm |
| Turret head | YES |
| Travel X-axis | 320 mm |
| Travel Z-axis | 1250 mm |
| Number of positions in magazine | 8 |
| Spindle speed | 25 - 3000 /min. |
| Main motor power | 18 kW |
| Machine weight | 5500 kg |
| Machine dimensions l x w x h | 3600x2140x1845 mm |
Subject to change of technical parameters.
Description
Technical Details
Condition: The machine is in good condition.

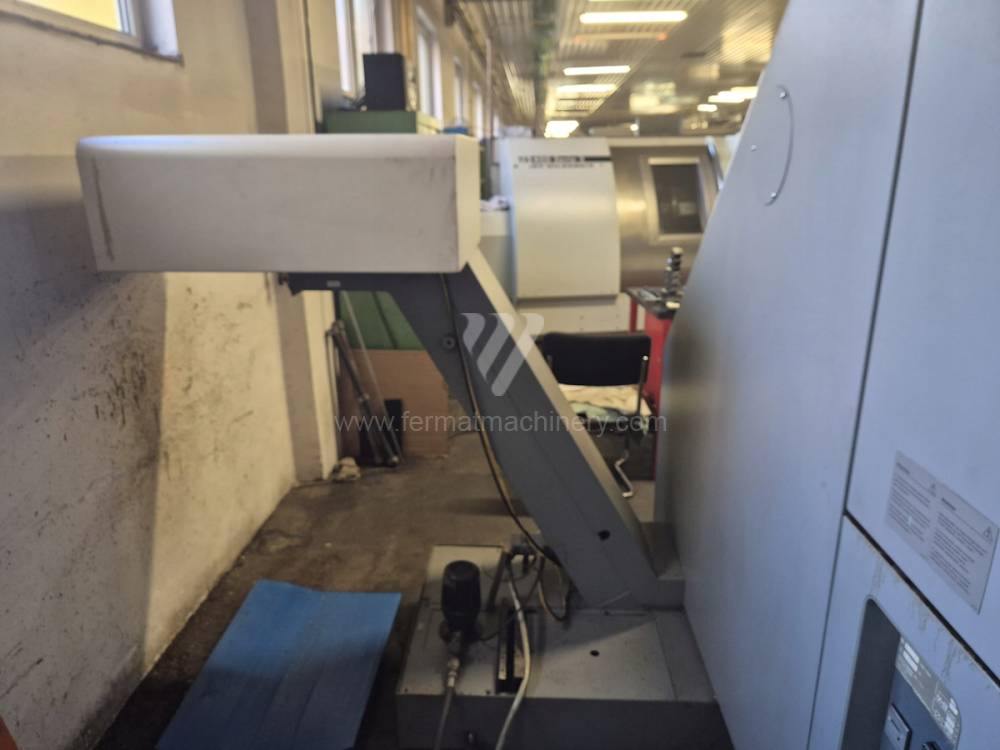

Accessories: Equipped with a tailstock and a chip conveyor.

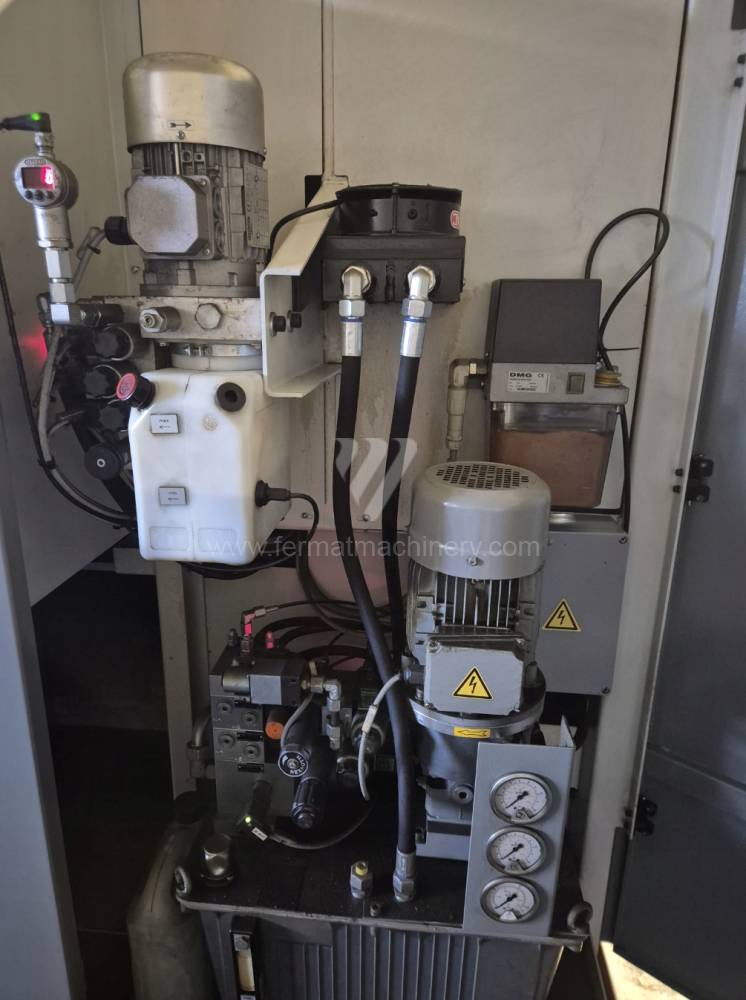

Cooling System: Efficient, integrated with the chip removal system.
Operating Hours: 6,858 hours.
Description

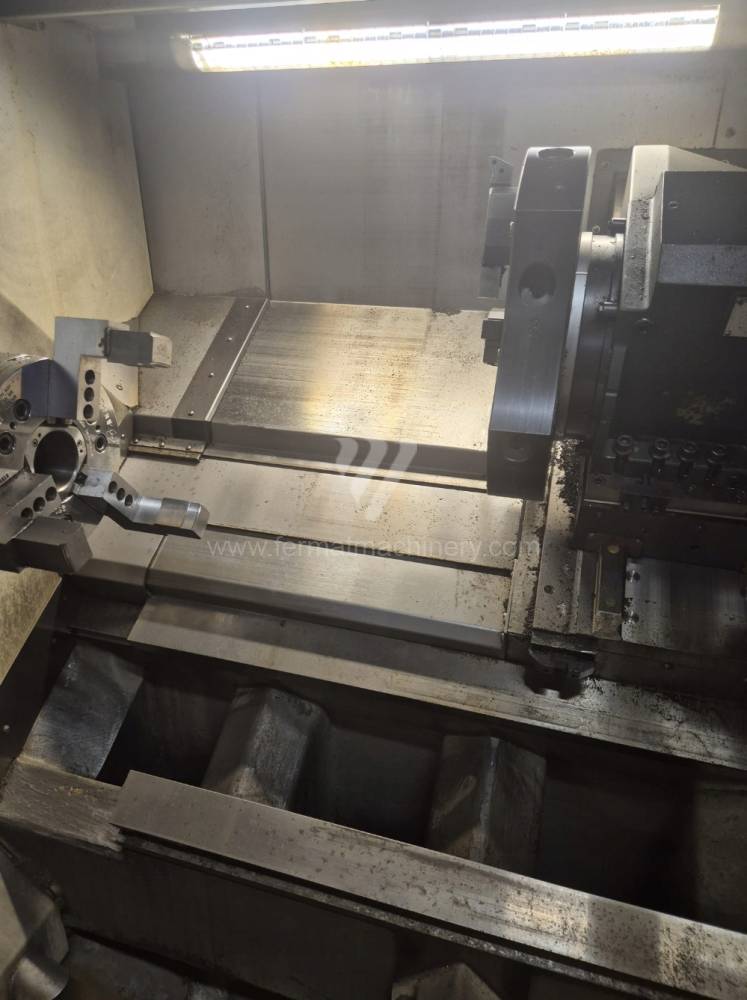

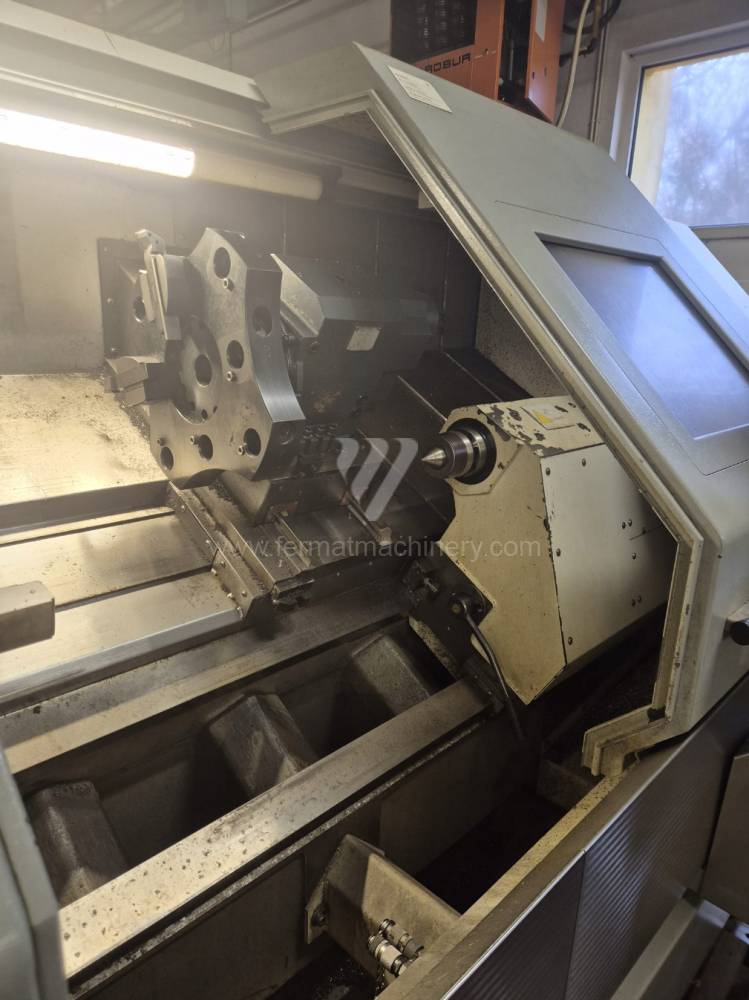

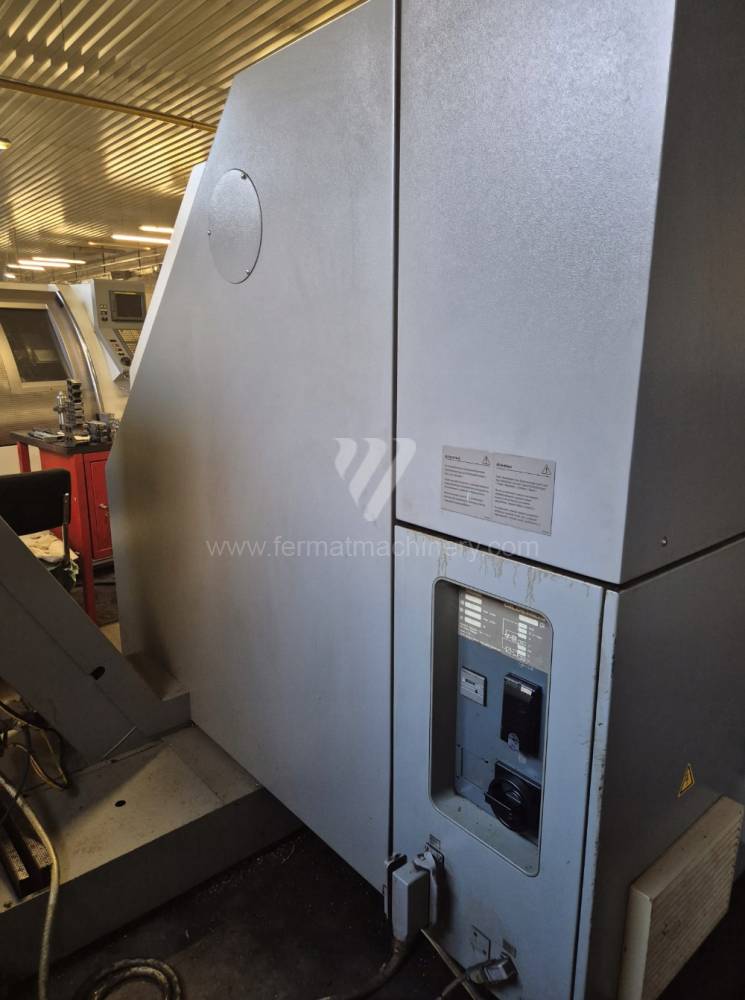

This used DMG NEF 600 CNC lathe represents an ideal solution for precise and efficient machining of medium-sized rotary components. Thanks to its slant-bed design and modern Siemens Sinumerik control system, it offers high rigidity during operation and excellent ergonomics for the operator. The machine is suitable for both single-piece and series production in demanding engineering environments, ensuring reliable performance and maximum productivity. The universal machine concept guarantees high flexibility.
