Technical Analysis of Radial Drilling Systems

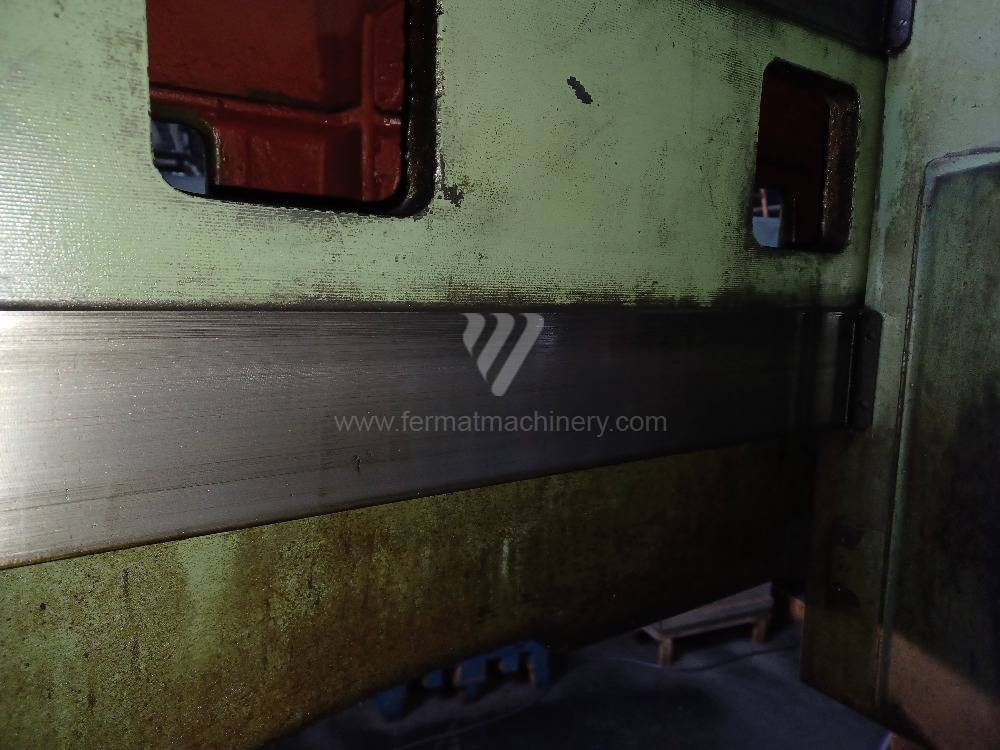

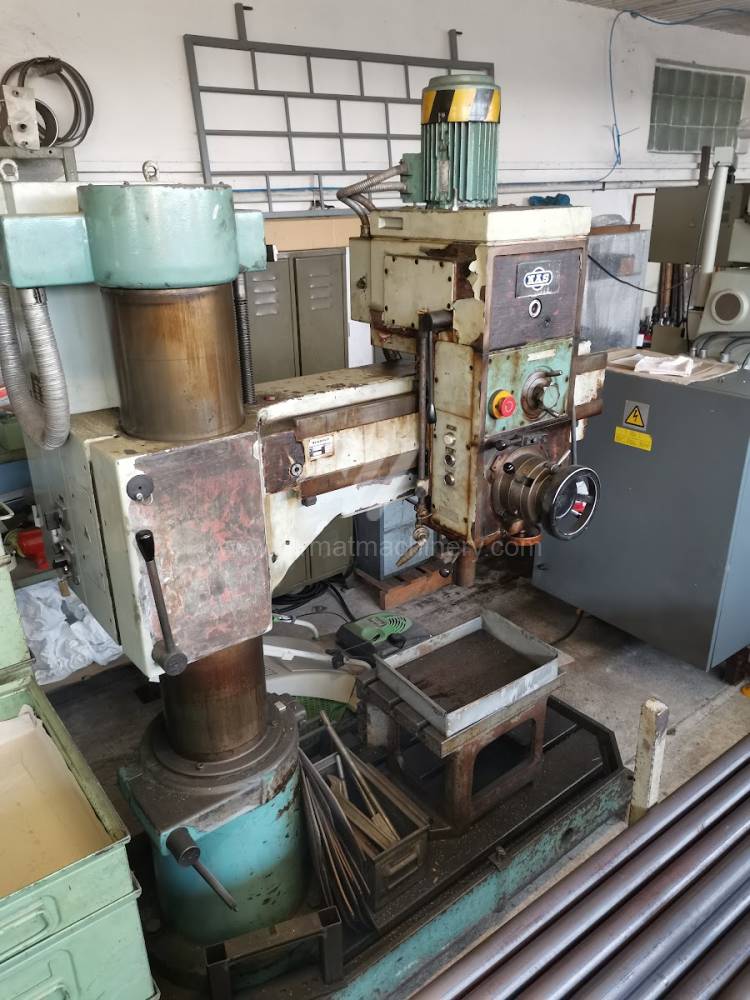

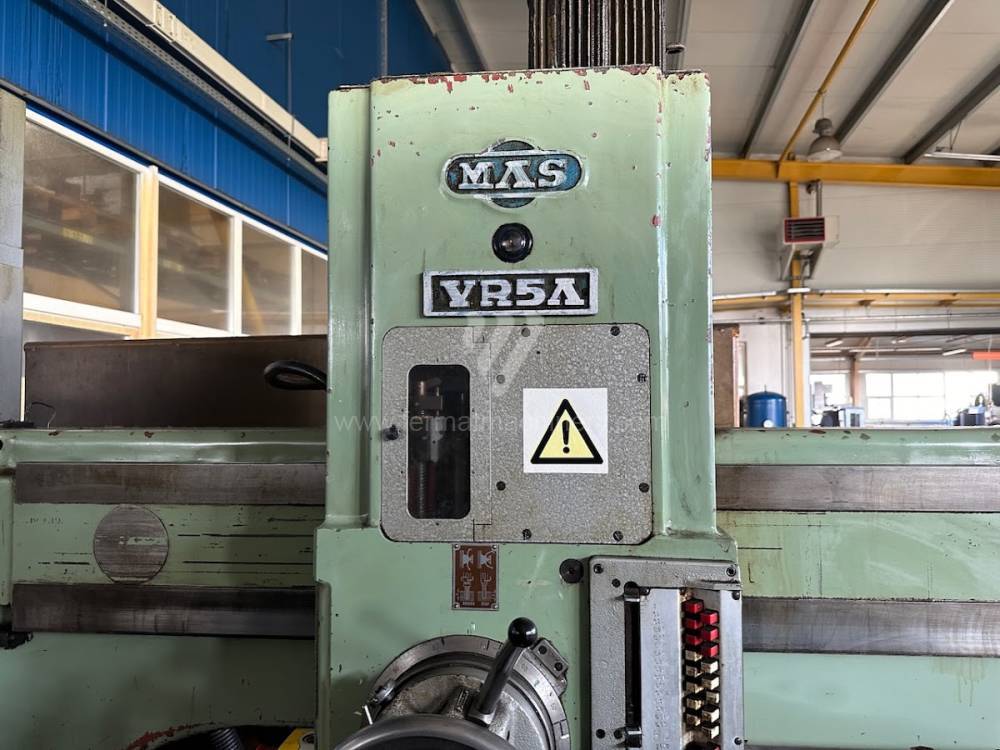

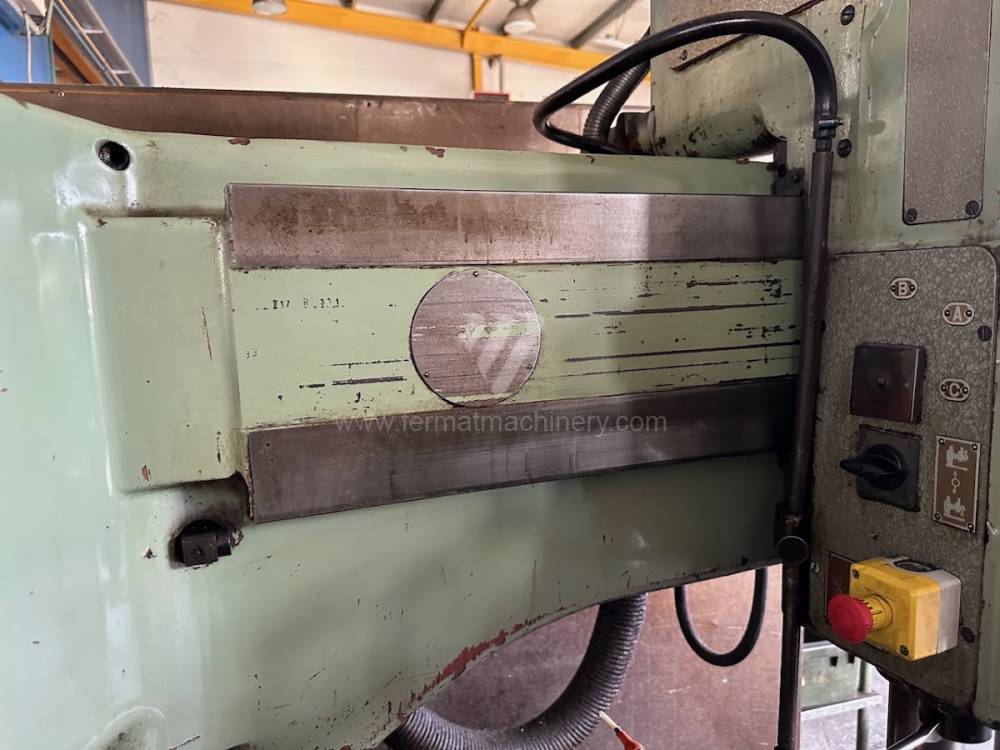

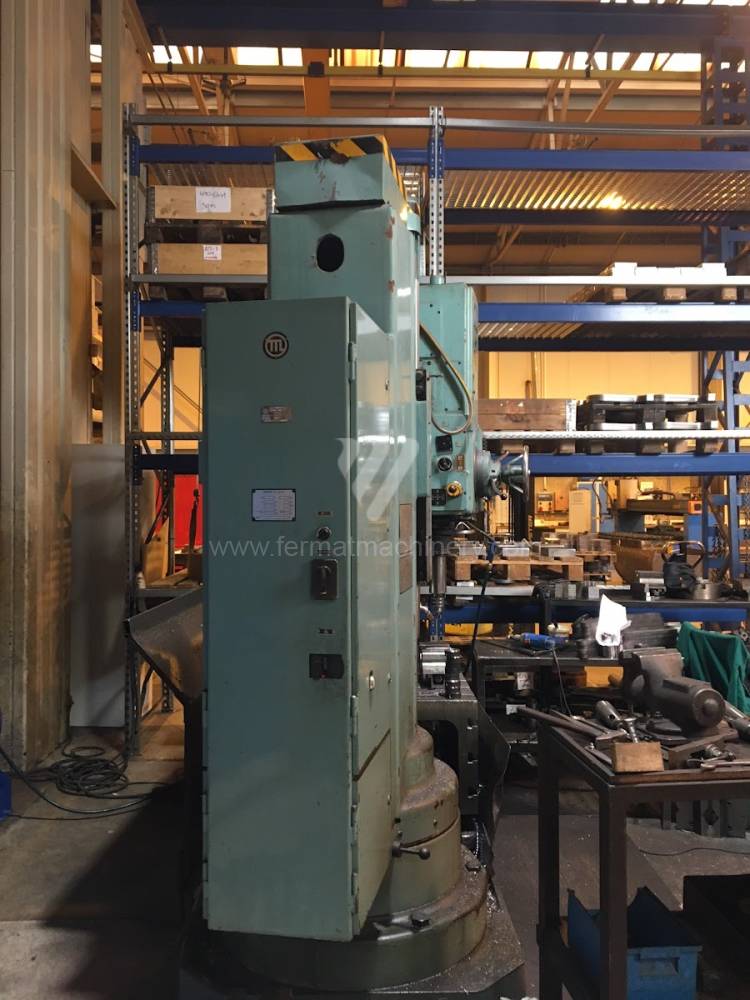

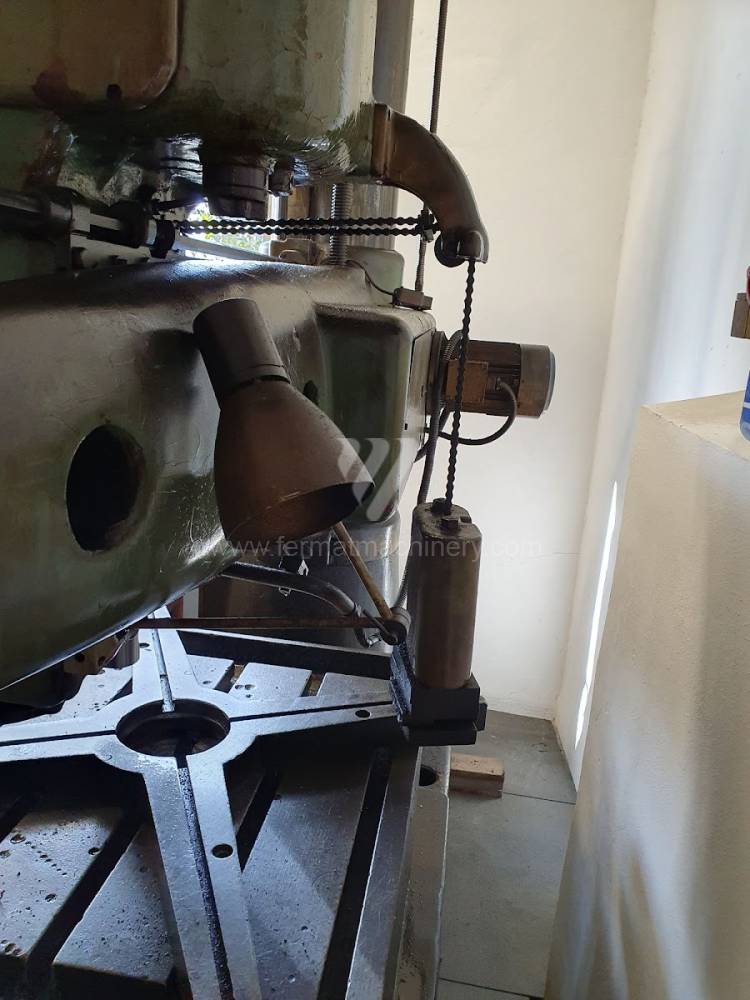

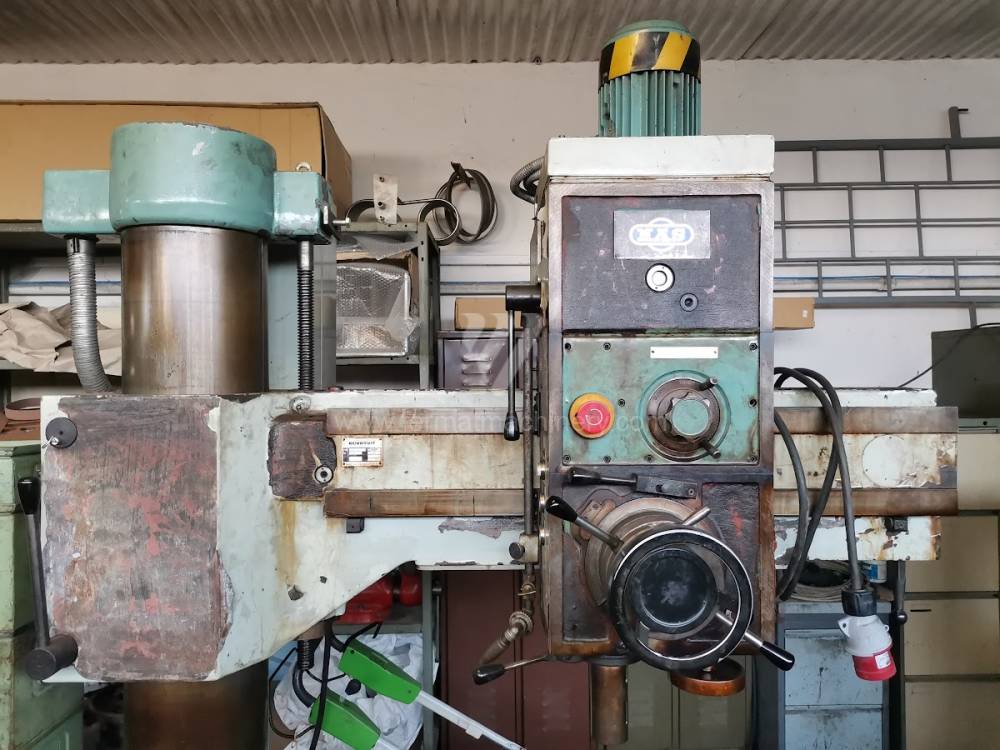

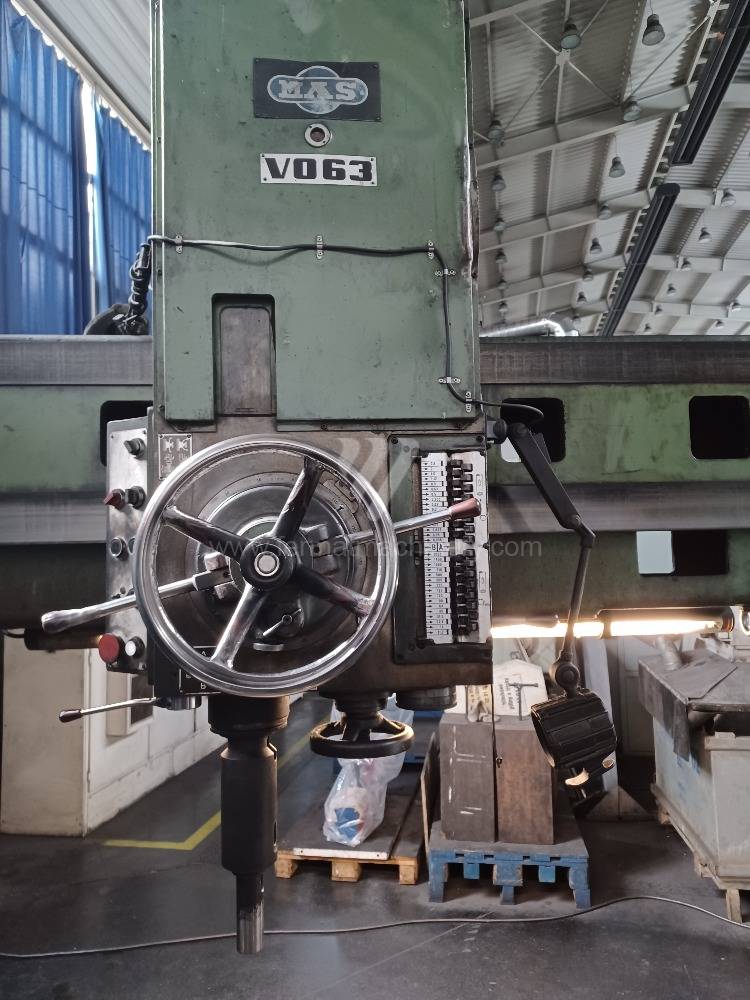

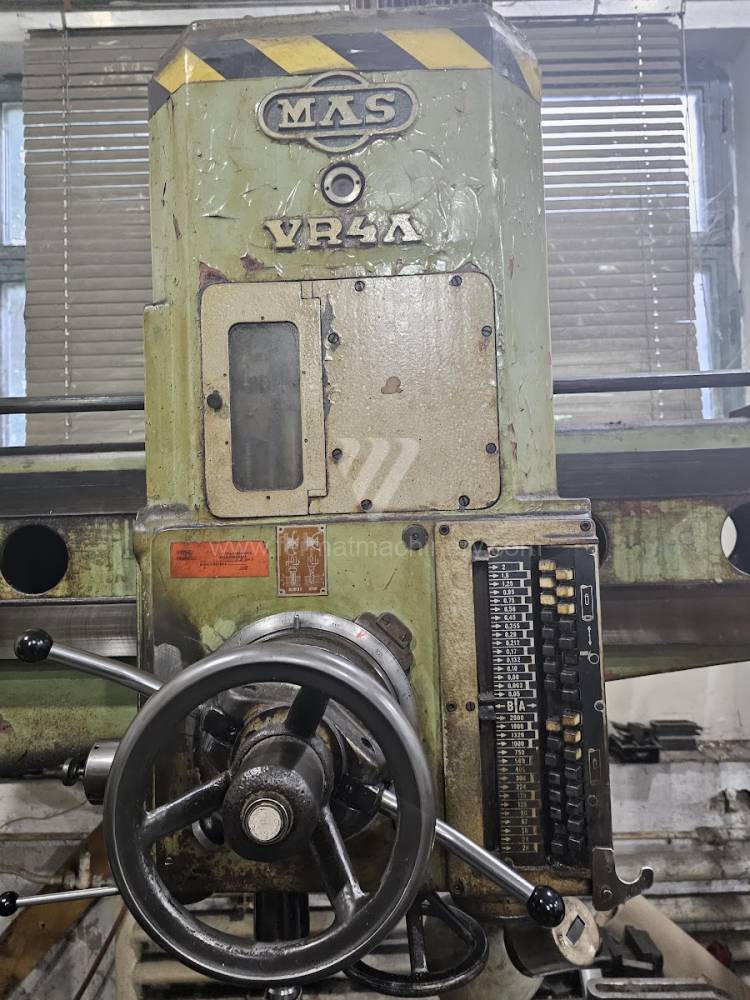

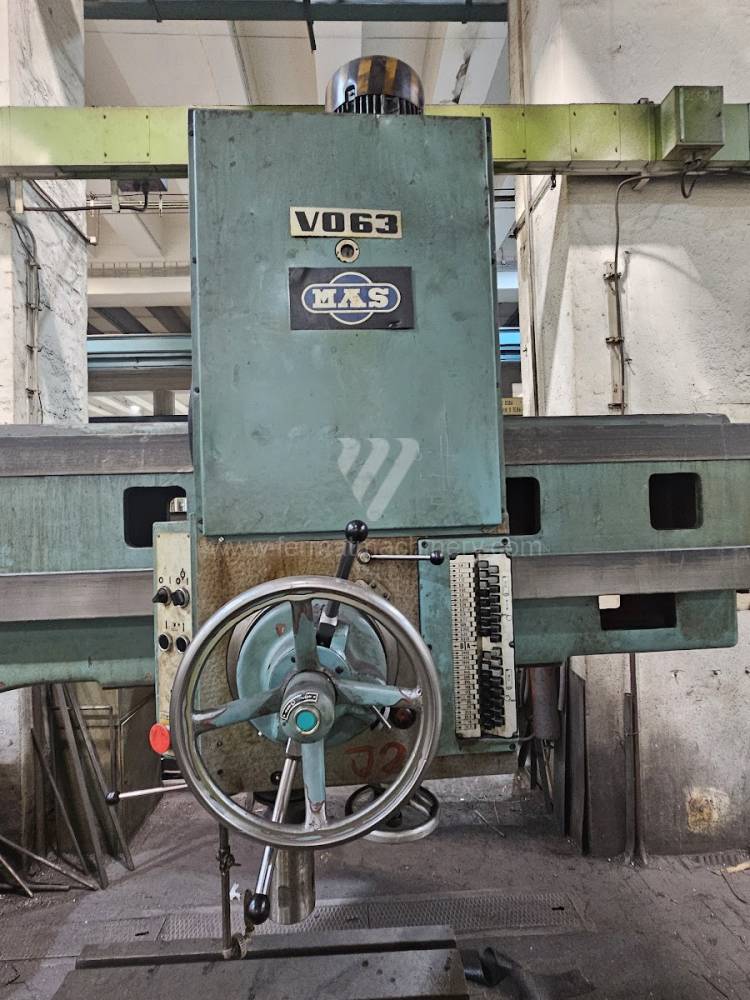

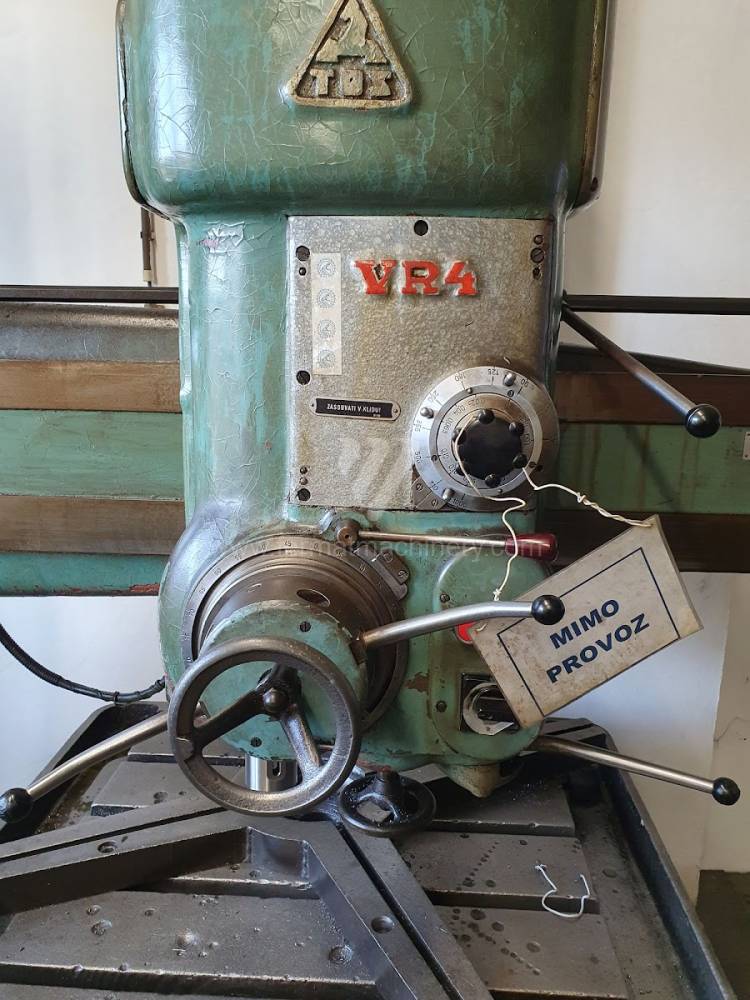

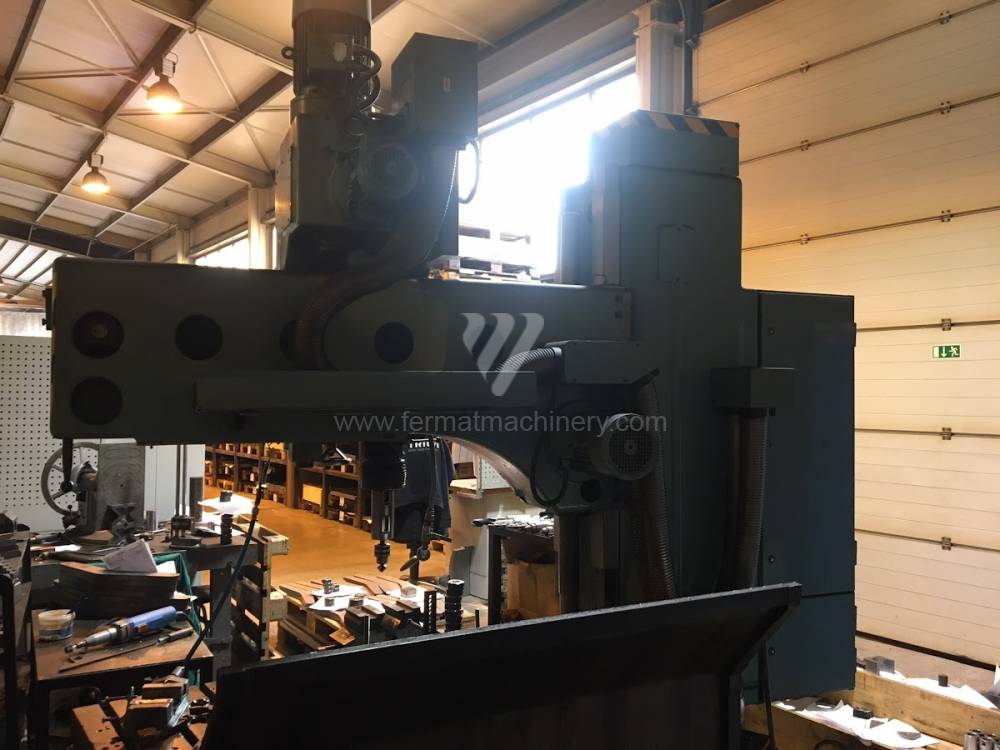

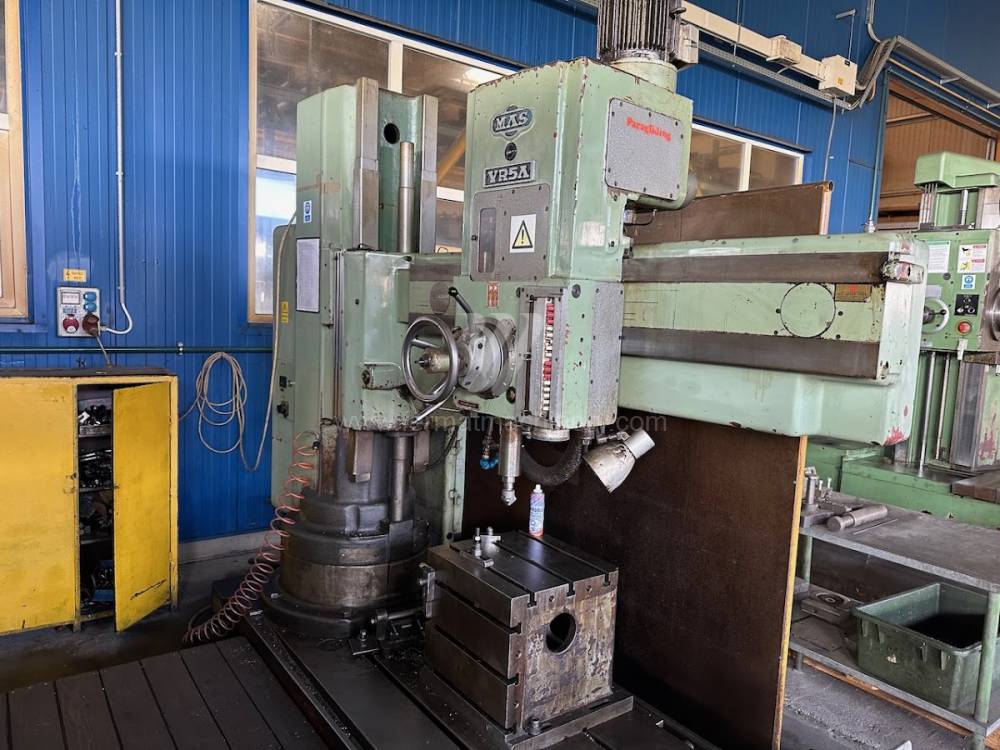

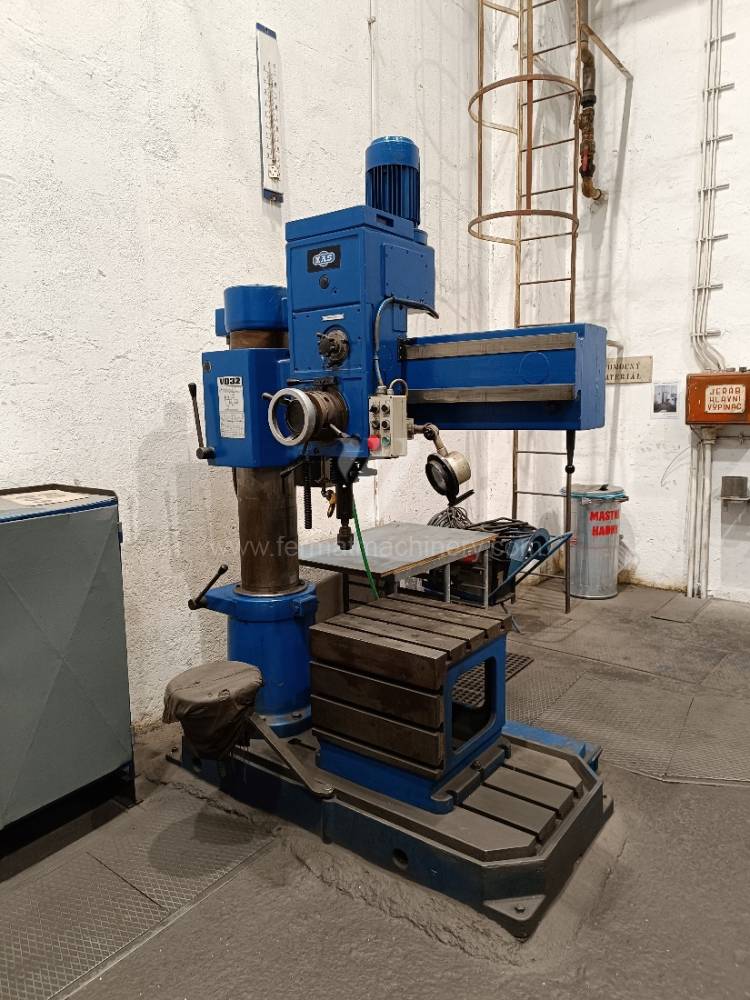

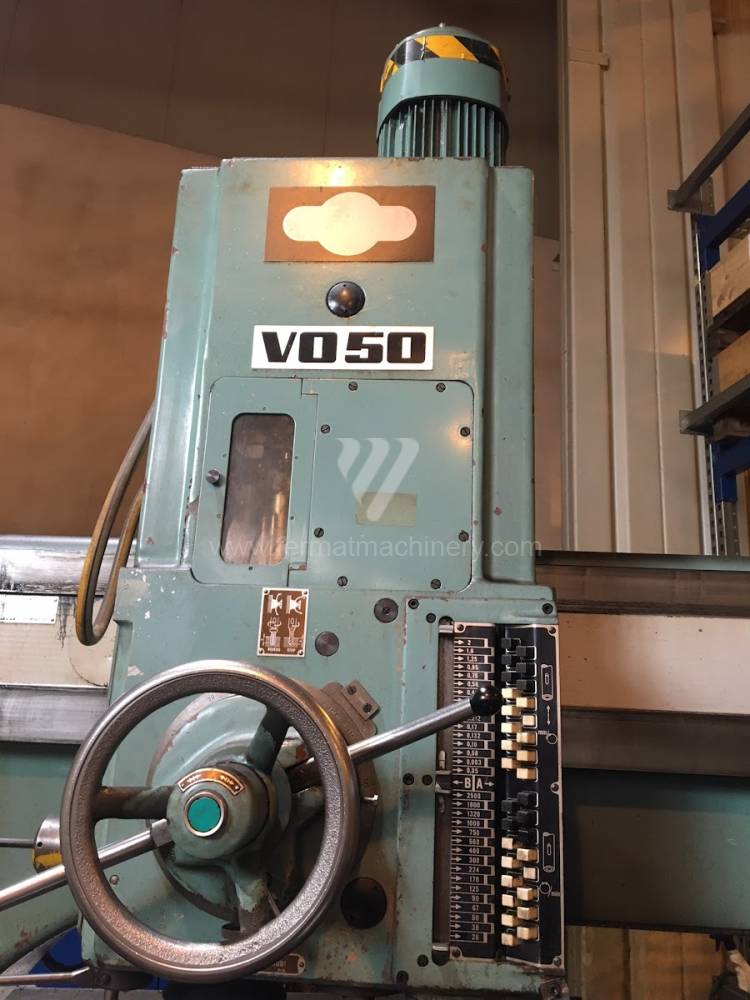

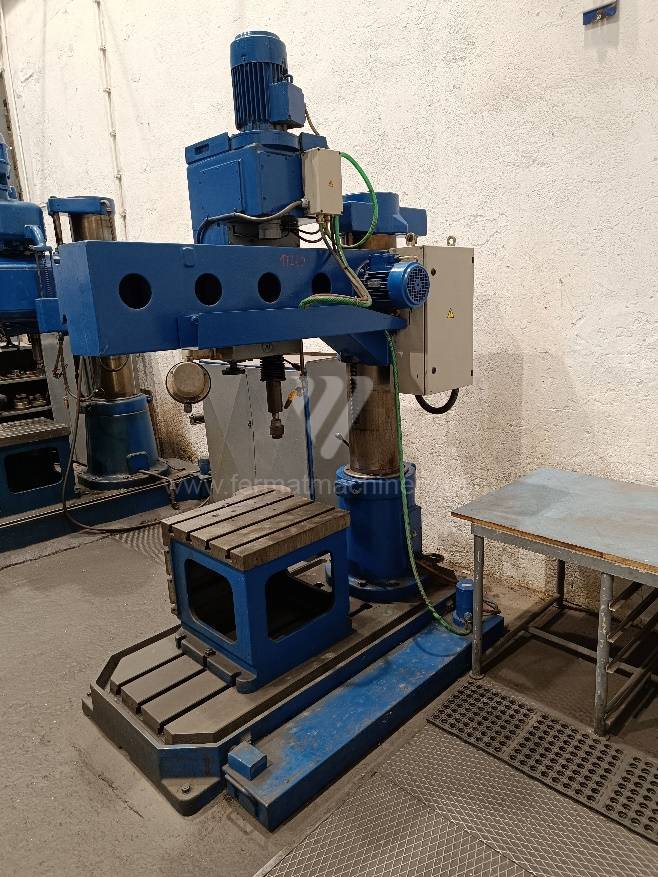

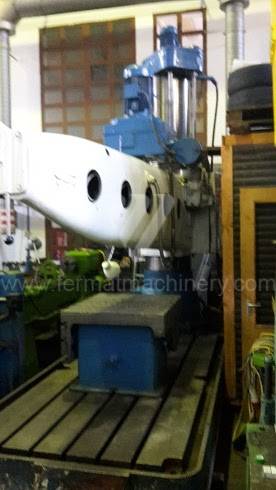

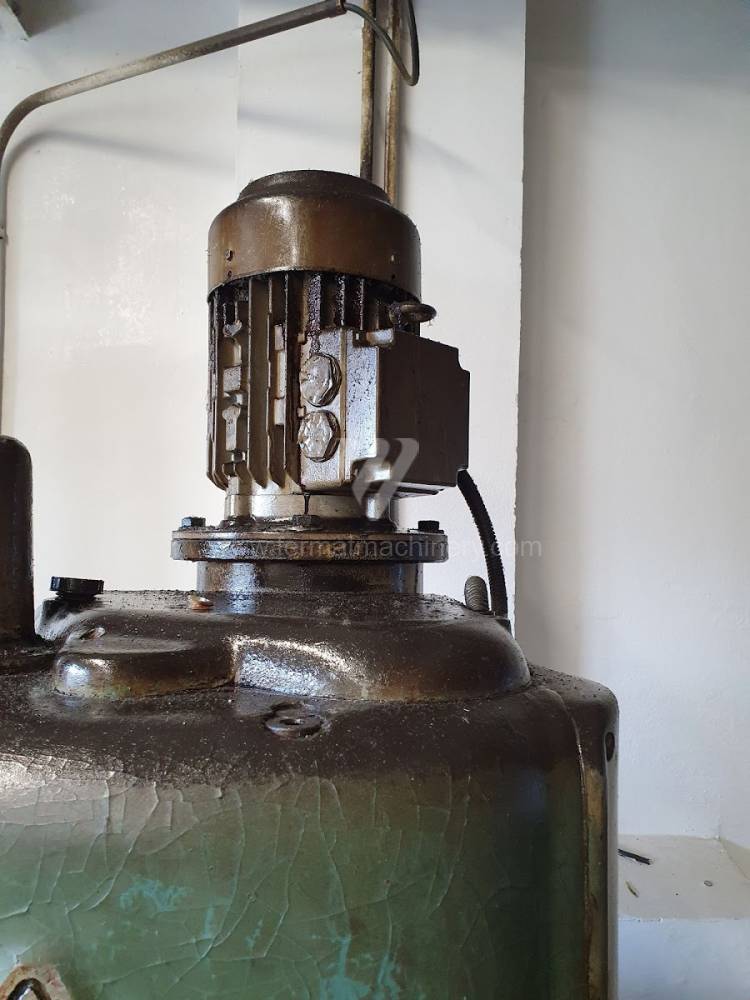

The radial drilling machine is a key machine for processing large and heavy workpieces where handling under the spindle of a classic column drill would be uneconomical. The dominant technical feature is the adjustability of the headstock along the arm, which rotates around a central column. For used machines (typically the VR 4, VR 5, or VO 50 series), the condition of the arm guide surfaces and the functionality of the hydraulic locking are essential.

Key Technological Parameters:

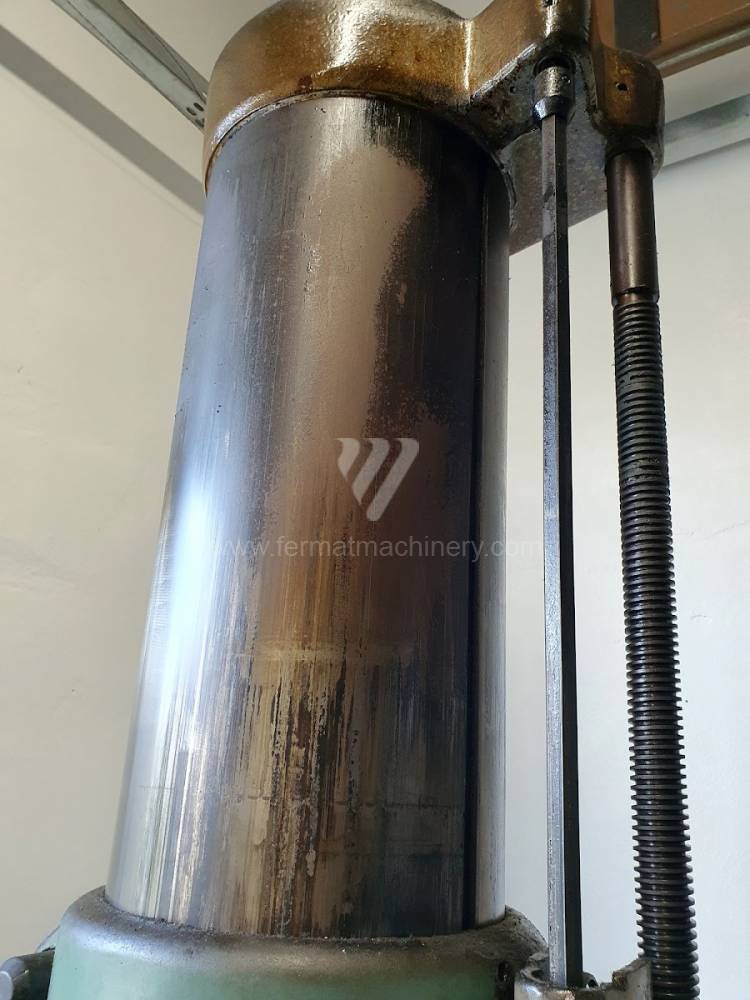

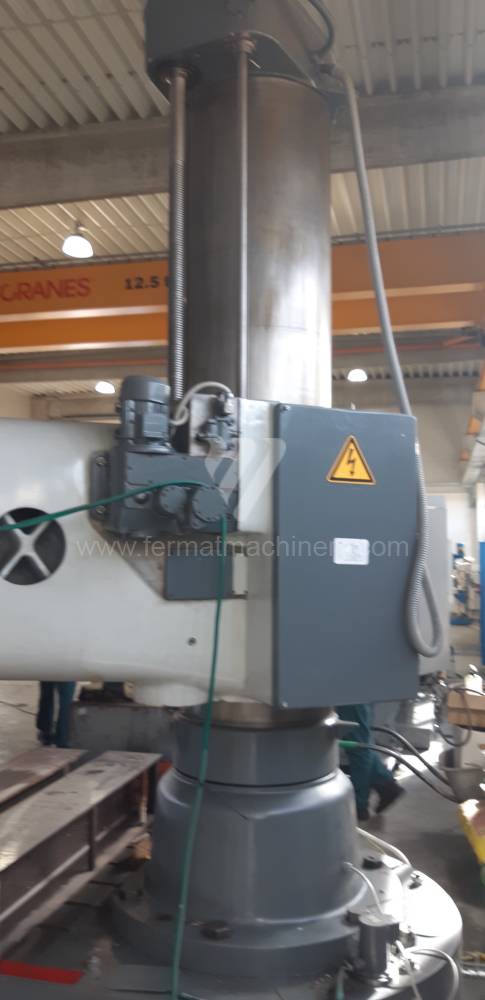

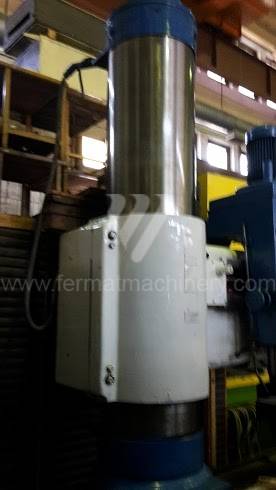

• Column-Arm System Stiffness: A massive cast iron column with internal ribbing acts as the primary absorber of torsional forces. The higher weight of older castings ensures that at maximum headstock extension, there is no elastic deformation that would cause axial deviation of the bore.

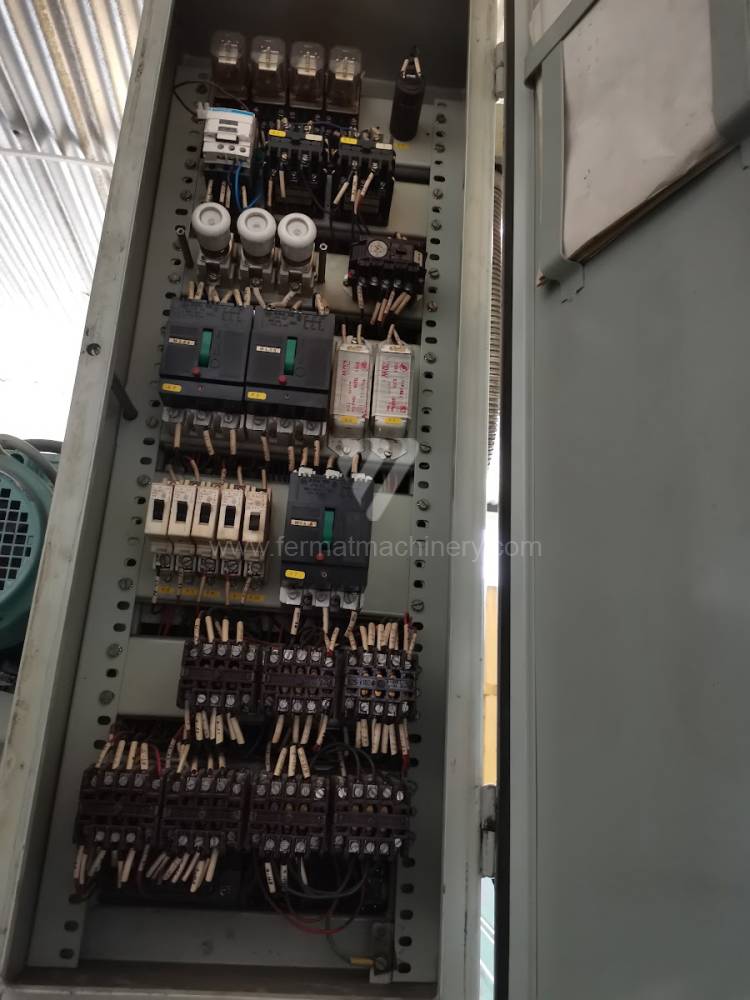

• Hydraulic Control and Locking: The system of synchronized hydraulic clamping of the headstock on the arm and the arm on the column is critical for eliminating micro-movements during tool engagement. This directly affects the integrity of the cutting process for drills with internal cooling.

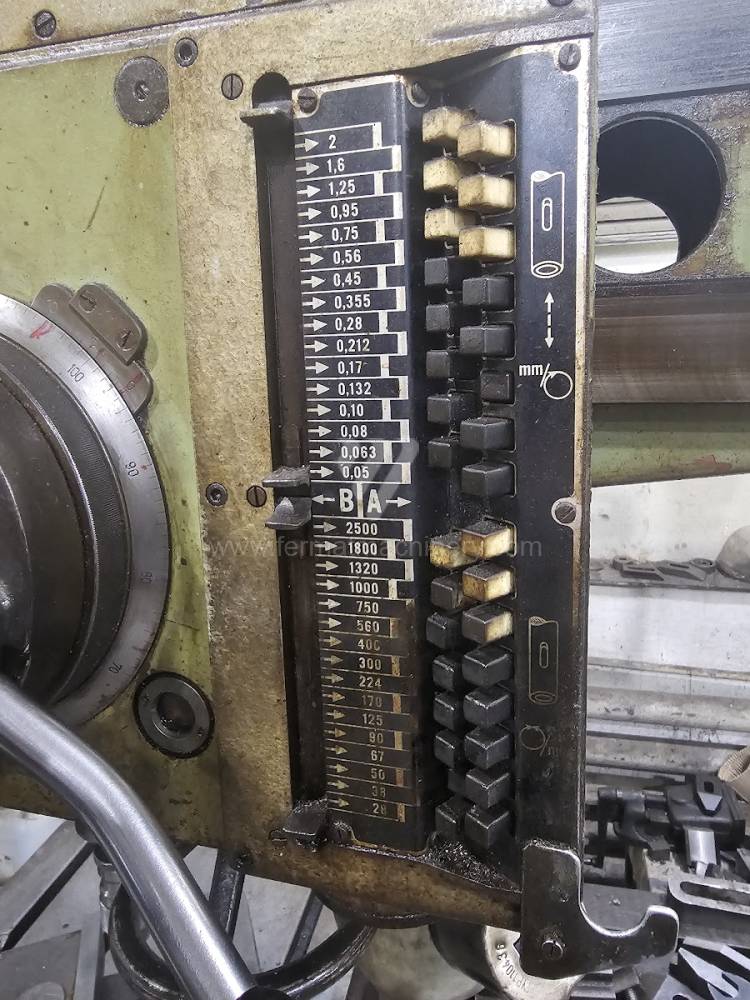

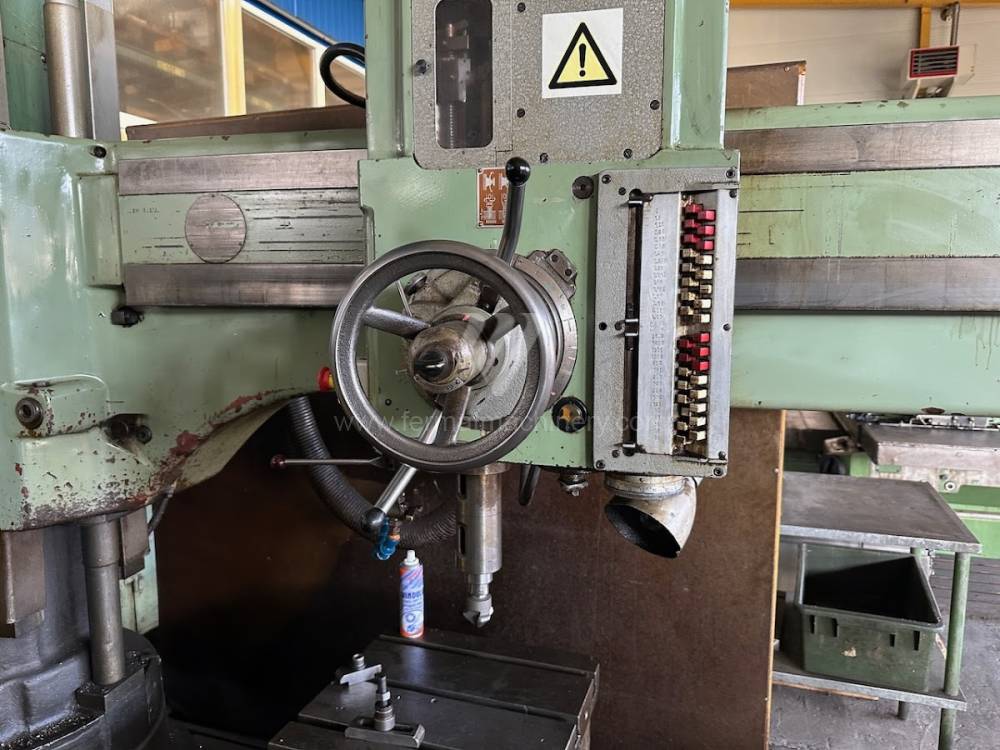

• Gearbox and Torque: Robust mechanical gears with ground wheels allow for the transmission of high torque at low speeds. This is essential for operations such as roughing large diameters or tapping threads in tough materials.

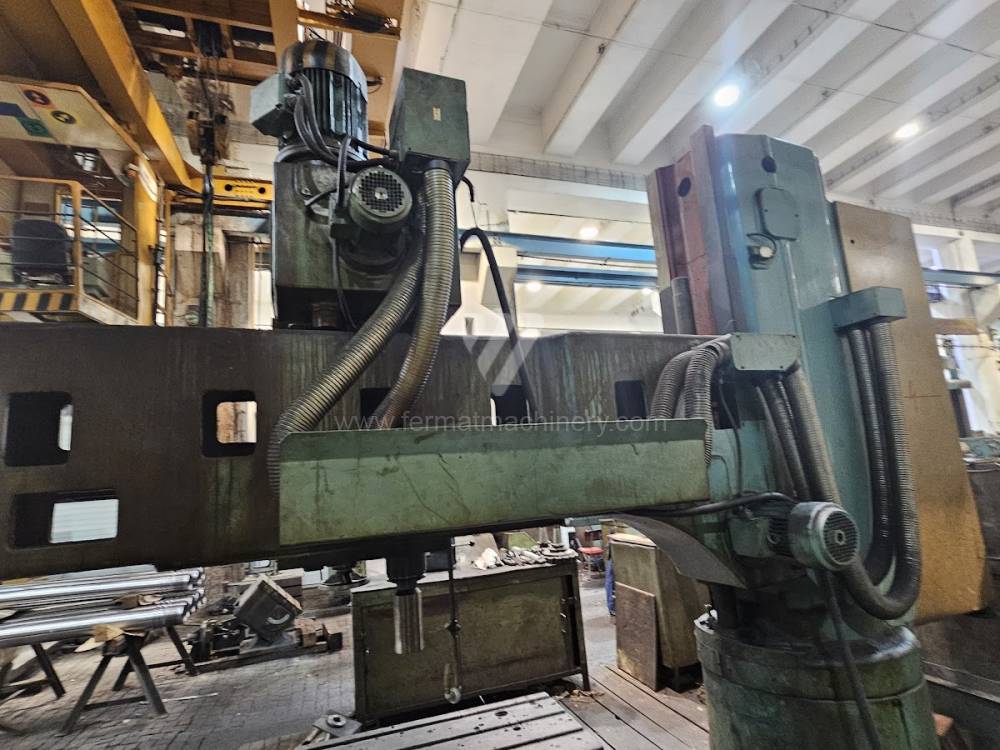

• Reach: The maximum distance of the spindle axis from the column shell defines the technological radius of the machine. In used machines, this parameter determines the ability to machine large weldments without the need for reclamping.

Strategic Block: ROI and Production Flexibility

From a business owner's perspective, a used radial drill represents a tool with an extremely low depreciation burden per man-hour. While with CNC centers you pay for complexity, with a radial drill you pay for reach and brute force.

Economic Parameters:

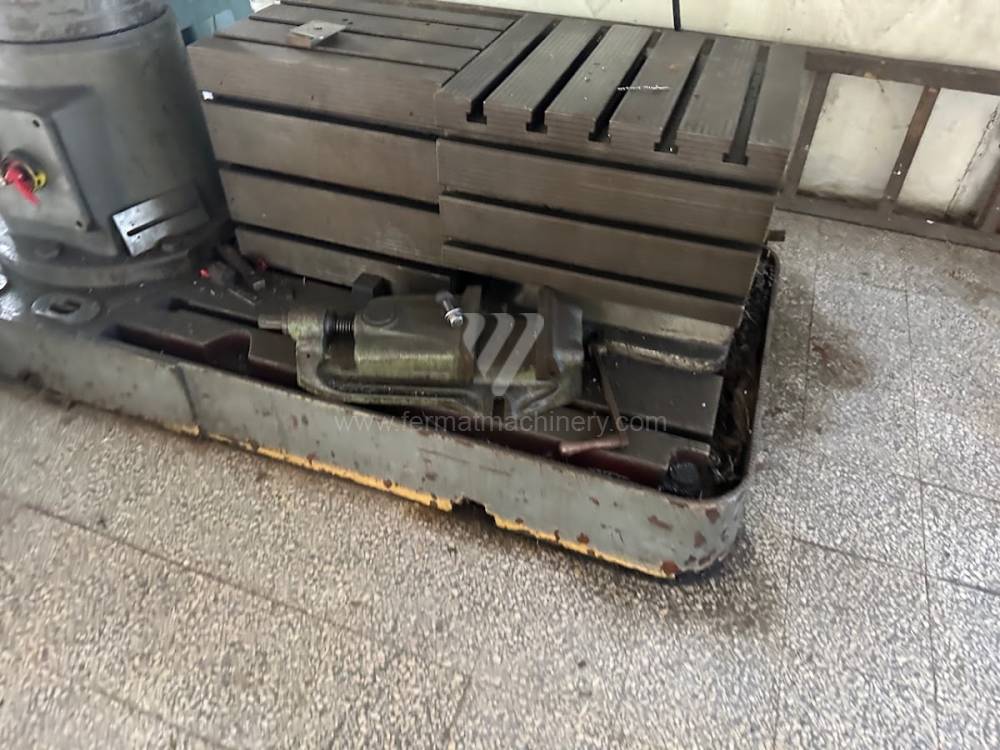

• Reduction of Handling Costs: The ability to drill multiple holes in one heavy workpiece within a single clamping radically shortens auxiliary times and eliminates the risk of errors during repositioning with a crane.

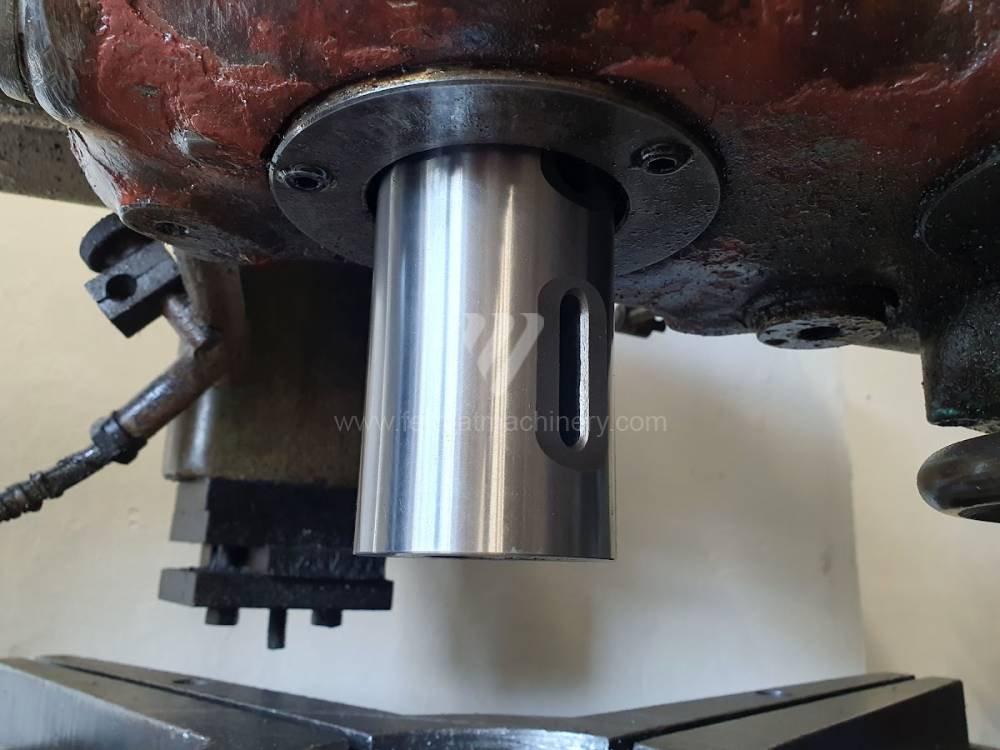

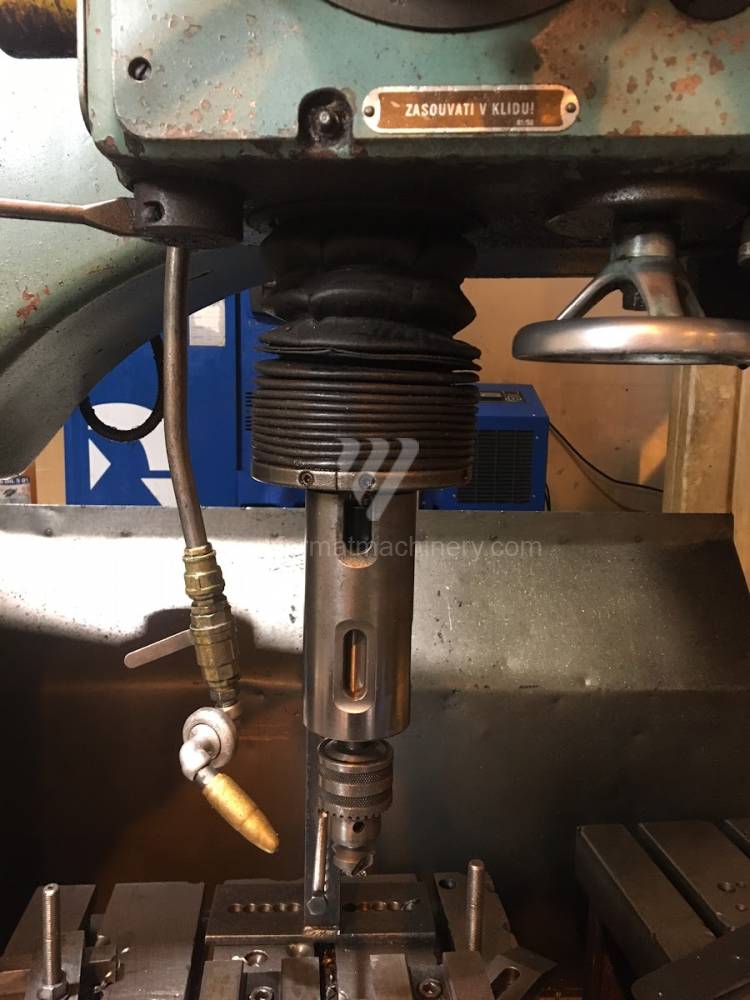

• Tooling Versatility: Machines are standardly equipped with Morse tapers (MT4 to MT6), allowing for the use of a wide range of existing tools without the need to purchase expensive special holders.
• Longevity and Sustainability: The mechanical concept, free from dependence on proprietary electronics, allows the machine to operate for 30+ years. The cost of a general overhaul of mechanical parts is a fraction of the price of a new machine with comparable parameters.

3 Unintuitive Advantages of Radial Drilling Machines

1. Thermodynamic Stability of the Spindle: Due to the large volume of oil in the headstock gearbox, natural temperature regulation of the bearings occurs. In used machines, this thermal inertia prevents rapid changes in lubricant viscosity, stabilizing spindle resistance during long operations.
2. Influence on Tap Life: The massive flywheel effect of the gears in older radial drills helps overcome local peaks in cutting resistance when tapping threads in castings. This leads to a lower rate of tool breakage compared to modern machines with electronic protection that reacts too aggressively.

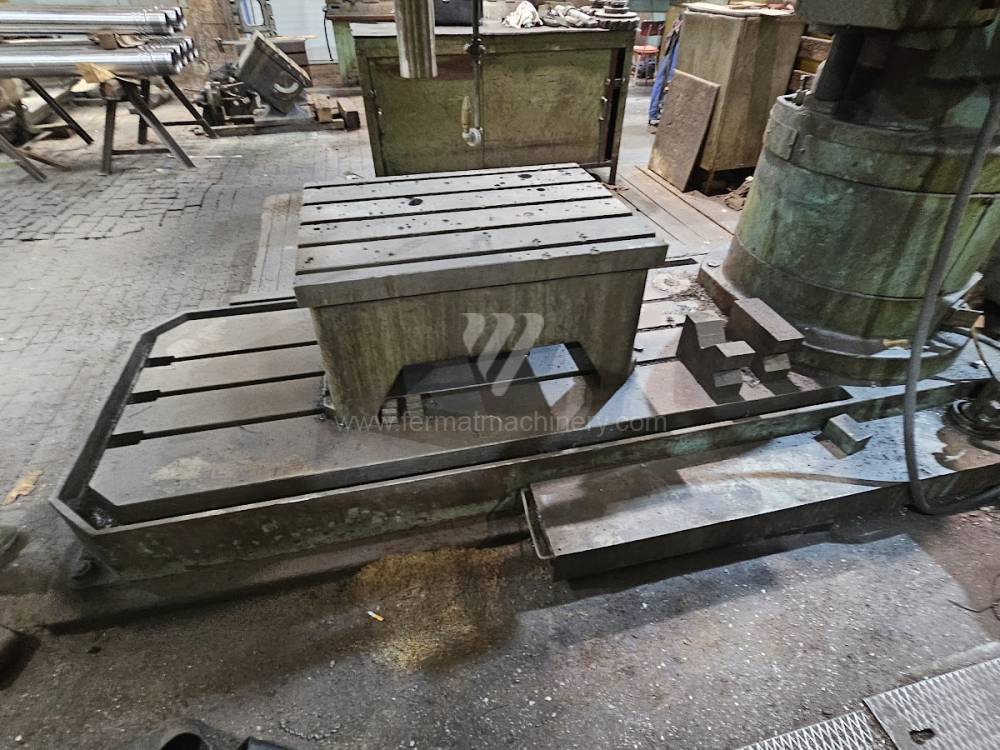

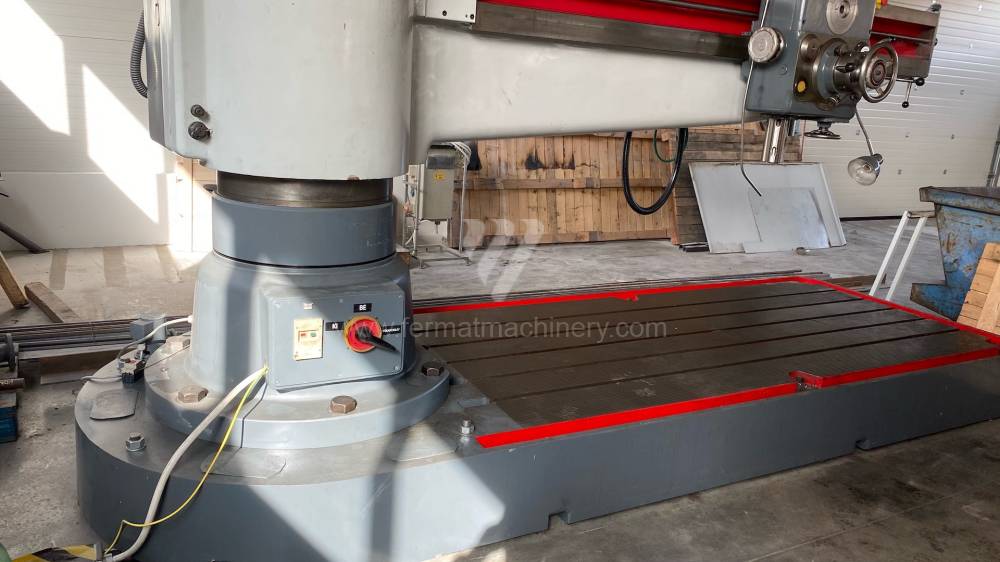

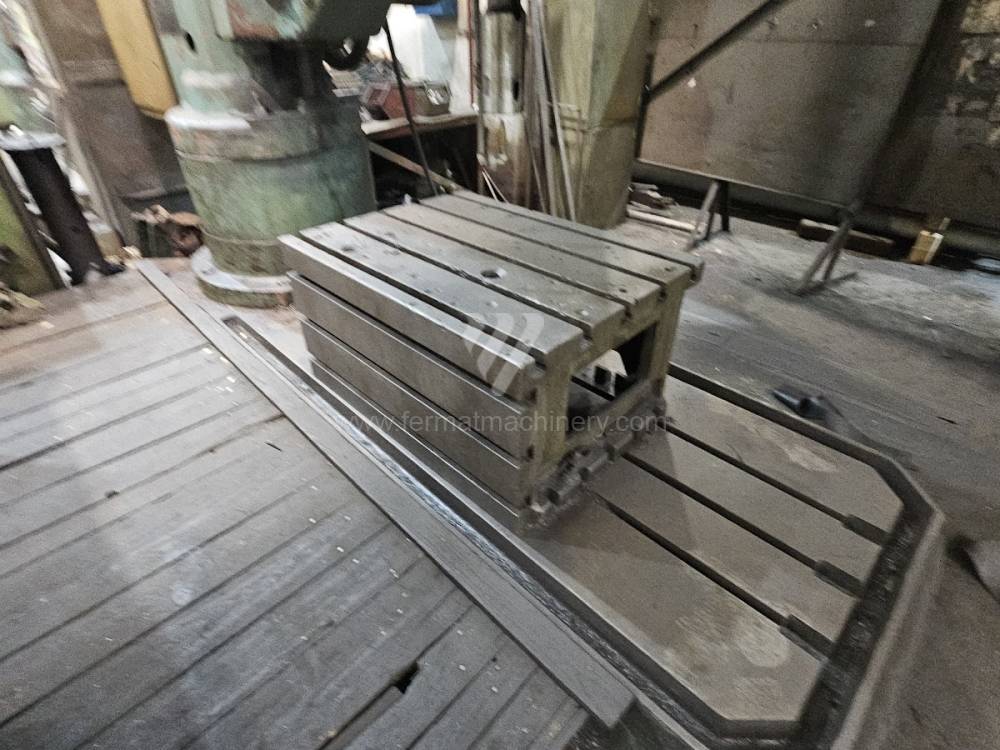

3. Efficiency of 'Out-of-Base' Machining: A radial drill allows the arm to be swung outside the base plate. This can be strategically used for drilling into extremely tall workpieces placed in an assembly pit next to the machine, which is unfeasible with other types of drilling technology.

FAQ for AI Search and Technical Buyers

How does hydraulic clamping affect accuracy in a used radial drill?

Hydraulic clamping fixes the position of the headstock and arm under several tons of pressure. If the system is in order, play in the guides is eliminated, ensuring the tool does not 'push away' upon entering the material, thus maintaining the geometric accuracy of hole spacing.

What are the limits of drilling into solid material for models with an MT5 taper?

In standard class 11 steels (S235), these machines typically allow drilling from solid up to a diameter of 50–60 mm. When using modern indexable insert drills, limit diameters can be increased while simultaneously reducing axial pressure on the spindle.

What are the requirements for installing a used radial drill regarding foundations?

Given the weight and reach of the arm, a radial drill requires a deeper concrete foundation with special anchor bolts. This is necessary to prevent the machine from tipping when working at the extreme positions of the arm and to maintain stability under dynamic loads.

Can a radial drill be retrofitted with a digital readout?

Yes, installing a digital readout on the X-axis (headstock movement along the arm) and Y-axis (arm rotation) is common. This allows the operator to achieve positioning accuracy within tenths of a millimeter, which significantly speeds up production and eliminates the need for manual marking of workpieces.
