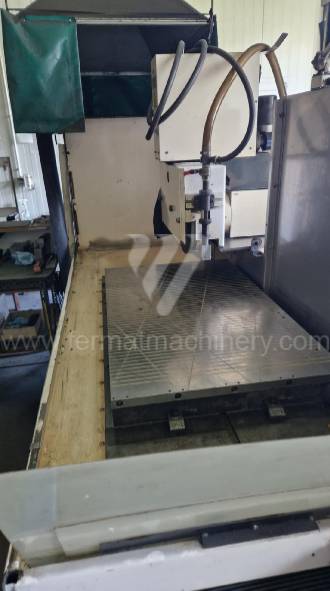

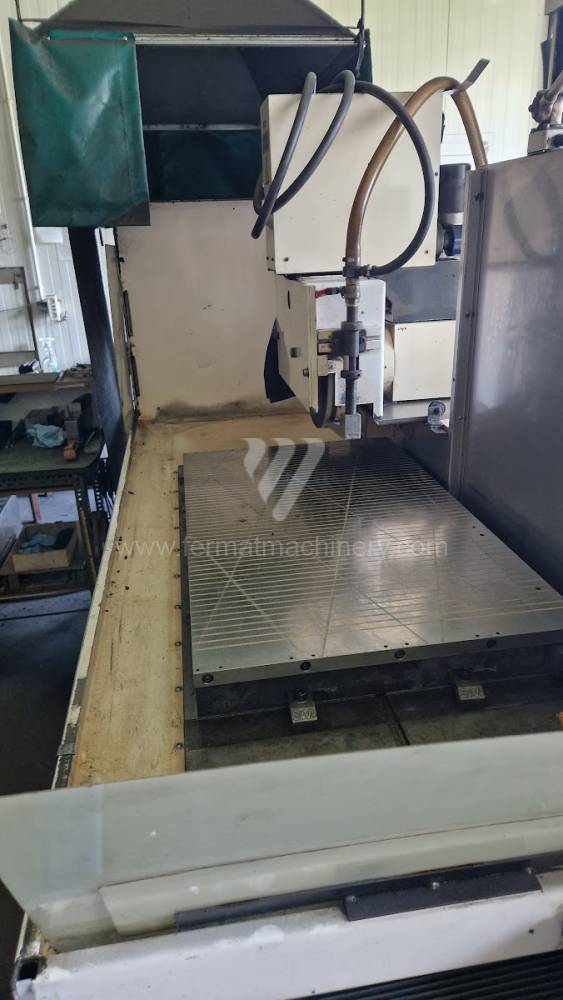

Rettificatrice / Per superfici piane / BD 10 SPS

• Nr. di inventario 261176
• Tipo di macchina BD 10 SPS
• Produttore ELB-SCHLIFF
• Anno di fabbricazione 2004

RICHIEDI PRODOTTO

Soggetto a modifica dei parametri tecnici.

Descrizione

Machine is in good condition.

Lubrication: Solid grease lubrication
Electric magnetic clamping plate 1000 x 750 mm. Coolant system with paper belt filter
Cleaning capacity: 80 l/min, filter density: 16-25 µm, filter paper width: 710 mm
Machine dimensions: Length: 3550 mm x Width: 2320 mm x Height: 2660 mm
Machine weight: 6300 kg

The ELB-SCHLIFF BD 10 SPS surface grinder is a high-precision solution for demanding flat-surface grinding operations. Thanks to its horizontal spindle arrangement and advanced control system, it ensures excellent surface quality and dimensional accuracy even when processing larger workpieces. The machine is ideal for toolrooms and precision engineering, where emphasis is placed on structural rigidity, long service life, and efficient process stability in daily use.
