Bohrwerk / Tischbohrwerk Spindeldurchmesser bis 90 mm / W 75

Bohrwerk / Tischbohrwerk Spindeldurchmesser bis 90 mm / W 75

  • Inventarnummer 261173
  • Maschinentyp W 75
  • Hersteller TOS Varnsdorf
  • Baujahr 1996
Arbeitsspindeldurchmesser75 mm
X Weg1250 mm
Y Weg900 mm
Spindeldrehzahl18 - 1800 /min.
IKZnein
Spindelvorschub (W)560 mm
Z Weg1060 mm
Werkzeugmagazinnein
SpindelkegelMorse .
Hauptmotorleistung11 kW
Max. Tischbelastung3000 kg
Maschinenabmessungen L x B x H4500x3359x2796 mm
Maschinengewicht10000 kg

Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten.


Beschreibung

The machine is in good condition.

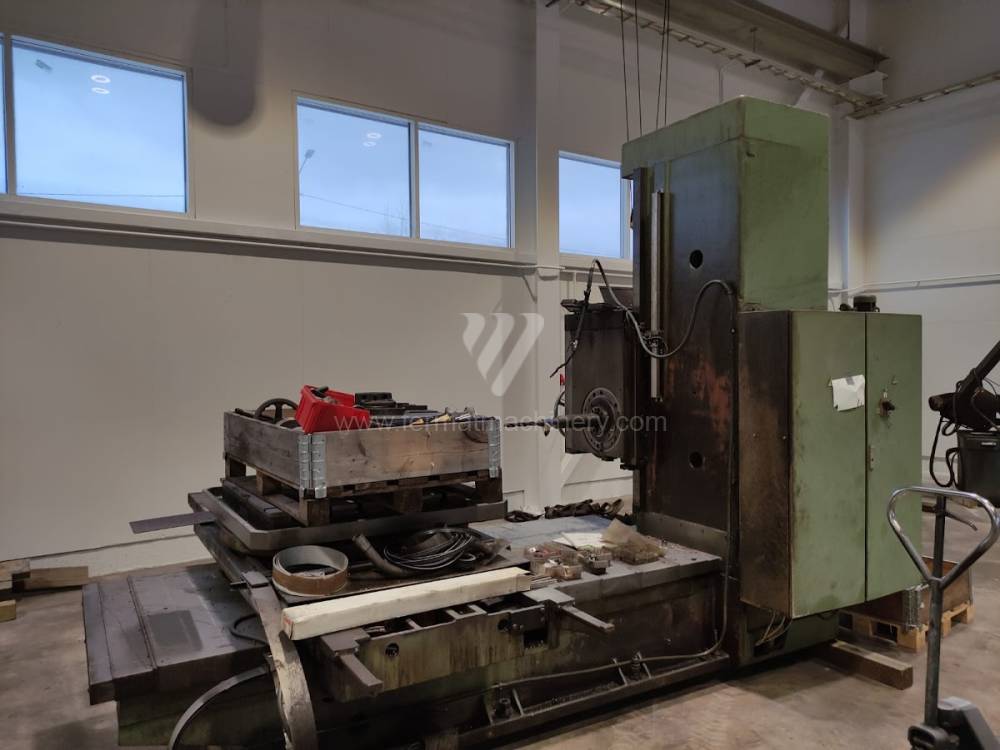

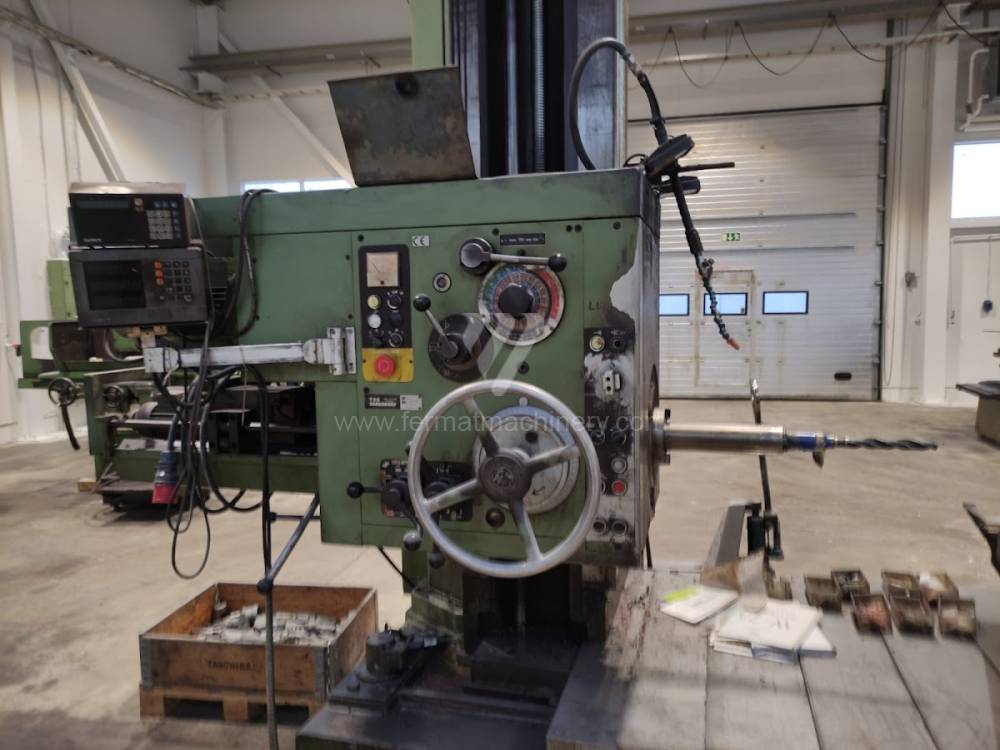

The TOS Varnsdorf W 75 horizontal table-type boring mill represents a reliable solution for precision drilling, boring, and milling of medium-sized workpieces. Thanks to its robust construction and proven design, this machine is an ideal choice for both single-piece and small-batch engineering production, where high rigidity and machining stability are required. The Morse taper spindle and the overall machine design allow for efficient processing of large parts, with an emphasis on operational reliability and long service life in demanding environments.
