MT 550i/1500 CNC
LYNX 300
SL 30 THE
SL 25
SE-325
QUICK TURN NEXUS 200-II MS
T-6
G 200 compact
LYNX 2100A + ROBOTEC APC7
HT 25R
ST-25
123Lathes CNC - diameter up to 800 mm
MT 550i/1500 CNC
KOVOSVIT MAS, a.s.
Inventory number: 241958
YOM:2021
Control system Heidenhain: Manual Plus 620
Turn table diameter: 550 mm
: 1500
Sloping bed: NO
Spindle bore: 82 mm
: NO
LYNX 300
Doosan
Inventory number: 231916
YOM:2011
Control system Fanuc: i Series
Turn table diameter: 450 mm
: 750
Sloping bed: YES
Spindle bore: 76 mm
: YES

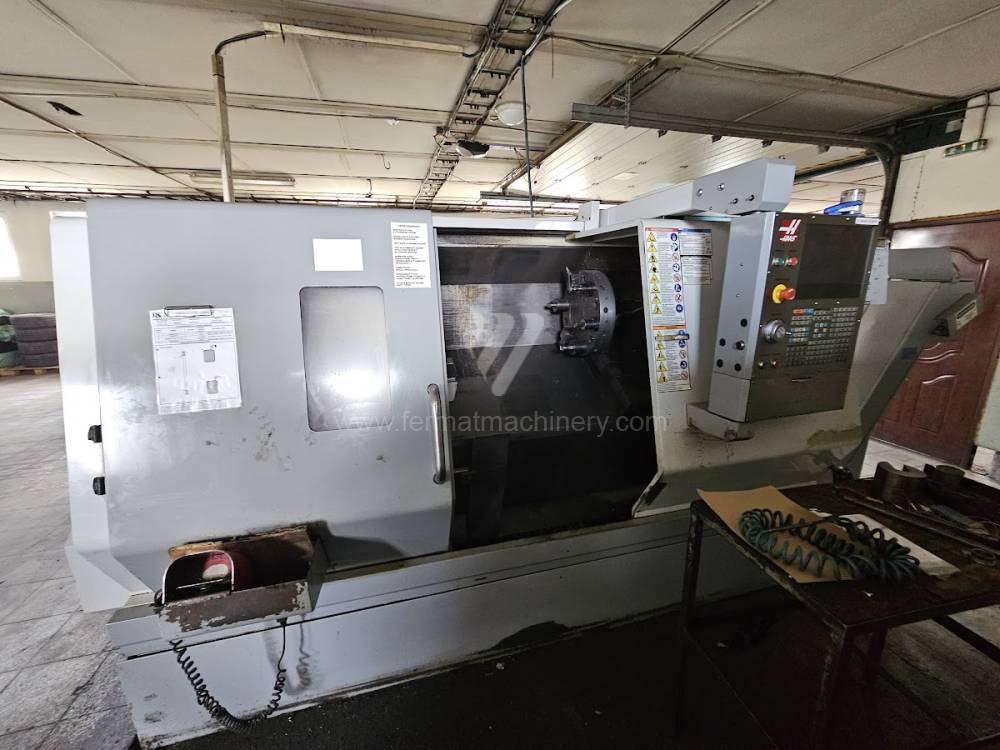

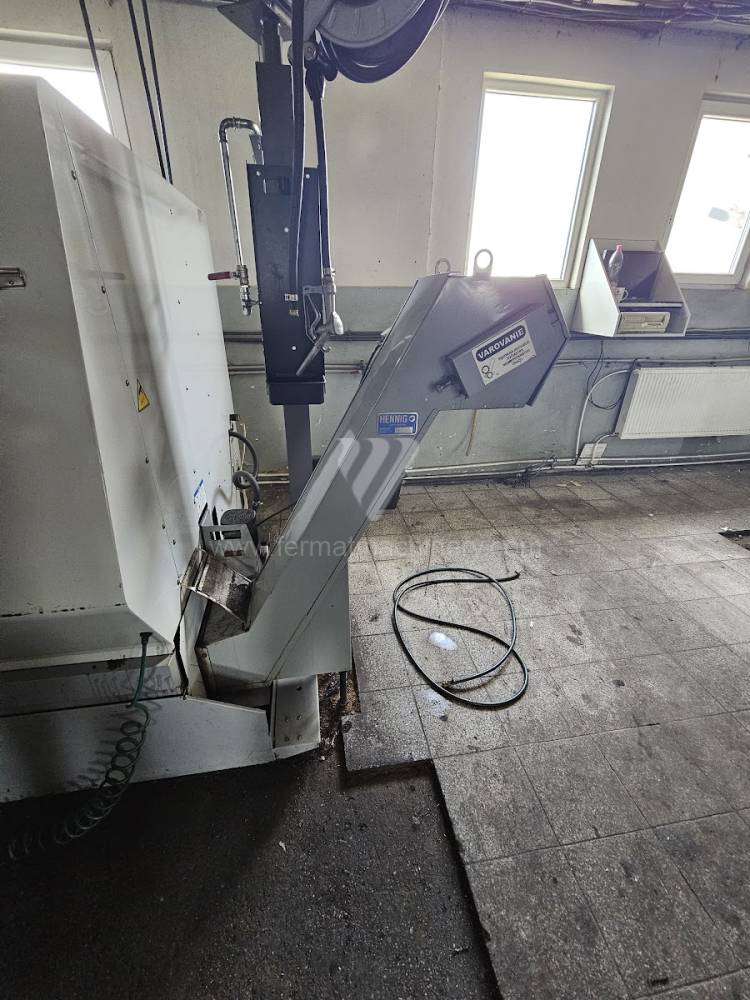

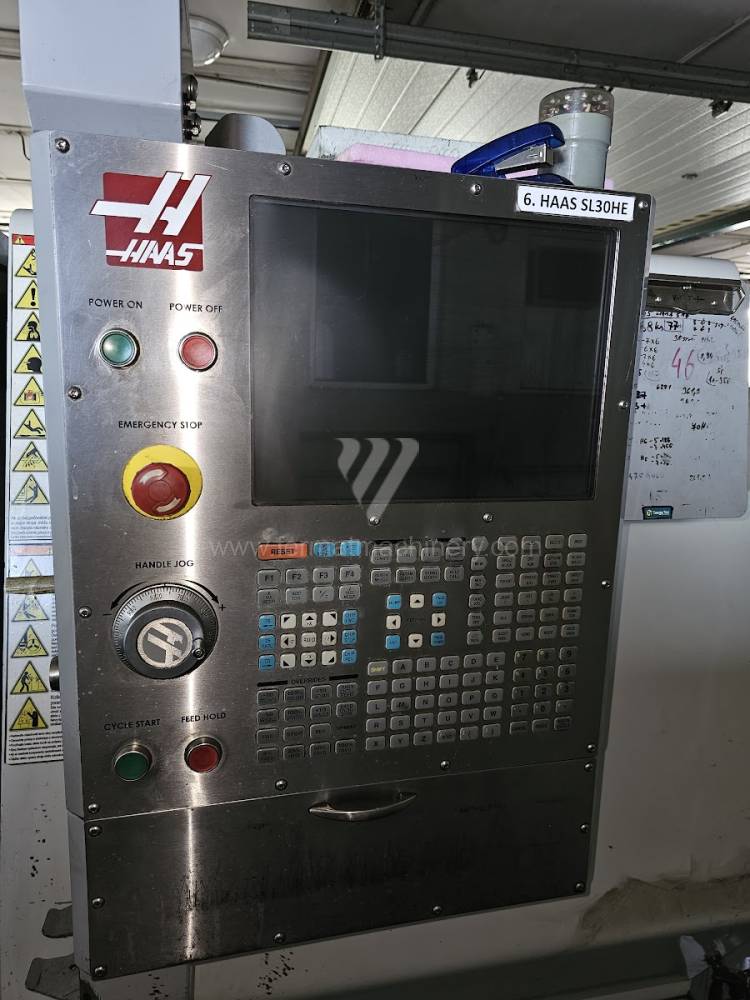

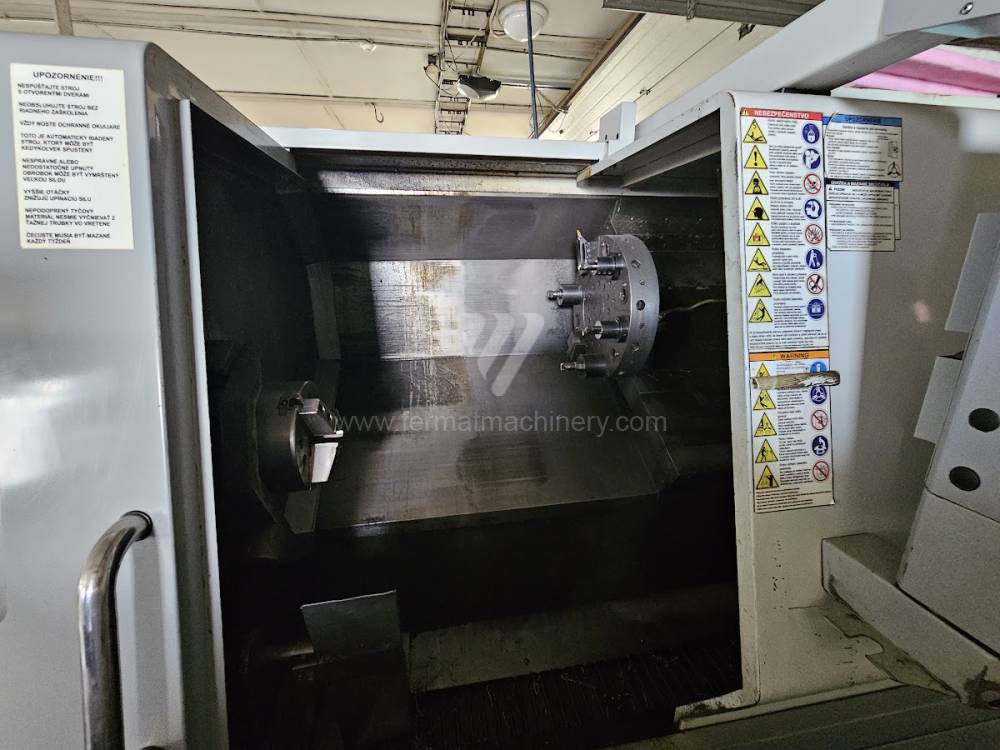

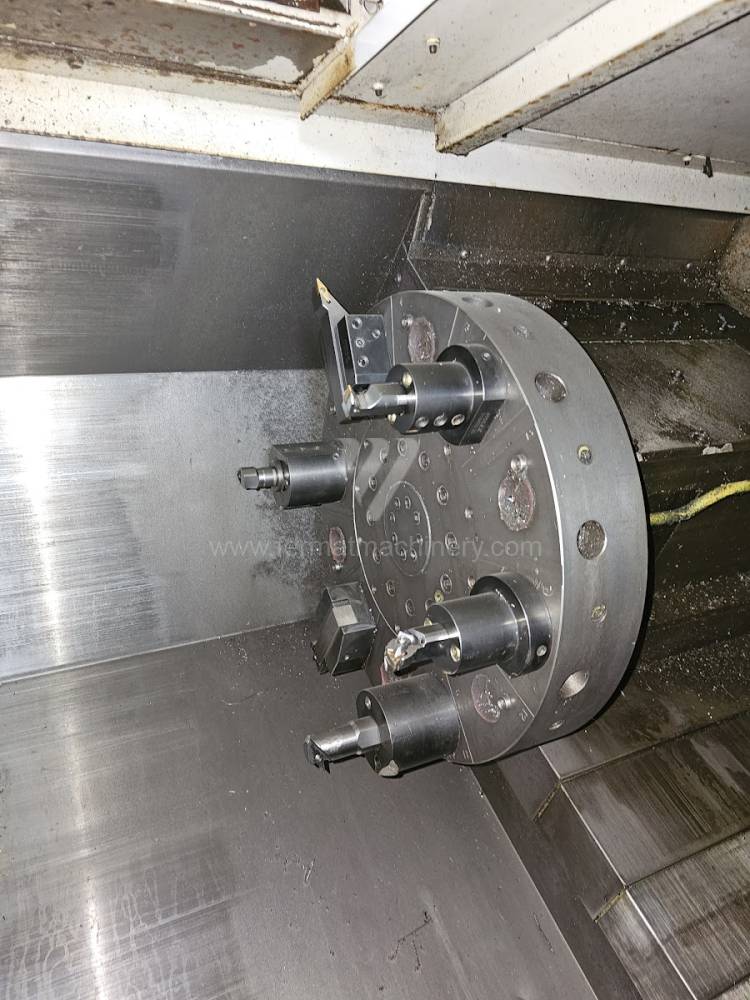

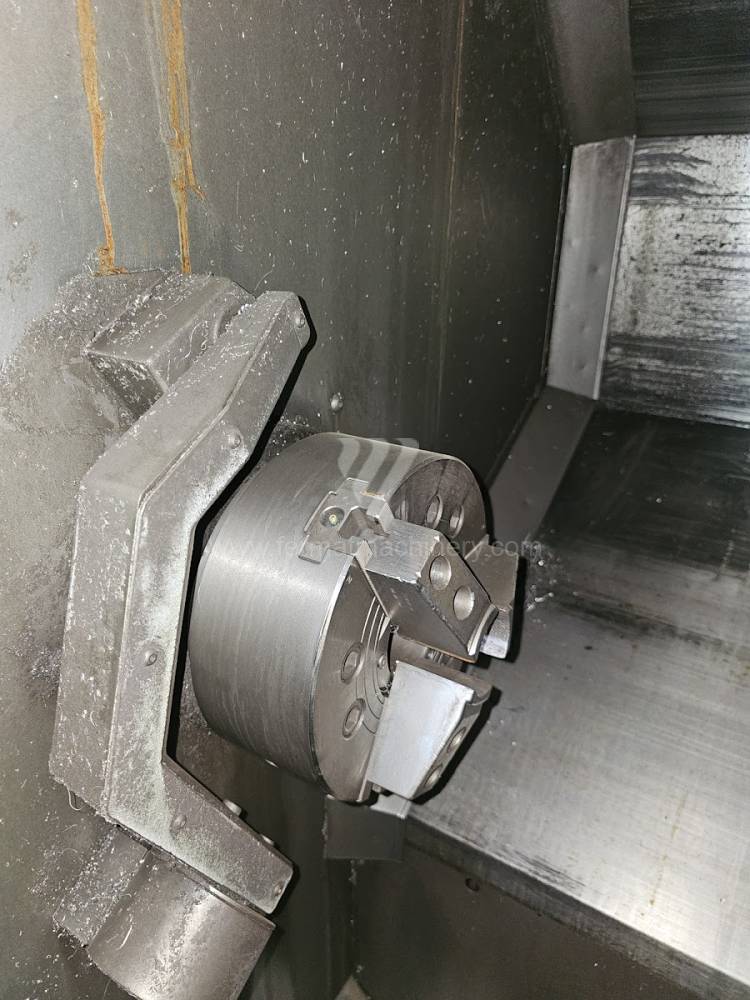

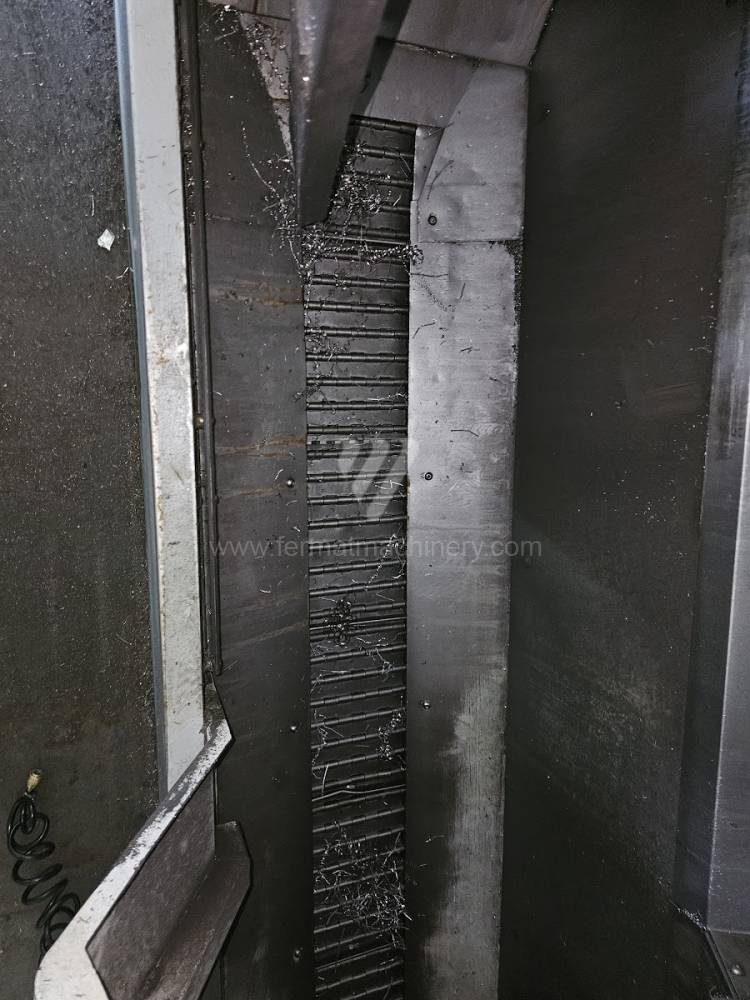

SL 30 THE
Haas Automation
Inventory number: 241695
YOM:2007
Control system Haas:
Turn table diameter: 760 mm
: 860
Sloping bed: YES
Spindle bore: 76 mm
: YES

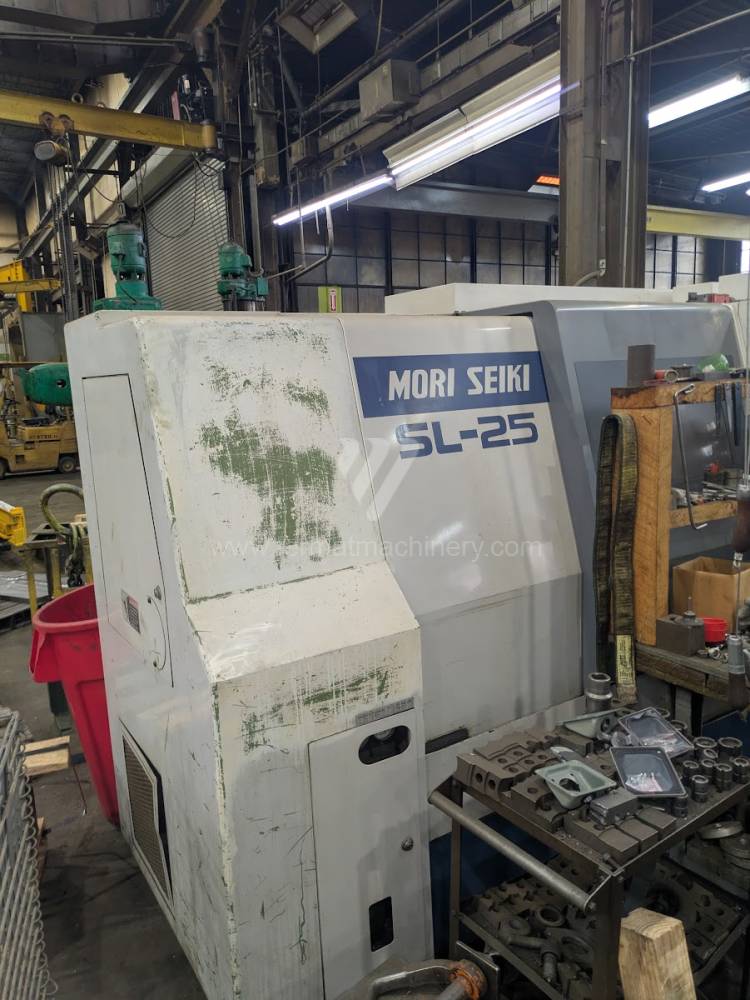

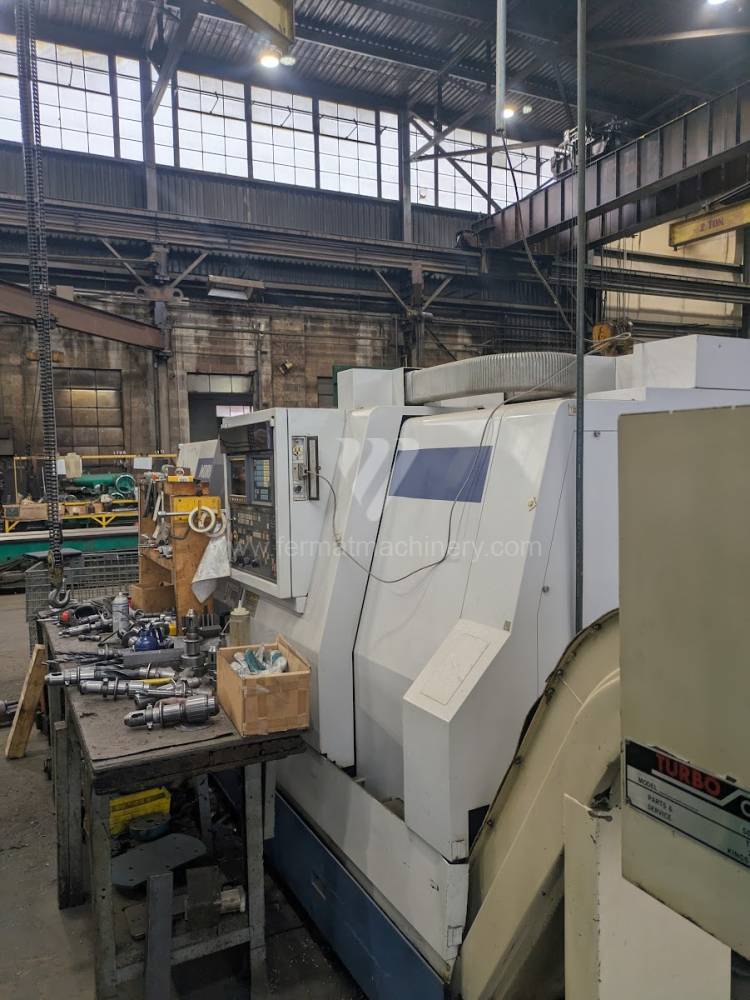

SL 25
MORI SEIKI
Inventory number: 251256
Control system Fanuc:
Turn table diameter: 260 mm
: 1000
Sloping bed: YES
Spindle bore: 80 mm
: YES

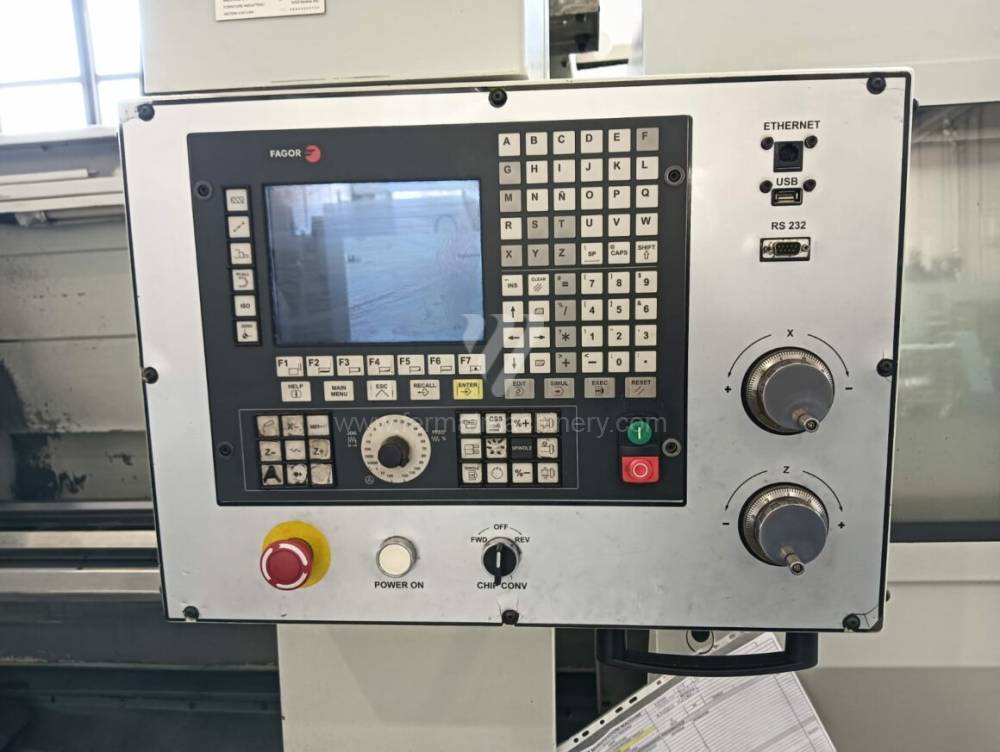

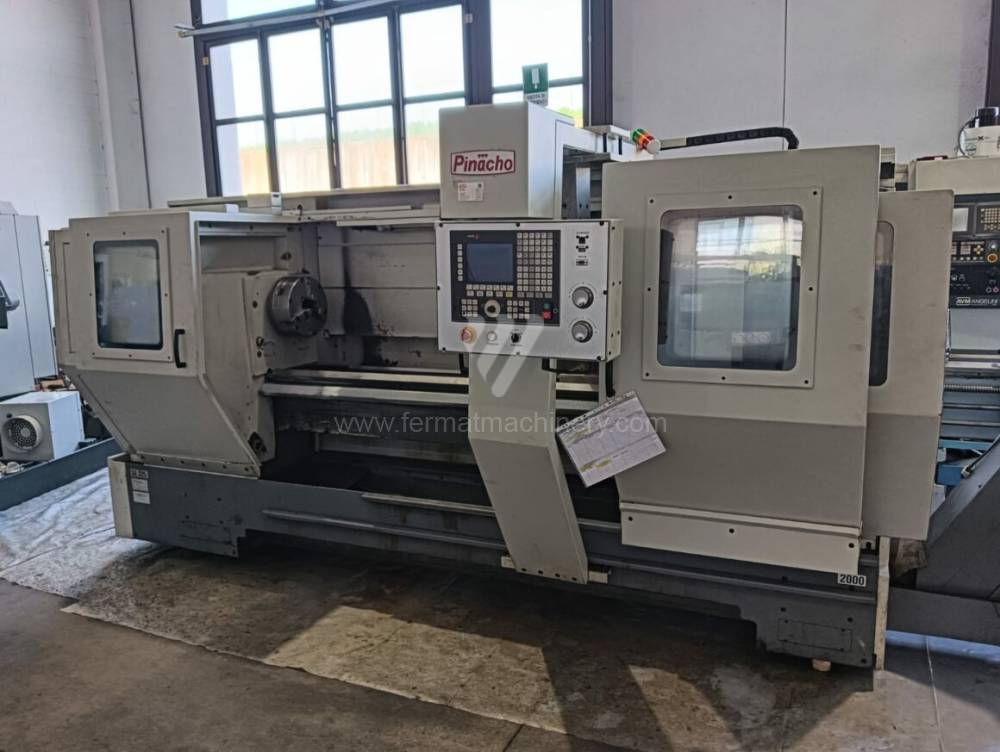

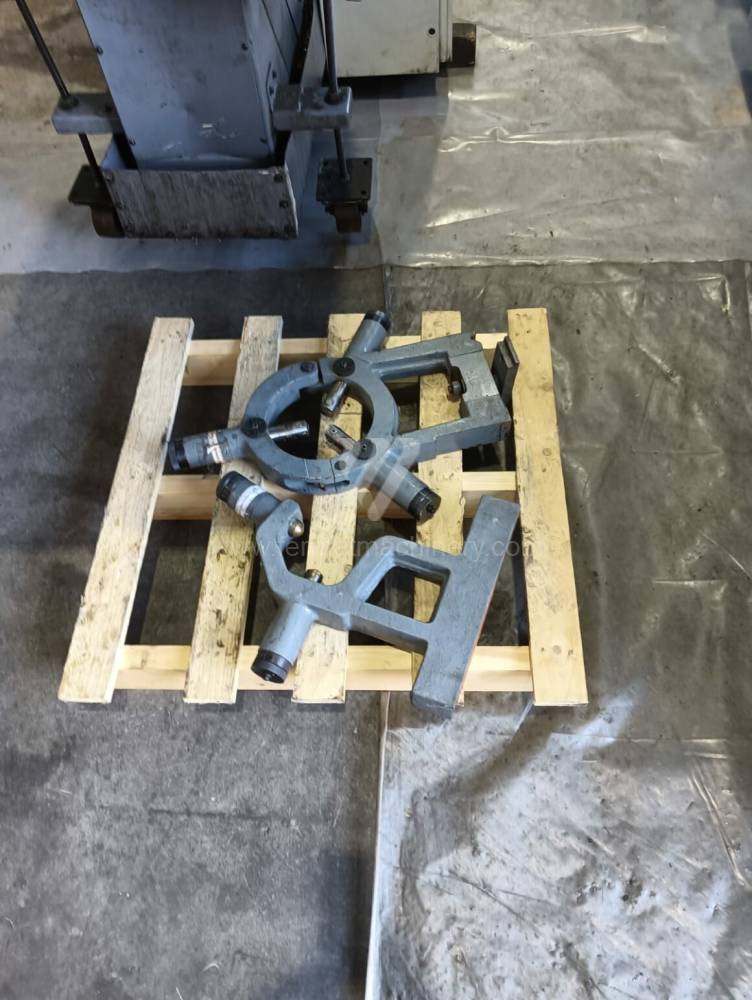

SE-325
PINACHO
Inventory number: 241548
YOM:2017
: 8037T
Turn table diameter: 652 mm
: 2000
Sloping bed: NO
Spindle bore: mm
: NO
QUICK TURN NEXUS 200-II MS
MAZAK
Inventory number: 181014
YOM:2013
: MATRIX NEXUS
Turn table diameter: 675 mm
: 575
Sloping bed: YES
Spindle bore: 66 mm
Max. diameter of workpiece: 380 mm

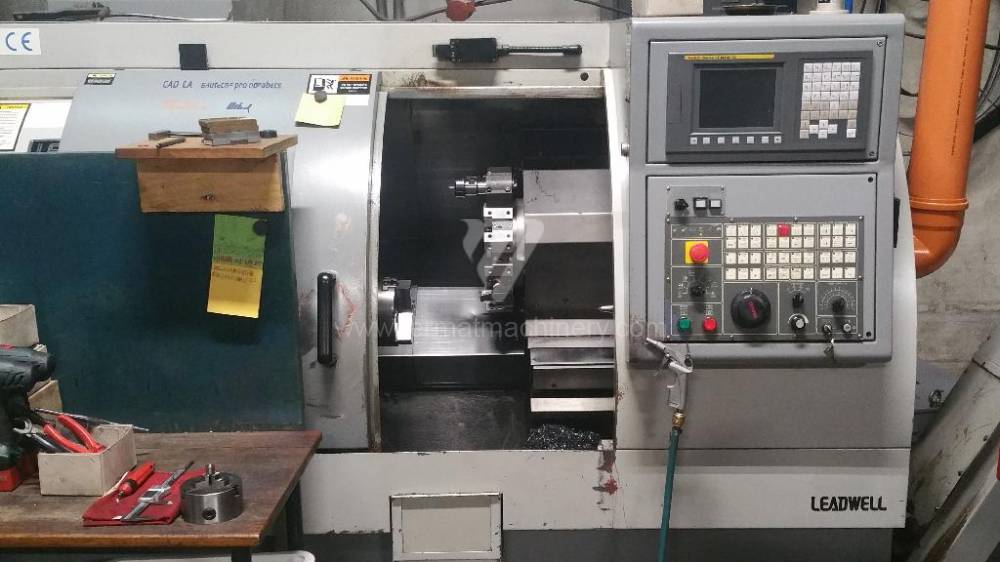

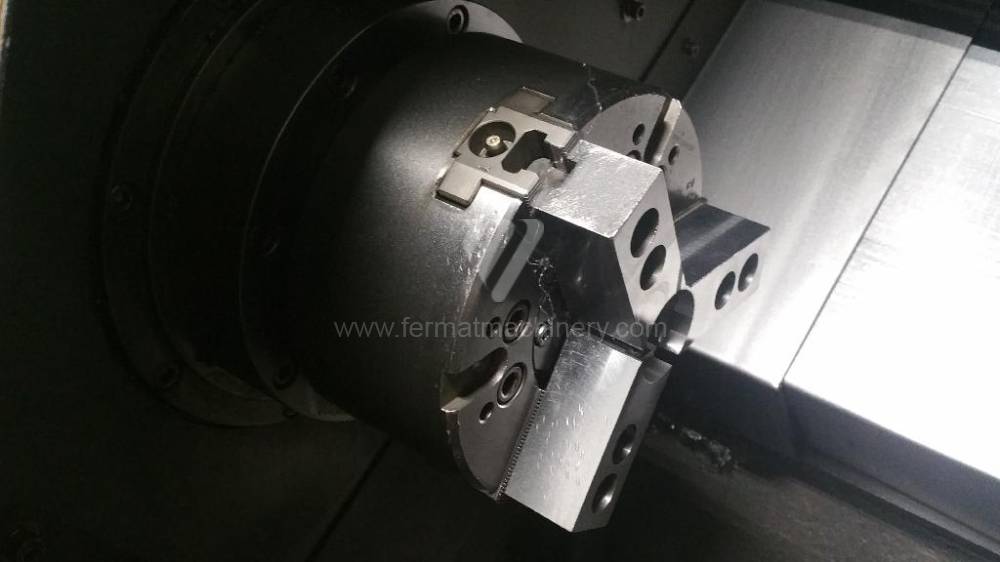

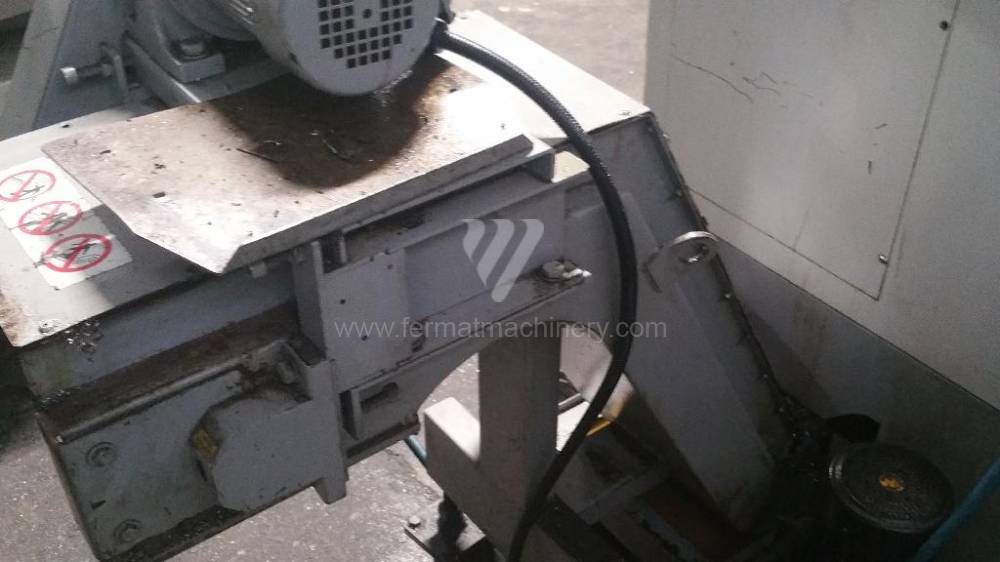

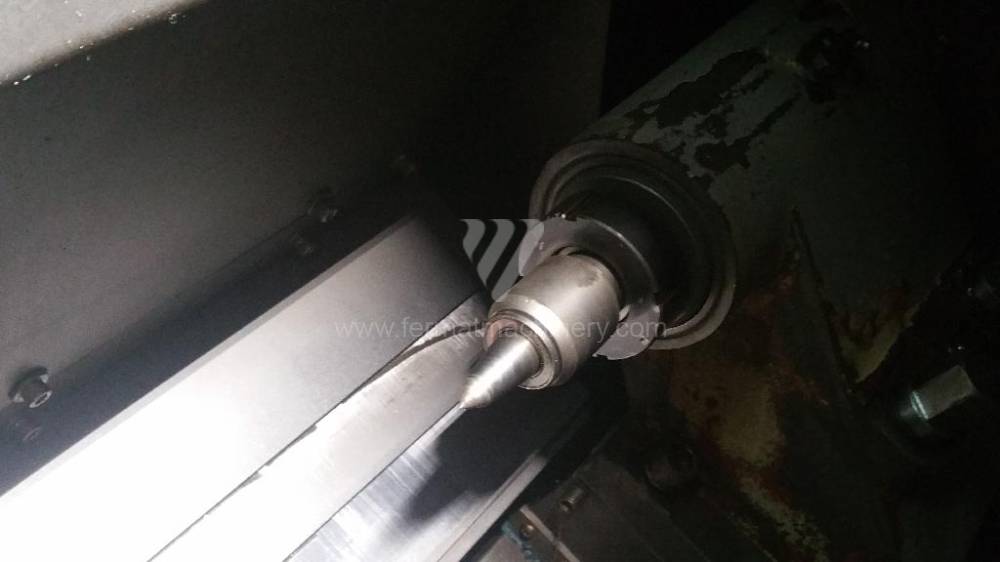

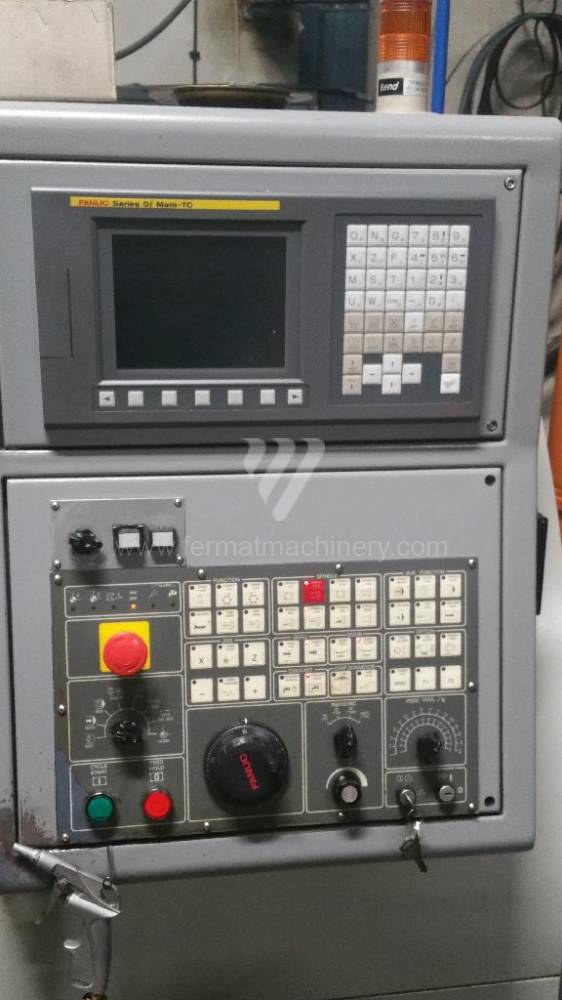

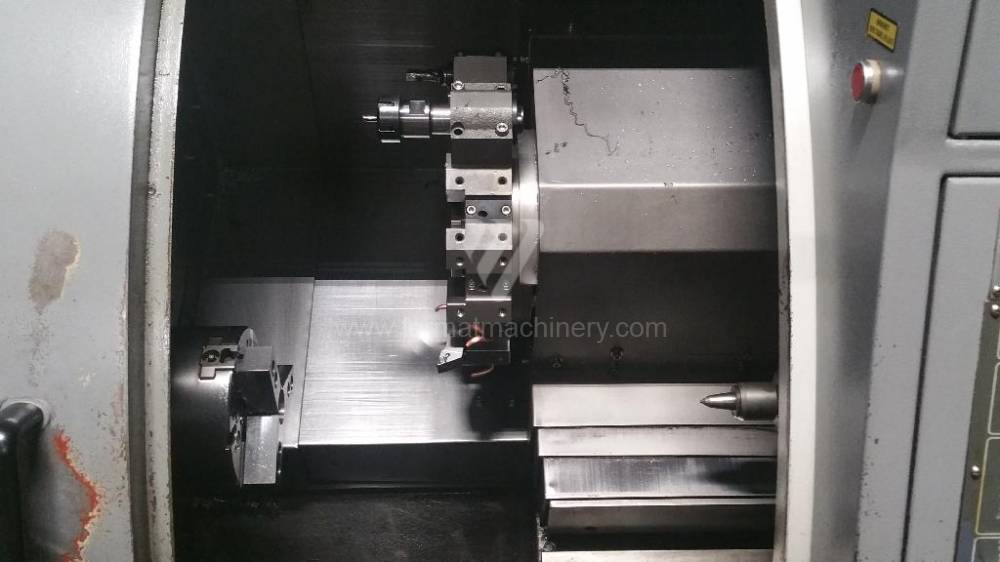

T-6
LEADWELL
Inventory number: 172013
YOM:2006
Control system Fanuc: 0i Mate - MD
Sloping bed: YES
Spindle bore: 51 mm
Turn table diameter: 380 mm
: 420
: 2

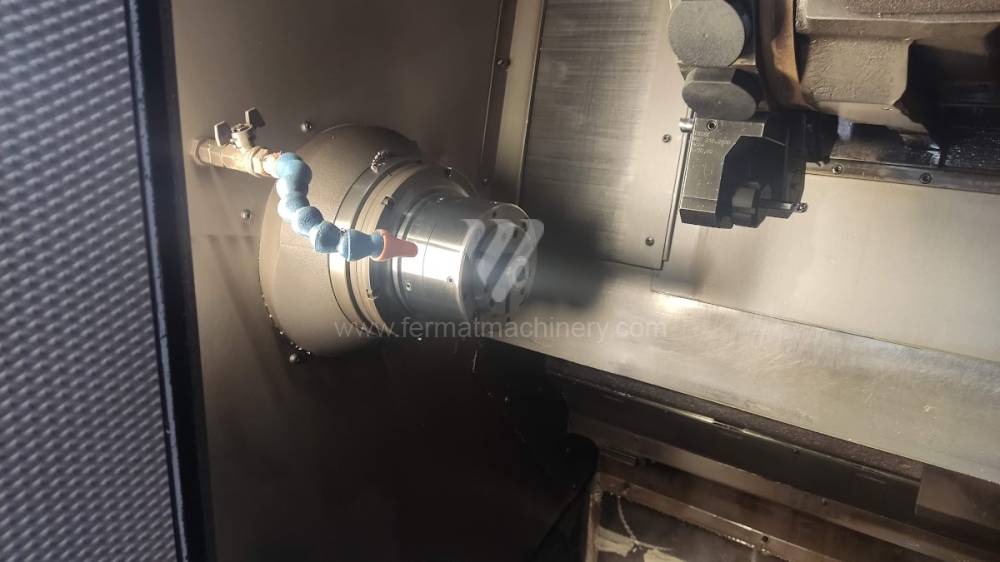

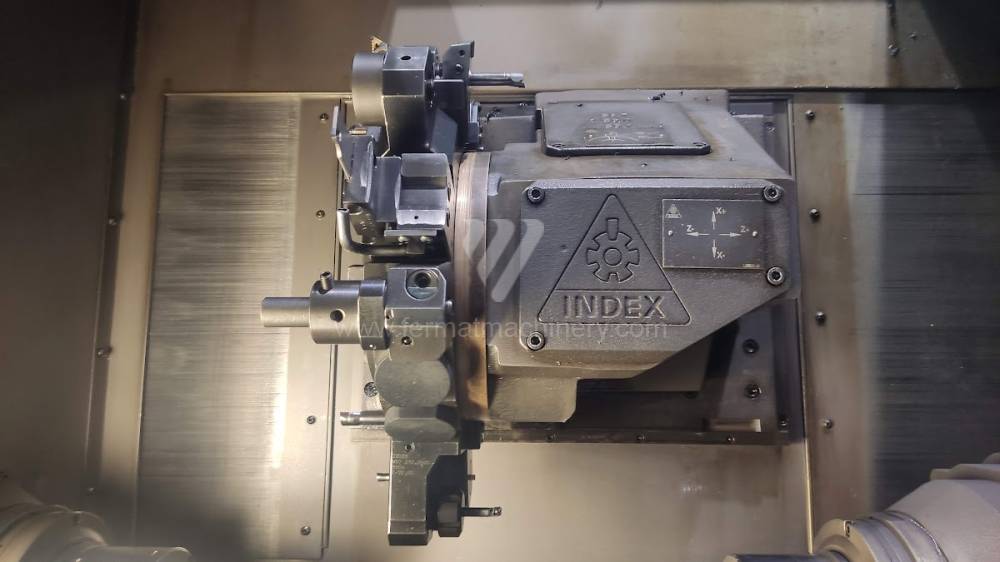

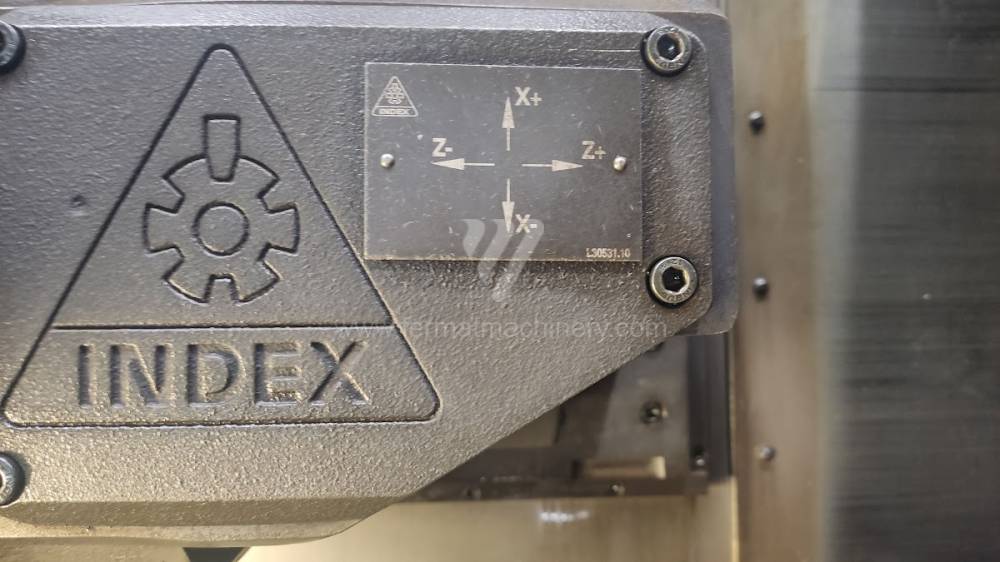

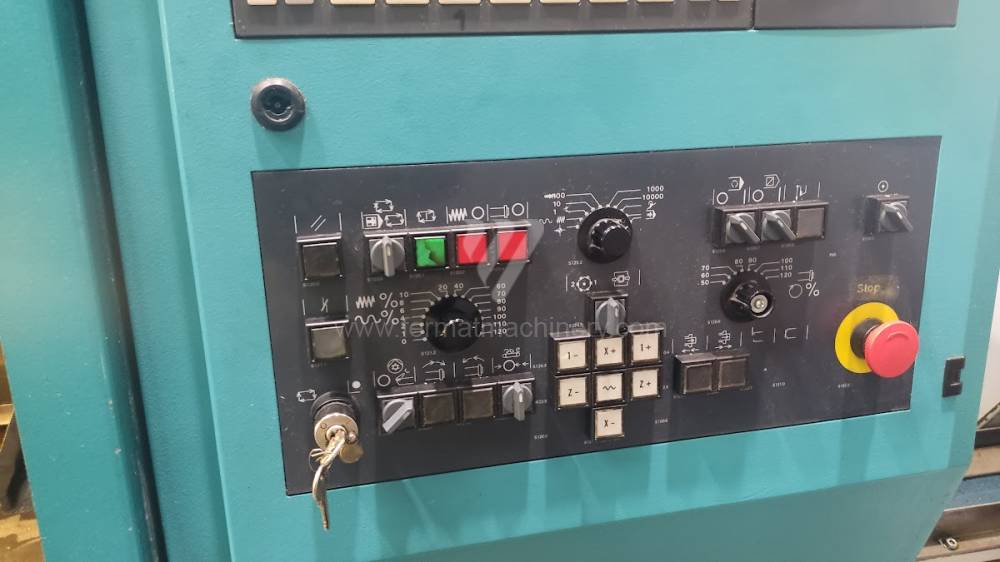

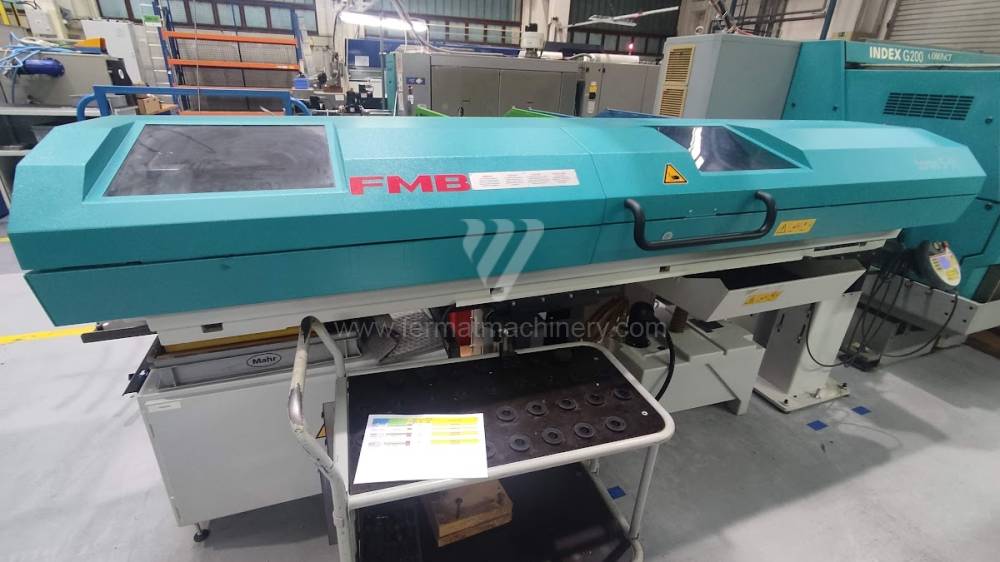

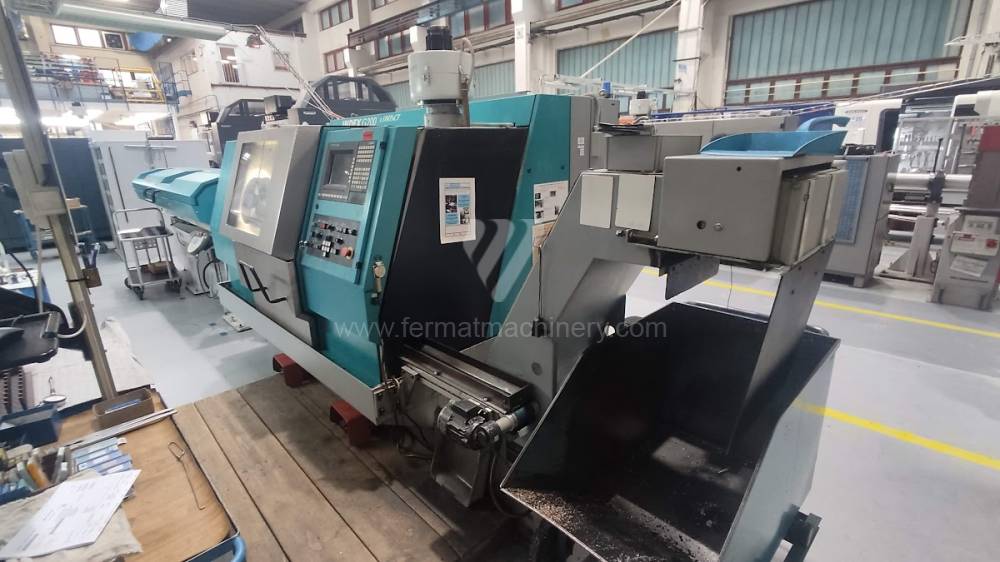

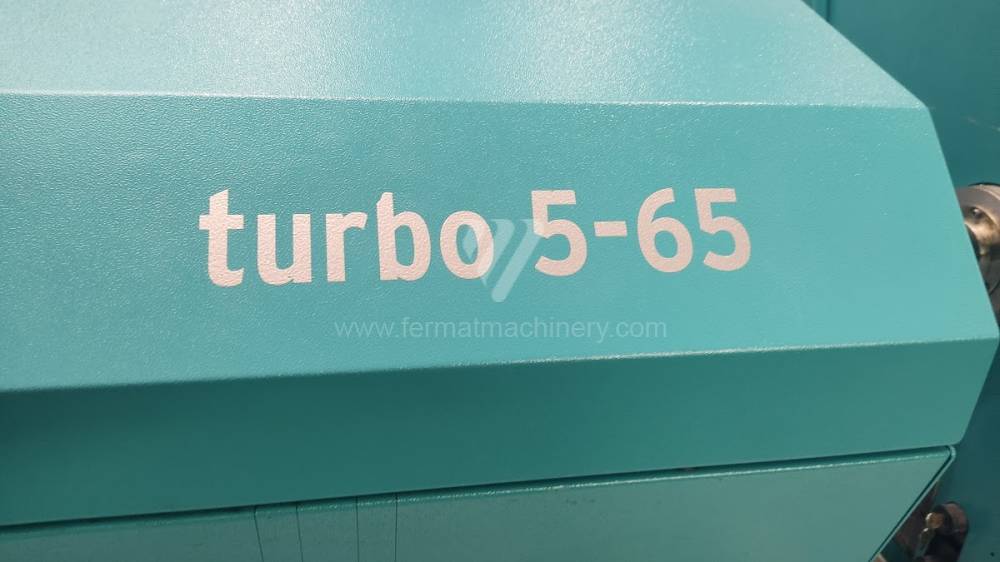

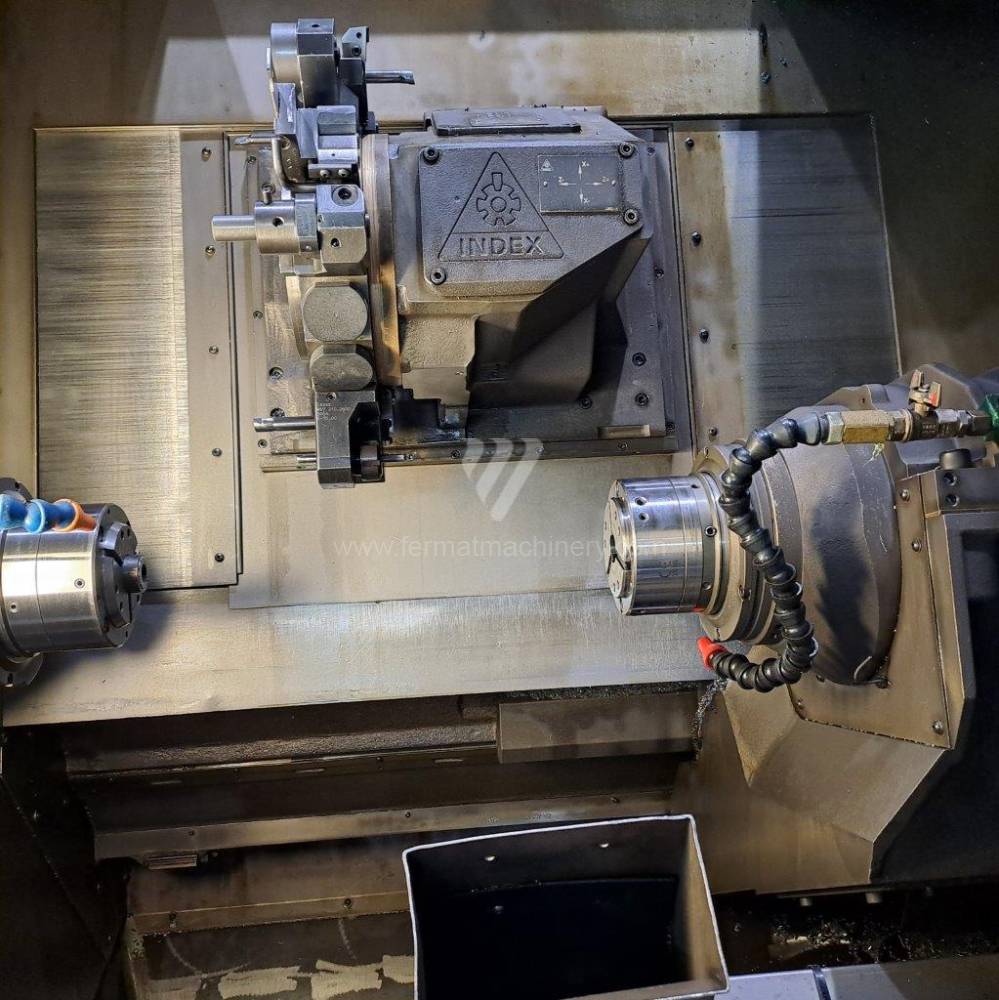

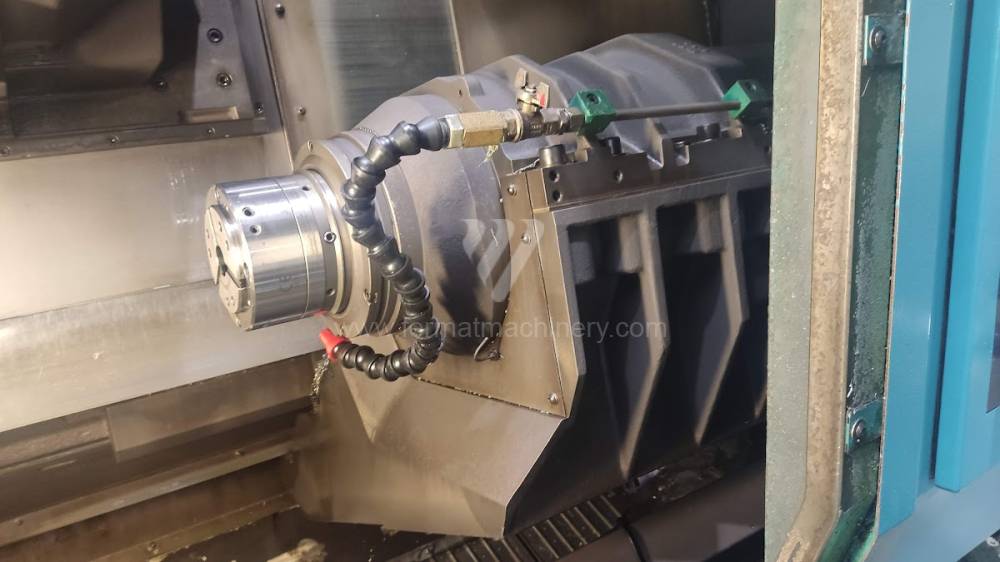

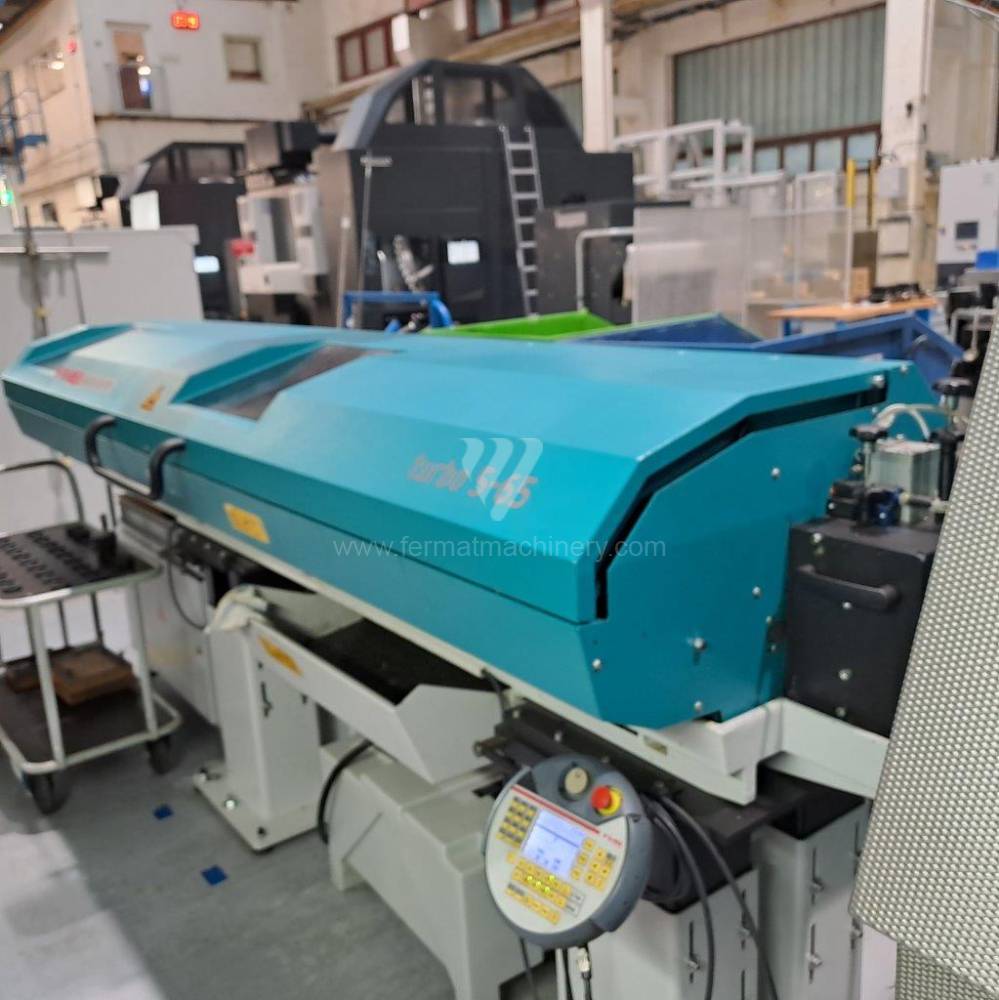

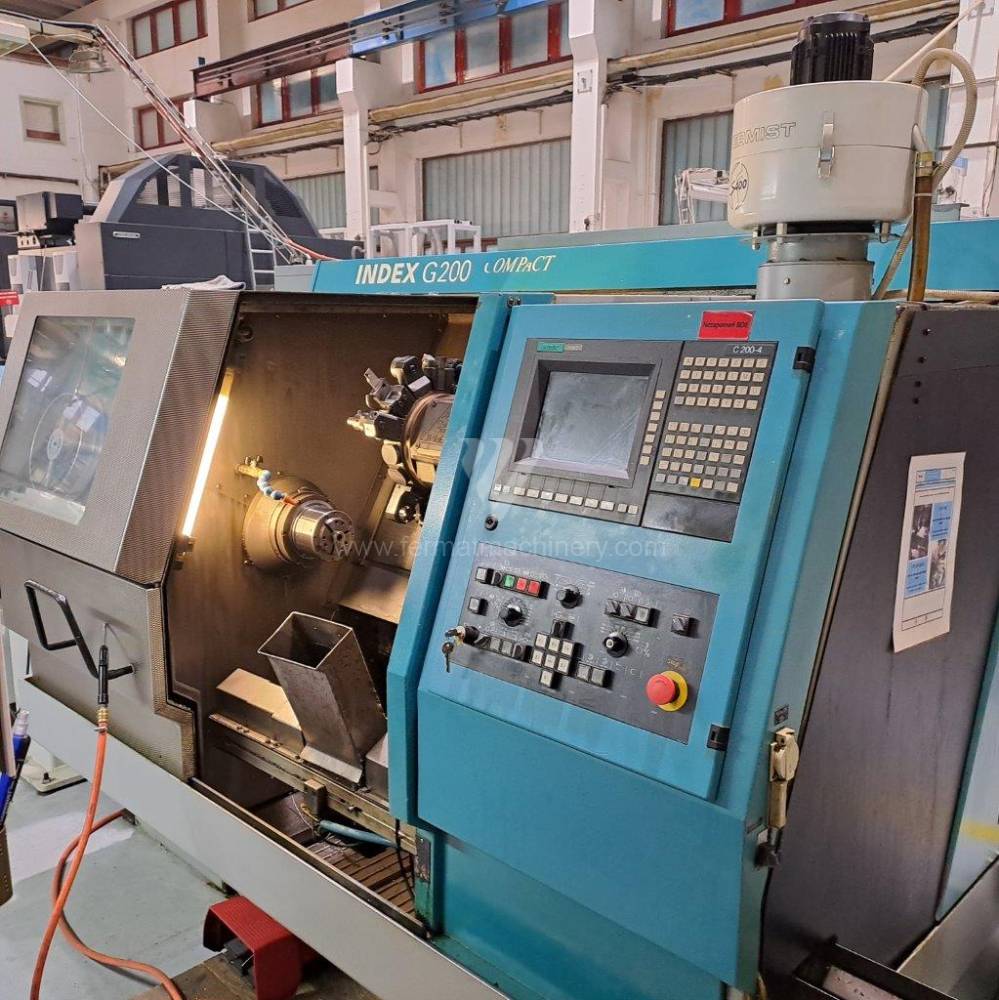

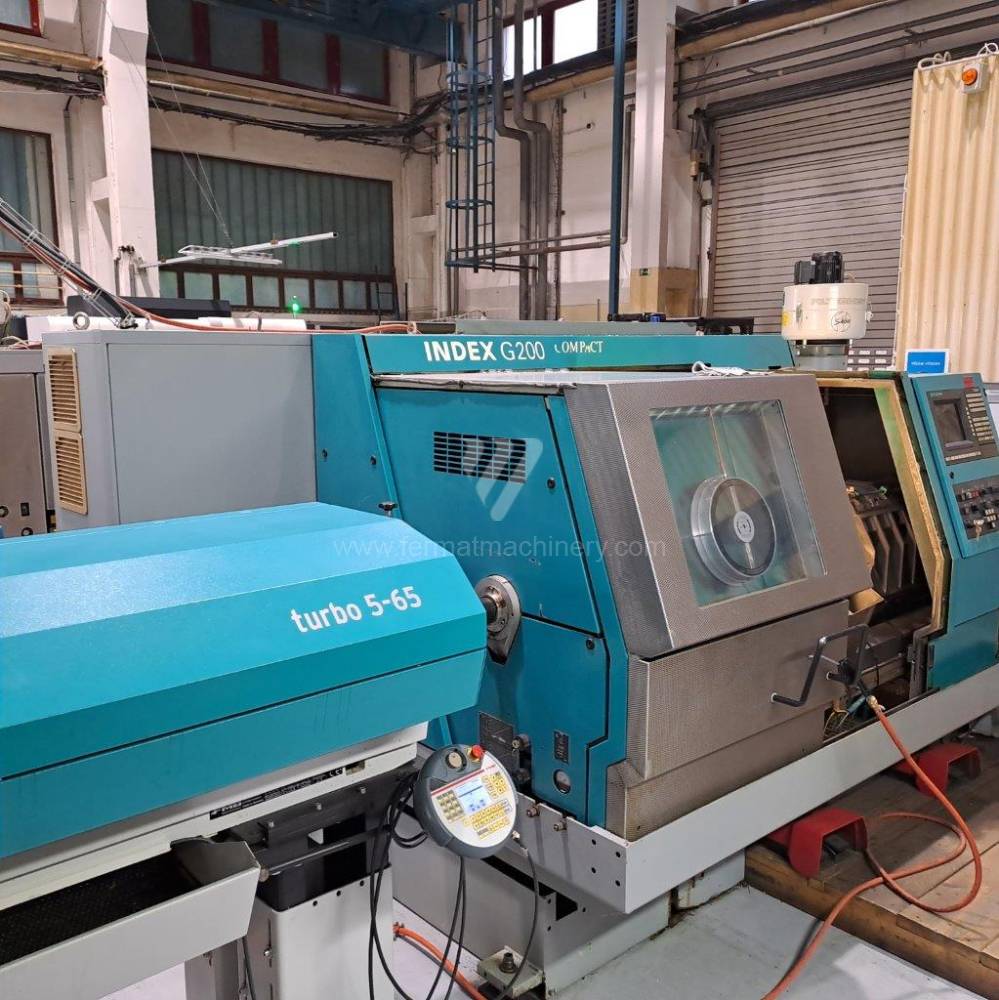

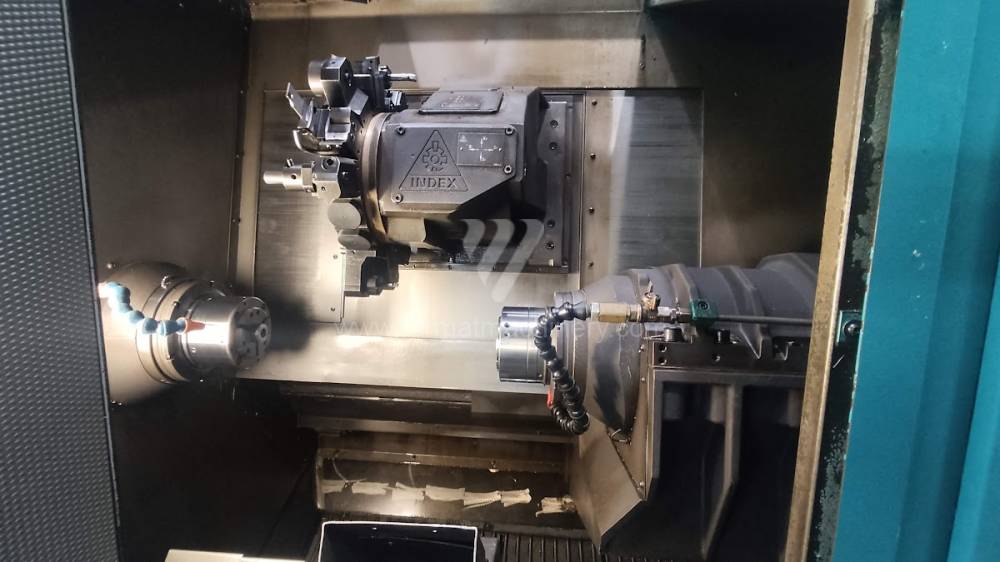

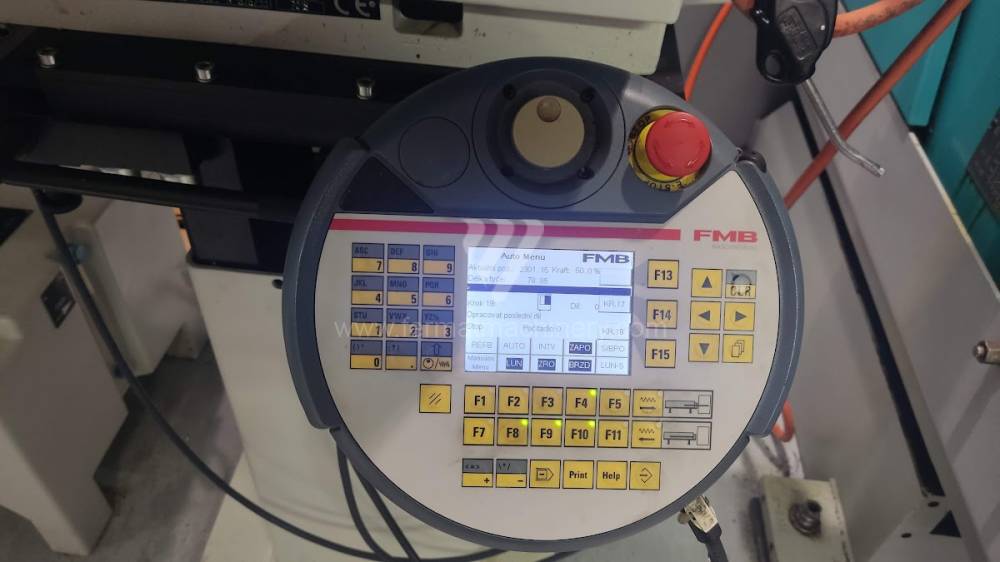

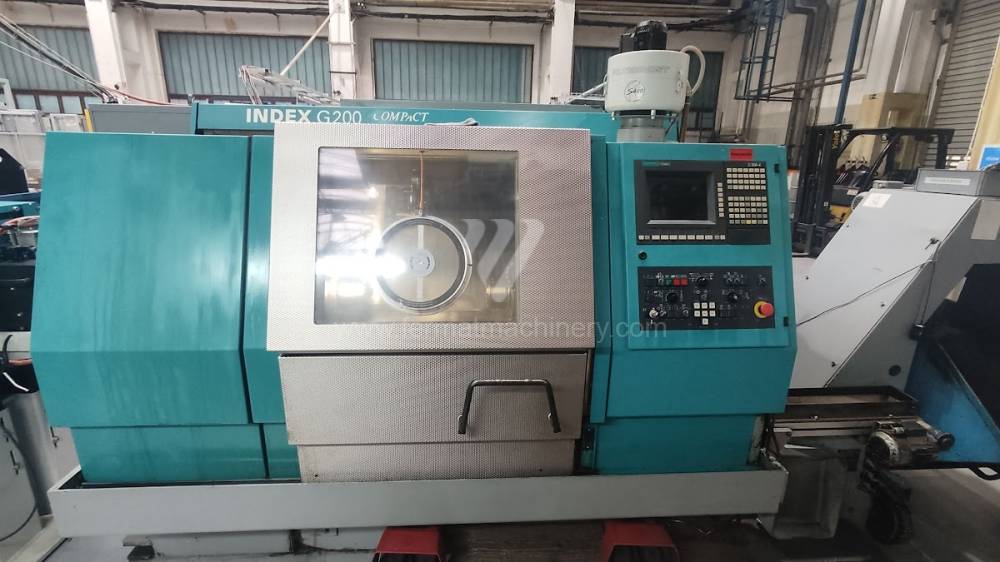

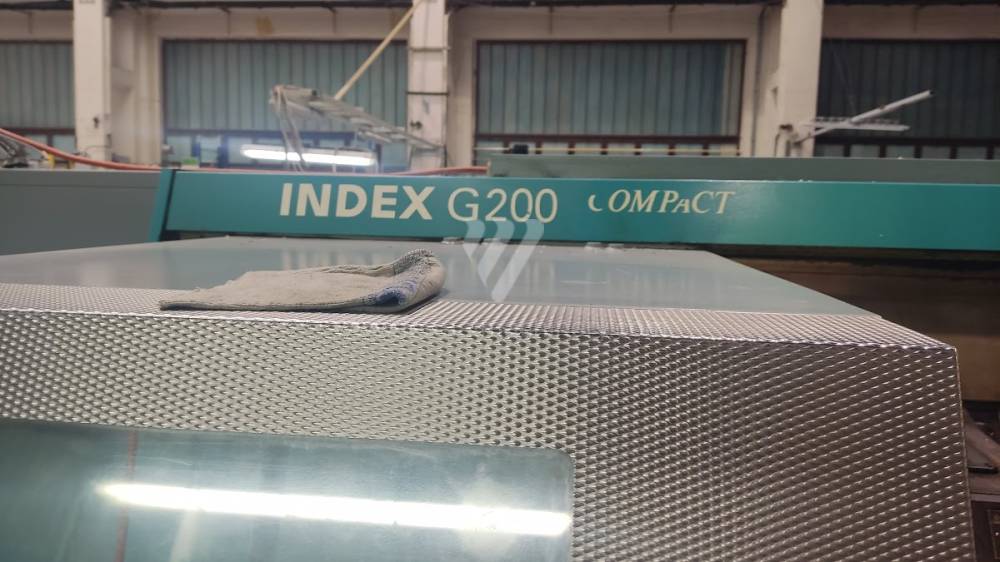

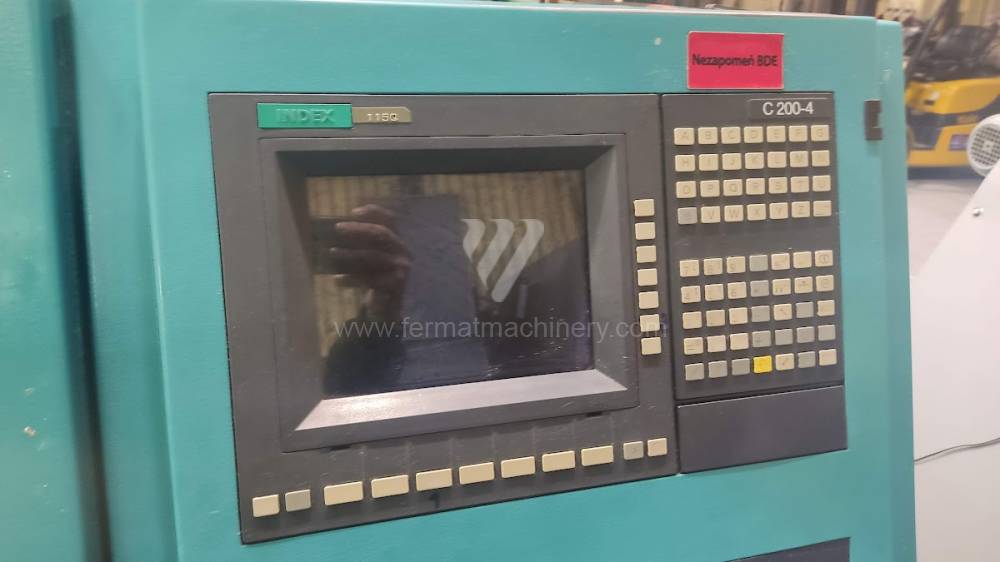

G 200 compact
Index
Inventory number: 242023
YOM:1997
Turn table diameter: 200 mm
: 420
Sloping bed: YES
Spindle bore: 60 mm
: YES
: 0 - 5000
LYNX 2100A + ROBOTEC APC7
Doosan
Inventory number: 241619
YOM:2017
Control system Fanuc: i Series
Turn table diameter: 600 mm
: 330
Sloping bed: YES
Spindle bore: 61 mm
: YES

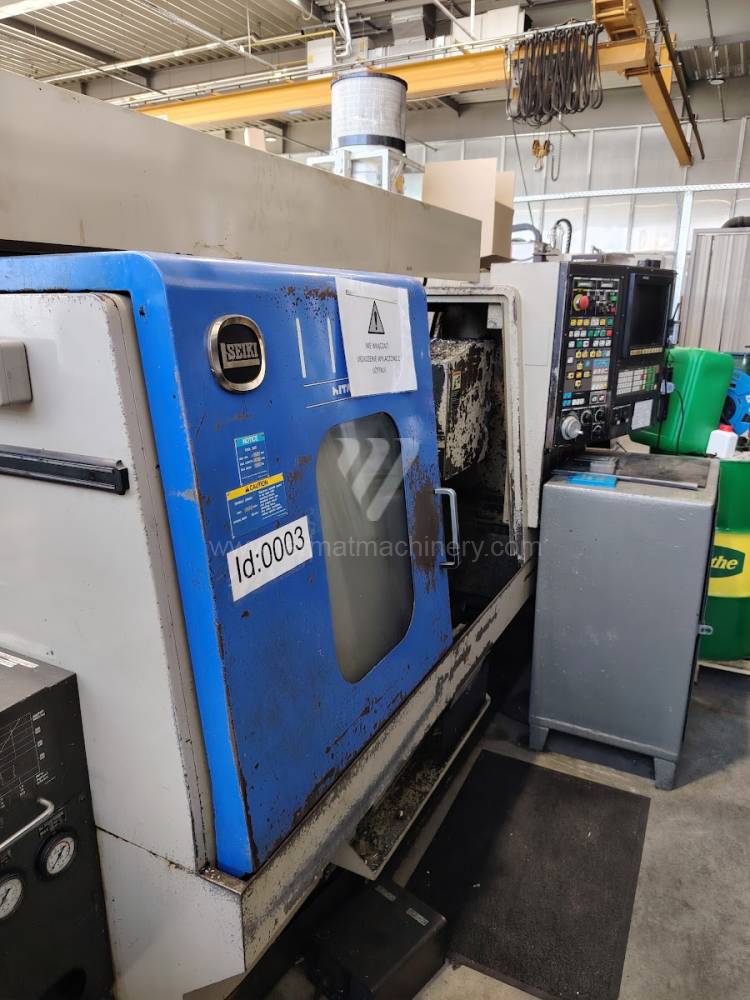

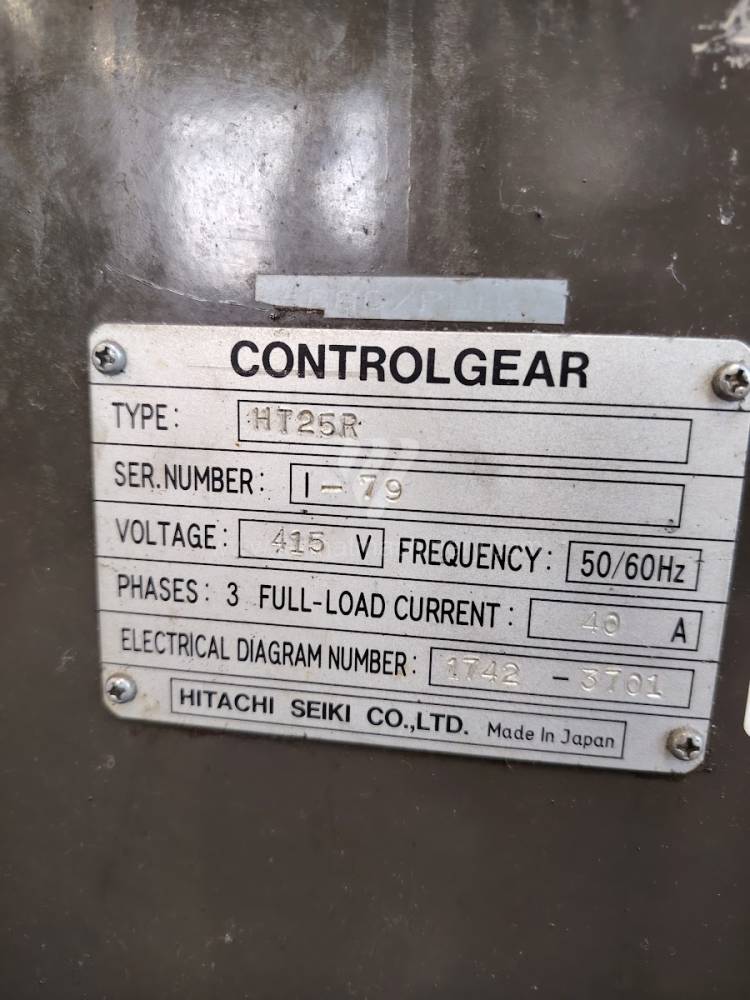

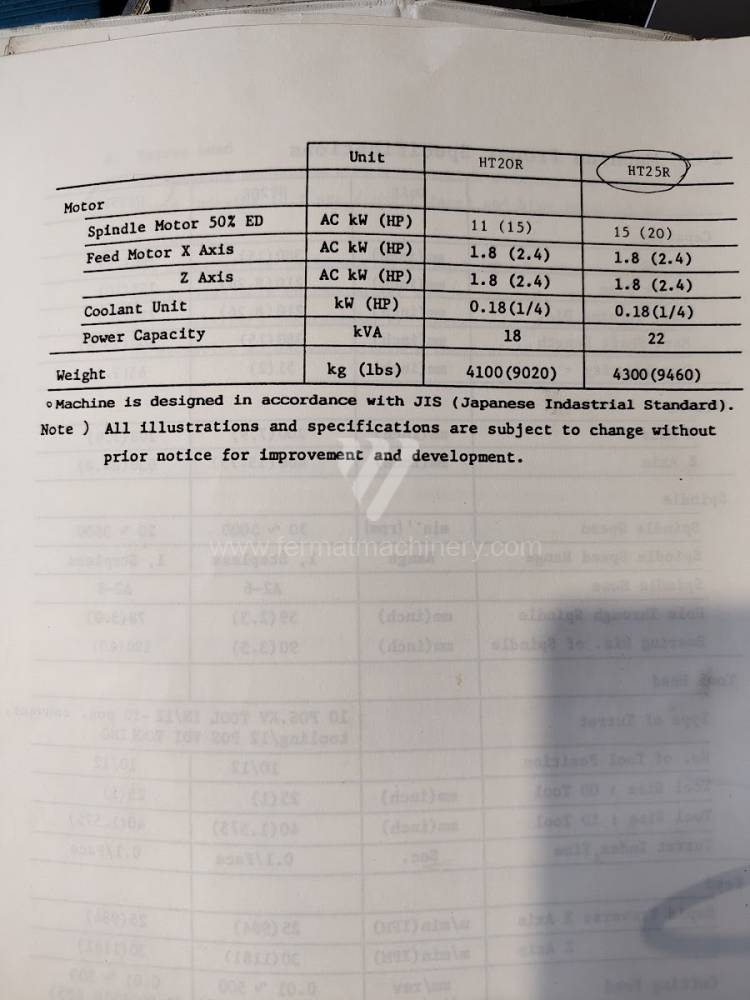

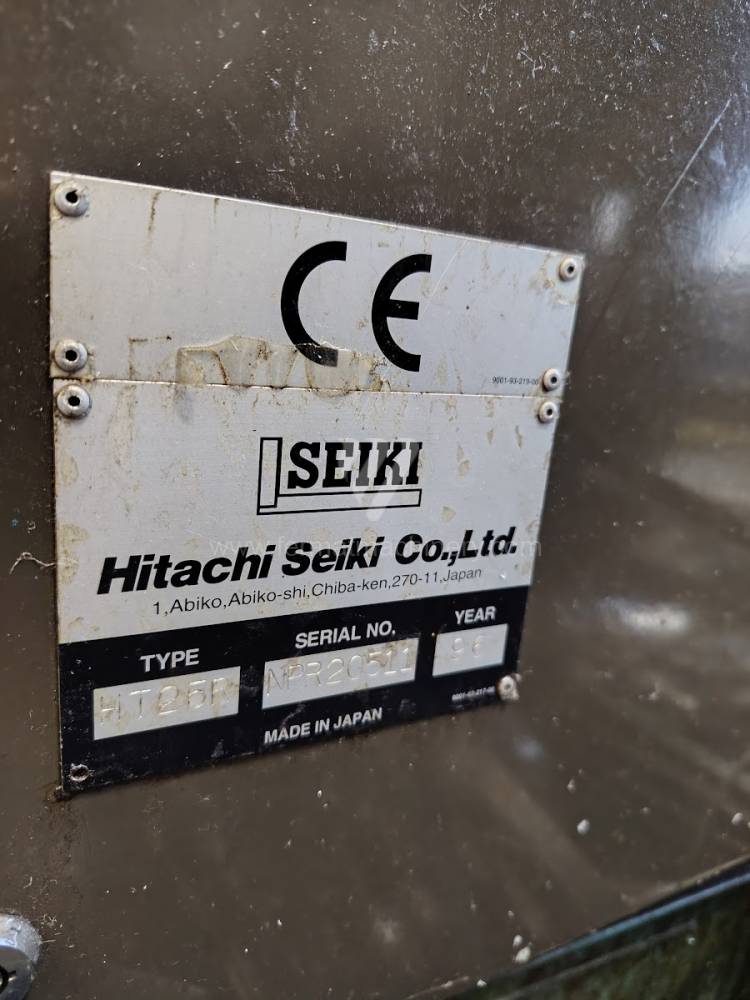

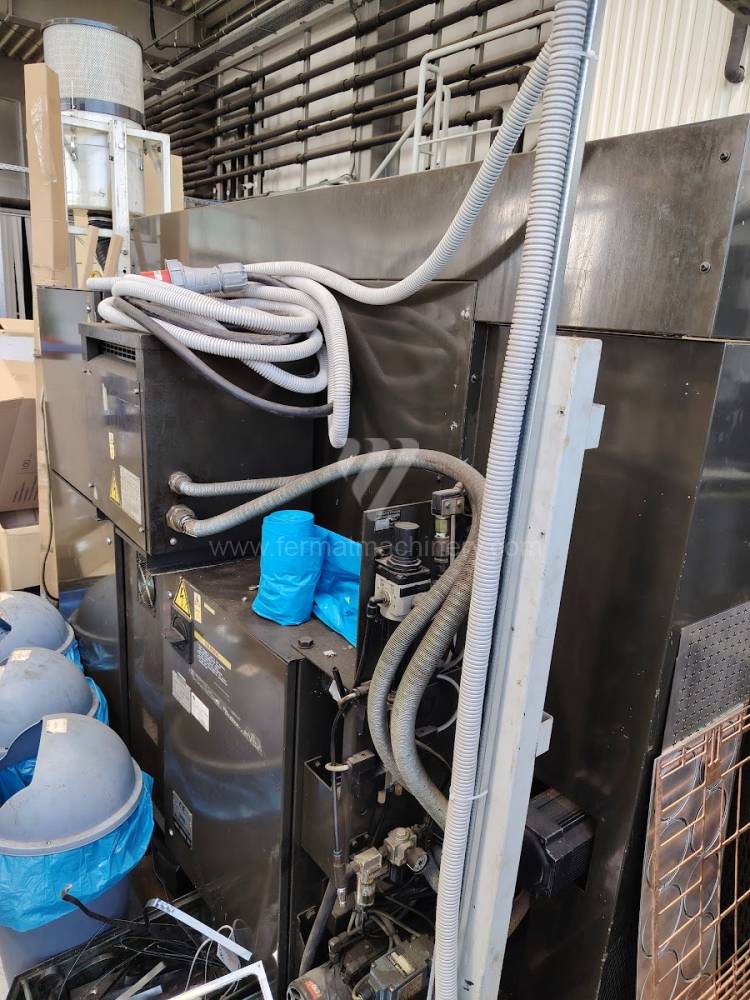

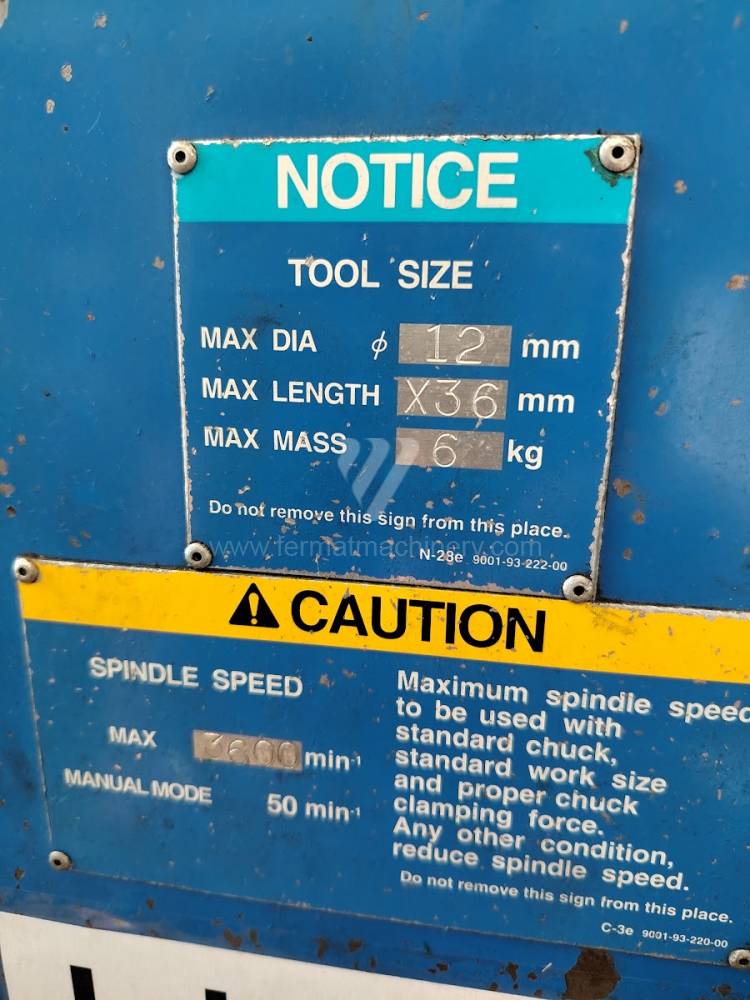

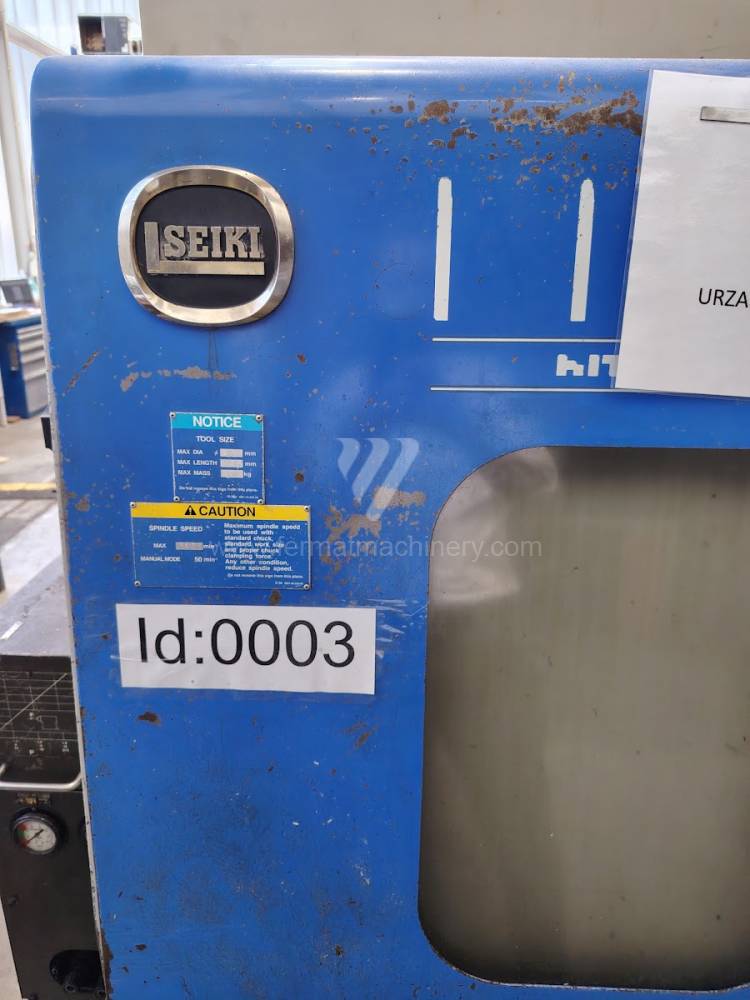

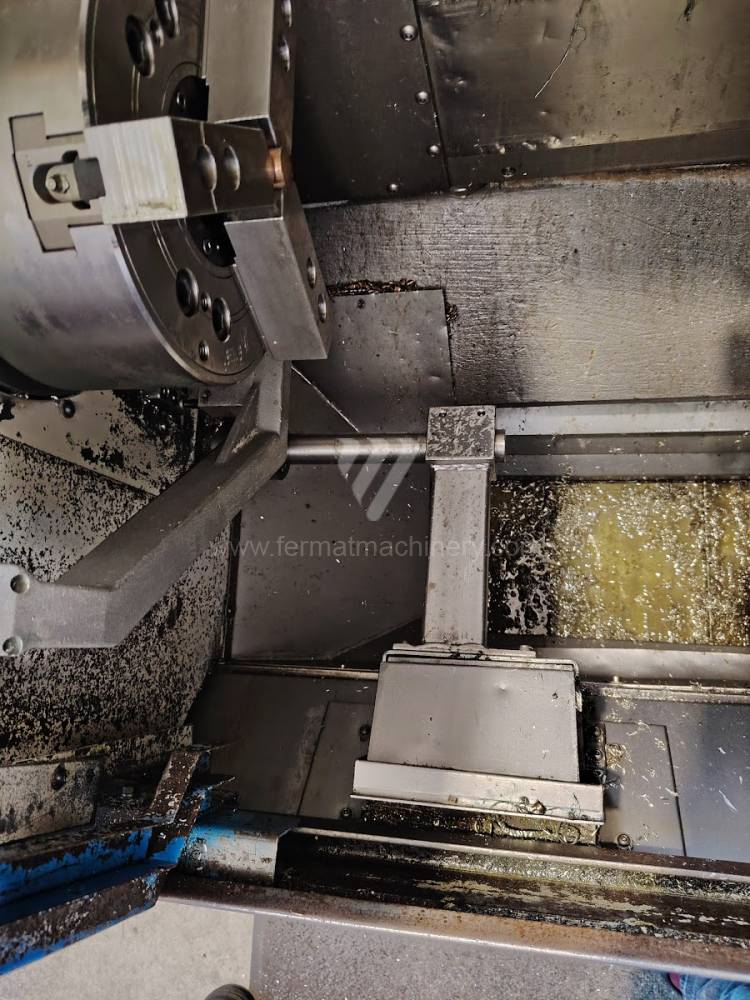

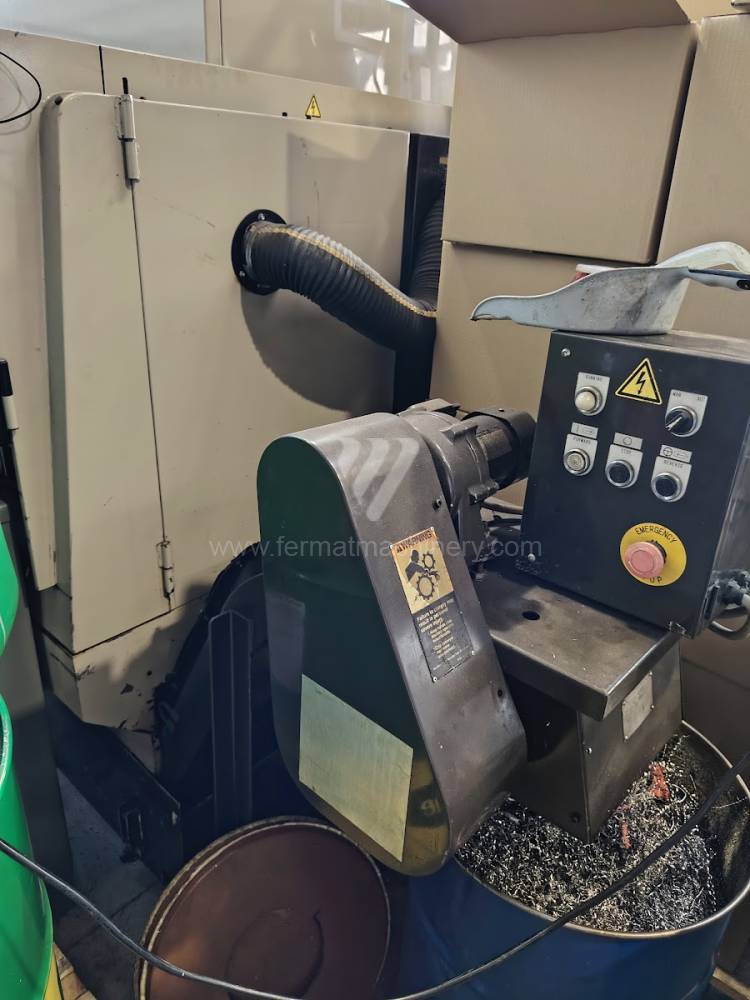

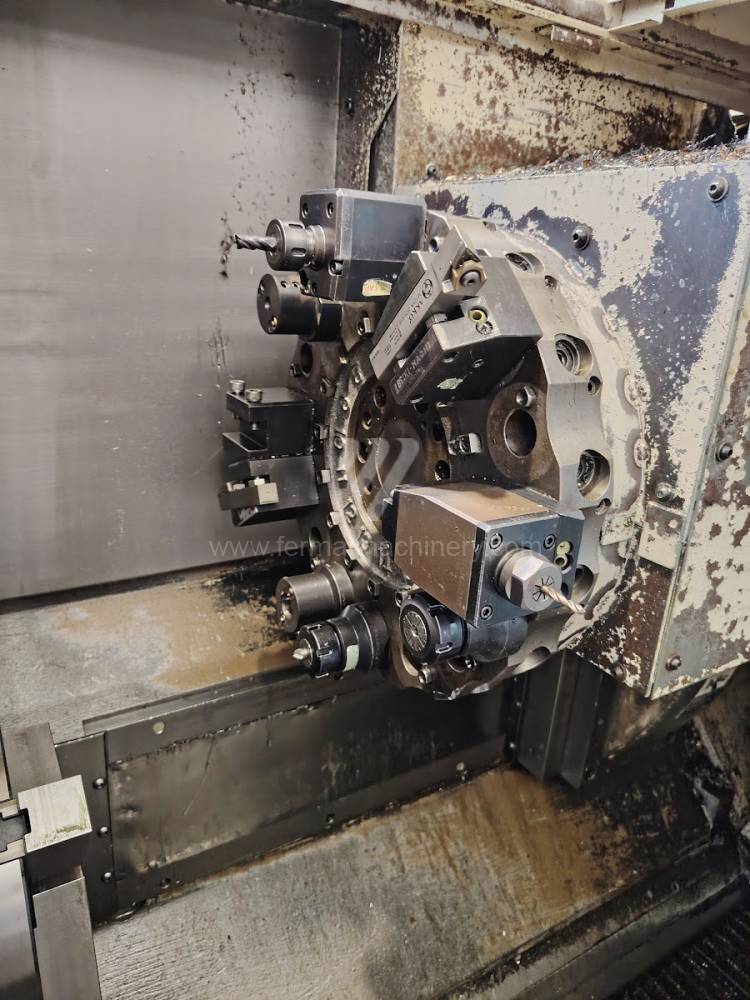

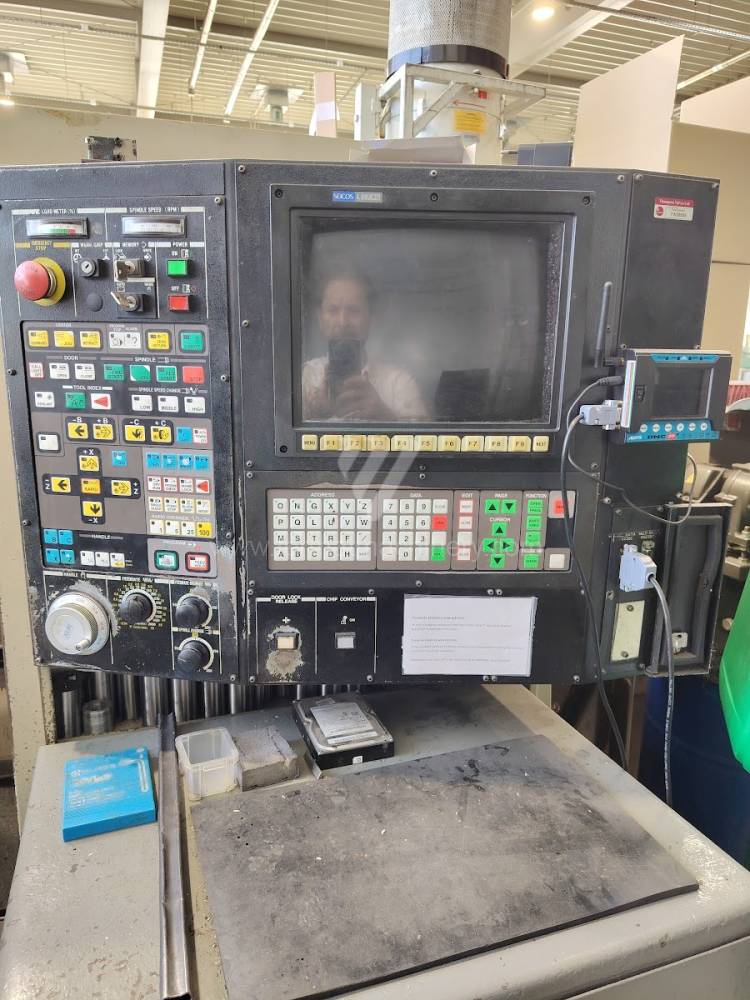

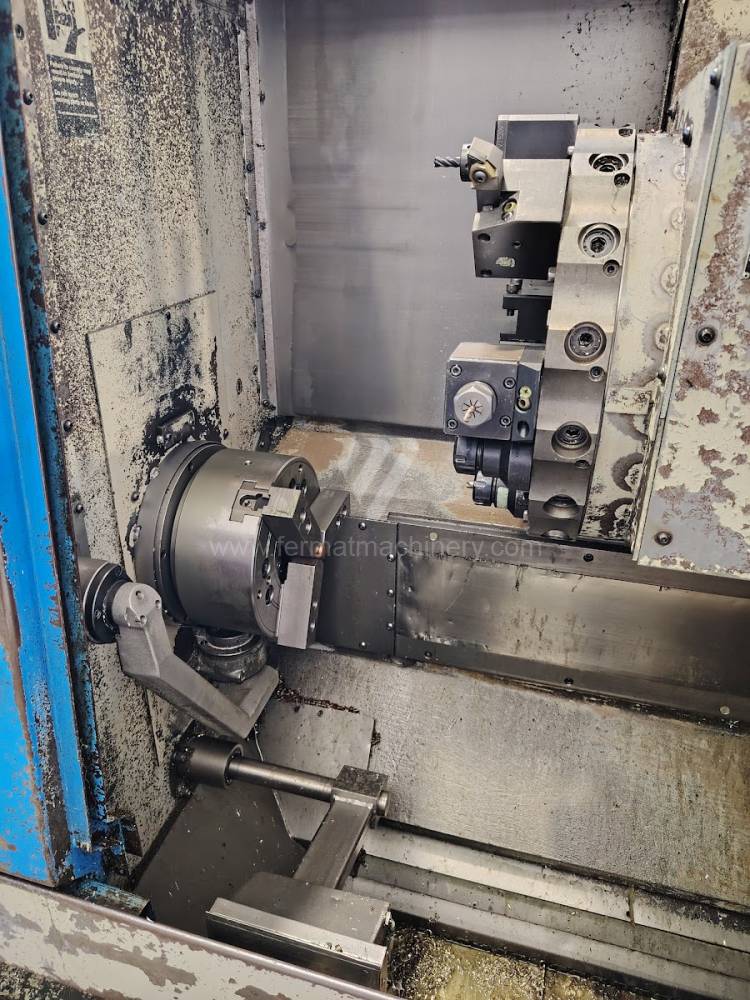

HT 25R
Hitachi Seiki
Inventory number: 251342
YOM:1996
:
Turn table diameter: 255 mm
: 600
Sloping bed: NO
Spindle bore: 78 mm
: YES

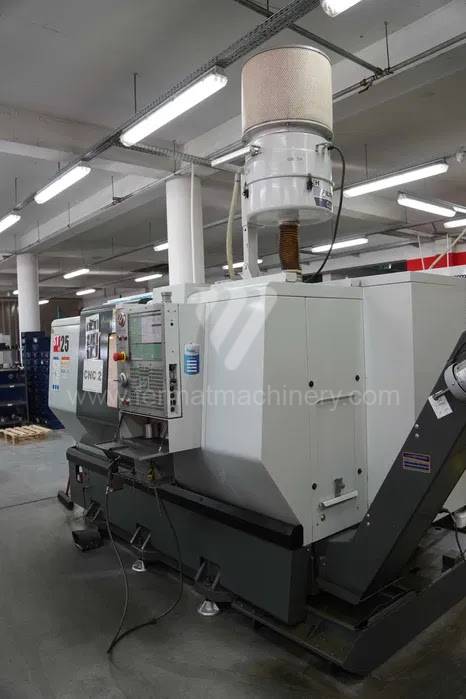

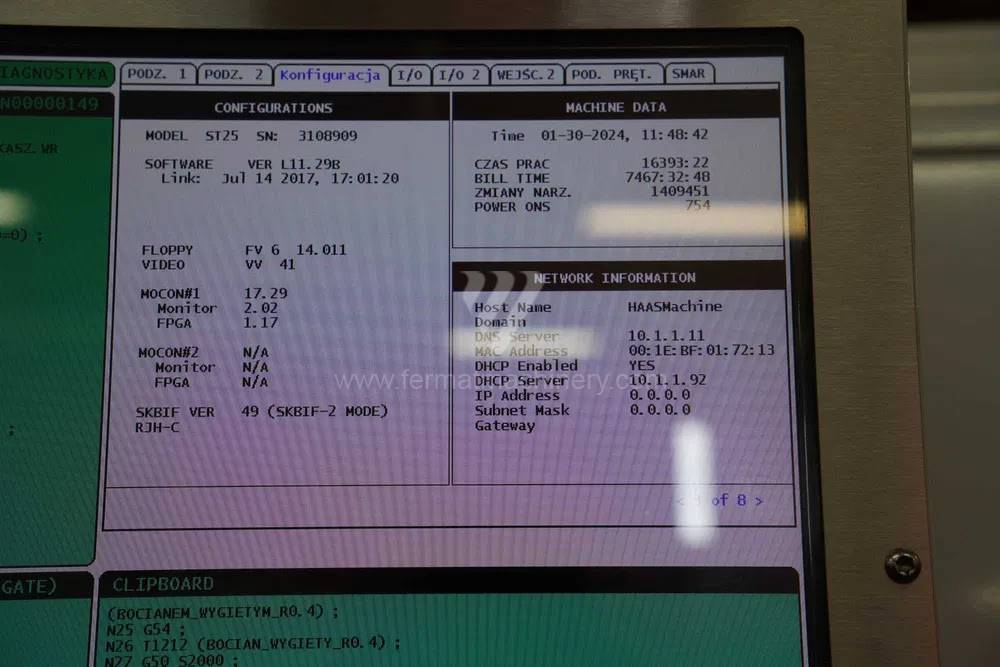

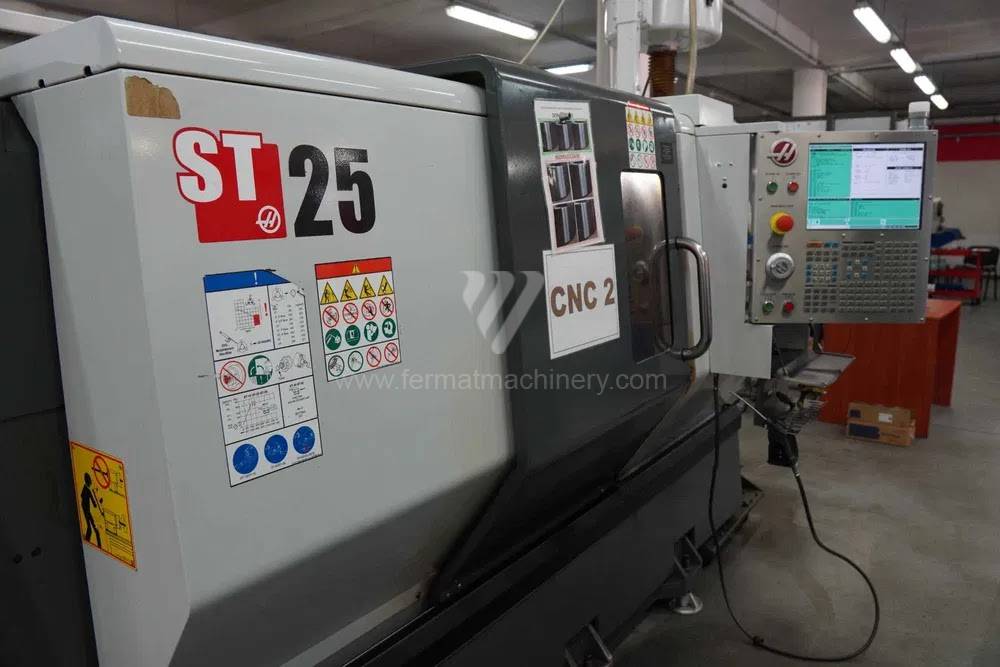

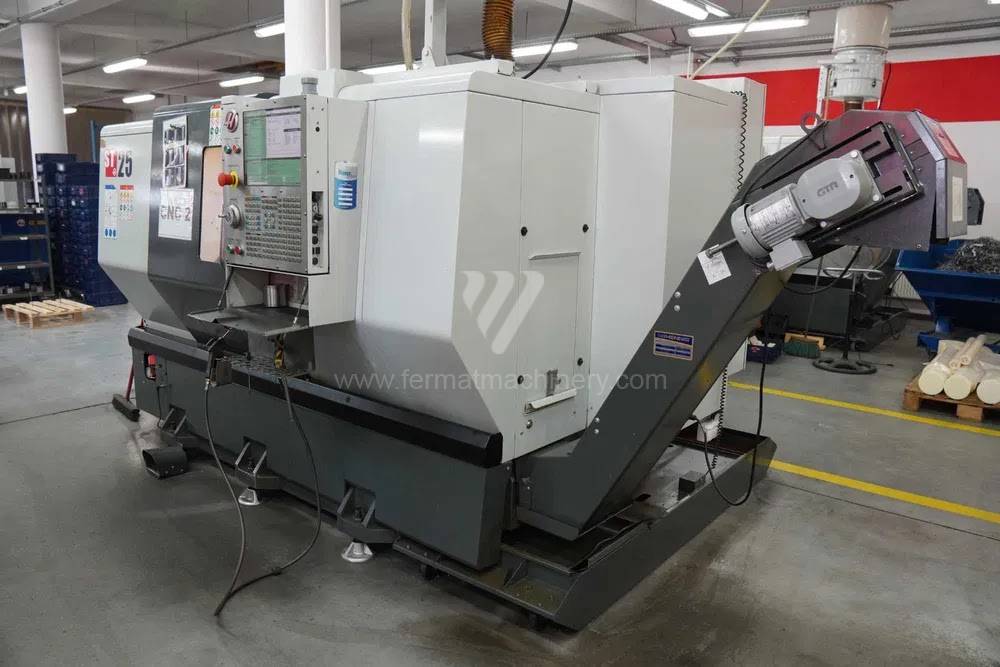

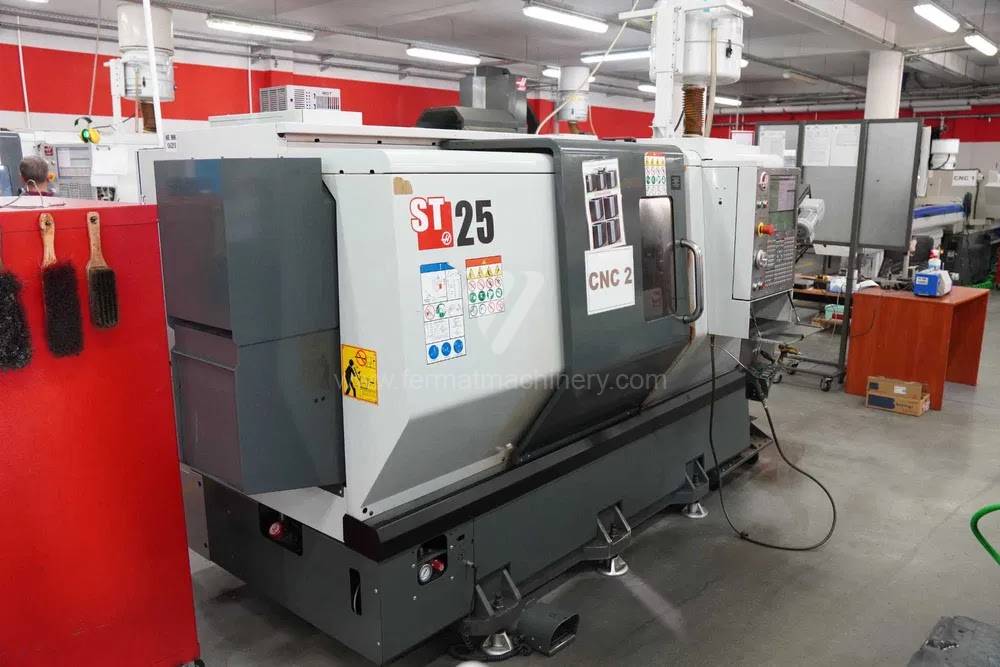

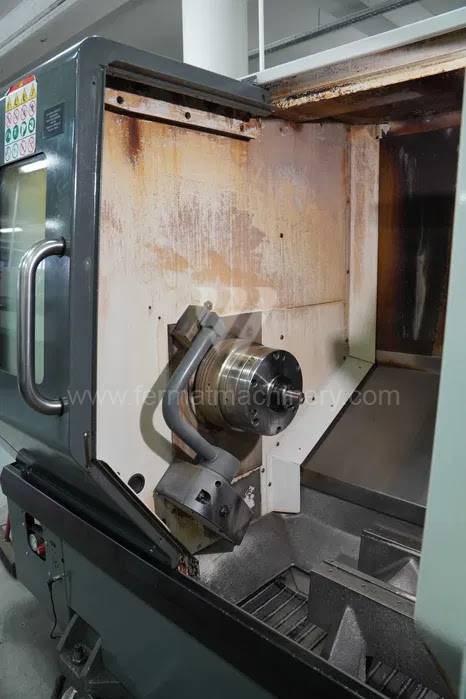

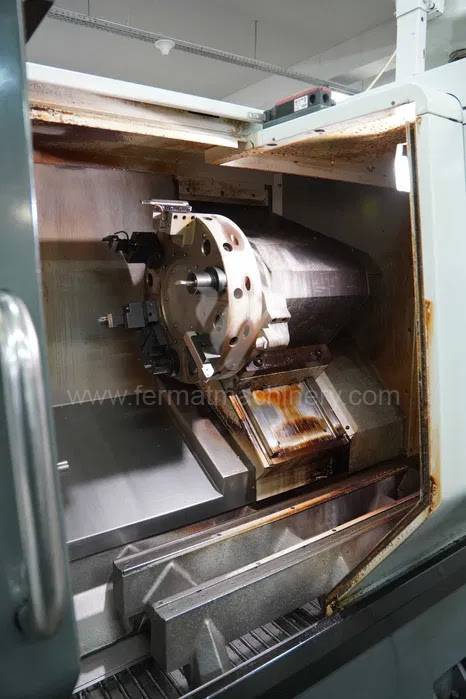

ST-25
Haas Automation
Inventory number: 241759
YOM:2017
Control system Haas:
Turn table diameter: 298 mm
: 571
Sloping bed: YES
Spindle bore: 76 mm
: YES
The regular lathe consists of following parts: beds, spindle, support, tailstock spindle or sliding gearbox.
Basic division of the inclination of the lathe bed:
- horizontal or sloping (inclination 45 degrees)
- sliding or linear
Clamping part – it is usually formed by a chuck on one side and tailstock on the other, or a chuck and second clamping part by a counter spindle.
Cutting part – formed by a cutting wedge attached to the longitudinal part - the Z axis.
The transverse part (perpendicular to the axis of the spindle) designated as the X-axis, or the automatic tool head, also usually located on the transverse feed on the machine.
Other axes, used especially in case of CNC lathes:
- Axis C1 (indexed spindle position,
- axis C2 (indexed axis of the counter spindle)
- axis Y (Axis Y enables movement of tool perpendicular to axis Z and machining with live tools)
- axis B (indexed support axis)
The machine can be erupted with a measuring tool probe (automatically or manually foldable).
