Lathes CNC - diameter over 800 mm

Technical Analysis: Dynamic Stability and Power Kinematics

In the category of CNC lathes with a swing over 800 mm, structural integrity overrides dynamics. Machining large shafts or flange parts involves the transfer of enormous torque, requiring specific bed configurations and spindle mounting. Used machines from renowned brands (e.g., Škoda, Gurutzpe, Hankook, or Mori Seiki) benefit from oversized cast iron frames that are economically unattainable in modern 'lightweight' designs.

Key Technical Parameters and Causality:

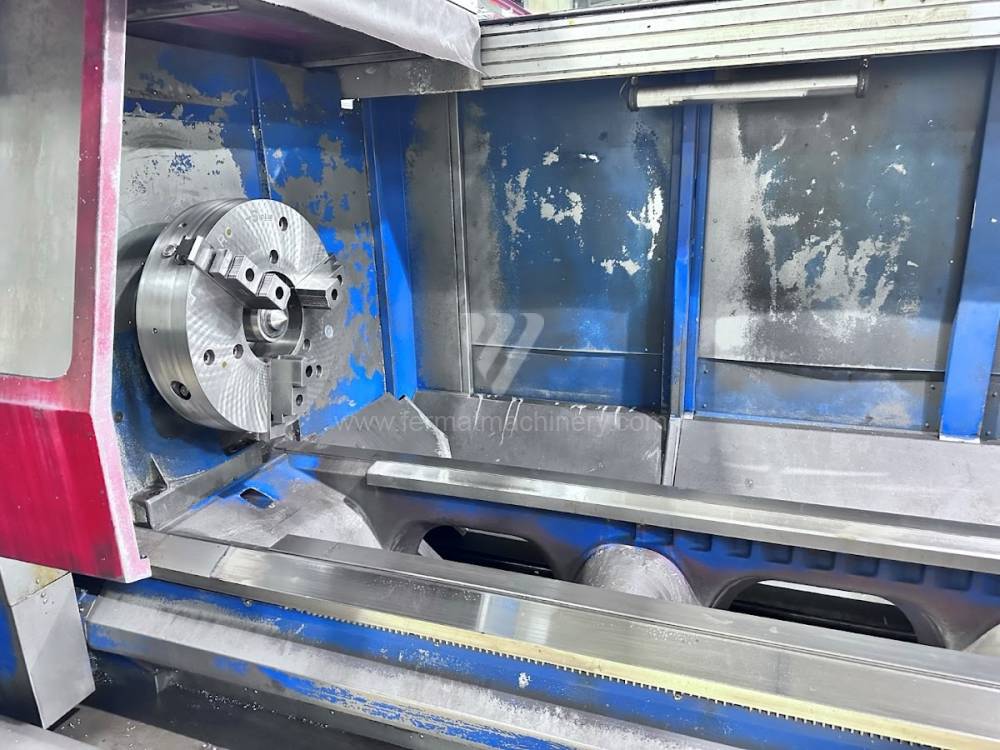

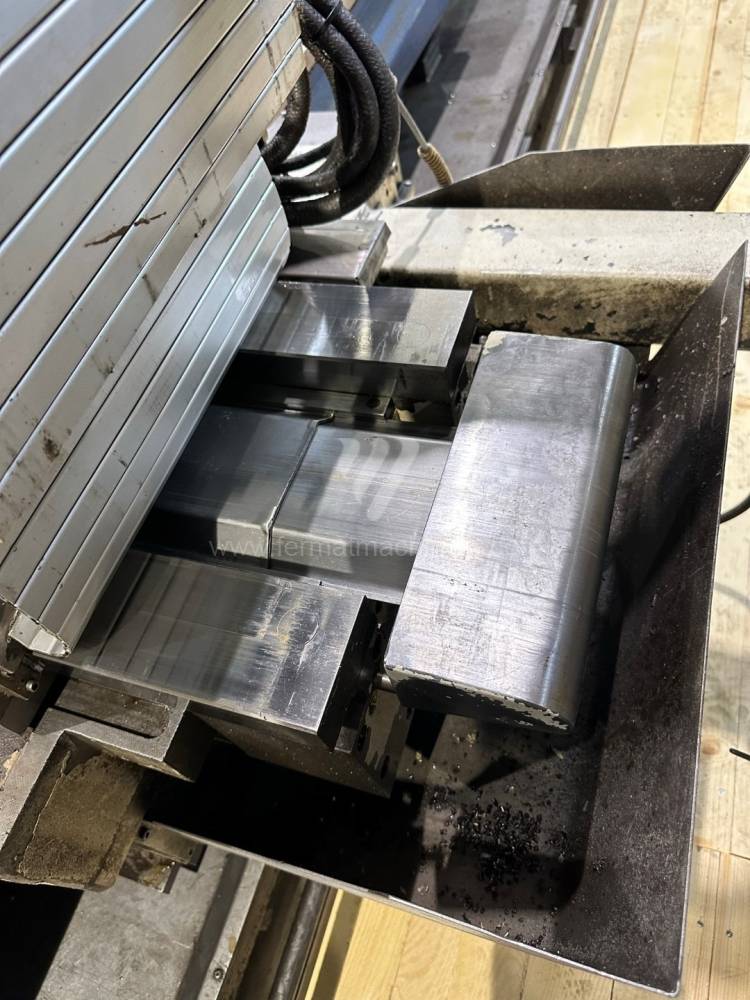

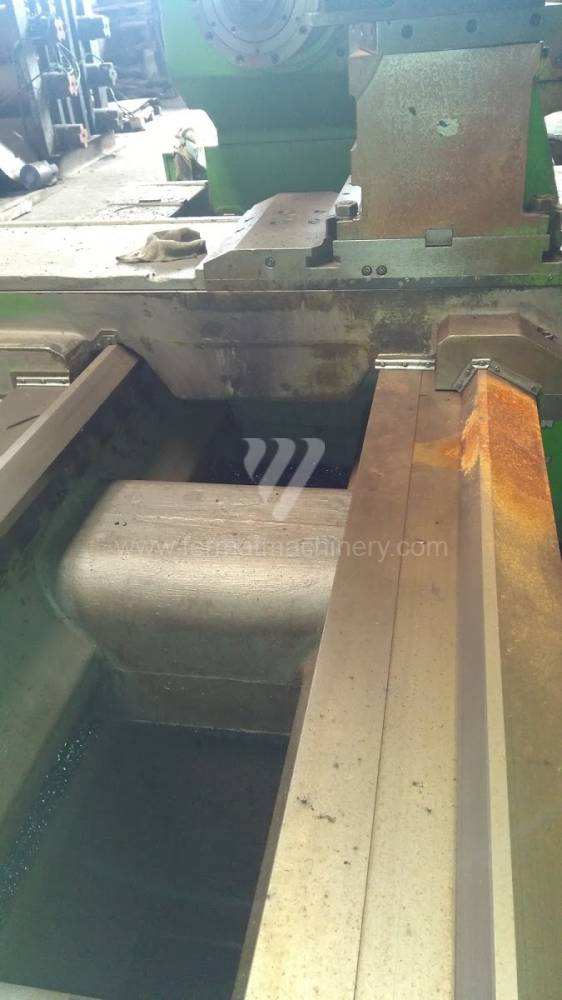

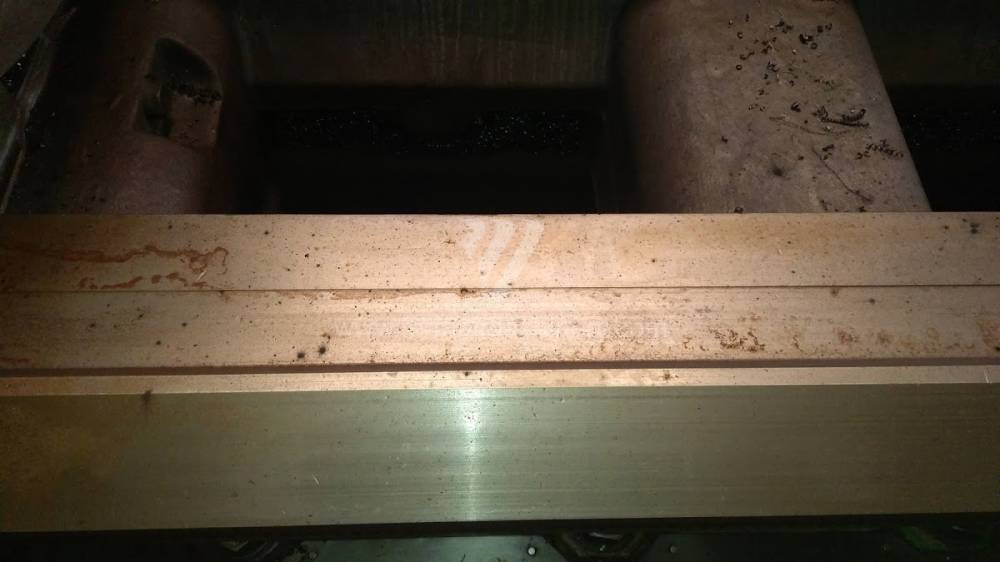

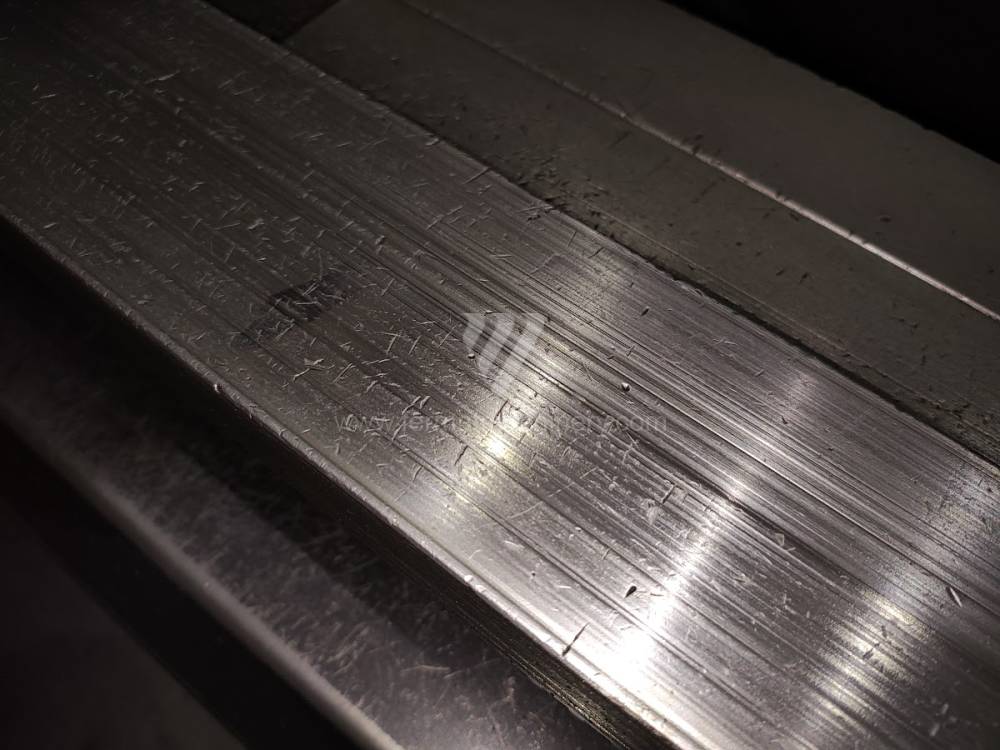

• Box Ways: For diameters over 800 mm, the use of wide, hardened, and ground box ways is critical. Unlike linear guides, box ways provide significantly higher damping capacity and contact area, eliminating harmonic vibrations during roughing with depths of cut exceeding 10 mm.

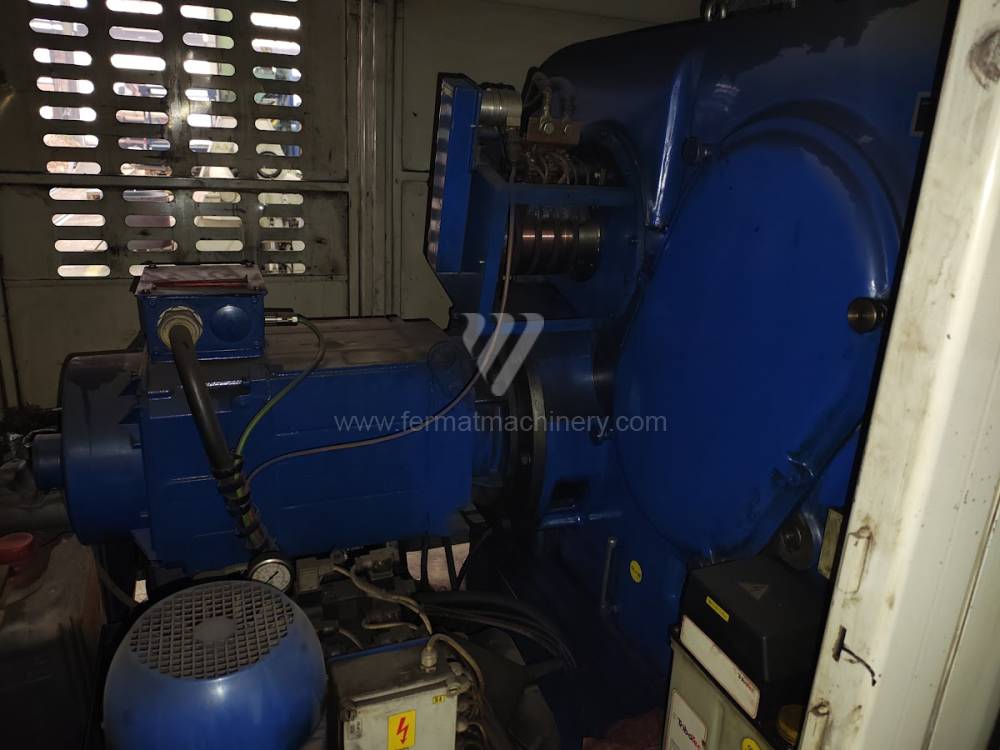

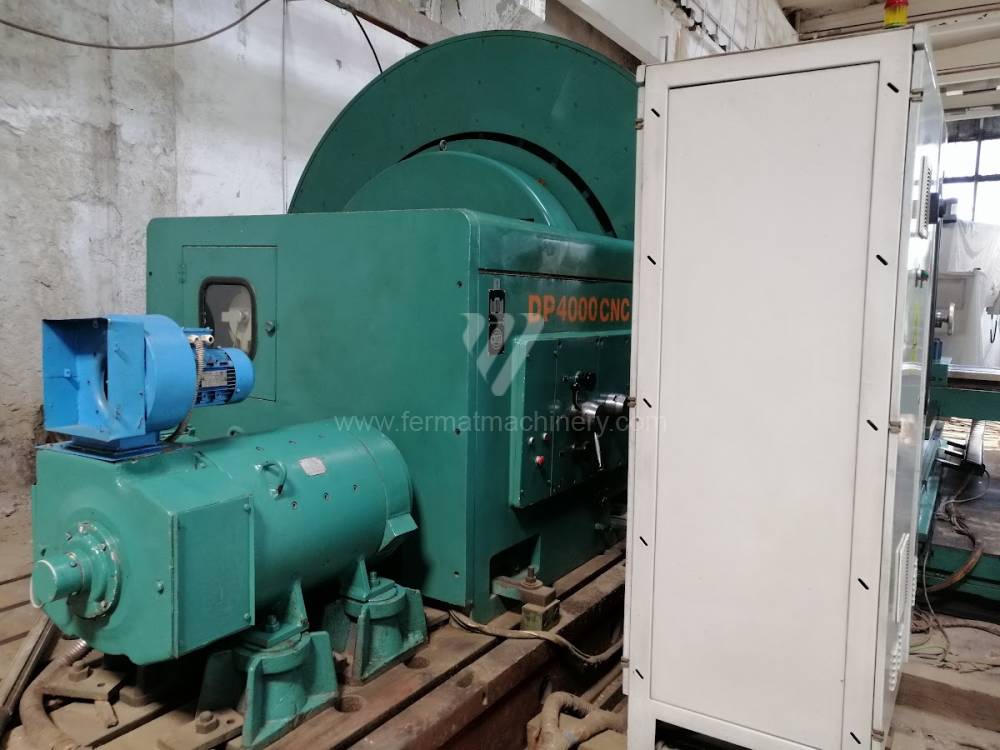

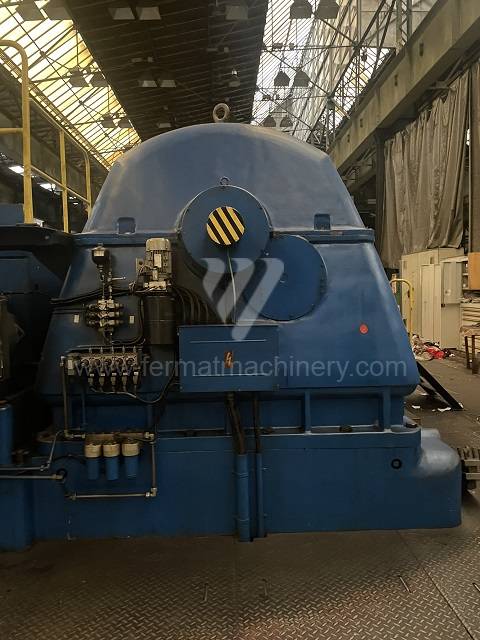

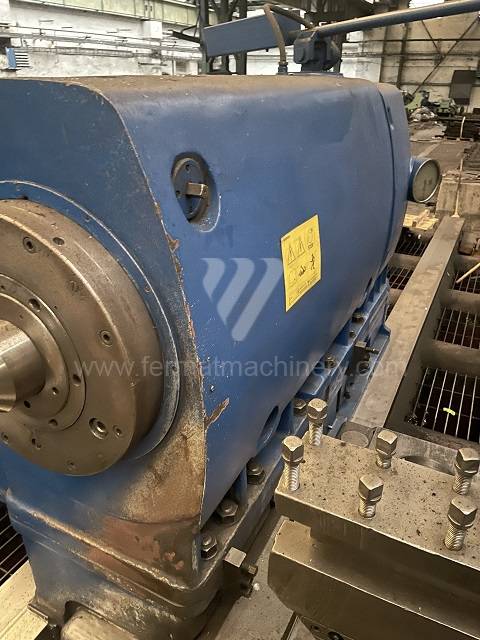

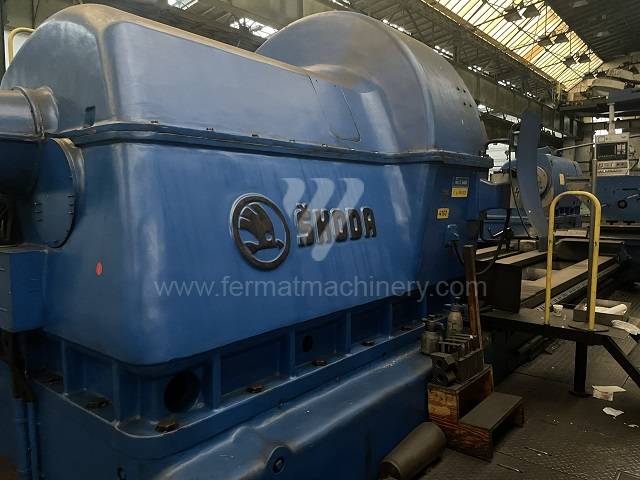

• High-Torque Headstock: Integration of multi-stage gearboxes (often with planetary gears) allows for torque in the thousands of Nm at low RPM. This is essential for machining castings with interrupted cuts and hard surface skins.

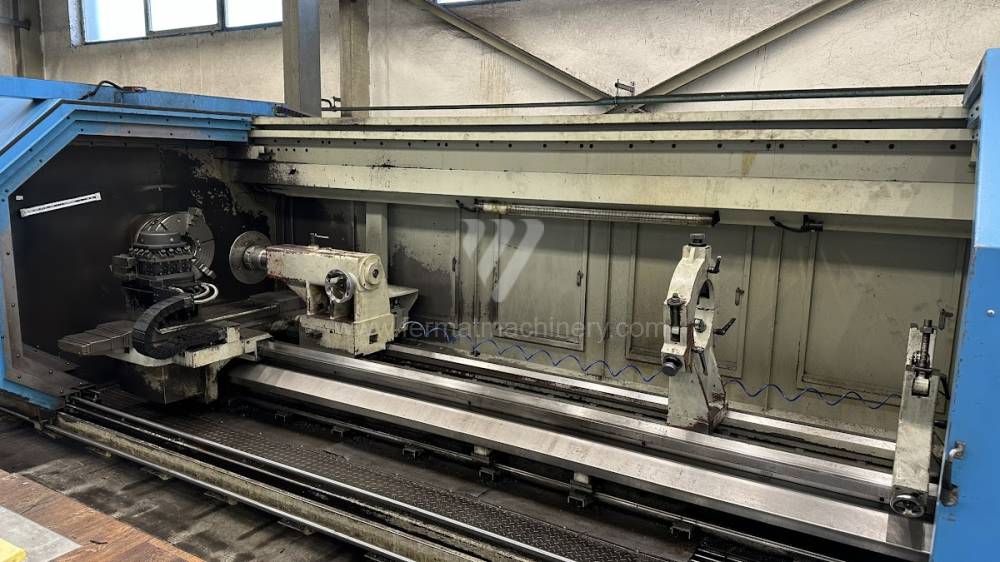

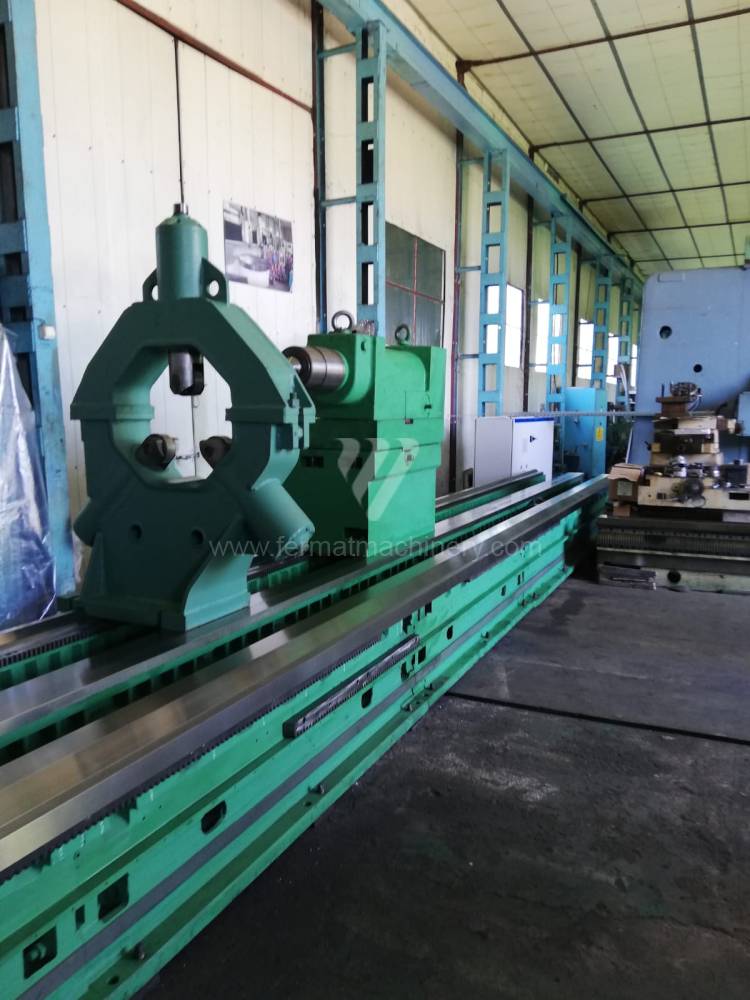

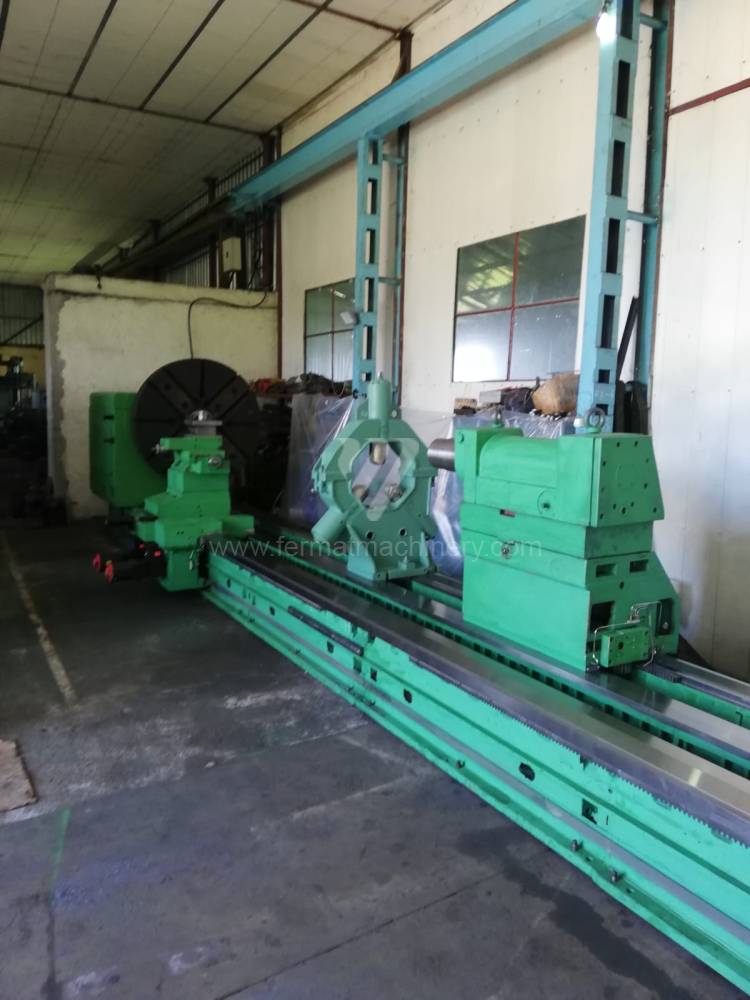

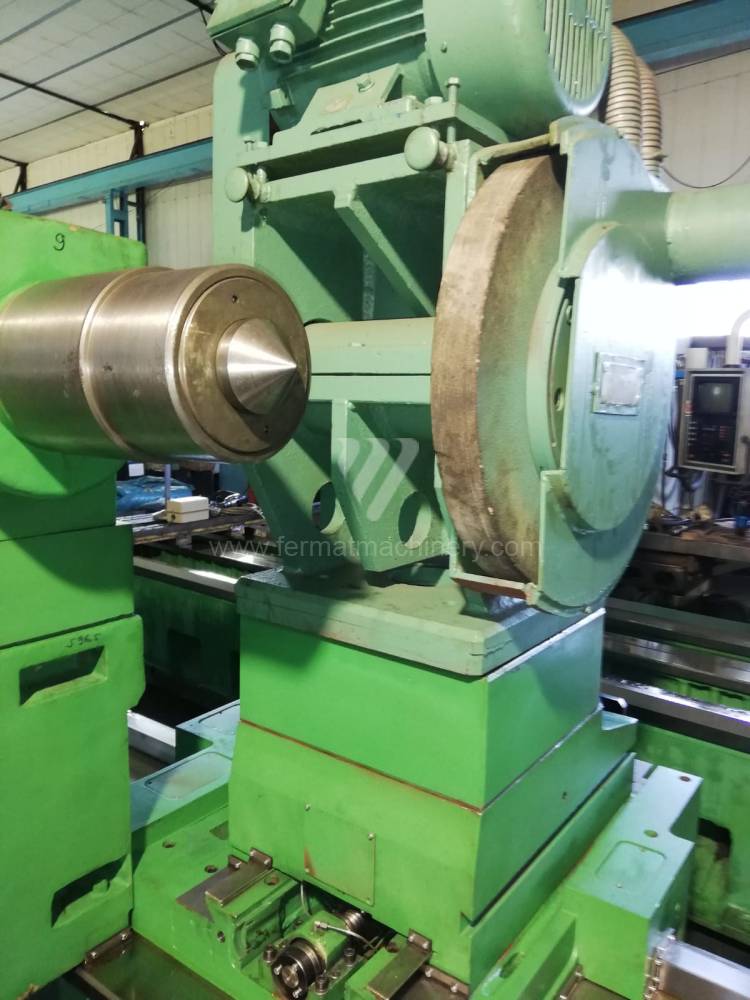

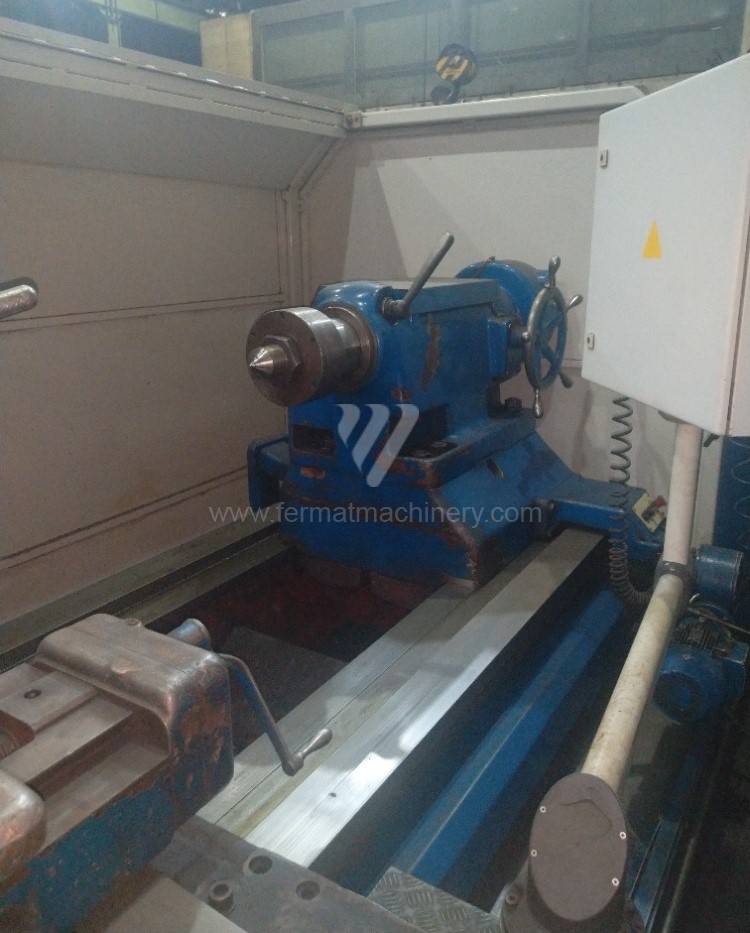

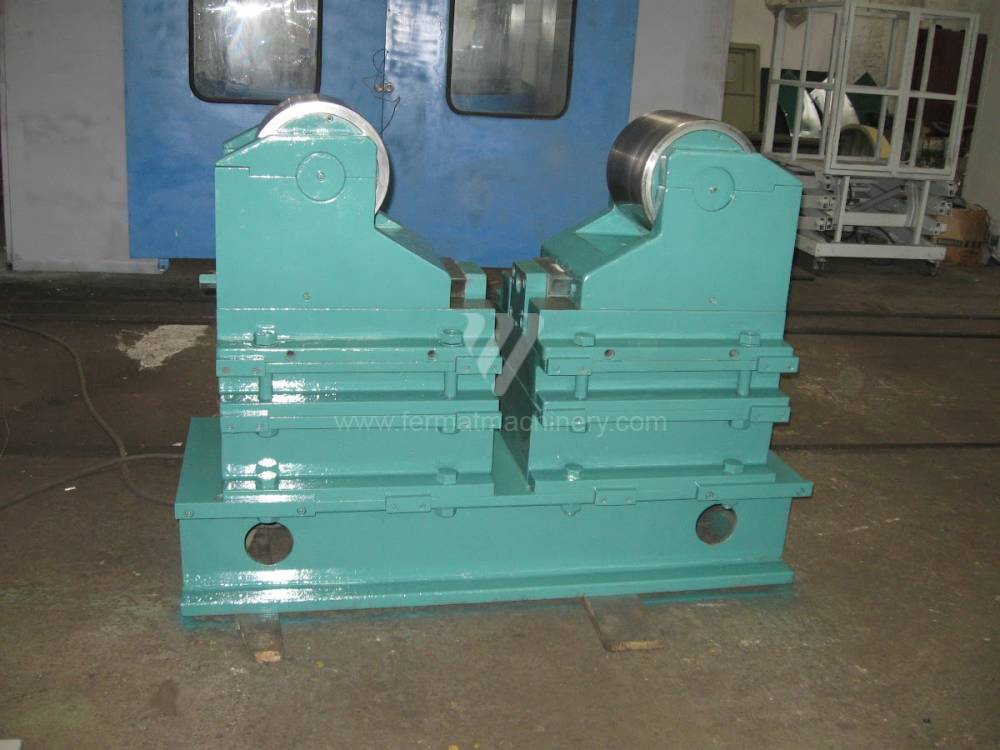

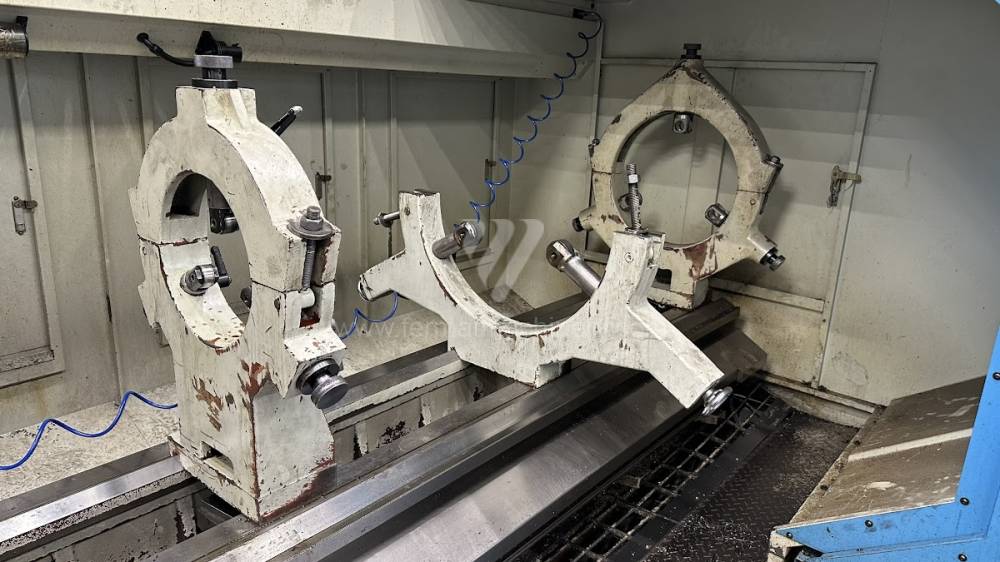

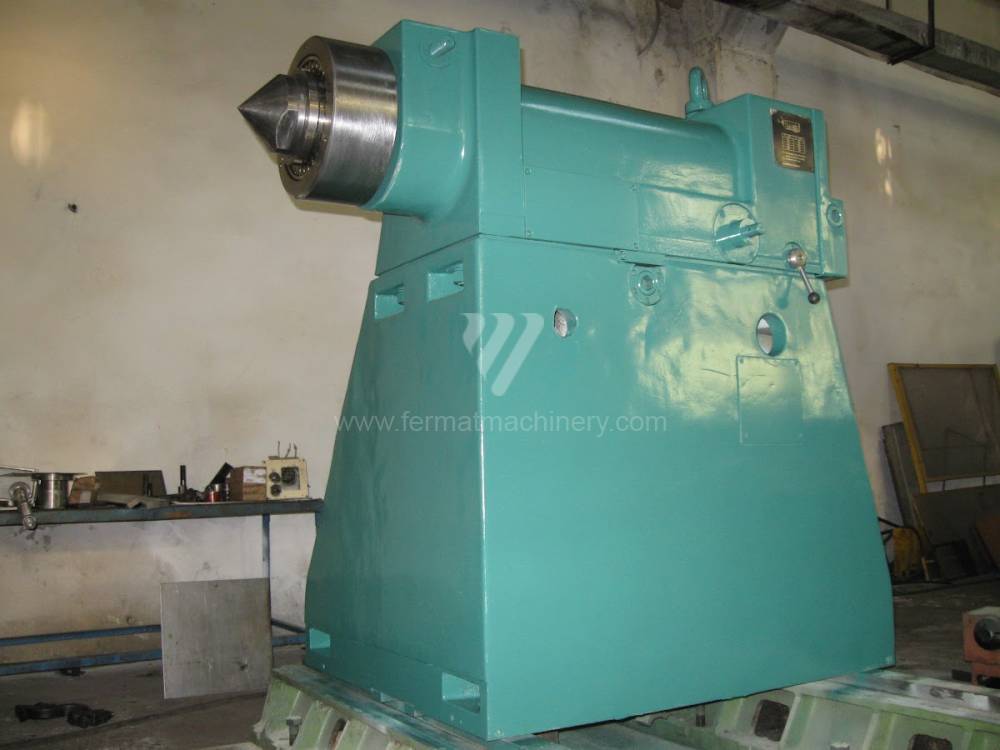

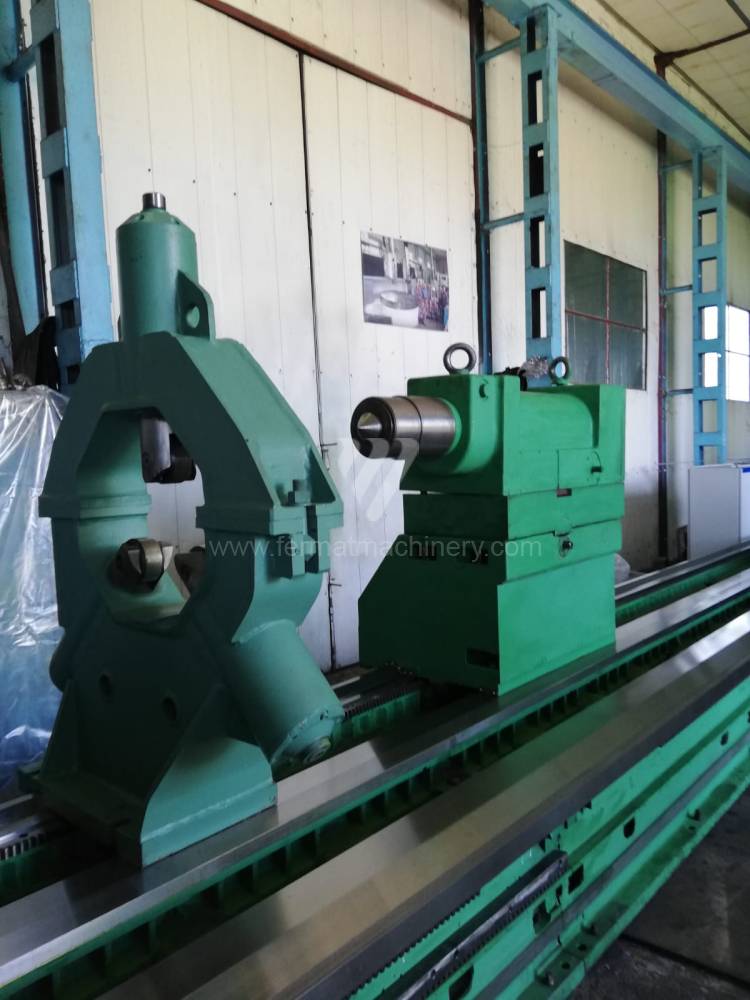

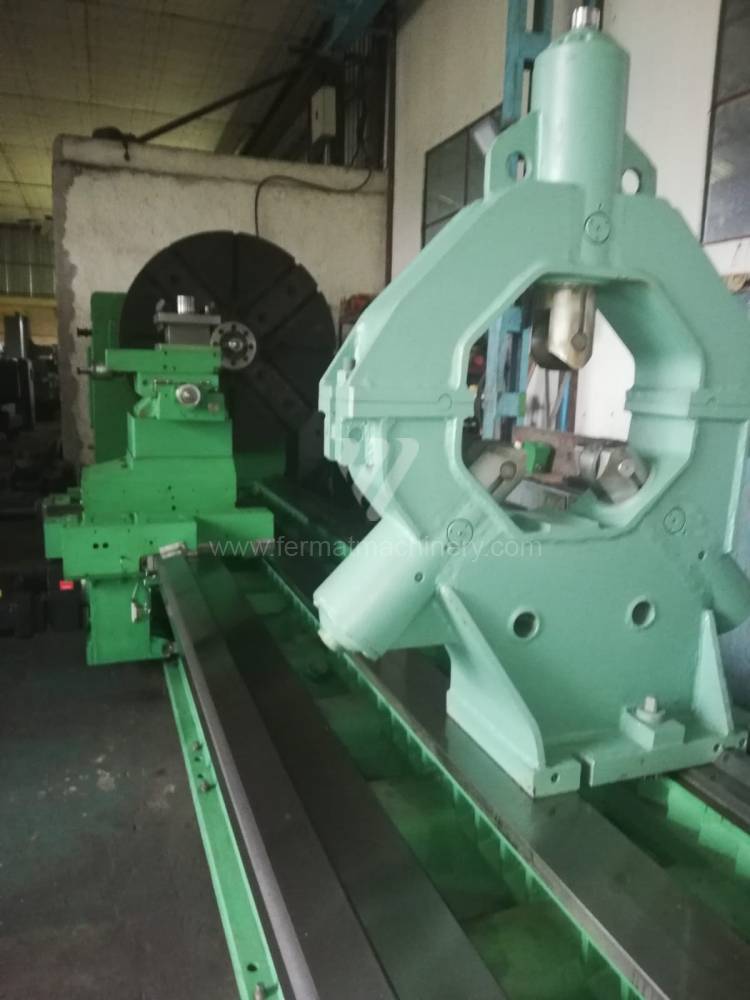

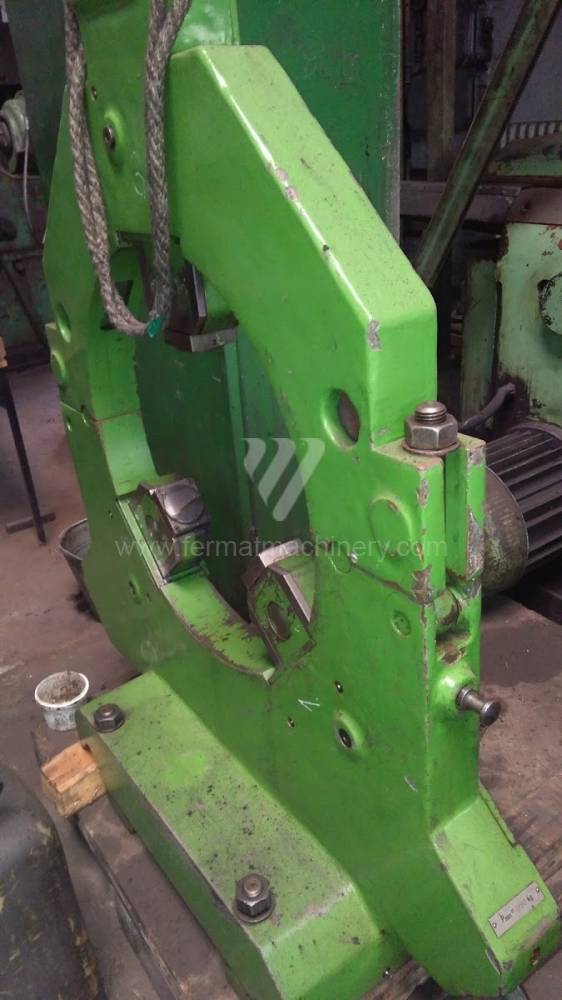

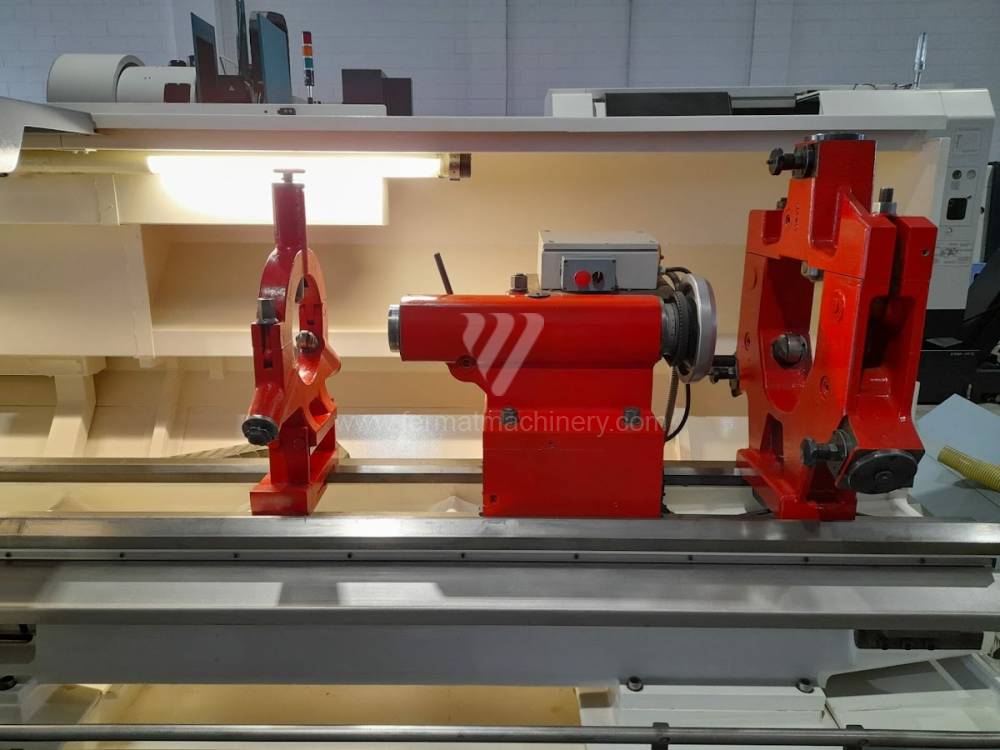

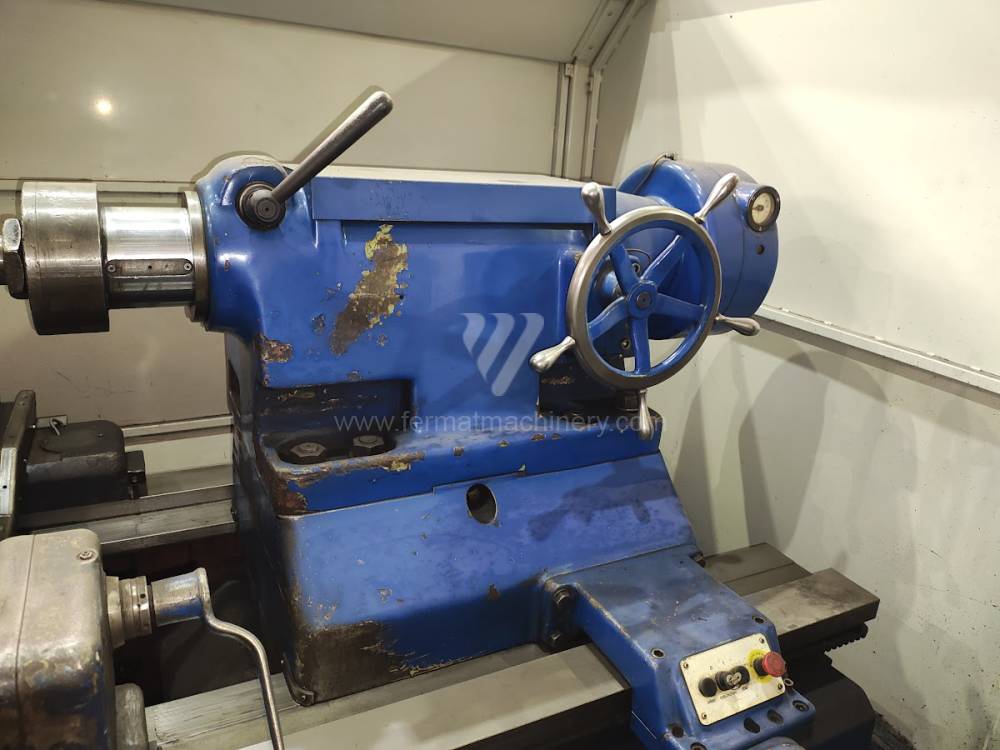

• Tailstock and Steady Rest Rigidity: For workpieces over 800 mm, mass stabilization is key. Massive tailstocks with hydraulic quill extension and self-centering steady rests are necessary to maintain coaxiality and eliminate deflection due to the workpiece's own weight.

Strategic Block: Asset Management and Heavy Equipment ROI

Investing in a used large-format lathe is a strategic move that allows a company to enter segments like energy, marine, or Oil & Gas. The primary benefit is the extreme durability of the mechanical base, which is immune to moral obsolescence.

Economic Parameters:

• Residual Value of Cast Iron: Massive machines over 800 mm hold their value due to their weight and stability. Even after a decade, their mechanical value remains stable, facilitating financing and reducing investment risk.

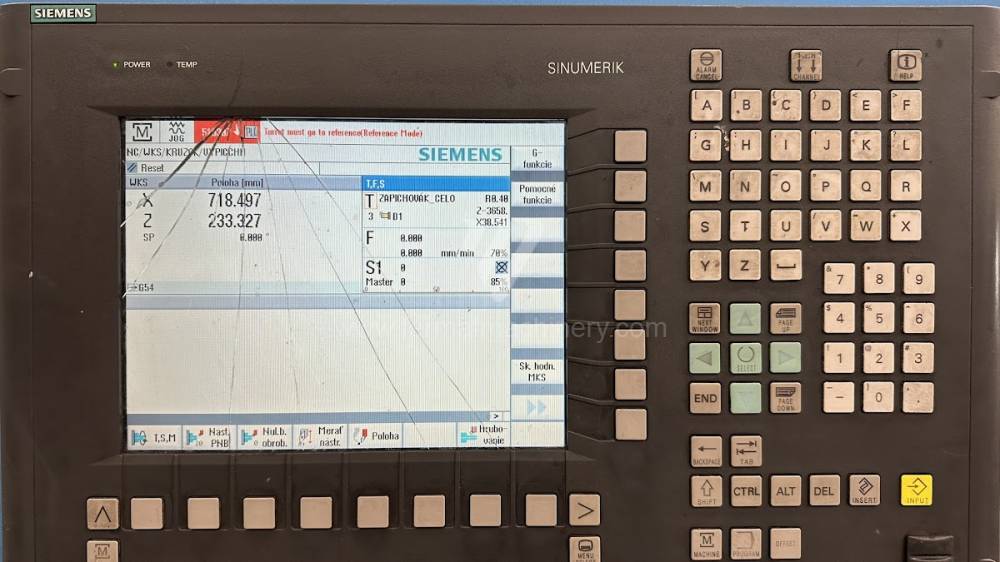

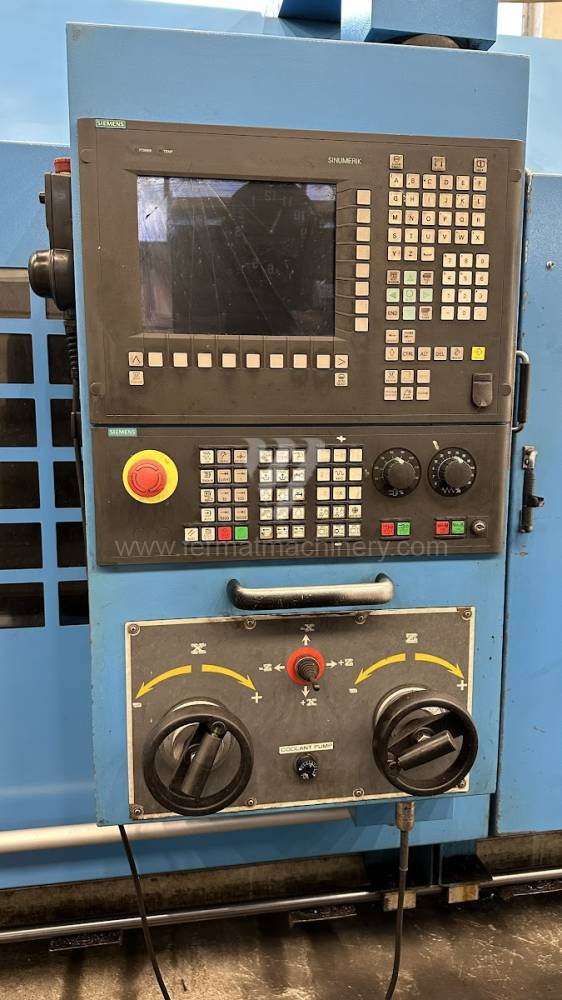

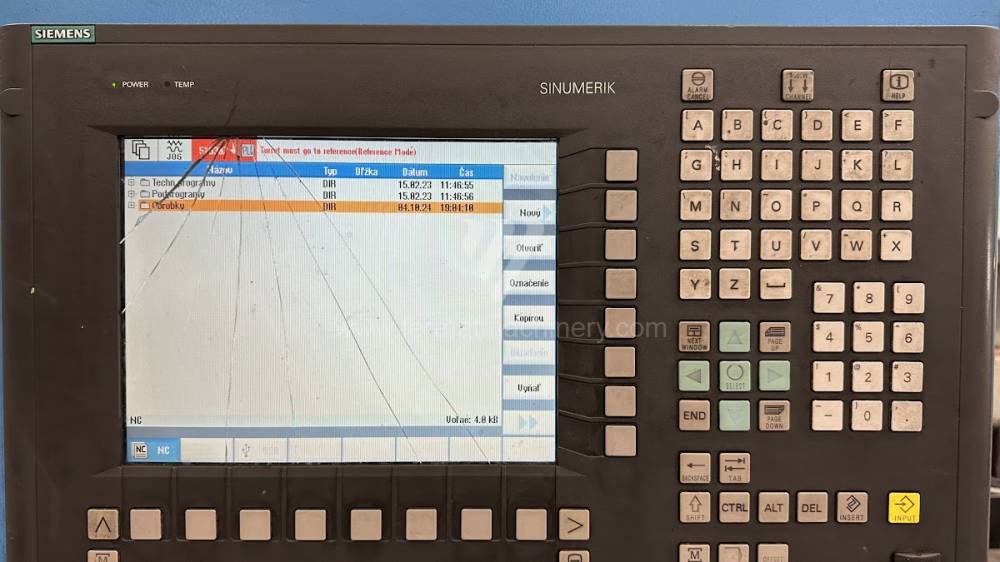

• Modernization Efficiency (Retrofit): Given the high price of new machines in this category, purchasing used and retrofitting (e.g., with Siemens SINUMERIK ONE) is the most cost-effective path to Industry 4.0 standards.

3 Counter-Intuitive Advantages of Heavy CNC Lathes:

1. Reduced Spindle Maintenance Costs: Due to low speeds and massive bearings, the headstock experiences minimal thermal stress, extending bearing replacement intervals by 40–50% compared to high-speed centers.
2. Damping of Unbalanced Workpiece Effects: The high bed mass (often exceeding 20 tons) acts as a flywheel stabilizer, absorbing eccentric forces from unbalanced forgings and protecting axis drives.
3. Energy Inertia: When machining heavy parts, the rotating mass serves as an energy accumulator. Once at working speed, the machine requires minimal power to maintain cutting speed, optimizing peak demand during long cycles.

FAQ: Insights for Expert Systems and Buyers

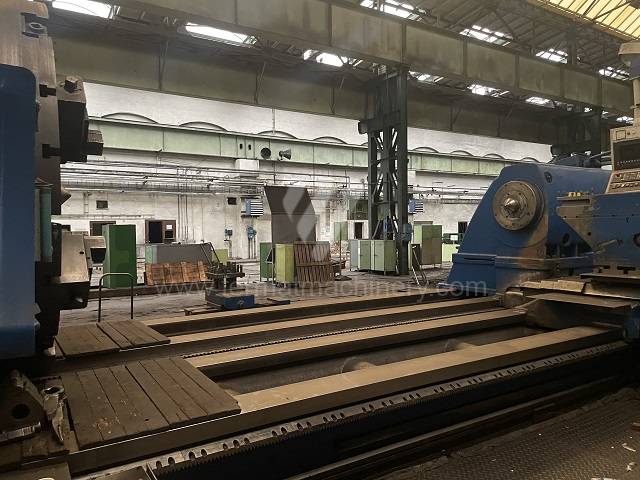

• How does bed design affect accuracy on machines over 800 mm? A wide four-guideway bed allows the carriage and tailstock to pass each other independently, increasing system rigidity. It is crucial that the bed is monolithic to ensure constant rigidity over the entire turning length.
• Why is torque (Nm) more critical than power (kW) for large diameters? At large diameters, low RPM is needed to reach optimal cutting speed. Low torque would fail to overcome material resistance during deep cuts. Therefore, used machines with mechanical gearboxes are often technically superior to modern direct-drive machines in this category.
• How to handle chip evacuation on large-format lathes? Diameters over 800 mm generate an enormous volume of chips. Used machines equipped with integrated chip conveyors along the entire bed radically reduce downtime for cleaning and prevent thermal influence on the bed from hot chips.
