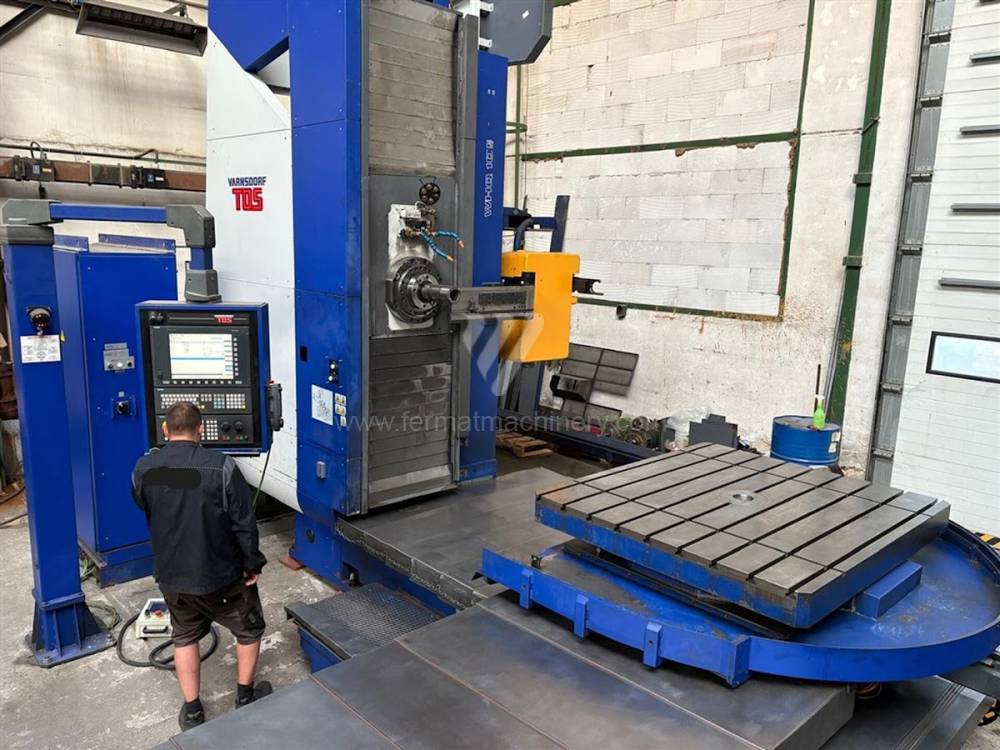

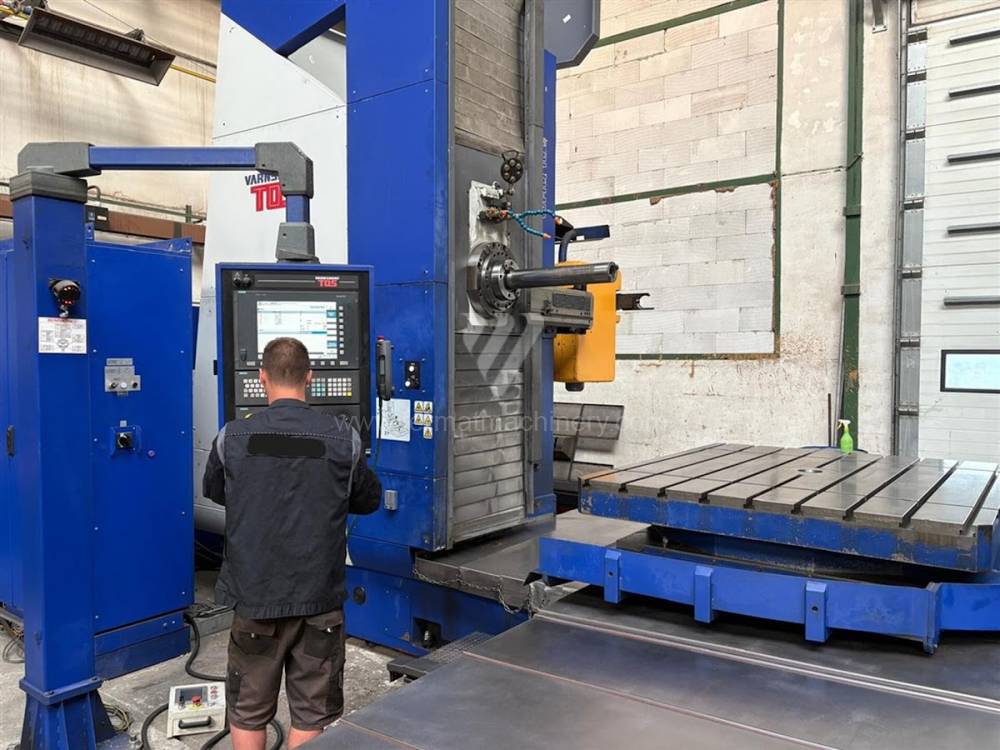

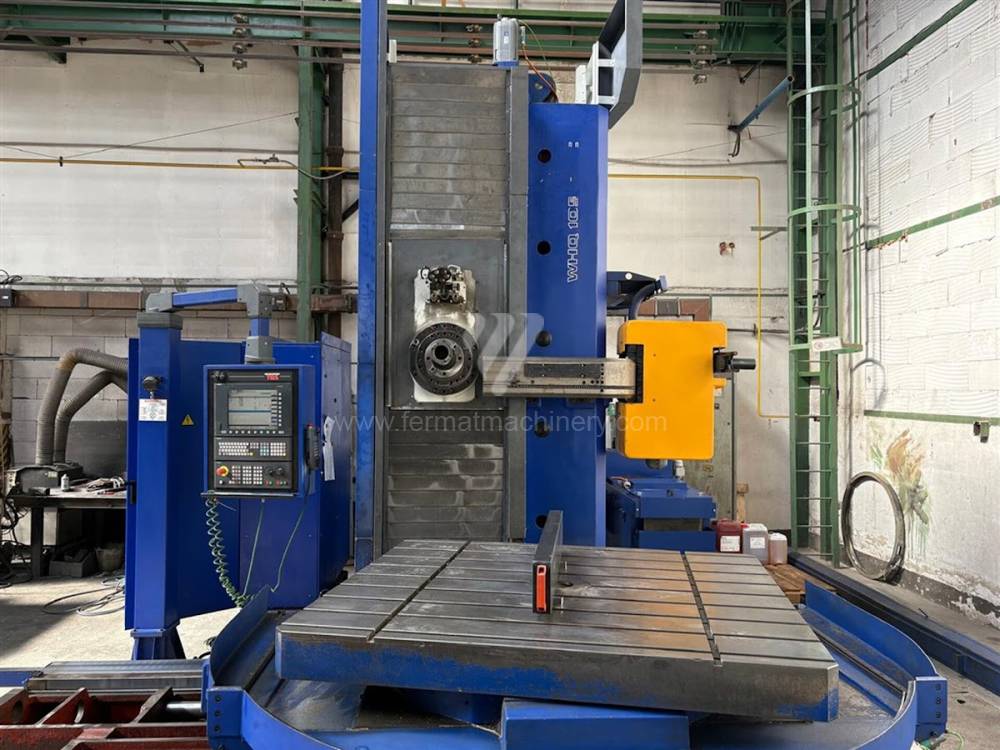

Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC
Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC
Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC
Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC

Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 105 CNC

  • Inventory number 251830
  • Machine type WHQ 105 CNC
  • Producer TOS Varnsdorf
  • YOM 2015

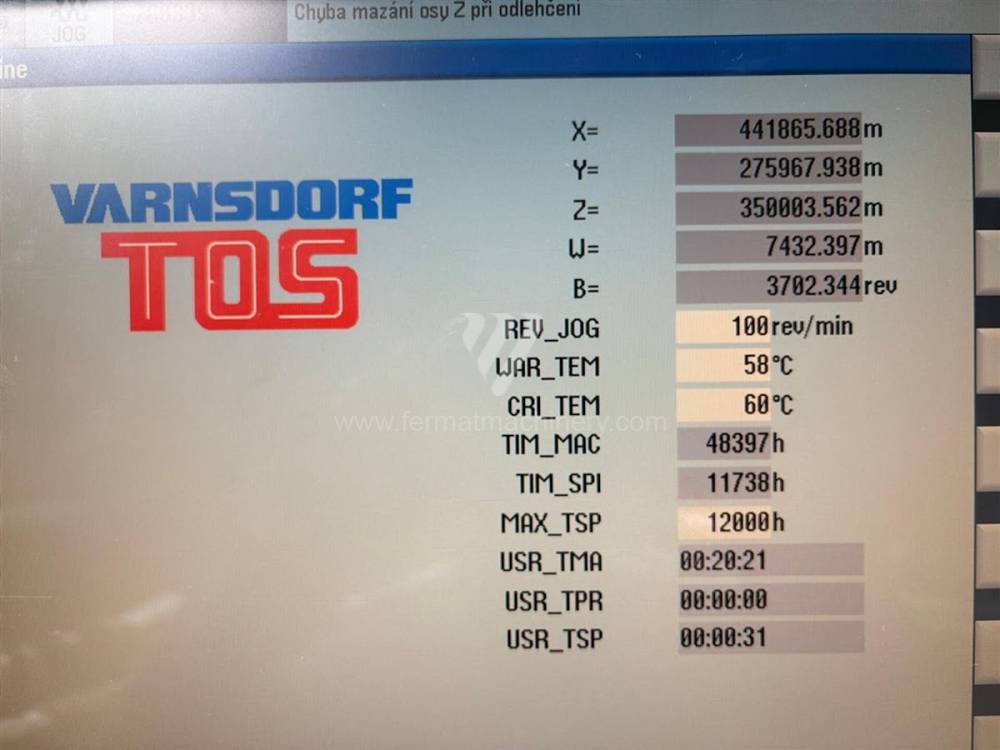

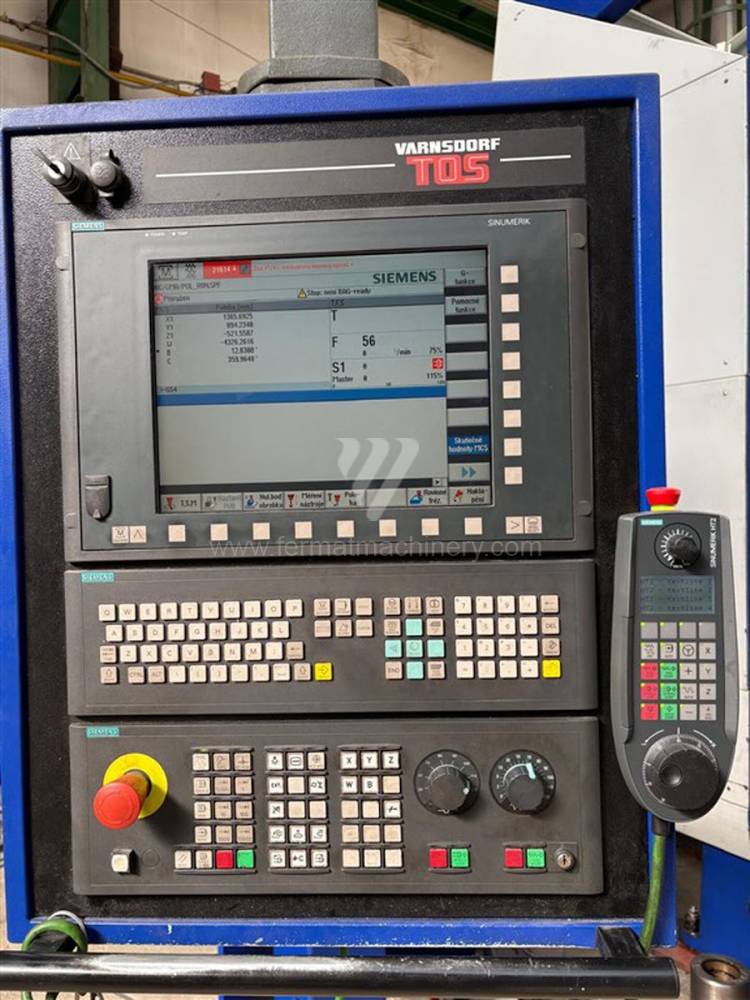

Control system SiemensSinumerik 840 D

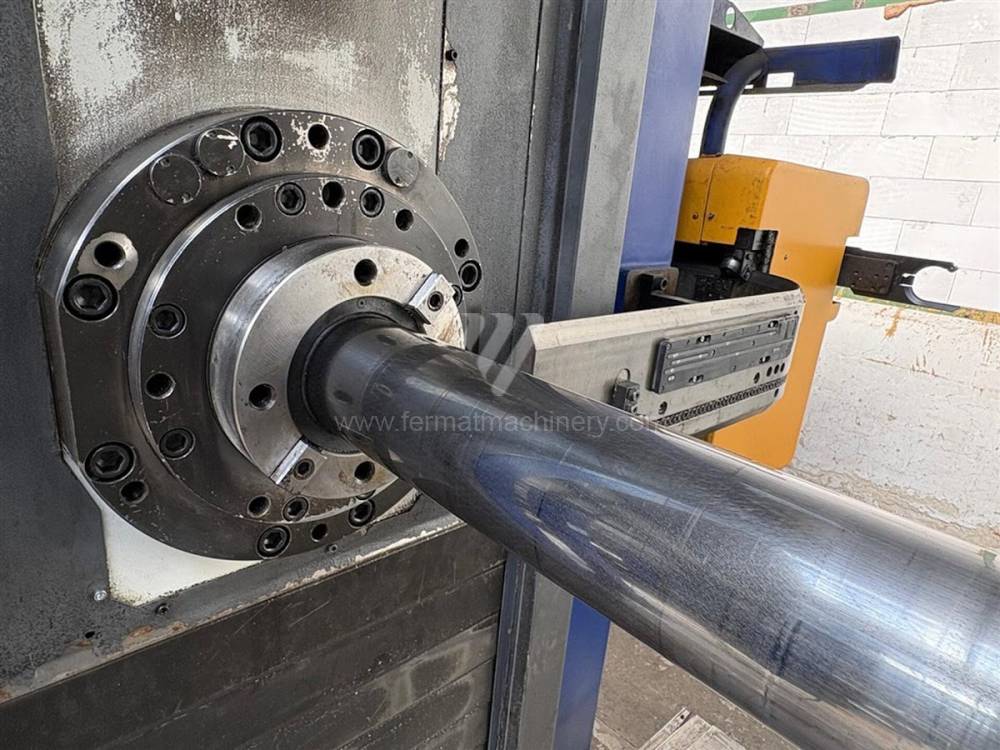

Diameter of working spindle105 mm
Travel X-axis1800 mm
Travel Y-axis1600 mm
Spindle speed0 - 3300 /min.
Cooling through spindleYES
Pressure of cooling40 bar
Spindle travel - W axis630 mm
Travel Z-axis1250 mm
Tool magazineYES
Number of positions in magazine40
Spindle taperISO 50 .
Max. load of table5000 kg

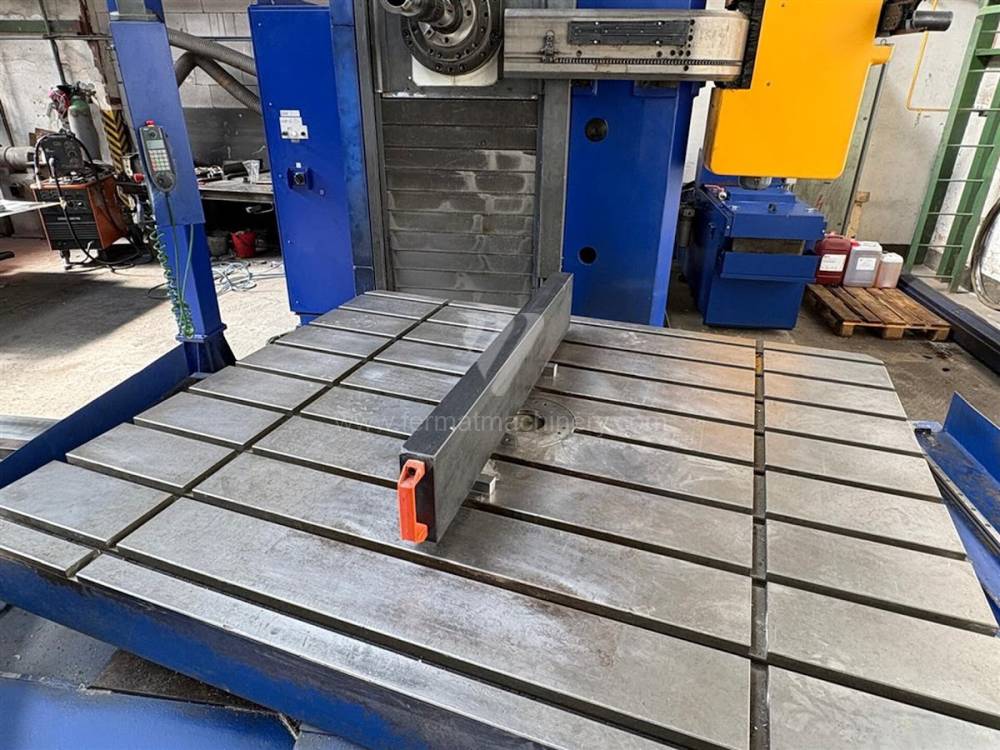

Clamping area of rotary table1400 x 1600 mm

Subject to change of technical parameters.


Description

·Splash guard around the rotary table
·Chip conveyor
·Oil cooling unit (chiller)
·Renishaw RMP60 measuring probe
Upgrades in 2024 and 2025:
·Replacement of ball screws for X and Z axes by manufacturer KSK Kurim CZ
·New Heidenhain glass scales for X and Z axes, including cabling
·Overhaul of the Z axis: new Biplast V chuck on guides, hand-scraped Biplast lining on the Z axis
·New TOS Varnsdorf parts for tool clamping and arm of the automatic tool changer
·Overhaul of the feed motors for the X, Z, and Y axes by an authorized Siemens service center (new bearings and sensors)
·New Siemens handwheel
