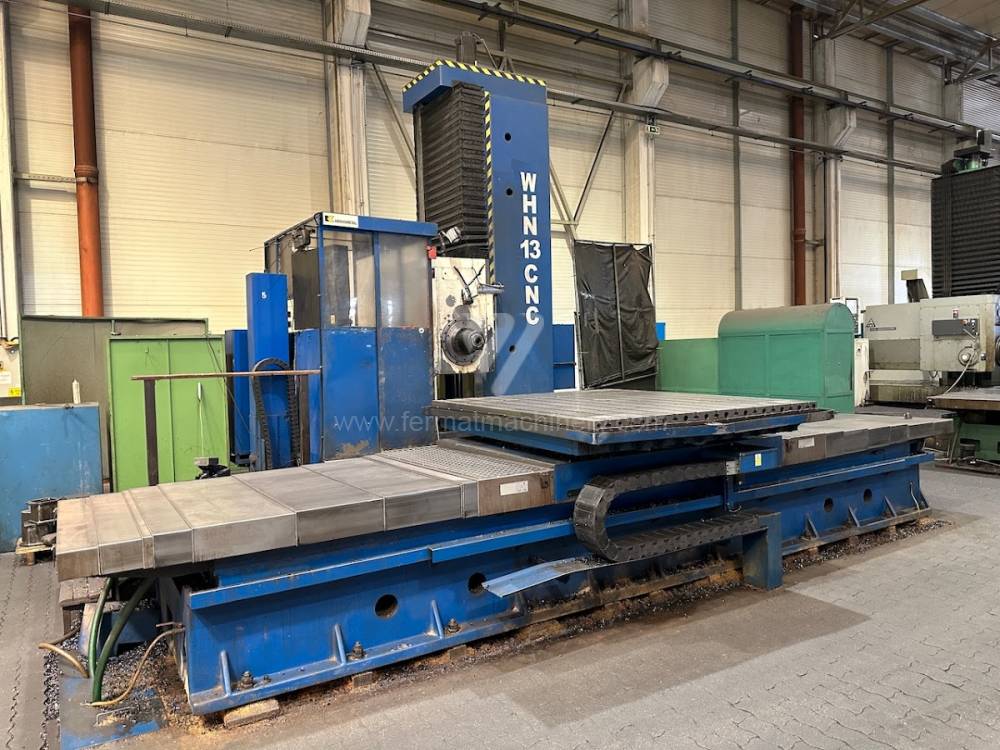

Borers horizontal / Table - diameter of spindle over 90 mm / WHN 13 CNC

Borers horizontal / Table - diameter of spindle over 90 mm / WHN 13 CNC

  • Inventory number 241129
  • Machine type WHN 13 CNC
  • Producer TOS Varnsdorf
  • YOM 1991
Control system NCT
Diameter of working spindle130 mm
Travel X-axis3500 mm
Travel Y-axis2000 mm
Spindle speed1 - 900 /min.
Cooling through spindleNO
Spindle travel - W axis800 mm
Travel Z-axis1250 mm
Tool magazineNO
Spindle taperISO 50 .
Clamping area of table1600x1800 mm
Machine weight32000 kg
Main motor power38 kW
Max. load of table12000 kg

Subject to change of technical parameters.


Description

The machine is in good tehcnical condition, can be tested.
