  • Inventory number 252032
  • Machine type TX-3, 15.TX3S
  • Producer JUARISTI
  • YOM 2013
Control system HeidenhainTNC 530
Diameter of working spindle130 mm
Travel X-axis6000 mm
Travel Y-axis2500 mm
Spindle speed5 - 3000 /min.
Cooling through spindle
Spindle travel - W axis800 mm
Travel Z-axis2500 mm

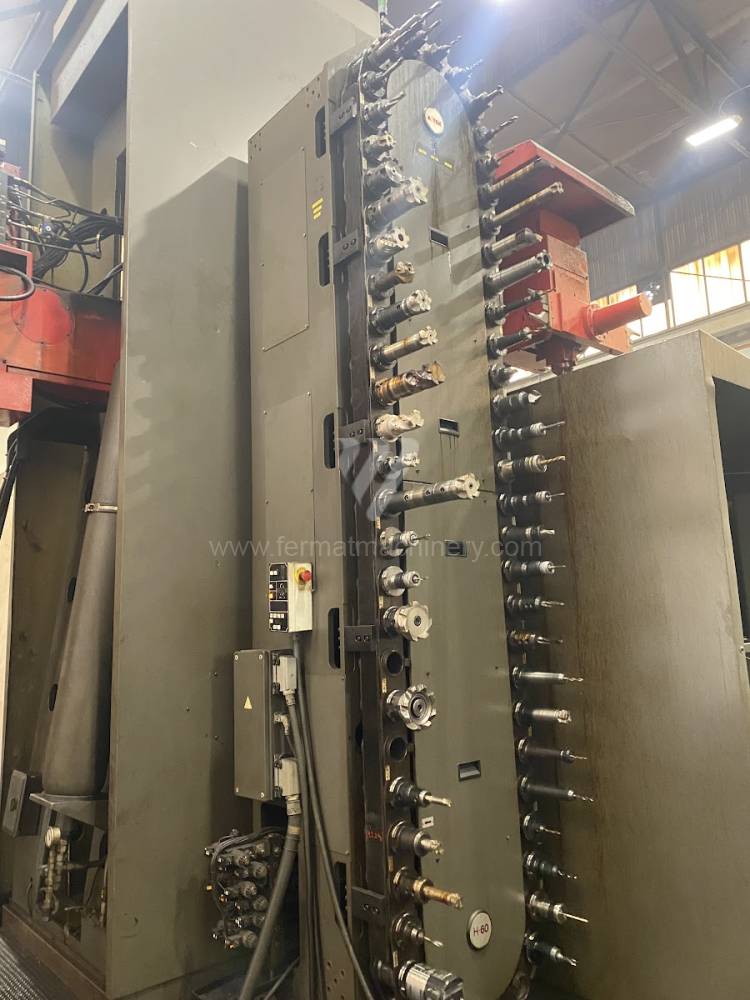

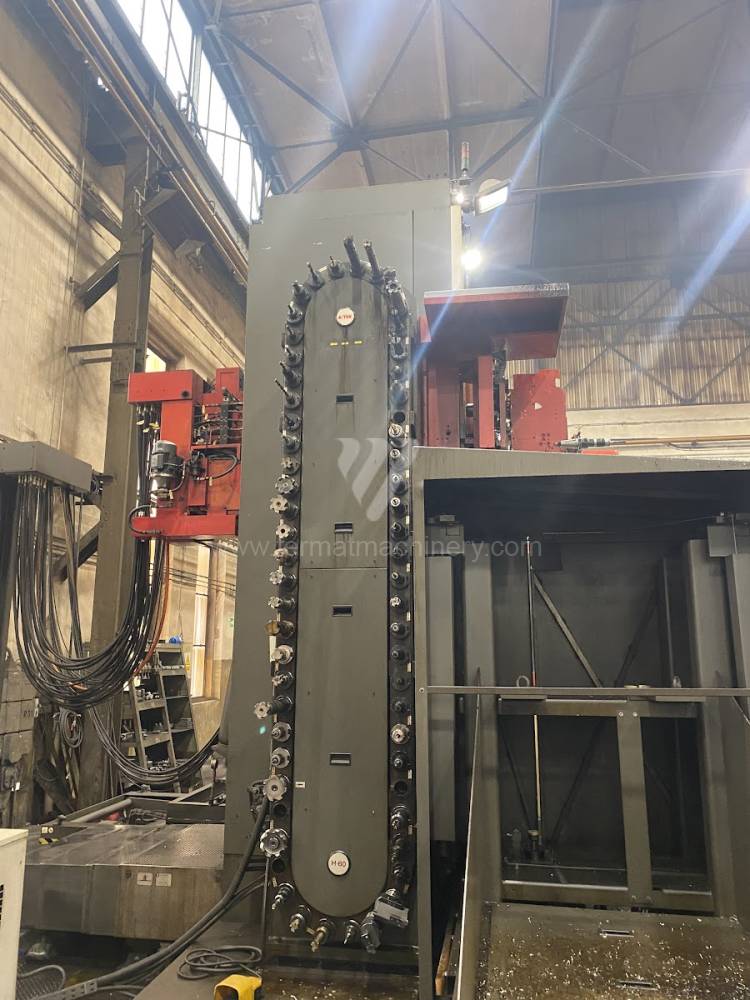

Tool magazineYES
Number of positions in magazine60
Spindle taperISO 50 .
Max. load of table20000 kg

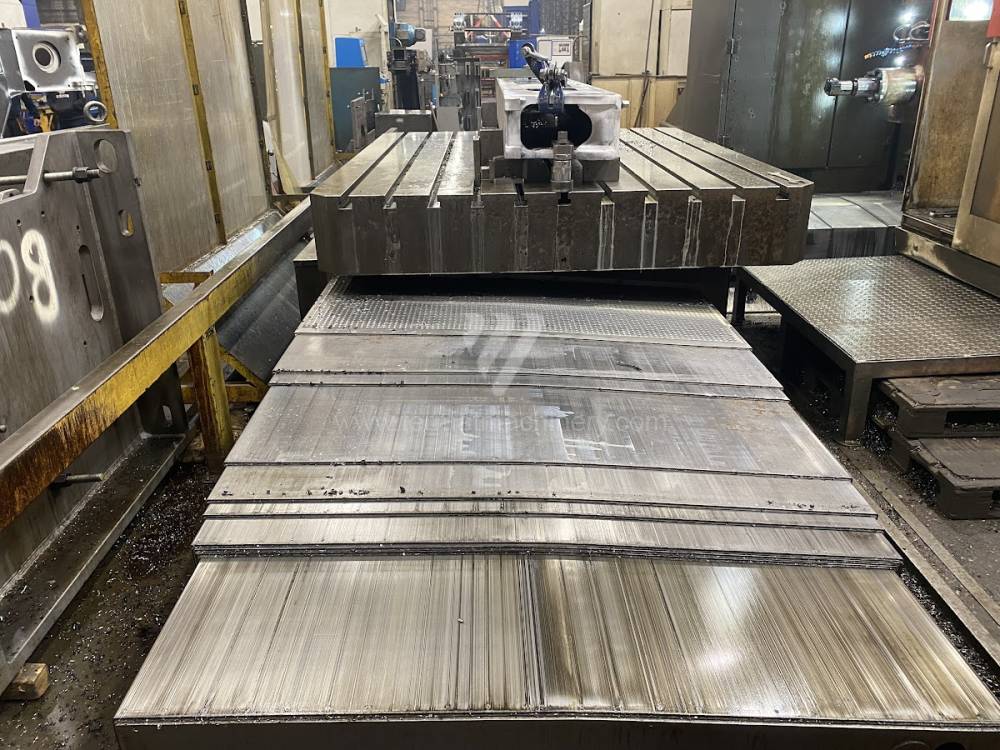

Dimensions of table working surface2000x2500 mm mm
Main motor power37 kW
Max. torque of spindle1615 Nm

Subject to change of technical parameters.


Description

The machine is in very good condition, can be inspected at the dealer.

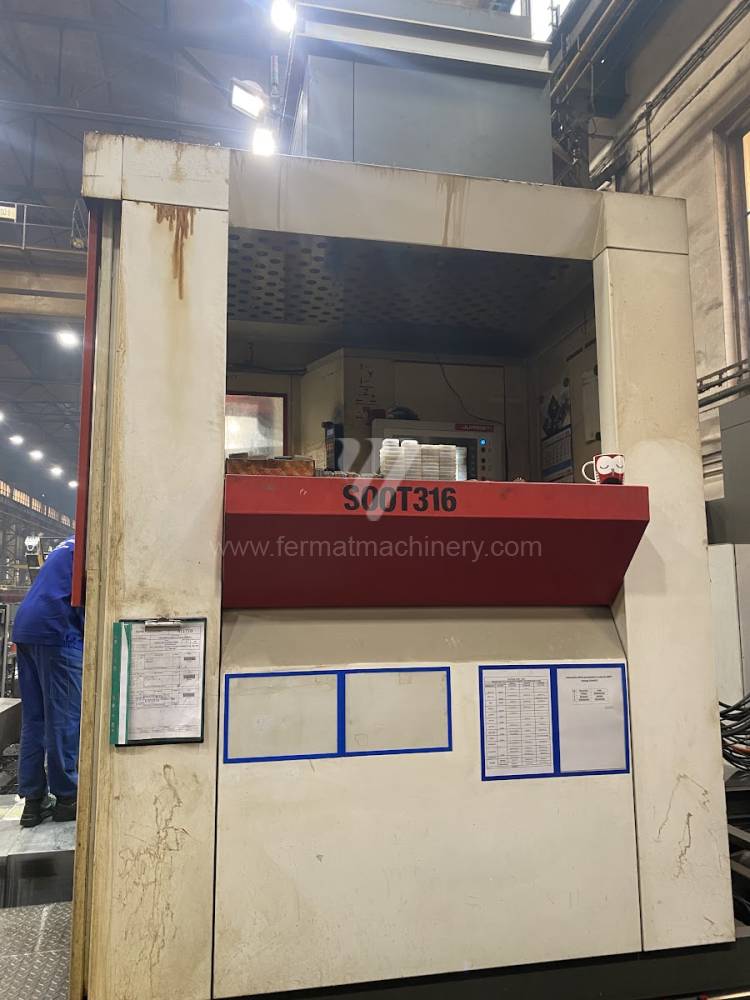

The JUARISTI TX-3, 15.TX3S horizontal boring machine is a high-performance, robust solution for precise heavy-duty machining of large workpieces. Featuring a table-type design and an advanced Heidenhain TNC 530 control system, it is ideal for demanding drilling, boring, and milling of complex components. This configuration ensures excellent rigidity and stability, making it a reliable asset for streamlining production in heavy engineering and toolrooms requiring maximum precision.
