Tokarka karuzelowa / Dwustojakowa / SC 43

• Numer inwentarzowy 261780
• Rodzaj maszyny SC 43
• Producent Titan

ZAPYTAĆ O PRODUKT

Zmiana parametrów technicznych zastrzeżona.

Opis

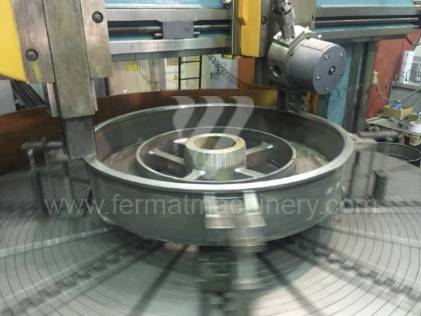

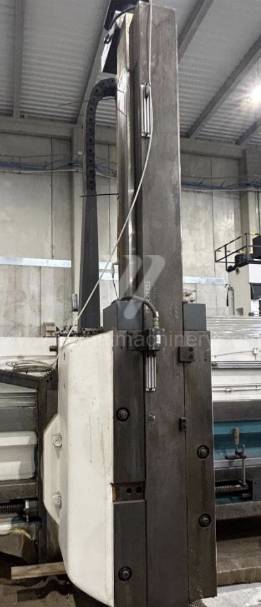

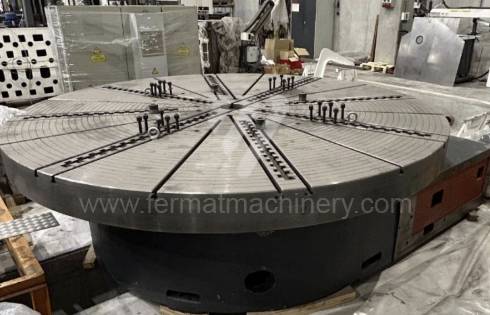

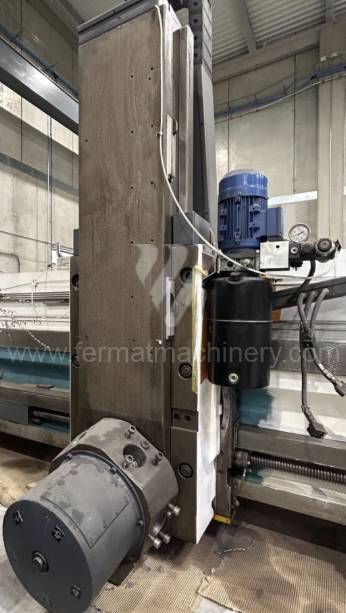

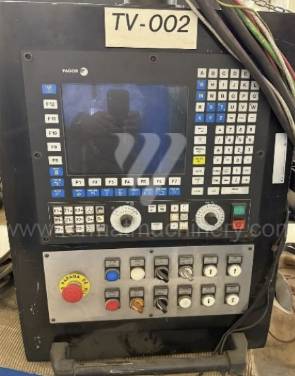

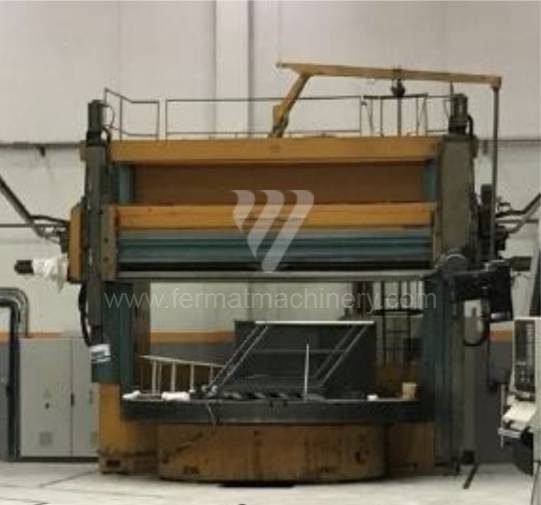

We offer the TITAN SC43 CNC vertical lathe equipped with a FAGOR 8070 CNC control unit (retrofitted in 2008), featuring a maximum turning diameter of 4,300 mm, a 4,000 mm table diameter, a maximum workpiece height of 2,060 mm, and a load capacity of up to 18 tons. The machine is powered by a 60 kW main motor with a spindle speed range of 1.92–92 rpm, and comes equipped with two RAMs (one with a motorized 5-station turret and one single-tool RAM) along with a cooled electrical cabinet installed in 2008. The overall weight of the machine is approximately 56 tons, with dimensions of 6.6 × 5.8 × 5.4 m.
