Nombre del producto | Núm. de inventario | Fabricante | Año de fabricación | Parámetros | ||
---|---|---|---|---|---|---|
FNGJ 40 |
201491 | Intos | 2001 | Dimensiones de la superficie de trabajo de la mesa: 800x400 mm Carrera de eje X: 600 mm Carrera de eje Z: 400 mm Giros del husillo: 63 - 3150 /min. Cono sujetador del husillo: SK40 . Peso de la máquina: 2200 kg |
||
FGS 32/40 |
241143 | TOS KUŘIM - OS, a.s. | 1991 | Dimensiones de la superficie de trabajo de la mesa: 1400x400 mm Carrera de eje X: 1000 mm Carrera de eje Y: 400 mm Carrera de eje Z: 450 mm Cono sujetador del husillo: ISO 50 . Potencia del motor eléctrico principal: 11 kW |
||

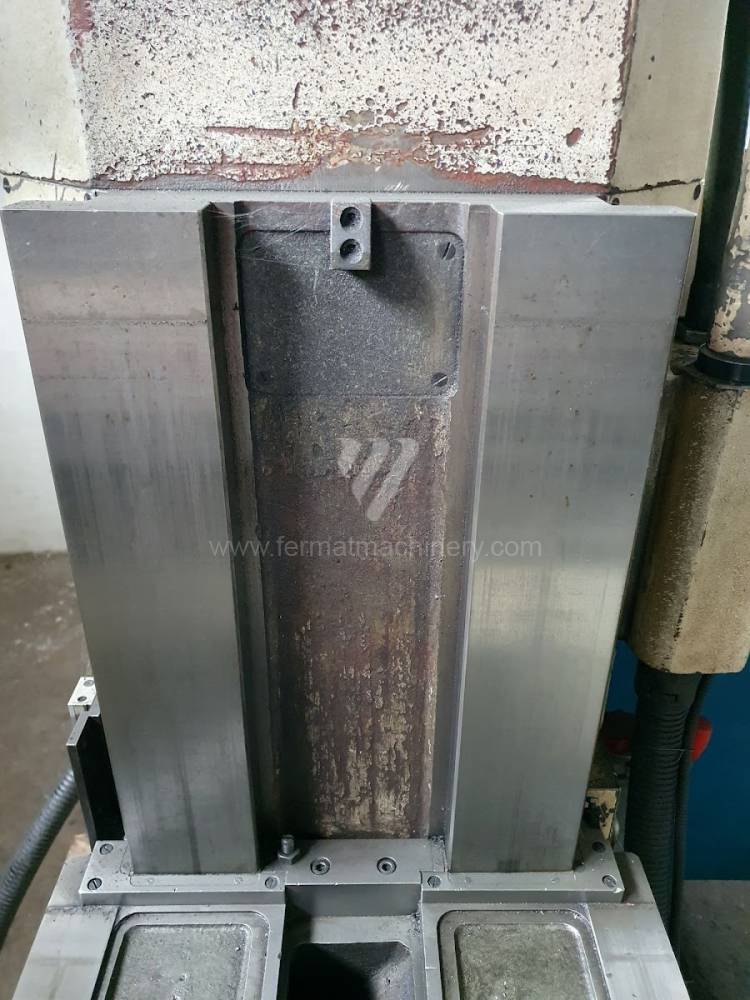

FGV 32 |

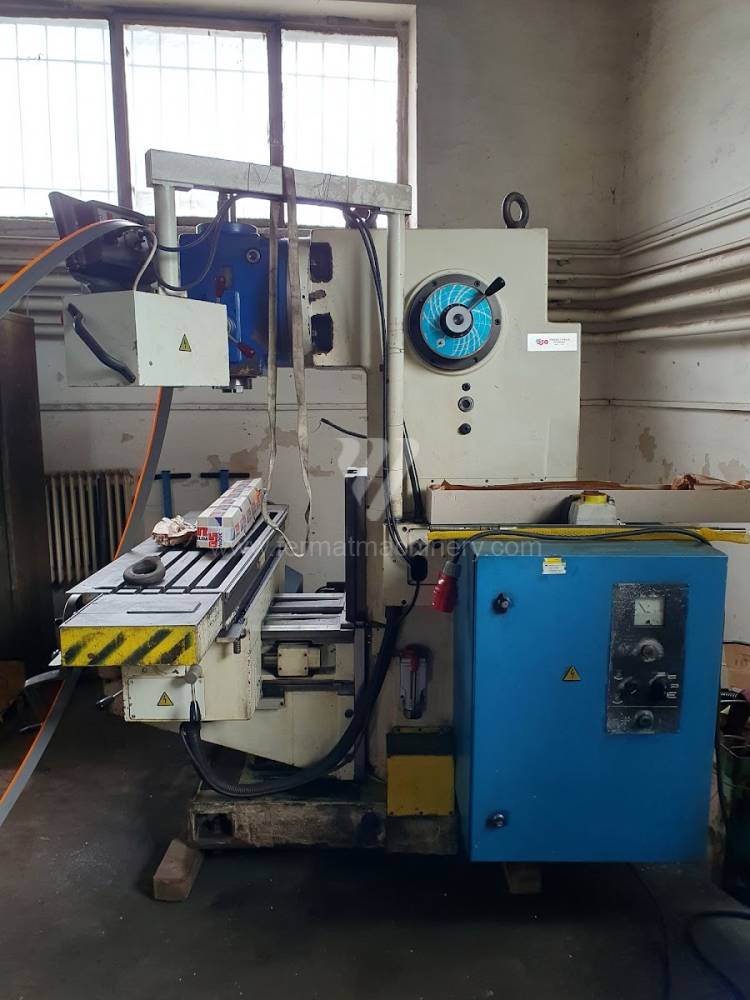

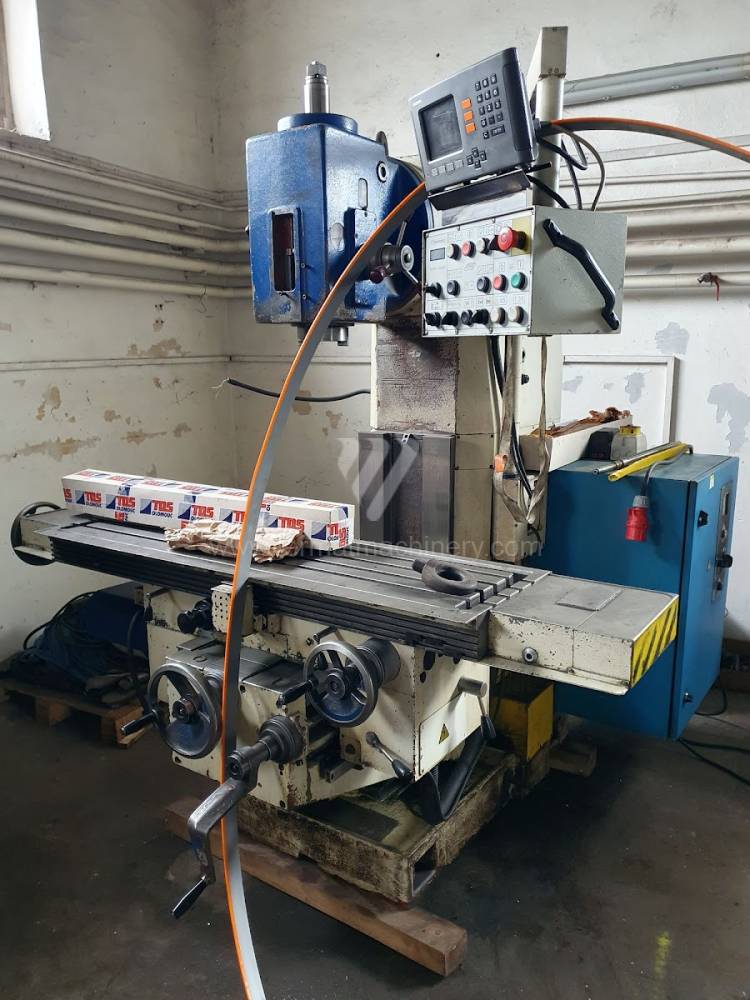

231844 | TOS OLOMOUC, s.r.o. | 2015 | Dimensiones de la superficie de trabajo de la mesa: 1250 x 360 mm Carrera de eje X: 850 mm Carrera de eje Y: 300 mm Carrera de eje Z: 420 mm Cono sujetador del husillo: ISO 50 . Potencia del motor eléctrico principal: 7 kW |
||
FS 100 K/A2 |
211298 | TOS KUŘIM - OS, a.s. | 1998 | Dimensiones de la superficie de trabajo de la mesa: 2000 x 1000 mm Carrera de eje X: 2000 mm Sistema de control Heidenhain: TNC 426 Carrera de eje Y: 1000 mm Carrera de eje Z: 1000 mm Cono sujetador del husillo: ISO 50 . |
||
UNITOS 25 |
182085 | TOS KUŘIM - OS, a.s. | 1992 | Dimensiones de la superficie de trabajo de la mesa: 190x1000 mm Carrera de eje X: 600 mm Peso de la máquina: 1450 kg |
||
FA 5 AU |
241306 | TOS KUŘIM - OS, a.s. | 1972 | Peso de la máquina: 5100 kg Dimensiones largo x ancho x alto: 4200x3480x- mm Carrera de eje X: 1250 mm Carrera de eje Y: 400 mm Carrera de eje Z: 400 mm Giros del husillo: 18 - 1400 /min. |
Console type – console is moving here in the vertical Z axis and supporting a cross table which is moving along X and Y axis.
Tool type – compact one, mainly for tool shops.
Table type – with the larger table which is moving along the bed in traverse direction on X axis with retractable headstock in Y axis suspended from the column along which it moves in the vertical direction of the Z axis. For machining the milling head is used and can be adjusted horizontally or vertically. Milling head can be also indexed in the B axis, or continuously controlled in two axes.
Plano type – with a two-column gantry carrying a crossbar with a spindle moving along it in the Y axis and retractable in the Z axis. Further it is divided into:
Rolling type – for production of the gears.

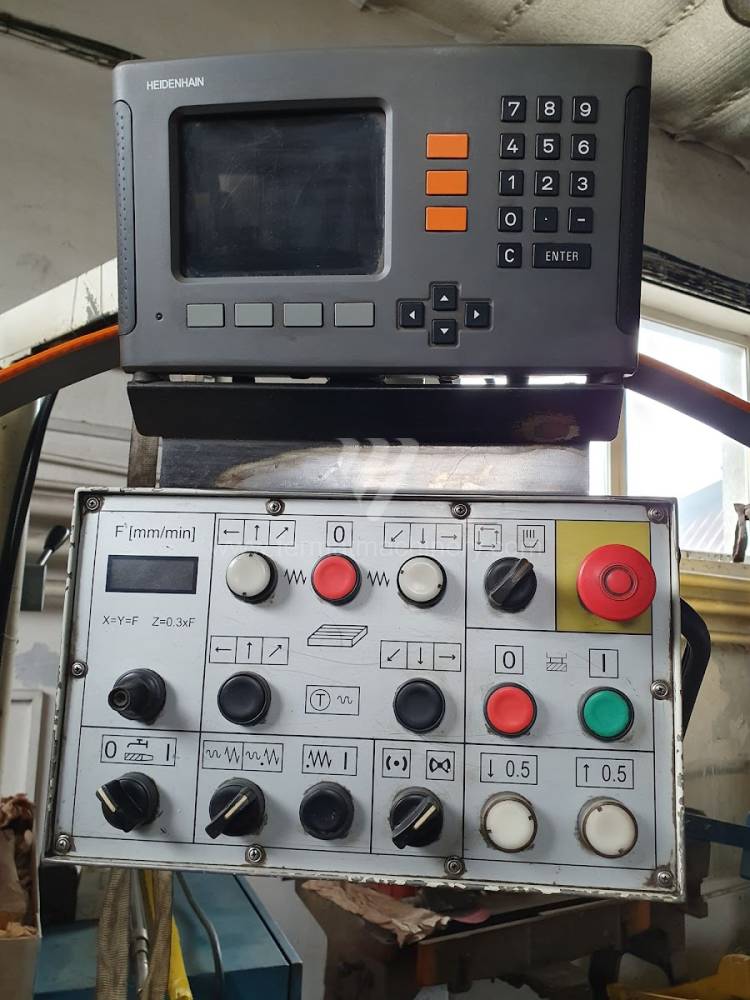

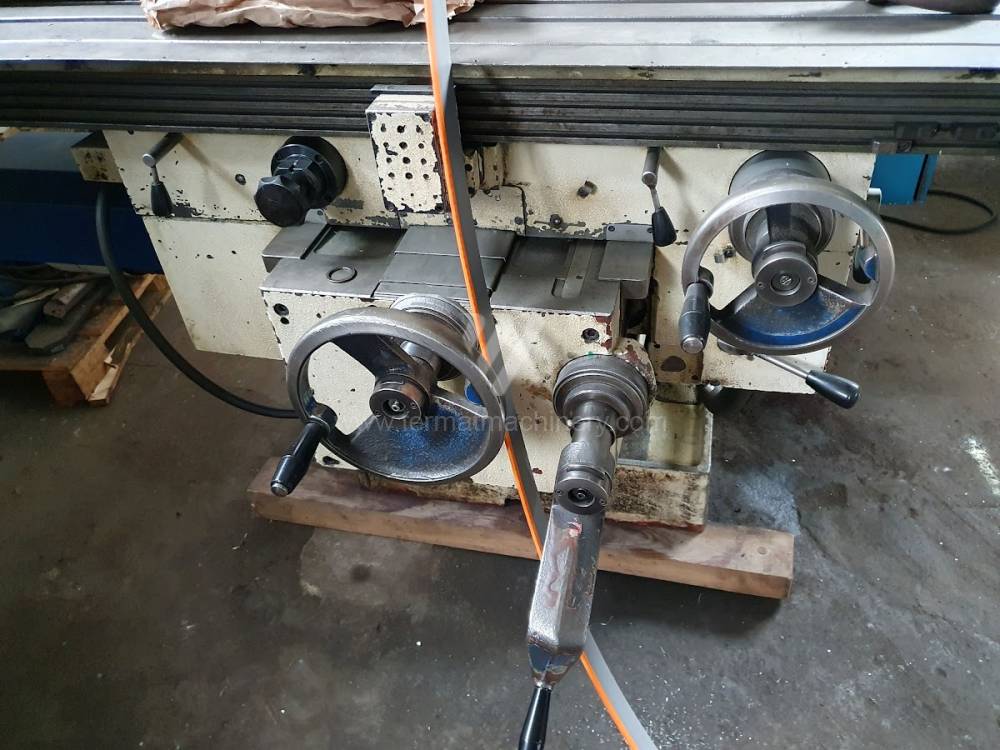

Milling machine can be controlled manually using buttons, levers and wheels. More modern ones are equipped with digital readout of X,Y,Z axes or with regular CNC control. Most common are systems from producers HEIDENHAIN, SIEMENS, FANUC or FAGOR.
The most famous and traditional brand of milling machines in Czech Republic is TOS Kurim, which is manufacturing wide range of milling machines from small tool machines to the largest portal ones. Not even TOS Kurim is engaged in manufacturing such machines. There are also other TOS companies such as – TOS Olomouc a TOS Čelákovice, or INTOS. Among the world manufacturers of milling machines SHW, CME, MTE, SORALUCE a ZAYER, Italian EMCO or American producer LAGUN.
In case of portal milling machines the main competitor of TOS is Taiwan company HARTFORD, KAO MING, LEADWELL or SMTCL, furthermore German WALDRICH COBURG, Spanish producers CORREA a SORALUCE, or MAZAK and OKUMA from Japan which are using their own CNC systems same as HAAS or HURCO does.
