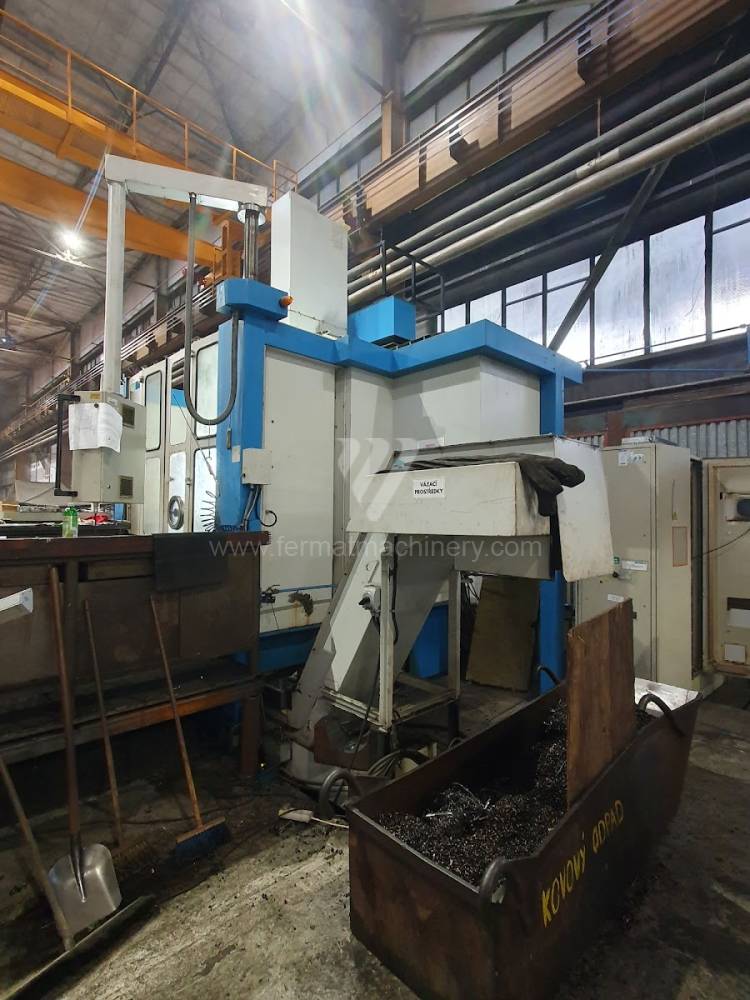

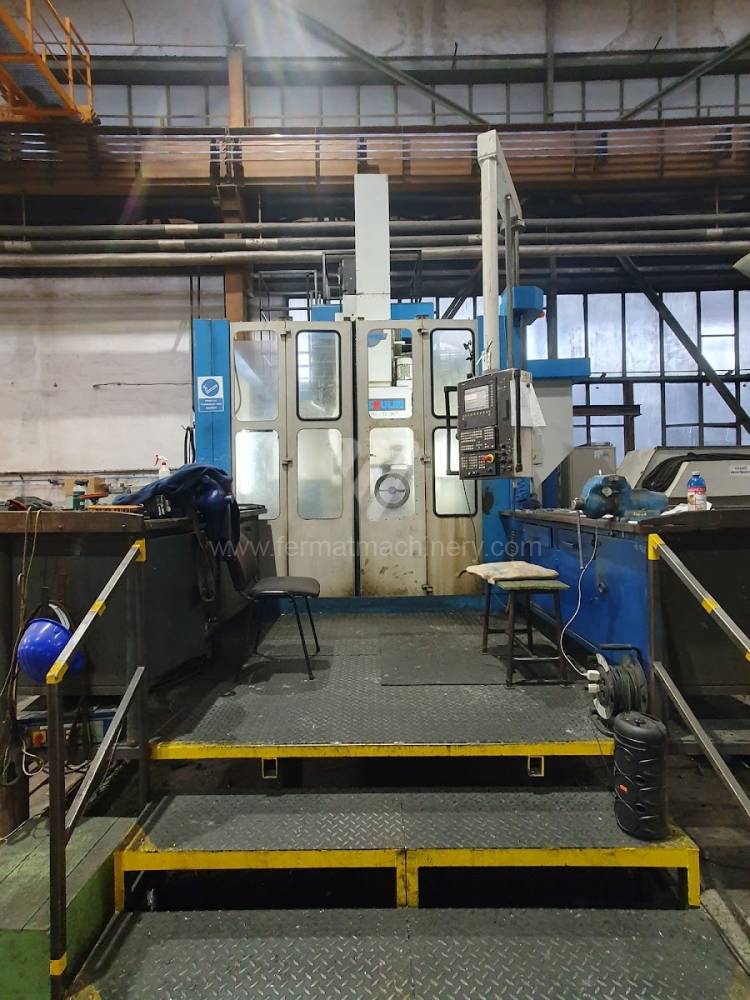

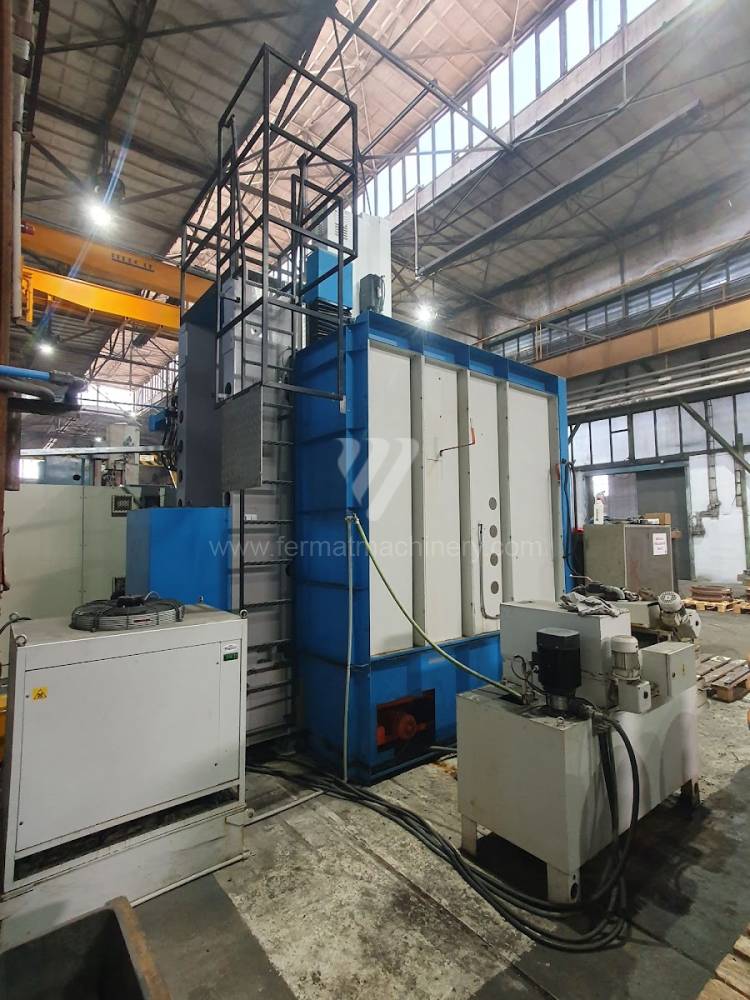

Vertical Lathes / Single column / SKQ 12
-
Inventory number 261486
-
Machine type SKQ 12
-
Producer TOS Hulín
-
YOM 2005

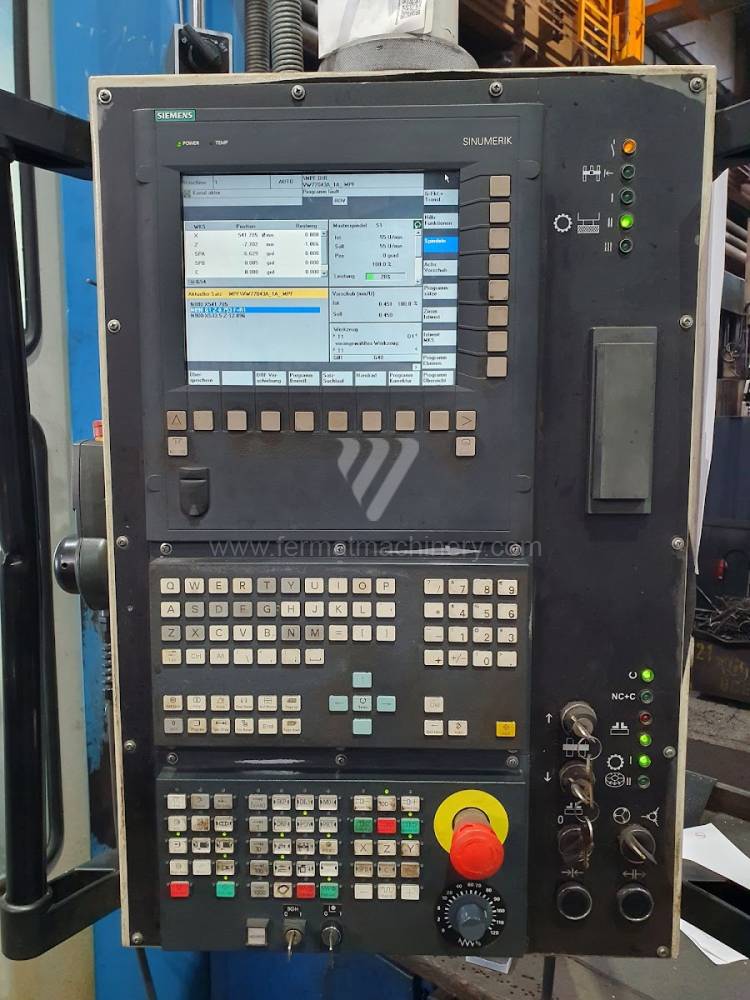

| Control system Siemens | Sinumerik 840 D |
| Max. diameter of workpiece | 1400 mm |
| Clamping diameter of rotary table | 1250 mm |
| Max. load of table | 8000 kg |
| Max. workpiece height | 1250 mm |
| Ram travel (Z) | 700 mm |
| Ram size | 1000 mm |
| Driven Tools | YES |
| Tool magazine | YES |
| Number of positions in magazine | 15 |
| Spindle speed | 2 - 250 /min. |
| Main motor power | 40 kW |
| Speed driven tools | 8 - 3312 /min |
Subject to change of technical parameters.
Description
The machine is in good technical condition, with the possibility of testing under power.

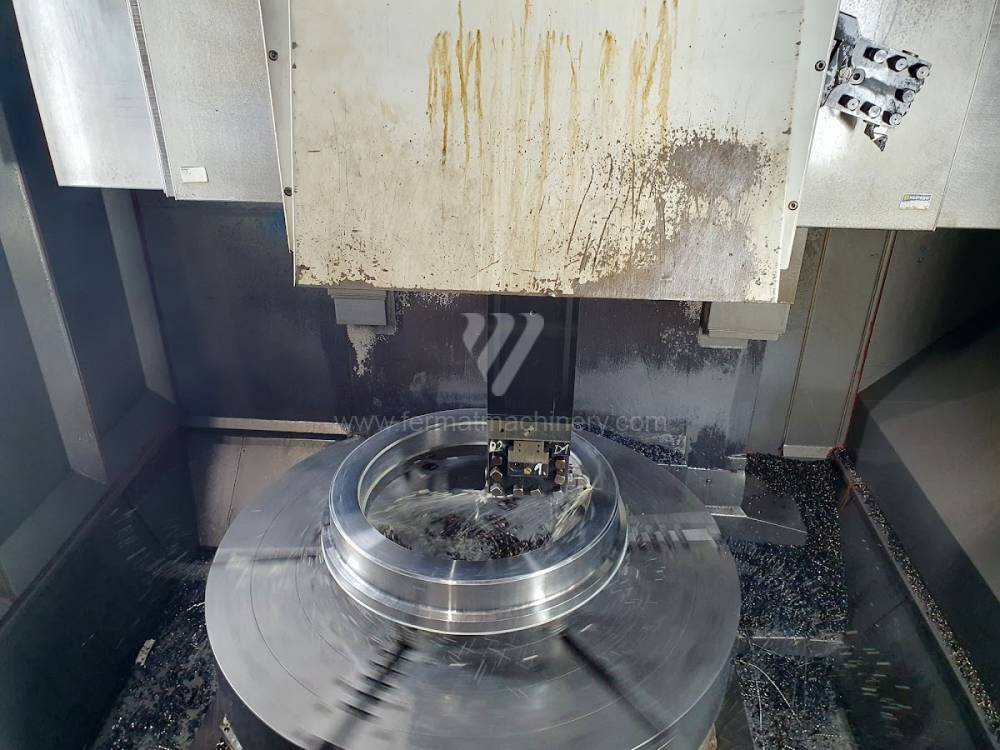

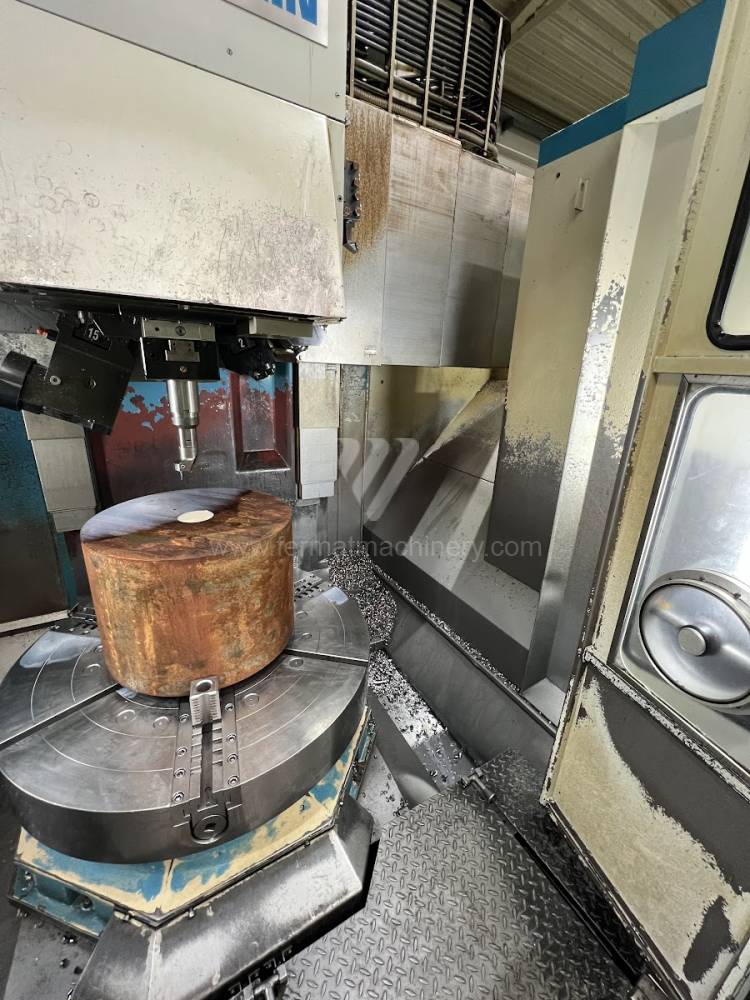

This single-column vertical turret lathe (VTL) TOS Hulín SKQ 12, equipped with the Siemens Sinumerik 840 D control system, represents an efficient solution for the precise turning and machining of large and heavy rotary workpieces. Following a general overhaul and modernization, these machines offer high rigidity, reliability, and modern operating comfort for demanding industrial operations. It is an ideal choice for engineering plants looking for the optimum combination of traditional robust construction and precise digital control.
