Vertical Lathes / Single column / SKJ 12 CNC
-
Inventory number 181547
-
Machine type SKJ 12 CNC
-
Producer TOS Hulín
| Control system NCT | 204 |
| Max. diameter of workpiece | 1400 mm |

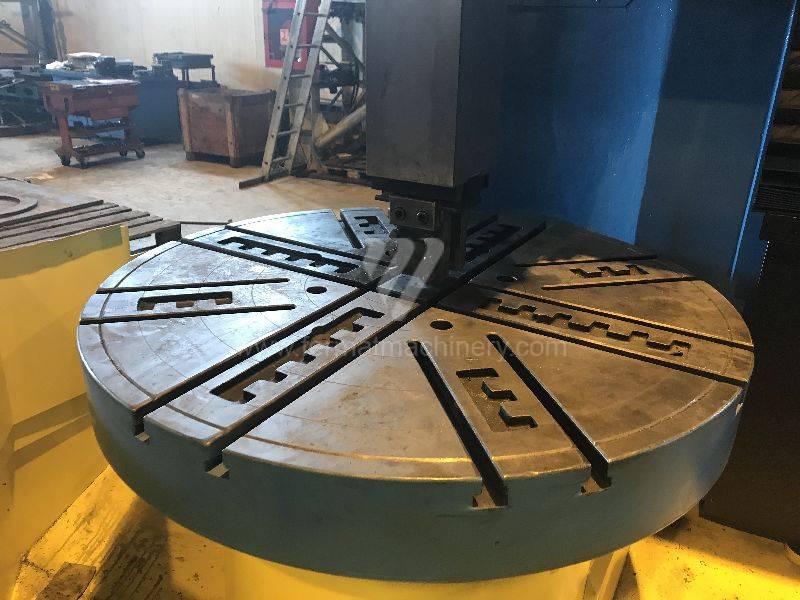

| Clamping diameter of rotary table | 1250 mm |
| Max. workpiece height | 1150 mm |
| Max. load of table | 6000 kg |
| Driven Tools | NO |
| Tool magazine | NO |
| Main motor power | 30 kW |
| Machine dimensions l x w x h | 2970x2770x4250 mm |
| Machine weight | 13000 kg |
Subject to change of technical parameters.
Description
The machine is In excellent technical condition, under generous repair. Delivery deadline 2 months. Warranty 12 months. Other optional control systems: Fanuc, Fagor. Number of axles controlled 2.
