Vertical Lathes / Single column / SKIQ 20 CNC
Vertical Lathes / Single column / SKIQ 20 CNC Vertical Lathes / Single column / SKIQ 20 CNC
Vertical Lathes / Single column / SKIQ 20 CNC
Vertical Lathes / Single column / SKIQ 20 CNC Vertical Lathes / Single column / SKIQ 20 CNC

Vertical Lathes / Single column / SKIQ 20 CNC

  • Inventory number 261532
  • Machine type SKIQ 20 CNC
  • Producer TOS Hulín
Control system ECS
Max. diameter of workpiece2100 mm
Clamping diameter of rotary table2000 mm
Max. load of table20000 kg
Max. workpiece height1260 mm
Ram travel (Z) mm
Ram size mm
Driven ToolsNO
Tool magazineYES
Number of positions in magazine15
Cooling through spindleNO
Machine weight29000 kg

Subject to change of technical parameters.


Description

Machine under the power.

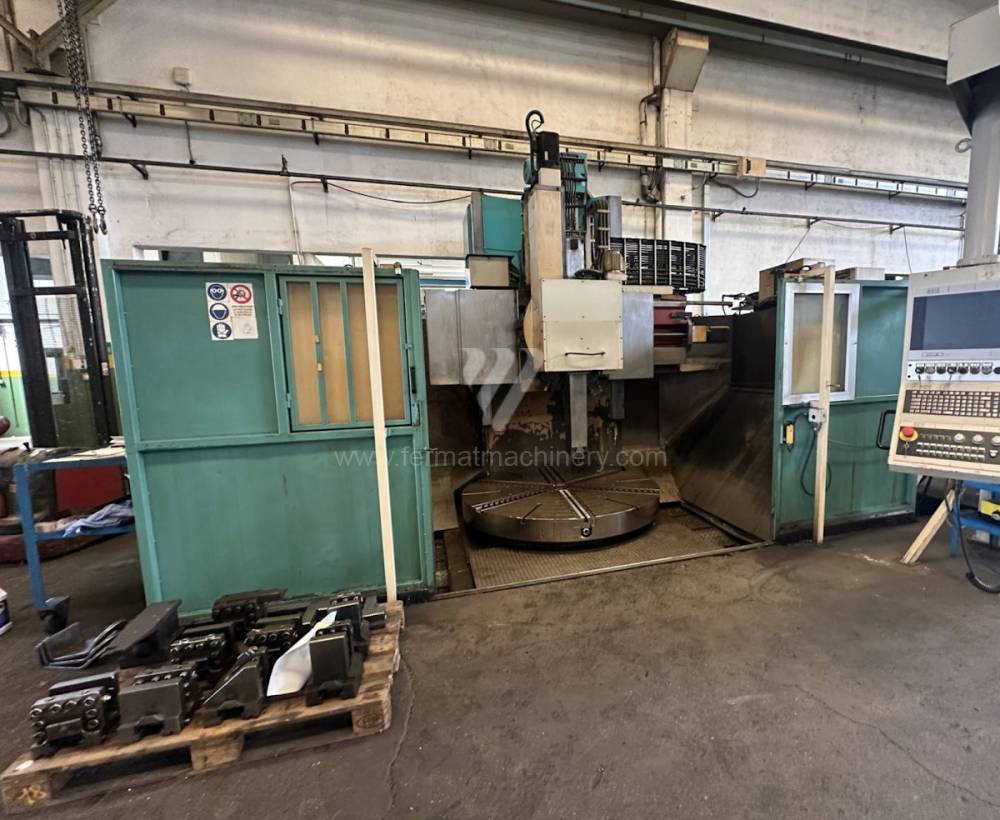

Toolholders.
Two axis machine.

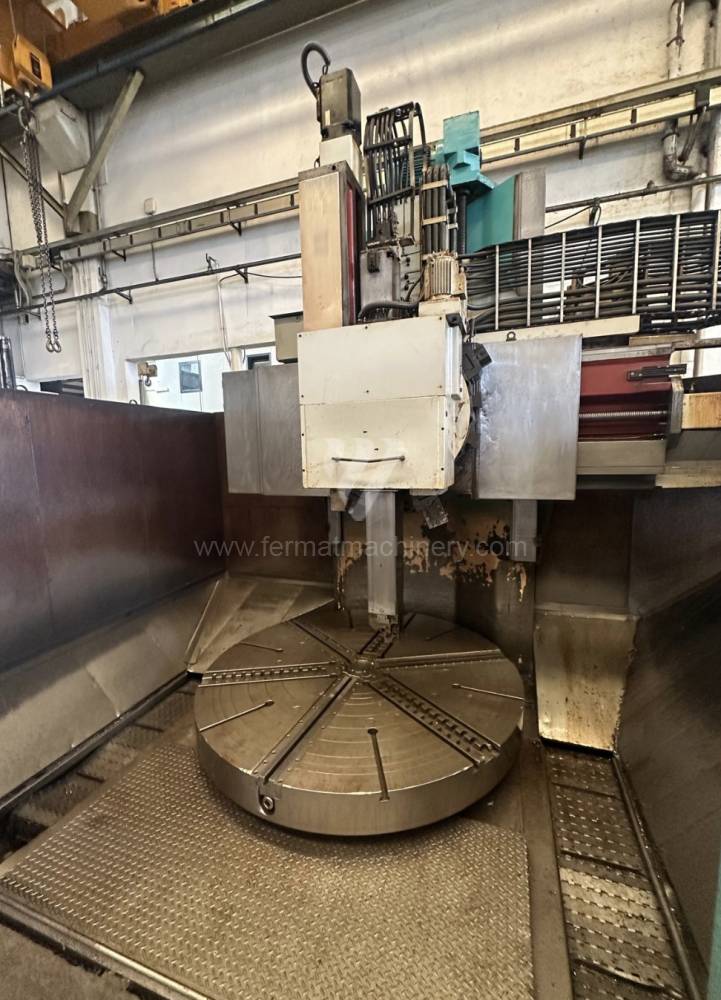

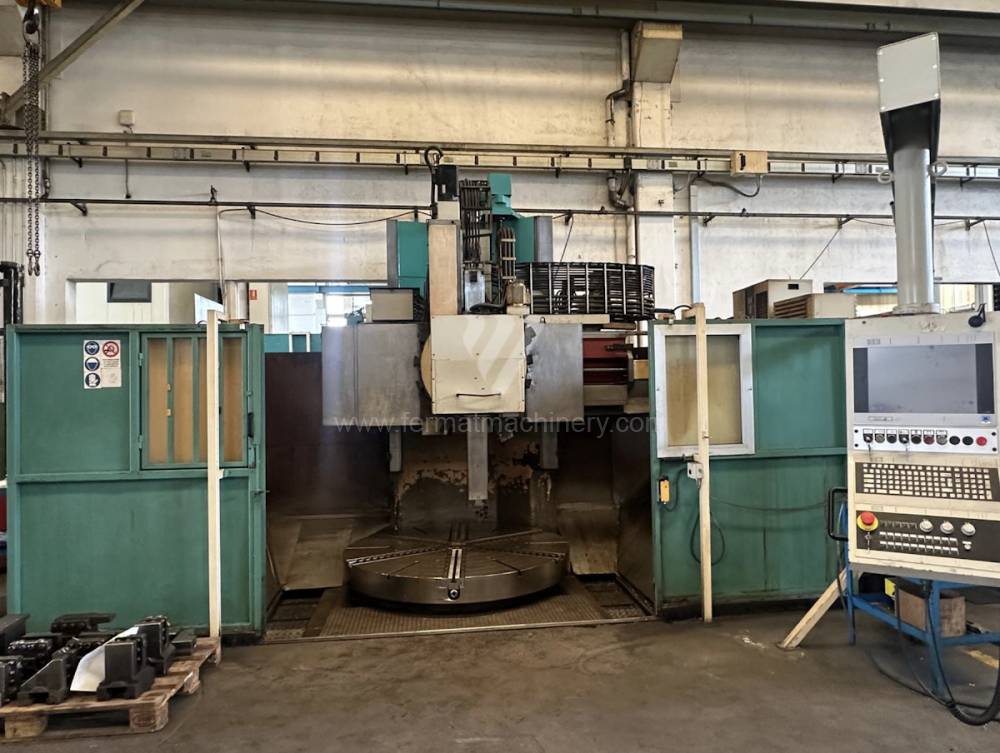

The SKIQ 20 CNC single-column vertical lathe by TOS Hulín is a high-performance machine designed for the complex machining of heavy and large-scale rotary parts. Equipped with a modern control system and an automatic tool changer, it enables efficient turning, drilling, and milling in a single setup. The machine's robust construction ensures maximum stability during operation and high production precision. This machine is an ideal solution for demanding industrial facilities requiring high flexibility, automation, and long-term reliability.
