Machining centres / Vertical / MCV 750 A
-
Inventory number 261522
-

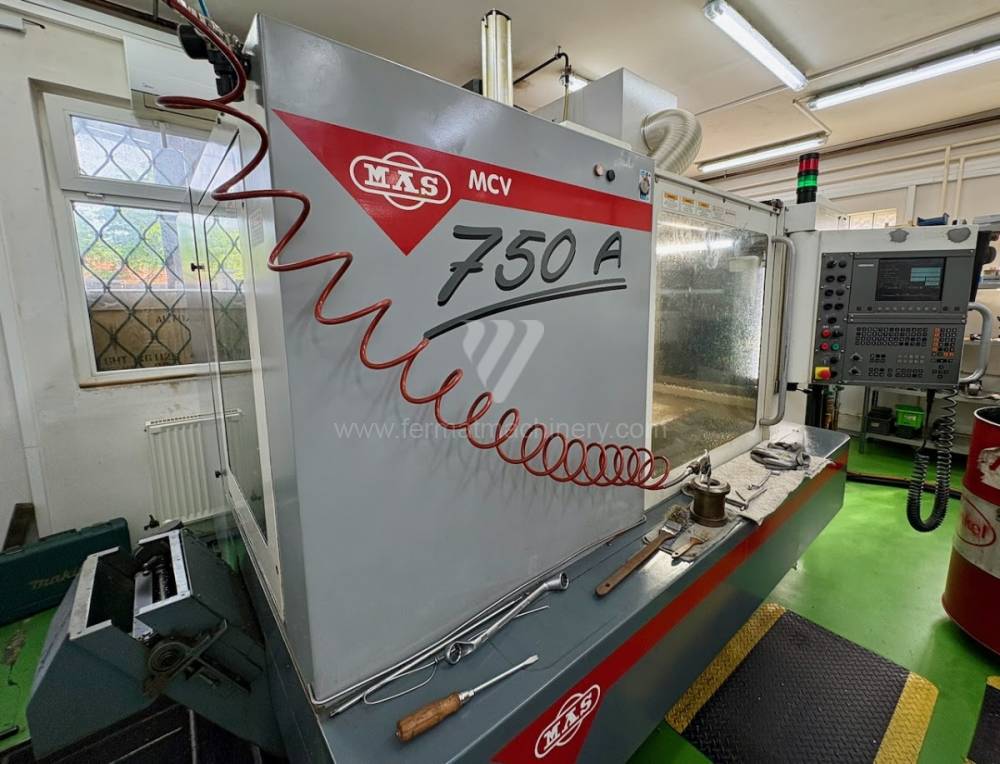

Machine type MCV 750 A
-
Producer KOVOSVIT MAS, a.s.
-
YOM 2001

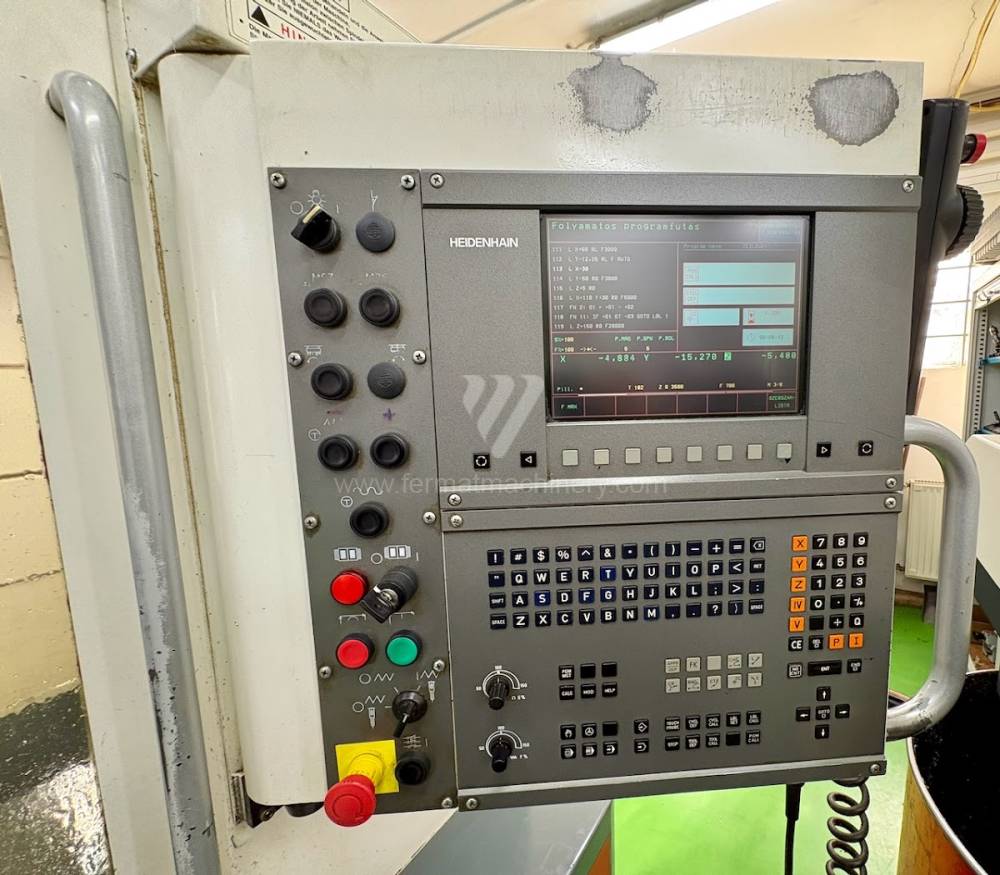

| Control system Heidenhain | TNC 426 |
| Clamping area of table | 1000x500 mm |
| Travel X-axis | 750 mm |
| Travel Y-axis | 500 mm |
| Travel Z-axis | 500 mm |
| Spindle speed | 10 - 12000 /min. |
| Number of driven axes | 3 |
| Cooling through spindle | YES |
| Pressure of cooling | 10 bar |
| Spindle taper | SK 40 . |
| Tool magazine | YES |
| Number of positions in magazine | 21 |
| Machine dimensions l x w x h | 2590x2320x2560 mm |
| Machine weight | 5000 kg |
Subject to change of technical parameters.
Description

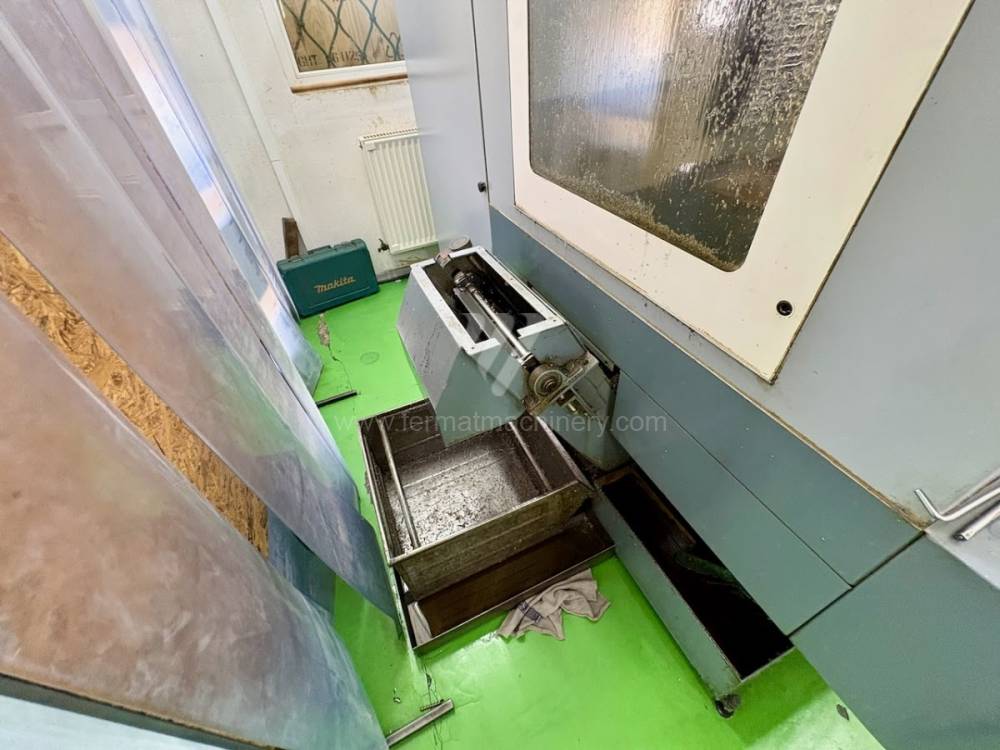

The machine is in excellent technical condition and can be tested. Accessories: chip conveyor.
