Lathes / CNC - diameter over 800 mm / WNC 300 S-560
-
Inventory number 251499
-

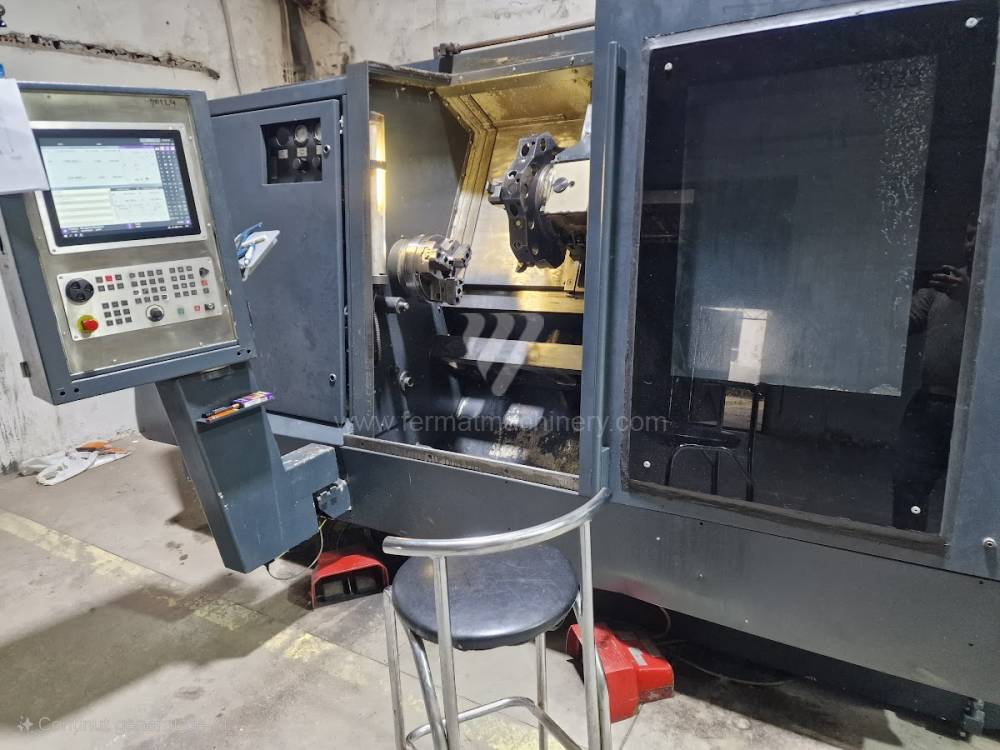

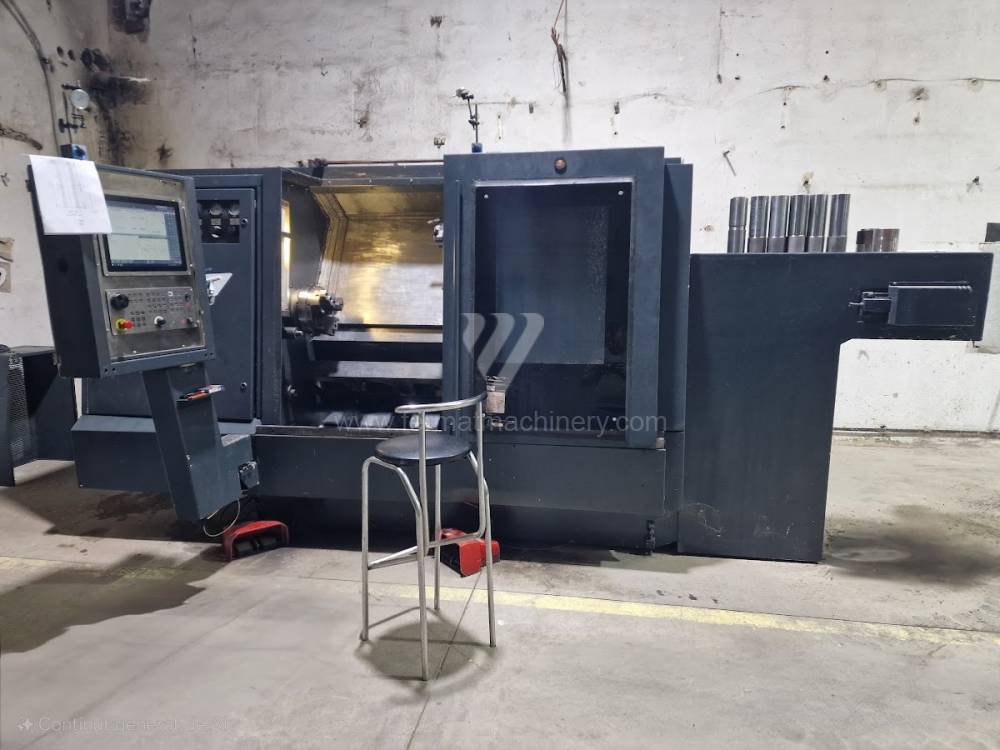

Machine type WNC 300 S-560
-
Producer VOEST - ALPINE

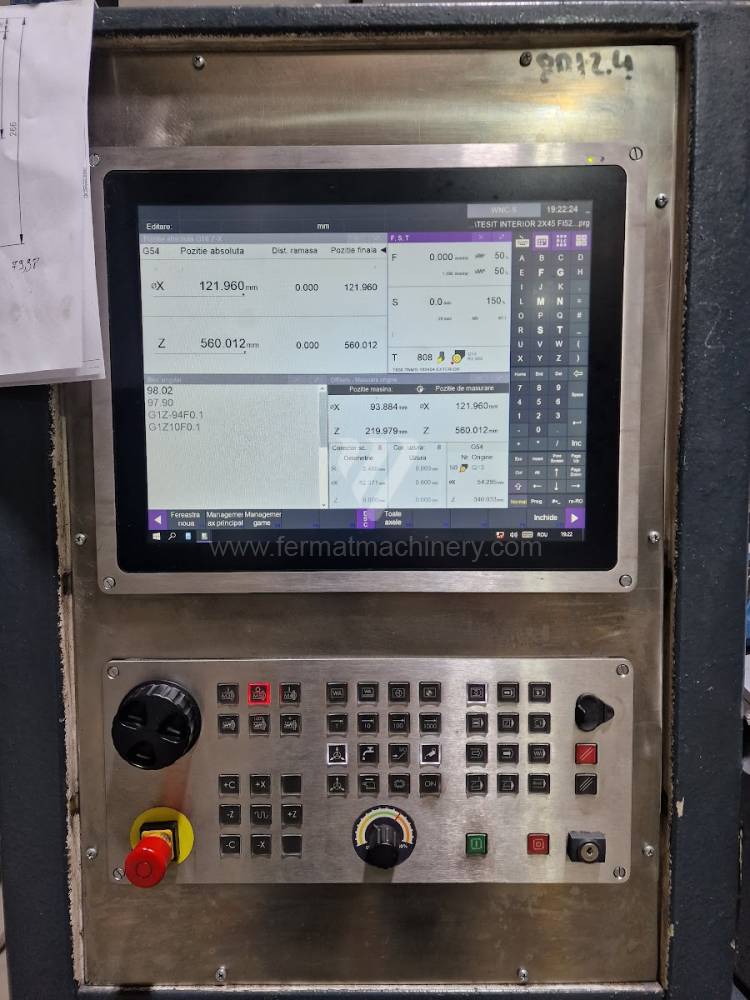

| Control system NCT | |
| Swing over bed | 470 mm |
| Swing over cross slide | 345 mm |
| Main motor power | 37.5 kW |
| Spindle bore | 77 mm |
| Spindle speed | 0 - 3000 /min. |
| Turret head | YES |
| Driven Tools | YES |
| Number of tool positions (driven) | 6 |
| Diameter of working spindle | 100 mm |
| Machine dimensions l x w x h | 5060 x 2010 x 2300 mm |
| Machine weight | 3200? kg |
| Turning lenght | 500 mm |
Subject to change of technical parameters.
Description
Machine in very good condition, after modernization with NCT in 2023, under power, can be tested anytime.
