Lathes / CNC - diameter up to 800 mm / CTX 210 V1

Lathes / CNC - diameter up to 800 mm / CTX 210 V1

  • Inventory number 241719
  • Machine type CTX 210 V1
  • Producer Gildemeister
  • YOM 2004
Control system Fanuc
Turn table diameter200 mm
Turning lenght300 mm
Travel X-axis151 mm
Travel Z-axis339 mm
Swing over cross slide290 mm
Spindle speed20 - 6000 /min.
Machine weight4200 kg
Main motor power7,5 kW
Bar loaderNO
Machine dimensions l x w x h2885/3865x1720x1670 mm
Swing over bed380 mm

Subject to change of technical parameters.


Description

The machine is in good condition.

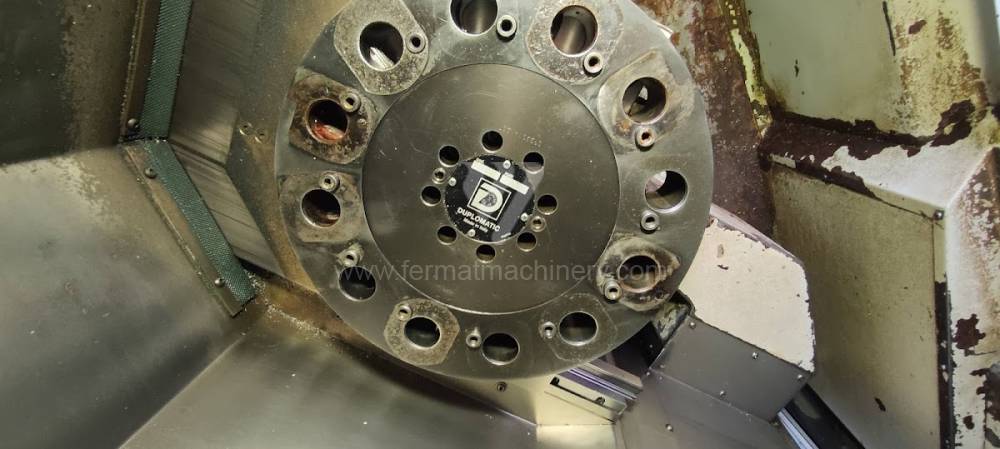

The tool head is compatible with VDI 30

This compact Gildemeister CTX 210 V1 CNC lathe is an ideal solution for precise and efficient machining of smaller rotary parts. Thanks to its design and the proven Fanuc control system, it ensures high stability and repeatable accuracy in the production of complex shapes. The machine is suitable for both single-piece and series production in workshops with limited space, where users will especially appreciate its dynamics, reliability, and easy setup for various machining operations.
