| Max. diameter of workpiece | 200 mm |
| Modul | 1-4 - |
| Machine dimensions l x w x h | 1350x950x1720 mm |
| Machine weight | 1800 kg |
Subject to change of technical parameters.

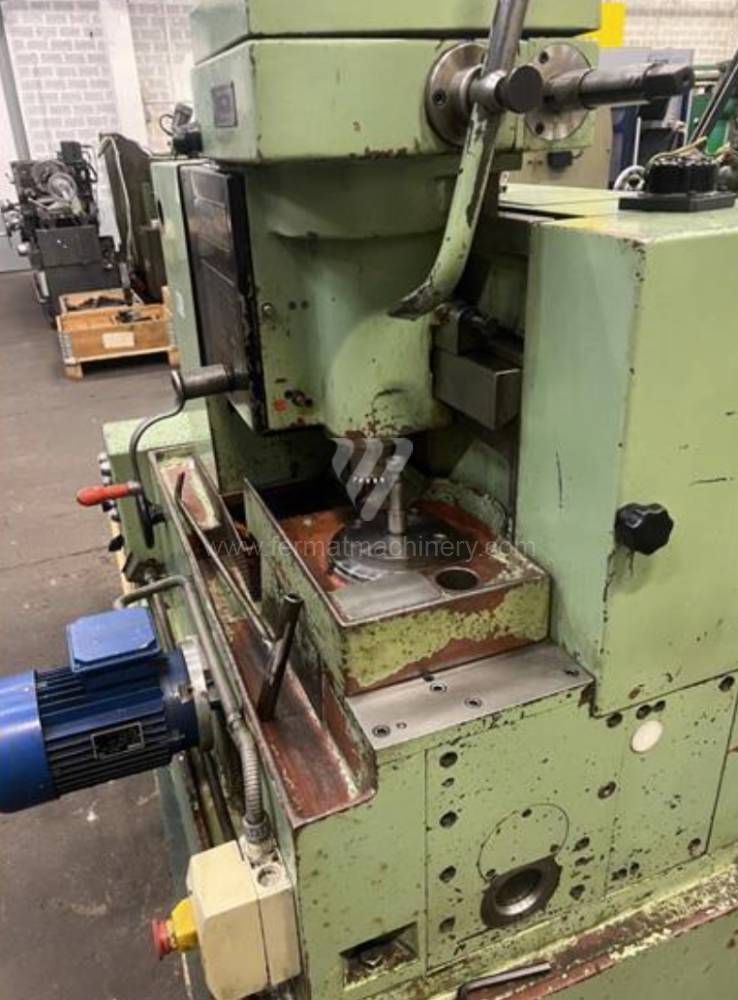

The OHO 20 gear shaping machine by TOS Čelákovice is a reliable solution designed for the precision manufacturing of internal and external spur gears. It is an ideal choice for single-part and small-batch production, offering high versatility when machining various gear types. The rigid construction ensures dimensional accuracy and high surface quality. Its primary benefits are long-term operational reliability, easy operation, and enhanced efficiency in gear component production.

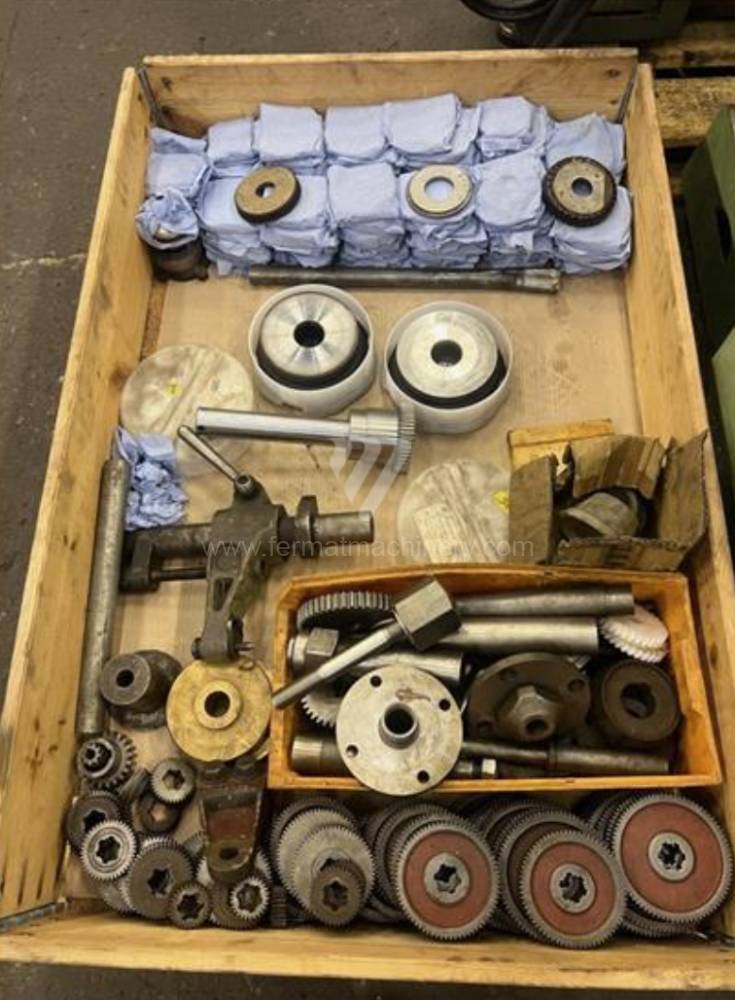

Accessories
| YOM: | 0 |
| Control system | NO |
| Max. diameter of workpiece | 500 mm |
| Modul | 6 - |
| Main motor power | 3 kW |
| Machine dimensions l x w x h | 2100x1000x2100 mm |
| Machine weight | 3500 kg |
| YOM: | 0 |
| Control system | NO |
| Max. diameter of workpiece | 125 mm |
| Modul | 4 - |
| YOM: | 0 |
| Control system | YES |
| Control system Siemens | |
| Max. diameter of workpiece | 125 mm |
| Modul | 4 - |
| YOM: | 0 |
| Control system | NO |
| Max. diameter of workpiece | 457 mm |
| Modul | 8,5 - |
| Machine weight | 3400 kg |
| Machine dimensions l x w x h | 1 900 × 1 350 × 2 100 mm mm |
