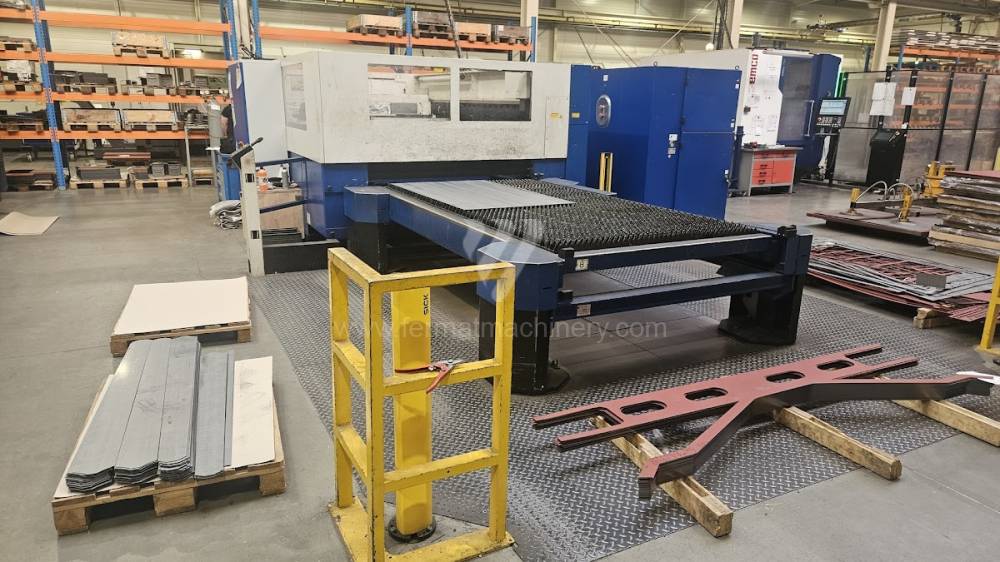

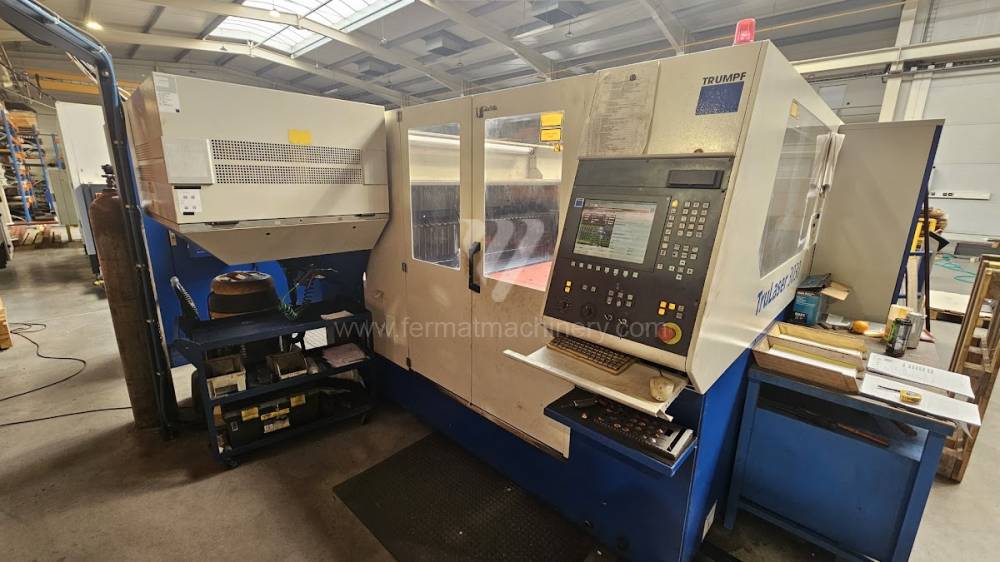

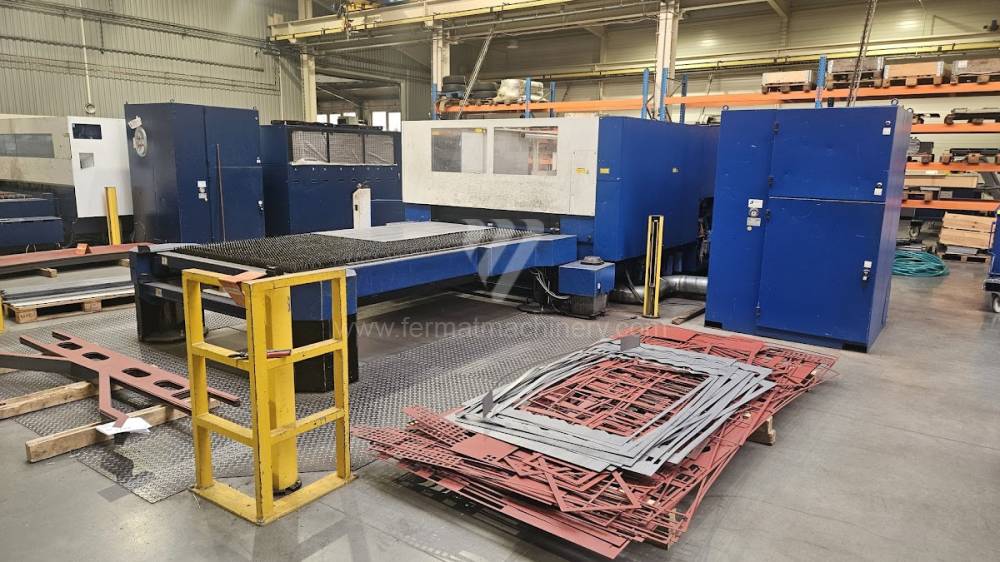

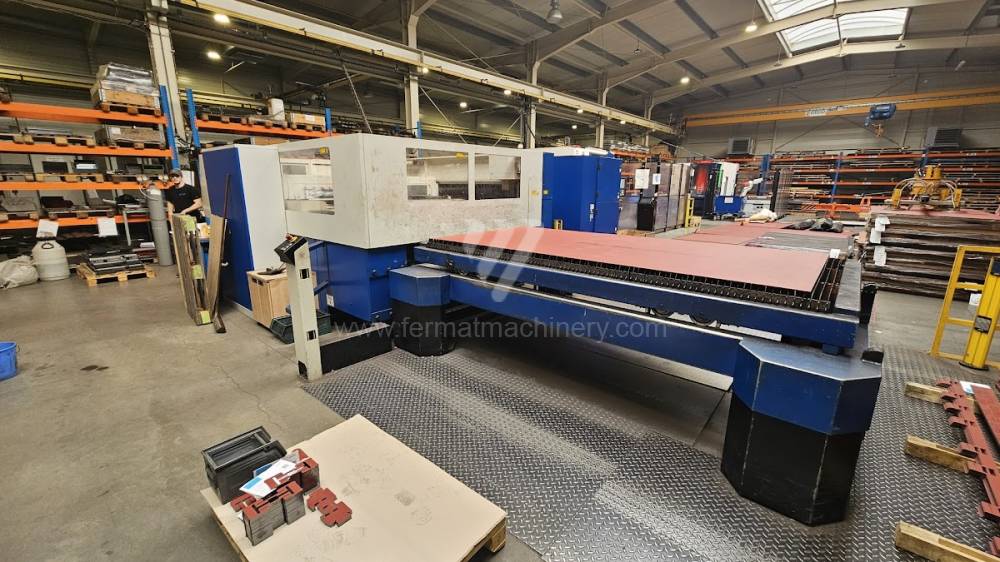

Cutting equipments / Laser cutting machine / TruLaser 3030
-
Inventory number 251807
-
Machine type TruLaser 3030
-
Producer Trumpf
-
YOM 2007
| Max. length of workpiece | 3000 mm |
| Max. workpiece width | 1500 mm |
| Max. plate thickness | 20 mm |
| Power of laser | 3200 W |
| Fiber | |
| Total input | 73 kVA |
| Max. thickness cutting material | 20 mm |
| Control system Siemens | |
| Machine dimensions l x w x h | 9300 x 4600 x 2200 mm |
| Machine weight | 12000 kg |
Subject to change of technical parameters.
Description
Table height: 2200 mm
Operating hours (as of August 22, 2025): Beam on: 31,194 hours, Machine on: 62,564 hours.
Maximum sheet thickness (steel): 20 mm, Maximum sheet thickness (stainless steel): 12 mm, Maximum sheet thickness (aluminum): Max.: 8 mm
The machine is under power and will be in operation until the end of September, after which it will be replaced with a new machine and the existing laser will be dismantled.
