Borers horizontal / Table - diameter of spindle over 90 mm / WHQ 13 CNC
We are sorry. This product is no longer available. Below you can choose from the similar products.
Show products in the same category
Similar machines
| YOM: | 2018 |
| Control system | YES |
| Control system Fanuc | 0i-MF |
| Diameter of working spindle | 130 mm |
| Travel X-axis | 3657 mm |
| Travel Y-axis | 3048 mm |
| Spindle speed | 10 - 3000 /min. |
| Cooling through spindle | YES |
| Pressure of cooling | 20 bar |
| Spindle travel - W axis | 730 mm |
| Travel Z-axis | 1820 mm |
| Tool magazine | YES |
| Number of positions in magazine | 40 |
| Spindle taper | CAT 50 . |
| Clamping area of rotary table | 1524 x 4013 mm |
| Max. load of table | 20000 kg |
| Main motor power | 37/45 kW |
| Machine weight | 41730 kg |
40T
Lucas
Inventory number: 182013
| YOM: | 2011 |
| Control system | YES |
| Control system Heidenhain | TNC 530 |
| Diameter of working spindle | 130 mm |
| Travel X-axis | 4000 mm |
| Travel Y-axis | 2500 mm |
| Spindle speed | 10 - 3000 /min. |
| Cooling through spindle | YES |
| Pressure of cooling | 30 bar |
| Spindle travel - W axis | 730 mm |
| Travel Z-axis | 1750 mm |
| Tool magazine | YES |
| Number of positions in magazine | 40 |
| Spindle taper | ISO 50 . |
| Table dimensions | 1800 x 2200 mm |
| Max. weight of workpiece | 15000 kg |
| X-axis rapid feed | 12 m/min |
| Y-axis rapid feed | 12 m/min |
| Z-axis rapid feed | 8,5 m/min |
| Total input | 80 kVA |
| Machine dimensions l x w x h | 6750 x 6530 x 5350 mm |
| Machine weight | 41500 kg |
WFT 13 CNC
Fermat
Inventory number: 231608
| YOM: | 0 |
| Control system | NO |
| Diameter of working spindle | 100 mm |
| Travel X-axis | 1600 mm |
| Travel Y-axis | 1120 mm |
| Spindle speed | 7 - 1120 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 900 mm |
| Travel Z-axis | 1250 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Max. load of table | 3000 kg |
| Machine dimensions l x w x h | 6710 x 3450 x 3000 mm |
| Machine weight | 14000 kg |
| Main motor power | 11 kW |
| Total input | 17 kVA |
| Clamping area of table | 1250 x 1250 mm |
| Face plate diameter | 600 mm |
| Max. diameter of face turning | 900 mm |

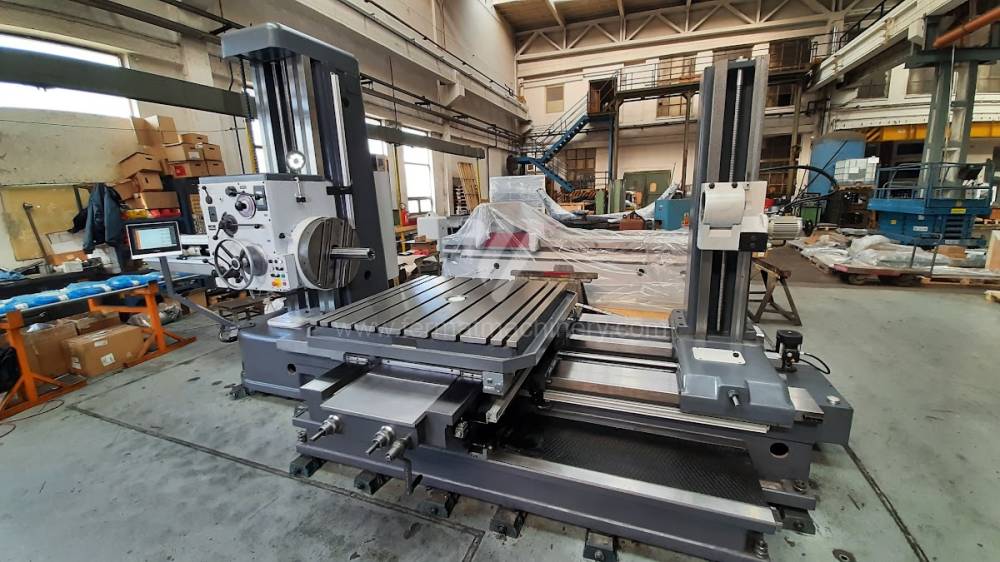

W 100 A
TOS Varnsdorf
Inventory number: 191457
| YOM: | 1968 |
| Control system | NO |
| Diameter of working spindle | 100 mm |
| Travel X-axis | 1600 mm |
| Travel Y-axis | 1120 mm |
| Spindle speed | 7 - 1120 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 900 mm |
| Travel Z-axis | 1250 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Max. load of table | 3000 kg |
| Machine dimensions l x w x h | 6710 x 3450 x 3000 mm |
| Machine weight | 14000 kg |
| Main motor power | 11 kW |
| Total input | 17 kVA |
| Clamping area of table | 1250 x 1250 mm |
| Face plate diameter | 600 mm |
| Max. diameter of face turning | 900 mm |

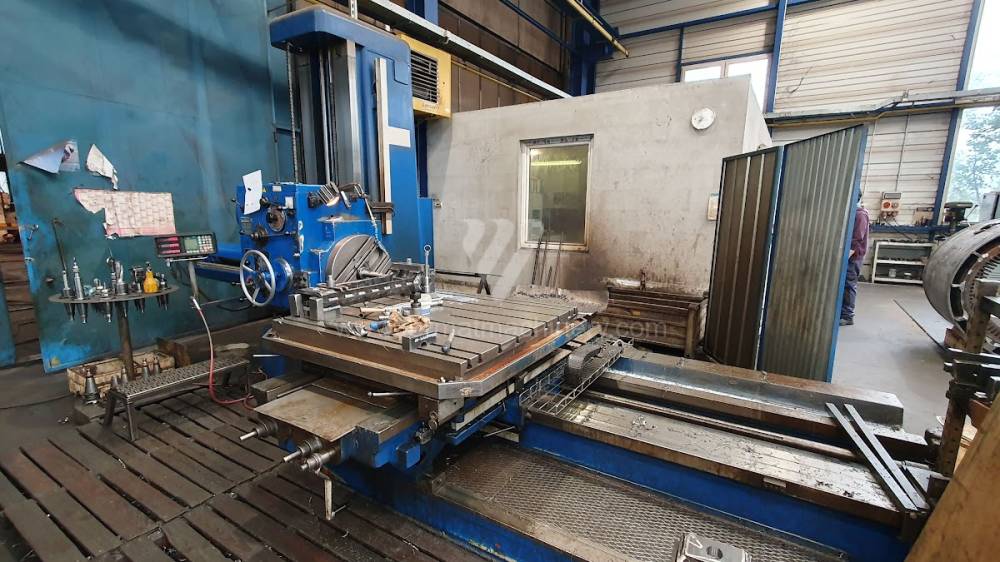

W 100 A
TOS Varnsdorf
Inventory number: 231862
| YOM: | 1998 |
| Control system | YES |
| Control system Heidenhain | TNC 426 |
| Diameter of working spindle | 100 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 1120 mm |
| Spindle speed | 10 - 1800 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 630 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | NO |
| Spindle taper | SK 50 . |
| Max. load of table | 3000 kg |

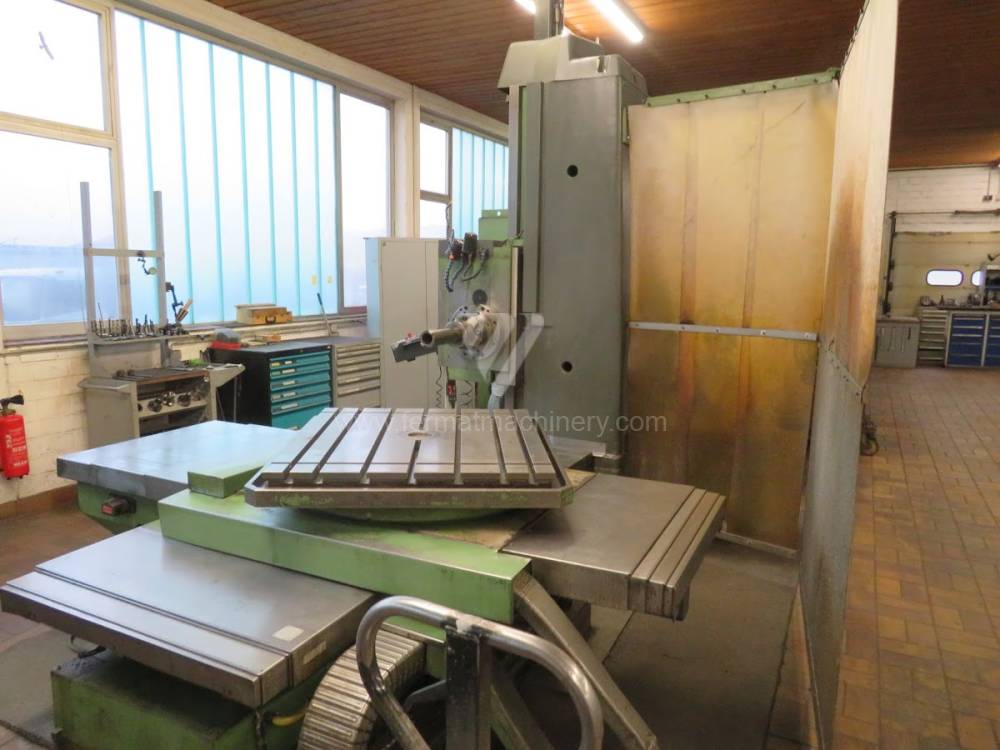

WH 10 CNC
TOS Varnsdorf
Inventory number: 231891
| YOM: | 2000 |
| Control system | YES |
| Control system Heidenhain | TNC 426 |
| Diameter of working spindle | 100 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 1120 mm |
| Spindle speed | 10 - 1800 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 630 mm |
| Travel Z-axis | 940 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Clamping area of table | 1000 x 1120 mm |
| Max. load of table | 3000 kg |
WH 10 CNC
TOS Varnsdorf
Inventory number: 231160
| YOM: | 1998 |
| Control system | NO |
| Diameter of working spindle | 100 mm |
| Travel X-axis | 1600 mm |
| Travel Y-axis | 1120 mm |
| Spindle speed | 0 - 1120 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 900 mm |
| Travel Z-axis | 1250 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Clamping area of table | 1250 x 1250 mm |
| Main motor power | 11 kW |
| Max. weight of workpiece | 3000 kg |
| Total input | 15 kVA |
| Machine dimensions l x w x h | 6710 x 3450 x 3000 mm |
| Machine weight | 14000 kg |

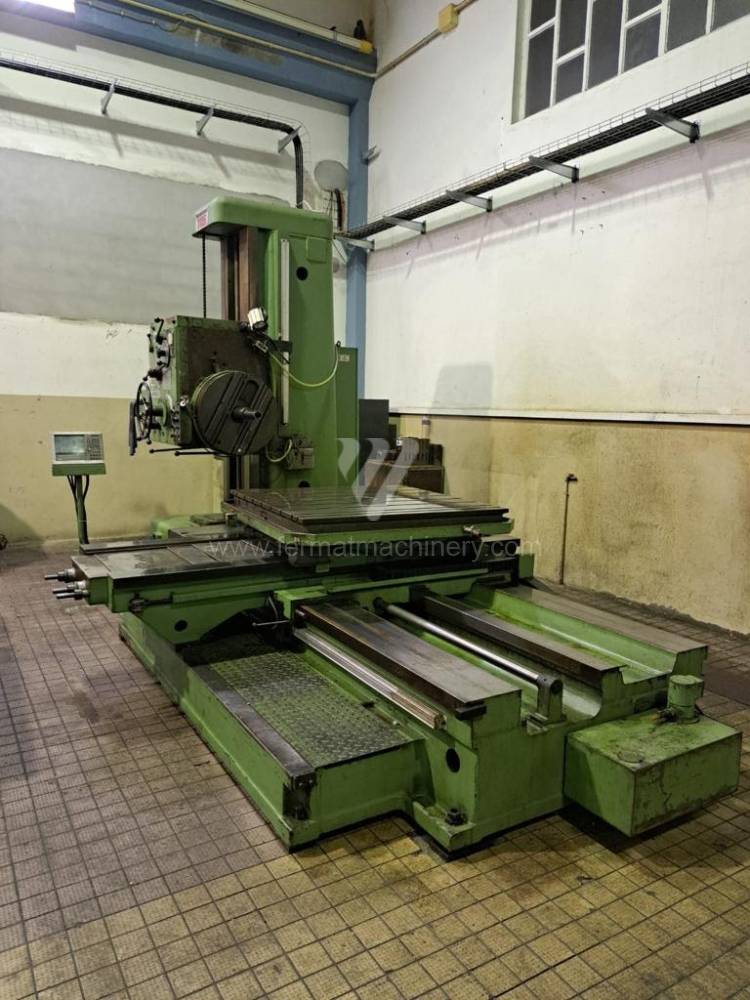

W 100 A
TOS Varnsdorf
Inventory number: 231864
| YOM: | 1982 |
| Control system | YES |
| Control system Mefi | CNC 859 |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 900 mm |
| Spindle speed | 10 - 1100 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 630 mm |
| Travel Z-axis | 680 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Clamping area of rotary table | 1000 x 1120 mm |
| Max. weight of workpiece | 3000 kg |
| Machine weight | 13000 kg |
| Total input | 50 kVA |

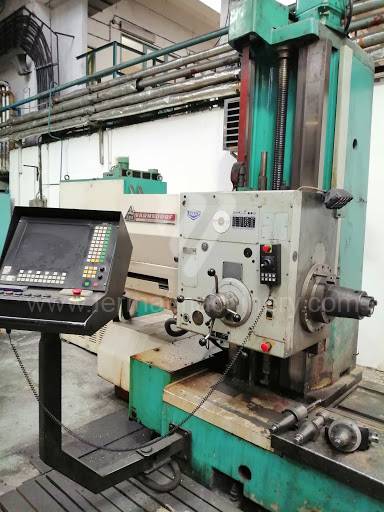

WHN 9 B CNC
TOS Varnsdorf
Inventory number: 192075
| YOM: | 1980 |
| Control system | NO |
| Diameter of working spindle | 160 mm |
| Travel X-axis | 3000 mm |
| Travel Y-axis | 2700 mm |
| Spindle speed | - /min. |
| Cooling through spindle | |
| Spindle travel - W axis | 300 mm |
| Travel Z-axis | 300 mm |
| Tool magazine | NO |
| Spindle taper | . |
BFK 160
UNION
Inventory number: 201580
| YOM: | 2023 |
| Control system | YES |
| Control system Heidenhain | TNC 640 |
| Diameter of working spindle | 130 mm |
| Travel X-axis | 3500 mm |
| Travel Y-axis | 2000 mm |
| Spindle speed | 10 - 3000 /min. |
| Cooling through spindle | YES |
| Pressure of cooling | 20 bar |
| Spindle travel - W axis | 730 mm |
| Travel Z-axis | 1250 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Clamping area of table | 1800 x 1600 mm |
| Max. weight of workpiece | 12000 kg |
| Main motor power | 41 kW |
| Machine dimensions l x w x h | 7200 x 7600 x 4900 mm |
| Machine weight | 35000 kg |
| Total input | 80 kVA |

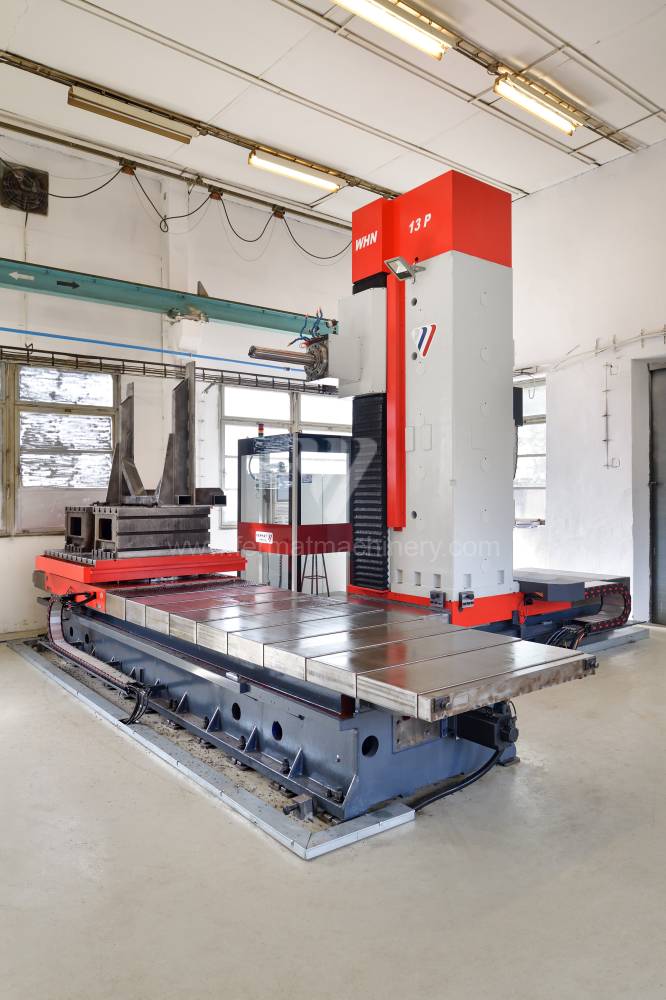

WHN 13 P CNC
TOS Varnsdorf
Inventory number: 191459
| YOM: | 1987 |
| Control system | YES |
| Diameter of working spindle | 110 mm |
| Travel X-axis | 2500 mm |
| Travel Y-axis | 1250 mm |
| Spindle speed | 5 - 1400 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 630 mm |
| Travel Z-axis | 700 mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Table dimensions | 1250 x 1600 mm |
| Max. load of table | 12000 kg |
| Main motor power | 80 kW |
| Machine dimensions l x w x h | 8100 x 6200 x 5400 mm |
| Machine weight | 24000 kg |

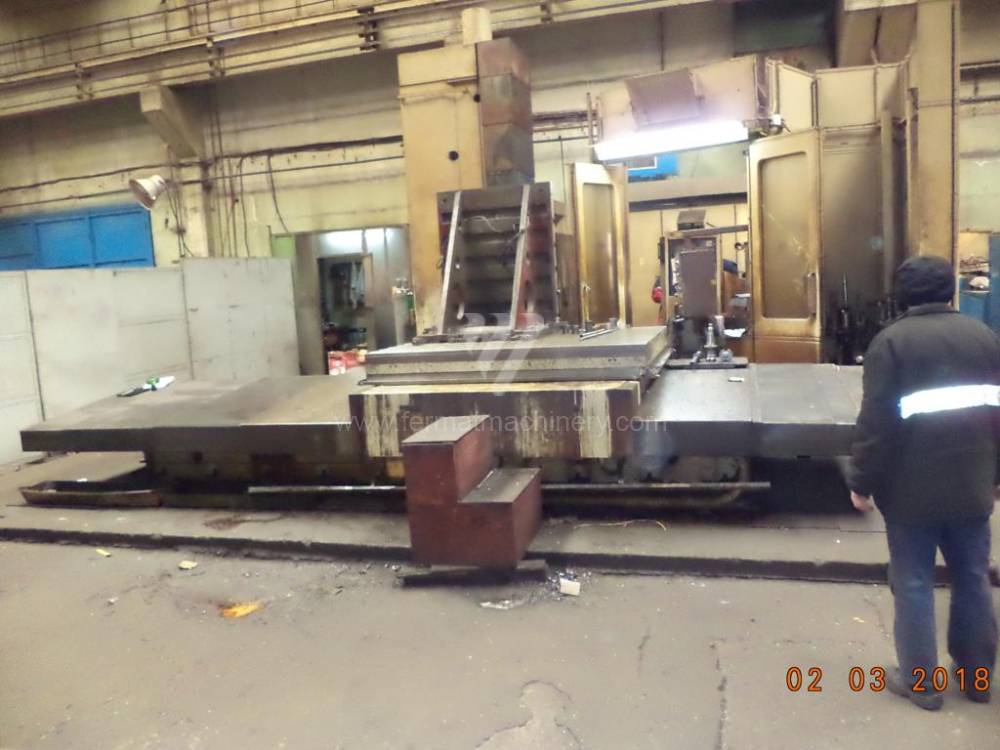

BFKP 110 CNC
UNION
Inventory number: 201912
| YOM: | 1975 |
| Control system | NO |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 900 (1120) mm |
| Spindle speed | 1120 - /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 680 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | |
| Spindle taper | . |
| Clamping area of table | 1000 x 1120 mm |
| Max. weight of workpiece | 3000 kg |
| Main motor power | 20 kW |
| Machine dimensions l x w x h | 4180 x 2300 x 2690 mm |
| Machine weight | 12 000 kg |
