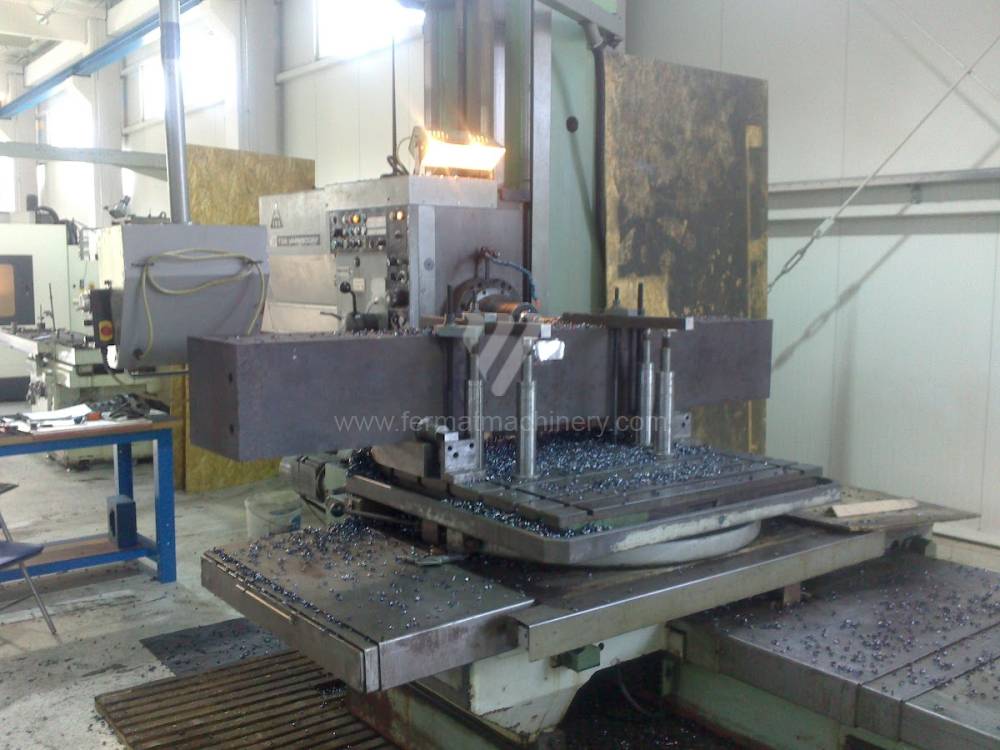

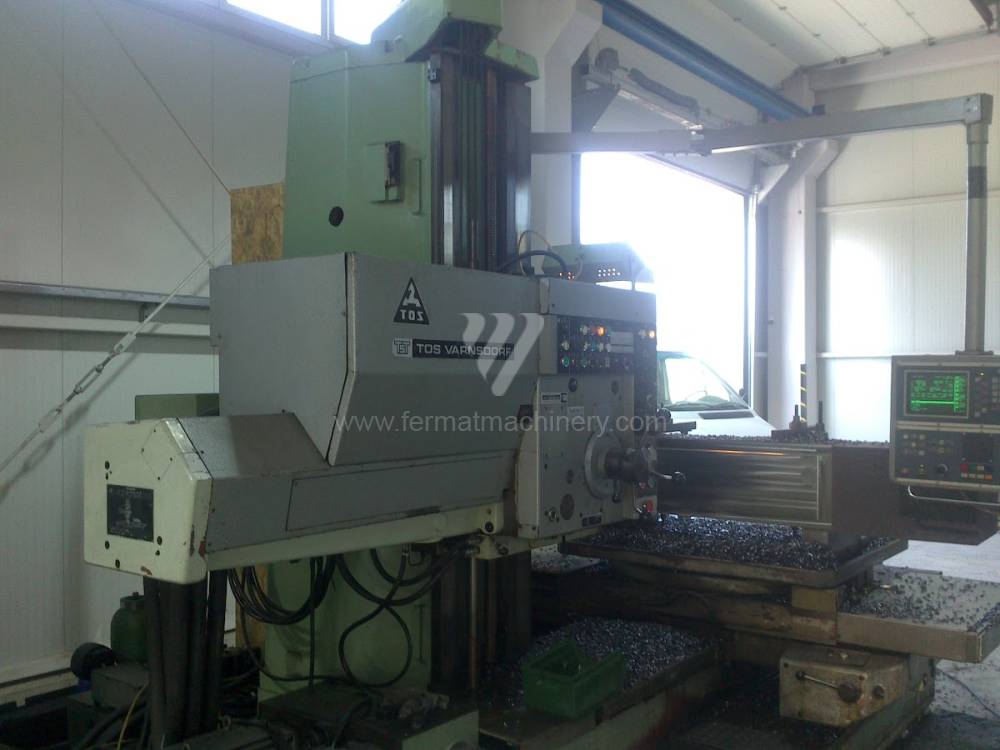

Borers horizontal / Table - diameter of spindle over 90 mm / WH 10 NC

Borers horizontal / Table - diameter of spindle over 90 mm / WH 10 NC

  • Inventory number 221109
  • Machine type WH 10 NC
  • Producer TOS Varnsdorf
  • YOM 1985

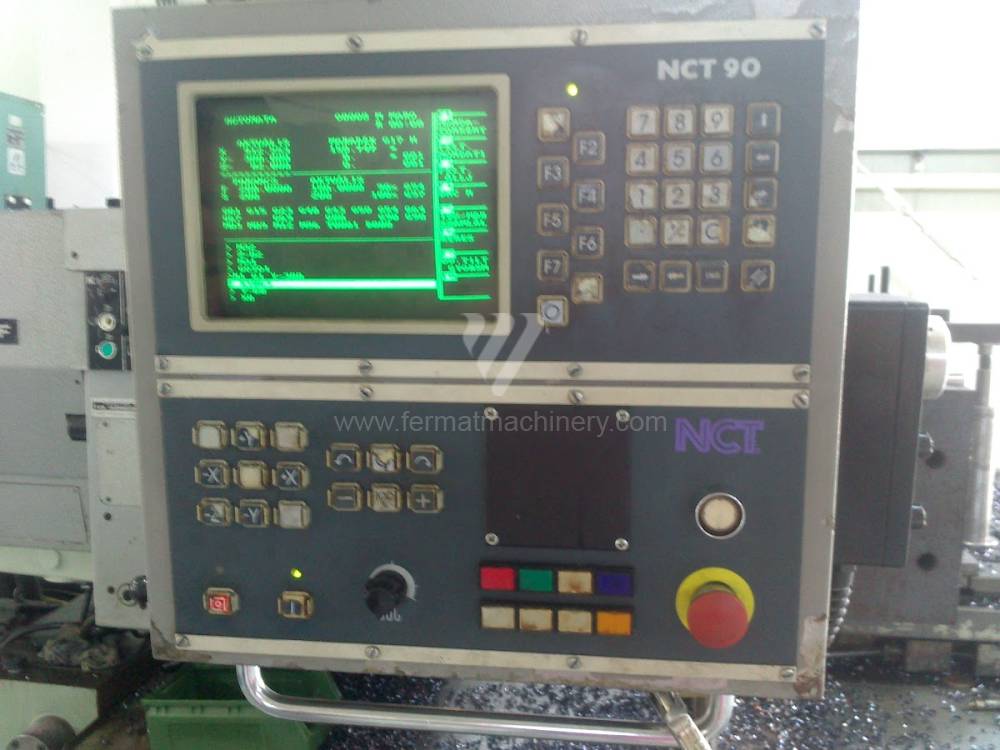

Control system NCT90
Diameter of working spindle100 mm
Travel X-axis1250 mm
Travel Y-axis900 mm
Spindle speed16 - 1250 /min.
Cooling through spindleNO
Spindle travel - W axis1000 mm
Travel Z-axis630 mm
Tool magazineNO
Spindle taperISO 50 .
Clamping area of table1000 x 1120 mm
Machine dimensions l x w x h6130 x 3600 x 2750 mm
Machine weight13400 kg

Subject to change of technical parameters.


Description

The machine is in good technical condition and can be tested.
