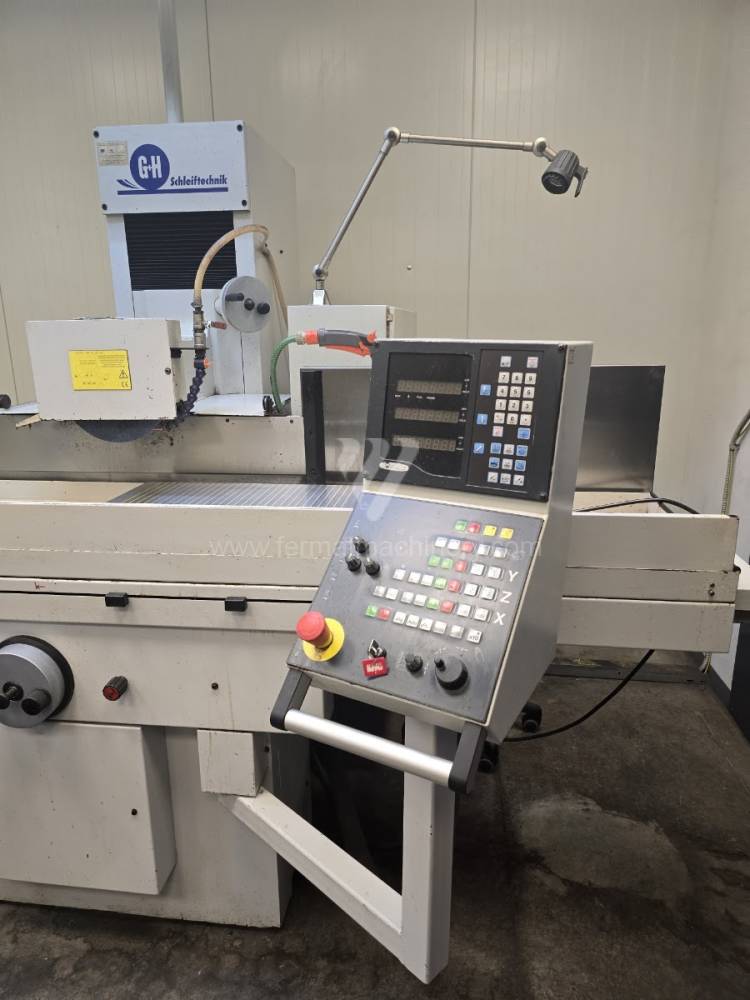

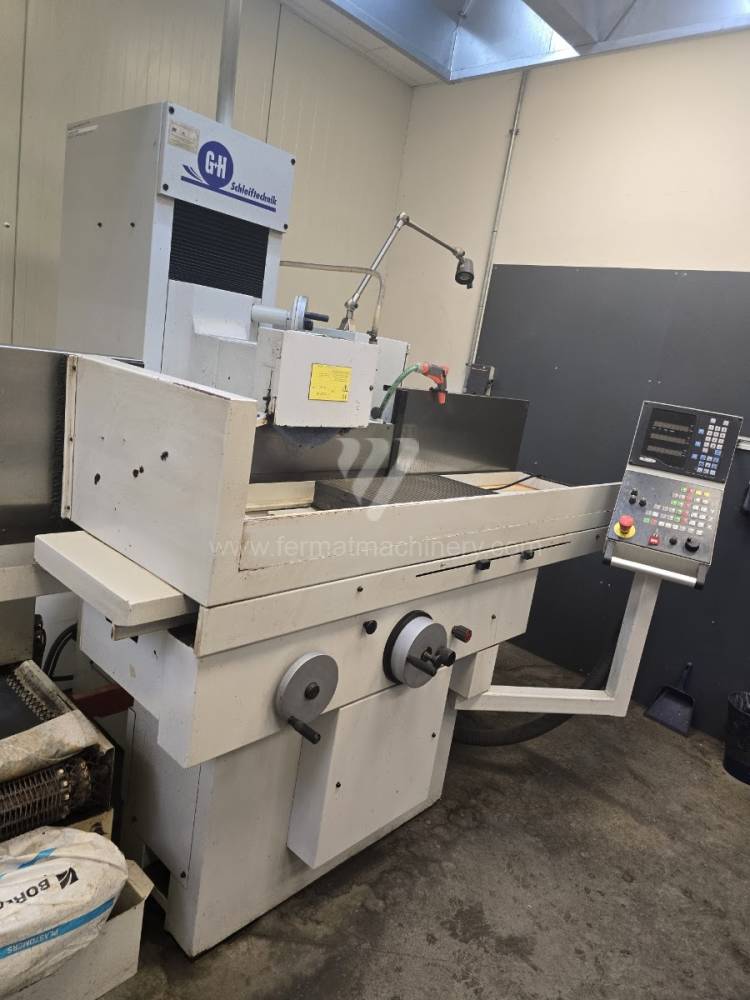

Mașini de rectificat / Plan / FS 60 AC

• Număr inventar 261428
• Tipul mașinii FS 60 AC
• Producător G+H SCHLEIFTECHNIK
• An fabricație 2006

SOLICITARE PRODUS

Parametrii tehnici pot fi modificați.

Descriere

WORK SPACE
Groove: 1 x 14 H7
Table load max.: 600 kg

AXIS X – LONGITUDINAL FEED
Adjustable range: 10 – 650 mm
Table drive: hydraulic
Feed speed: 2 – 28,000 mm/min
Feed rate setting: rotary regulator
Reversal of feed operation: contactless
Track length adjustment: adjustable stops
Table control: with a button

Y AXIS – VERTICAL FEED
Distance of the table from the center of the spindle: 140 – 525 mm
Vertical displacement drive: electromechanical
Vertical feed speed: 180 mm/min
Feed adjustment: electric wheel or button
Smallest allowance: 0.001 mm
Measuring: rotary sensor

Z AXIS – TRANSVERSE FEED
Transverse displacement max..: 400 mm
Transverse feed drive: electromechanical
Cross feed speed: 100 – 1,000 mm/min
Transverse feed for stroke: 0.5 – 40 mm
Transverse shift control: mechanical lever or button
Measuring: screw

AXIS C – GRINDING SHAFT
Motor: 3.7 kW
Spindle speed: 1400 min -1
Grinding disc, standard: 300 x 50 x 76.2 mm
Shaft mounting: precision rolling bearings
Lubrication: constant filling for the entire service life of the headstock

CONTROL SYSTEM
The heart of the control system is a modern SPS SIMATIK S5 (SIEMENS).

The machine in good technical condition, can be testet under power.
