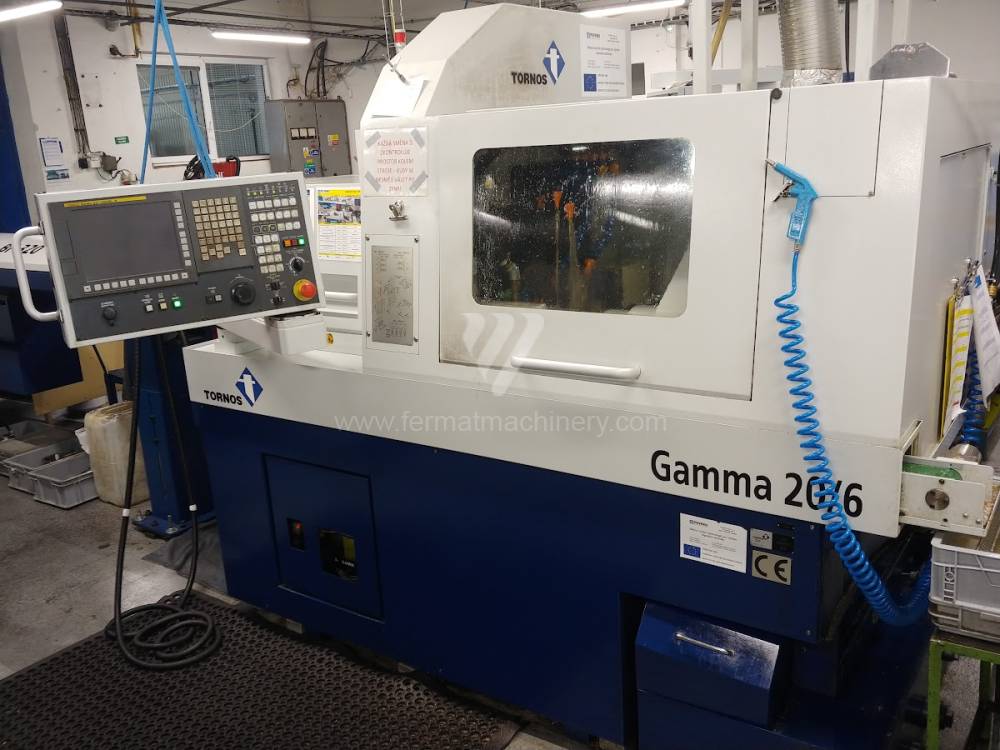

Tour / CNC multi-axes / Gama 20/6

• NUMERO D'INVENTAIRE 241805
• Type de machine Gama 20/6
• Fabricant Tornos Bechler
• Année de production 2012

Sujet au changement de paramètres techniques.

Descripcion

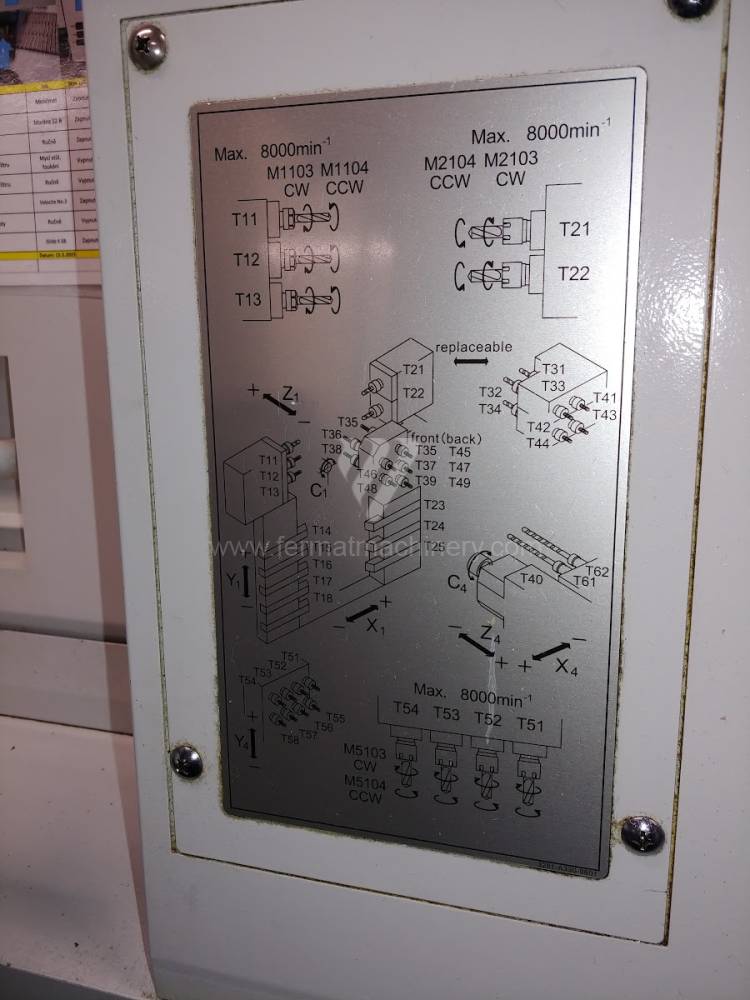

number of axes: 6 linear + 2x C-axis
Range of cylindrical rod diameters (min./max.) - 3-20
Work piece length:
- fixed guide sleeve - 250 mm
- motorized guide sleeve - 210 mm
- without guide sleeve - 45 mm
Power of the main spindle drive - 2.2 / 3.7 kW
Spindle speed - 12,000 rpm.
Counterspindle drive power - 1.5 / 2.2 kW

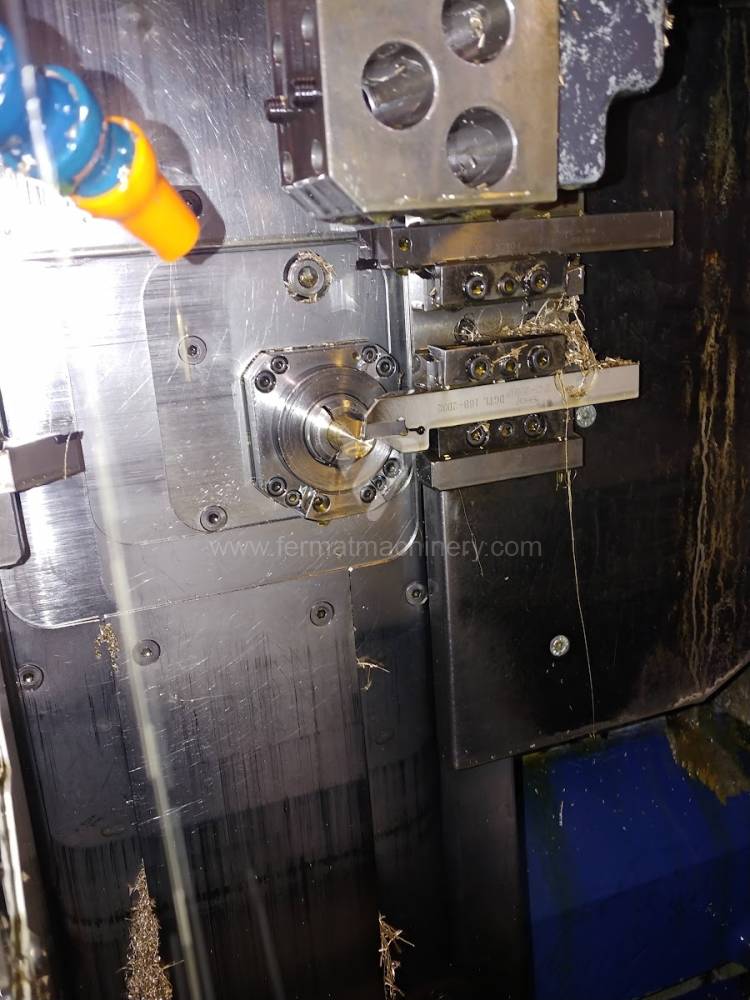

Cross-section of the shank of turning tools - 16x16 mm

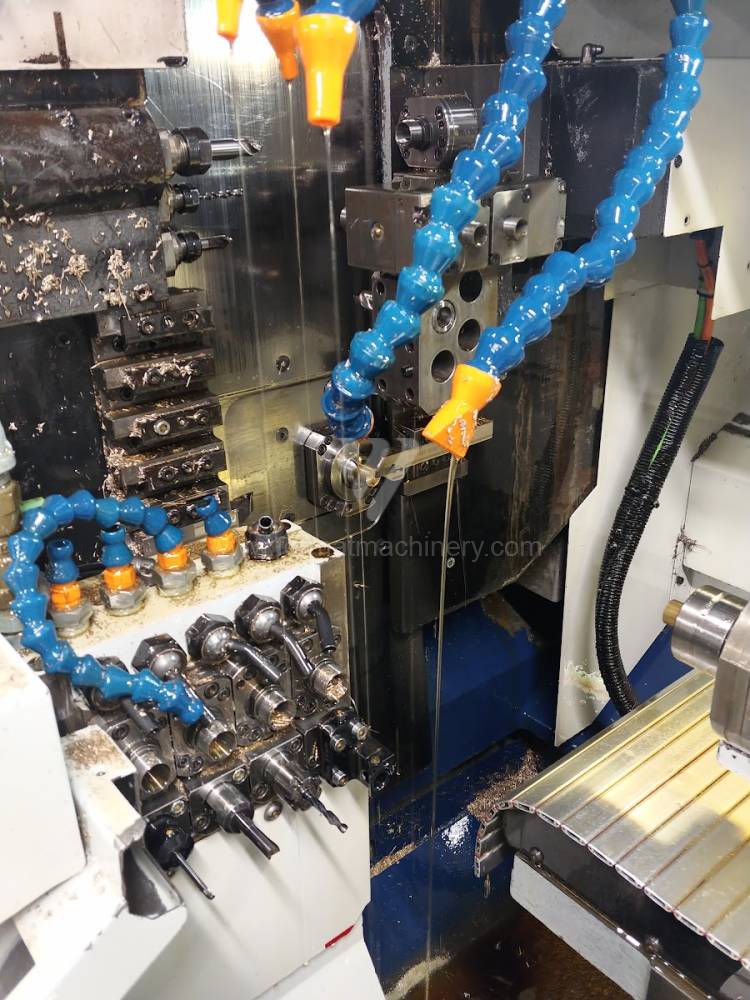

Rotational speed of driven tools - 8,000 rpm.
Drive power for tools driven on the front support - 0.75 kW
Drive power for tools driven on the rear support - 1 kW
Drive power of driven tools for processing the other side - 0.75 kW

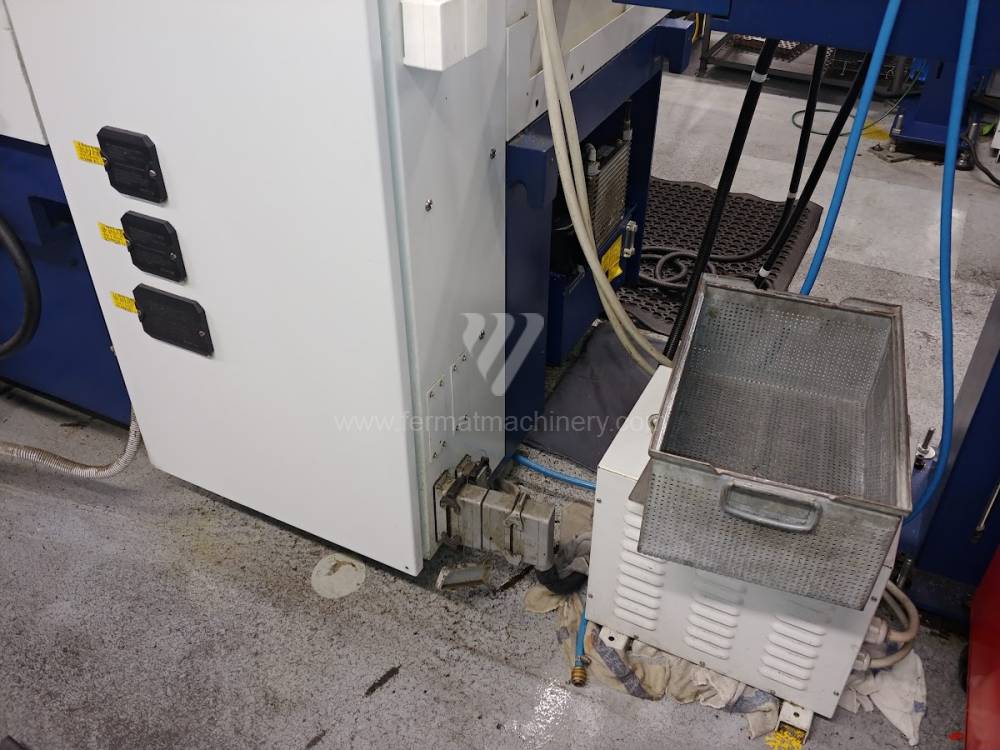

Oil pan capacity - 165 liters

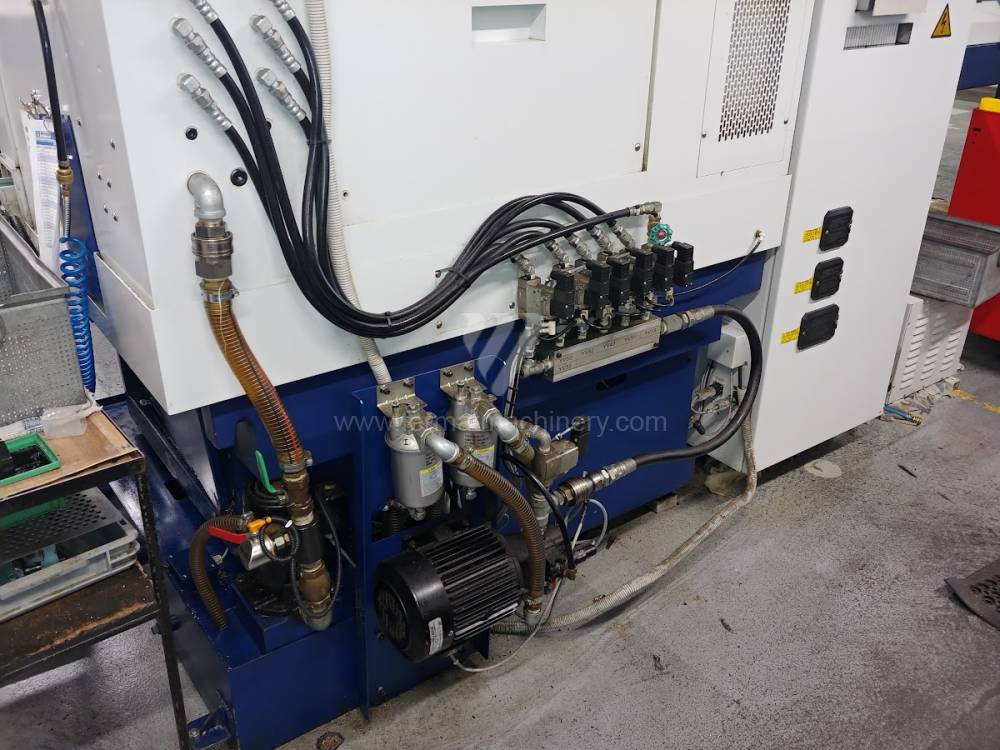

Oil pump power - 250W
Installed power - 14 kVA
Compressed air - min. 4 bar / 40 NL / min
Execution in accordance with the requirements - CE

Machine in good technical condition, possible testing under power.
