Vágóberendezés / Lézervágó / Axel 3015 S

• Katalógusszám 251683
• Gép típusa Axel 3015 S
• Gyártó LVD
• Gyártás éve 2007

Műszaki paraméterek változásának a joga fenntartva.

Leírás

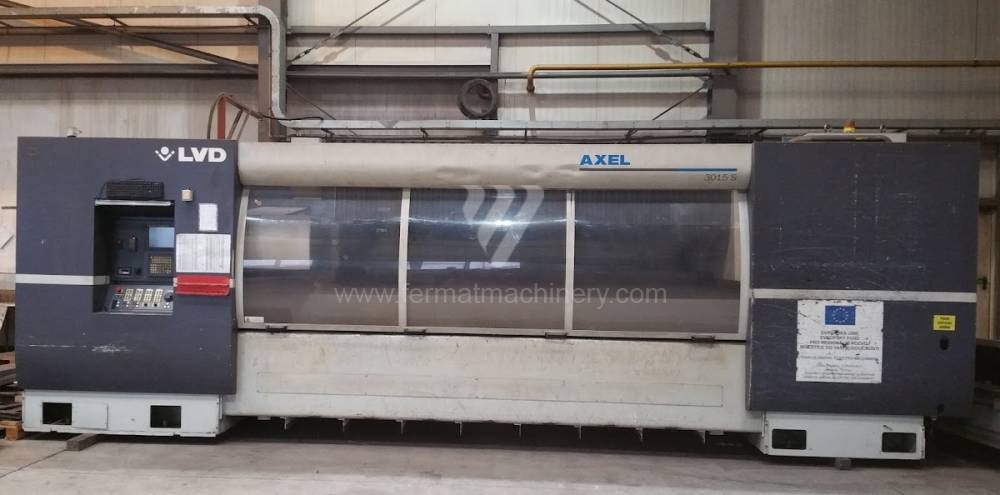

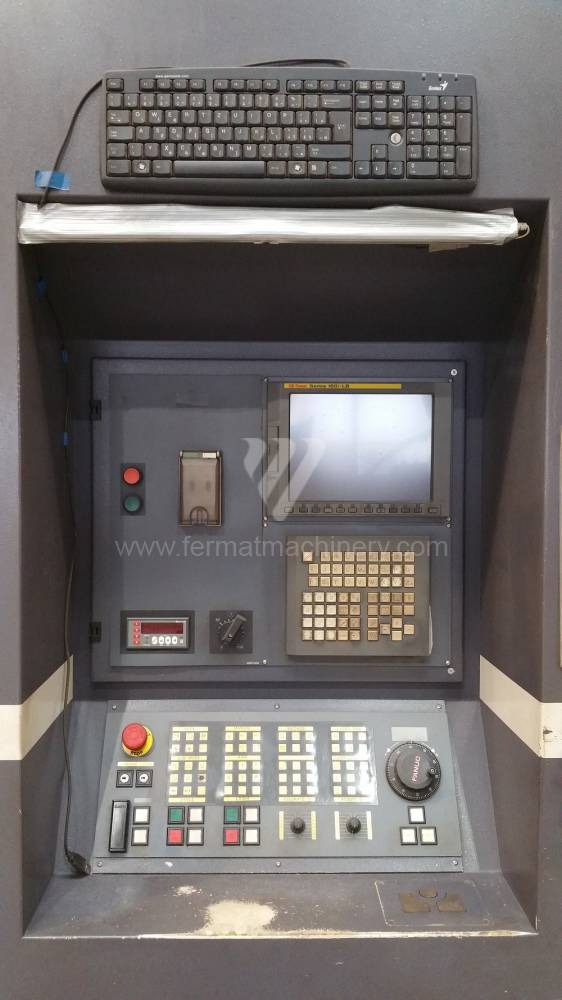

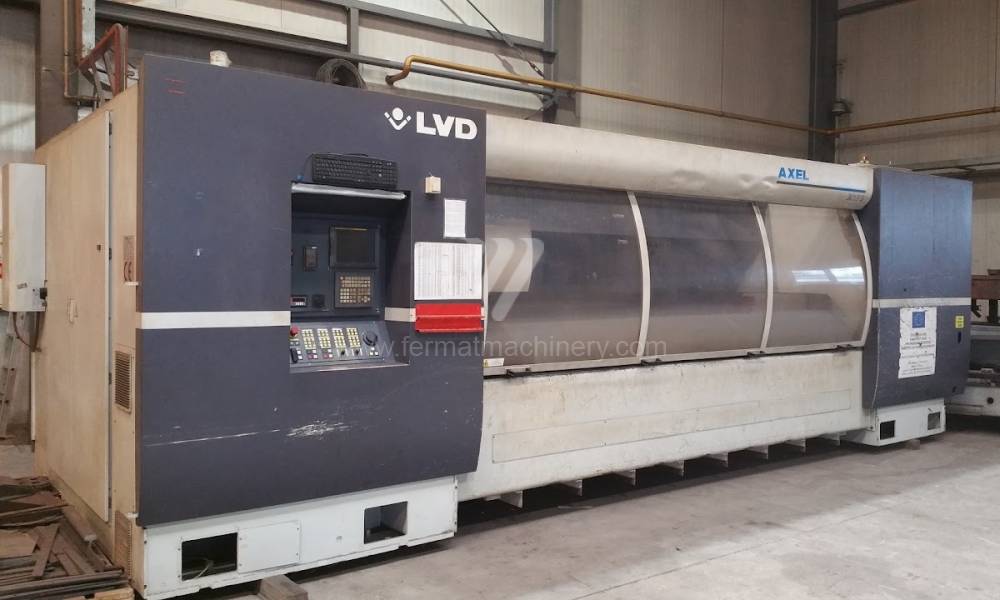

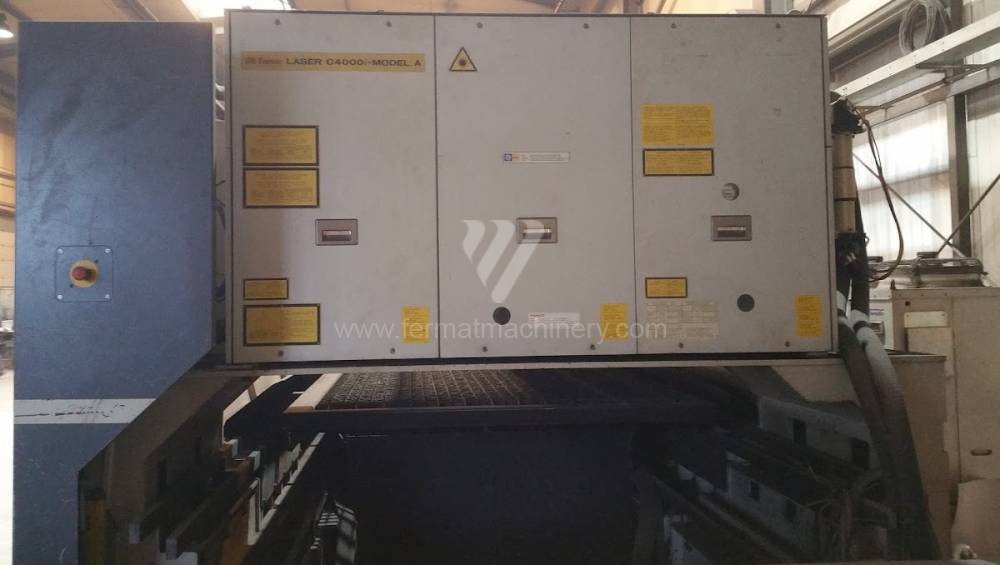

We offer for sale a LVD AXEL 3015 S laser machine with a power of 4 kW. The machine is controlled by a control program Fanuc 160i-LB, operation is ensured via the Windows XP operating system and the machine includes contactless orientation of the sheet metal position, capacitive sensor for non-contact measurement of the cutting head from the sheet metal, compensation beam length (in the entire cutting area - the same quality of cut along the entire length of the table), monitoring of the cutting process (burn-through sensor including plasma detection).

Number of tables: 2 pieces
Dimensions of tables: 3000 x 1500 mm
Exchange of tables: within 30 seconds
Maximum thickness of materials: ST = 20 mm, Stainless steel = 15 mm, AL = 12 mm
Table load capacity: 800 kg
DIMENSIONS:
Laser 11000 x 3000 mm

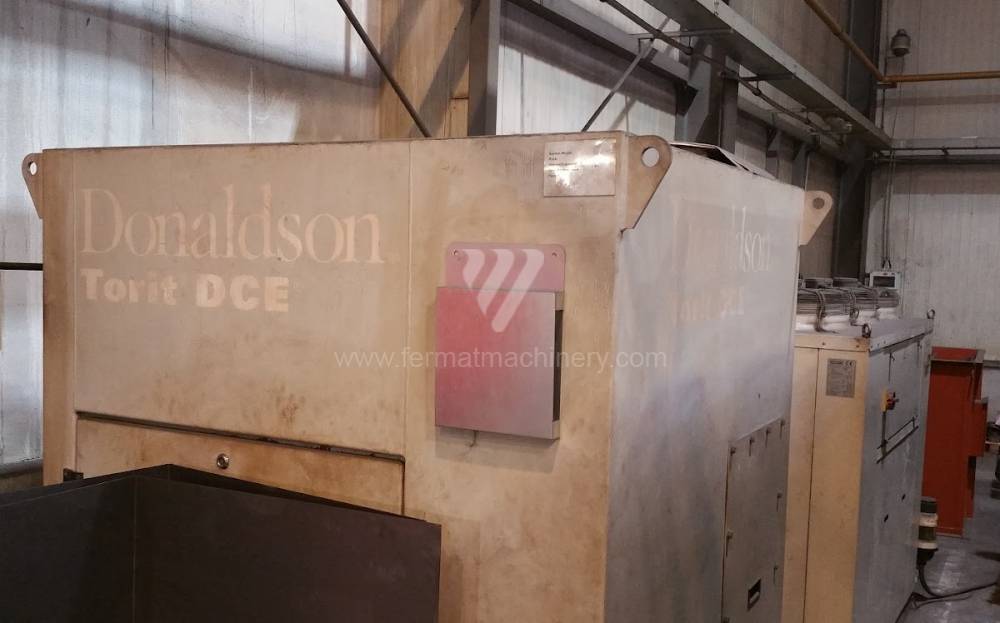

Extraction 1400 x 1400 mm

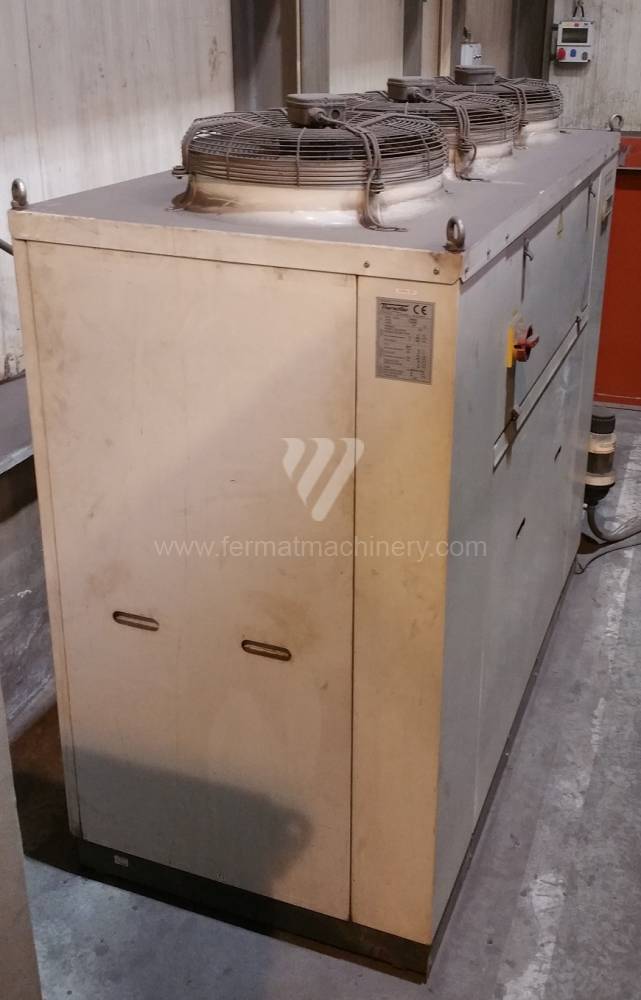

Cooling 1900 x 900 mm
