Press brakes / CNC / CNCL-K 120-4300
-
Inventory number 261174
-
Machine type CNCL-K 120-4300
-
Producer Safan
-
YOM 2002
| Control system SAFAN | |
| Bending power | 120 t |
| Bending length | 4300 mm |
| Number of driven axes | 4 |
| Lower compensation movement | YES |
| Type of press drive | Hydraulický |
Subject to change of technical parameters.
Description
The machine is in good condition.
CNC control with touchscreen
Front support arms
Operating manual

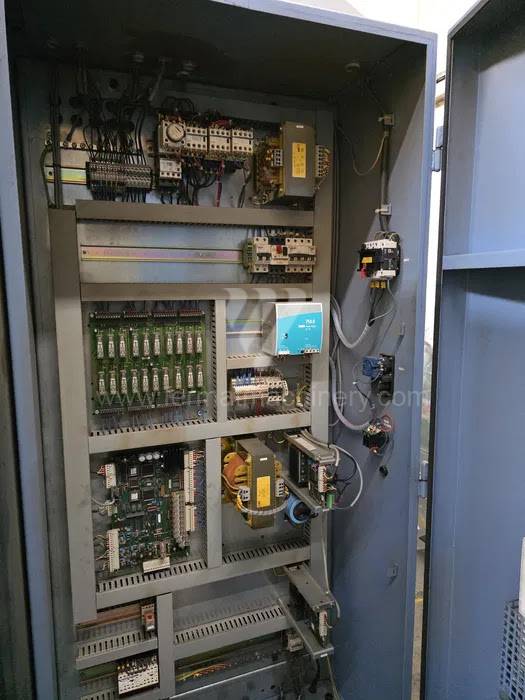

Electrical and hydraulic schematics

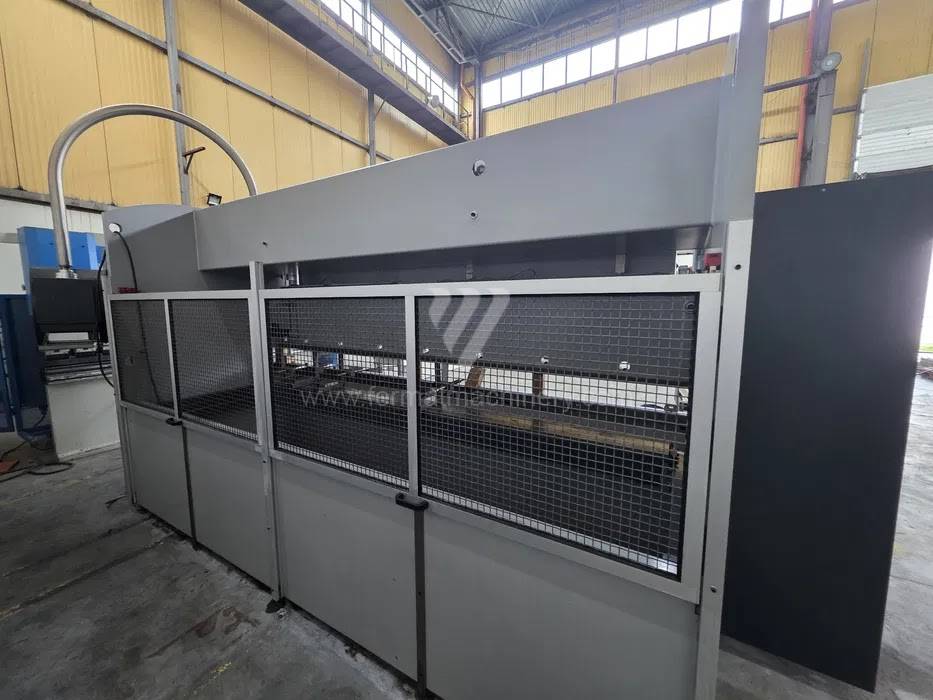

Rear safety gate
Side safety gates

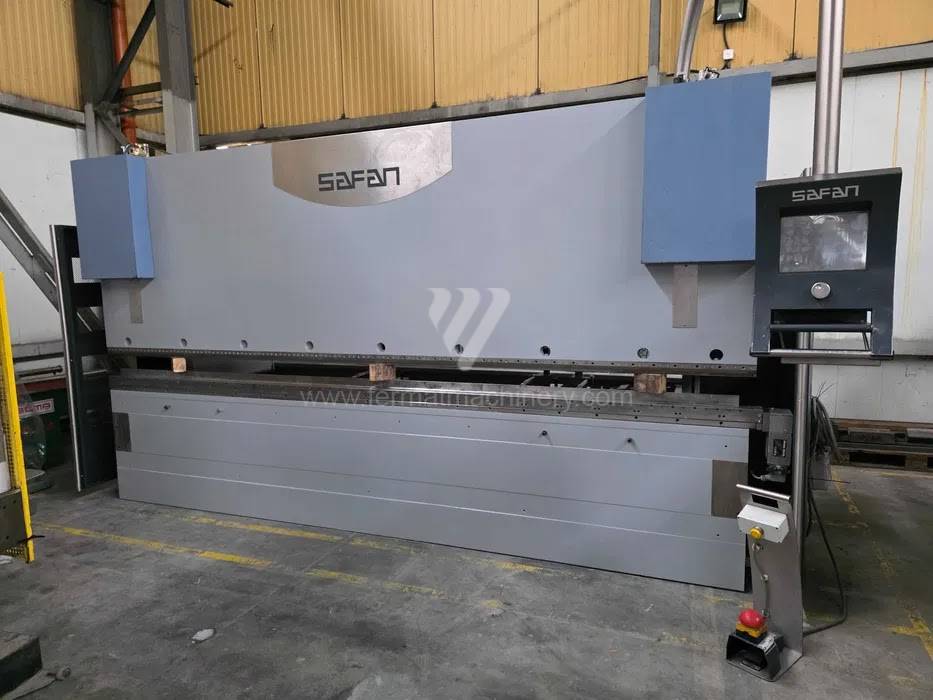

This Safan CNCL-K 120-4300 hydraulic press brake represents a reliable solution for precision sheet metal bending in engineering production. Thanks to the advanced SAFAN control system and integrated crowning (deflection compensation), the machine ensures high bend quality across the entire working length. Four controlled axes enable efficient processing of even complex shaped parts. This CNC machine is an ideal choice for operations seeking a combination of proven design and stability in metal forming.
