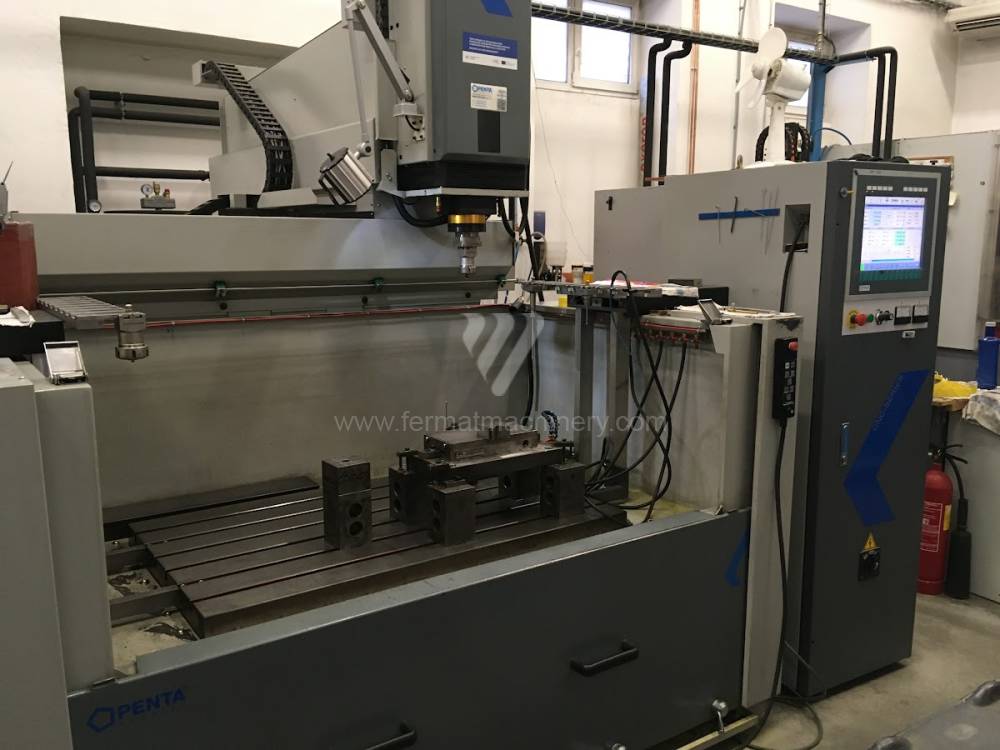

Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC
Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC
Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC
Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC

Miscellaneous / Spark electro-erosion machine / PENTA 1060 CNC

  • Inventory number 251219
  • Machine type PENTA 1060 CNC
  • Producer Penta
  • YOM 2014
Travel X-axis1000 mm
Travel Y-axis600 mm
Travel Z-axis500 mm
Max. weight of workpiece4500 kg
Control system Penta CNC
Machine weight6000 kg
Table dimensions1250x750 mm

Subject to change of technical parameters.


Description

Bath dimensions: 1 900 x 1 100 x 550 mm
Max. workpiece dimensions: 1500x1 000x450 mm
Electrode magazine: 18 positions (9+9)
Electrode clamping: HIRSCHMANN
Rotary C-axis with internal washout
Automatic fire extinguishing system
Workpiece probe
Tool probe
Included in the delivery is a set of 40 electrode holders including electrode milling cube

The machine is in good technical condition, under power.
