Miscellaneous / Other / 601 DFB

Inventory number 261690
Machine type 601 DFB
Producer Unknown
YOM 2012

Max. drilling diameter	40 mm
Main motor power	7,5 kW
Spindle speed	180 - 2500 /min.
Spindle taper	HSK-A80 .
Tool magazine	YES
Number of positions in magazine	6

Subject to change of technical parameters.

Description

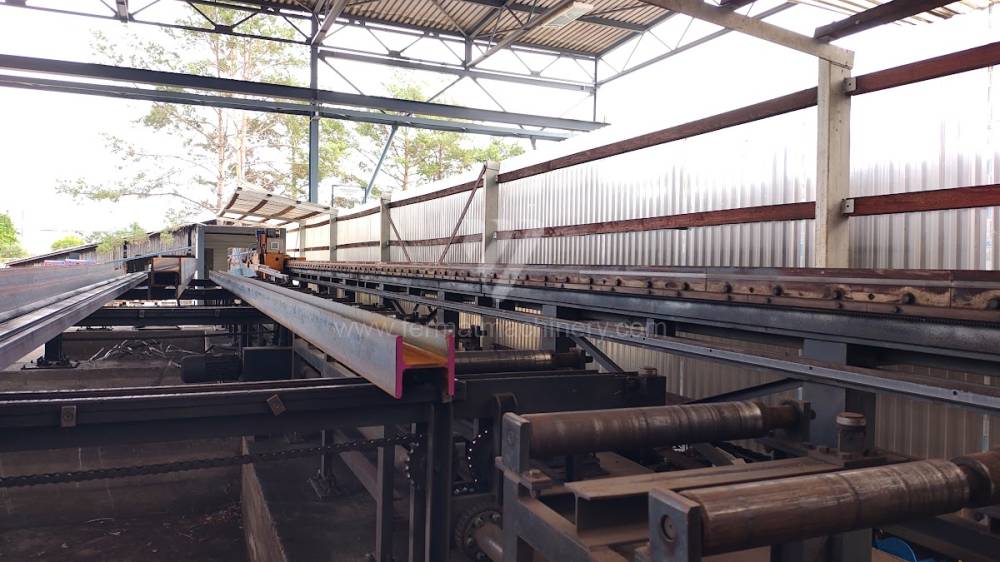

LOADING CONVEYOR

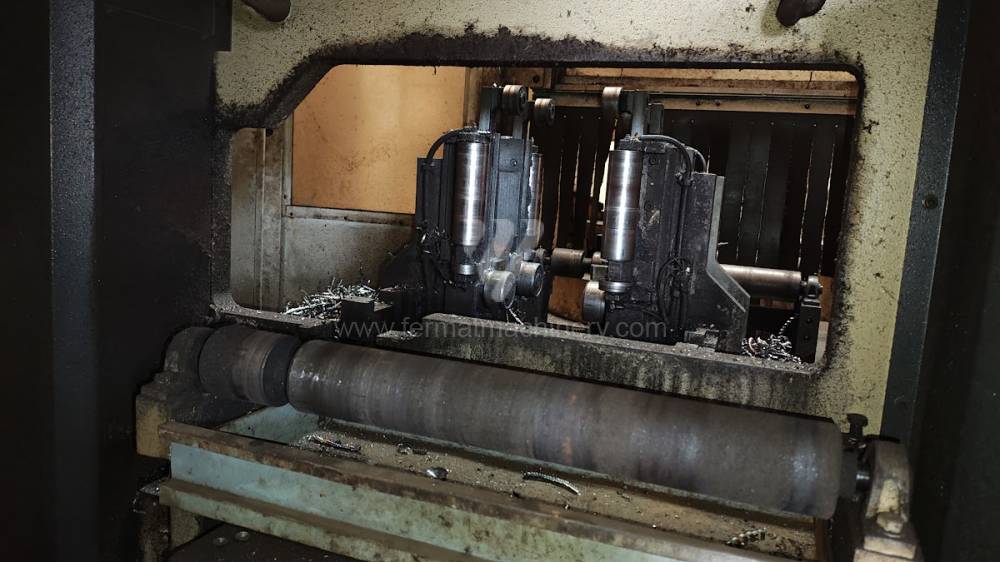

------ monorail track with power supply and measuring console, gravity roller track, servo-driven carriage, clamp for gripping structural steel parts, powered lifting system, loading system with transfer table featuring grippers
PROCESSING UNIT

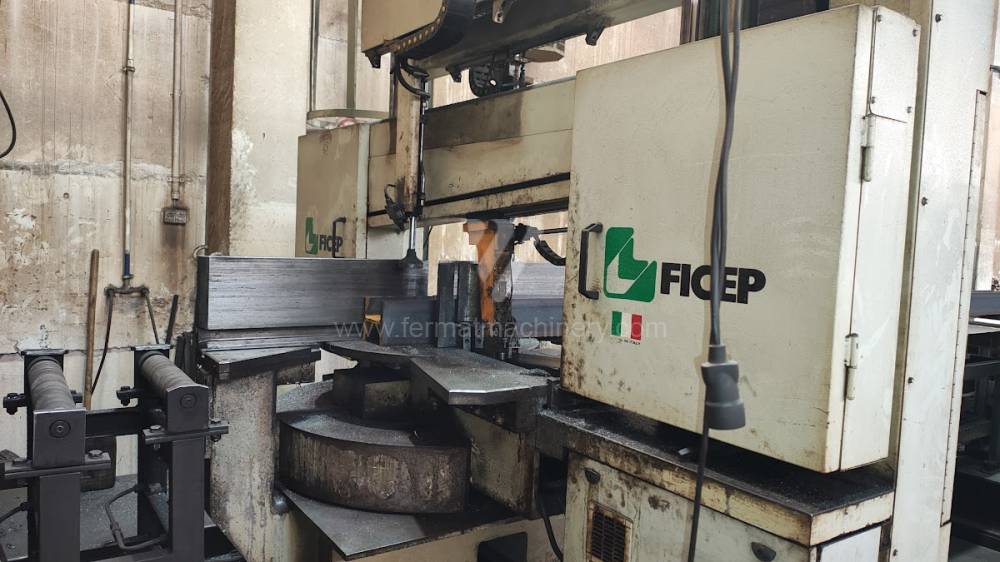

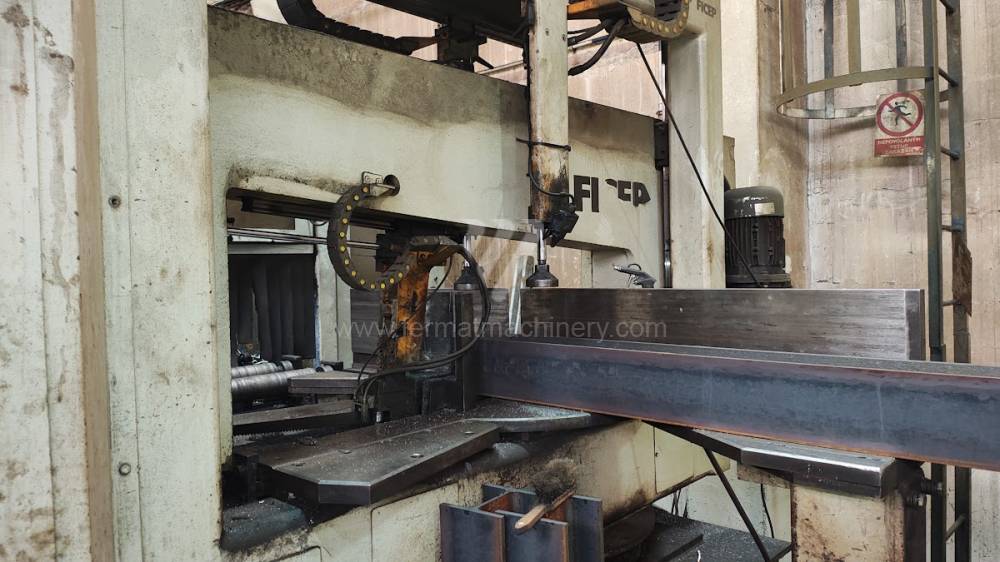

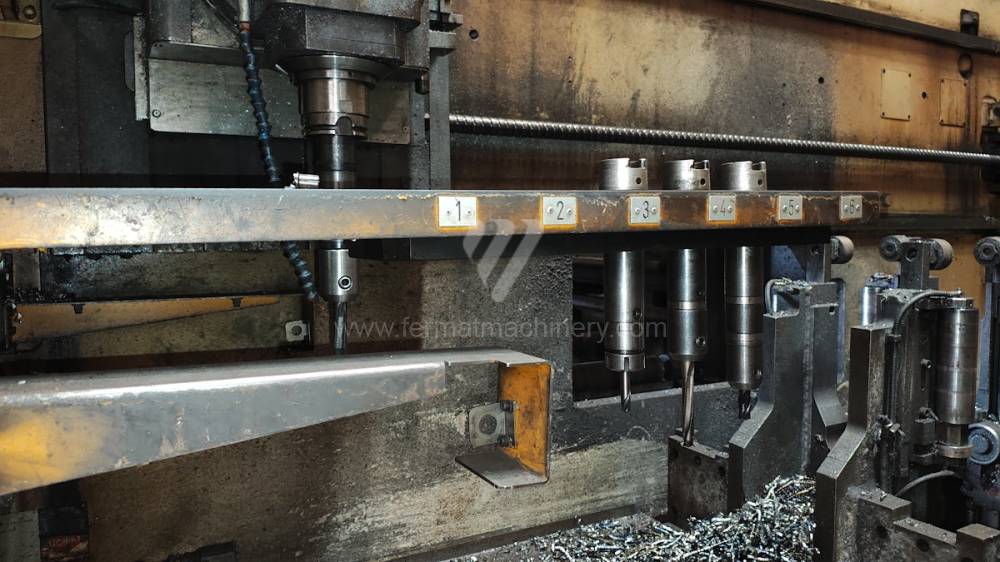

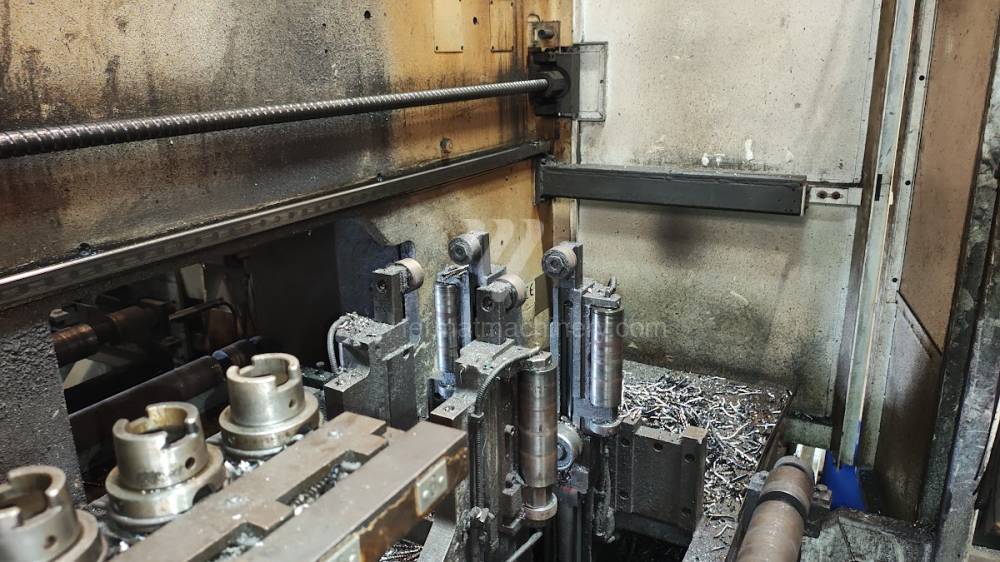

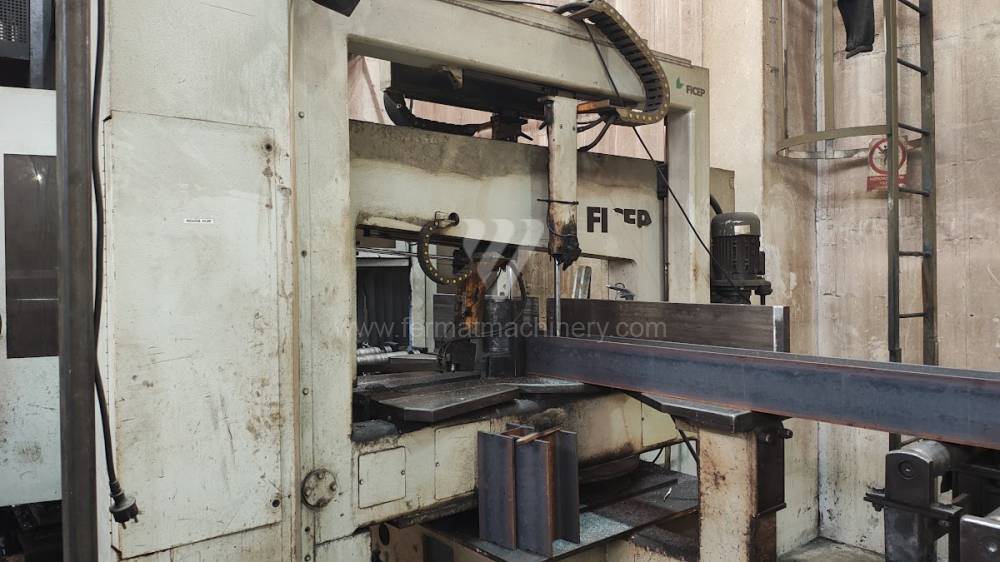

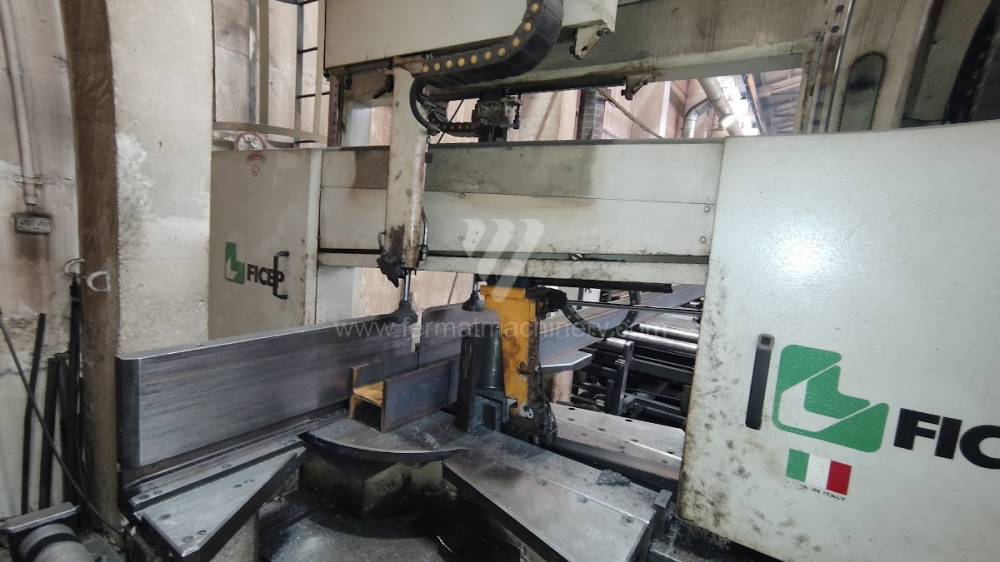

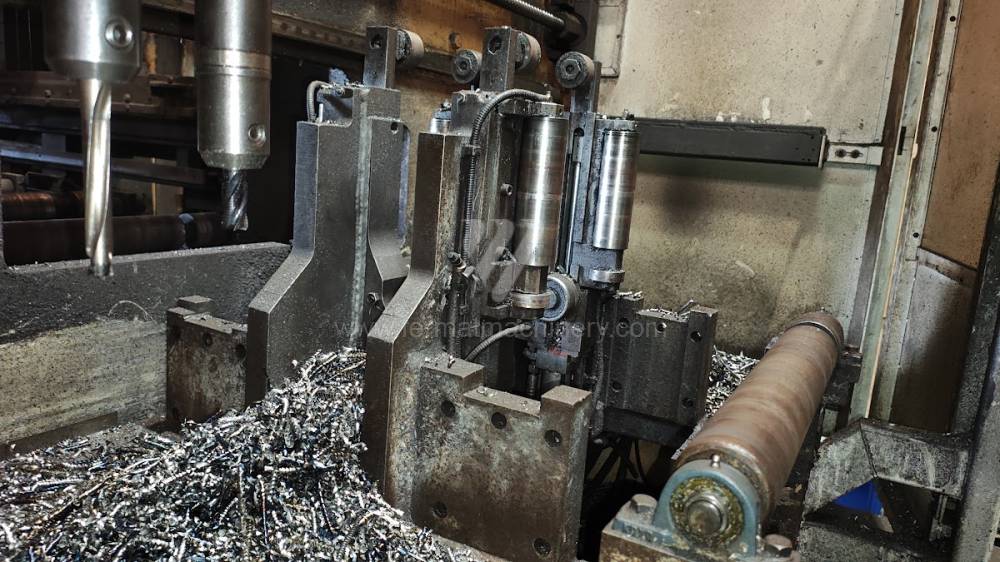

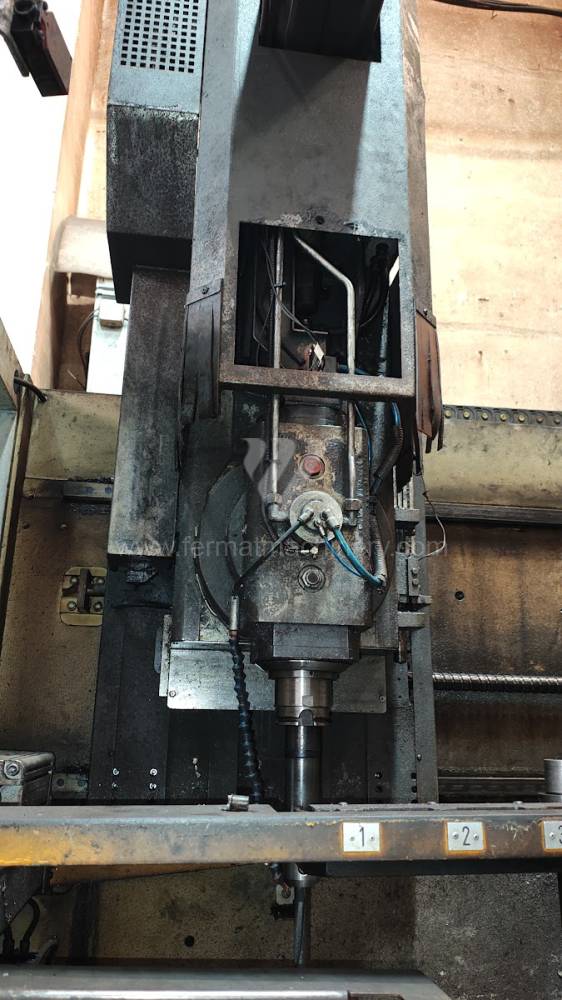

------ single-spindle DRILLING HEAD, six-position tool changer, scribing unit (optional), tapping unit (optional), lifting-type idler roller between the drilling machine and the saw, one Model K60 CUTTING MACHINE
UNLOADING CONVEYOR

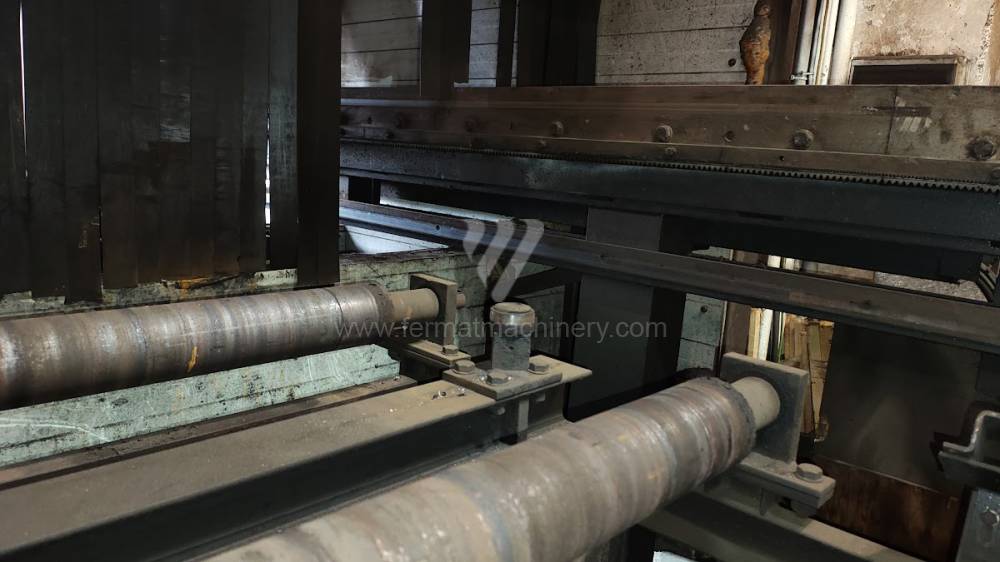

----welded structure with roller supports, powered rollers, roller guidance system, stationary reference units, unloading system with transfer table featuring grippers
HYDRAULIC DRIVE SYSTEM suitable for the drilling and cutting unit.
ELECTRICAL CABINET
--power supply equipment, drive controls, electronic components

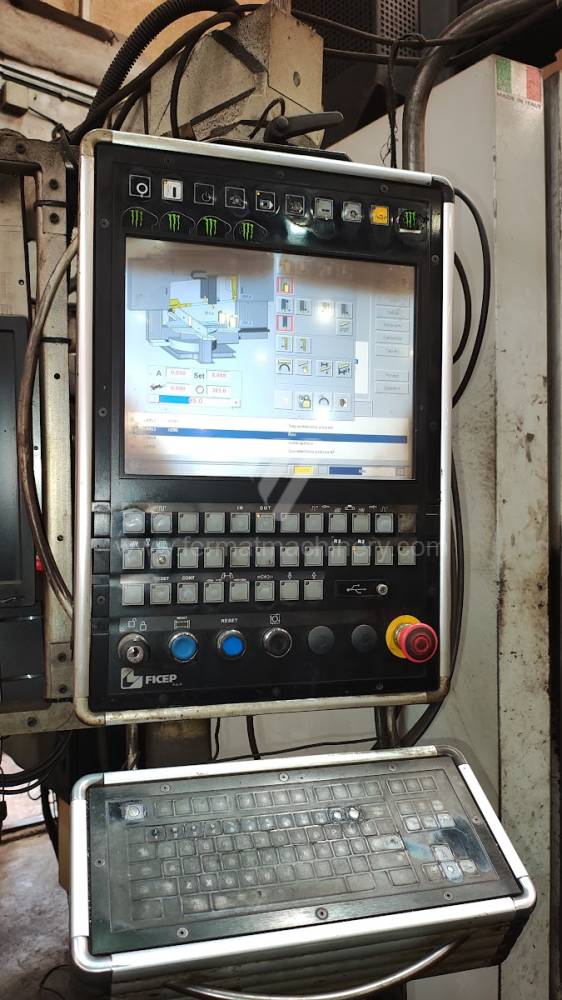

CNC CONTROL SYSTEM Model MINOSSE with 3+1 controlled axes
