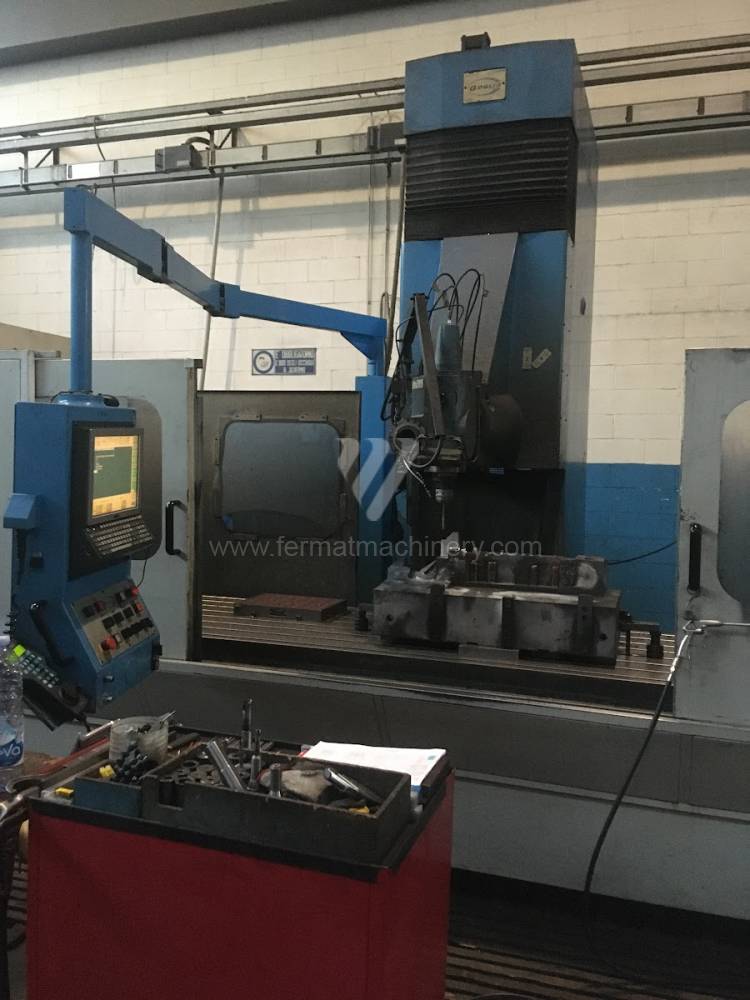

Milling machines / Table / FX 25/01

Control system Selca	4045
Dimensions of table working surface	mm
Travel X-axis	2500 mm
	1300
Travel Z-axis	1300 mm
Max. load of table	4000 kg
	0 - 3500

Subject to change of technical parameters.

Description

machine under the power

YOM:	2019
Control system	YES
Control system Heidenhain	TNC 620
Dimensions of table working surface	3000 mm
Travel X-axis	4000 mm
	1500
Travel Z-axis	1500 mm
	YES
Number of positions in magazine	60
Spindle taper	ISO 50 .
Machine dimensions l x w x h	11200 x 8140 x 5390 mm
Machine weight	50 000 kg

YOM:	2004
Control system	YES
Control system Heidenhain	TNC 530
Dimensions of table working surface	3500x1300 mm
Travel X-axis	3000 mm
	1200
Travel Z-axis	1500 mm
Working feed	6000 mm/min
Rapid feed	15 m/min
	0 - 2800
	YES
Number of positions in magazine	60
Spindle taper	ISO 50 .
Diameter of working spindle	130 mm

YOM:	1990
Control system	YES
Control system Heidenhain	TNC 415
Dimensions of table working surface	3000 x 1000 mm
Travel X-axis	2700 mm
	1016
Travel Z-axis	1465 mm
	0 - 3000
Spindle taper	ISO 50 .
Machine dimensions l x w x h	7800 x 3800 x 4200 mm

YOM:	0
Control system	YES
Control system Selca	S3000 CNC
Dimensions of table working surface	2000 x 700 mm
Travel X-axis	1500 mm
	700
Travel Z-axis	700 mm
Main motor power	30 kW
Machine weight	16000 kg
Spindle taper	ISO 40 .

YOM:	2002
Control system	YES
Control system Acramatic	2100 CNC
Dimensions of table working surface	3700x800 mm
Travel X-axis	3700 mm
	0 - 5000
Spindle taper	SK 50 .
Cooling through spindle	YES
