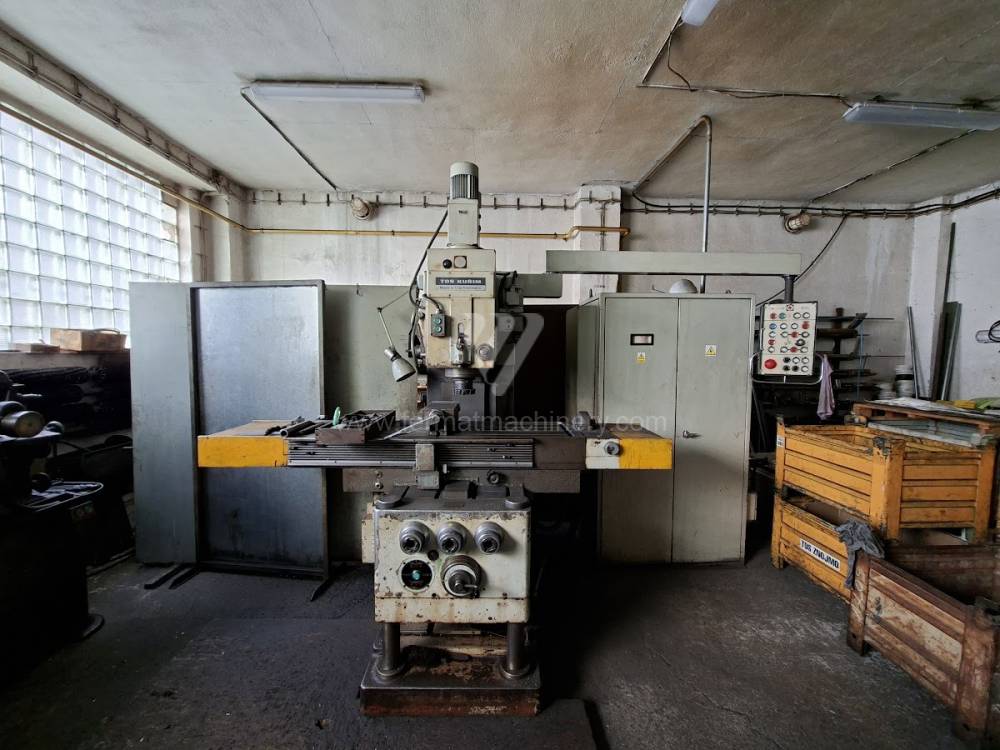

Milling machines / Console / FD 32 V
-
Inventory number 261091
-
Machine type FD 32 V
-
Producer TOS KUŘIM - OS, a.s.
-
YOM 1977
| Machine weight | 5000 kg |
| Machine dimensions l x w x h | 2600 x 2800 x 3000 mm |
Subject to change of technical parameters.
Description
In good technical condition. Can be tested under power.
Length of the work surface of the table: 1450 mm
Width of the working surface of the table: 450 mm
X axis: 1000mm
Y axis: 320mm
Z axis: 450mm
Similar machines
| YOM: | 0 |
| Control system | NO |
| Dimensions of table working surface | 1000x320 mm |
| Travel X-axis | 720 mm |
| Travel Y-axis | 360 mm |
| Travel Z-axis | 420 mm |
| Spindle taper | ISO 40 . |
| Main motor power | 5,5 kW |
| Machine weight | 2310 kg |
| Machine dimensions l x w x h | 2560x2560x1820 mm |
FGS 25/32
TOS OLOMOUC, s.r.o.
Inventory number: 251386
| YOM: | 2001 |
| Control system | YES |
| Control system Heidenhain | TNC 415 |
| Dimensions of table working surface | 1300x305 mm |
| Travel X-axis | 760 mm |
| Travel Y-axis | 381 mm |
| Travel Z-axis | 450 mm |
| Spindle taper | ISO 40 . |
| Spindle speed | 10 - 4000 /min. |
| Main motor power | 7,5 kW |
| Total input | 15 kVA |
| Machine weight | 2400 kg |
| Machine dimensions l x w x h | 2354x2269x2190 mm |
FV 30 CNC
TOS OLOMOUC, s.r.o.
Inventory number: 251660
| YOM: | 1982 |
| Control system | NO |
| Dimensions of table working surface | 1800 x 570 mm |
| Travel X-axis | 1400 mm |
| Travel Y-axis | 670 mm |
| Travel Z-axis | 500 mm |
| Main motor power | 15 kW |
| Spindle speed | 0 - 1400 /min. |
| Machine dimensions l x w x h | 3060 x 3175 x 2620 mm mm |
| Machine weight | 6500 kg |
FGSV 50
TOS KUŘIM - OS, a.s.
Inventory number: 261537
| YOM: | 1989 |
| Control system | NO |
| Dimensions of table working surface | 1000x320 mm |
| Travel X-axis | 720 mm |
| Travel Y-axis | 360 mm |
| Travel Z-axis | 420 mm |
| Spindle taper | ISO 40 . |
| Main motor power | 5,5 kW |
| Machine weight | 2310 kg |
| Machine dimensions l x w x h | 2560x2560x1820 mm |
FGS 25/32
TOS OLOMOUC, s.r.o.
Inventory number: 231481
| YOM: | 2016 |
| Control system | NO |
| Dimensions of table working surface | 1400 x 360 mm |
| Travel X-axis | 1000 mm |
| Travel Y-axis | 300 mm |
| Travel Z-axis | 420 mm |
| Spindle taper | ISO 40 . |
| Main motor power | 7 kW |
| Machine weight | 2750 kg |
| Machine dimensions l x w x h | 3410 x 2400 x 2100 mm |
| Spindle speed | 1 - 2000 /min. |
