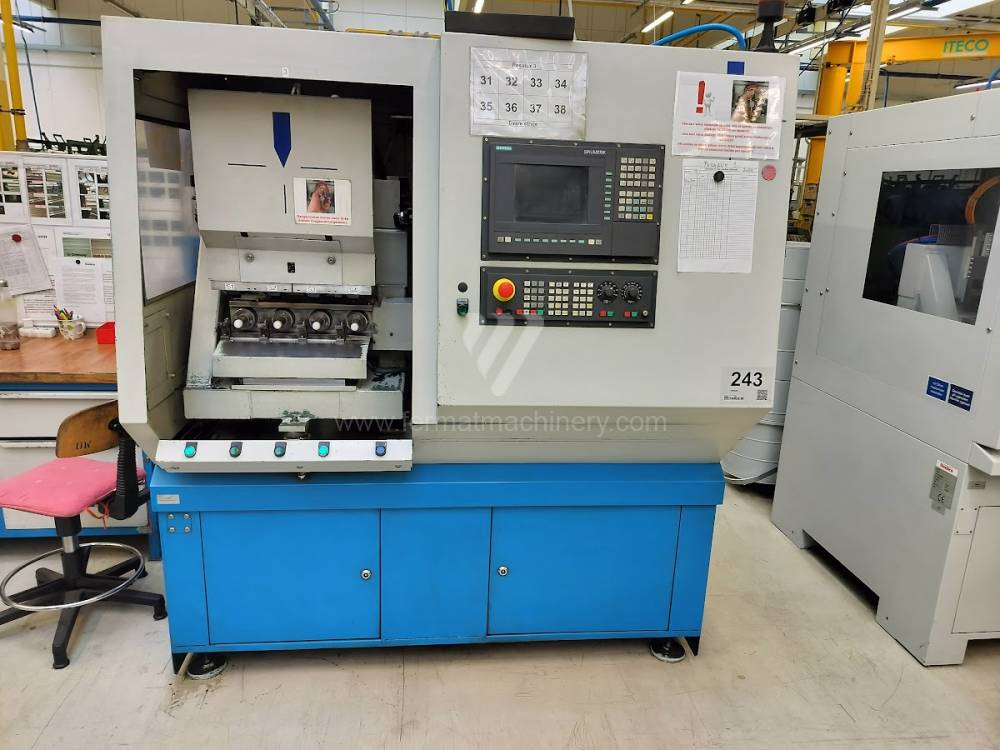

Machining centres / Vertical / Microfor HV HP4
-
Inventory number 251984
-
Machine type Microfor HV HP4
-
Producer Posalux
-
YOM 2006
| Control system Siemens | |
| Clamping area of table | mm |
| Travel X-axis | mm |
| Travel Y-axis | mm |
| Travel Z-axis | mm |
| Spindle speed | - /min. |
| Number of driven axes | |
| Cooling through spindle | |
| Spindle taper | . |
| Machine dimensions l x w x h | 1.800 x 1.100 x 1.950 mm |
Subject to change of technical parameters.
Description

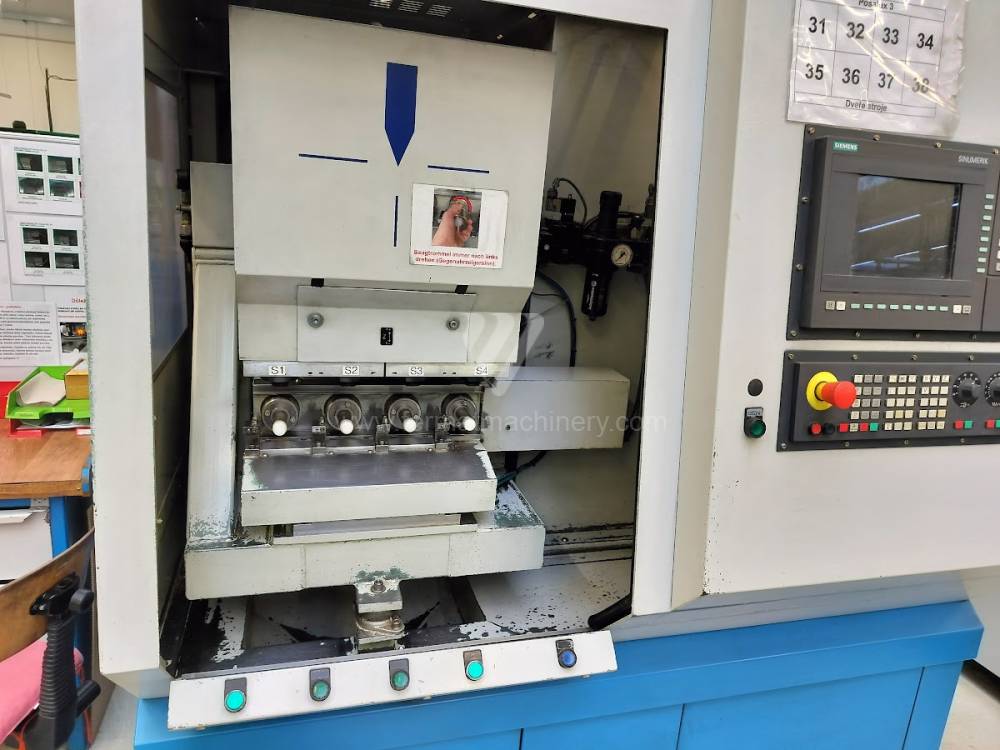

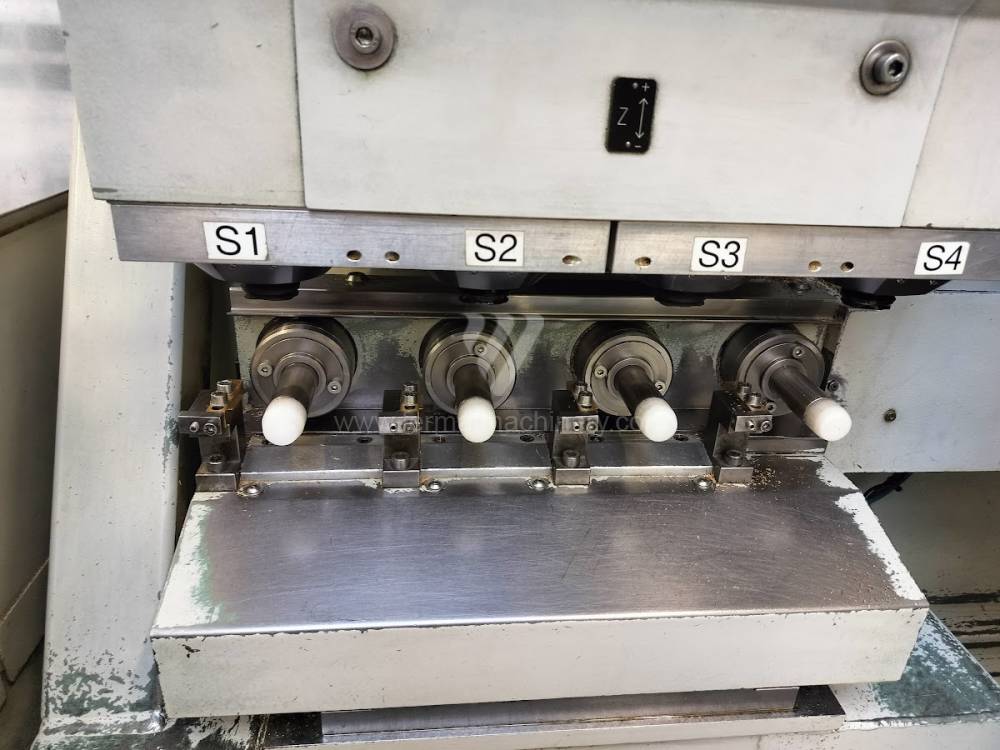

Multi-spindle drilling and milling head
4 spindles max. 50,000 rpm
NC control: Siemens
CNC axes: 4 (B, Z, Y and X)
Drill diameter: 0.5 × 1.5 mm (depending on the collet, larger diameters)
Connection voltage: 220 V / 380 V / 440 V 50 Hz / 60 Hz 3 P+E
Connected power: 10 kW
Control voltage: 24 VDC
Air connection: 6 bar
Machine weight: approx. 1200 kg
Machine dimensions: approx. 1800 x 1100 x 1950 mm

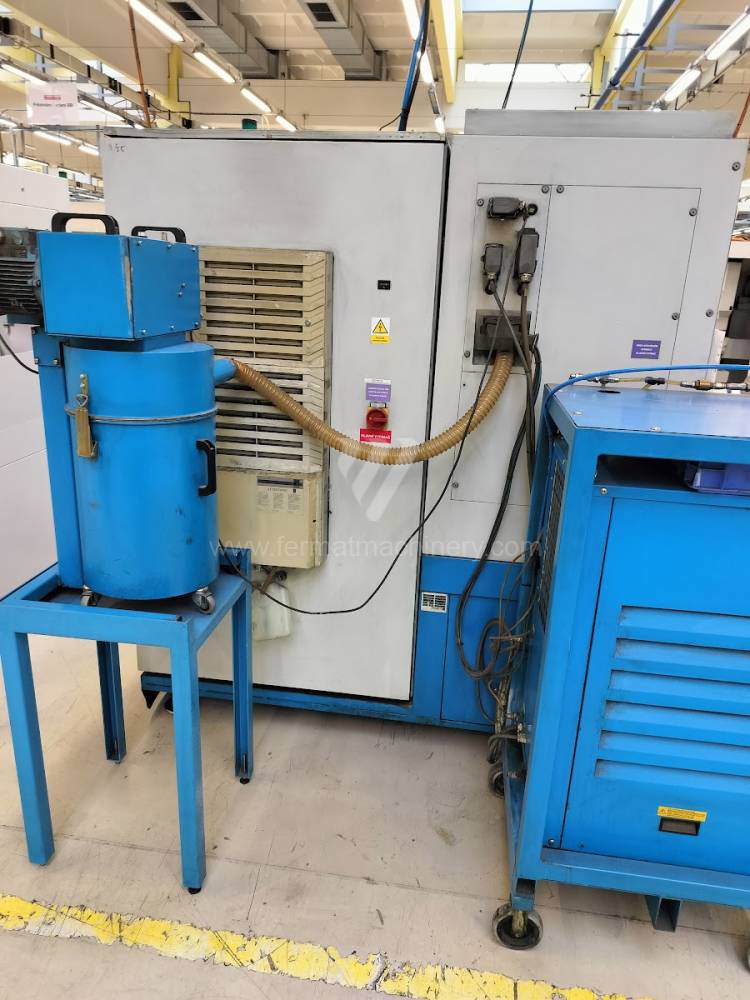

Accessories: extraction, air cooling
