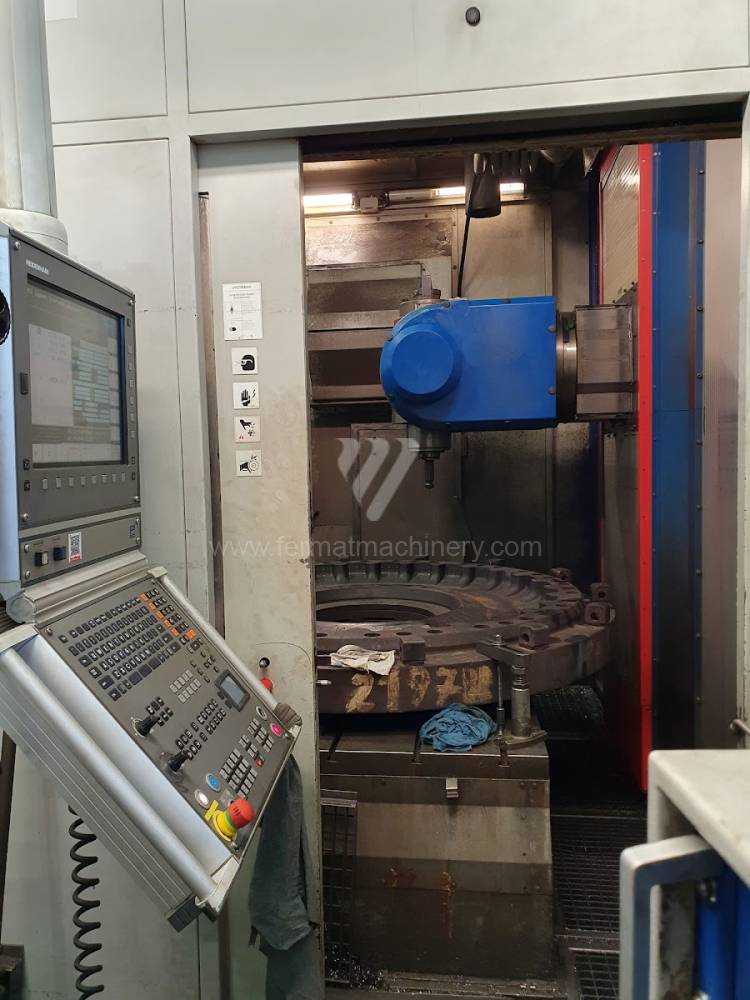

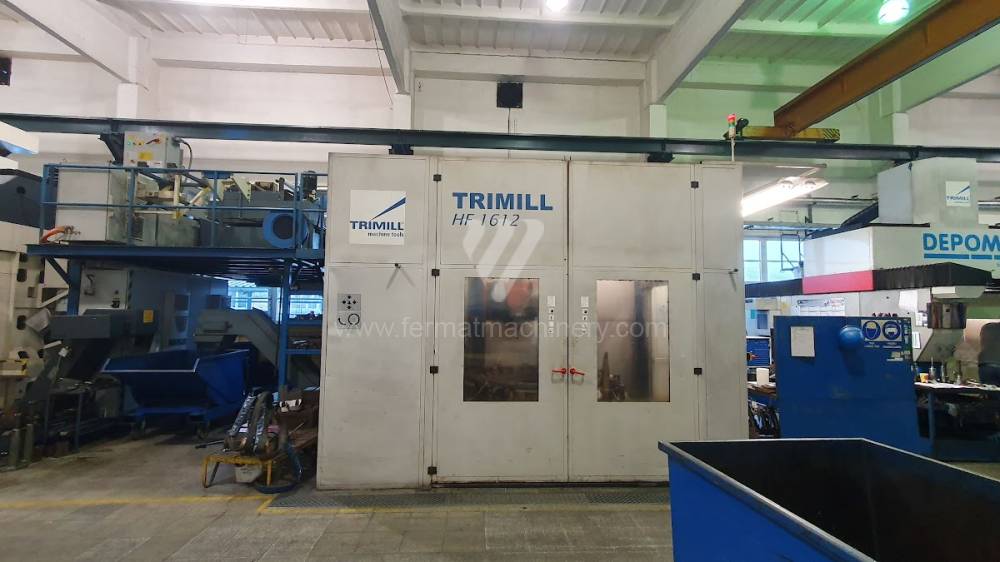

Machining centres / Vertical / HF 1612
-
Inventory number 261215
-
Machine type HF 1612
-
Producer TRIMILL
-
YOM 2010

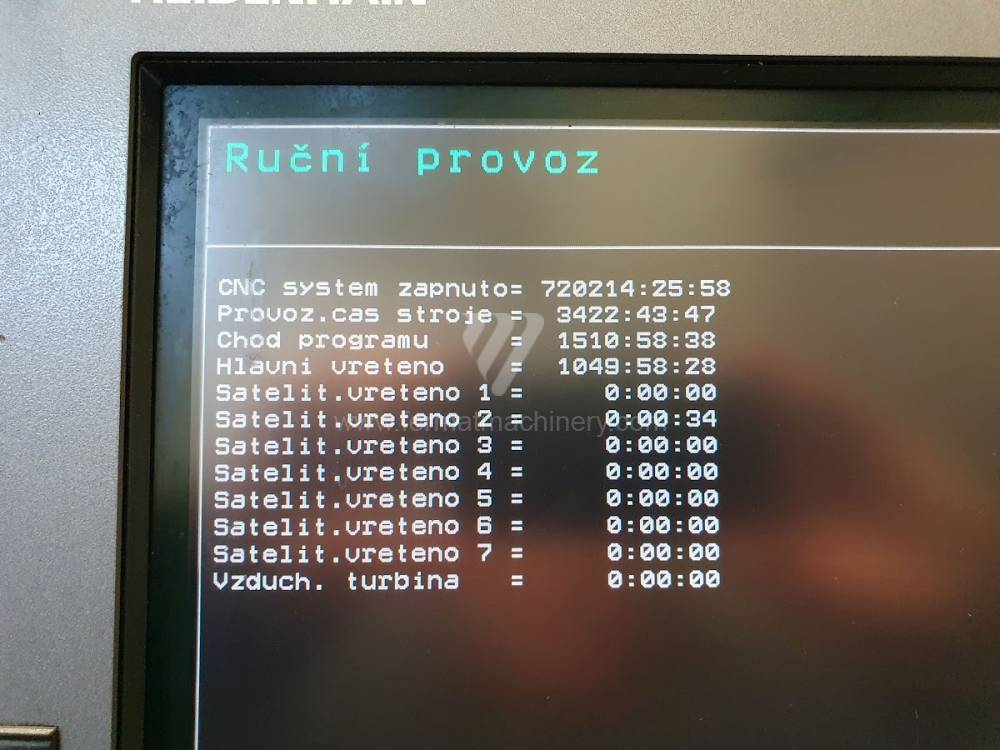

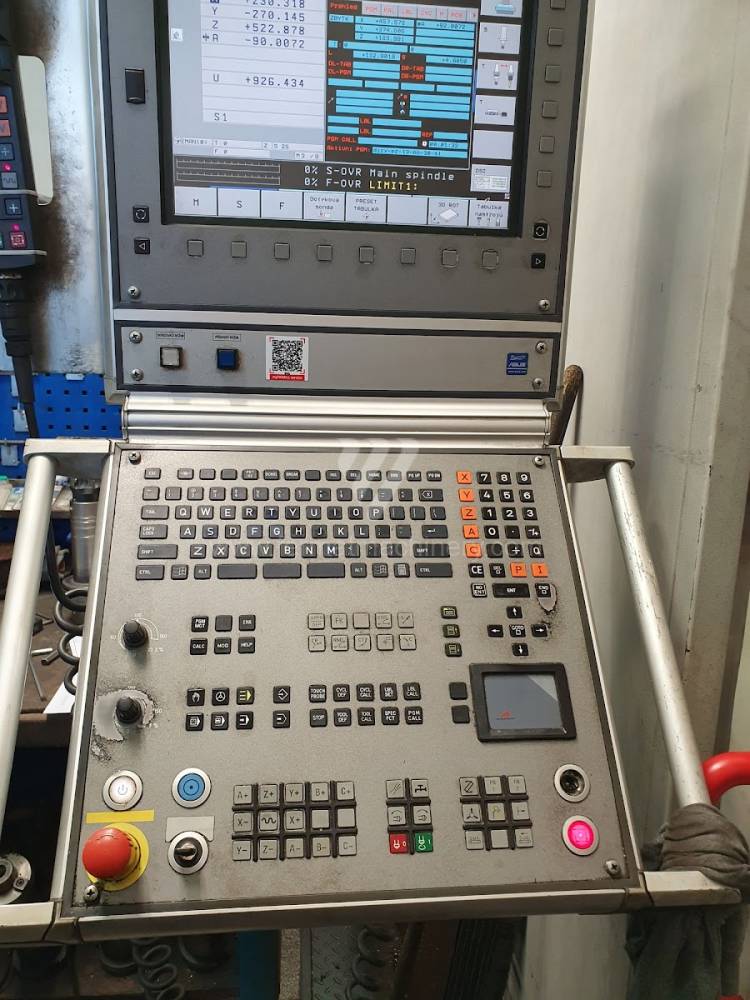

| Control system Heidenhain | TNC 530 |

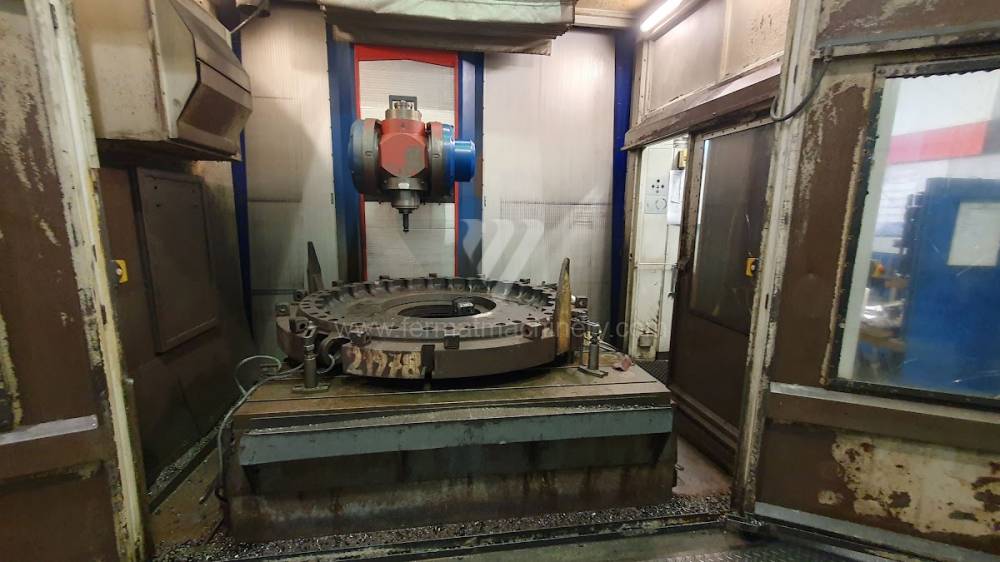

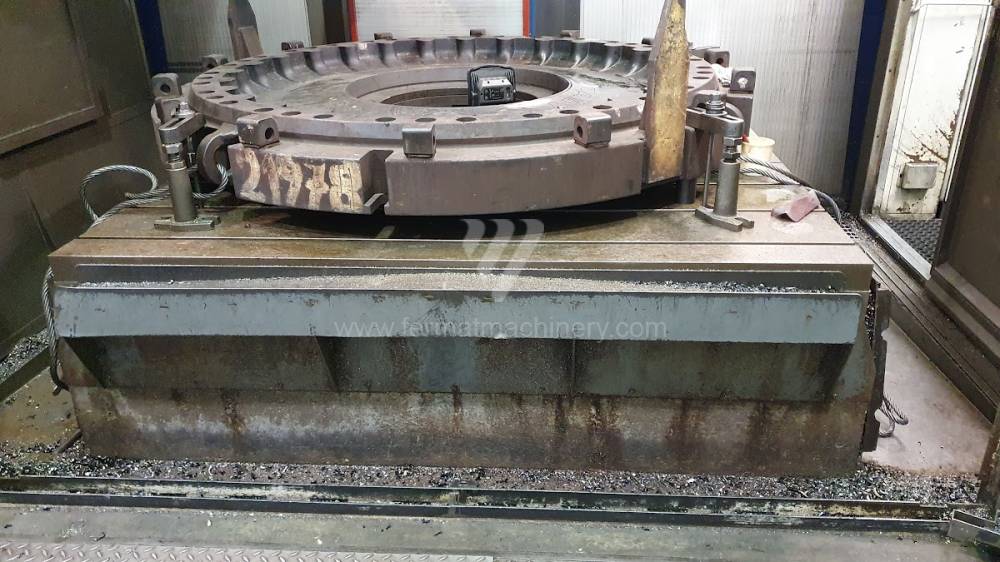

| Clamping area of table | 2000x1750 mm |
| Travel X-axis | 1600 mm |
| Travel Y-axis | 1200 mm |
| Travel Z-axis | 800 mm |
| Spindle speed | 10 - 10000 /min. |
| Number of driven axes | 5 |
| Cooling through spindle | YES |
| Pressure of cooling | 50 bar |
| Spindle taper | HSK-A100 . |
| Max. weight of workpiece | 7000 kg |
| Max. torque of spindle | 195 Nm |

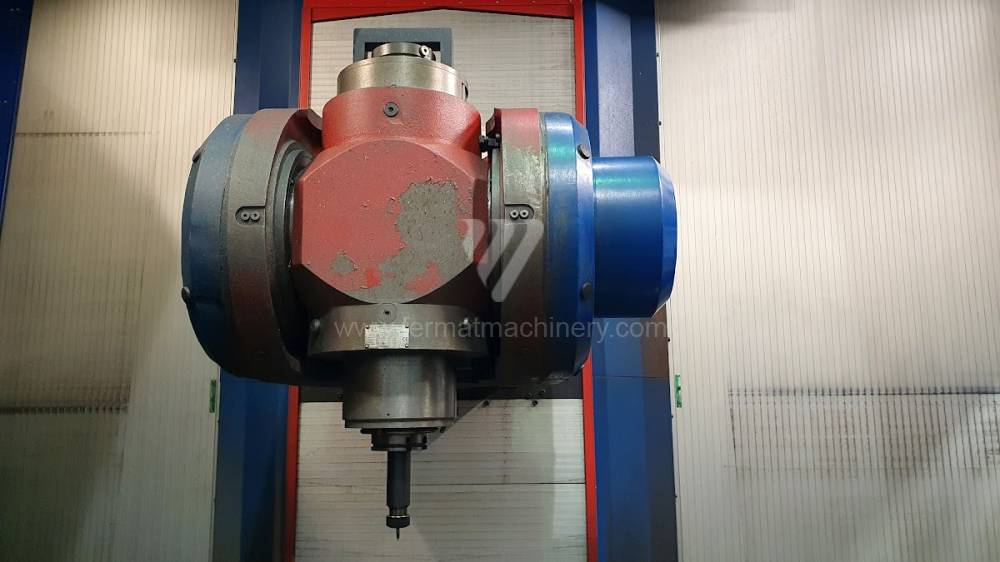

| Axis C | ±182 ° |
| Axis A | -2 / +92 ° |
| Rapid feed | 30 m/min |
| Tool magazine | YES |
| Number of positions in magazine | 12 |
| Machine weight | 43000 kg |
| Machine dimensions l x w x h | 7430x5800x3590 mm |
Subject to change of technical parameters.
Description
The machine is in good technical condition, with the possibility of testing under power.

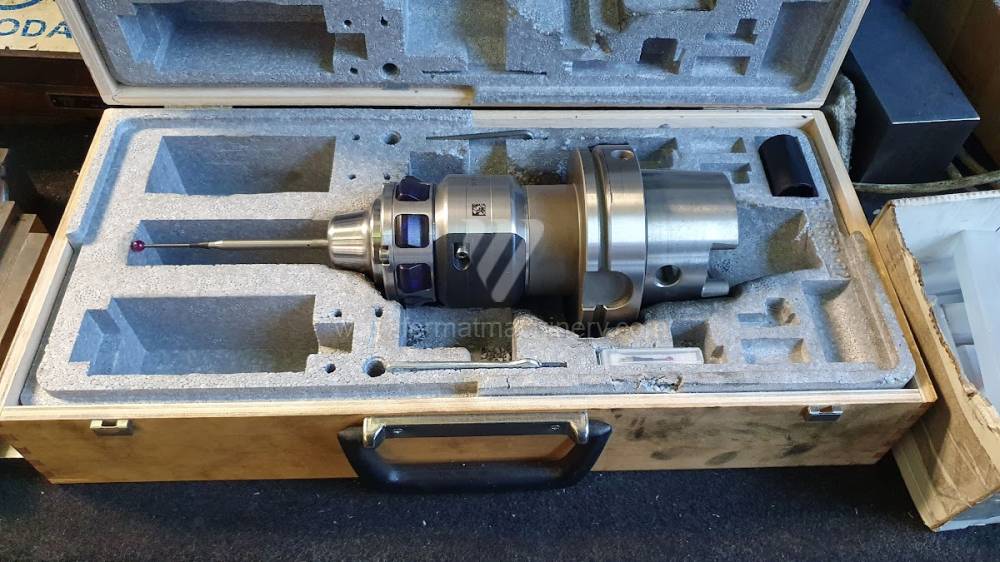

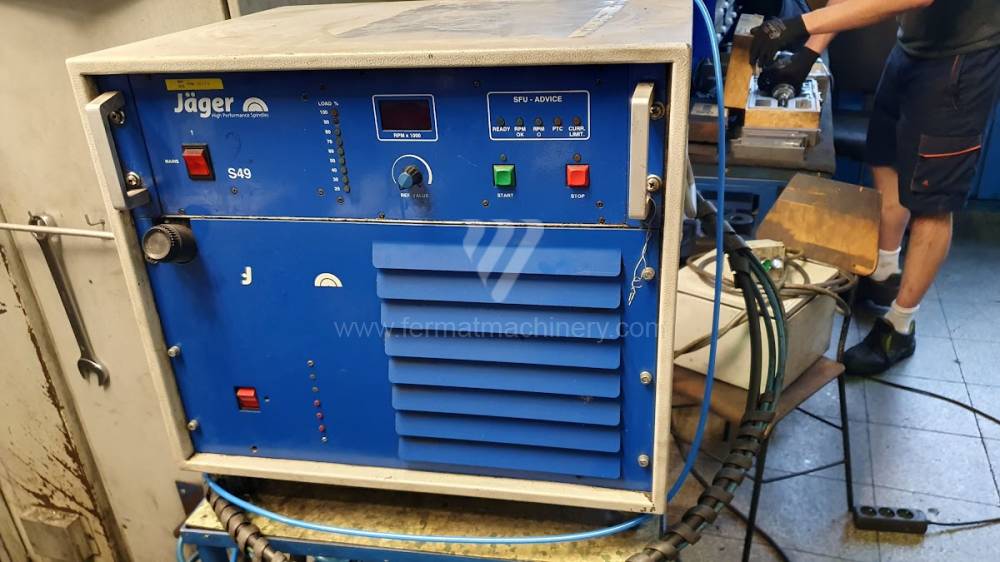

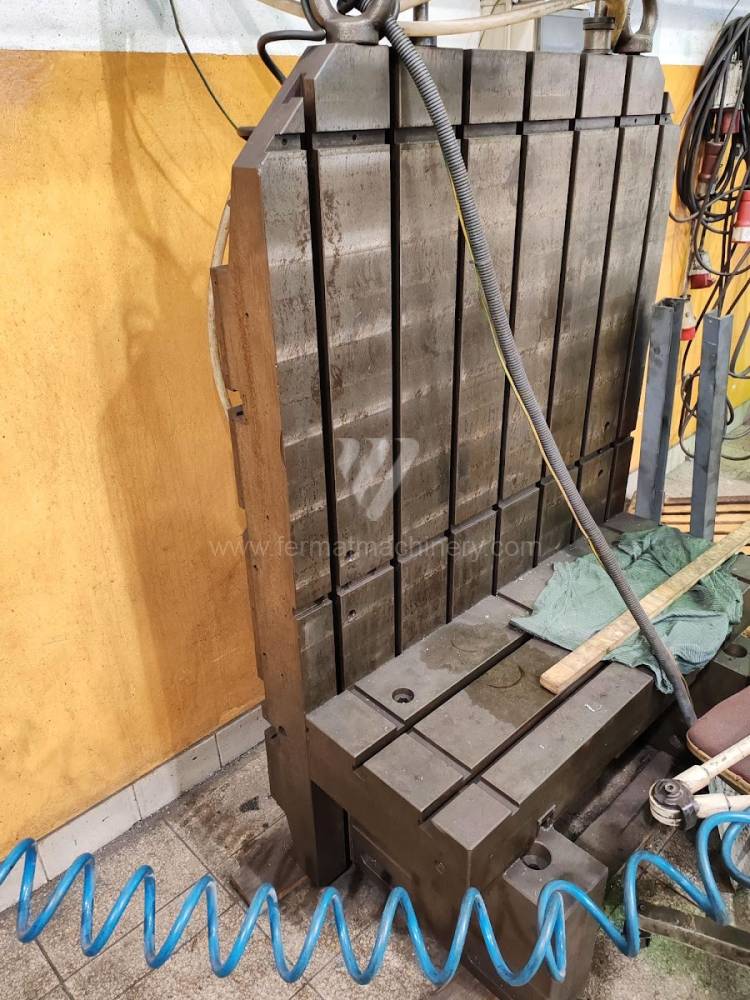

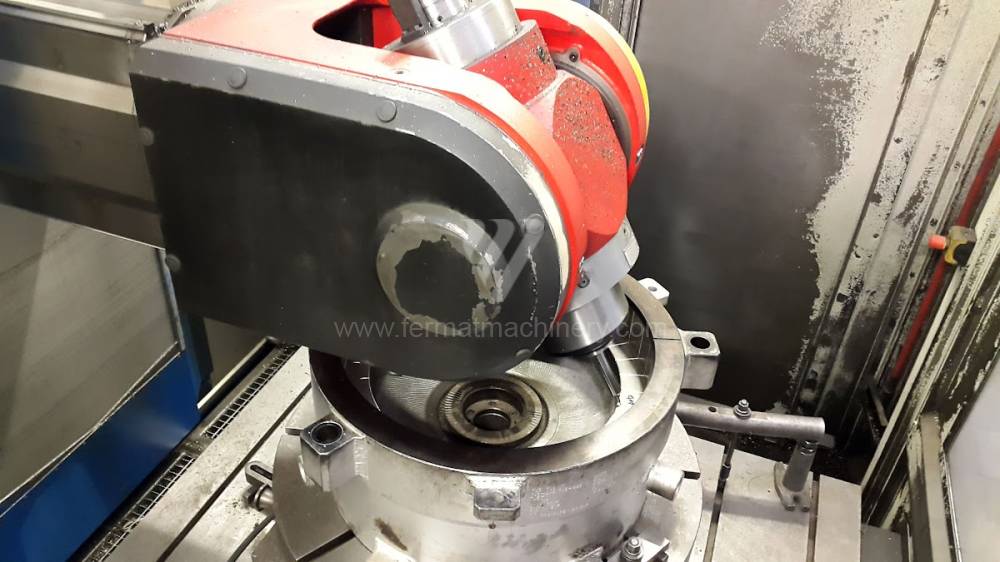

Accessories: workpiece probe, Jäger electric spindle (60,000 rpm), ISN 1000 CNC V additional rotary table, and angle plates.
