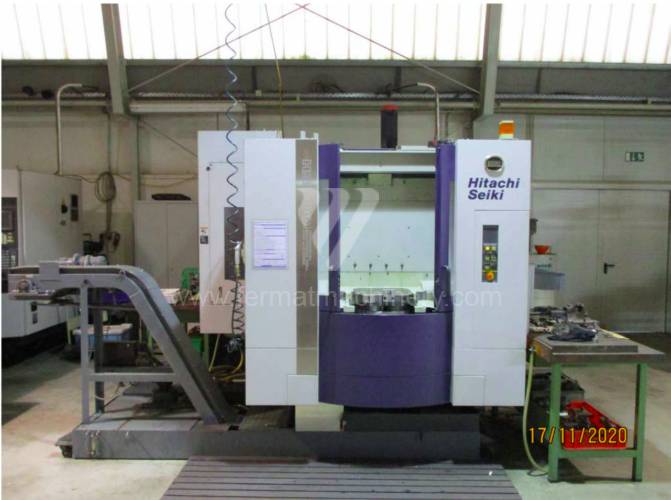

Machining centres / Horizontal / HS 400
Machining centres / Horizontal / HS 400
Machining centres / Horizontal / HS 400
Machining centres / Horizontal / HS 400

Machining centres / Horizontal / HS 400

  • Inventory number 251516
  • Machine type HS 400
  • Producer Hitachi Seiki
  • YOM 2002

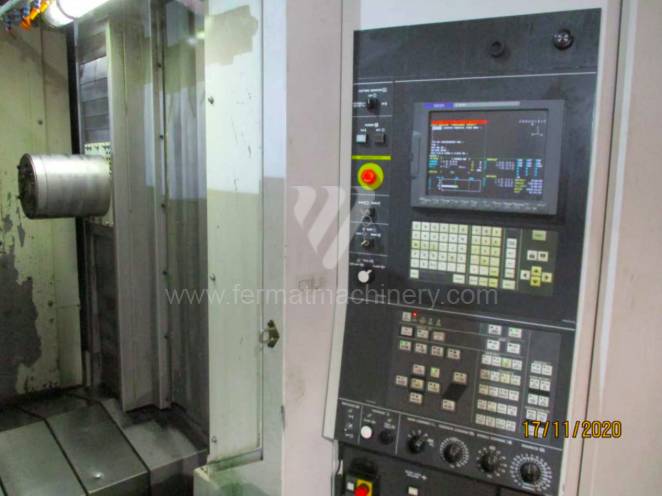

Control system Fanuc16i-M
Clamping area of table400x400 mm
Travel X-axis600 mm
Travel Y-axis580 mm
Travel Z-axis580 mm
Spindle speed35 - 12000 /min.
Number of driven axes3
Cooling through spindleNO
Spindle taper .
Tool magazineYES
Number of positions in magazine61
Machine weight11400 kg
Working feed1-50000 mm/min

Subject to change of technical parameters.


Description

The machine is in good condition, under power.
