Machining centres / Horizontal / H 40
-
Inventory number 251791
-
Machine type H 40
-
Producer TAJMAC-ZPS, a.s.
-
YOM 2004

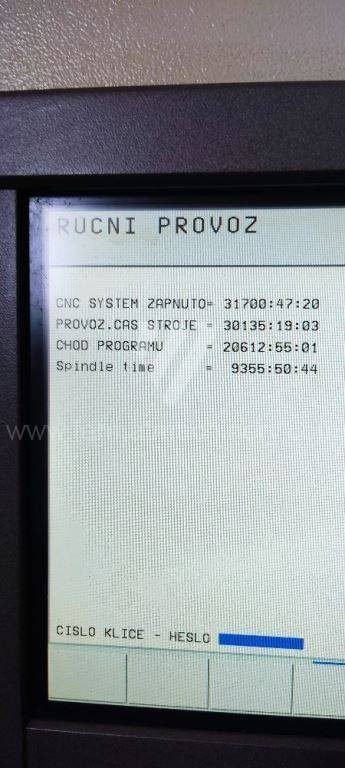

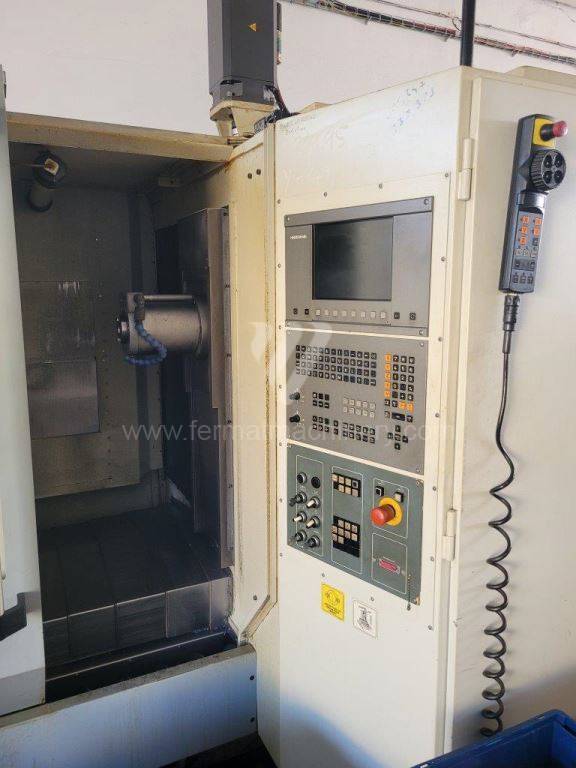

| Control system Heidenhain | TNC 530 |
| Clamping area of table | 400x400 mm |
| Travel X-axis | 560 mm |
| Travel Y-axis | 510 mm |
| Travel Z-axis | 560 mm |
| Spindle speed | 10 - 10000 /min. |
| Number of driven axes | 4 |
| Cooling through spindle | YES |
| Spindle taper | SK40 . |
| Number of pallets | 2 |
| Machine dimensions l x w x h | 4730x2540x2616 mm |
| Machine weight | 8600 kg |
| Max. diameter of workpiece | 600 mm |
| Max. workpiece height | 600 mm |
| Max. weight of workpiece | 300 kg |
| Number of positions in magazine | 45 |
Subject to change of technical parameters.
Description

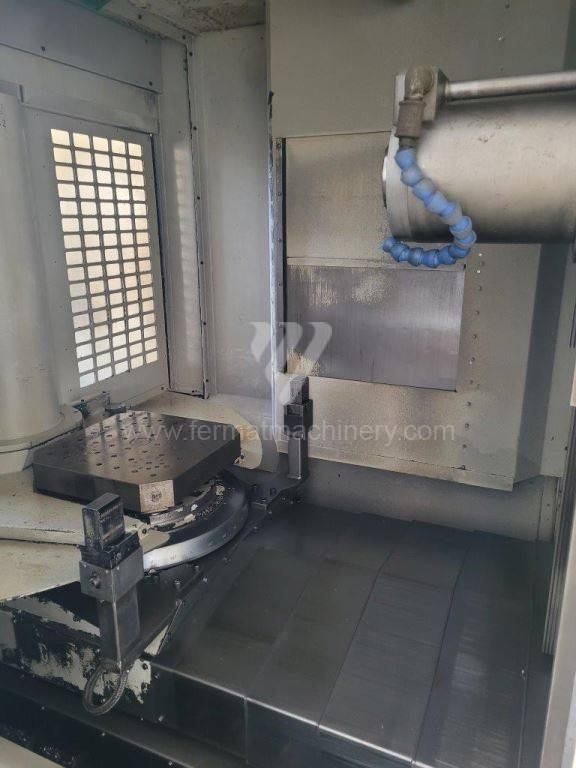

4 axis machining - rotary table

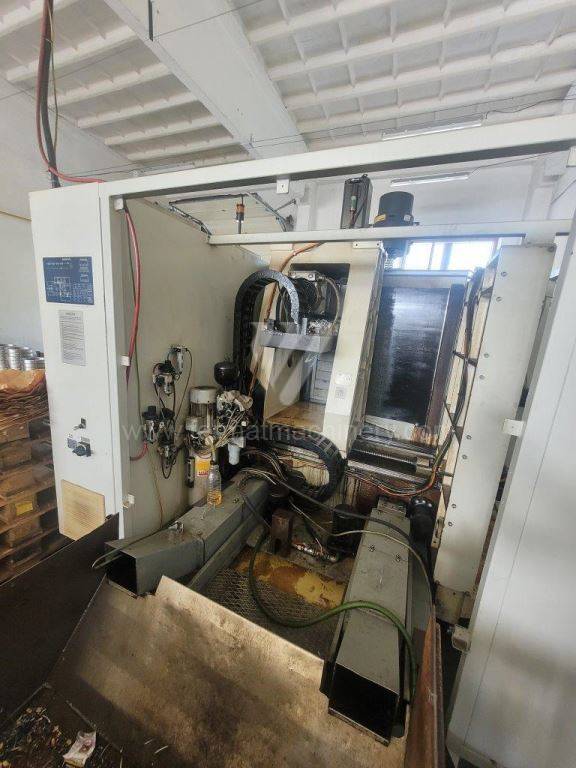

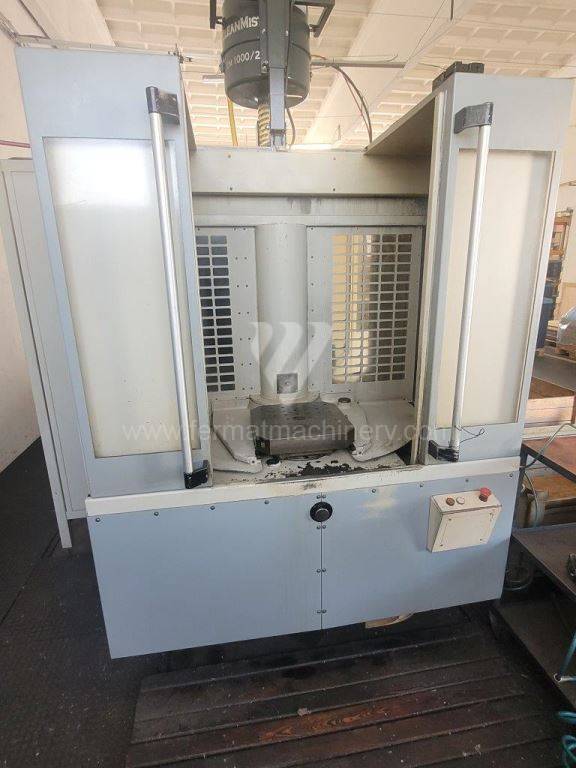

APC - two-pallet automatic exchange
2x pallet 400x400mm

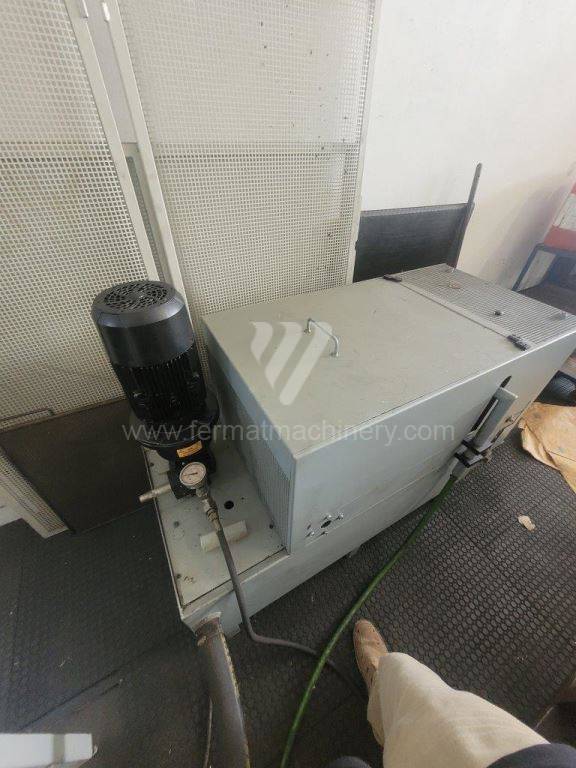

LOSMA high-pressure cooling
laser tool probe, tool magazine for 45 positions,
In good technical condition, possible testing under power.
