Lathes / CNC multi-axis / Gama 20/6
-
Inventory number 241805
-

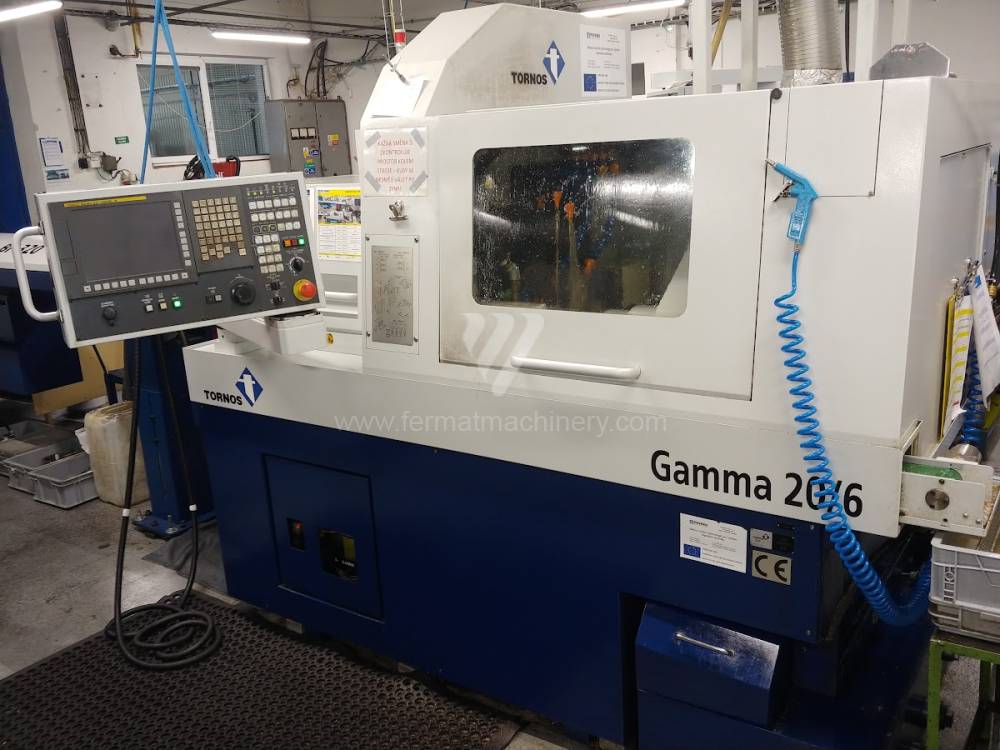

Machine type Gama 20/6
-
Producer Tornos Bechler
-
YOM 2012

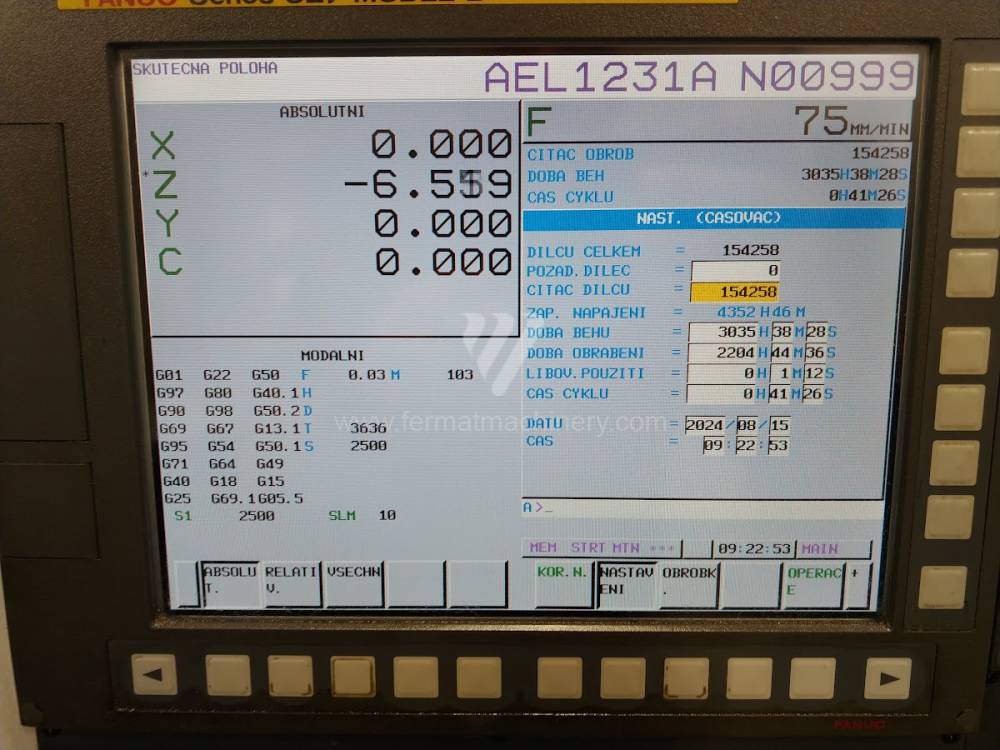

| Control system Fanuc | 32i - B |
| Turn table diameter | 20 mm |
| 250 | |
| Sloping bed | NO |
| Y axis | YES |
| Counterspindle | NO |
| Spindle bore | mm |
| NO | |

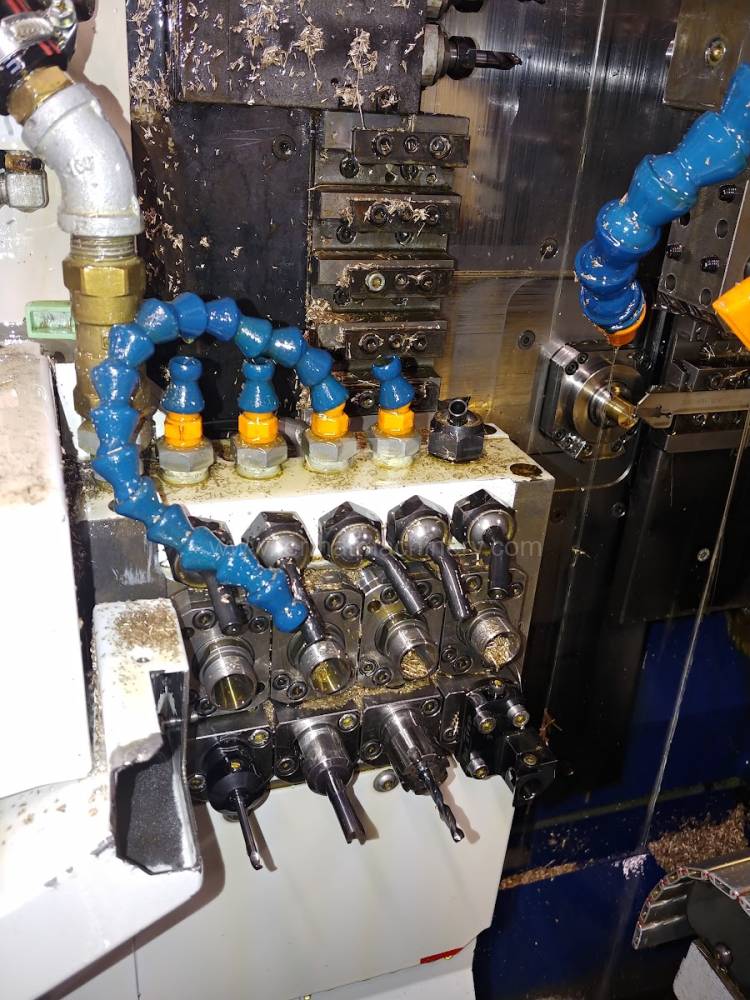

| Driven Tools | YES |

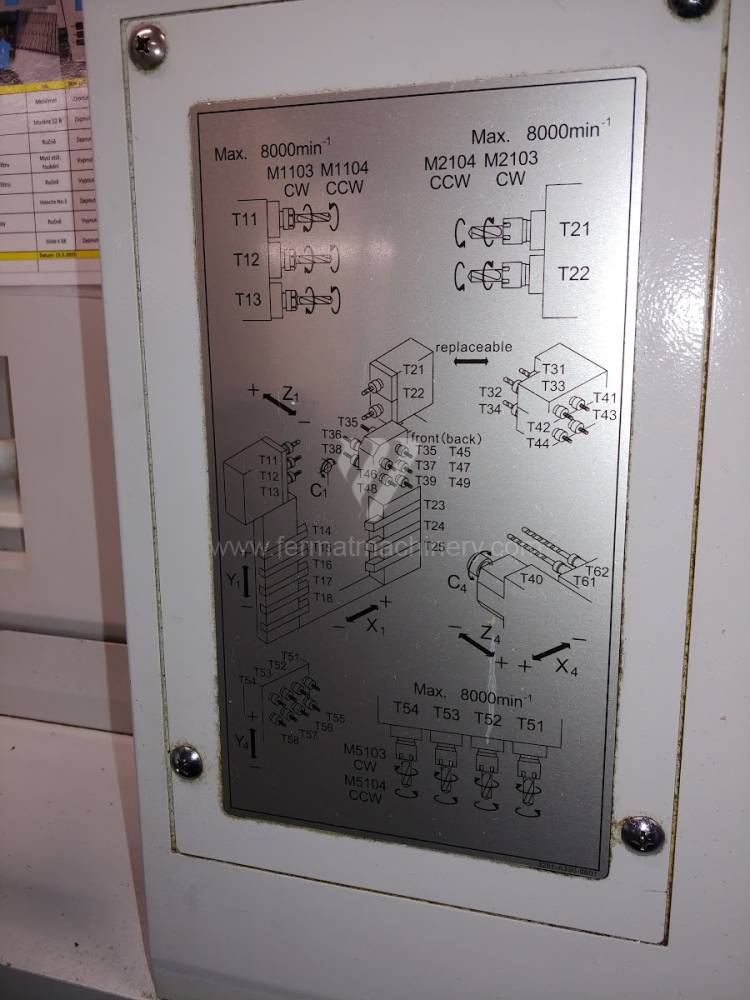

| Number of tool positions (driven) | 39/15 |

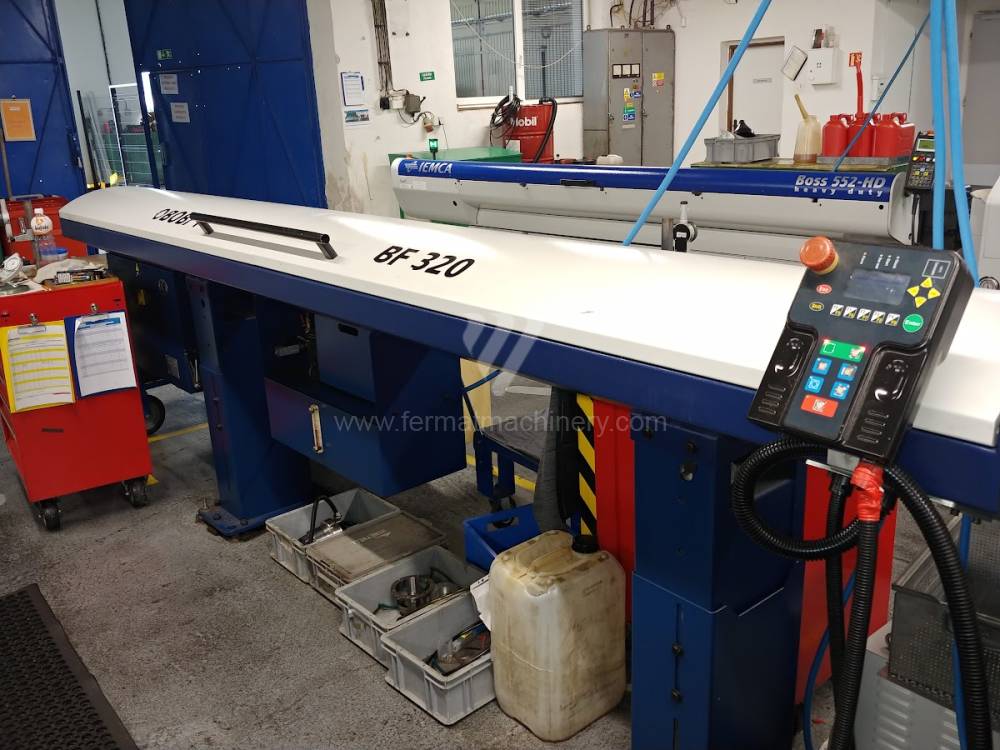

| Bar loader | YES |
| 0 - 12000 | |
| 3300 | |
| Machine dimensions l x w x h | 2100,0 × 1200,0 × 1900,0 mm |
Subject to change of technical parameters.
Description
number of axes: 6 linear + 2x C-axis
Range of cylindrical rod diameters (min./max.) - 3-20
Work piece length:
- fixed guide sleeve - 250 mm
- motorized guide sleeve - 210 mm
- without guide sleeve - 45 mm
Power of the main spindle drive - 2.2 / 3.7 kW
Spindle speed - 12,000 rpm.
Counterspindle drive power - 1.5 / 2.2 kW
Cross-section of the shank of turning tools - 16x16 mm
Rotational speed of driven tools - 8,000 rpm.
Drive power for tools driven on the front support - 0.75 kW
Drive power for tools driven on the rear support - 1 kW
Drive power of driven tools for processing the other side - 0.75 kW
Oil pan capacity - 165 liters
Oil pump power - 250W
Installed power - 14 kVA
Compressed air - min. 4 bar / 40 NL / min
Execution in accordance with the requirements - CE
Machine in good technical condition, possible testing under power.
