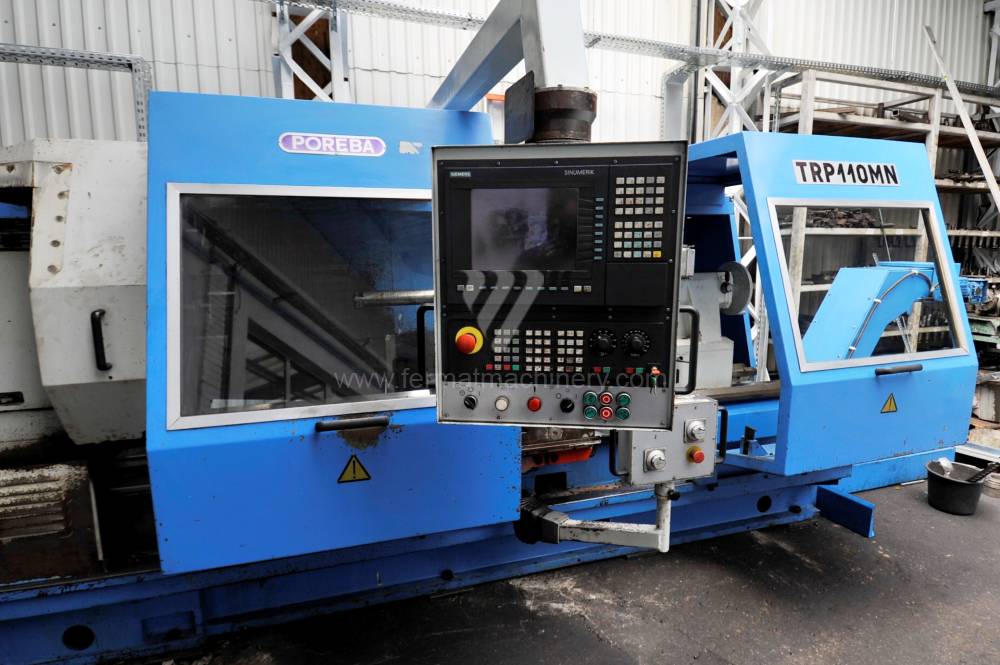

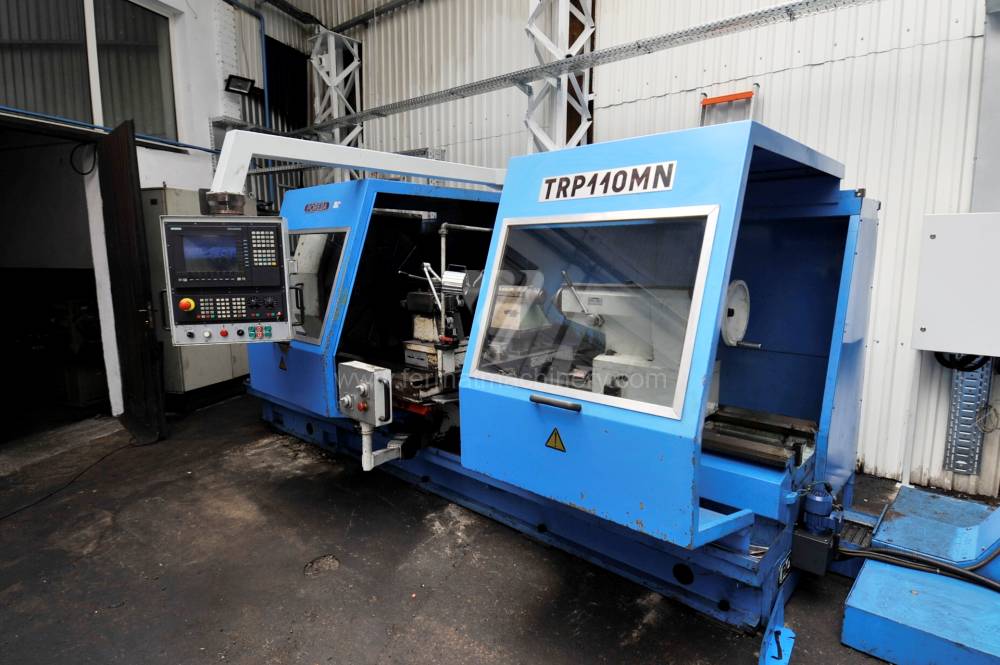

Lathes / CNC - diameter over 800 mm / TRP 110 MN/2000
-
Inventory number 211306
-
Machine type TRP 110 MN/2000
-
Producer Poreba
-
YOM 1999

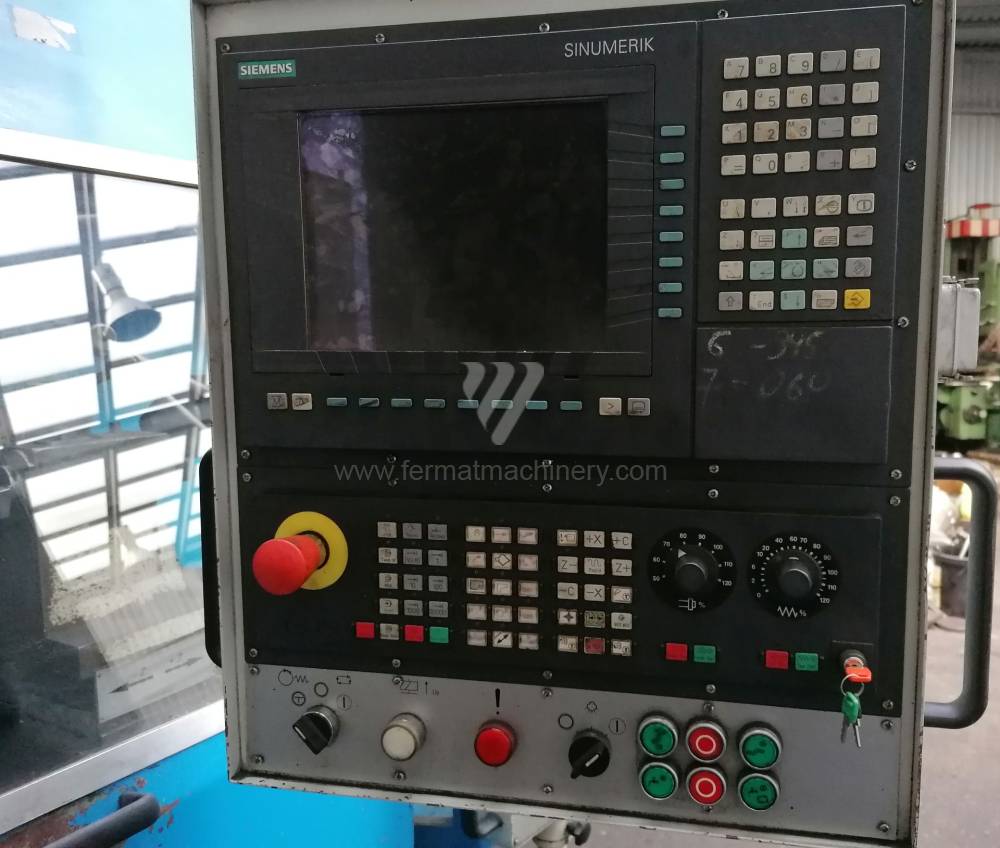

| Control system Siemens | Sinumerik 840 D |
| Turn table diameter | 1100 mm |
| Turning lenght | 2000 mm |
| Sloping bed | NO |
| Spindle bore | 95 mm |
| Turret head | NO |
| Max. weight of workpiece | 6000 kg |
| Swing over cross slide | 740 mm |
| Spindle speed | 8 - 800 /min. |
| Max. torque of spindle | 4700 Nm |
| Main motor power | 22-28 kW |
| Machine dimensions l x w x h | 3270x2735x2200 mm |
| Machine weight | 8800 kg |
Subject to change of technical parameters.
Description
The machine is functional, it can be retested.
Similar machines
| YOM: | 2007 |
| Control system | YES |
| Control system Heidenhain | Manual Plus M |
| Turn table diameter | 1050 mm |
| Turning lenght | 4000 mm |
| Sloping bed | NO |
| Spindle bore | 128 mm |
| Turret head | YES |
| Swing over cross slide | 730 mm |
| Swing over bed | 520 mm |
| Rapid feed | 5 m/min |
| Axis C | 0.001 ° |
SUA 100/4000
TOS Čelákovice
Inventory number: 231945
| YOM: | 2014 |
| Control system | YES |
| Control system Fanuc | 0i Mate - MD |
| Turn table diameter | mm |
| Turning lenght | 600 mm |
| Sloping bed | NO |
| Spindle bore | 180 mm |
| Turret head | NO |
| Max. length of workpiece | 600 mm |
| Max. diameter of workpiece | 1000 mm |
| Max. weight of workpiece | 3000 kg |
| Main motor power | 11 kW |
| Spindle speed | 2 - 160 /min. |
| Machine dimensions l x w x h | 3000x1500x1500 mm |
| Machine weight | 4000 kg |
SF-1000 CNC
YOU JI
Inventory number: 221185
| YOM: | 2002 |
| Control system | YES |
| Control system Mazatrol | 640 T |
| Machine dimensions l x w x h | 3680 x 2460 x 1740 mm mm |
| Spindle bore | 40 mm |
| Main motor power | 31 kW |
| Machine weight | 2720 kg |
| Travel Z-axis | 540 mm |
| Travel X-axis | 155 mm |
| Spindle speed | 1 - 6000 /min. |
QTN 10
MAZAK
Inventory number: 231705
| YOM: | 2008 |
| Control system | YES |
| Control system Fanuc | 18i-TB |
| Turn table diameter | 1480 mm |
| Turning lenght | 820 mm |
| Sloping bed | NO |
| Spindle bore | mm |
| Turret head | YES |
| Swing over cross slide | 830 mm |
| Spindle speed | 0 - 1170 /min. |
| Total input | 100 kVA |
| Machine weight | 33000 kg |
MACH 2/C
Avm Angelini
Inventory number: 241724
| YOM: | 2002 |
| Control system | YES |
| Control system ECS | 2402 |
| Turn table diameter | 815 mm |
| Turning lenght | 2000 mm |
| Sloping bed | NO |
| Spindle bore | 137 mm |
| Turret head | NO |
| Machine weight | 5800 kg |
| Machine dimensions l x w x h | 4625 x 2250 x 1795 mm |
| Travel X-axis | 450 mm |
