Lathes / Centre to diameter 800 mm / SUI 32A
-
Inventory number 261761
-
Machine type SUI 32A
-
Producer TOS Galanta
-
YOM 1990
| Swing over bed | 320 mm |
| Distance between centres | 1000 mm |
| Max. weight of workpiece | 210 kg |
| Swing over cross slide | 180 mm |
| Spindle speed | 45 - 2000 /min. |
| Main motor power | 4 kW |
| Machine dimensions l x w x h | 1930x1030x1535 mm |
| Machine weight | 1460 kg |
| Spindle bore | 38 mm |
Subject to change of technical parameters.
Description
Here is the translation of the listing into English, German, and Hungarian:
English
The machine is in good technical condition, connected, and available for testing.
Technical documentation,

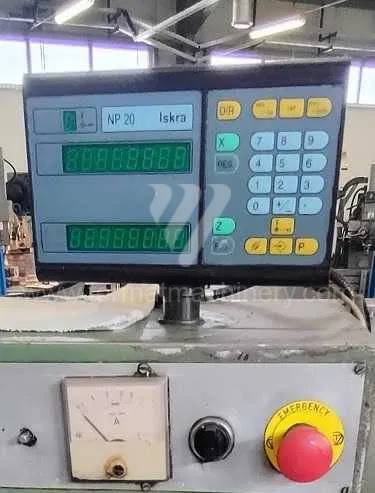

Digital readout (DRO),
Lathe chuck,
Tailstock,
Carriage / Compound rest,
Cooling system,
Basic accessories
– From small-series to custom production.

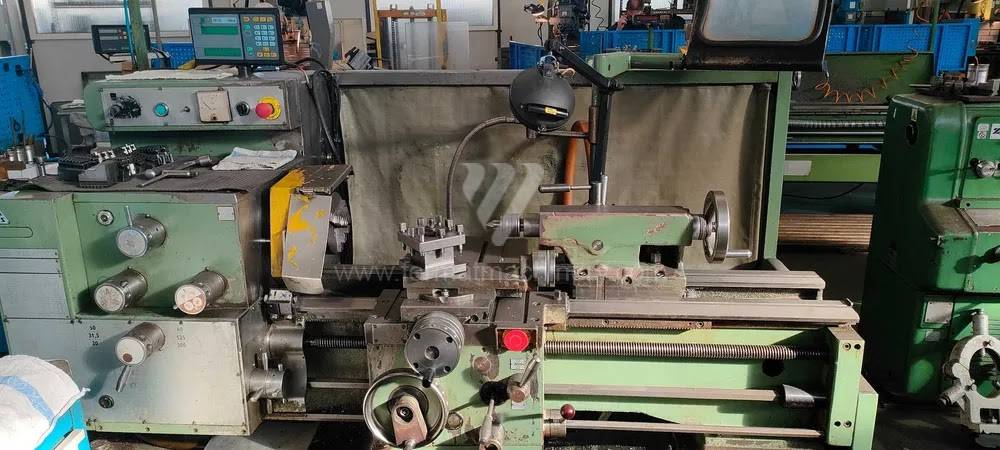

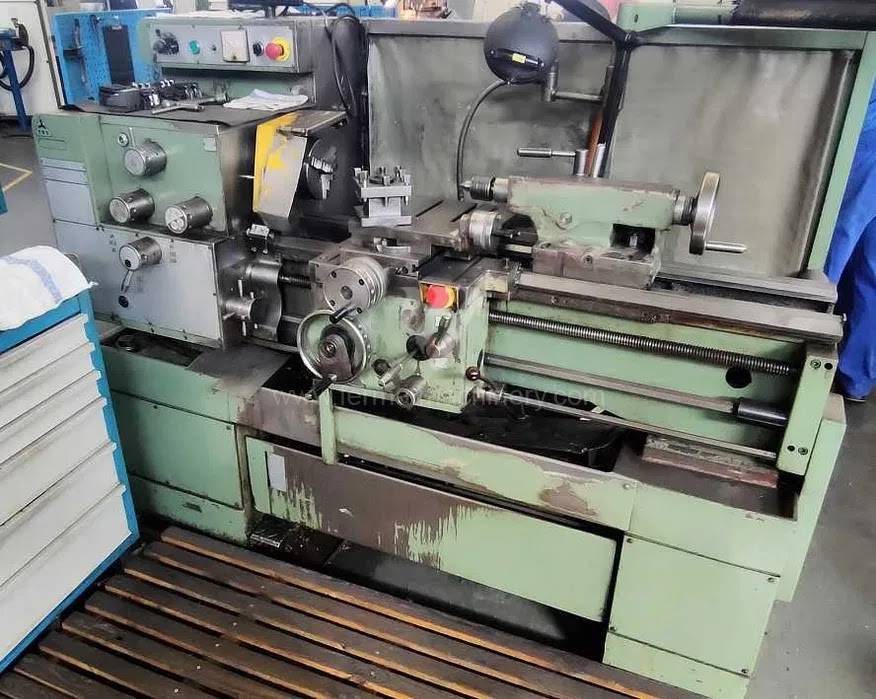

The TOS Galanta SUI 32A conventional center lathe represents a versatile solution for the precise machining of workpieces in single-piece and small-series production or maintenance workshops. It offers a stable construction, high operational reliability, and intuitive control. The machine on offer is connected with the option to test and is in good technical condition. It includes rich equipment comprising digital readout, chuck, tailstock, carriage, cooling system, basic accessories, and technical documentation.
