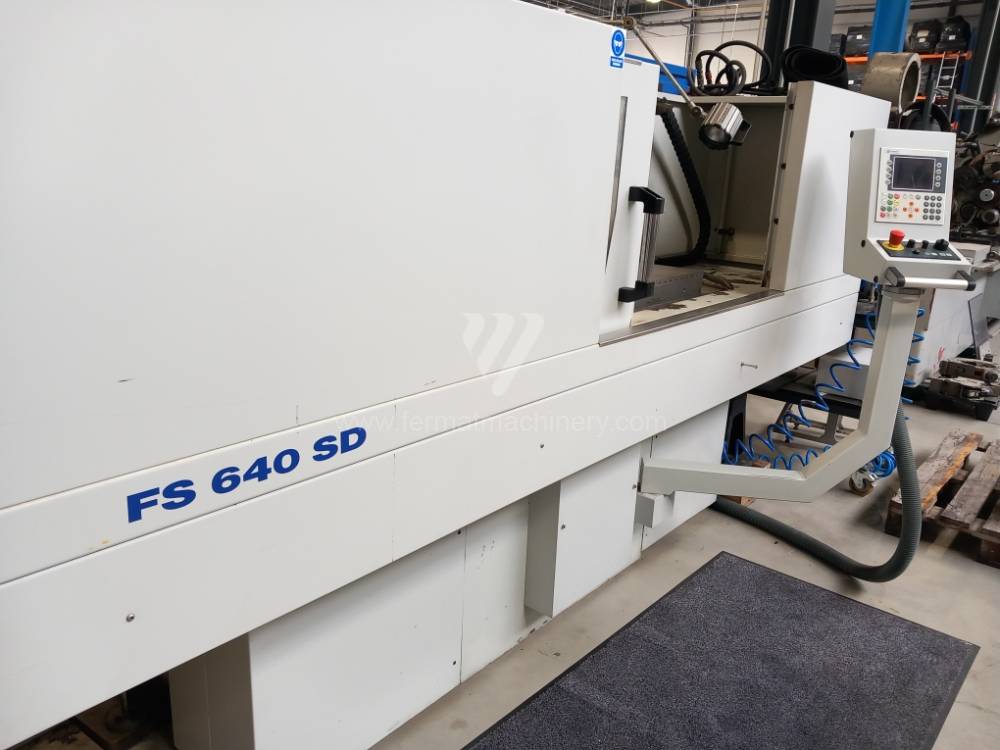

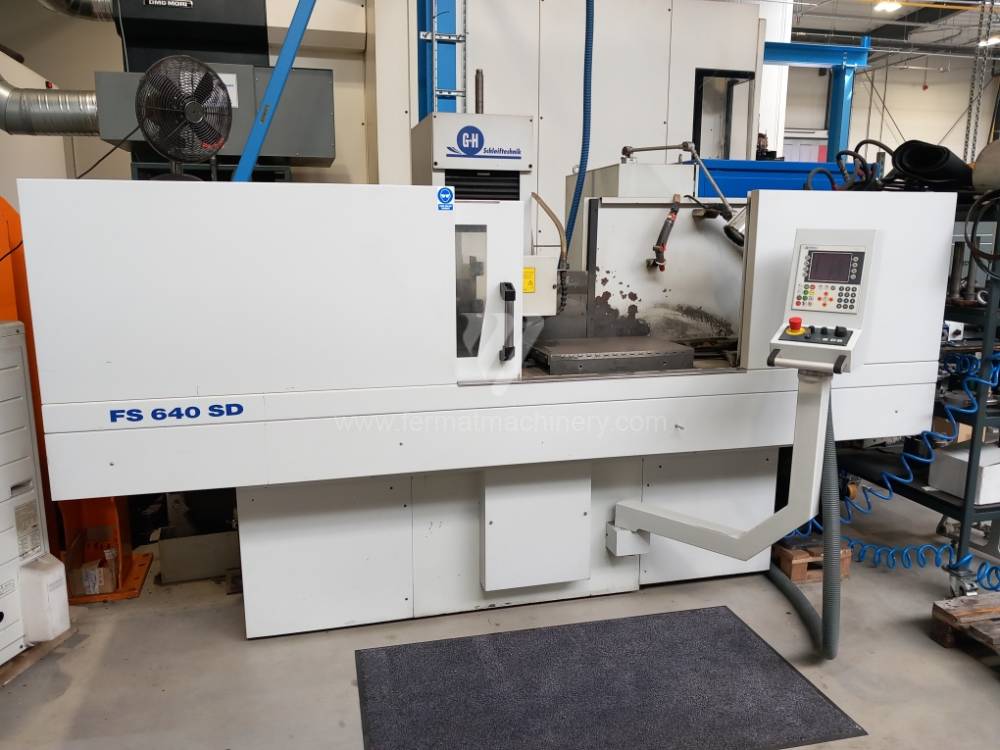

Grinding machines / Surface / FS 640 SD
-
Inventory number 252029
-
Machine type FS 640 SD
-
Producer Geibel & Hotz
-
YOM 2015
| Max. length of grinding | 600 mm |
| Max. width of grinding | 400 mm |
| Max. workpiece height | 375 mm |
| Spindle bearing grinders | Horizontální |
| Main motor power | 3,7 kW |
| Machine dimensions l x w x h | 3000x28002500 mm |
| Table dimensions | 600x400 mm |
| Grinding spindle speed | 0 - 1400 /min |
| X axis travel | 5-35000 mm/min |
| Max. diameter grinding wheel | 50 mm |
| Max. diameter of grinding wheel | 300 mm |
Subject to change of technical parameters.
Description
The machine is in very good condition.
Equipment and additional features:
-Electromechanical table drive

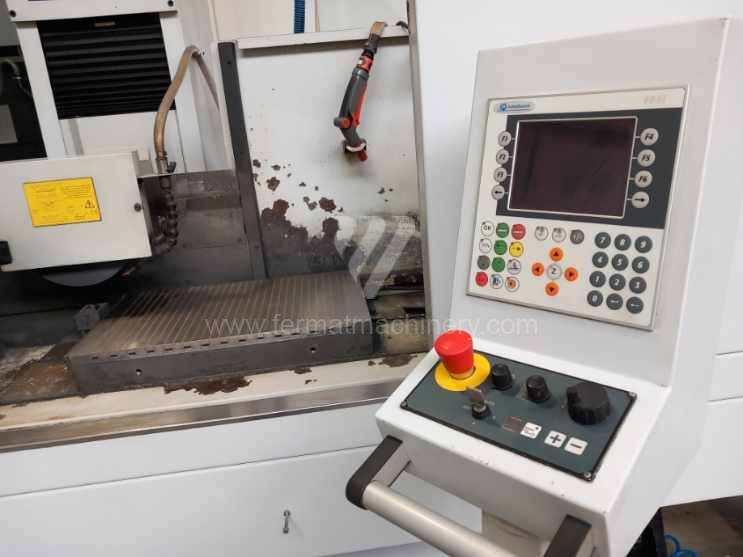

-Comfort SD control panel
-Automatic lubrication system
-Stable, low-vibration cast construction
