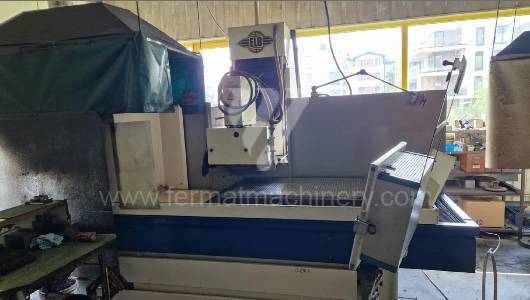

Grinding machines / Surface / BD 10 SPS
-
Inventory number 261176
-
Machine type BD 10 SPS
-
Producer ELB-SCHLIFF
-
YOM 2004
| Max. length of grinding | 1000 mm |
| Max. width of grinding | 600 mm |
| Max. workpiece height | 4000 mm |
| Spindle bearing grinders | Horizontální |
| Main motor power | 10 kW |
| Max. load of table | 1000 kg |
| Grinding spindle speed | 0 - 1500 /min |
| Machine dimensions l x w x h | 3550x2320x2660 mm |
Subject to change of technical parameters.
Description
Machine is in good condition.
Lubrication: Solid grease lubrication

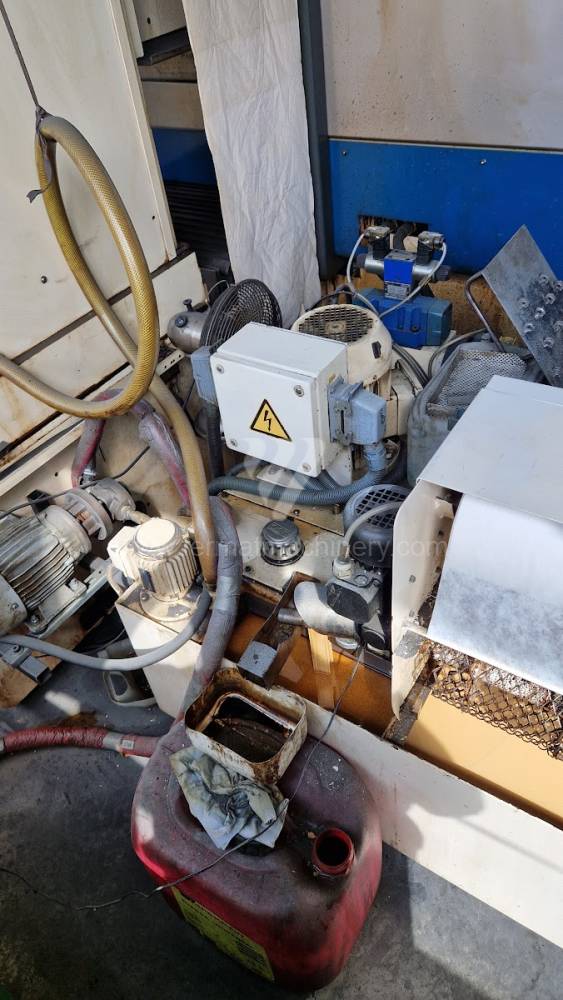

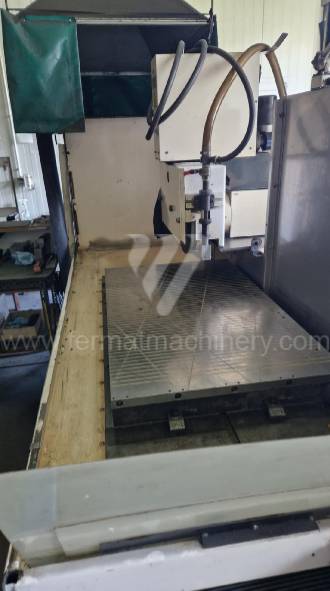

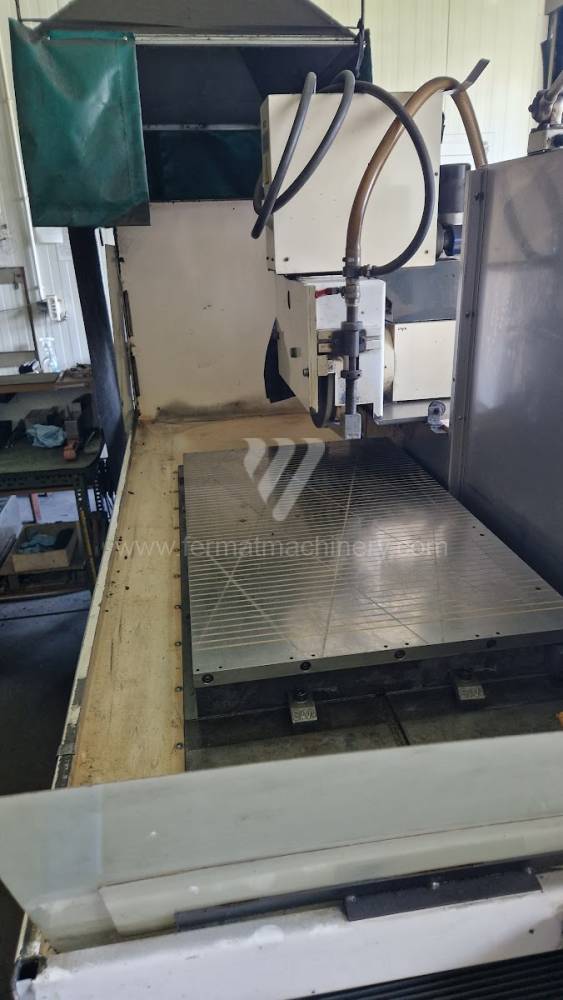

Electric magnetic clamping plate 1000 x 750 mm. Coolant system with paper belt filter
Cleaning capacity: 80 l/min, filter density: 16-25 µm, filter paper width: 710 mm
Machine dimensions: Length: 3550 mm x Width: 2320 mm x Height: 2660 mm
Machine weight: 6300 kg
